THÔNG TIN SẢN PHẨM

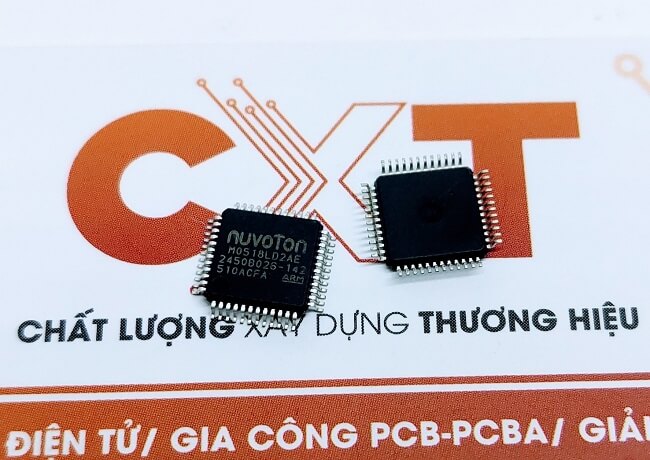

M0518LD2AE IC MCU 32BIT 68KB FLASH 48LQFP
Thương hiệu: Nuvoton Tech
Datasheet: https://www.nuvoton.com/resource-files/DS_M0518_Series_EN_Rev1.01.pdf
Loại hàng: Chính hãng - Hàng chưa qua sử dụng do chính hãng sản xuất cùng một mã lô. - Hình thức: Mới, đóng gói đúng qui cách - Chất lượng: Đúng như tài liệu mà hãng cung cấp - Bảo hành: Đền bù nếu sản phẩm lỗi
-----------------------------------------------------------------------------
M0518 series is a 32-bit microcontroller with embedded ARM® Cortex™-M0 core for industrial control and applications which need rich communication interfaces. M0518 series MCU can run up to 50MHz, has 64-byte flash, 4K-byte data flash, 4K-byte flash for the ISP, and 8K-byte SRAM. Many system level peripheral functions, such as PWM up to 24 channels, I/O port, Timer, 6 sets UART, SPI, PWM, ADC, Watchdog Timer, and Brown-out Detector.
Target Application:
LED Control, Industrial Control, Motor Control, etc.
Key Features:
- Core - Cortex-M0 processor - Max frequency of 50 MHz - Operating voltage: 2.5V to 5.5V - Temperature range: -40℃ ~ 105℃
- Memory - 68 KB flash for program memory - Provide 8KB SRAM - Configurable Data Flash - Support ISP (In-System Programming) - Support ICP (In-Circuit Programming)
- ADC - Up to 8 channels - 12-bit resolution - Up to 1 MSPS - ±1℃ accurate Temperature sensor
- PWM - Up to 24 channel PWM outputs or four complementary paired PWM outputs - Support Capture interrupt
- Connectivity - Up to 1 SPI (up to 36 MHz) - Up to 2 I²C (up to 400 kHz) - Up to 6 UART (up to 1 Mbps)
- Clock Control - 4 to 24 MHz external crystal oscillator - Internal 22.1184 MHz (1% accuracy at 25℃, 5V)
- Package - LQFP48 (7x7mm)
Documents
-----------------------------------------------------------------------------
