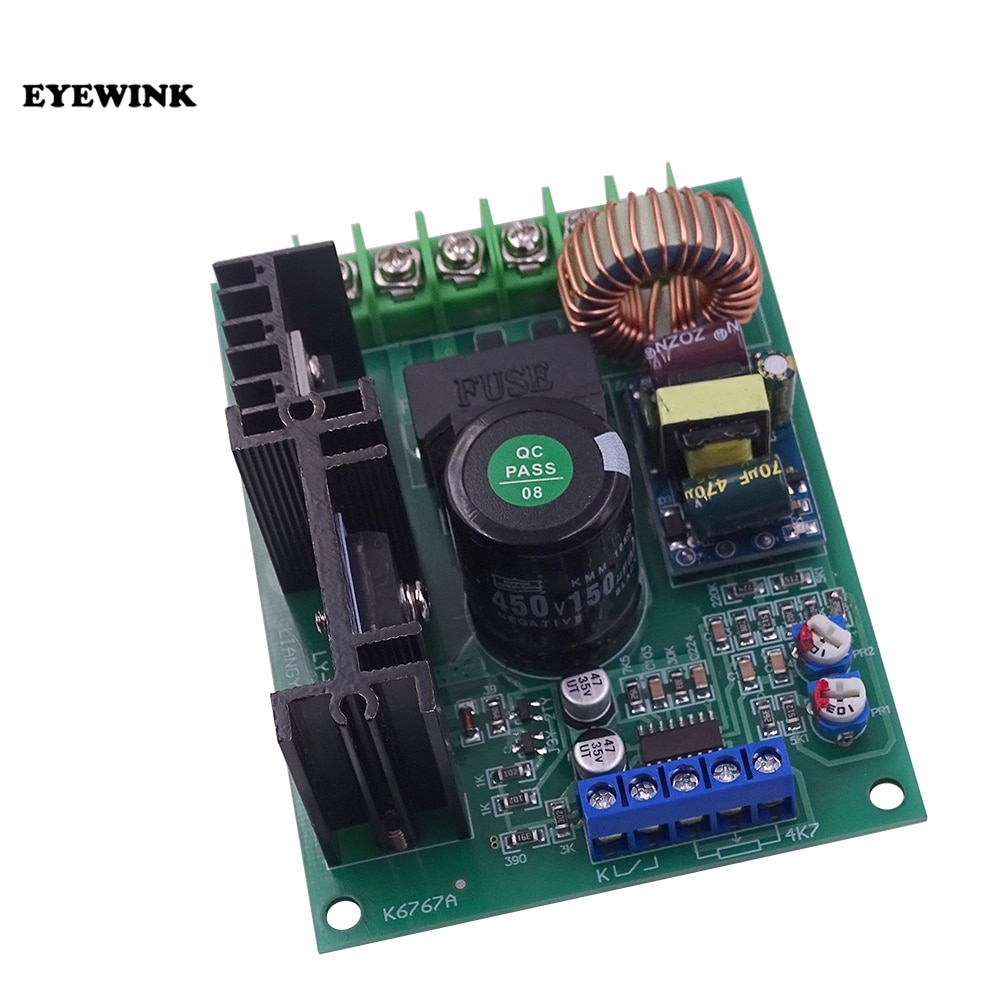

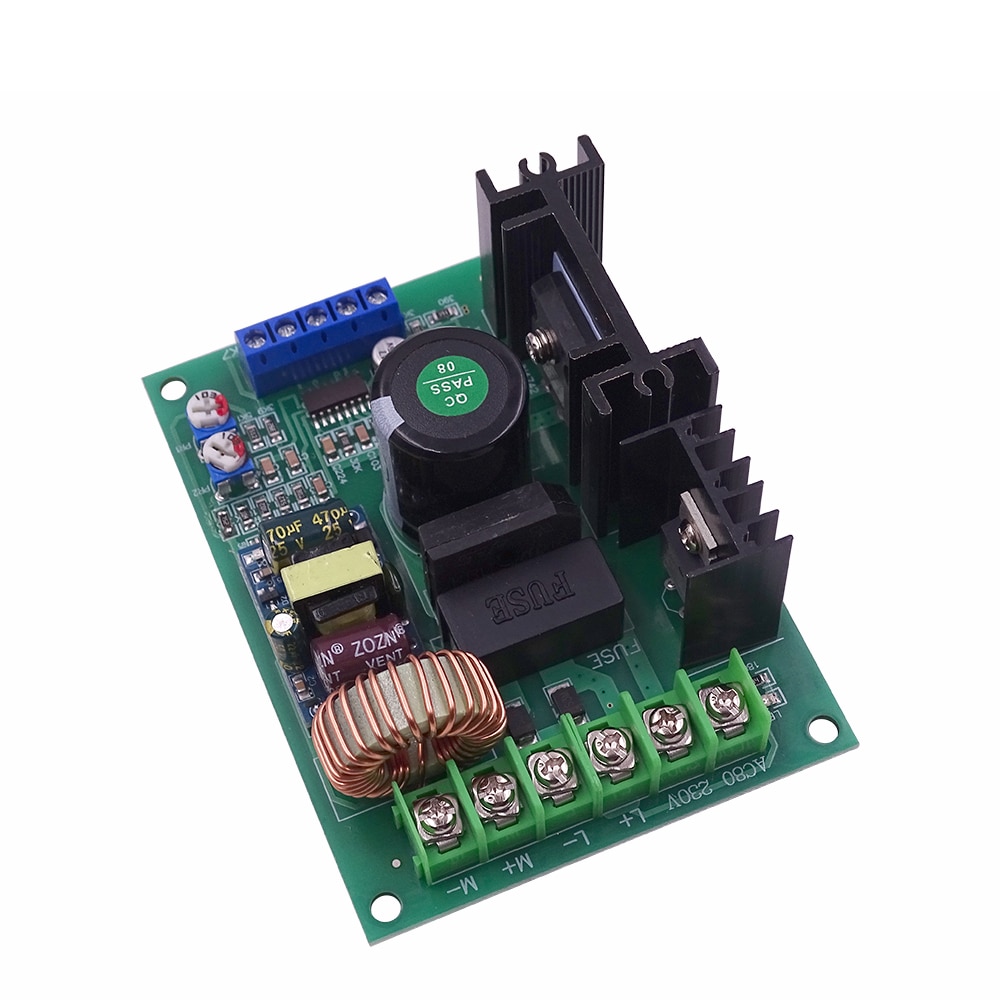

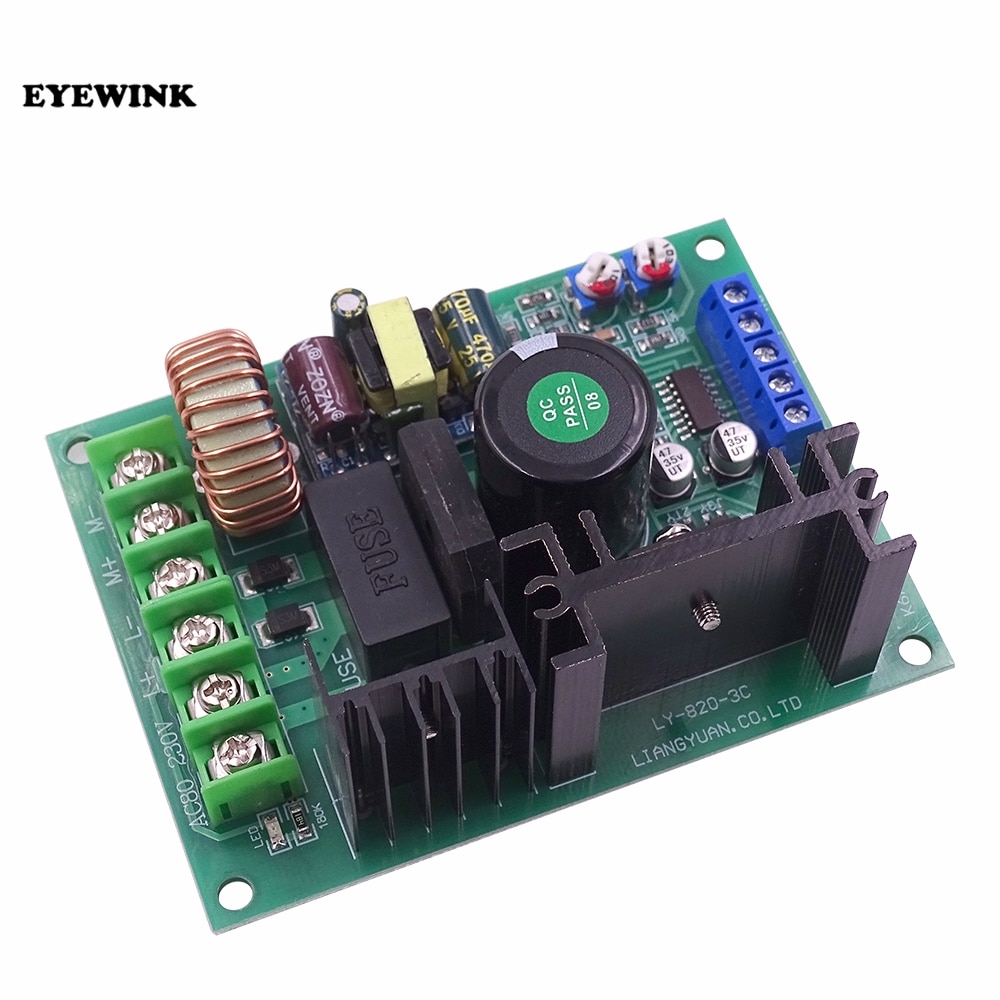

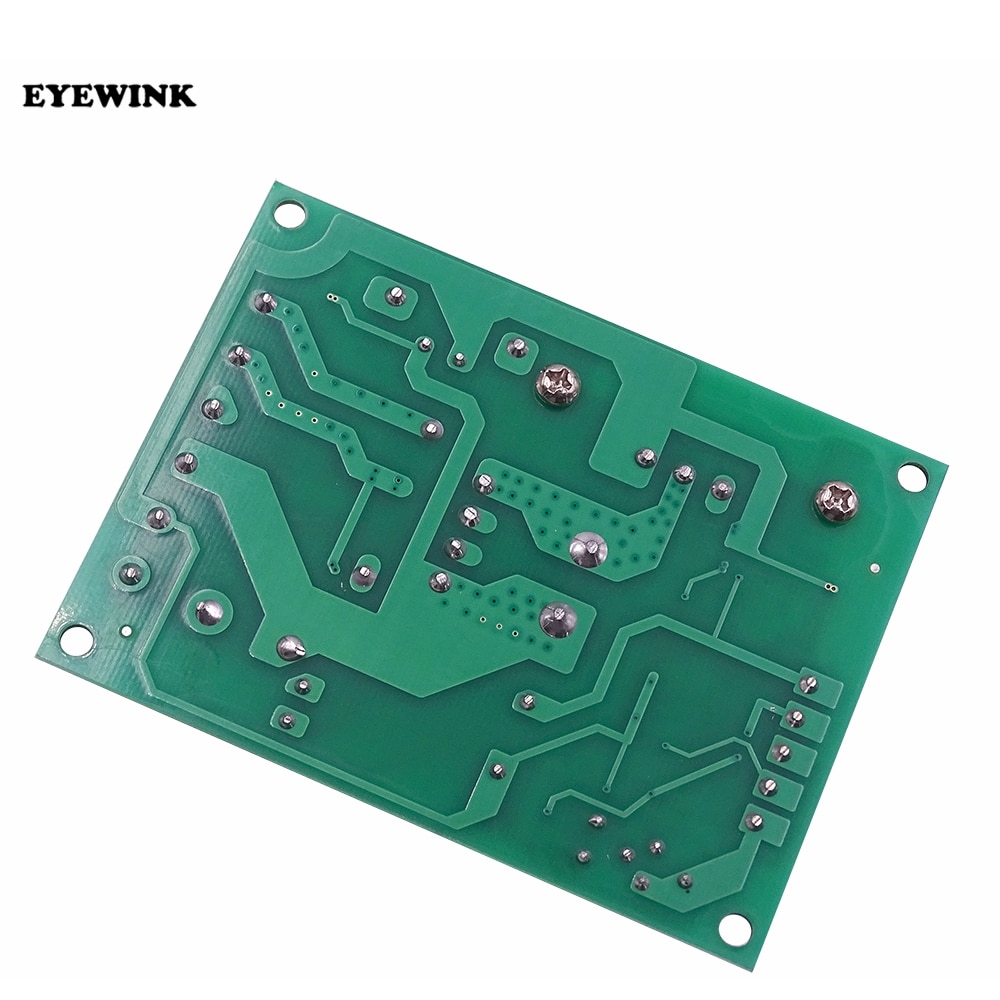

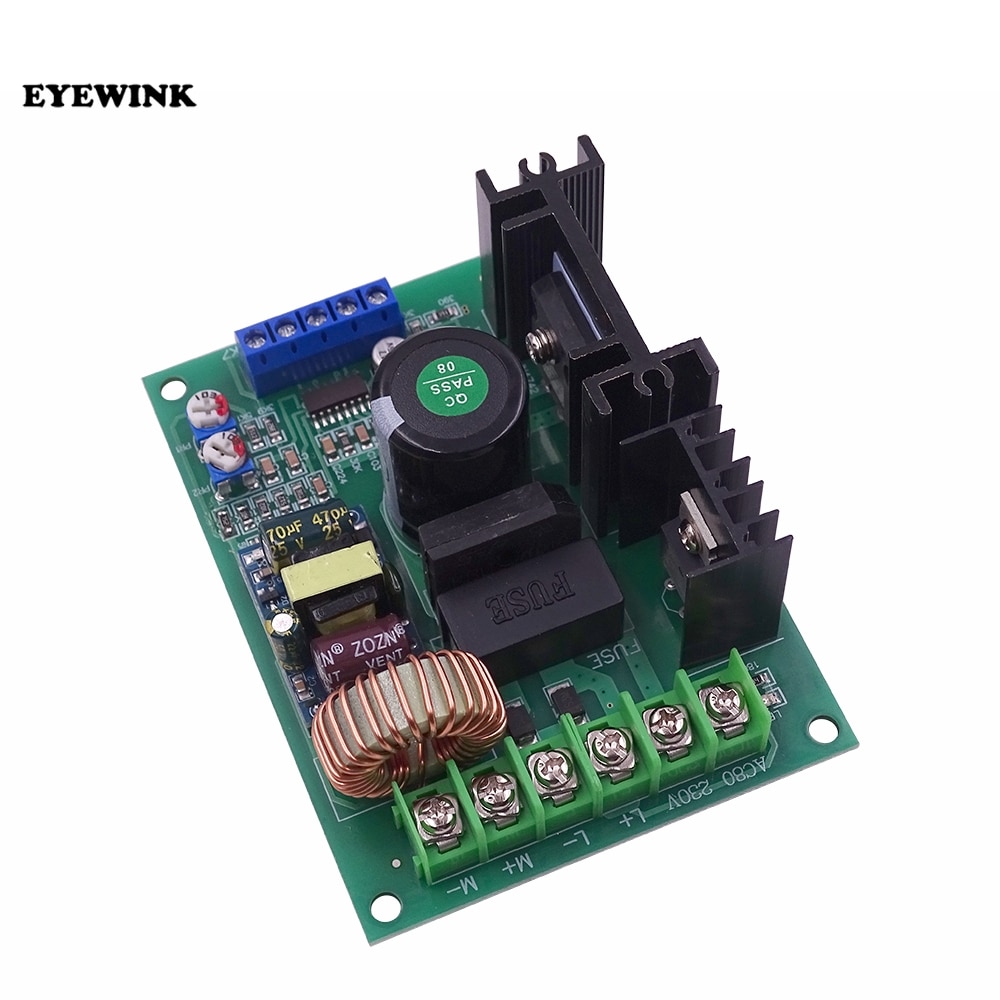

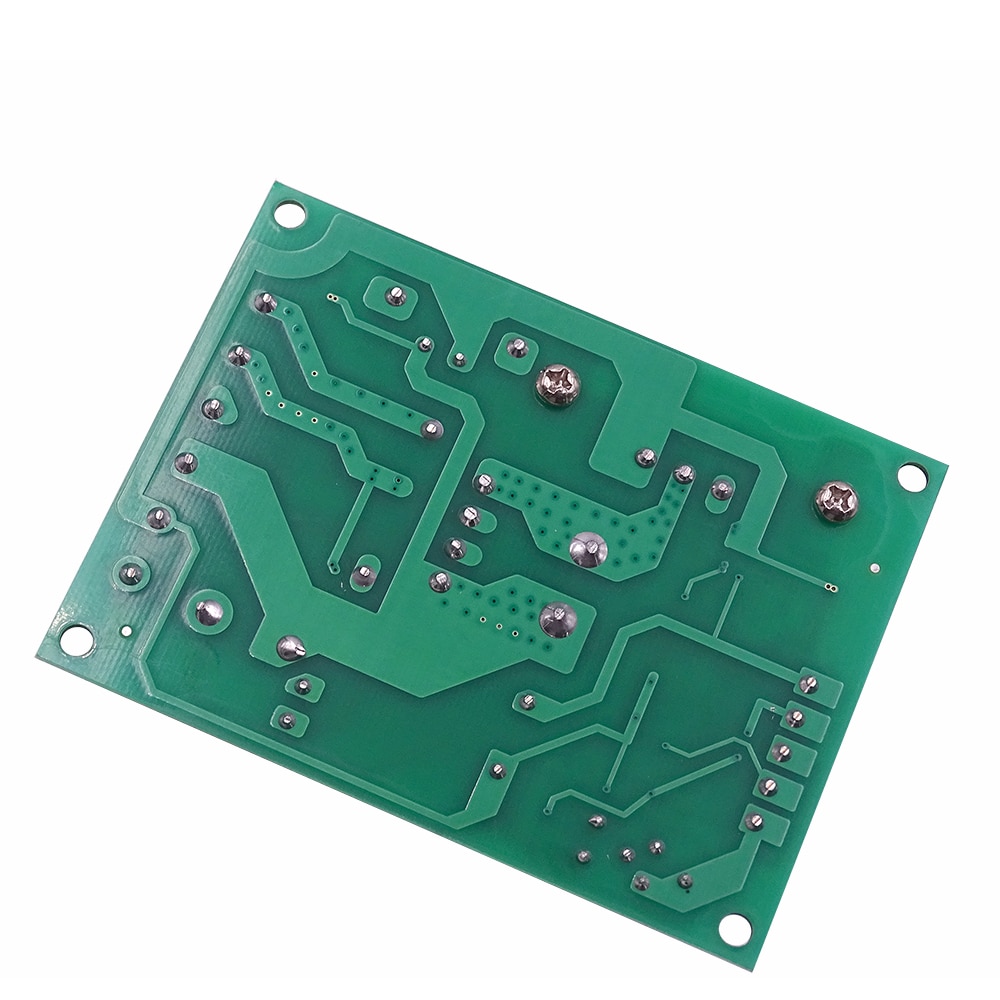

LY-820 PWM 110V220V DC Permanent Magnet Motor Governor Drive Module Controller Board

• is_customized:Yes
• Model Number:LY-820 PWM
• Dissipation Power:5W-800W
• Supply :220v
• Condition:New
• Type:Logic ICs
• Origin:Mainland
• Unit Type:piece
• Package Weight:0.5kg (1.10lb.)
• Package Size:15cm x 15cm x 5cm (5.91in x 5.91in x 1.97in)

First, technical parameters:

1, Scope of application: less than 750W DC permanent magnet, excitation motor motor universal

2, input : AC 110V-220V 50/60Hz

3, output power: peak 750W when AC 220V input; peak 300W when AC 110V input

4, excitation : when AC220V input, excitation terminal L+ L- is DC 205VDC

        When the AC 110V is input, the excitation terminal L+ L- is DC 95VDC.

5, armature : When AC220V input, the armature end M+M- is arbitrarily adjustable from 0-220VDC

When AC110V is input, the armature terminal M+M- is arbitrarily adjustable for DC 0-110VDC.

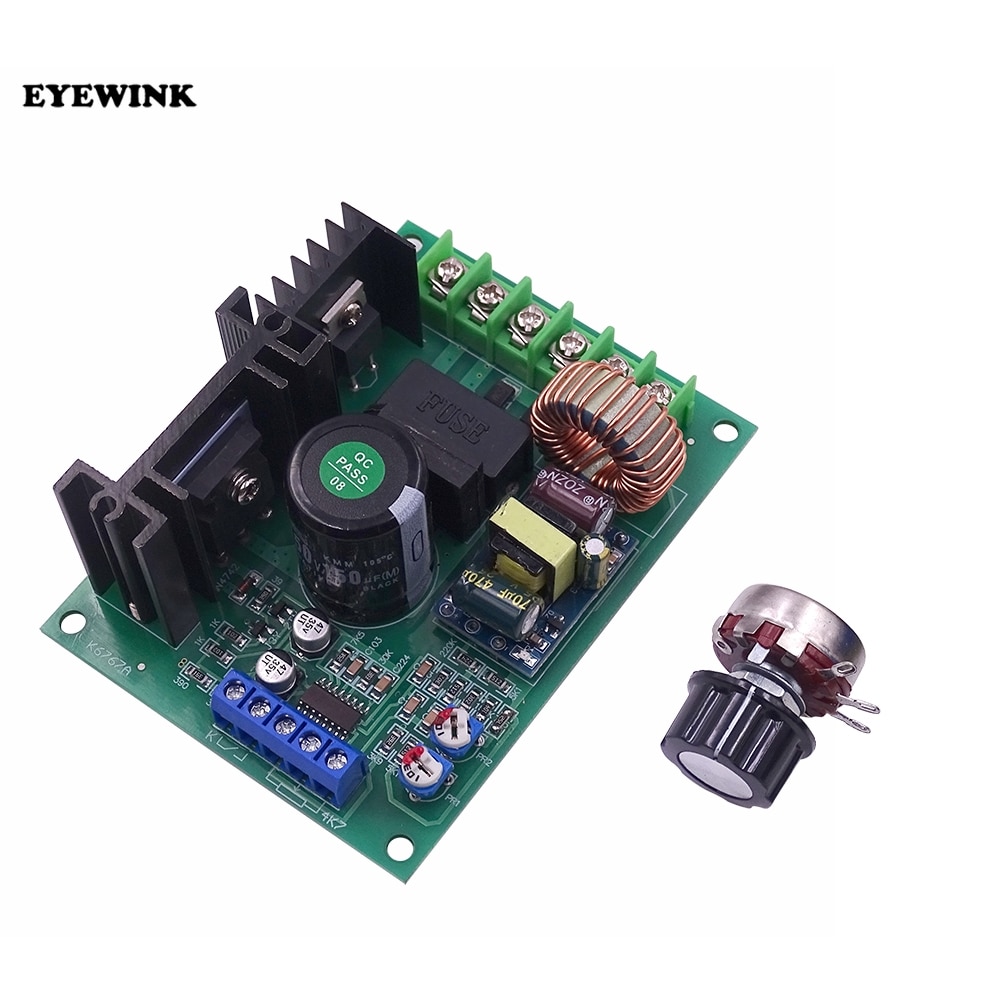

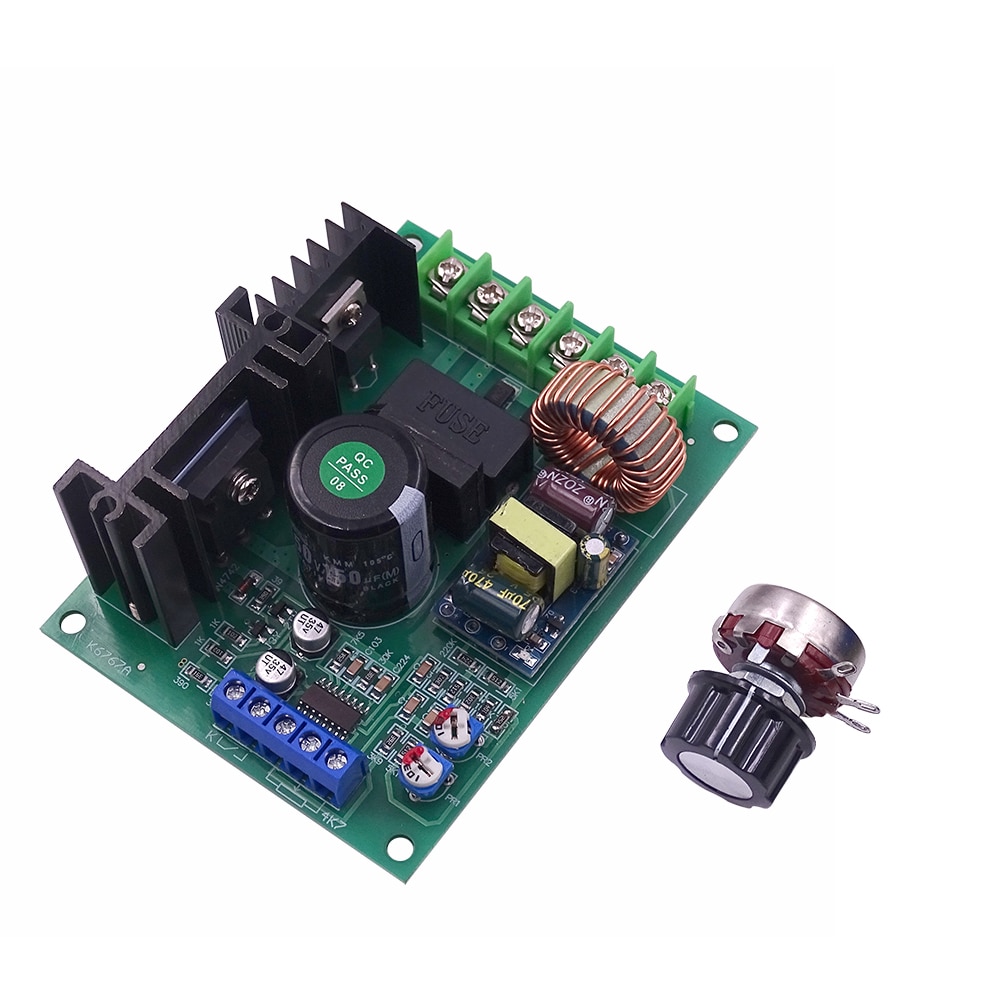

6, potentiometer matching value: 4.7KΩ 2W

7, the terminal is marked as K: character K two terminals, is the start and stop switch, no need to try direct wire connection

8, the external three-dimensional size: length 110MM, width 75MM, height 35MM

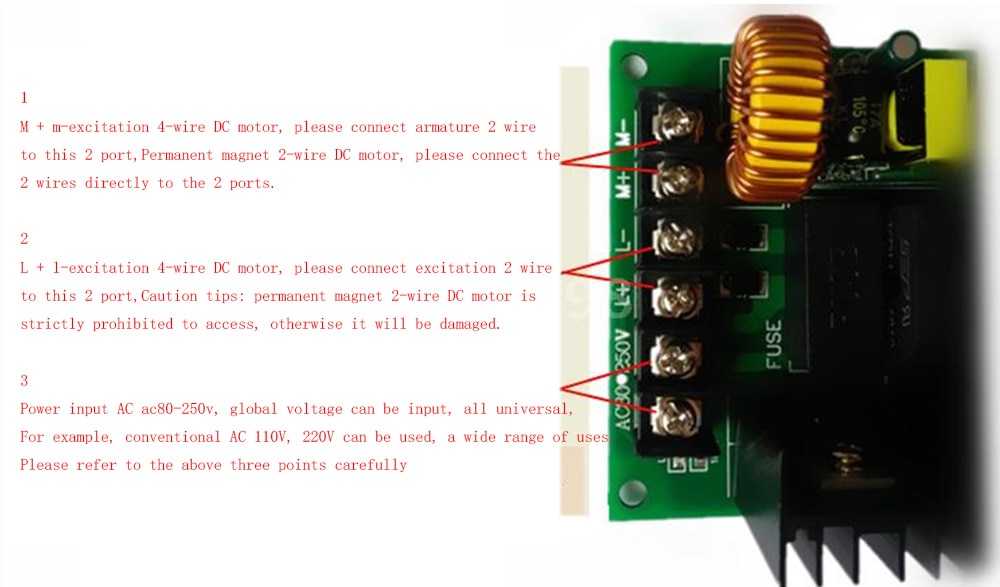

Second, the wi is used:

1, permanent magnet DC motor motor (motor lead wire is 2 lines):

Controller, M+M- is connected to the motor; at this time, L+L- is empty, remember not to connect any other line.

2, excitation DC motor motor (motor lead wire is 4 wires):

Controller, M+M- is connected to the motor armature; L+ L- is connected to the motor excitation. Note that the two are not reversed.
