Loa kiểm âm M-Audio BX5 Carbon

CHI TIẾT SẢN PHẨM

Tên thiết bị:  Loa kiểm âm M-Audio BX5 Carbon Monitor - Two-Way Studio Monitor with 5" Woofer (cặp)

Model:   BX5CARBONXUS

Thương hiệu:  M-Audio

Tình trạng: hàng mới, chính hãng 100%

---

Product Highlights

• 5" Woven Kevlar Woofer
• 1" Silk Dome Tweeter
• Bi-Amped A/B 40W LF and 30W HF Amplifier
• Waveguide with LED Placement Cues
• Acoustic Space Control
• 56 to 22,000 Hz Frequency Response
• XLR and TRS Input Connectors



Overview:



The M-Audio BX5 Carbon Monitor - Two-Way Studio Monitor with 5" Woofer can be used for home studio recording and mixing. The monitor utilizes a 40W powered 5" Kevlar woven woofer and a 30W powered 1" silk dome tweeter to deliver a frequency response of 56 to 22,000 Hz with a signal to noise ratio of 100 dB.

The monitor's class A/B amplifier helps provide a flat frequency response with low noise to enable you to mix a wide variety of modern music styles. The tweeter output is sent through a waveguide to improve stereo imaging and pinhole mounted LED placement cues can help you place the monitor in relation to the optimal listening position.

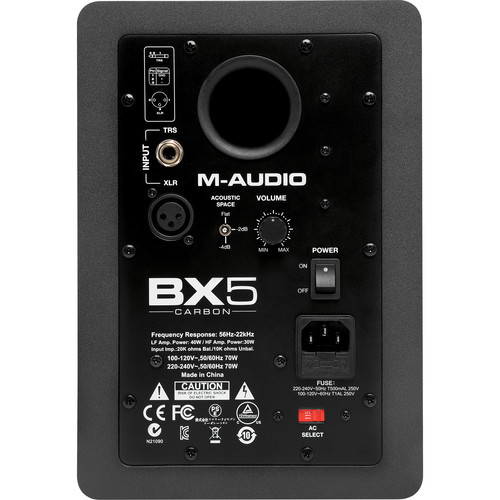

A series of acoustic control calibration switches on the back of the unit allow the response of the monitor to be adjusted to different acoustic environments such as bedroom home studios or professionally treated facilities. Both XLR and TRS inputs are available for connection to your audio interface.





Specifications:

Type	2-way near-field studio reference monitor
LF Driver Size	5" (127 mm) Kevlar curved cone with high temperature magnetically shielded voice coil and damped rubber surround
HF Driver Size	1" (25 mm) magnetically shield natural silk dome
Frequency Response	56 to 22,000 Hz
Crossover Frequency	2,800 Hz
LF Amplifier	40 W
HF Amplifier	30 W
Signal to Noise Ratio	100 dB typical A-weighted
Input Connectors	1x XLR balanced input 1x TRS balanced/unbalanced input connector
Polarity	Positive signal at + input produce outward LF cone displacement
Input Impedance	20 kΩ balanced 10 kΩ unbalanced
Input Sensitivity	85 mV pink noise produces 90 dBA output SPL at 1 meter with volume control at maximum
Protection	RF interference Output current limiting Over temperature Turn on/off transient Subsonic filter External mains fuse
Indicators	Power on.off indicator on rear panel
Power Requirements	Factory-programmed for 115 V ~50/60 Hz, 230 V ~50/60 Hz, or 100 V ~50/60 Hz
Cabinet	Vinyl-laminated high-acoustic-efficiency MDF
Dimensions (H x W x D)	9.8 x 6.9 x 7.9" (250 x 176 x 200 mm)
Weight	11 lb (5.0 kg)

Packaging Info
Package Weight	12.85 lb
Box Dimensions (LxWxH)	14.1 x 12.1 x 10.5"
