Loa JBL EON 206P

Professional Audio Made Simple

The EON206P is a self-contained, portable PA system featuring multiple input channels with individual tone controls, reverb and convenient sound output capabilities that allow the user to integrate the system into any number of audio environments. With its lightweight and ergonomic design, the EON206P is an easy to use, lightweight package with un-compromised sound quality. Whether you’re a musician, singer, DJ, teacher or anyone in need of a truly compact and portable system, the EON206P has all the features you need to deliver your message.

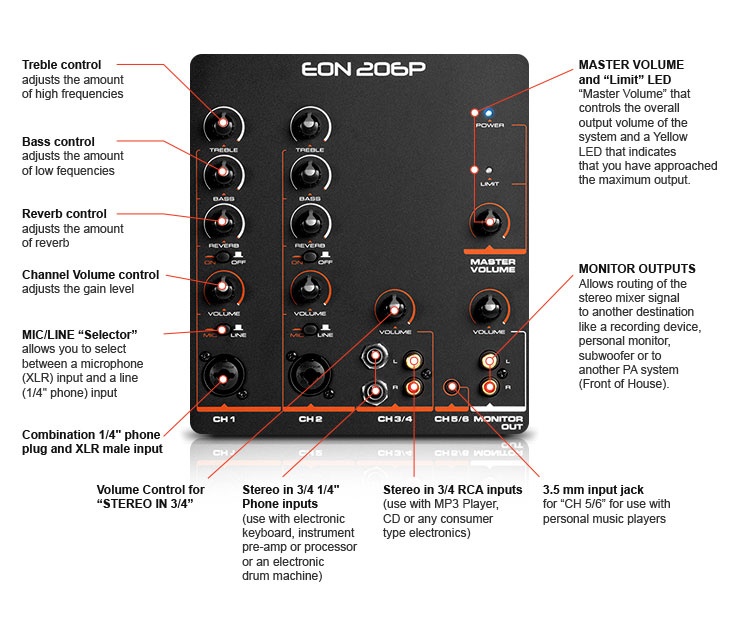

CONTROL

Large volume control knobs for easy usage and high visibility even in dimly lit rooms. Mixer stands vertically for easier access.

PERFORMANCE

Unparalleled audio quality in its class. JBL heritage loud speakers deliver their legendary sound.

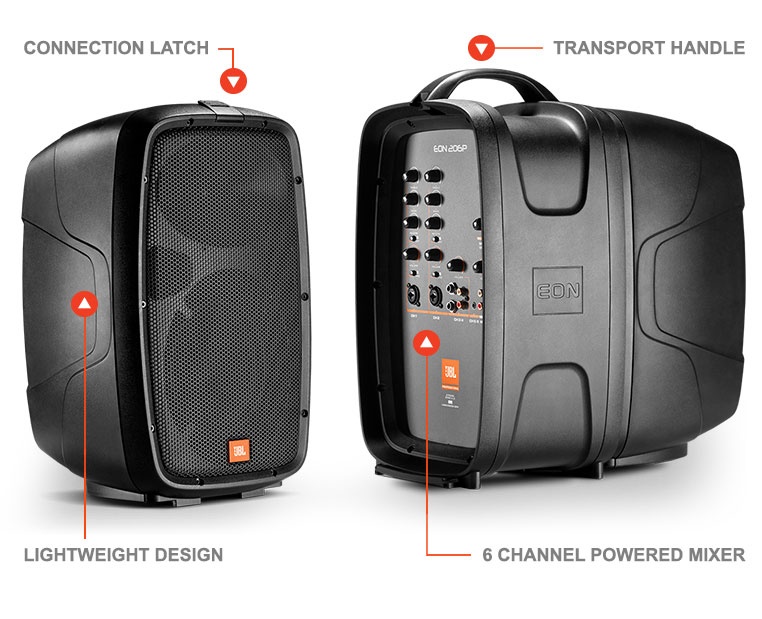

PORTABILITY

Ergonomic design makes the EON206P easy to carry, travel, setup and store.

∧

The EON206P is light enough to carry in one hand. The powered mixer panel and dual full ranged speakers, combine to form a convenient suitcase-like package. Complete with power and connection cables that go into their own storage space designed to neatly tuck them into when your done. Weighing in at only 25lbs, anyone can juggle an instrument and our personal p.a. system at the same time. Perfect for cafes, parties, churches, conferences, small groups and more.

∧

System Type:

2 Self powered 6.5”,

Max SPL Output:

113 dB

Frequency Range (-10dB):

64Hz – 22kHz

Frequency Response (-3dB):

77Hz – 20kHz

Coverage Pattern:

100° x 80°

Ampli?er Design:

Class D

Power Rating:

160 W (2 X 80W)

Package Dimentions (mm):

530 x 705 x 340

(H x W x D) (in):

20.9” X 27.8” x 13.4”

Net Weight:

11.38 kg (25 lbs)

Input Connectors:

6 inputs (2 Mono Mic/Line, 2 x Stereo)

Channels:

1-2 are XLR / 1/4” jack combo connectors

Input Impedance:

Ch 1-2 Combo: XLR 40 K Ohms Balanced

Output Connectors:

Monitor outputs:

Signal Indicators:

Limit:

EQ:

Individual channel Bass and Treble controls, center detent, +/-12 dB cut and boost

System Limiter:

On Board DSP Limiting and Tuning
