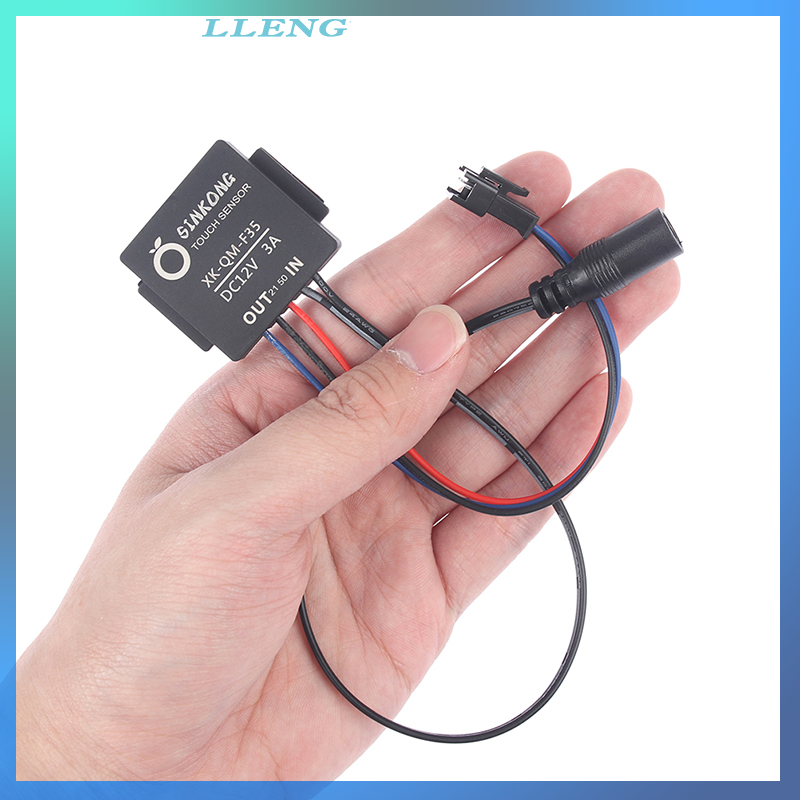

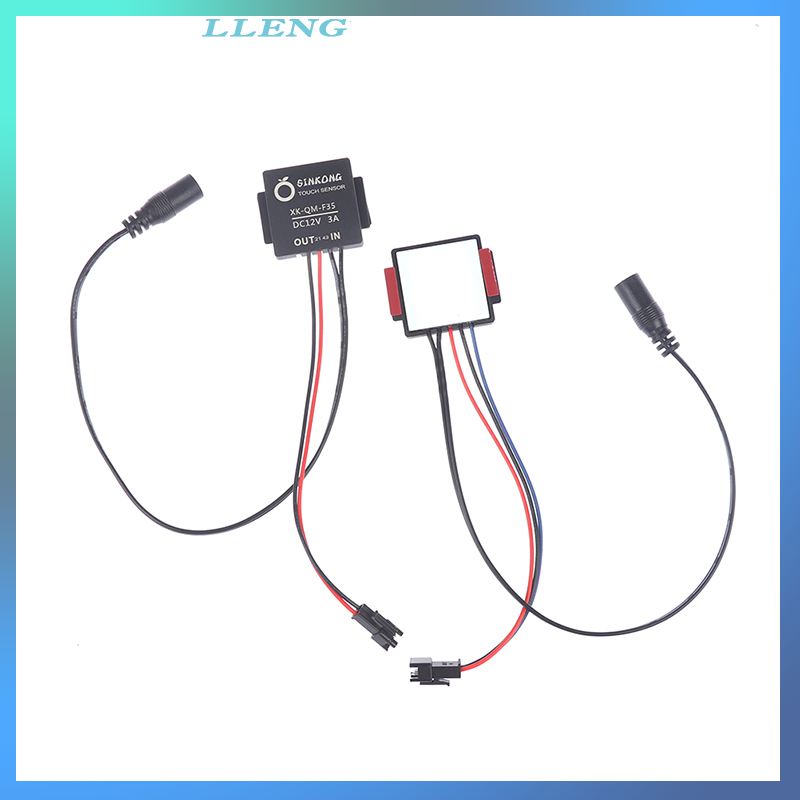

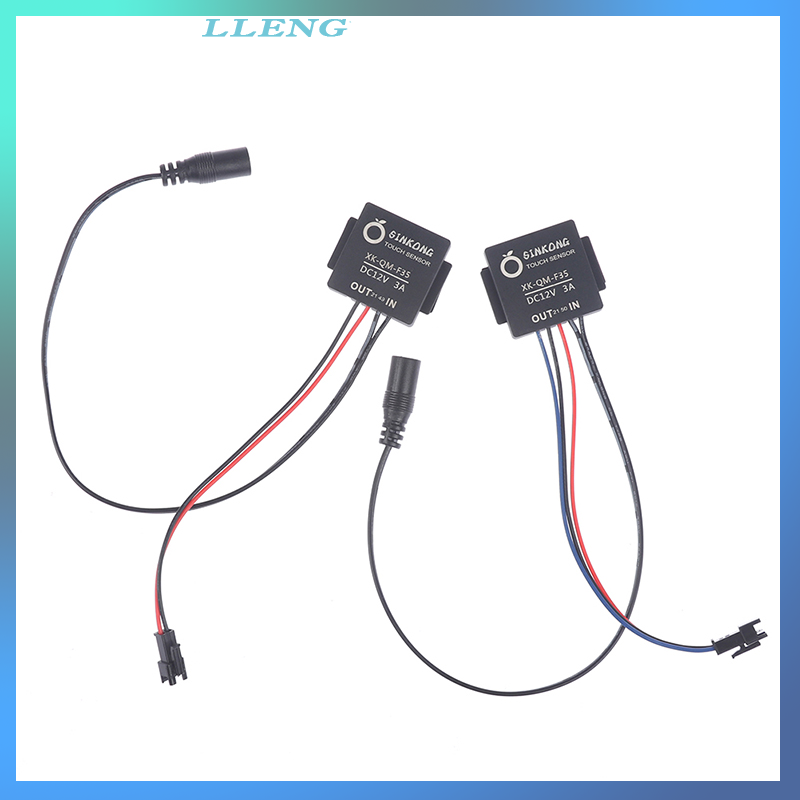

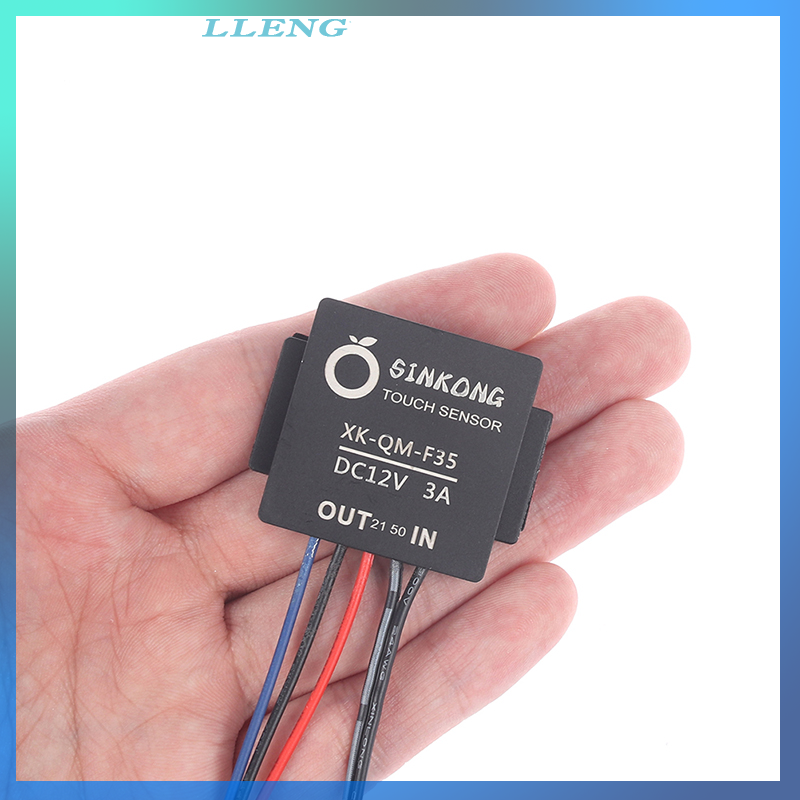

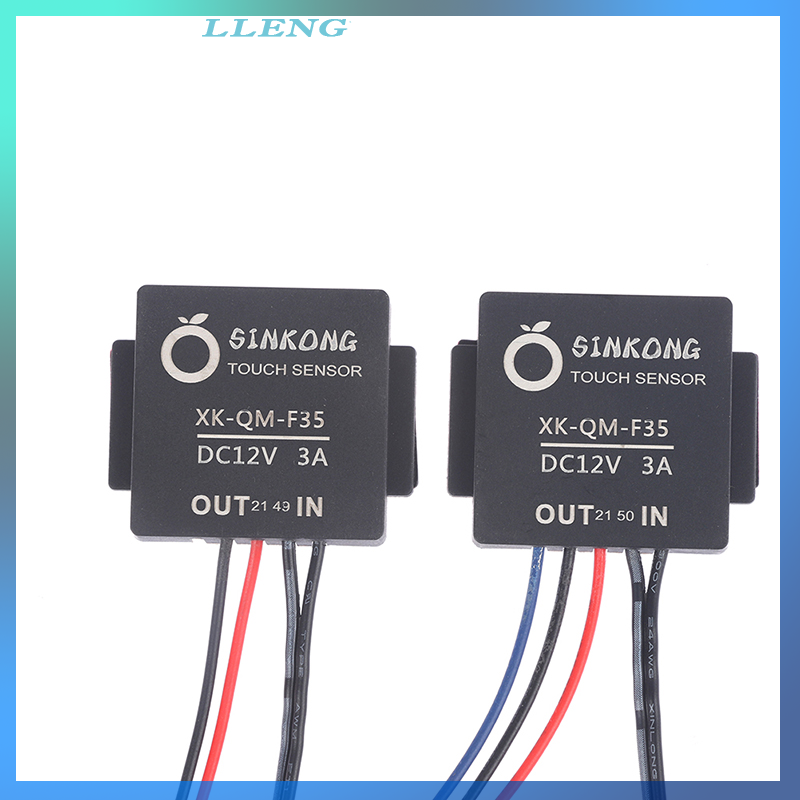

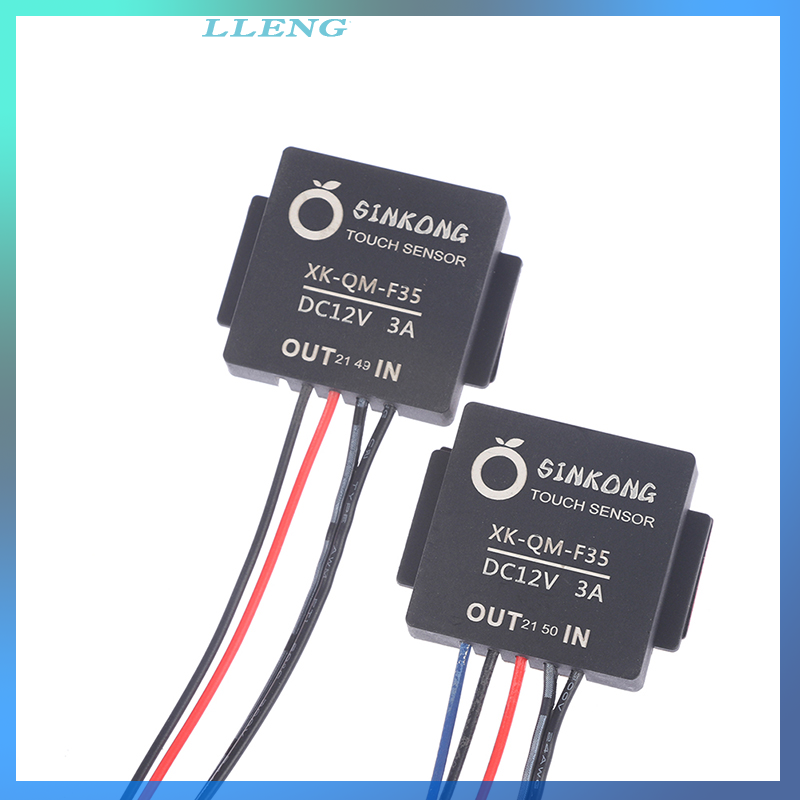

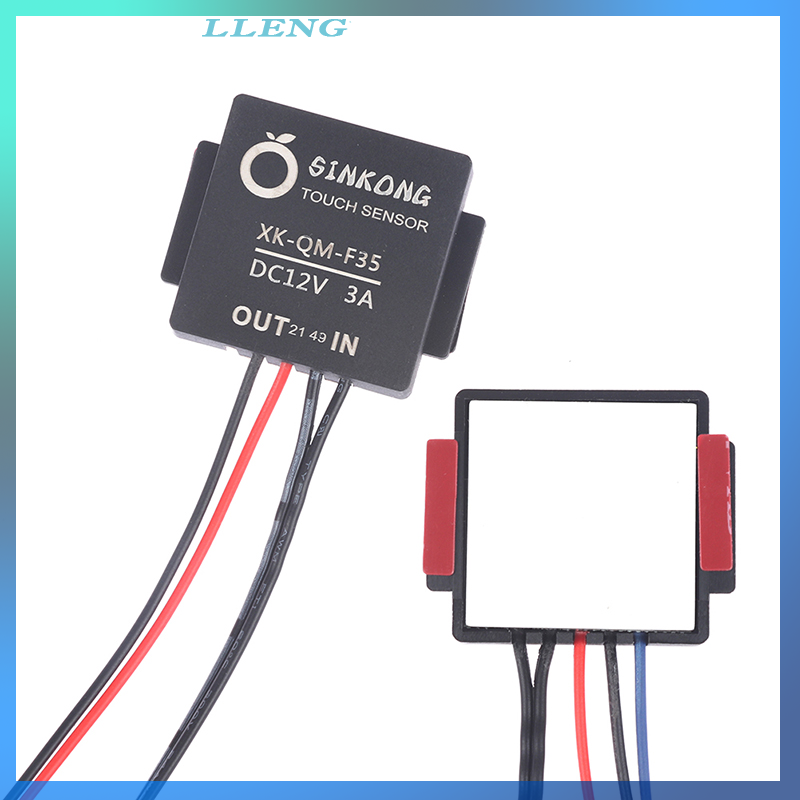

LLENG 1pc Bathroom Mirror Switch Touch Switch Sensor For LED Light Mirror Headlight

Product parameters:
Operating Voltage:
Input: DC12V
Output : DC12V
Output form: single key single control single key double control
Induction range: 5MM lens
Induction principle: capacitive
Load power: 36W
Delay closing time: none
Scope of application: DC, battery powered
Load current: 3A
Standby current: 10mA VIN: 12V

xFeatures:
A: A-B-AB-OFF two-color stepless dimming

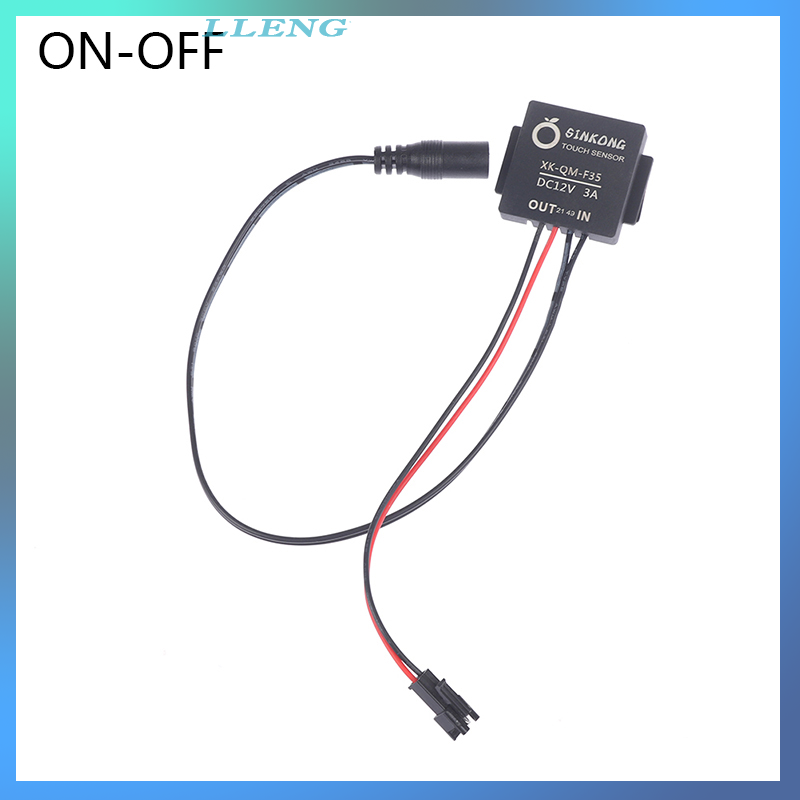

B: ON-OFF stepless dimming

Scope of application:
Desk lamps, clip lamps, book lamps, aromatherapy lamps, air purifiers, electronic photo albums, small household appliances, KTV song-ordering systems, automotive systems and other electrical appliances are widely used in electrical industries, and can accept customized special functions on behalf of customers; the sensitivity of this product can be customized, It can penetrate non-metallic media such as plastic, acrylic, glass, ceramics, etc., with stable performance!

Instructions:
AC use: need to add rectifier stack Applicable: DC, constant voltage. When installing, make sure that the isolation medium and the touch surface are tightly combined and fixed! There must be no air gap in between! After installation, power on, wait for 3 seconds to initialize, and then operate normally!

2. Recommended installation method: (In general production: the shell has a card slot + hot melt adhesive)
First, the shell is designed with a card slot, and the touch button can be tightly stuck in it.
The second is to use hot-melt glue to stick the touch buttons and the shell closely, and then glue them with hot-melt glue.
The third is to use double-sided tape to directly stick the touch buttons inside the casing.

package include：1 xMirror light touch sensor switch
