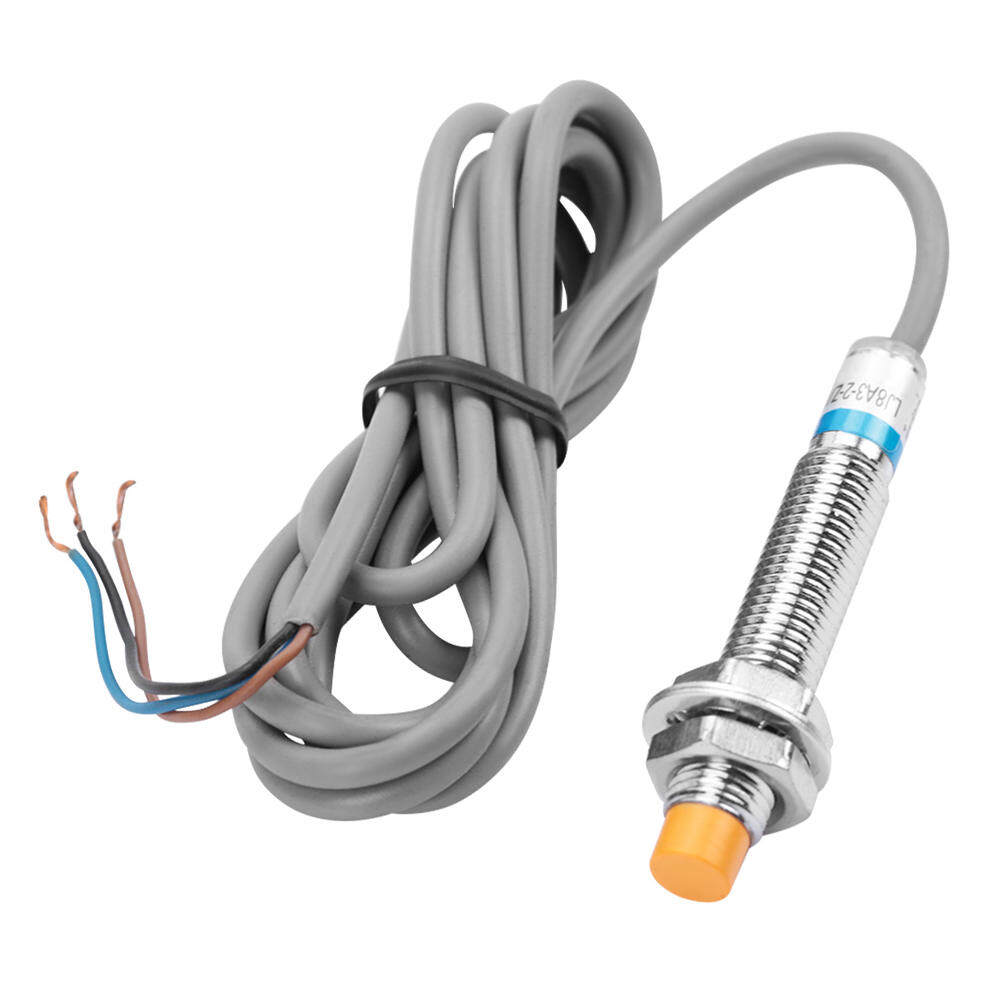

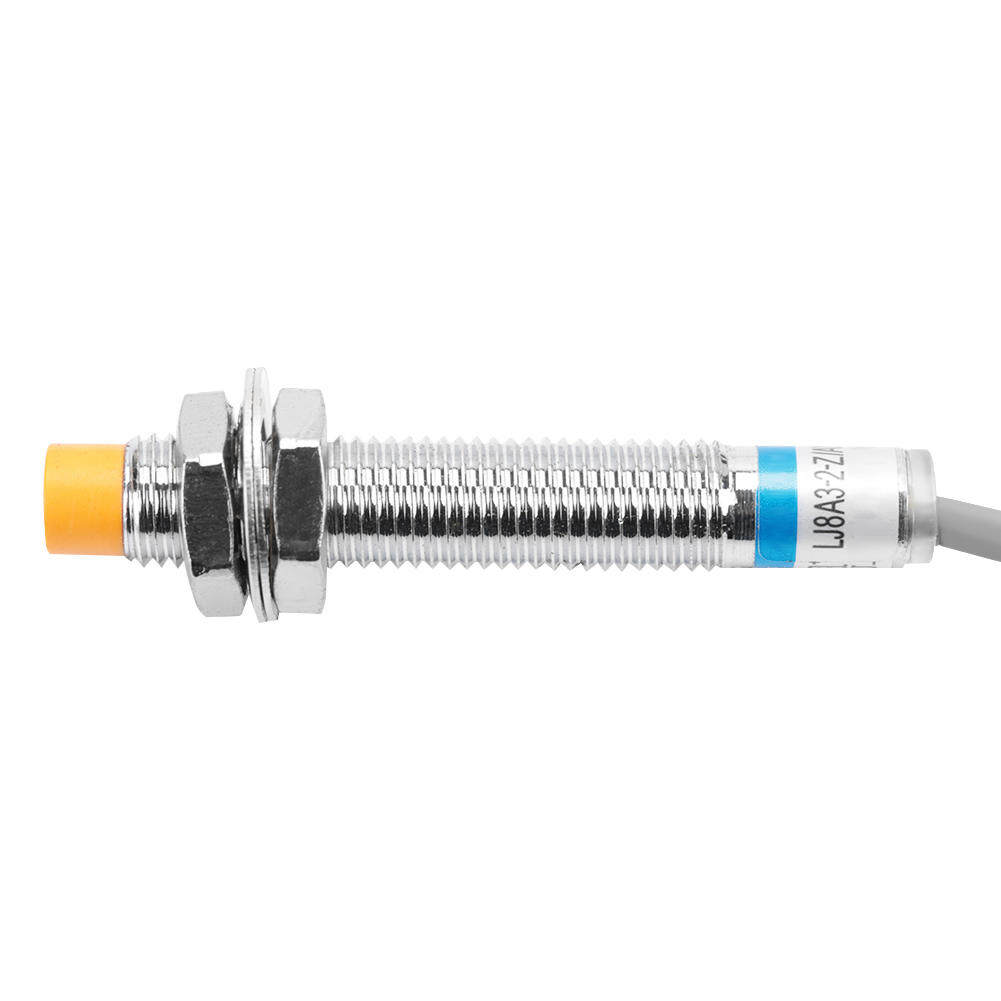

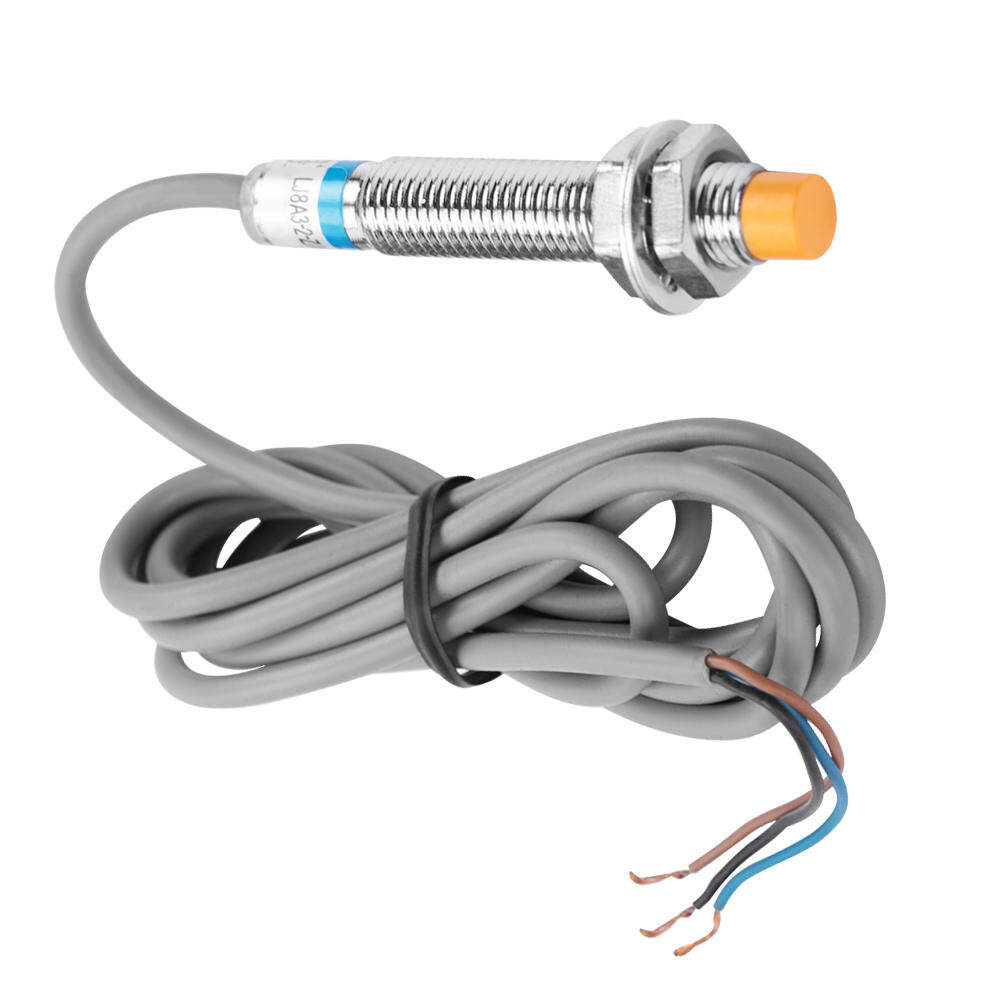

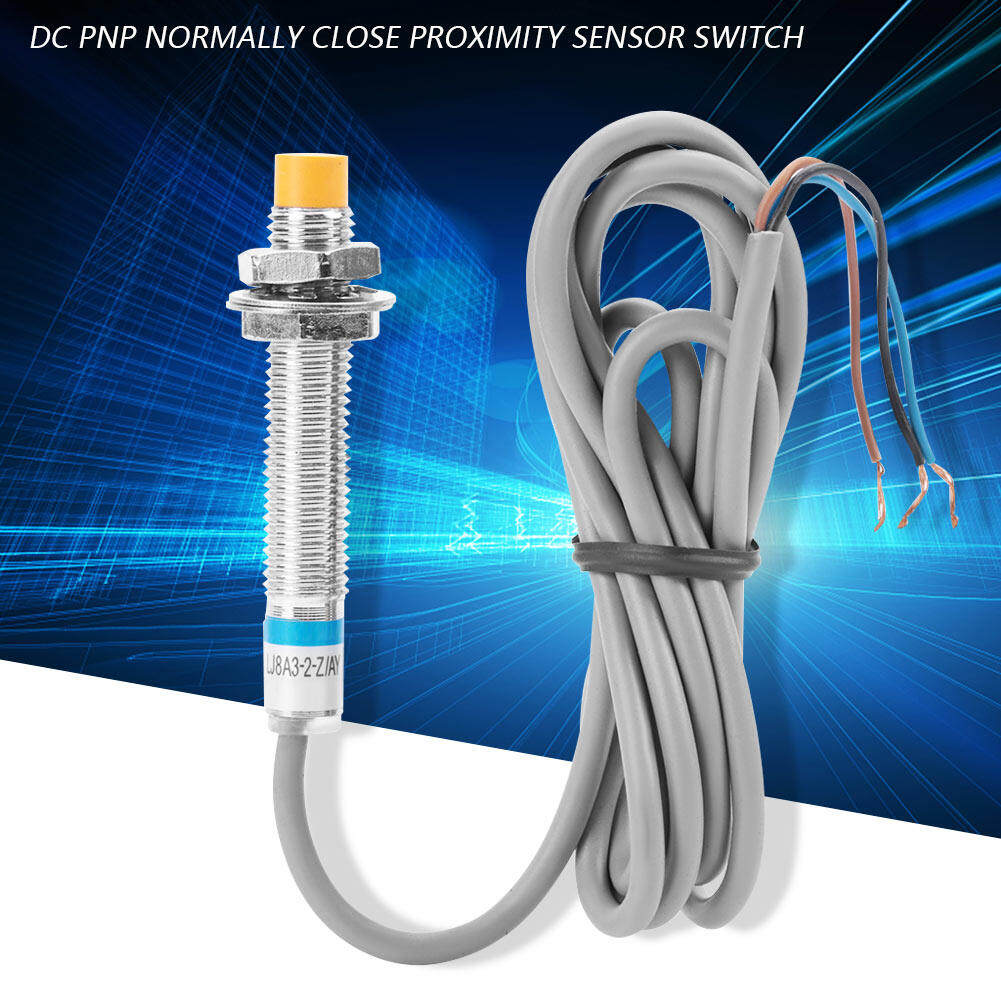

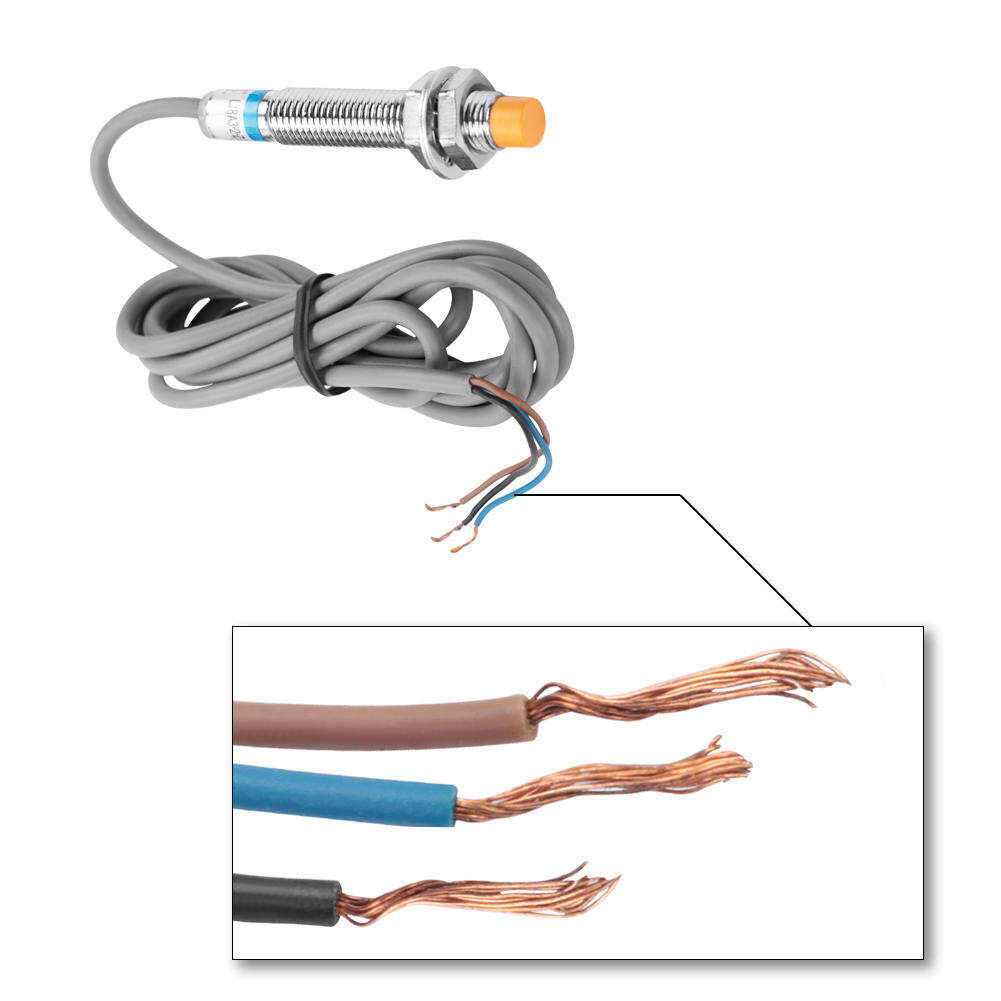

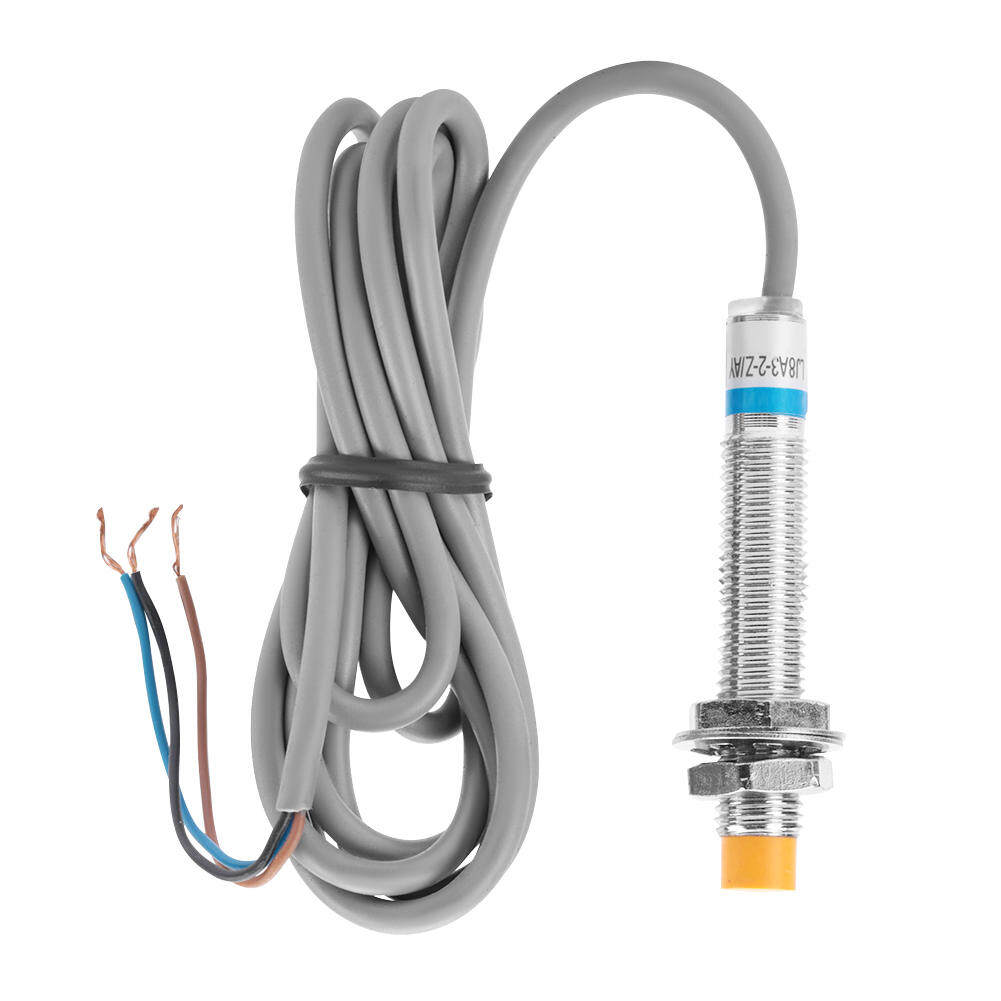

LJ8A3-2-Z/AY Proximity Sensor Switch DC PNP Normally Close NC 2mm

Features:

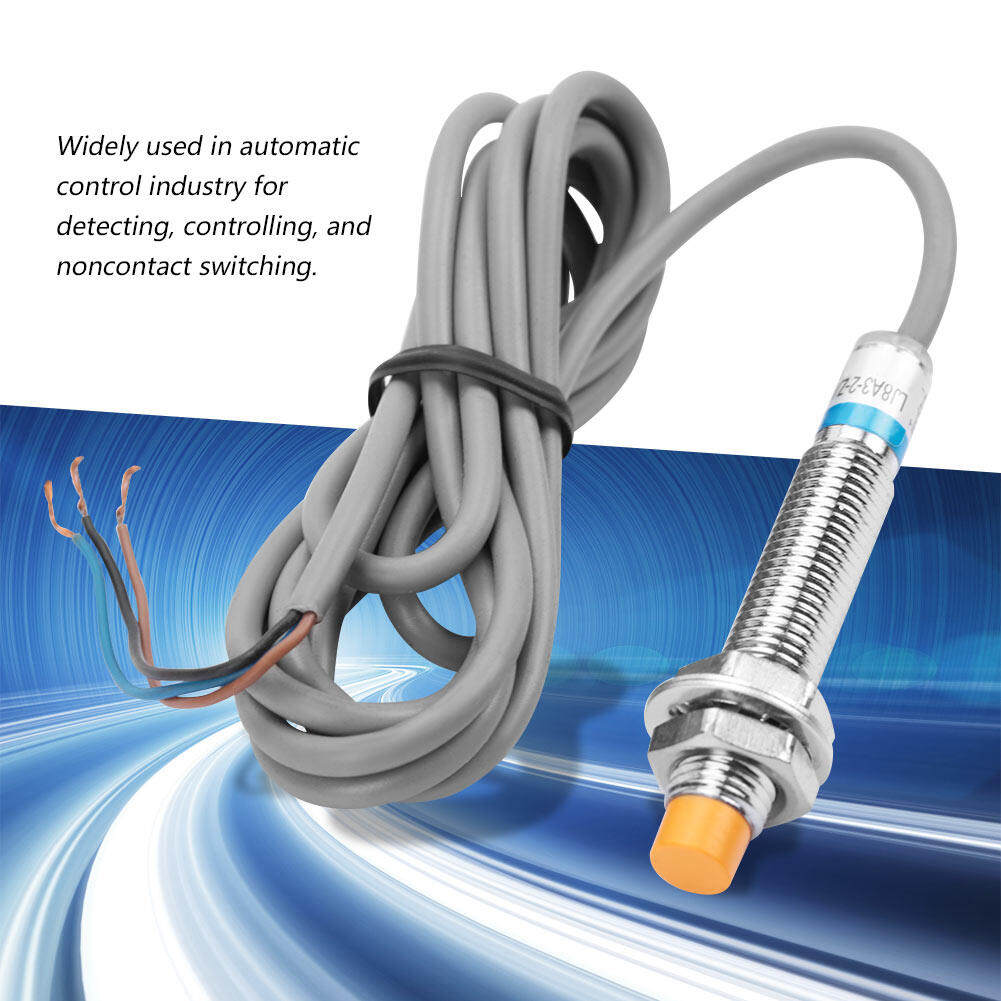

• It is a component widely used in automatic control industry for detecting, controlling, and non-contact switching.
• When the metal object moves towards or out of the proximity switch, the signal will change automatically.
• This is a normally open proximity switch sensor with 2mm detection distance.
• High sensitivity, quick response, stable performance.
• Made of premium ABS material and brass with nickel plated, long service life.

Specification:

Model	LJ8A3-2-Z/AY
2mm ± 10%	2mm ± 10%
Set distance	0 - 1.6mm
Delay distance	<10% Detection distance
Standard object	Magnetic metal(Detection distance decreases for nonmagnetic metals)
Detect object	Iron 12*12*1mm
Response frequency	DC:0.5kHz AC:25Hz
Power voltage	DC 12 - 24V(6-36V); AC 110 - 220V(36 - 250V)50/60Hz
Withstand voltage	AC1000V 50/60Hz
Effect of Voltage	±15%Rated voltage,Impulse (P-P) below 10%
Consumption current	N.P: <13mA, D: <0.8mA, A:<1.7mA
Control Output	N.P: <300mA, D:<200mA, A:<400mA
Circuit protection	A: Surge protection N.P.D: Surge protection, Reverse Connection Protection
Temperature range	-25-+60℃
Isolation Resistance	>50MΩ
Material	ABS + Brass
Storage and working temperature	-30 - +65℃(No ice, no frost)
Storage and working humidity	35 - 95%RH
Weight	26g/ 0.9oz

Package List:
1 * Proximity Switch

Note:
Please allow slight error due to manual measurement. Thanks for your understanding.
