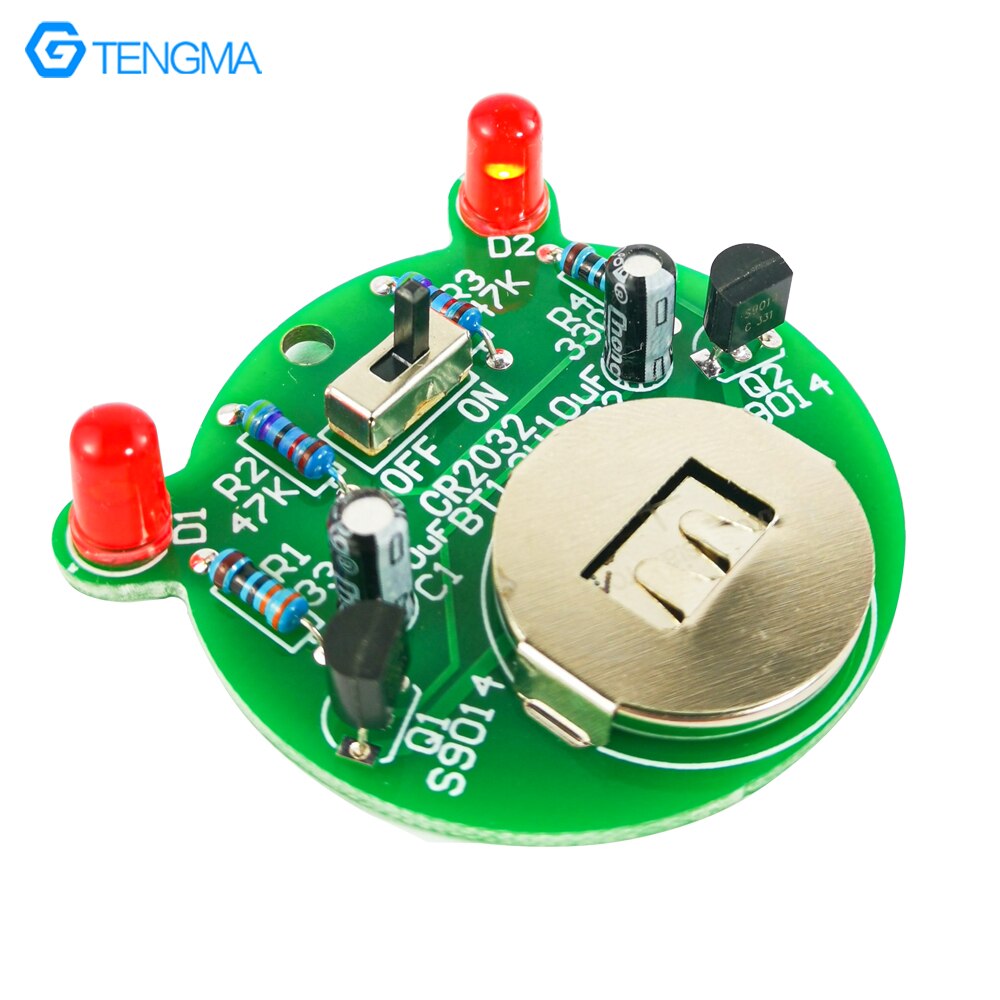

LED Flicker Lamp Kit Triode Control Self-Excited Multi-Harmonic Oscillation Circuit Electronic Production Parts DIY Assembly

Product name: LED flash lamp triode control self-excited multivibrator electronic production DIY kit

Product model: TJ-56-523

Working voltage: DC3V (2023 button battery)

PCB size: 40 * 39mm

Description:

This circuit is a typical self-excited multi-harmonic oscillation circuit. The kit circuit is simple, easy to understand, interesting, and rich in theoretical learning knowledge, especially suitable for beginners.

Circuit principle

When the power is turned on, the two triodes will be on first, but due to the differences of components, only one tube will be on first, and then the two triodes in the circuit will be on and off in turn, and the two light-emitting diodes will continuously cycle.

Changing the resistance value or capacitance can change the flashing speed of LED.

When the circuit is powered on, assuming that Q1 is on first, C1 begins to charge through R2. Since the capacitance is equivalent to a short circuit during charging, the Q2 base is approximately grounded, so Q2 is cut off. At this time, D1 is on and D2 is off. When C1 is charged, Q2 base is at high level, so D2 is on, and the charge on C1 is discharged, Q1 is off, and D1 is off. C2 is charged through R3. After charging, Q1 turns on the circuit again, and all two LEDs flash alternately.

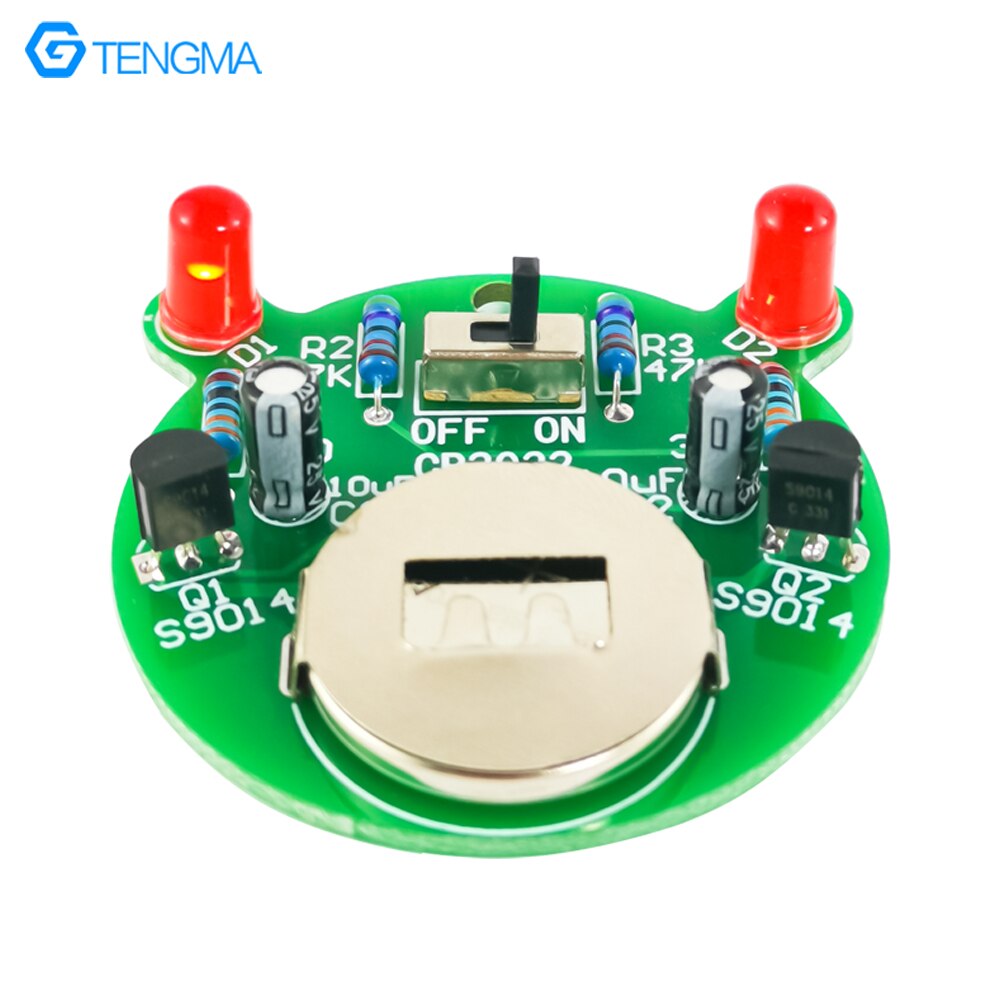

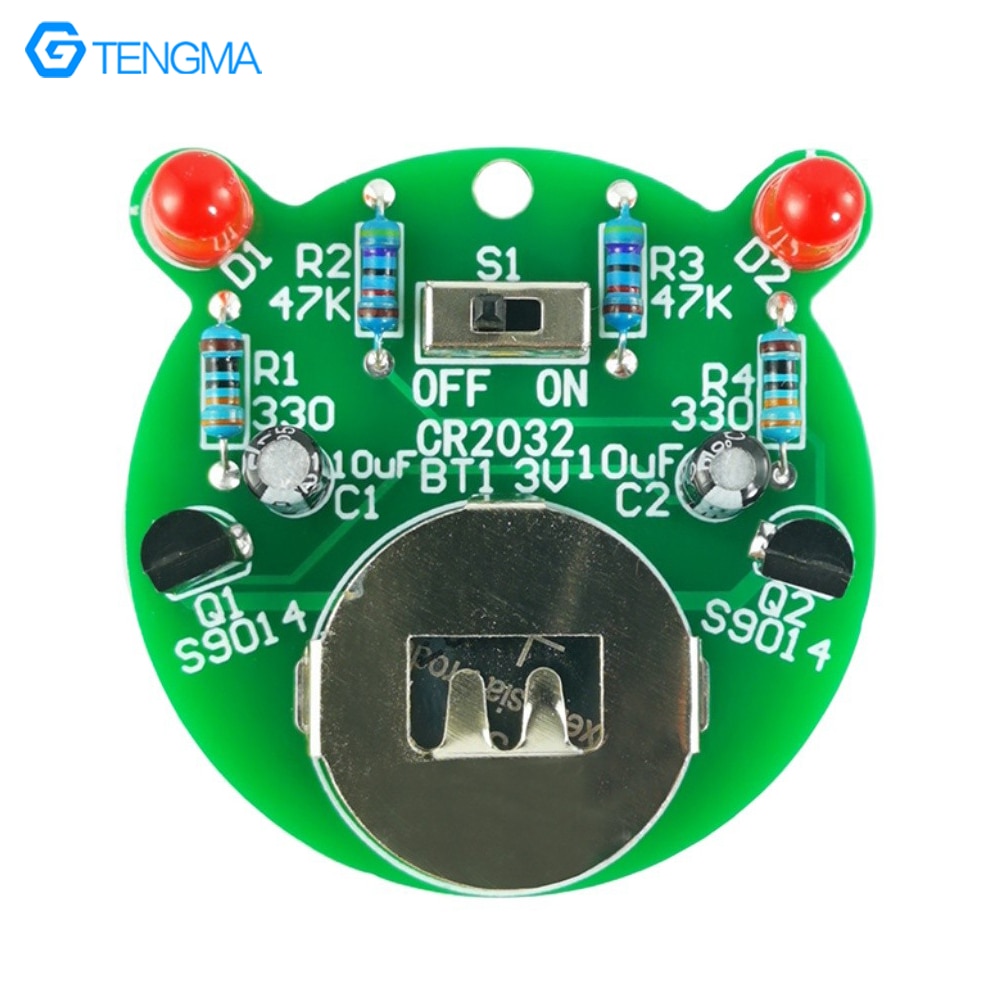

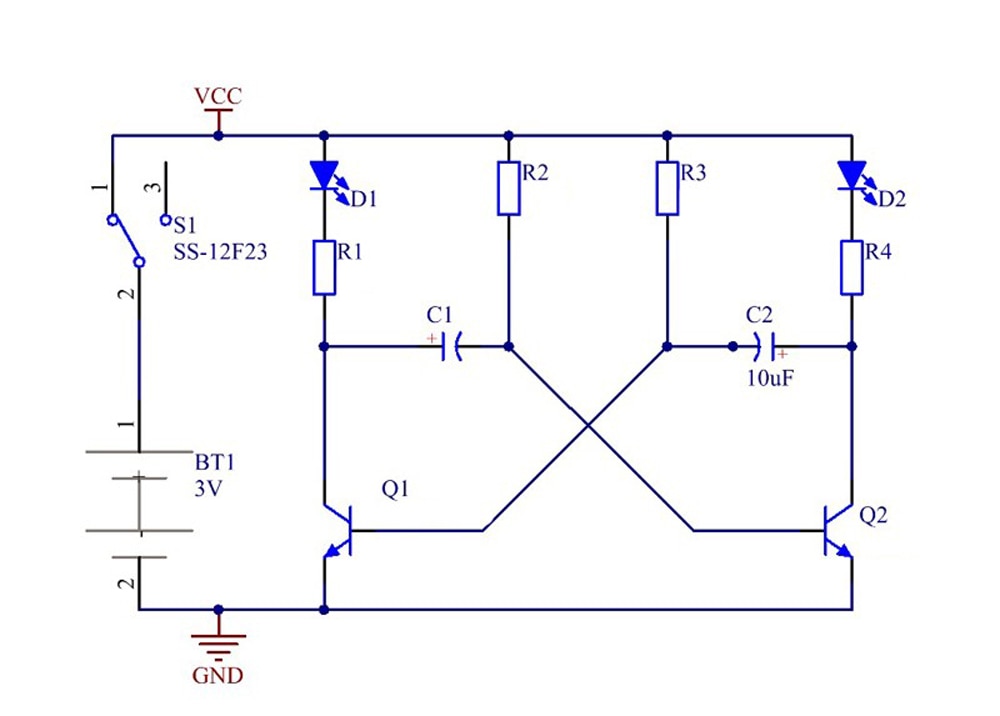

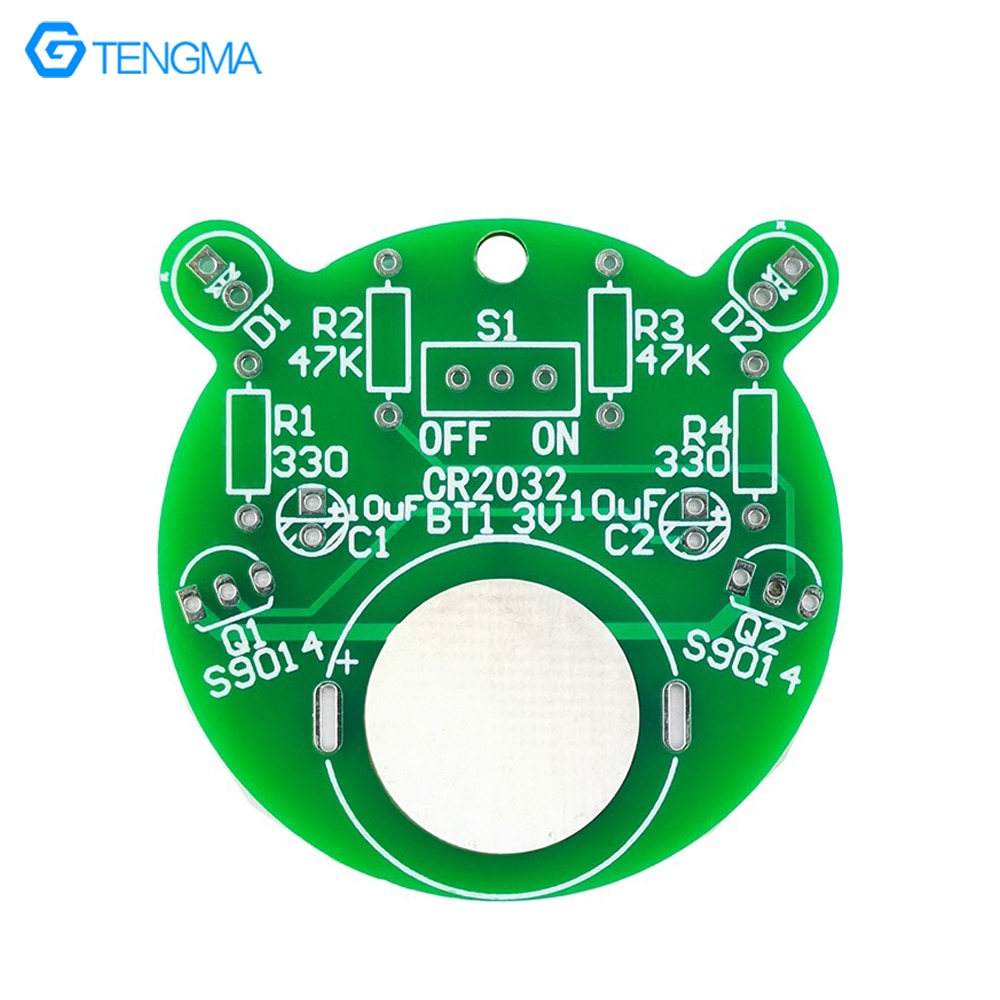

Circuit diagram:

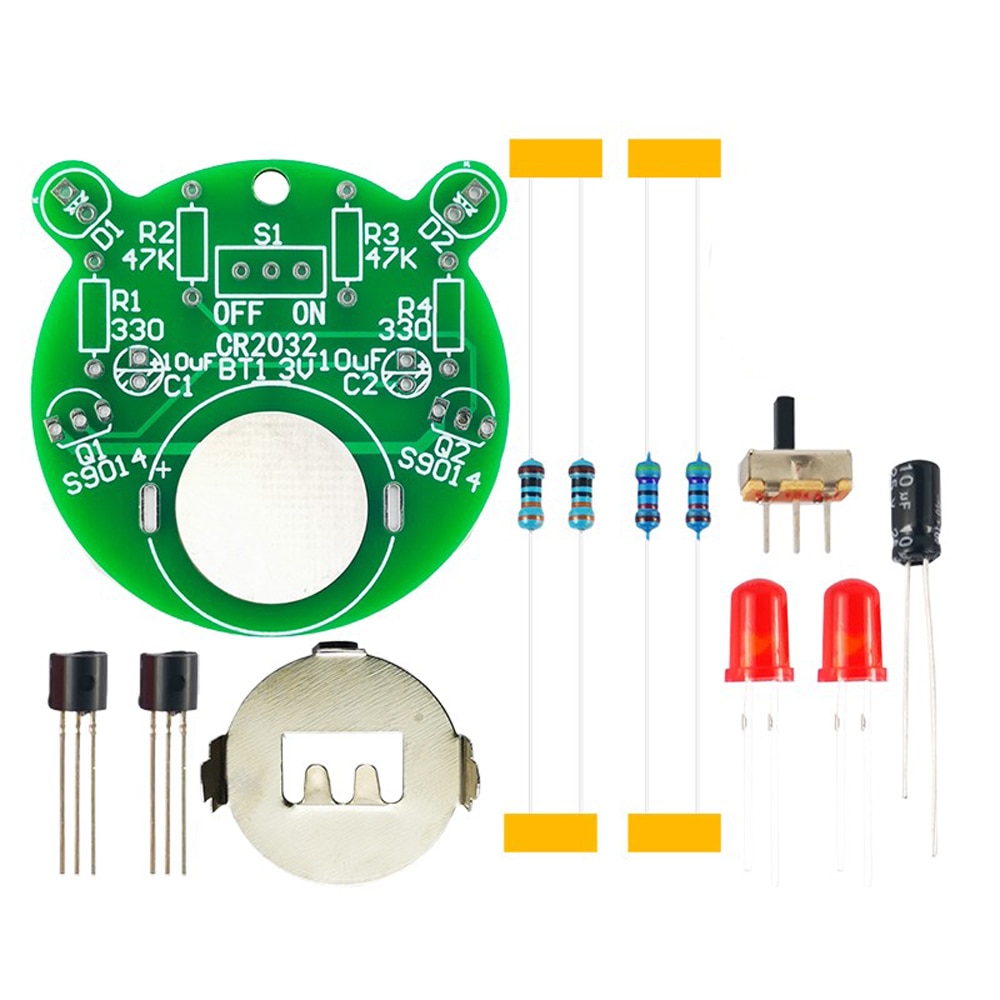

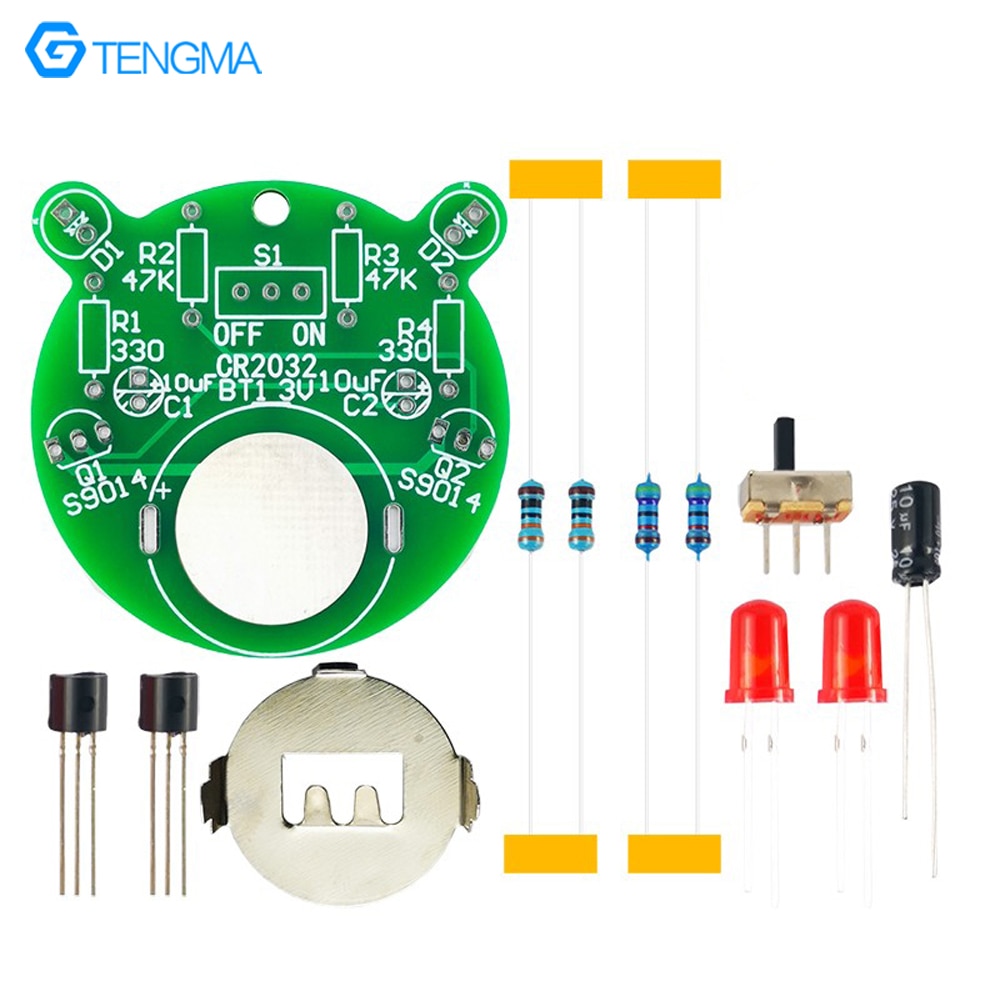

Package Included:
