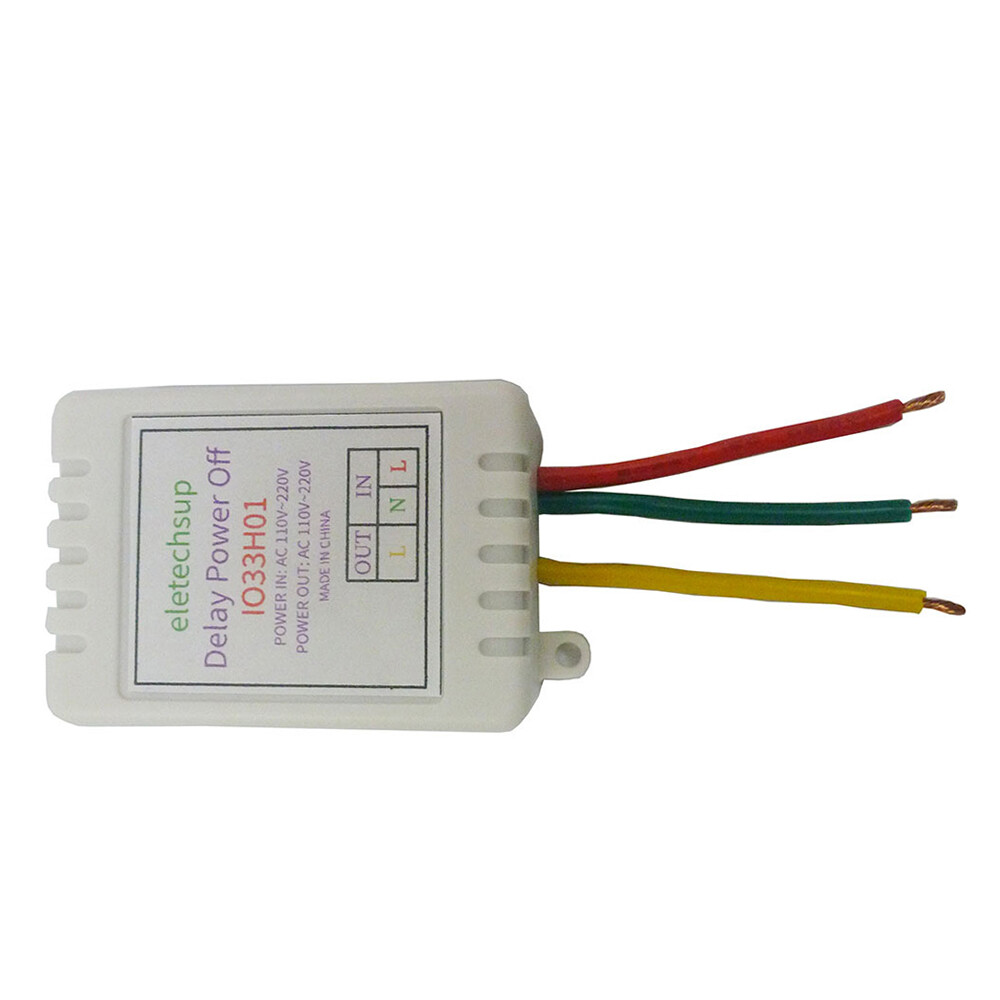

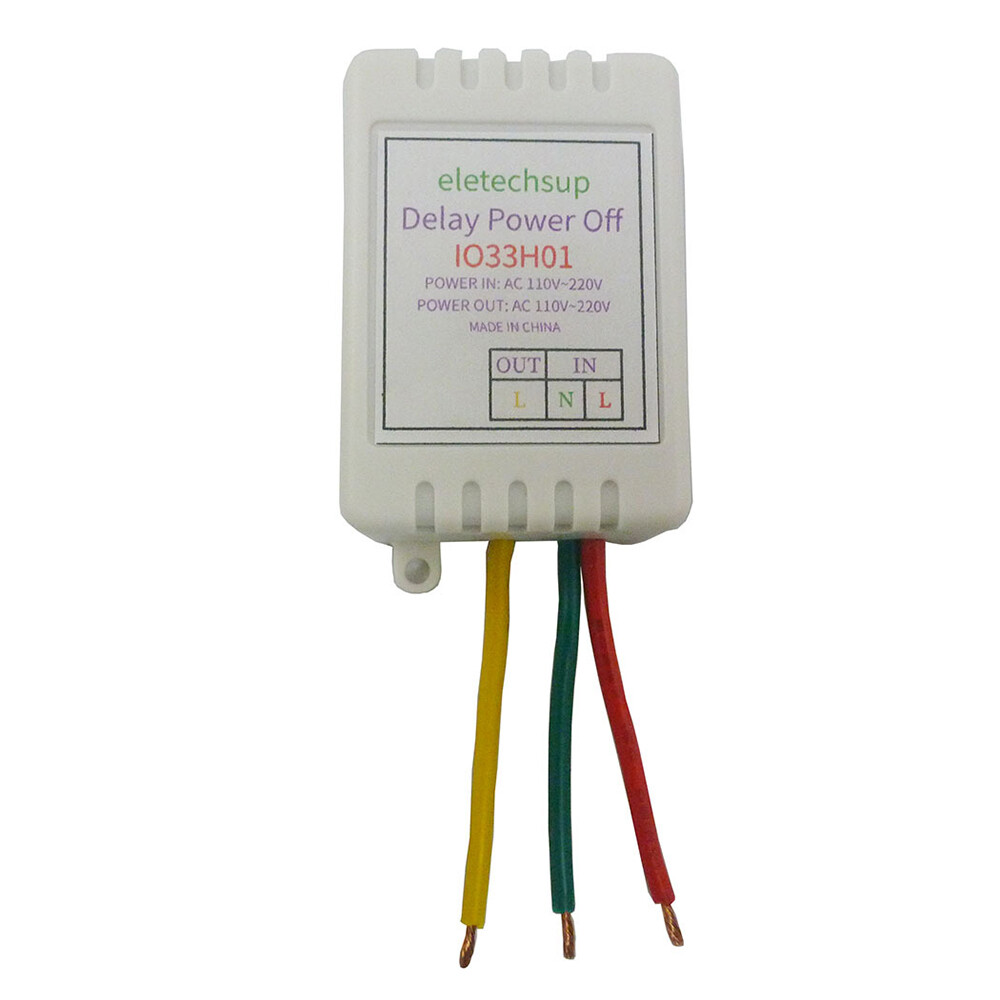

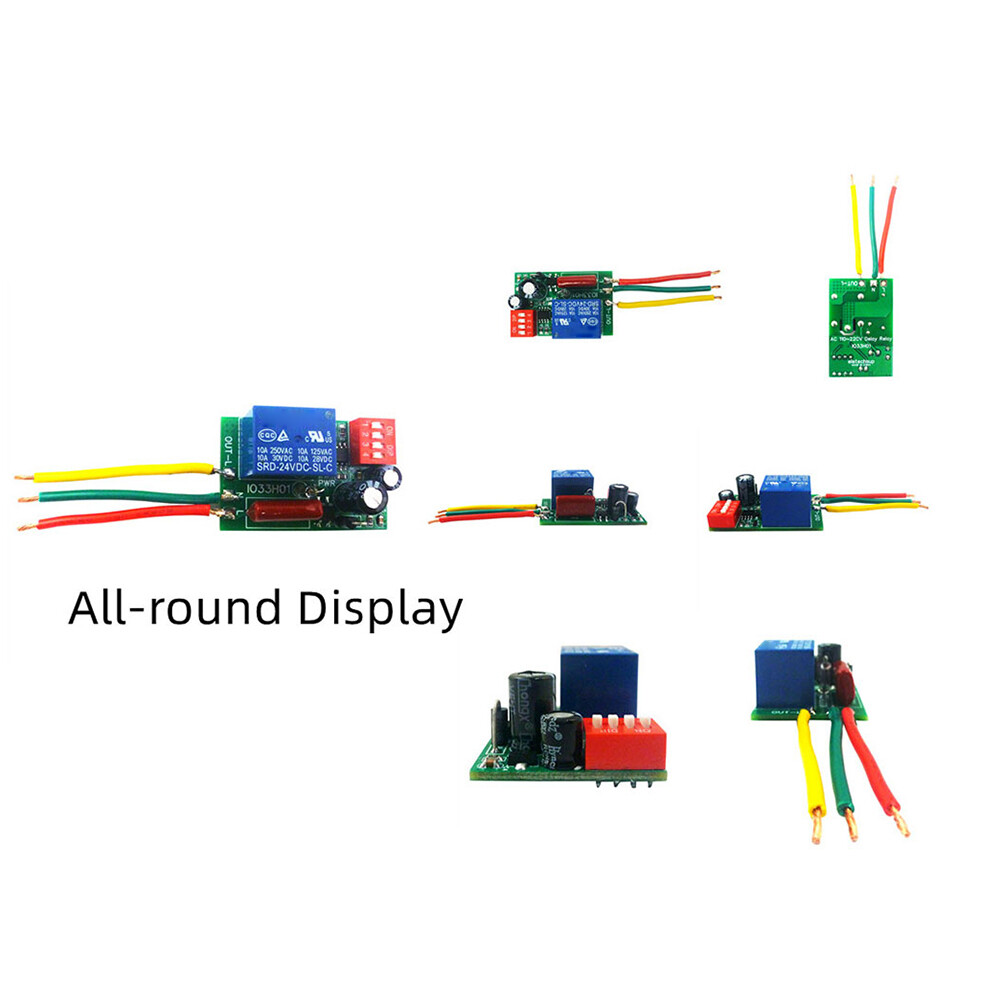

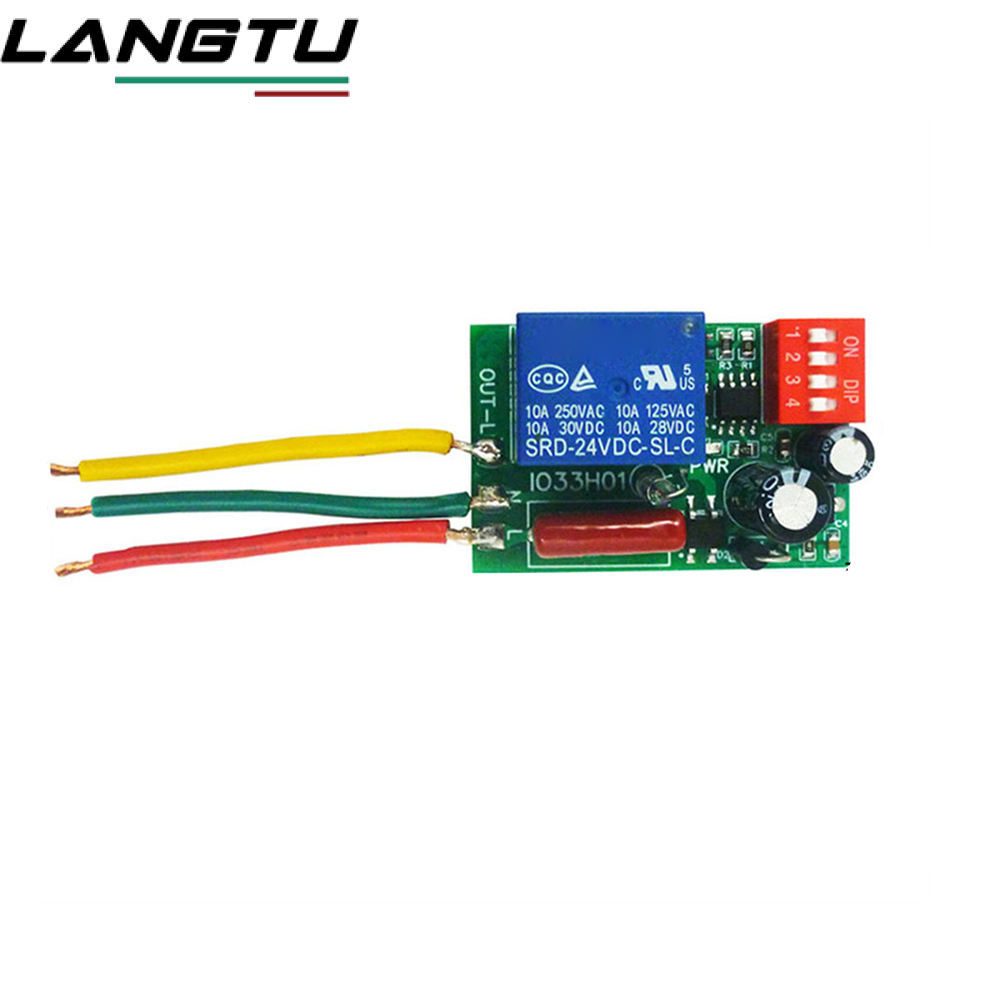

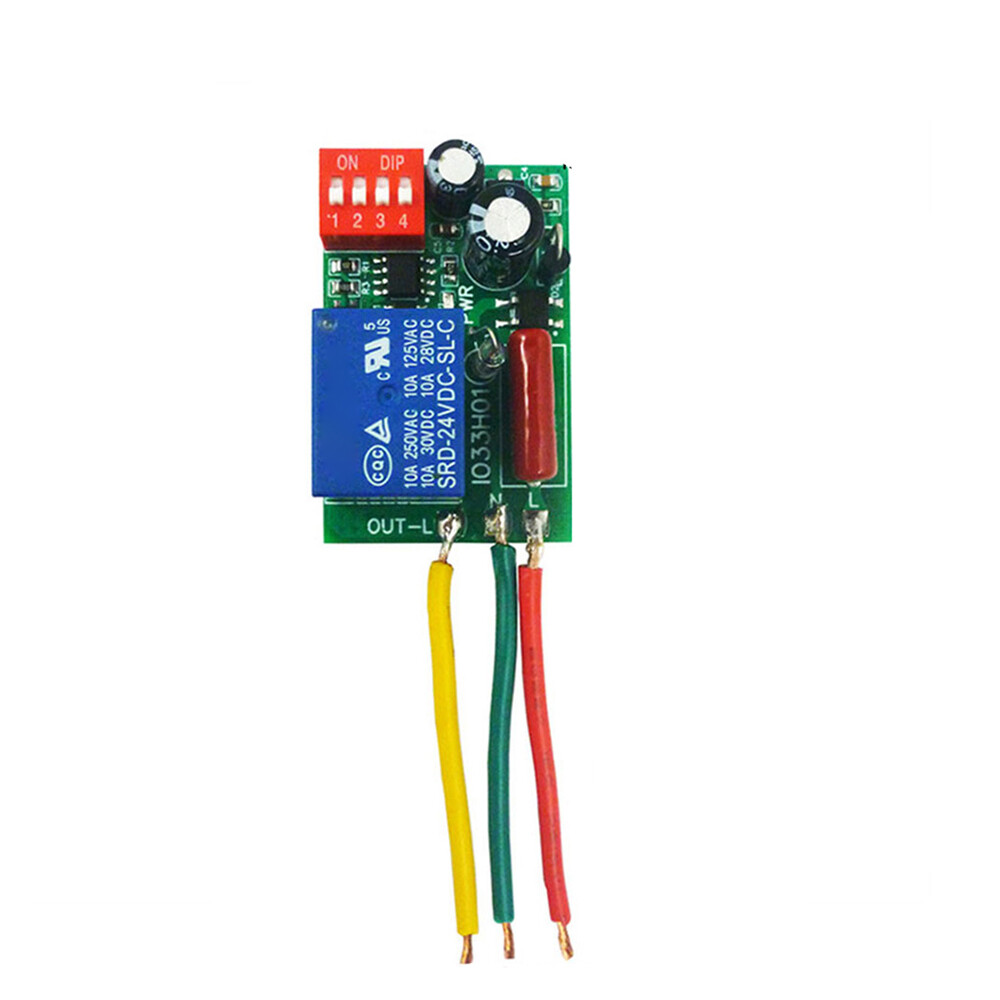

LANGTU AC100V~220V Delay Timer Timing Switch Relay Adjustable Timer Delay Turn Off Module Timing Relay Time Switch

Product parameters:

AC 110V 220V On Delay Relay Switch AC 220V 7A Voltage Output Max 180Min Timer Adjustable Off Delay Controller

1. Output current: 7A (MAX 10A)

2. Working power consumption: 43mA

3. Output voltage: AC110-220V

4. Power supply voltage: AC 110-220V

5. Weight with shell: 29 grams

6. Dimensions with shell: 57×35×20mm

7. Weight without shell: 19.1 grams

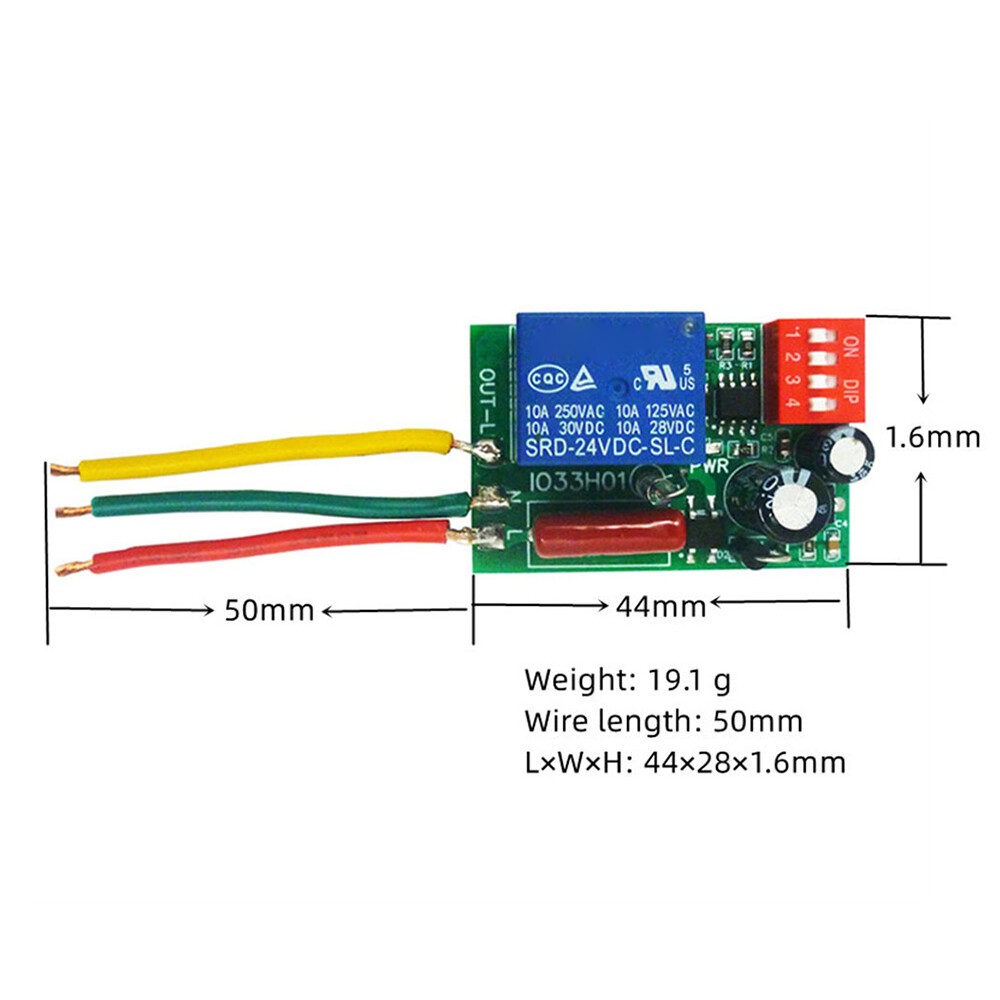

8. Dimensions without housing: 44×28×16mm

10.Unified line length: 50mm

11.Maximum standby power consumption: 12mA

12.Number of control channels: 1 output

13.Working temperature: -25℃~85℃

14.Working humidity: 5%~95%RH

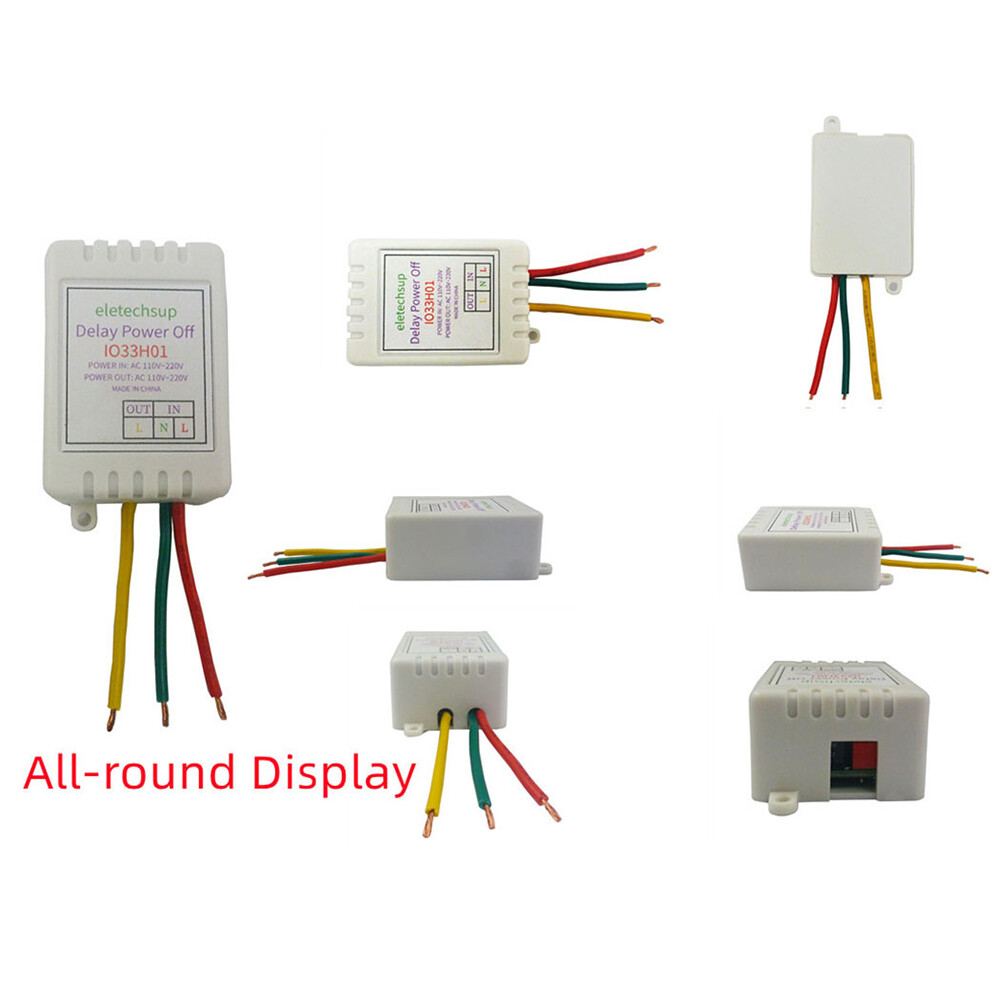

15.Shell: high quality shell, dustproof and flame retardant

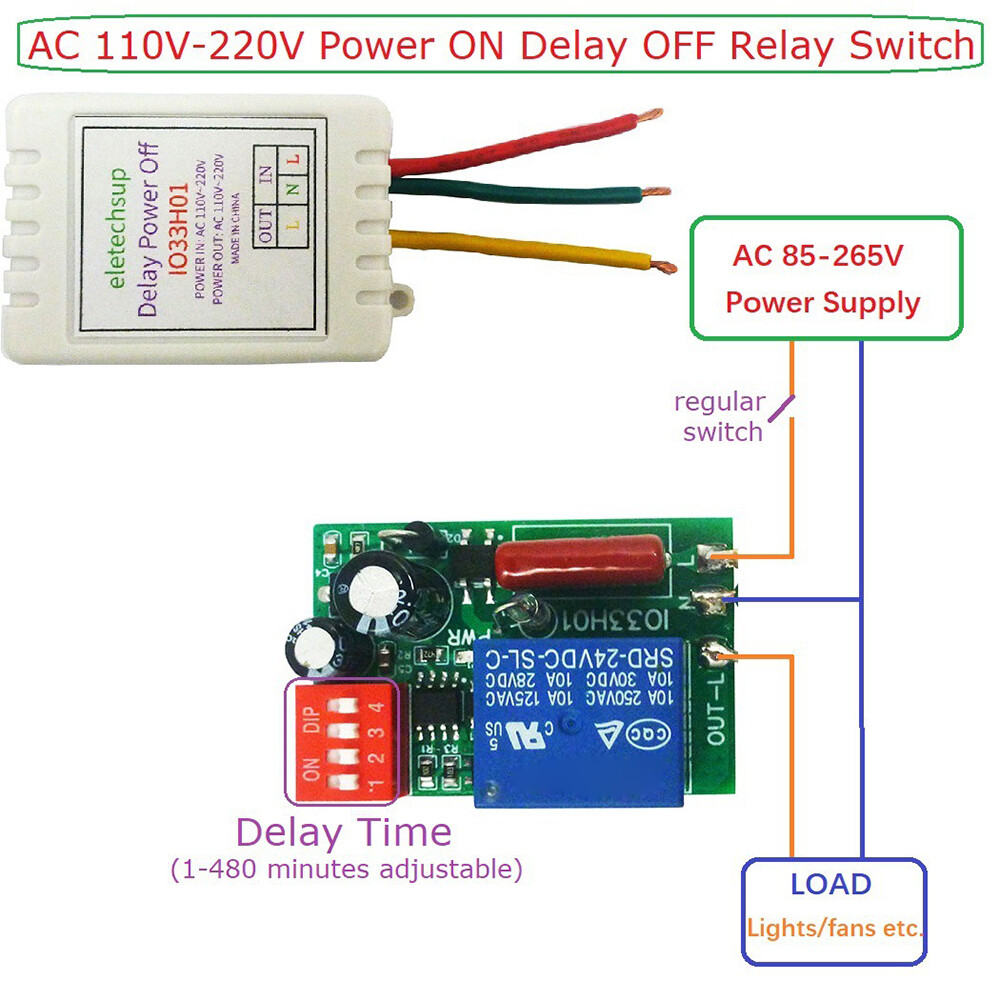

16.Function: Delay for a period of time to stop power supply

17.Control power: 1400W (max) incandescent lamp, energy saving lamp 300W (max)

18.With LED indicator to show the working status (constant light means working, flashing means the delay is over)

19.Applicable scene: living room, kitchen, bathroom, bedroom, corridor, stairs, etc.

20.Wide range of uses: such as exhaust fans, motors, air coolers, cooling fans, germicidal lamps, humidifiers, heaters, etc.

21.16 delay modes to choose from (1 minute, 3 minutes, 5 minutes, 10 minutes, 15 minutes, 25 minutes, 30 minutes, 40 minutes, 50 minutes, 60 minutes, 90 minutes, 120 minutes, 180 minutes, 240 minutes minutes, 300 minutes, 480 minutes)

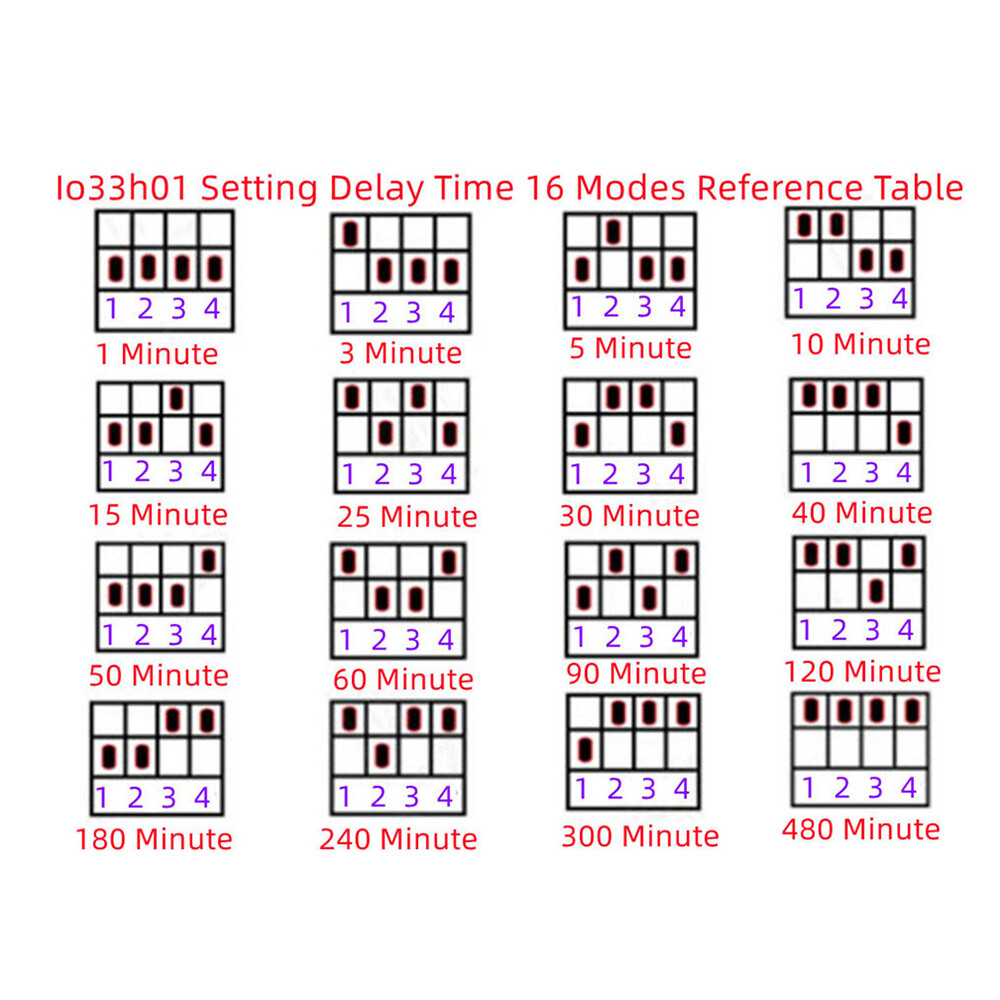

Delay time selection method:

①: Refer to the delay mode table to select the time to be delayed;

②: Toggle the DIP switch (red) according to the delay mode table;

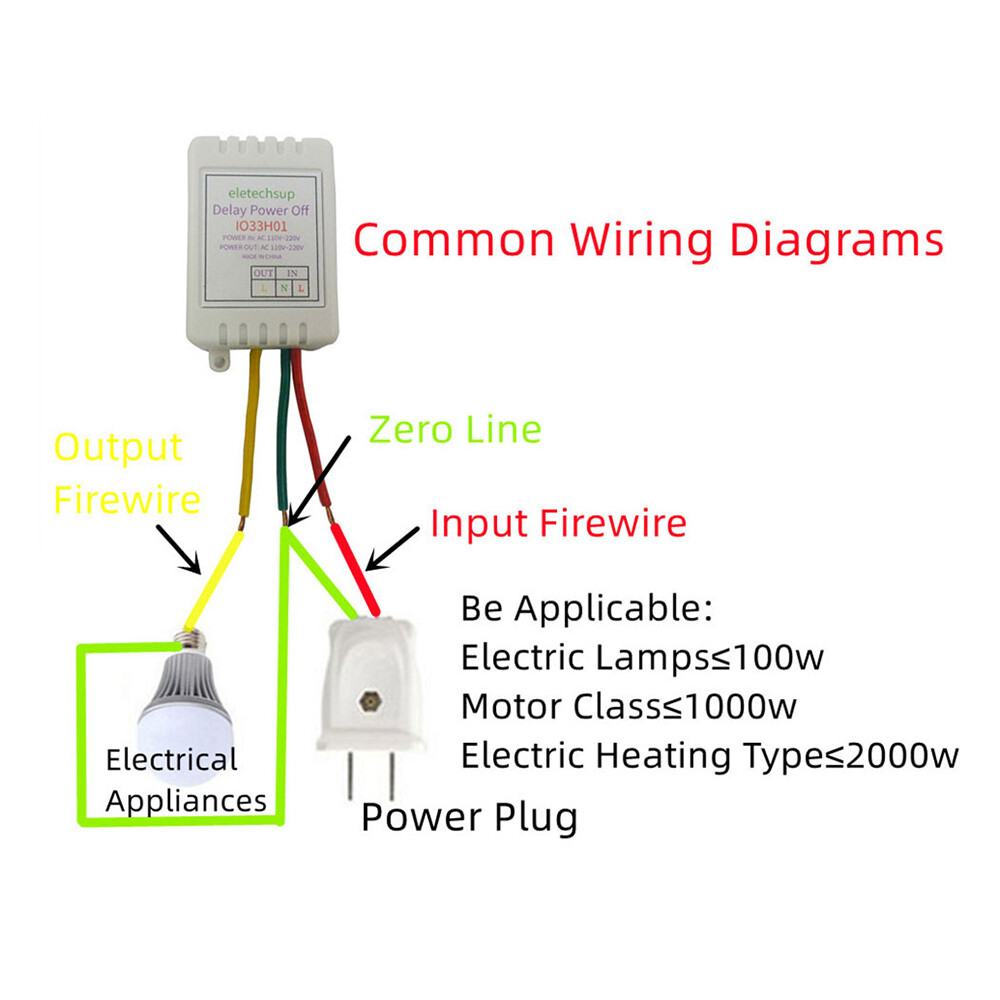

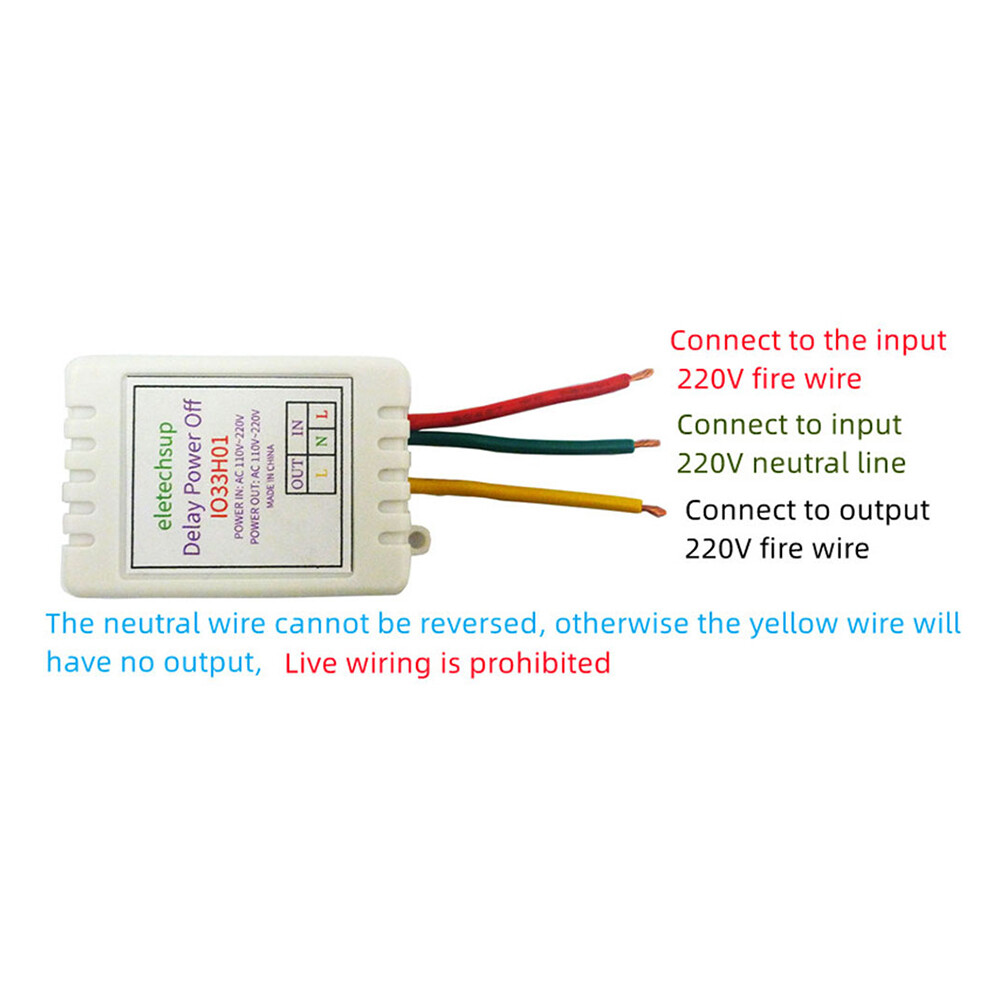

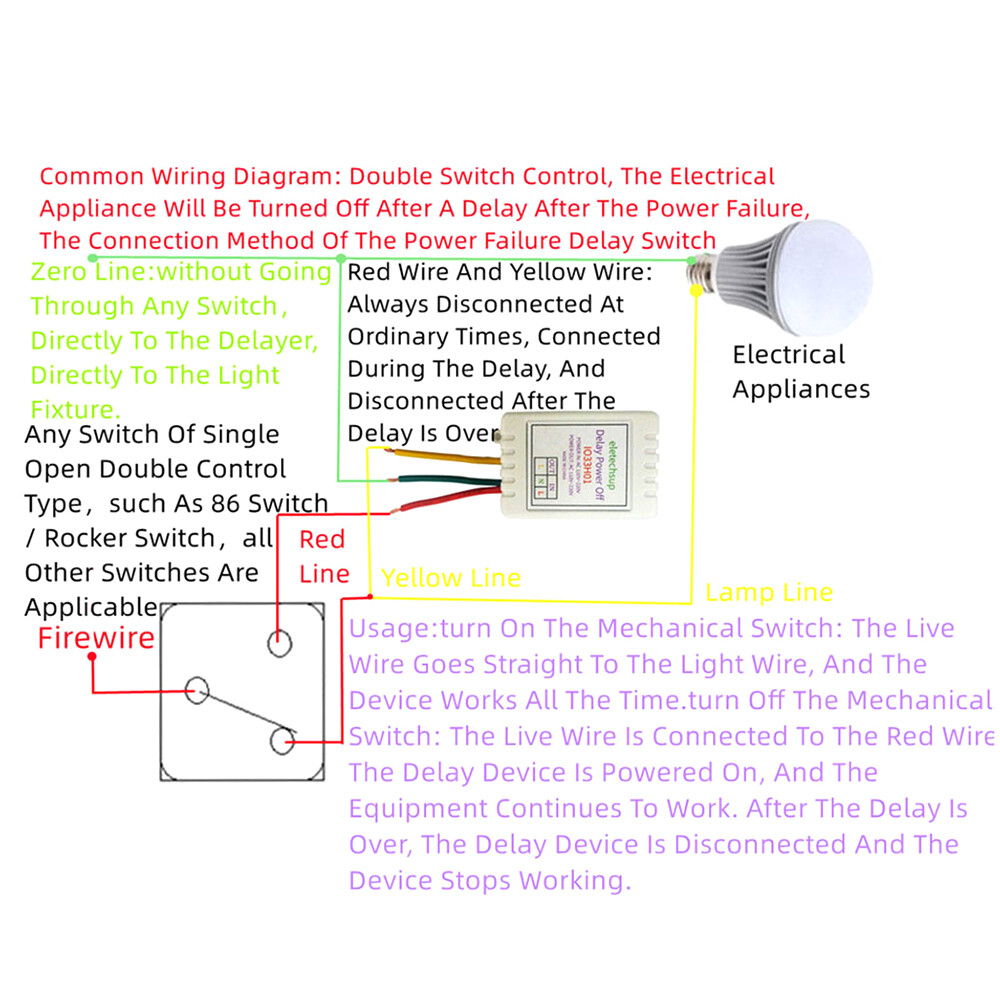

③: After setting, check the wiring, and then power on.

Note:

When a new delay mode needs to be set, in order to ensure personal safety, it must be set to power-off mode, and live operation is prohibited.

Package includes:

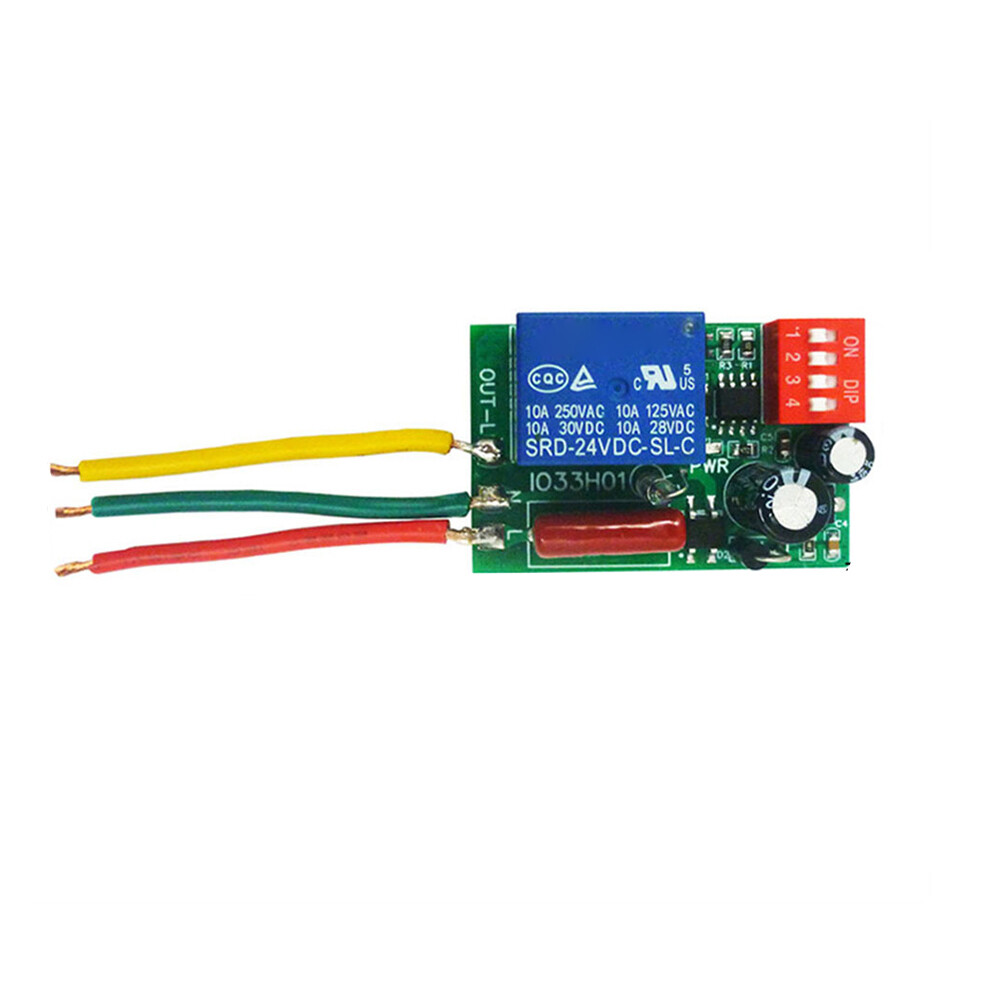

1*AC110-220V timer adjustable off-delay controller only board/with shell optional
