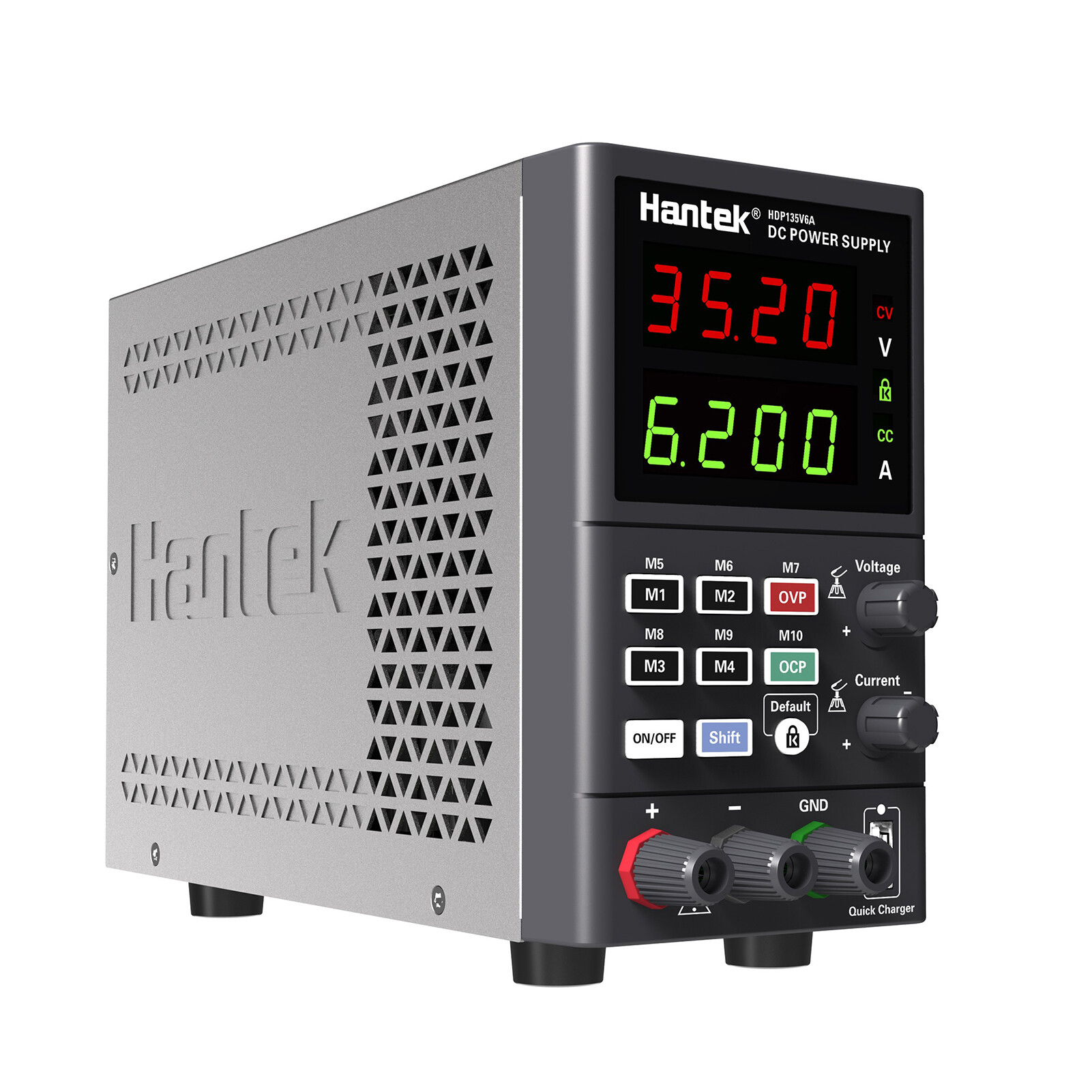

KKmoon Hantek HDP135V6A Digital Bench DC Power Supply Variable 35V 6A Adjustable Switching Regulated Power Supply CV CC with Data Storage, On/ Off Output, USB Quick Charge, PC Software Control, Encoder Adjustment Knob

Four-digit display of voltage and current, with high resolution; Standard USB quick charge function, support a variety of quick charge protocols; Storage functions up to 10 groups; Fully isolated serial port, software support multiple power supply control; Multiple safety protection functions; Low noise temperature control fan; 35V/ 6A output is stable and pure; On/ Off output control, one-button panel lock function. It is an excellent power supply for laboratory, production line and home appliance maintenance.

Features:

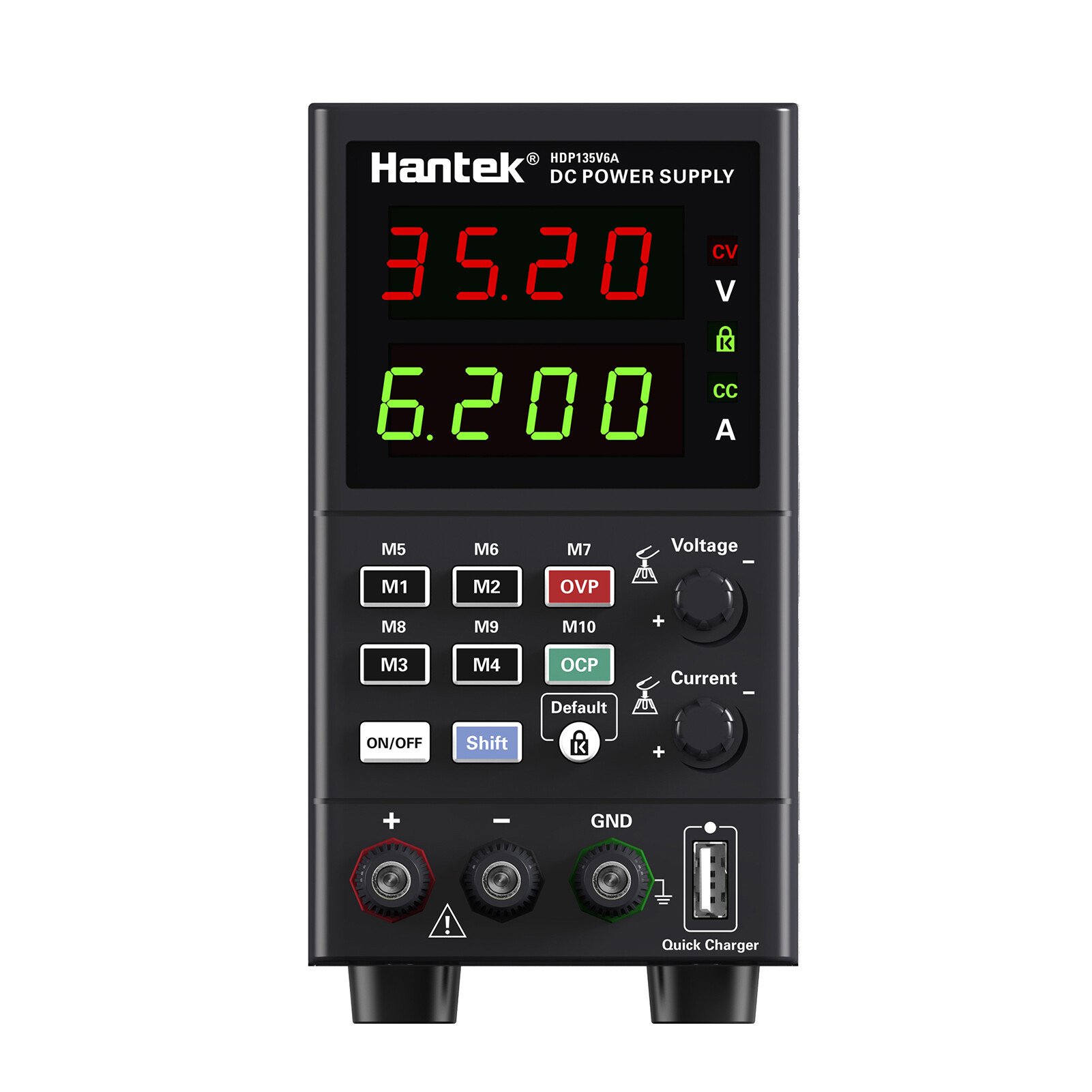

Settable Voltage/ Current, Digital Display -- Four-digit display of voltage and current, resolution up to 10mV/ 1mA. Constant voltage and constant current switch automatically, effectively protect the circuit.
High Performance, Cooling Fan -- 35V/ 6A output is stable and pure; On/ Off output control, one-key panel lock function to prevent misoperation. Low noise temperature control fan, quiet and durable.
Safety Protection Functions -- Over voltage, over current, overload, overheating, short circuit protection functions. Two-stage adjustment topology, no impact on the load when the power is turned on.

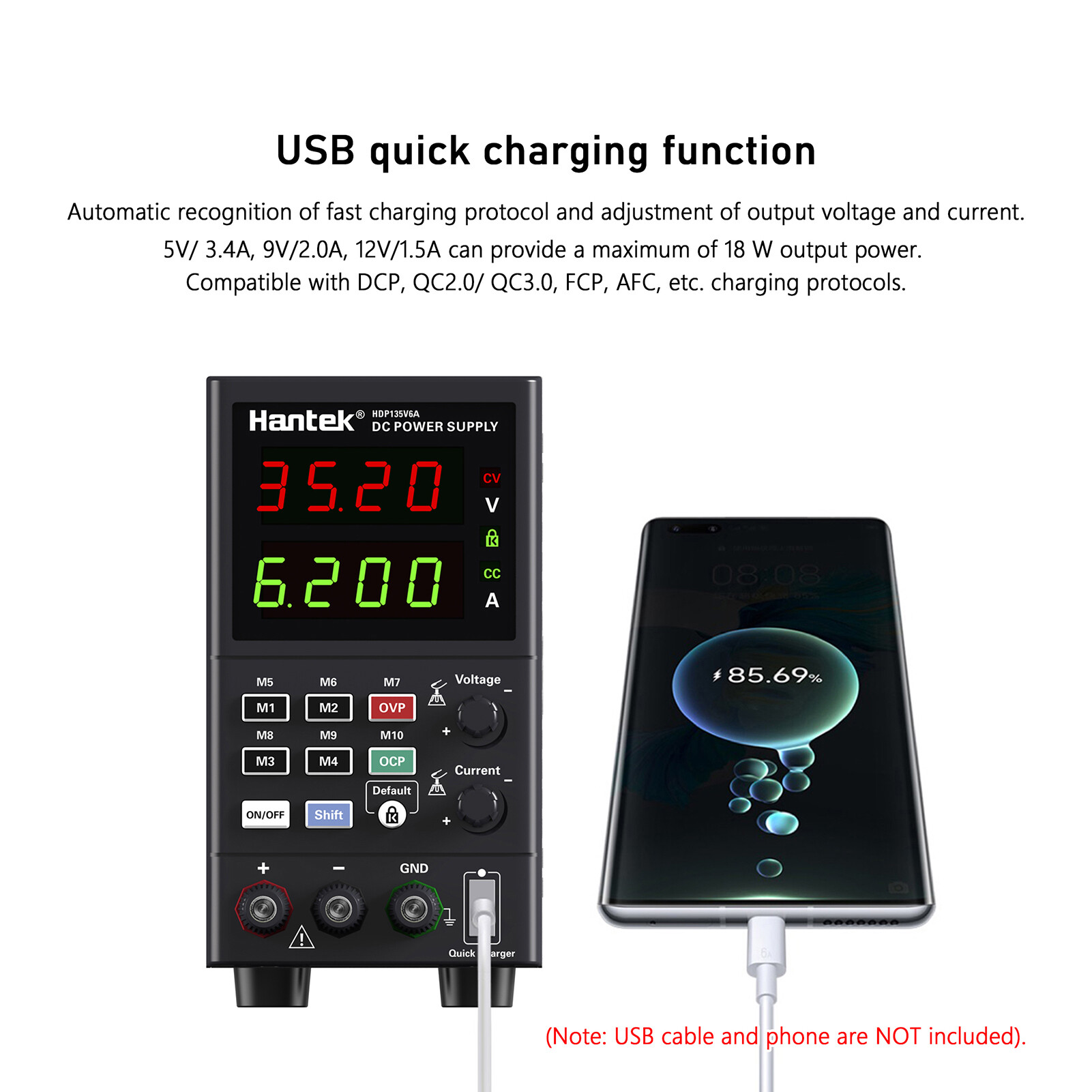

USB Quick Charging -- Standard USB quick charging function, 5-12V output, automatic recognition of a variety of fast charging protocols and adjustment of output voltage and current.
PC Control, Data Storage -- Fully isolated serial port, software support multiple power supply control, easy to set up measurement and control or aging system. 10 groups of data storage/ retrieval functions.
Application Field -- Portable bench DC power supply is suitable for production line testing, repair of mobile phones/ computers/ electrical appliances, product aging and electroplating, battery charging, laboratory, scientific research, teaching, etc.

Note: Size and color may be slightly different due to manual measurement and different light conditions. Thanks for understanding.

Specifications:
Plug & Input Voltage: EU 230V/ US 110V/ UK 230V (Optional)
Model: HDP135V6A
Color: Grey
Material: Plastic Front Panel+ Metal Casing
Channel: 1
Storage: 10 Groups of Data
Output Voltage/ Current: 35V/ 6A
Maximum Output Power: 210W
Mode: Constant Voltage (CV), Constant Current (CC)
Voltage Load Regulation: ≤0.1% + 5mV

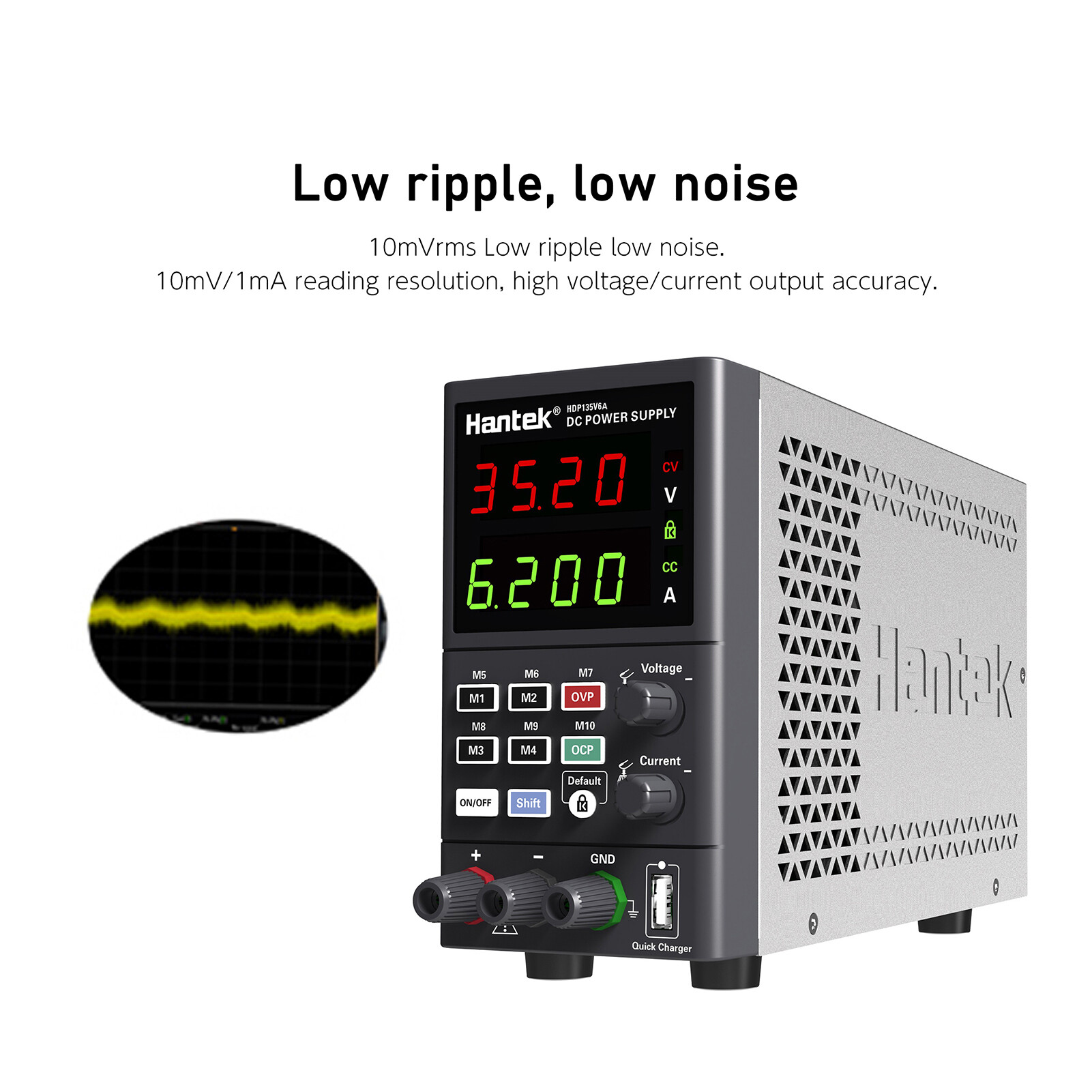

Voltage Ripple: 10mVrms
Current Load Regulation: ≤0.2% + 3mA
Current Ripple: 5mArms
Quick Change: Output Voltage 5-12V, Maximum Output Power 18W
Charging Protocol: Compatible with DCP, QC2.0/ QC3.0, FCP, AFC
Working Temperature: -10~40°C; Humidity: ≤80% RH
Storage Temperature: -20~60°C; Humidity: ≤80% RH

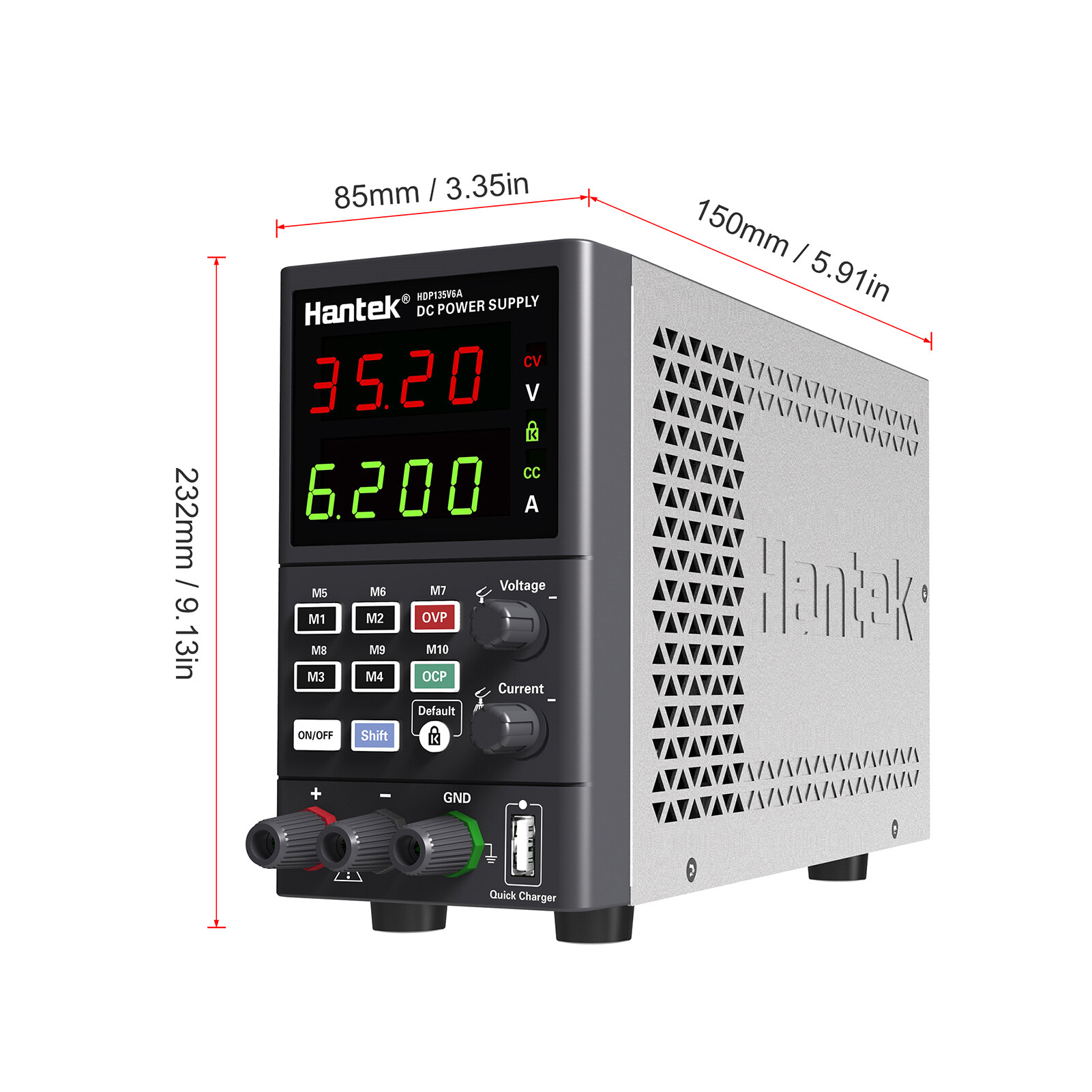

Item Size: 85 * 150 * 232mm / 3.35 * 5.91 * 9.13in
Item Weight: 1594g / 3.51lbs
Package Size: 28.5 * 21.5 * 14cm / 11.22 * 8.46 * 5.51in
Package Weight: 2050g / 4.52lbs
