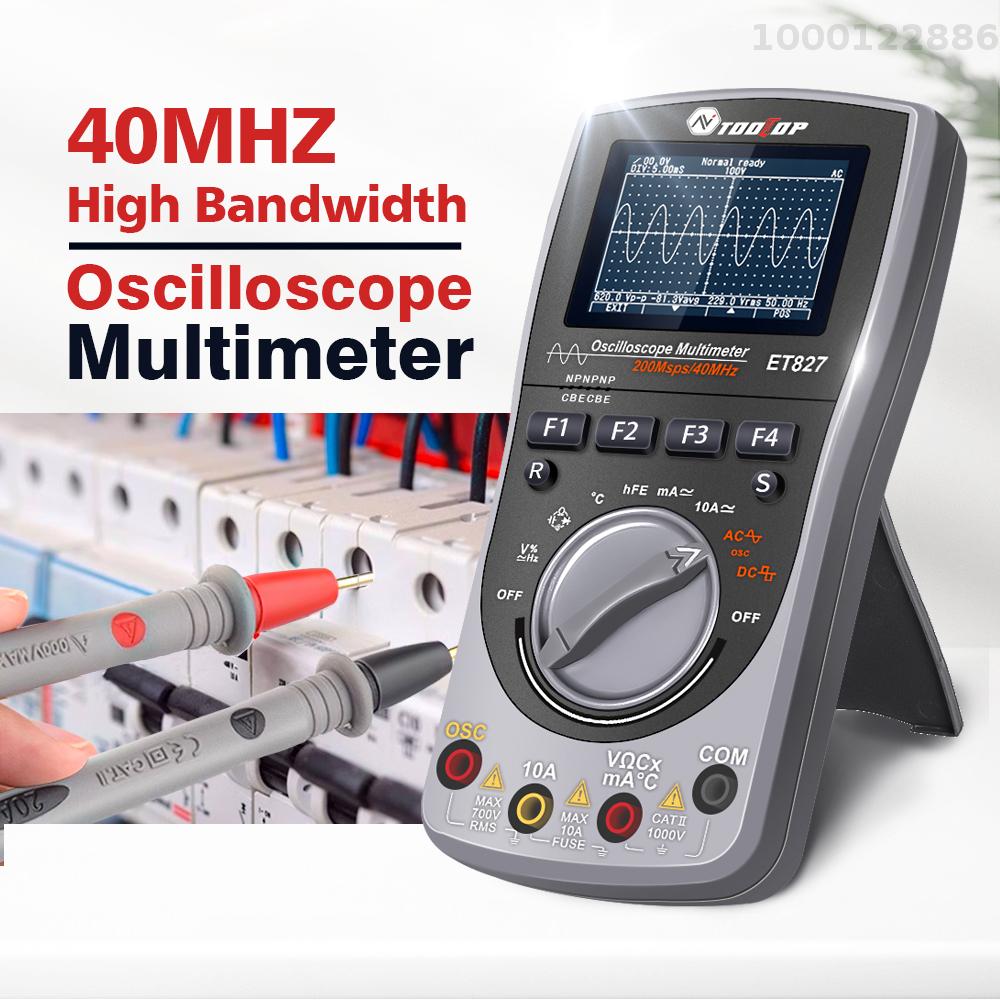

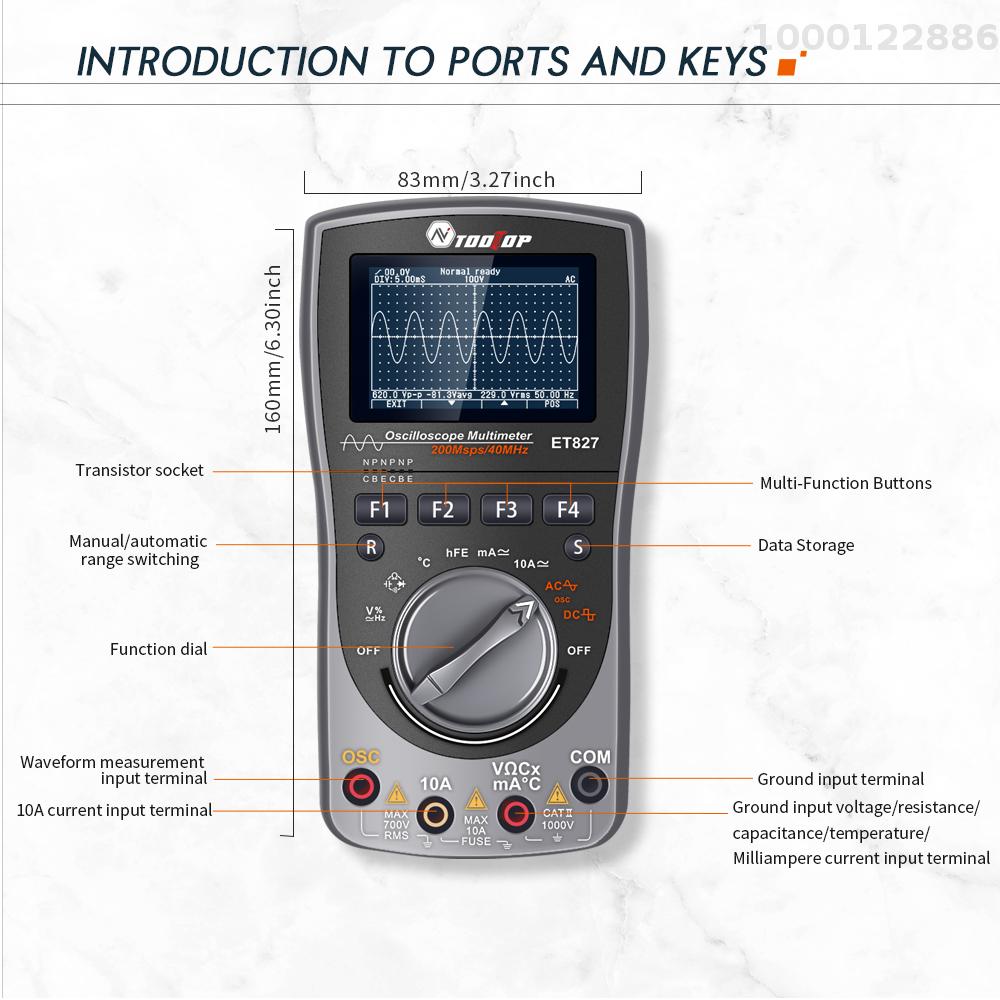

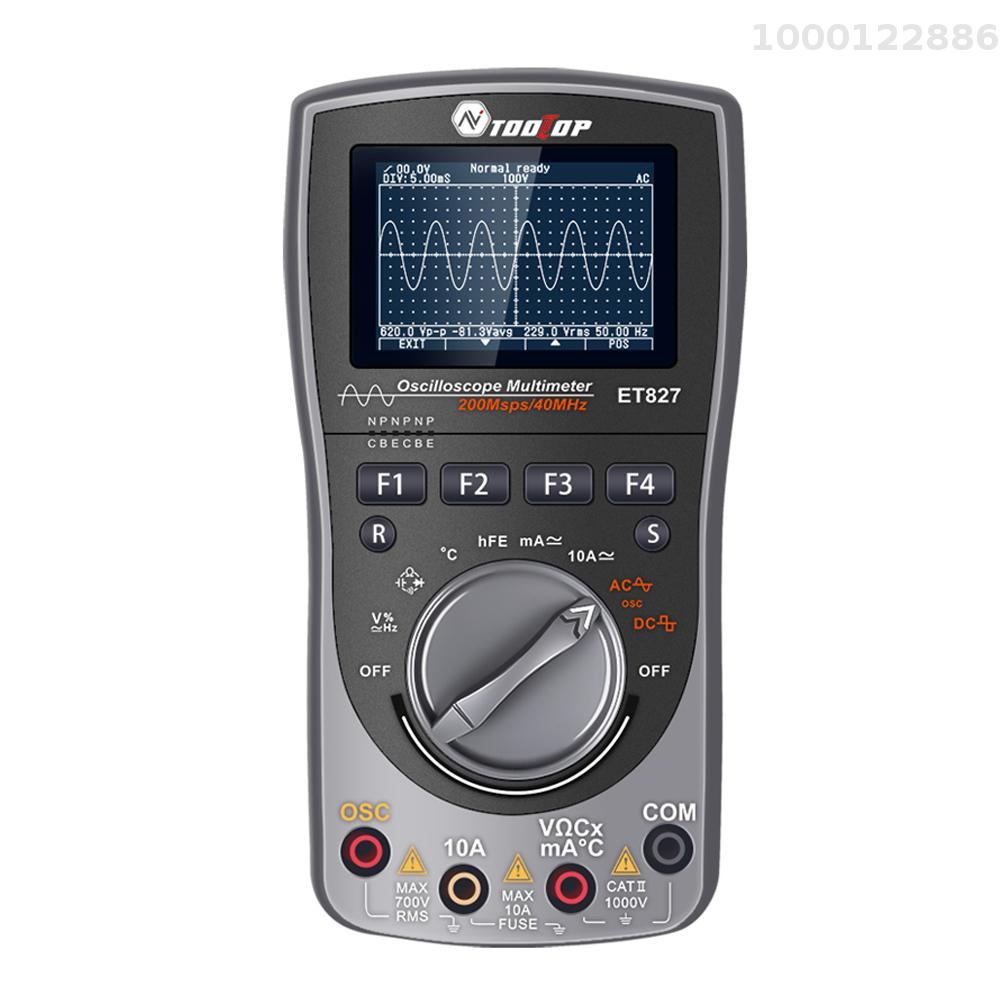

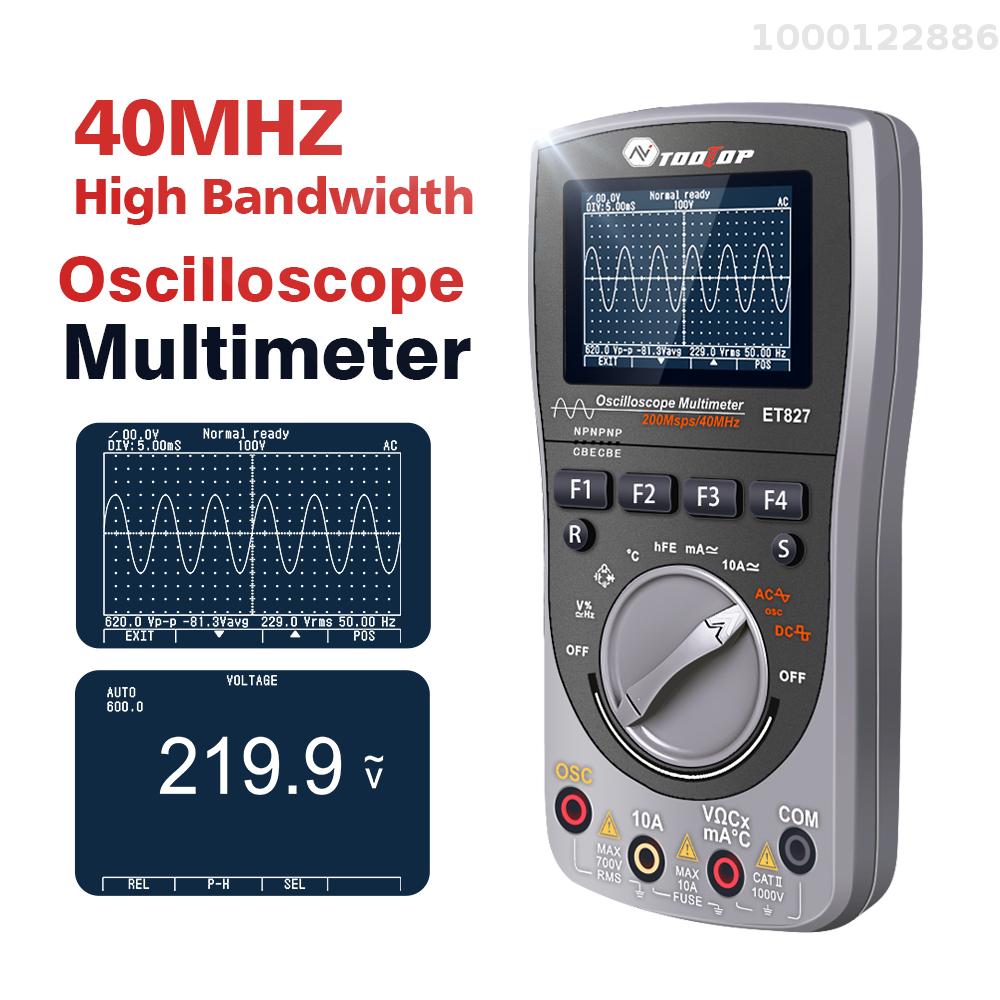

KKmoon 2in1 Oscilloscope Multimeter Digital LCD Display Handheld Oscope Meter 40Mhz Bandwidth 120MSPS Sampling Rate Data Storage Function for DIY and Electronic Test

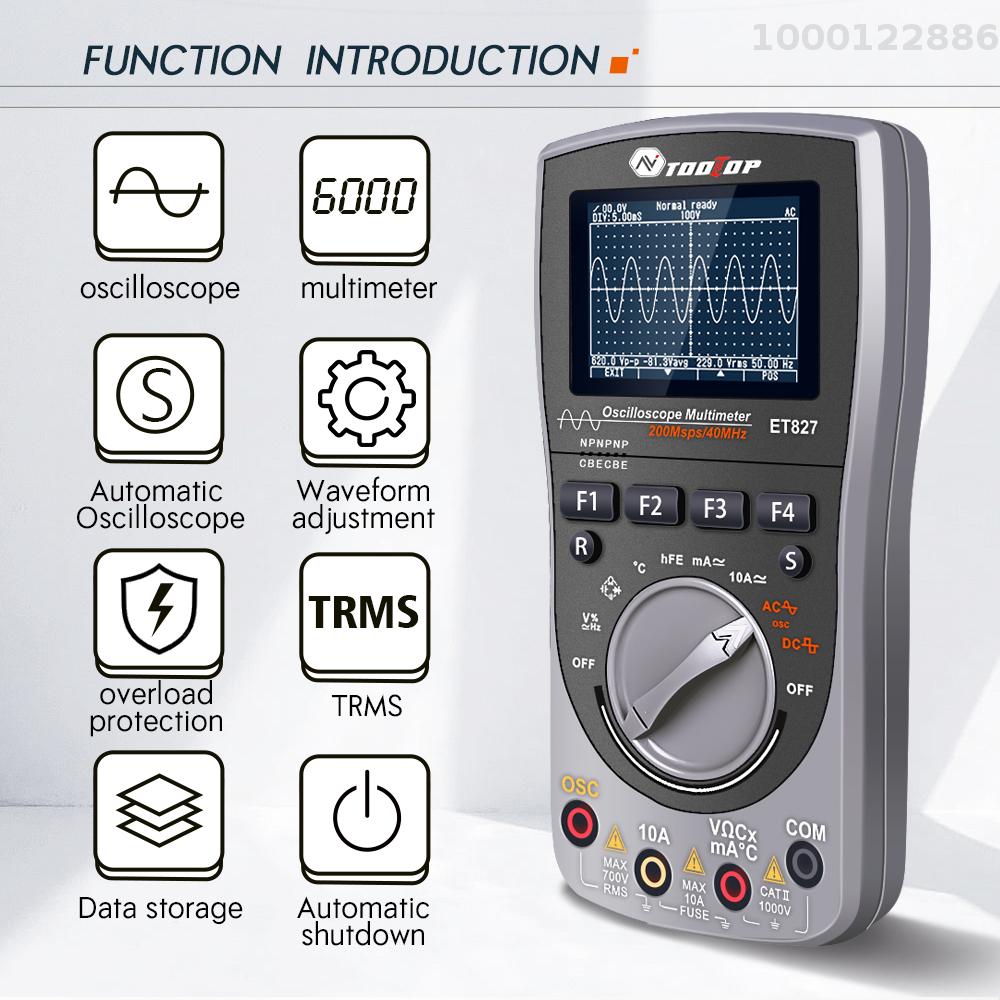

The ET827 is an example of a combination of an oscilloscope and a autorange multimeter. Support oscilloscope and multimeter dual modes switching. It can simultaneously measure a variety of electrical parameters or capture waveforms, and display the electrical parameters or waveforms of electrical signals. Multifunctional design, with waveform adjustment, TRMS, data storage, automatic shutdown, and with overload protections functions. Supports DCVoltage, resistance, capacitance, diode, triode and temperature test. It can easily handle measurement in various fields, widely used in the fields of testing and debugging of electronic circuits, troubleshooting and repairing of electronics, communications, computers, etc.

Features:

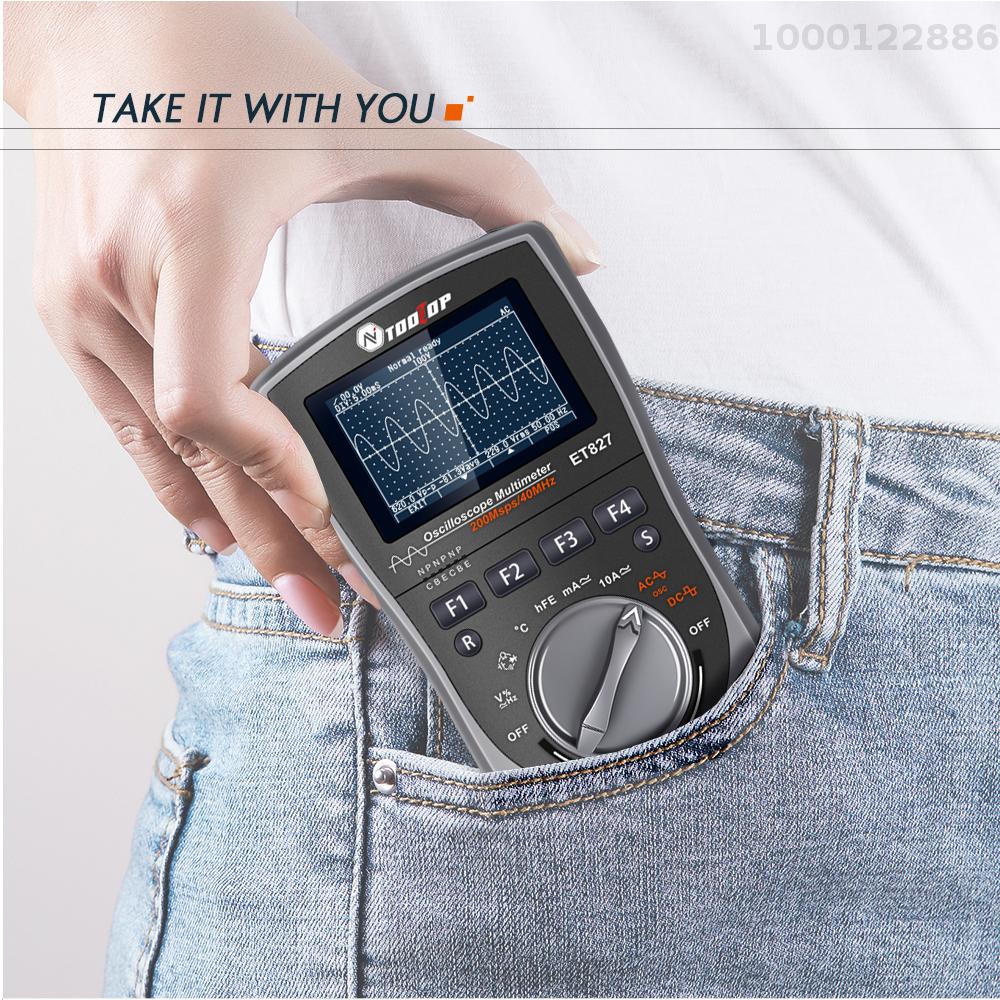

【Concise Appearance】: Compact and portable body, with simple and elegant appearance, easy to carry, does not occupy the space, say goodbye to the traditional bulky and difficult to carry.

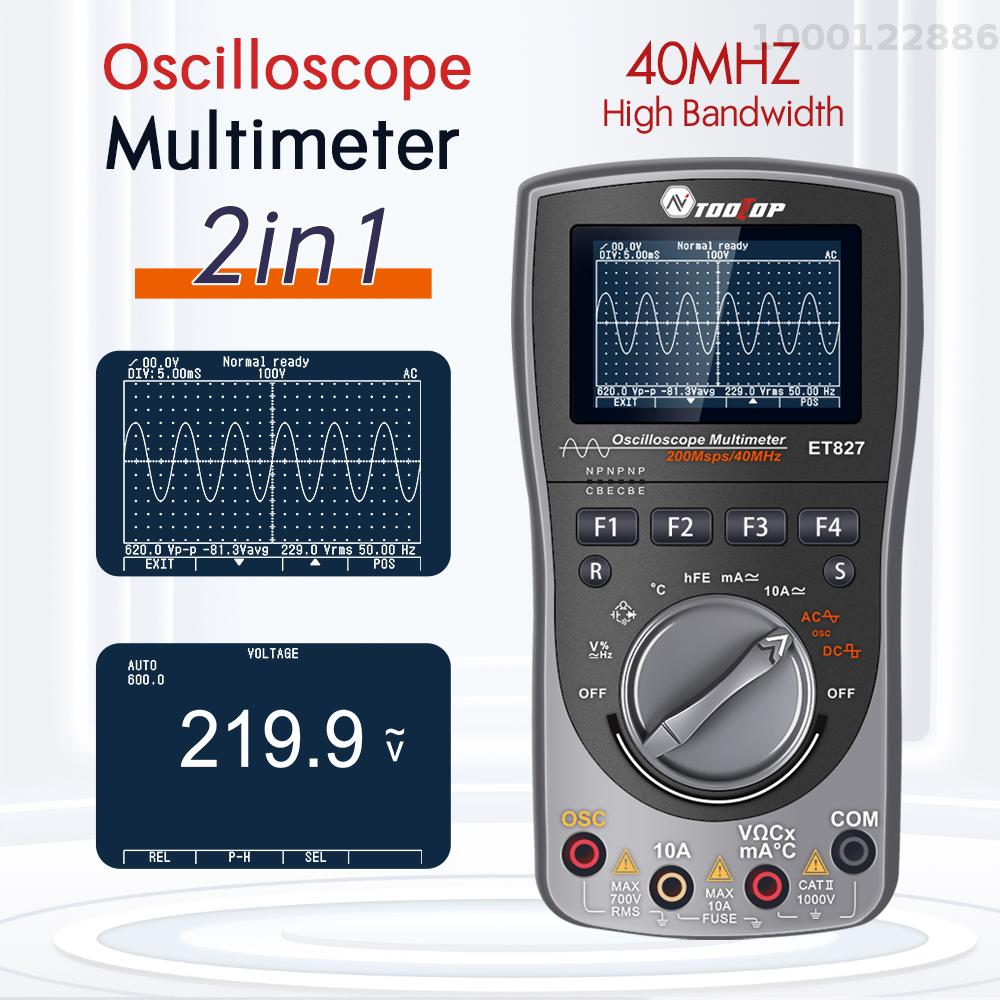

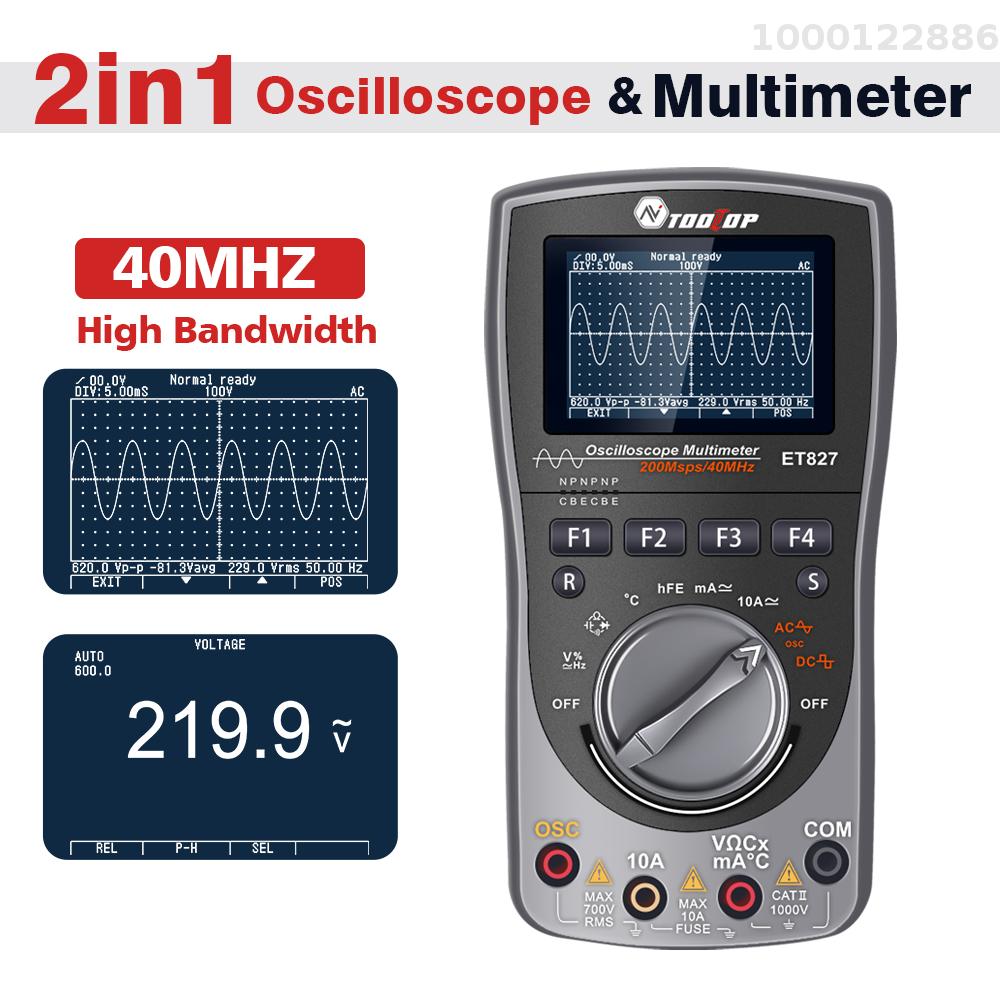

【2In1 Design】: This product ingeniously integrates digital oscilloscope and multimeter functions into one device. Support oscilloscope and multimeter dual modes switching. It can simultaneously measure a variety of electrical parameters or capture waveforms, and display the electrical parameters or waveforms of electrical signals.
【Digital LCD Display】: With clear-definition LCD display, higher the accuracy, in sunlight and dark conditions can be clearly seen. Font large design, easy to read data, very suitable for middle-aged and elderly electricians to use, easy to operate.

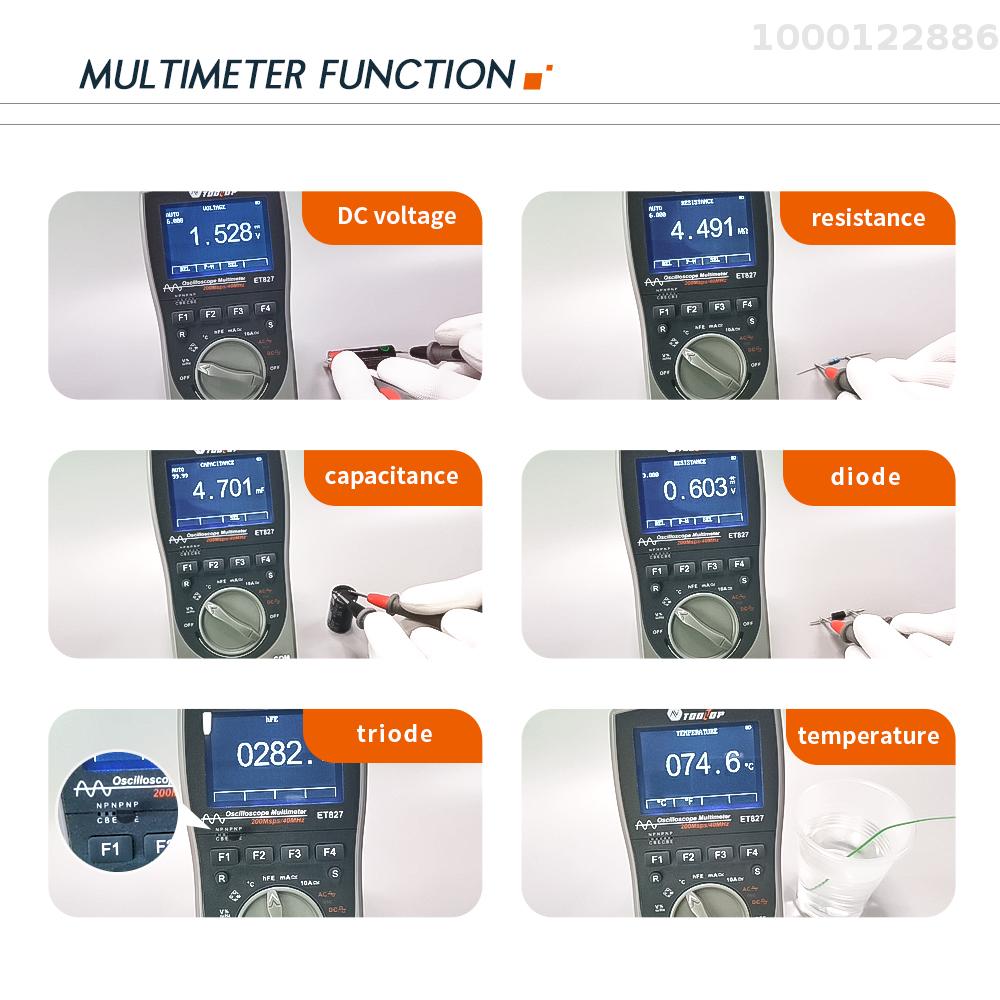

【High-precise Multimeter】: Built-in true RMS multimeter, that supports DCVoltage, resistance, capacitance, diode, triode and temperature test.

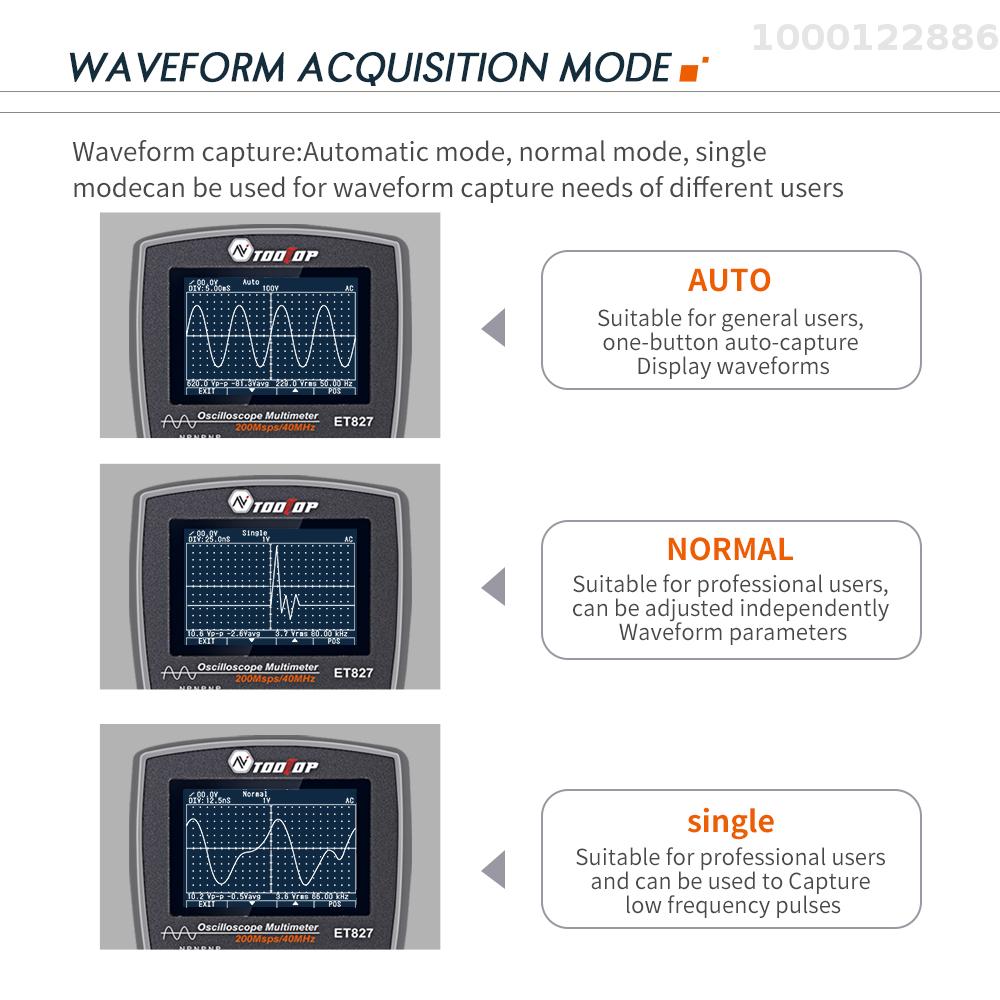

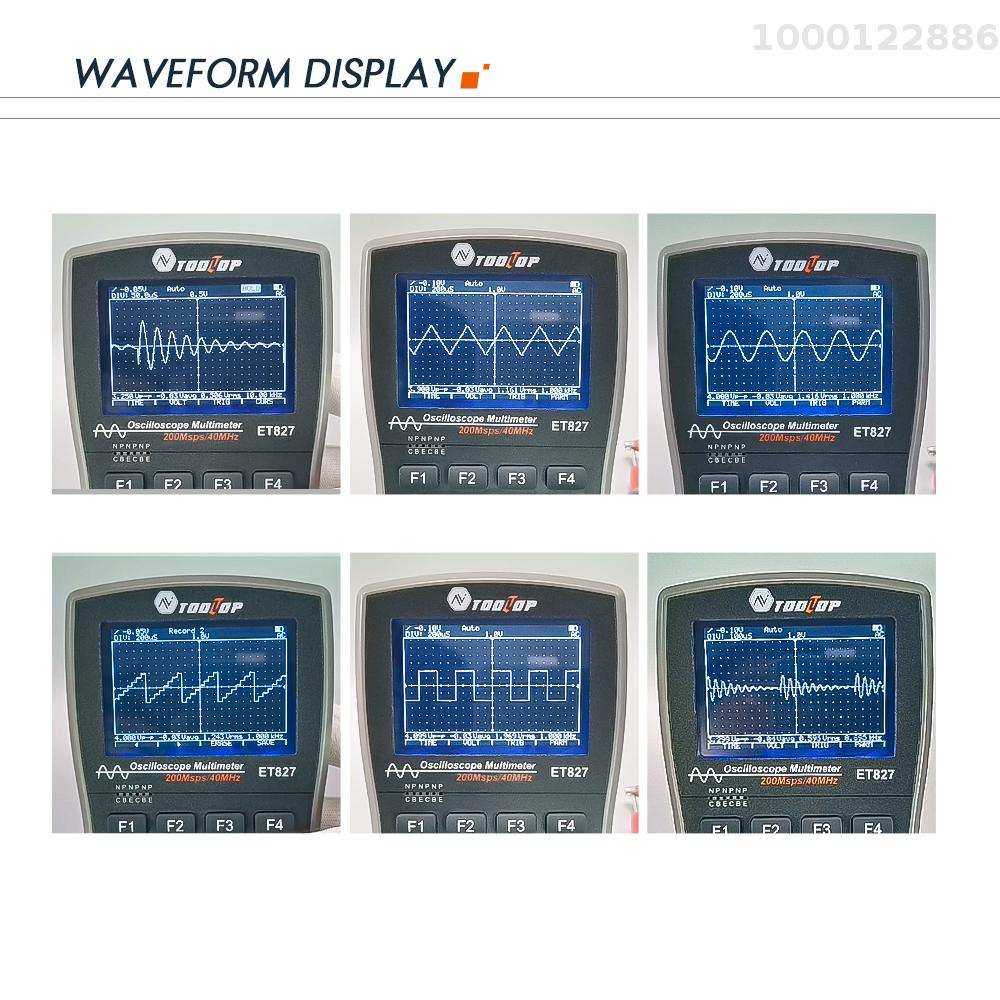

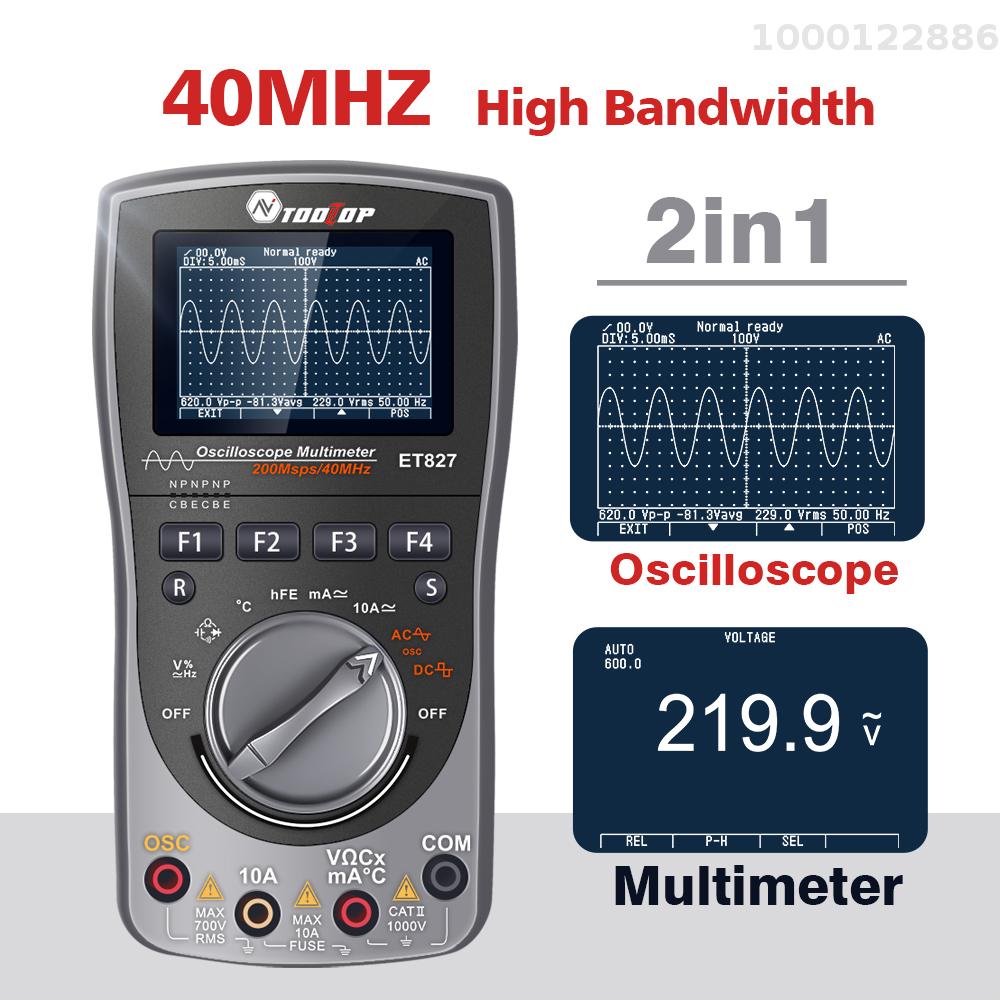

【Digital Oscilloscope Function】: With 40MHz bandwidth and 120MSPS sampling rate. With three acquisition modes (automatic, manual, single) to meet the waveform capture needs of different users. No complicated operation, you can quickly detect and display the waveform. In fully automatic mode, no button operations are required, and continuous automation is performed.

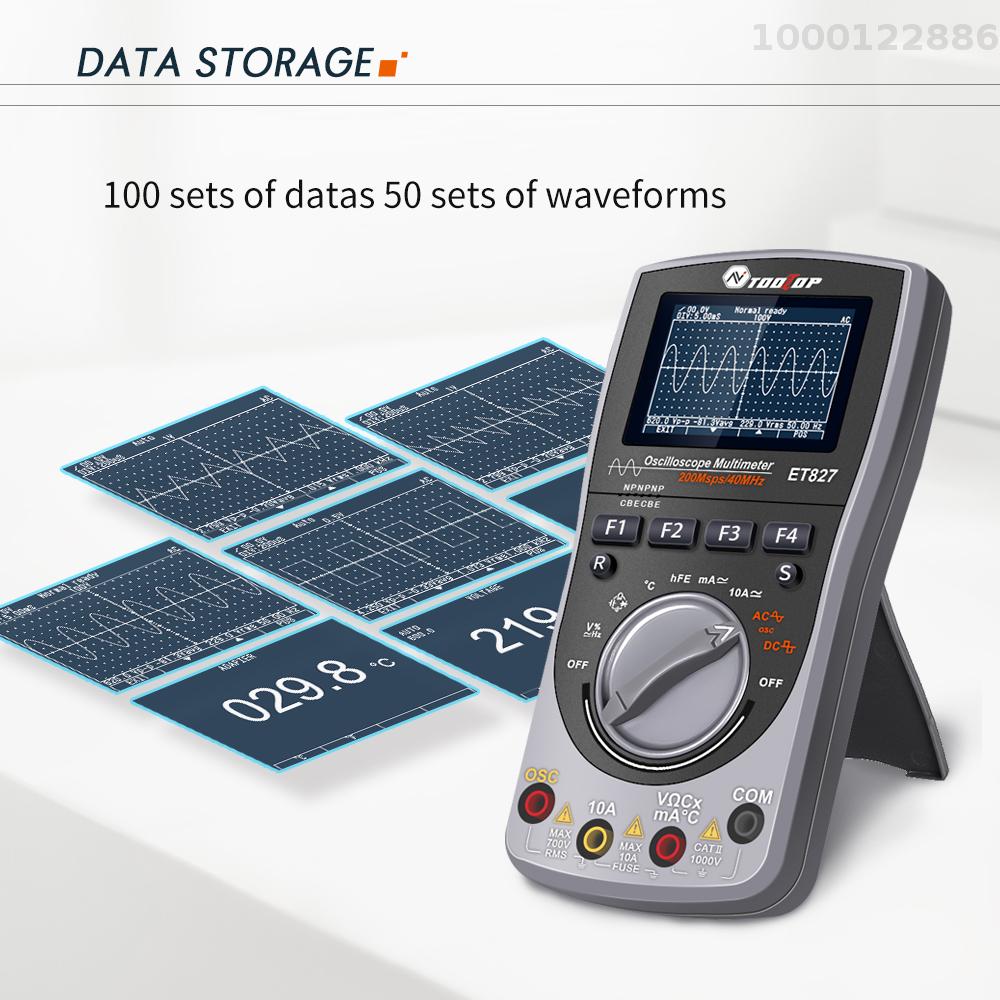

【Data Storage】: The tested data can be stored for more convenient to back up and analyze. Max 100 sets of datas and 50 sets of waveforms can be storaged.
【Wide Applications】: It can easily handle measurement in various fields, widely used in the fields of testing and debugging of electronic circuits, troubleshooting and repairing of electronics, communications, computers, etc.

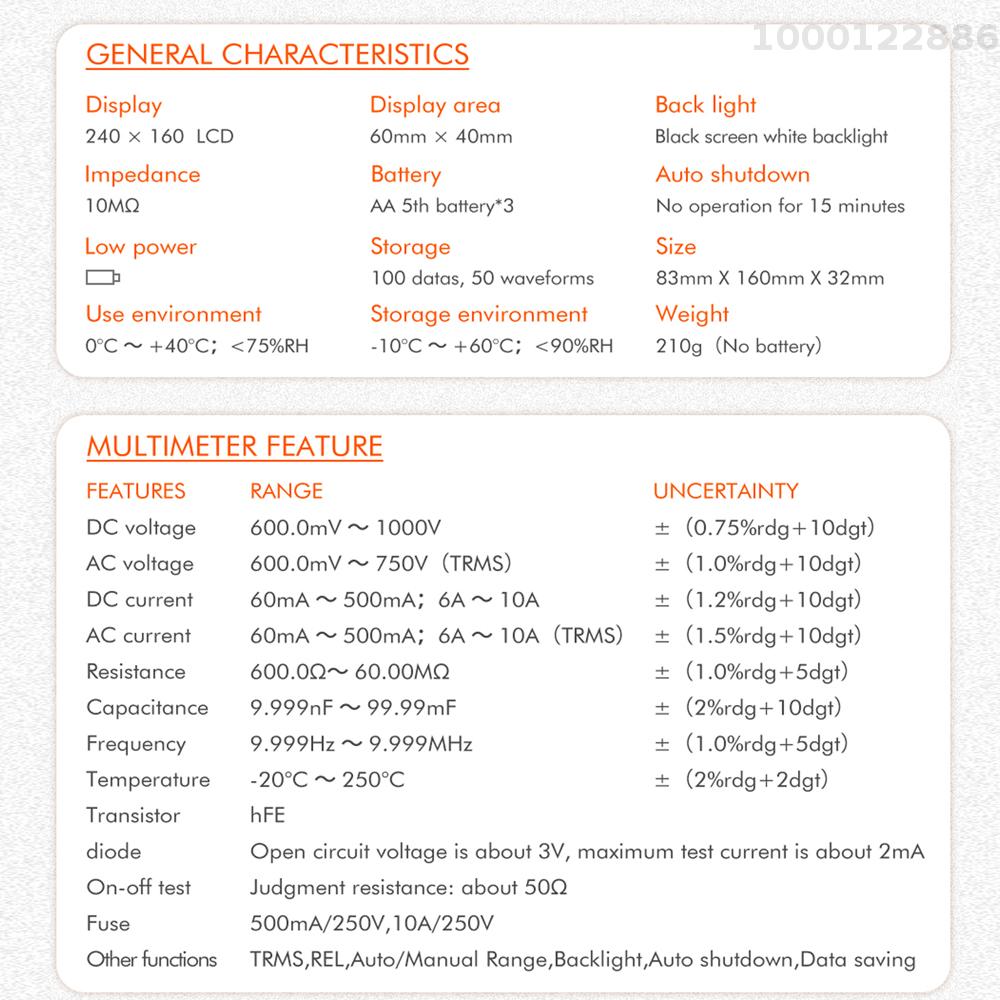

Specifications:
Name: 2in1 Oscilloscope Multimeter
Material: ABS
Display: 240*160 LCD Display with backlight
Impedance: 10ΜΩ
Battery: 3 * AA battery (not included)

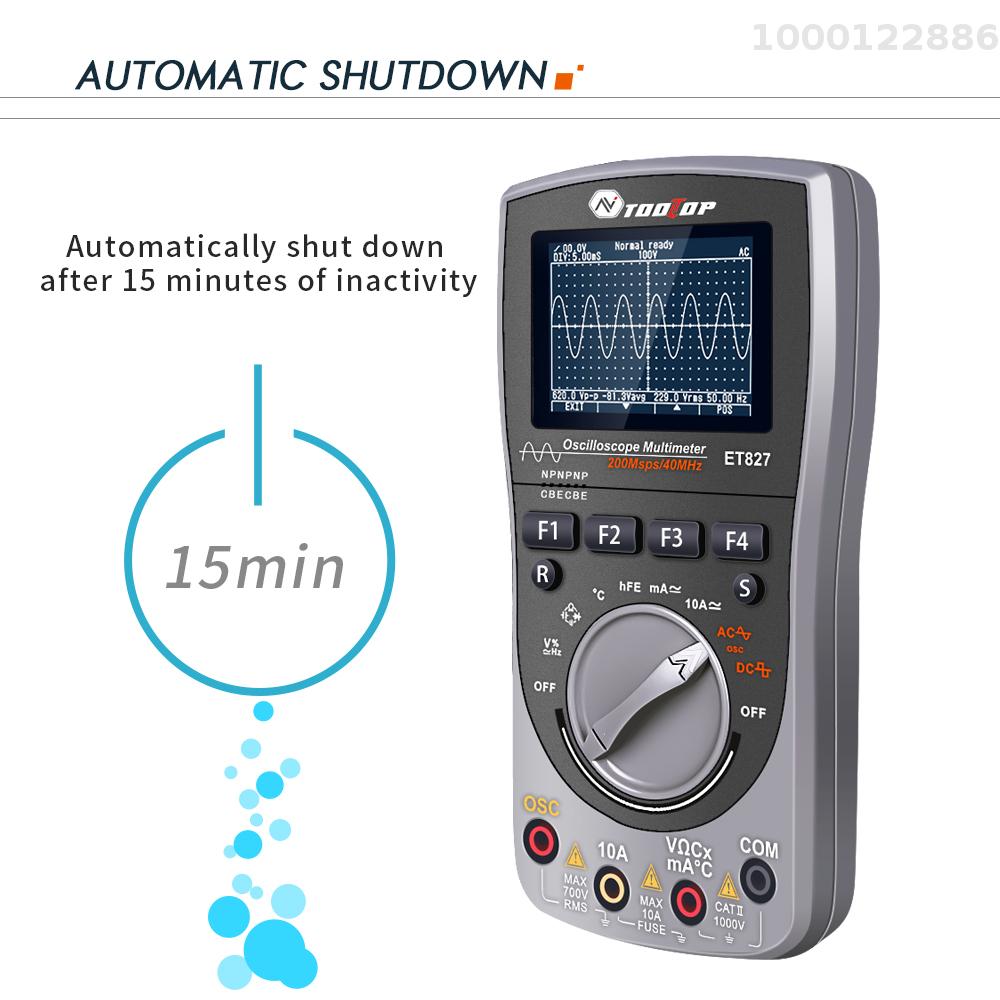

Auto shutdown: No operation for 15 minutes
Storage: 100 datas, 50 waveforms
Use environment: 0°C~+40°C; <75%RH
Storage environment: -10°C ~ +60°C; <90%RH

Multimeter:
ACvoltage: 600mV-1000V, ±(1.0%rdg+10dgt)
DCvoltage: 600mV-1000V, ±(0.75%rdg+10dgt)
ACcurrent: 60mA-500mA; 6A-10A(TRMS), ±(1.5%rdg+10dgt)
DCcurrent: 60mA-500mA; 6A-10A, ±(1.2%rdg+10dgt)
Resistance: 600.0Ω-60.00ΜΩ, ±(1.0%rdg+5dgt)
Capacitance: 9.999nF-99.99mF, ±(2.0%rdg+10dgt)
Frequency: 9.999Hz-9.999MHz, ±(1.0%rdg+5dgt)
Tempearture: -20°C to 250°C, ±(2.0%rdg+2dgt)
Transistor: hFE
Diode: Open circuit voltage is about 3V, maximum test current is about 2mA On-off test: Judgment resistance: about 50Ω

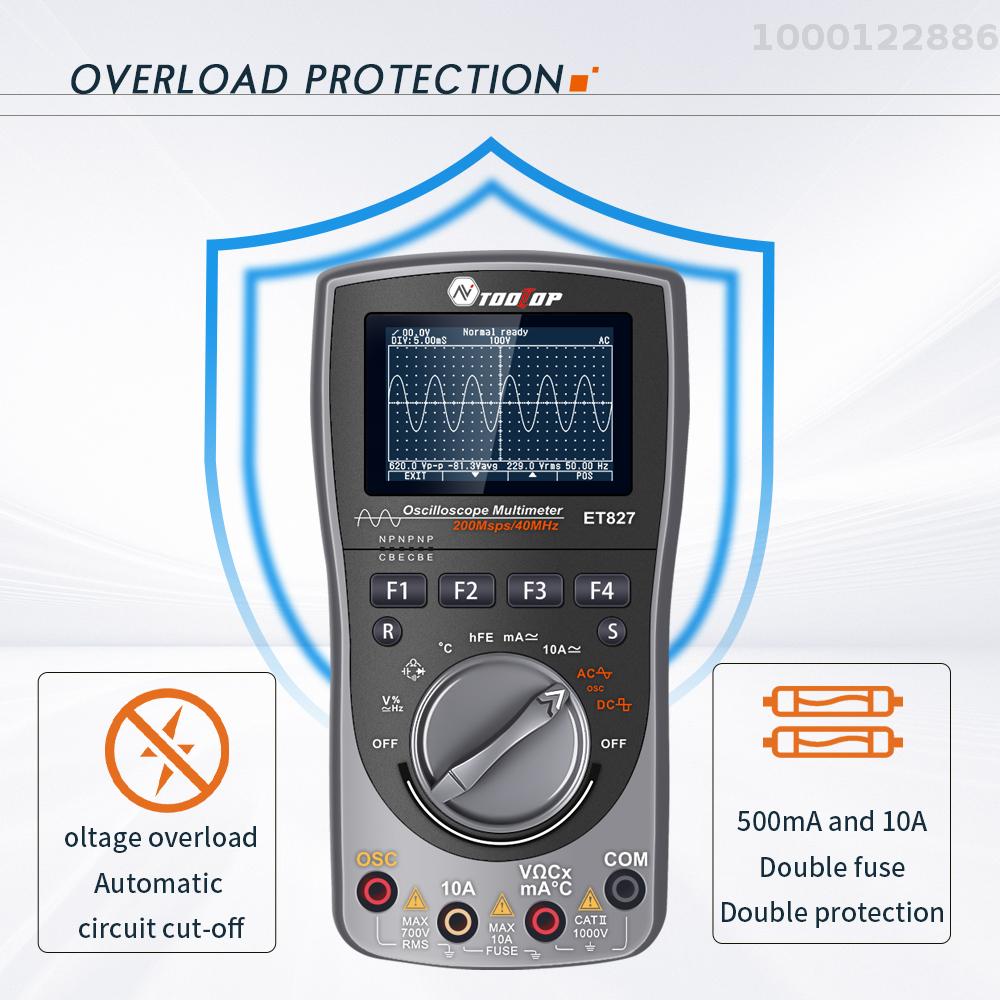

Fuse: 500mA/250V,10A/250V

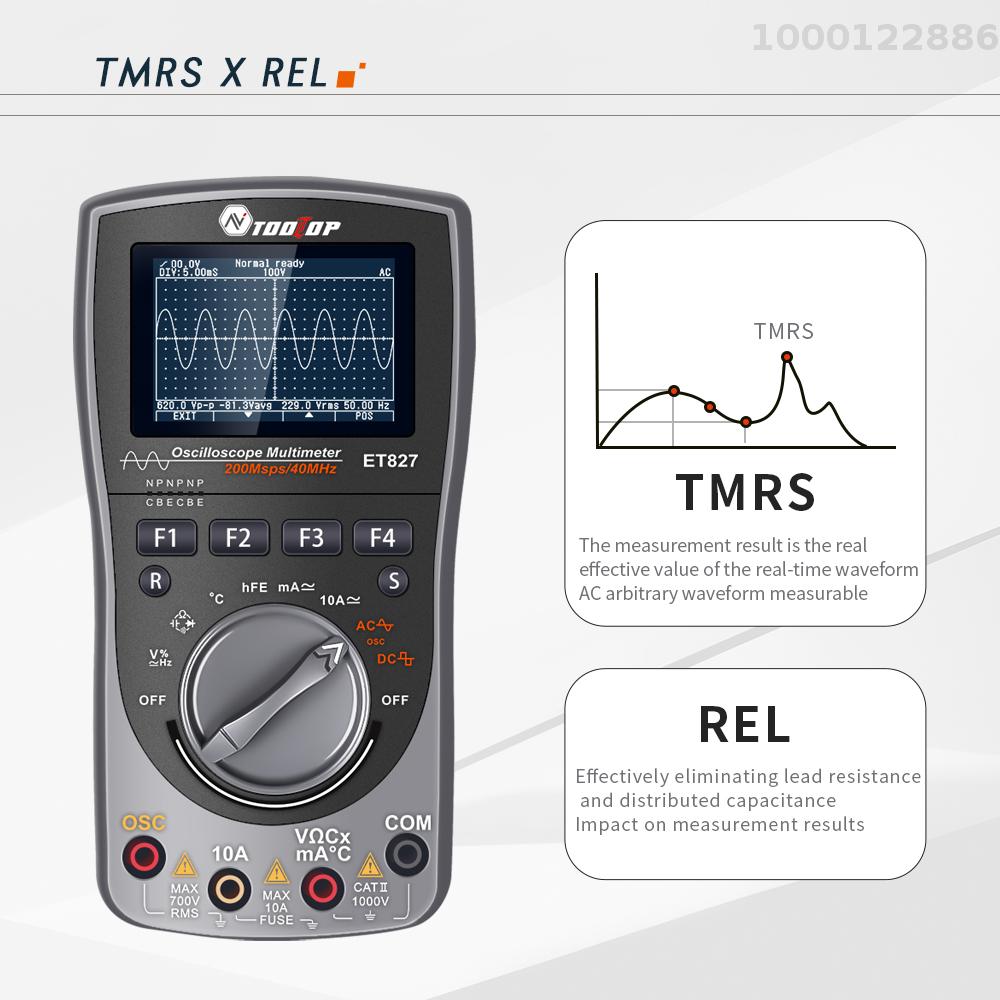

Other functions: TRMS, REL, Auto/Manual Ranges, Backlight, Auto shutdown, Data saving

Oscilloscope:
Analog bandwidth: 40MHz
Nonlinearity: ±1 bit
Vertical resolution: 8 bits
Scan mode: Auto/Normal/Single
Record length: 24.0 div
Vertical sensitivity ranges: 500mV/div ~ 200V/div
Maximum real-time sampling rate: 200Msps
Vertical amplitude accuracy: ±(5%+ 0.2div)
Division: Vertical ±6.0, level 24.0
Timebase ranges: 12.5ns/div ~ 10s/div
Cursor measurement function: dV, dt
Time base accuracy: ±(0.01% +0.1div)
Trigger slope selection: Rising edges / falling edges
Automatic measurement function: Vp-p, Vavg, Vrms
Automatic measurement accuracy: ±(5%+ 0.2div)
Waveform highest measurable voltage: 700V

Item size: 83 * 160 * 32mm / 3.27 * 6.30 * 0.83in
Item weight: 210g / 7.41ounce
Package size: 190 * 140 * 45mm / 7.48 * 5.51 * 1.77in
Package weight: 409g / 14.43ounce

Packing List:
1 * 2in1 Oscilloscope Multimeter
