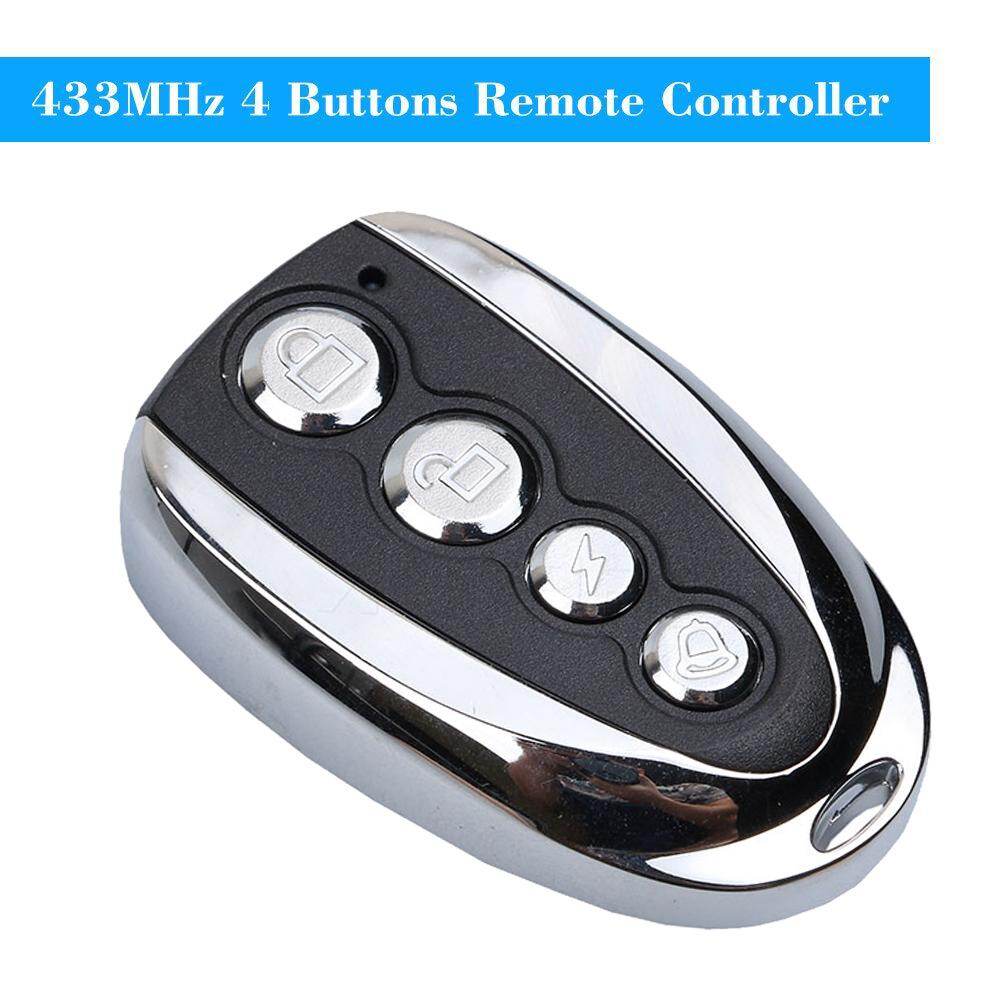

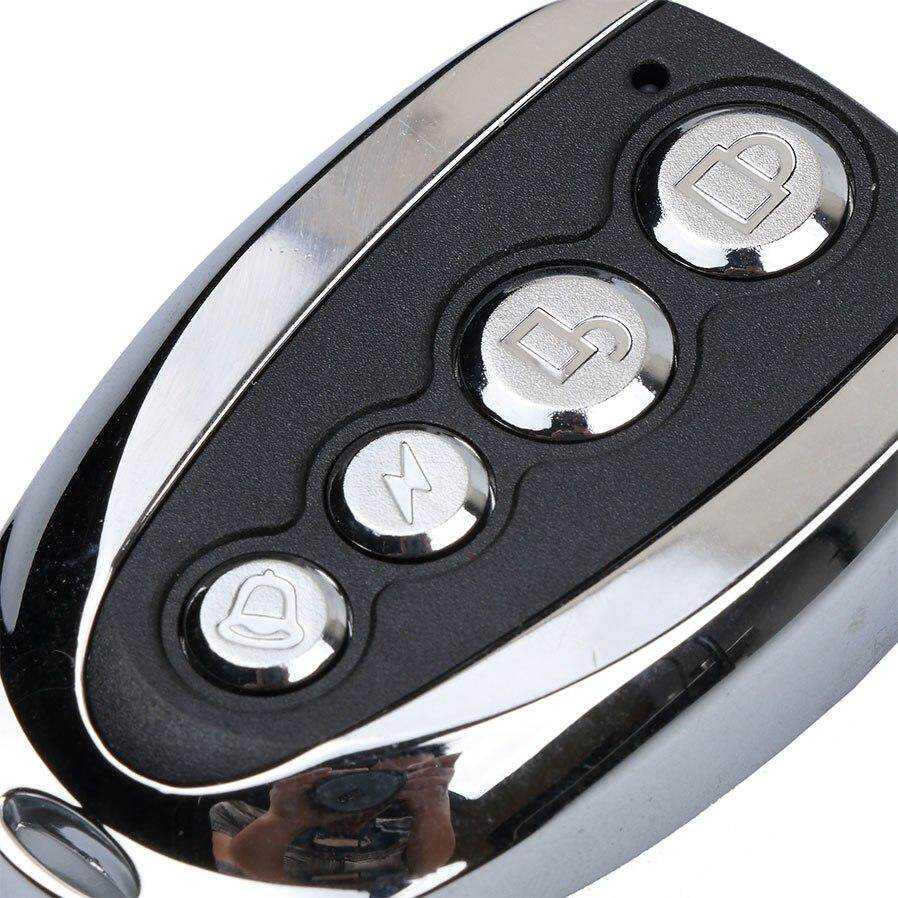

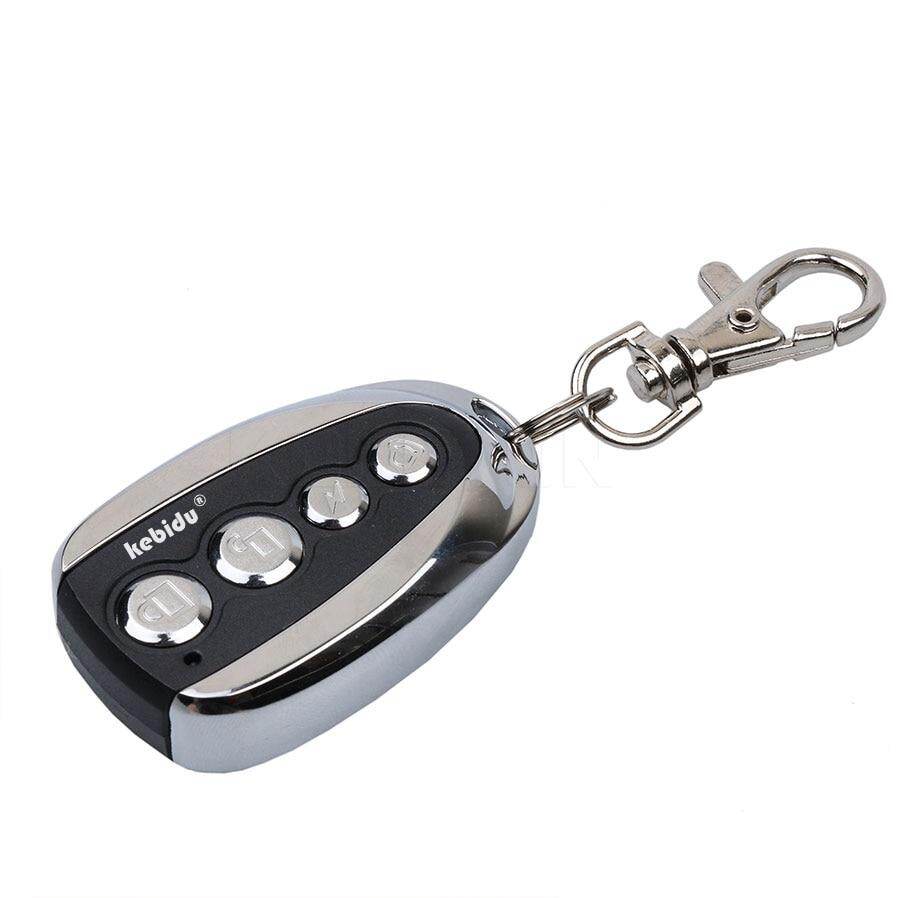

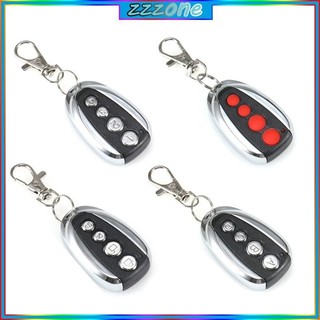

Kebidumei 433MHz Remote Control Electric 4 Button Auto Copy Remote Controller Duplicator Garage Door Gate Opener Transmitter

Specifications:

Working voltage: DC 12V

Operating Current: ≤ 8mA

Working frequency: 433.92MHz

Modulation Mode: ASK (AM)

The transmission power: ≤ 100mW

Emission Distance: 50 to 100 m (proof)

The encoding type: self Copy

The working temperature: -10 ° C to +50 ° C

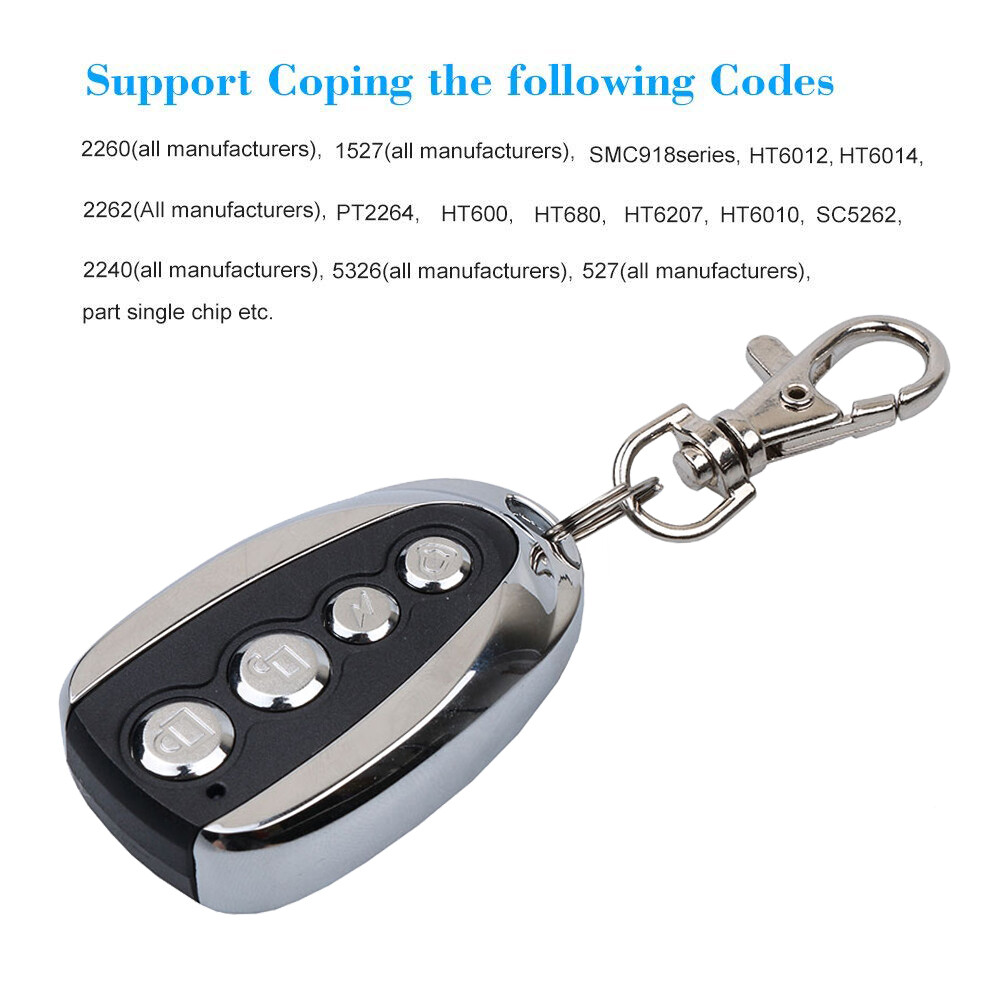

Works with the following remote control IC modules (please check your original remote control before ordering),and your remotes also should be Fixed code or Learning code. AX5326-3.PT2262.PT2260.EV1527.FP527.PT2242.HT600.HT680.HT6207.HT6010.HT6012.HT6014.AX5326-4.SMC918.PT2240.HT6013.HT6013.HT12D,etc

Uses: garage doors, motorcycles, car alarm products, home security products, short-range wireless remote control products, industrial control products

How to Program:

1. Press the One and Three buttons until the LED flashes - it takes around 3 seconds.

2. Place the cloner remote and the original remote close together/side by side so that they are touching.

3. Press a button on your original remote at the same time and one of the buttons on the clone remote and hold until the LED on the clone remote flashes steadily.

(The Blue LED will first flash 3 times quick, then stops for a second, then flashes steadily for successful cloning).

4. Now programming is successful! If you want to program more buttons just repeat steps 2 > 4. It's that easy! To reset the remote simply start again with step

Notice:

The essential condition for the selection of the remote control; the copied remote control operates normal, the chip is compatible and frequency is correct.

Before buying,please make sure the copyed remote control operating frequency or choose & buy the frequency adjustable type remote control.

Before buying,please confirm whether your remote control can be copyed or not.

Our remote control can copy the fixed codes and learning codesrather than stealth codes.It can't copy original car remote control, two-way remote control and rolling code remote control (Rolling code chips start with HCS commonly,such as HCS200,HCS201,HCS300,HCS301,etc)

Package Included:

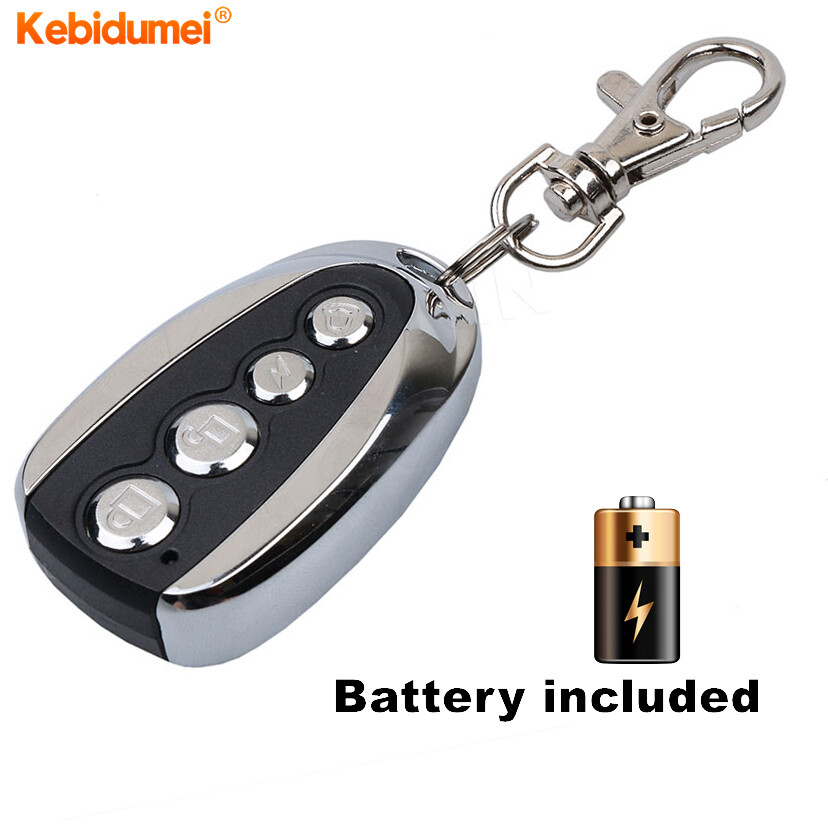

1 x Remote Control (27A battery a including)

Note: This item comes without a retail box, but please rest assured that we will pack it well before shipping!
