Technical Data:
Input Power: DC 10V-14V
Standby Current: <5MA
RF Frequency: 315M or 433M
RF working mode: superheterodyne
Receive sensitivity: >97dbm
Transmitting distance: 20 meters above
Decoding mode: MCU software decoding
Remote storage: 25 pcs
Support remote type: Learning code, Fixed code(Rolling code can be design)
Working mode: Momentary, Toggle, Latching Time delay (5s, 10s, 15s )
Wiring type: fixed terminal
Output Terminal: NO, NC, COM
Dimension of PCB: 35*30*18mm (L,W,H)
Wiring diagram 1:
+V : 12V + input ;
- V: 12V - input ;
NO: Output , normal open;
COM: Output , common ;
NC: Output , normal close;
About Working mode:
Momentary: Push the remote button, the relay connects, release the remote button, the relay disconnects.
Toggle: Push once the remote button, the relay connects, push twice the remote button, the relay disconnects.
Latching: Push the remote button A, the relay connects, push the remote button B, the relay disconnect.
Time delay mode: use the remote control button, the relay connects, from when release the remote button, after 5s or 10s or 15s, the relay disconnect automatically.
Clearing the code:
Push the learning button on the receivers for 8 times , the codes will be cleaned.
After cleaning the code, all the remote control cannot work anymore.
Learning the code: (momentary)
Push the learning key on the receiver once time , it comes into momentary setting mode .
Wait for a moment, the LED will be off, it comes into learning state.
Push the remote button, LED indicator on the receiver board will flash then come off.
After 3 seconds, the LED indicator will be on again, learning successfully.
Learning the code: (Toggle)
Push the learning key on the receiver twice the time, it comes into toggle setting mode
Wait for a moment , the LED will be off, it comes into learning state.
Push the remote button,LED indicator on the receiver board will flash then come off.
After 3 seconds, the LED indicator will be on again, learning successfully.
Learning the code: (Latching)
Note: When you choose for latching mode, in order to learn more remote control, you need to learn two different buttons, the first time learned is for ''ON'', the second time learned for ''OFF''.
For example : button A = ON , button B = OFF
Push the learning key on the receiver triple time, it comes into latching mode.
Wait for a moment, the LED indicator on the receiver board will flash then come off.
Push the remote button A.
LED flash for 5 times.
Push the remote button B .
Led flash for 5 times.
After 3 seconds, the LED indicator will be on again, learning successfully.
A = ON , B = OFF .
Learning the code : (Time delay mode)
Push the learning key on the receiver forth time, the time delay for 5 seconds.
Push the learning key on the receiver fifth time, the time delay for 10 seconds.
Push the learning key on the receiver sixth time , the time delay for 15 seconds.
The LED indicator will be off.
Push the remote button, LED flashes and off.
After 3 seconds, the LED indicator will be on again, learning successfully.

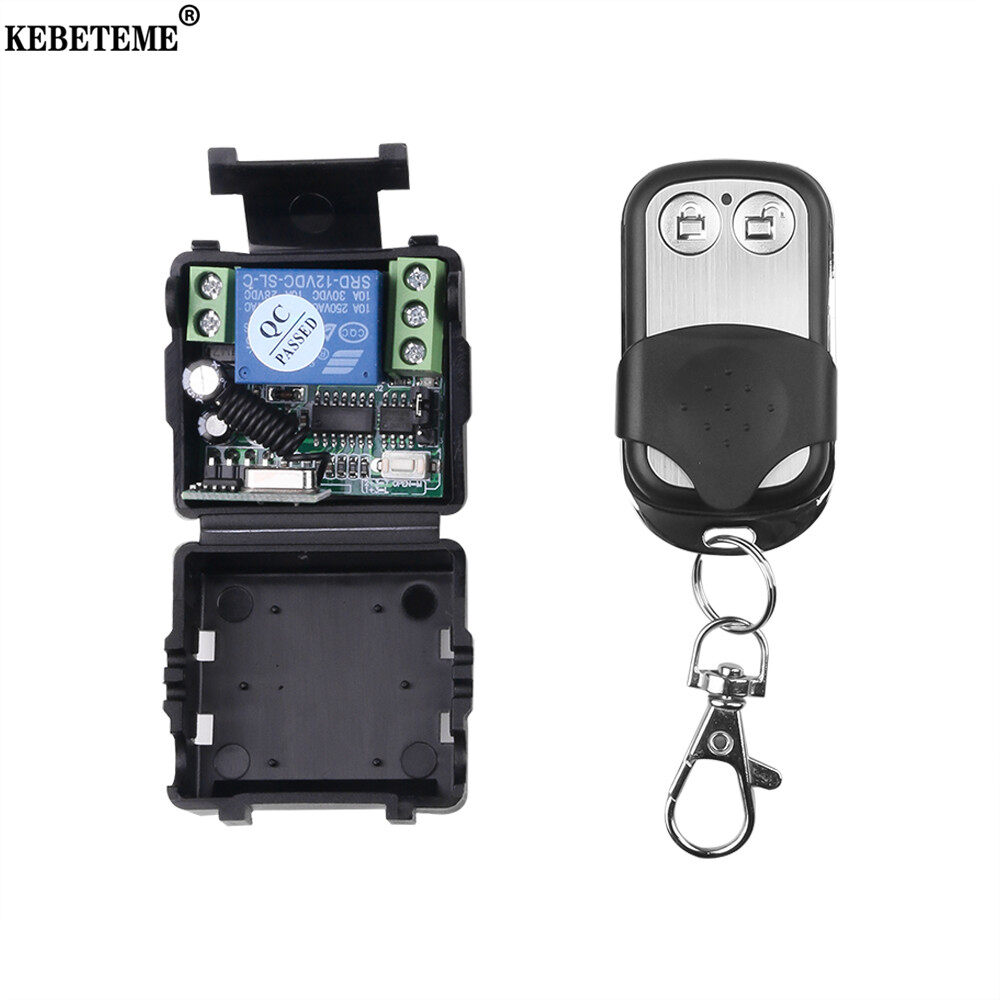

Package included:
1* Remote Control
1* Receiver module
Note: This item comes without a retail box, but please rest assured that we will pack it well before shipping!
![]()
