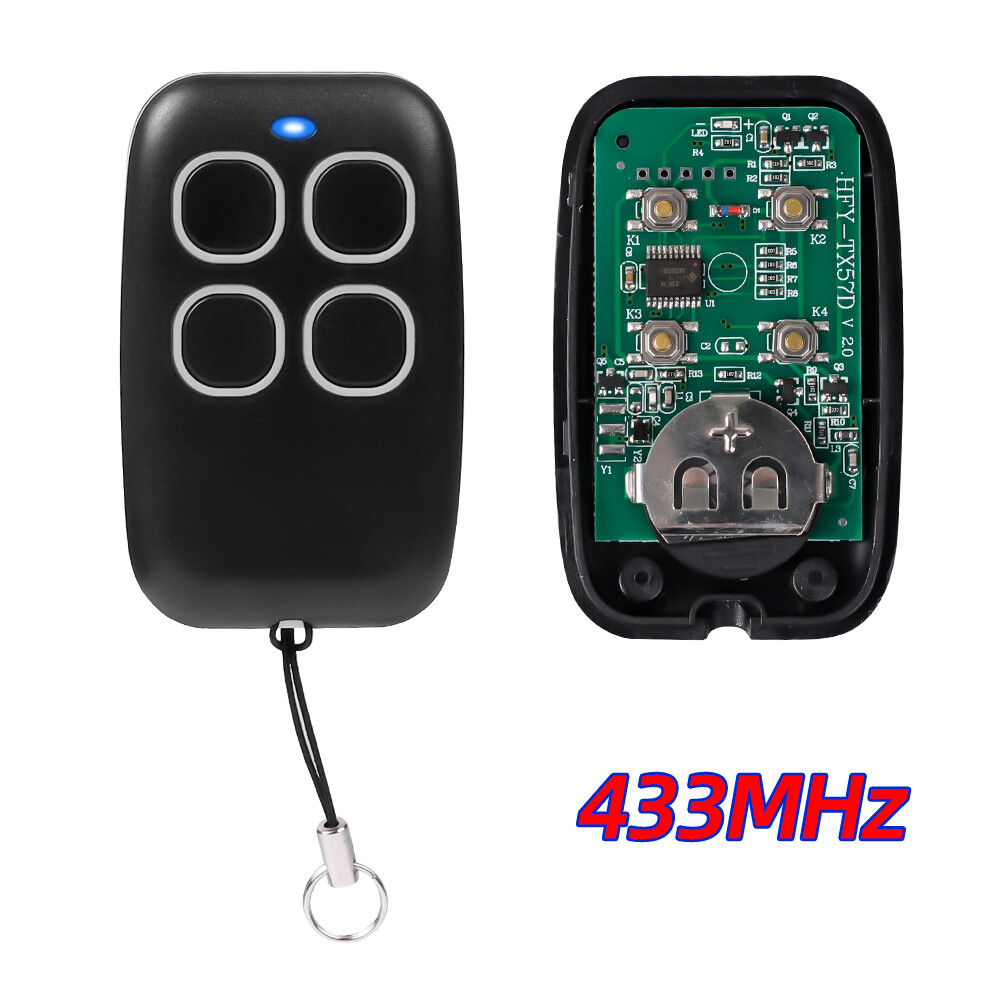

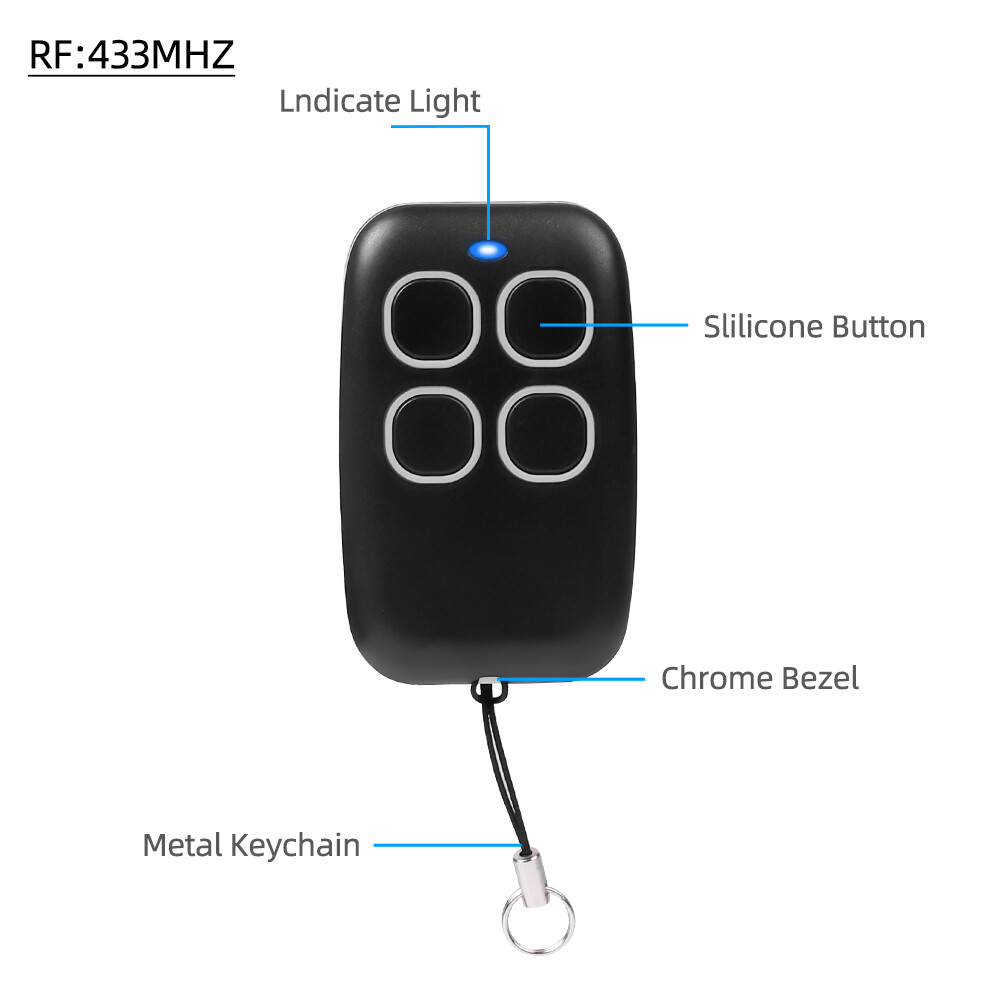

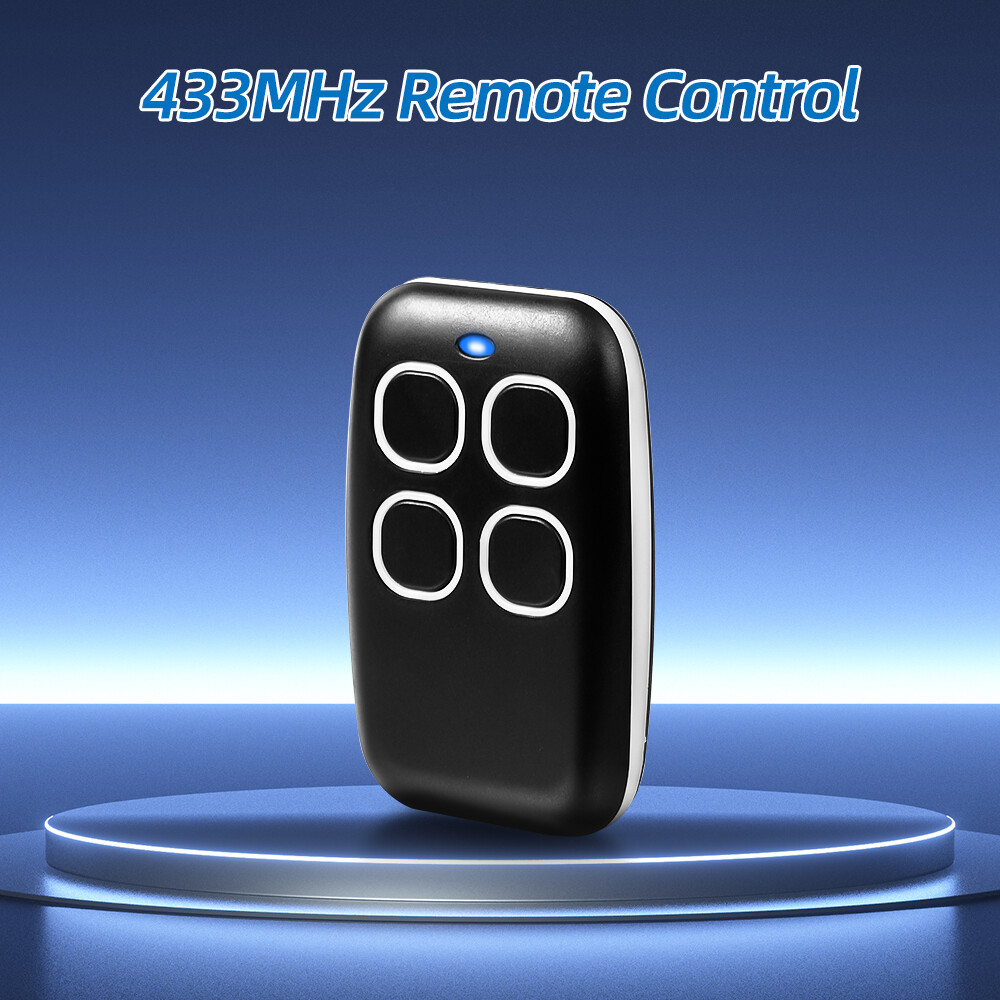

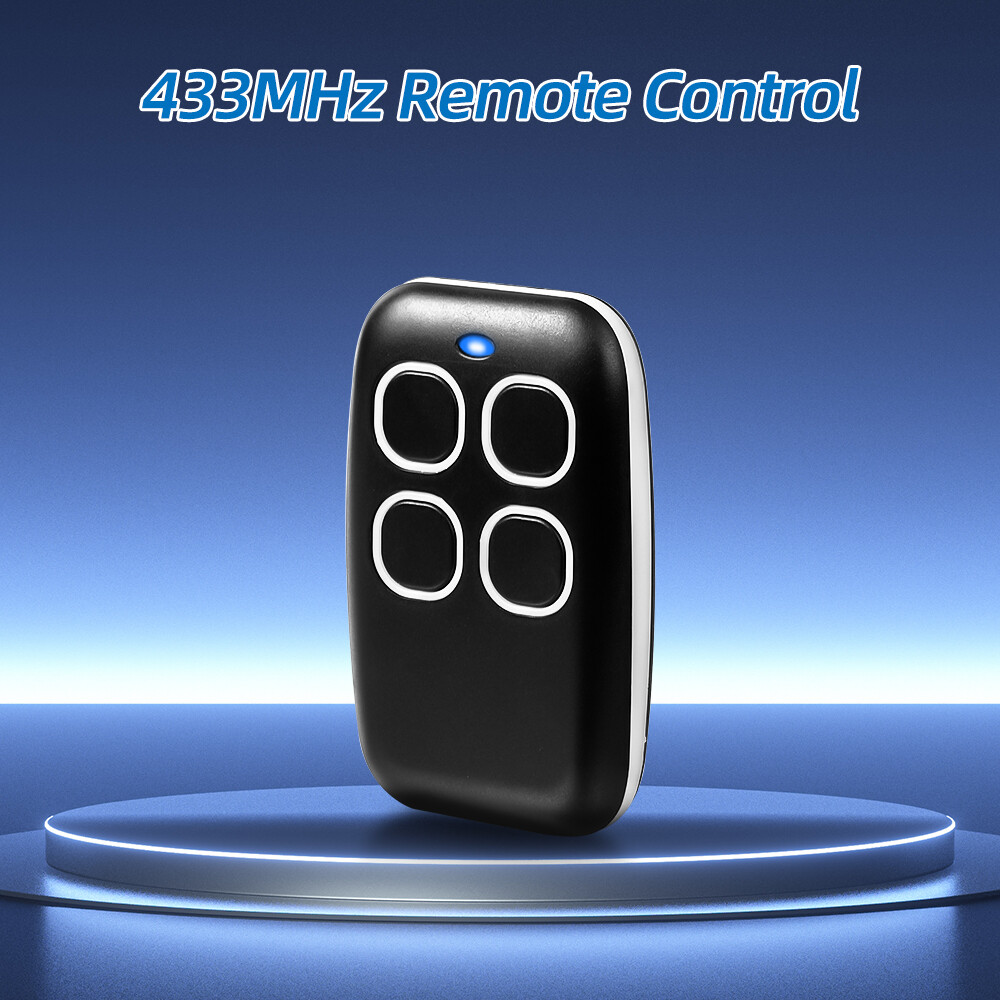

KEBETEME 433MHz Smart Copy Duplicator Remote Control 4 Buttons Garage Door Gate Remote Fixed Rolling Code Cloning 433.92MHZ Transmitter

Remarks:

For fixed code &learning code remote controls, the duplicator will work after duplicating.

But for the rolling code brand listed above, please follow the original manual to program the duplicator to receiver after duplicating

Here is the way of copy

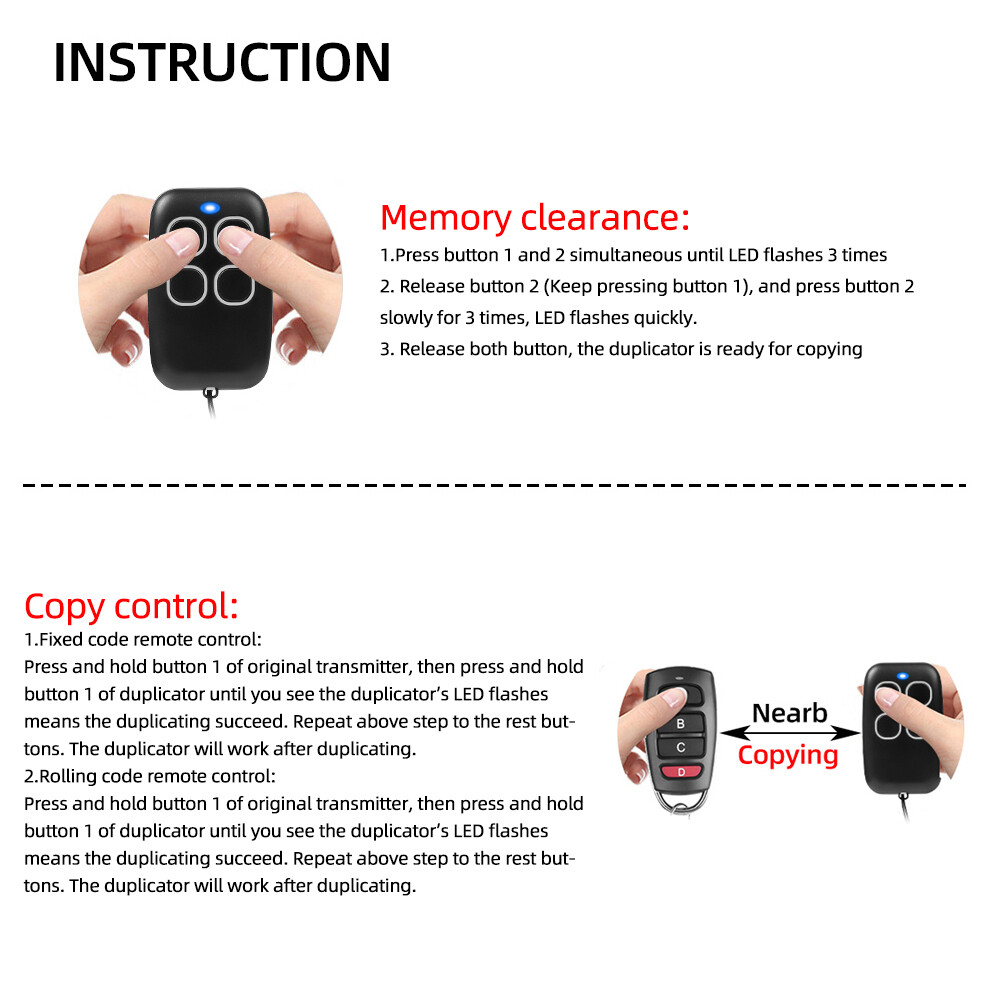

Memory clearance

1.Press button 1 and 2 simultaneous until LED flashes 3 times

2. Release button 2 (Keep pressing button 1), and press button 2 slowly for 3 times, LED flashes quickly.

3. Release both button, the duplicator is ready for copying

Duplicating

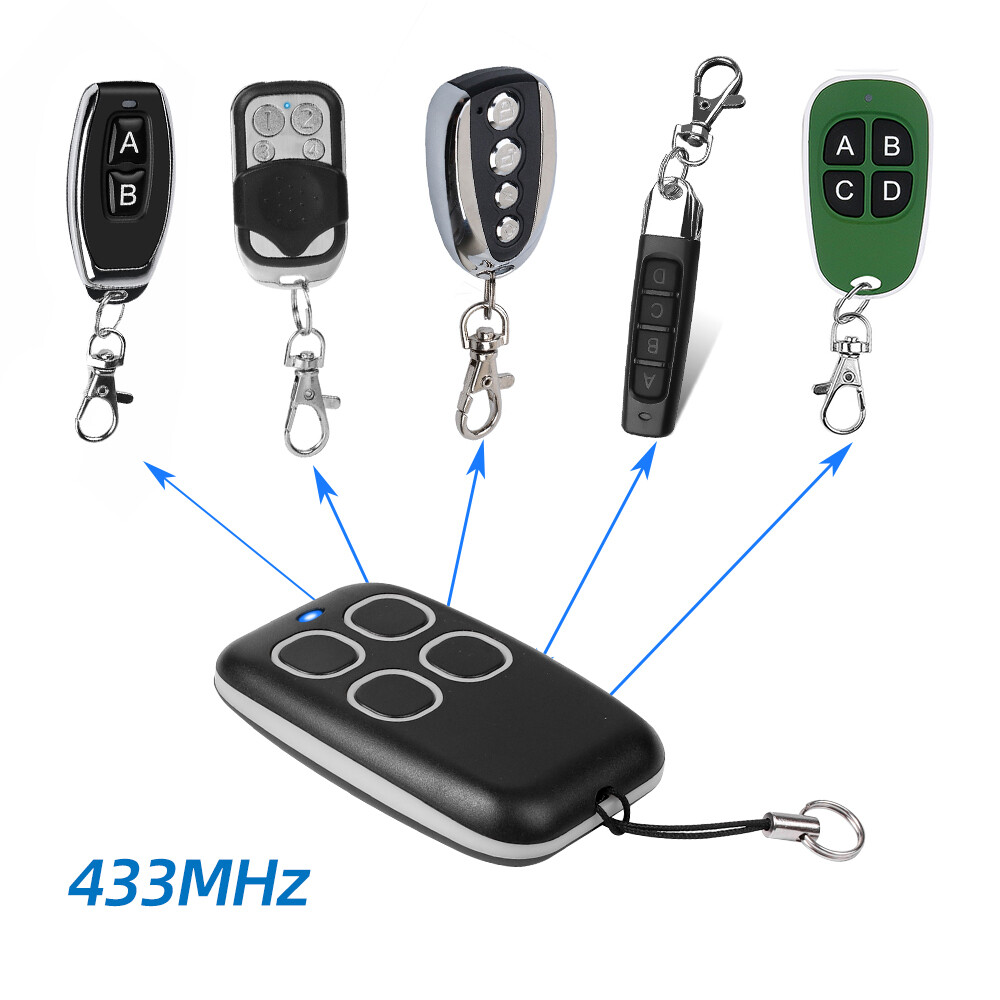

Put duplicator aside of original transmitter, as close as possible.

Fixed code remote control:

Press and hold button 1 of original transmitter, then press and hold button 1 of duplicator until you see the duplicator's LED flashes means the duplicating succeed.

Repeat above step to the rest buttons. The duplicator will work after duplicating.

Rolling code remote control:

Press and hold button 1 of original transmitter, then press and hold button 1 of duplicator until you see the duplicator's LED flashes means the duplicating succeed.

Once 1 button duplicated, the rest buttons will generate automatically, please follow original receiver manual to insert the new duplicator on the receiver.

If you erase the code by mistake, you can resume it by pressing and hold both of the ''3'' and ''4'' button on the remote controllers at the same time, after 10 seconds, the LED flashes 2 times and turn off which indicates the code of the copy remote controller is resumed.
