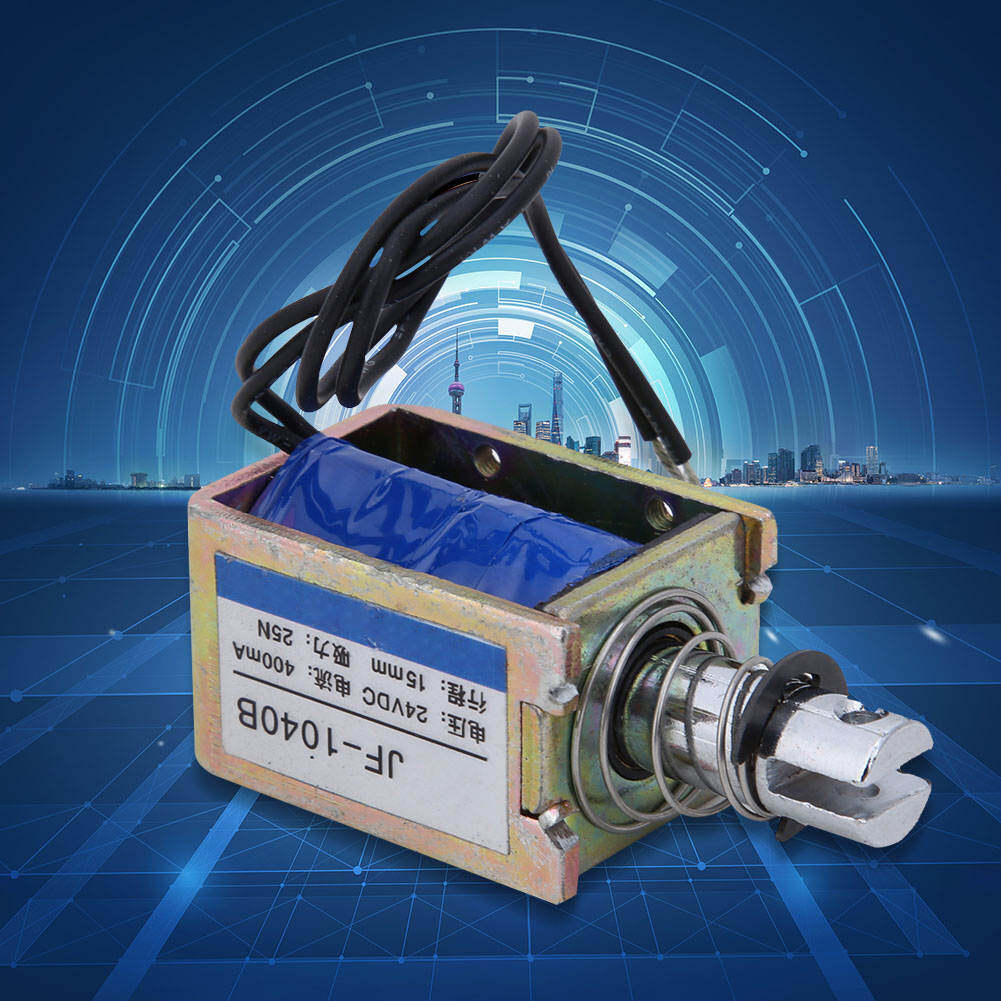

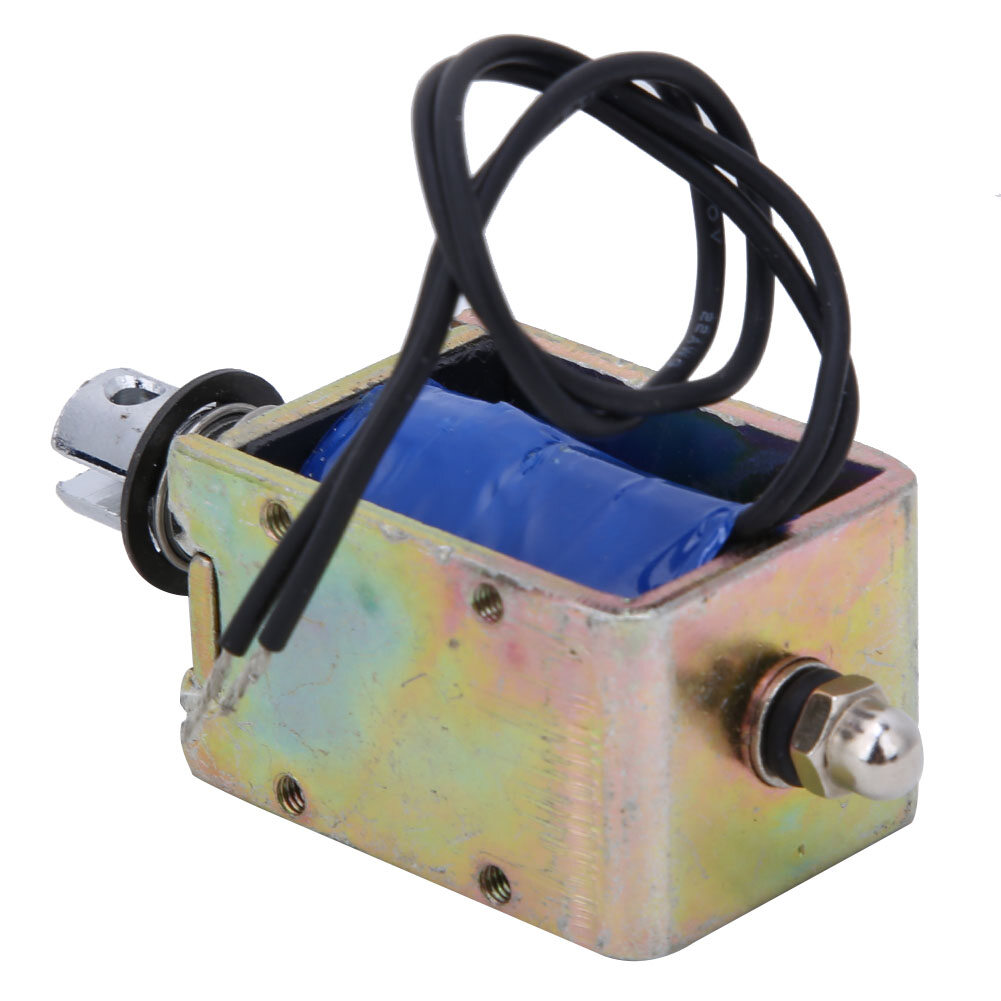

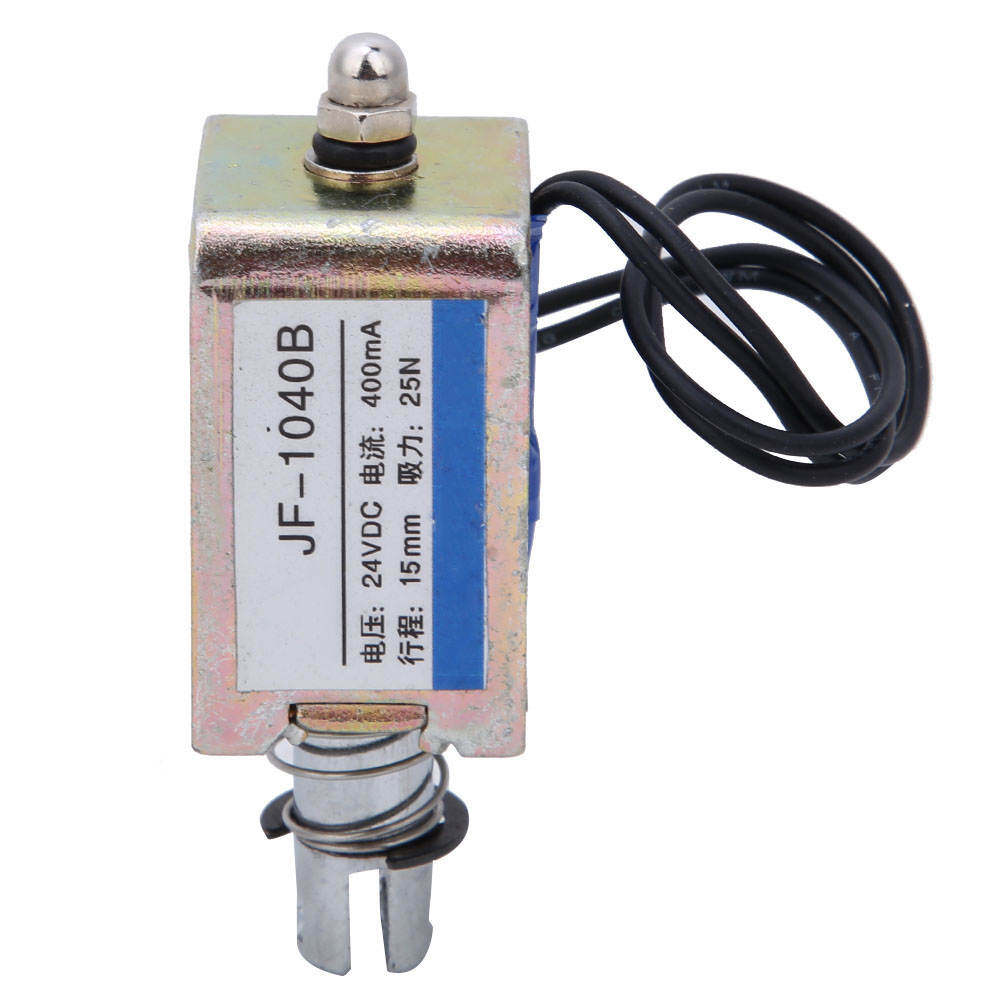

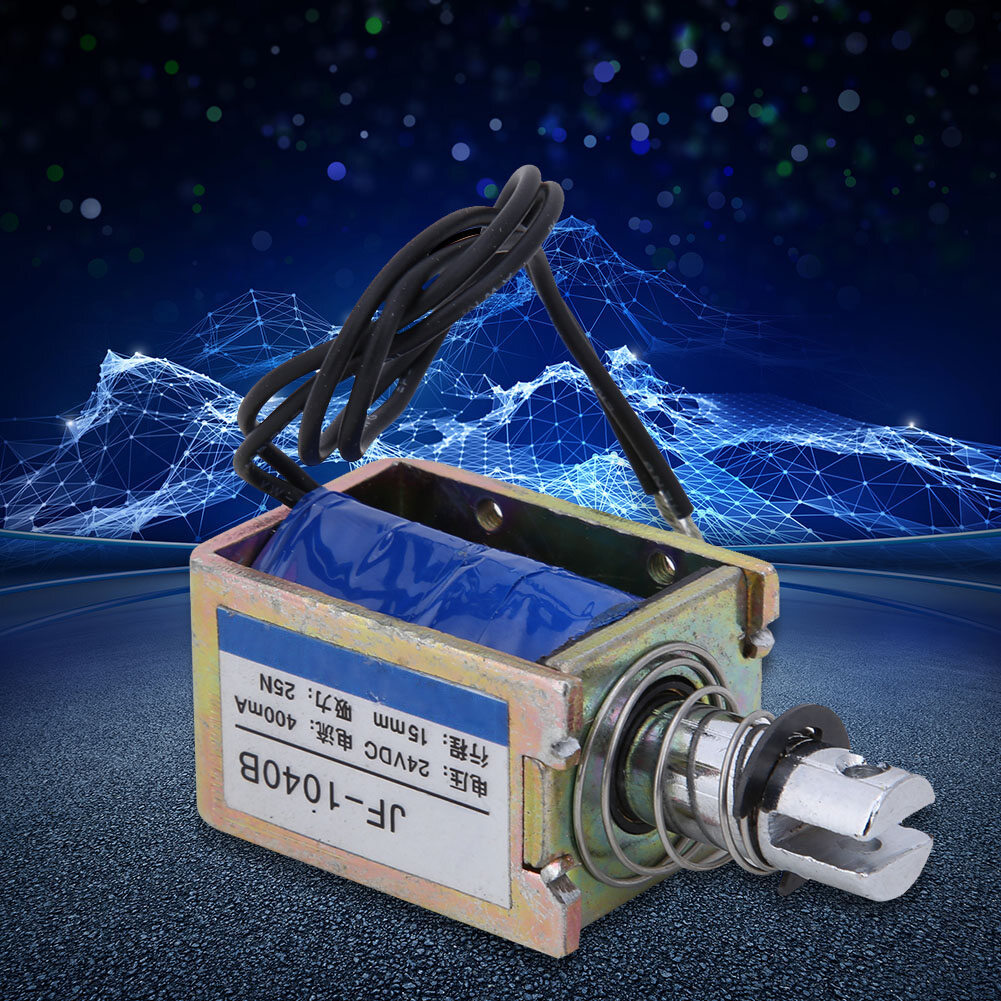

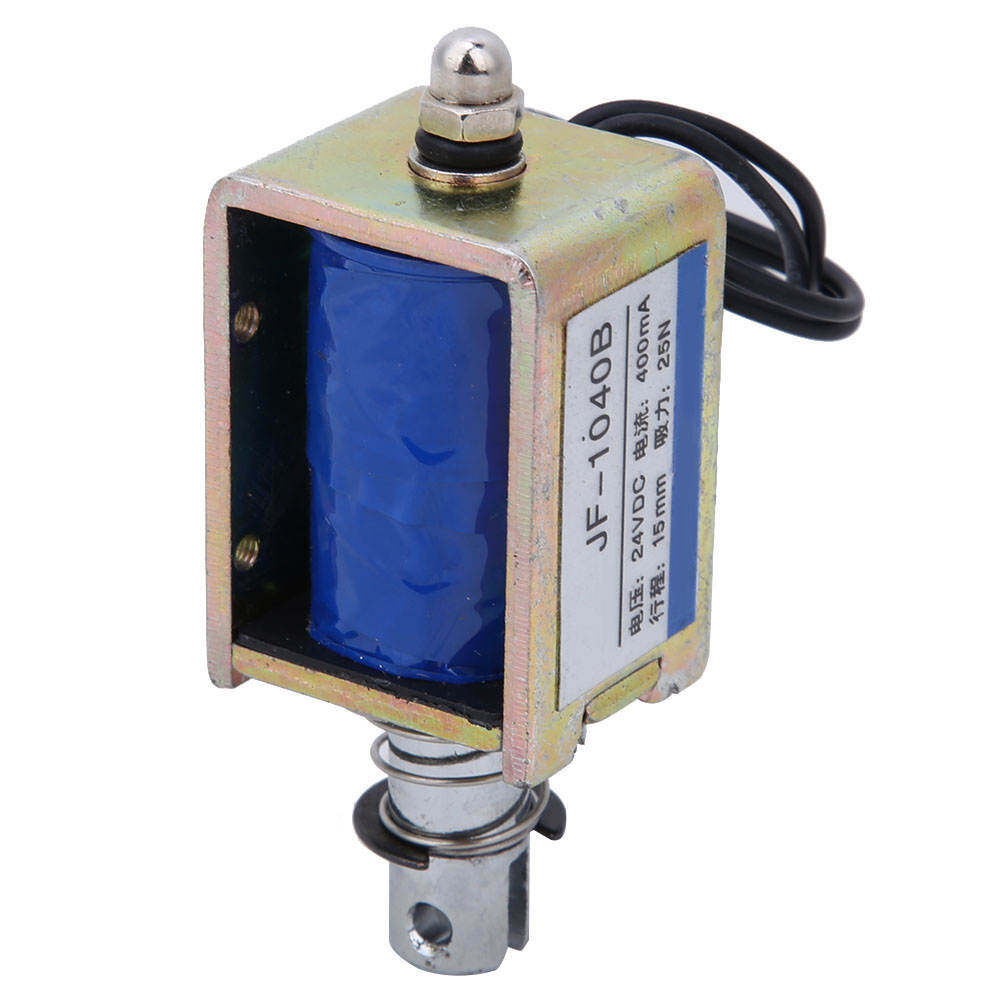

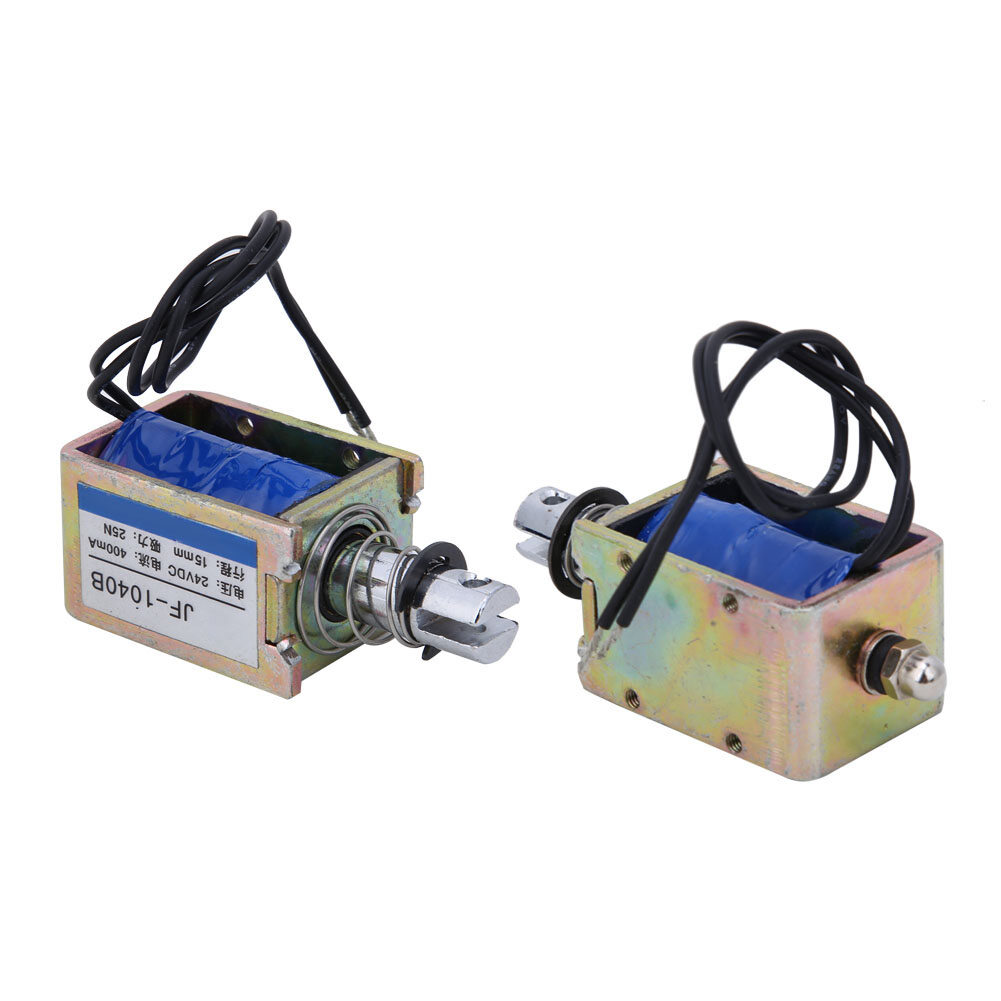

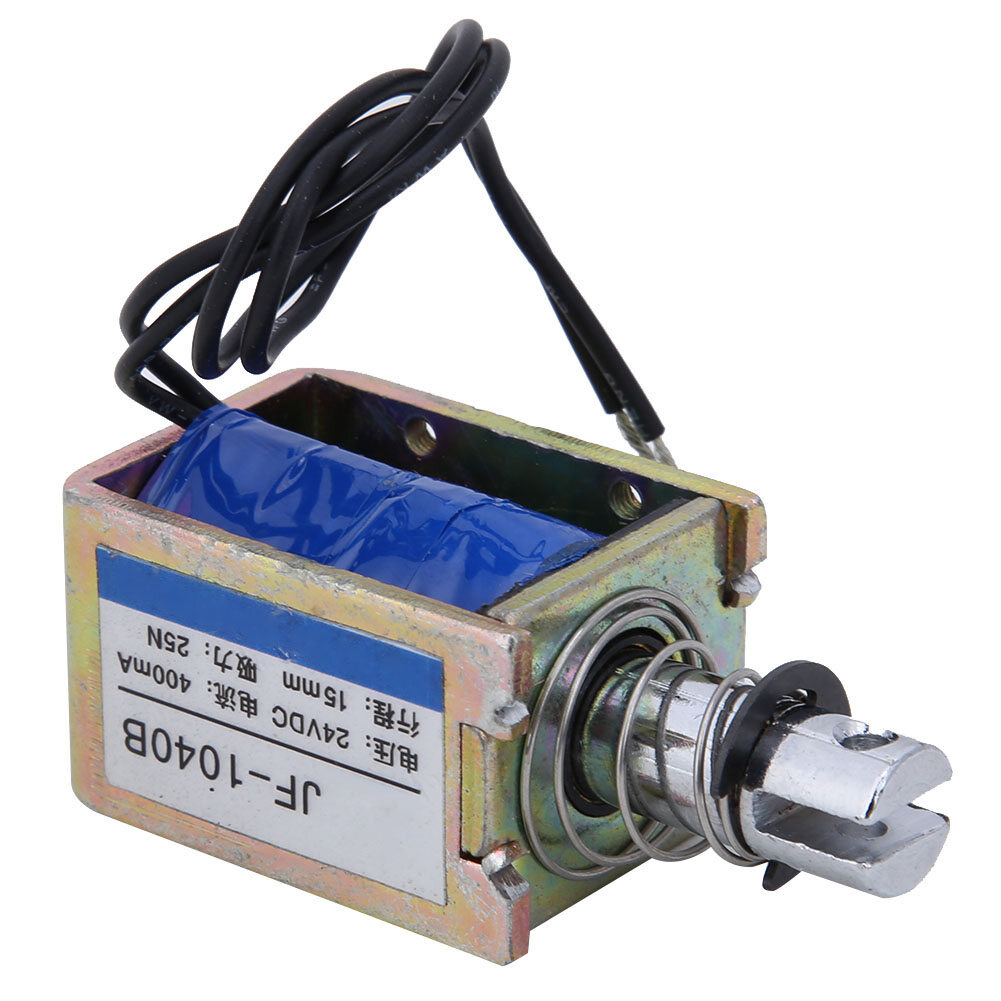

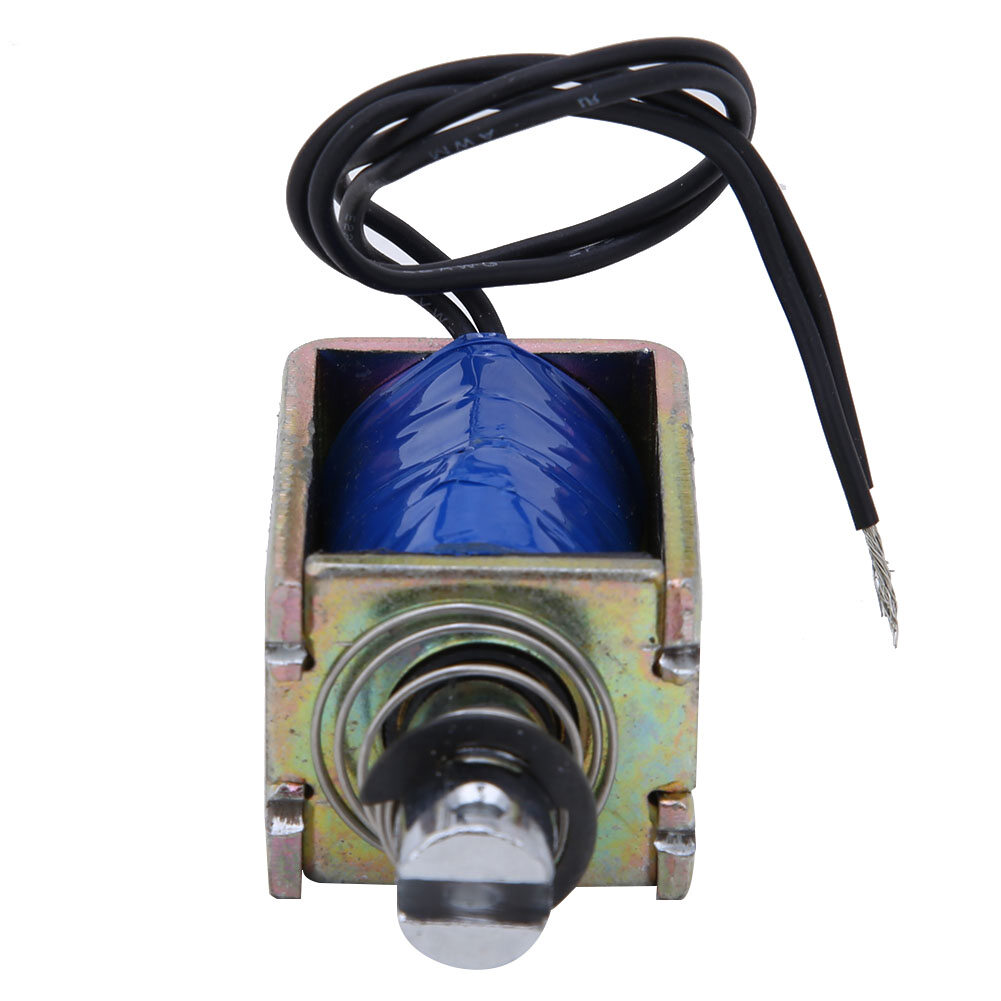

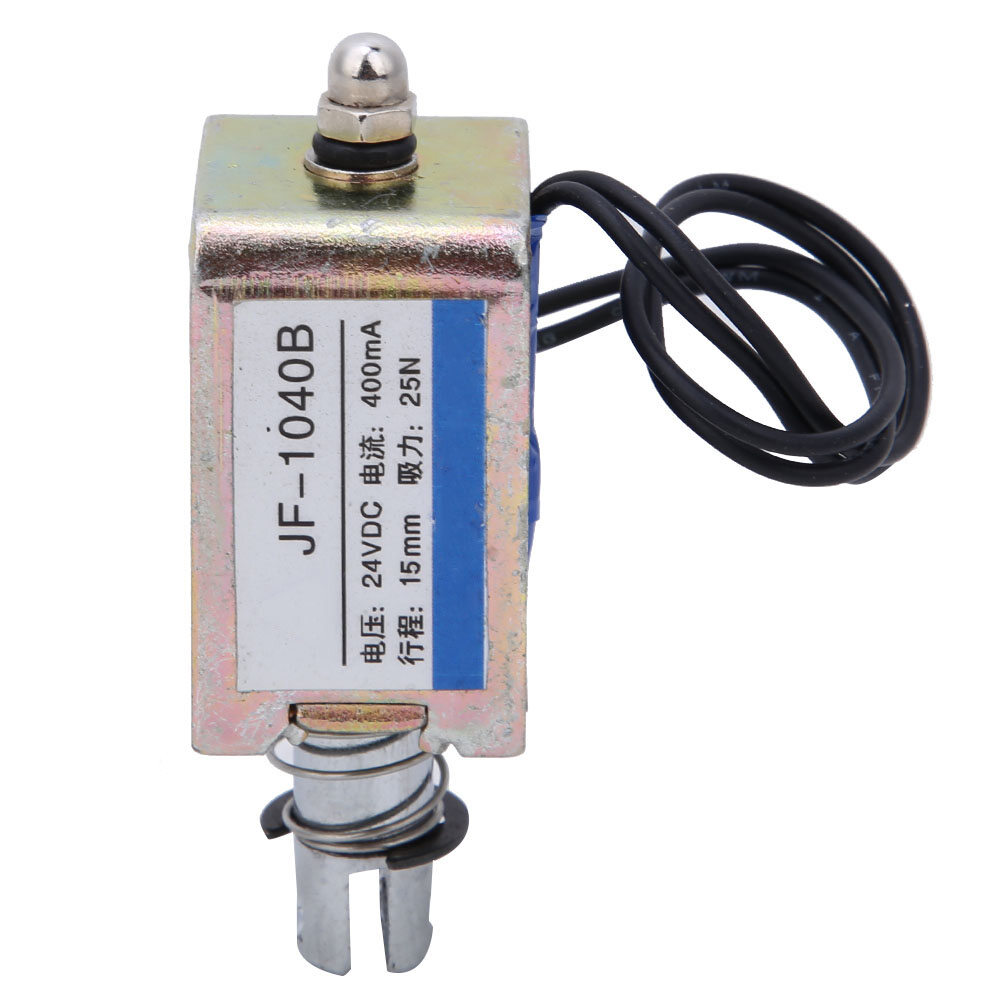

JF-1040B 25N 24V Solenoid Electromagne DC Electromagnet Push-Pull Type Solenoid Solenoid Electromagne Electromagnet 15mm Stroke

Feature:

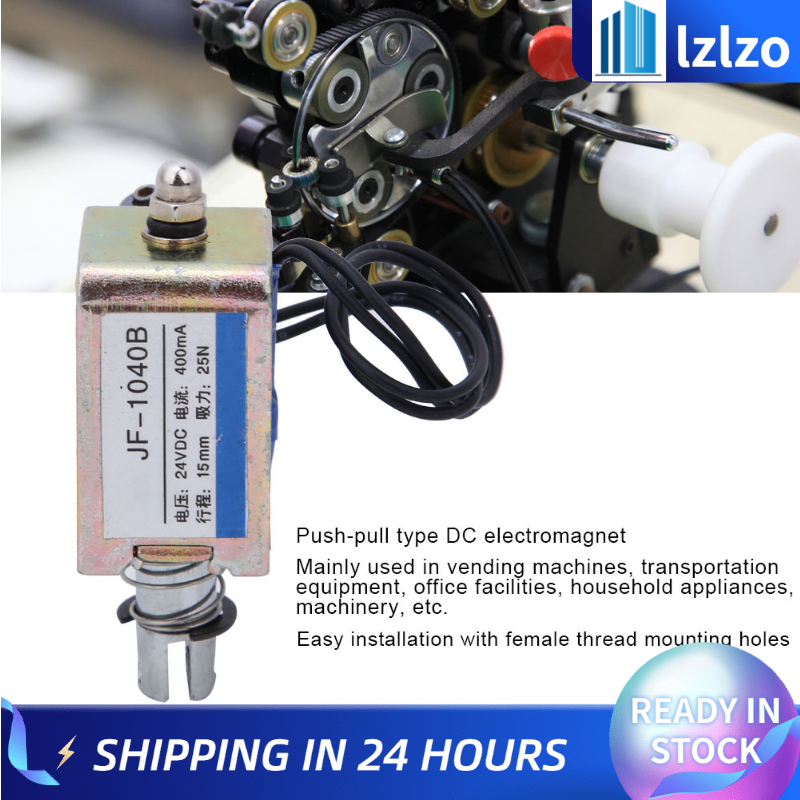

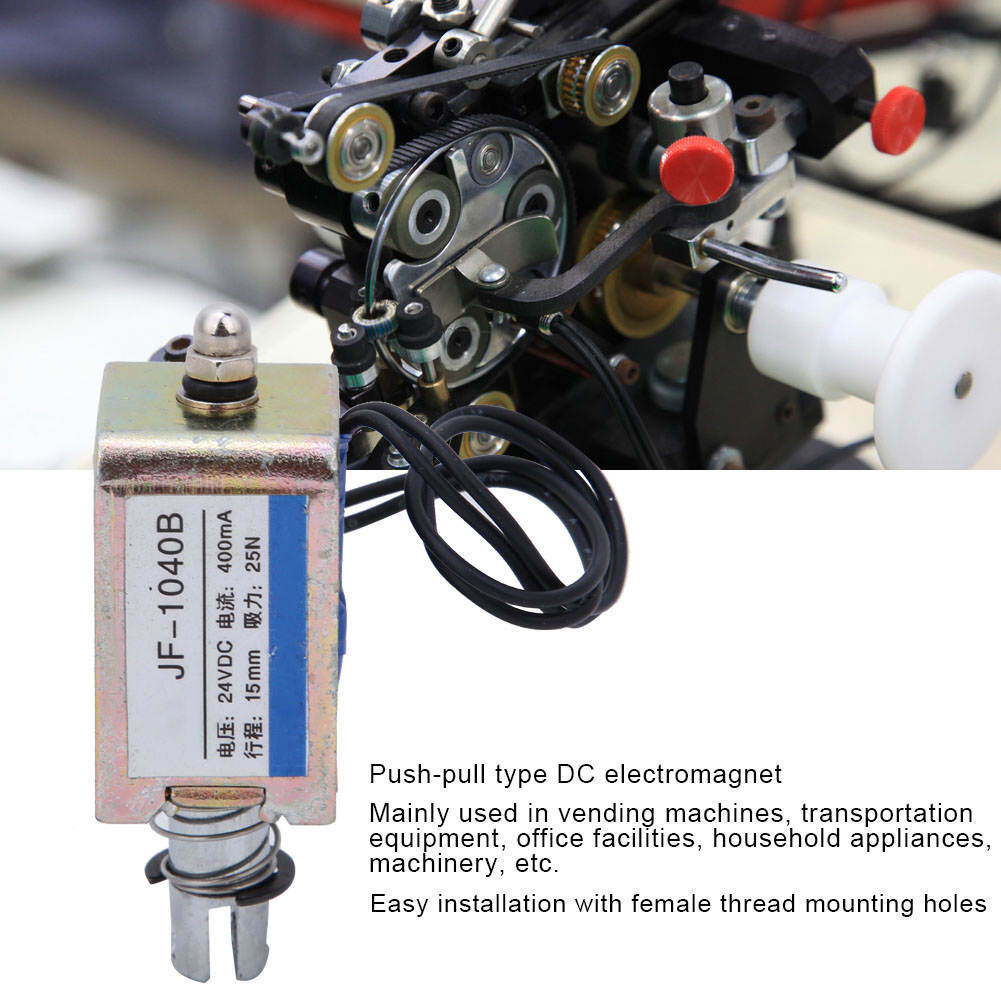

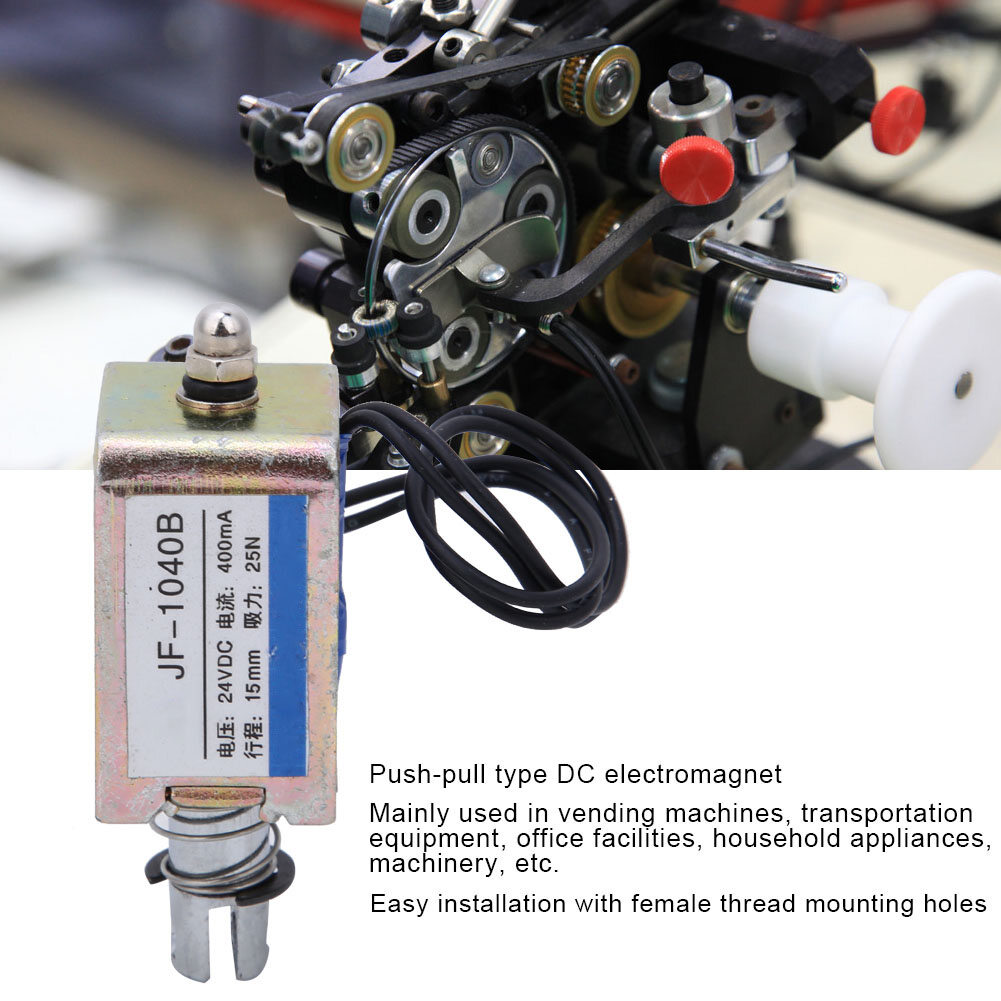

1. DC electromagnets are mainly used in vending machines, transportation equipment, office facilities, household appliances, machinery, etc. 2. Easy installation with female thread mounting holes. 3. Tinned copper wire, anti-oxidation, lower resistance. 4. Low friction ensures high efficiency and long service life. 5. Made of high quality electronic components, stable and reliable performance.

Specification:

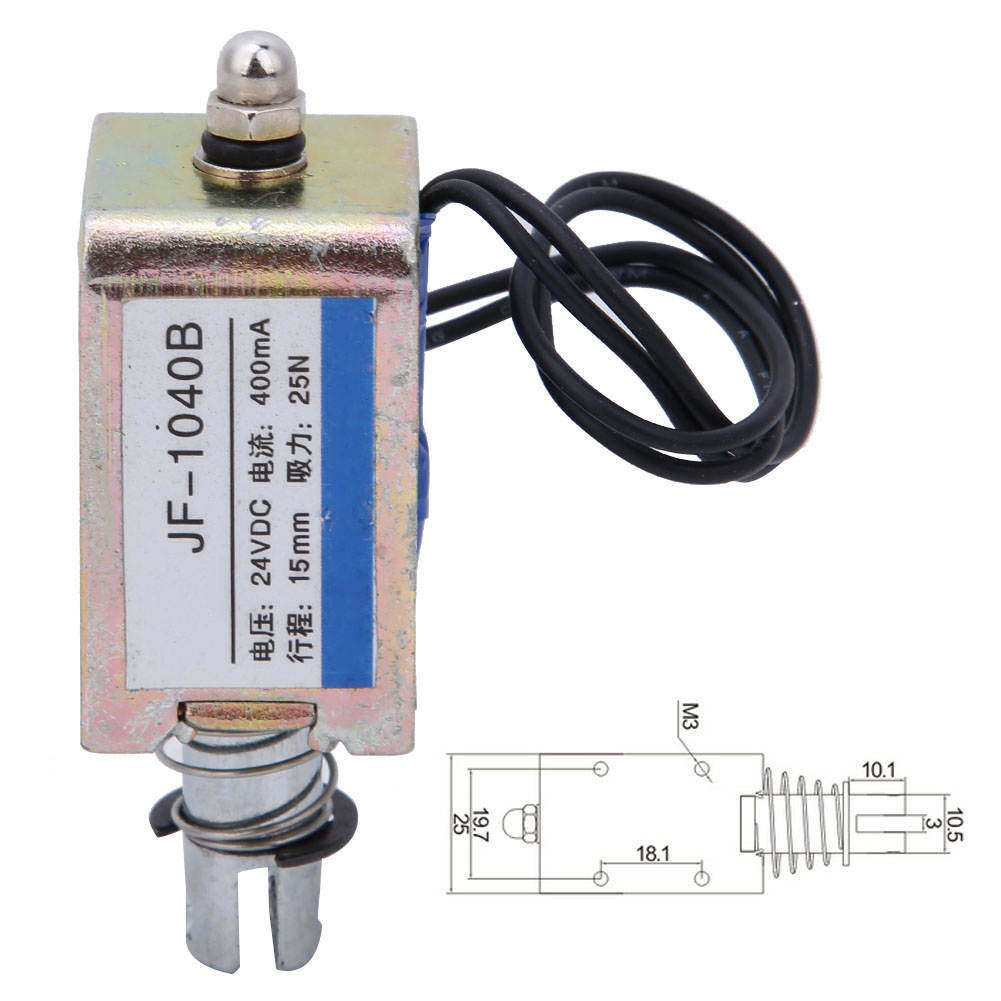

Item Type: Push-Pull Type DC Electromagnet Suction: 25N Product Model: JF-1040B Stroke: Approx. 15mm / 0.6in Voltage: 24VDC Current: 400mA Product Weight: 137 g / 4.8 oz(approx.) Operating Conditions: 1. Operating Temperature: Between -5 ° C and 40 ° C solenoid valve will not solidify 2. Operating Humidity: Relative humidity between 45% and 85% solenoid valve will not solidify 3. Storage Temperature: Between -40 ° C and 75 ° C solenoid valve will not solidify 4. Storage Humidity: Relative humidity between 0% and 95% solenoid valve will not solidify Performance Requirements: Temperature Rise: 65 or less (level A) Life: 1million cycles or more under load Test Environment: 1. Ambient Temperature: 23±2°C 2. Relative Humidity: 50±10% 3. Atmospheric Pressure: 1013MPa 4. Insulation Resistance: When measuring with 500VDC insulation resistor, the insulation resistance between the coil and the yoke must be at least 100MΩ. 5. Insulation Strength: The insulation strength between the coil and the yoke should be at least 600VAC/1 minute.

Package List:

1 x DC Electromagnet
