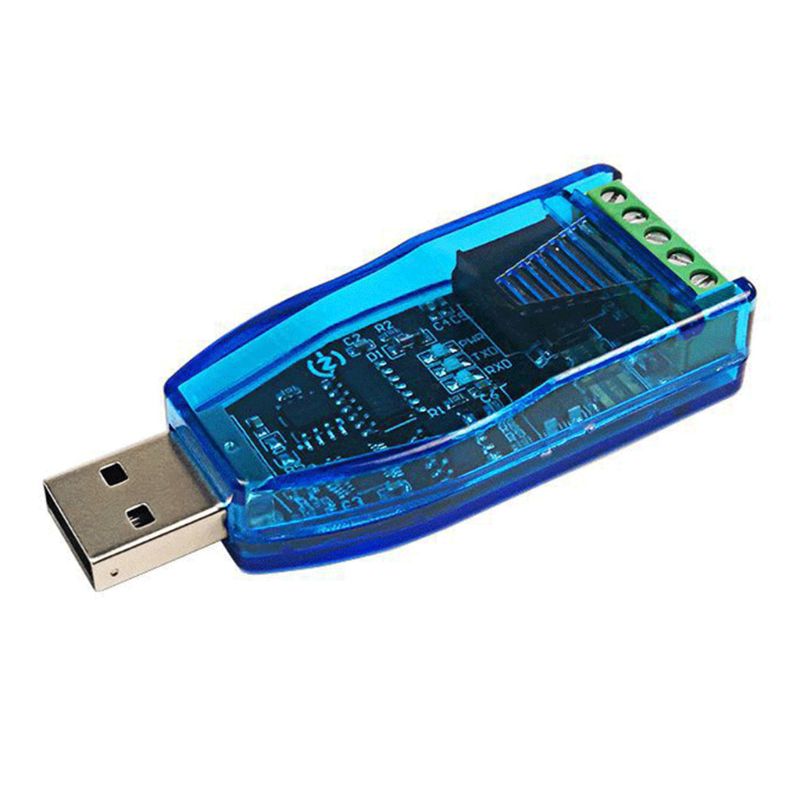

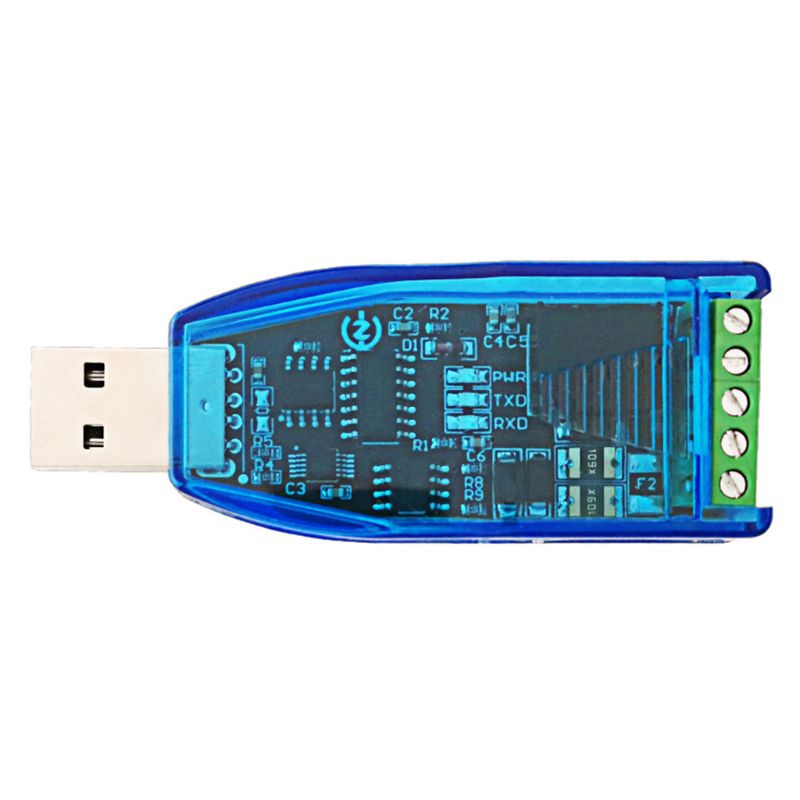

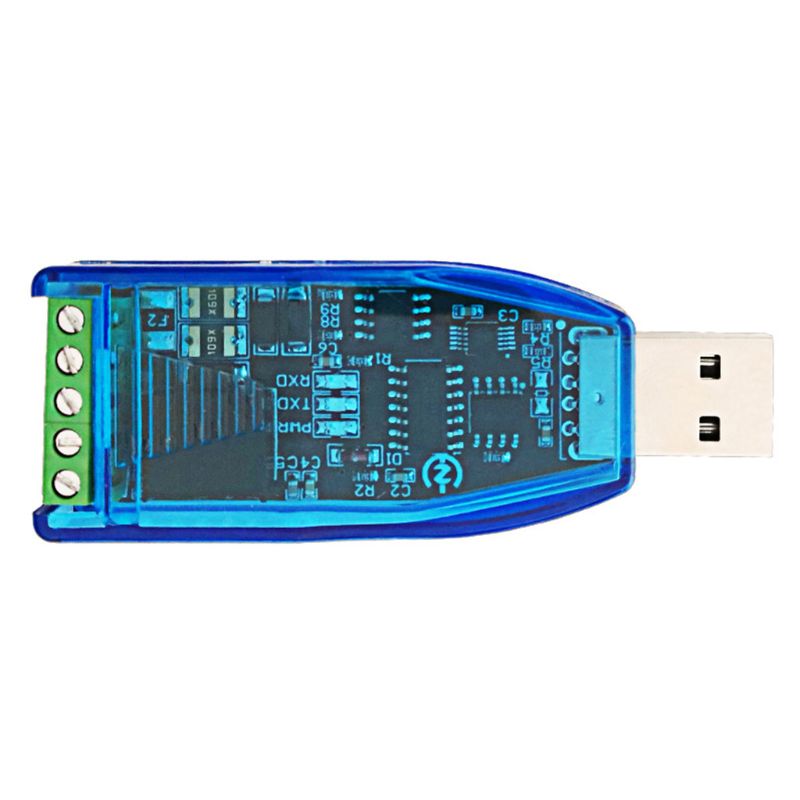

Isolated Industrial USB to RS485 Communication Module TVS Protection Short Circuit Protective Converter Module

100% brand new and high quality
Features:
Power and signal are fully isolated, with stronger anti-interference ability and safer use.
Adopts CH340E chip, no crystal oscillator, more stable performance.
Industrial protection: TVS transient suppression protection, electrostatic ESD protection, surge protection, AB signal line short-circuit and power short-circuit protection (short-circuit does not burn).
The transmission distance can reach 1200 meters (tested at 9600bps).
Support baud rate 256000, higher baud rate is used for paired mutual transmission.
Multi-system supports hot plug, support win98/CE/2000/2003/2008/XP/WIN7/WIN8/WIN10/VISTA/LINUX/OS X system, USB interface can be hot plug.
Automatically distinguish and control the data transmission direction, without any handshake signals (such as RTS, DTR, etc.) without jumper settings to achieve mode conversion, to ensure compliance with the existing communication software and interface hardware.

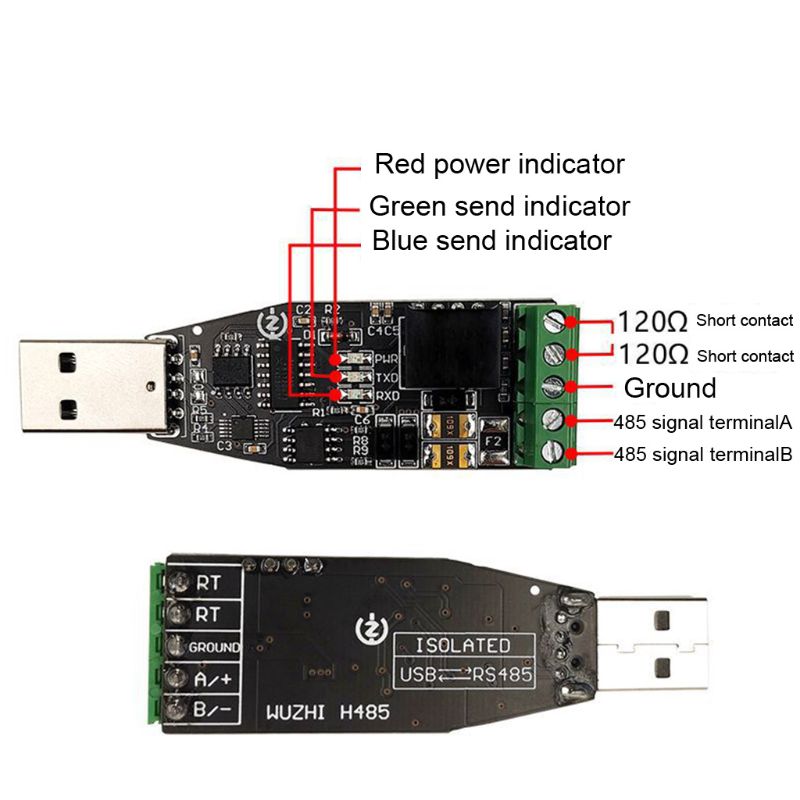

With power indicator, TXD, RXD indicator.

Specifications:
Power supply: USB 5V
Transmission distance: up to 1200 meters (tested at 9600bps)
Chip solution: CH340E
Communication protocol: pure hardware equipment, not restricted by protocol
Baud rate: up to 256000bps
Material: ABS

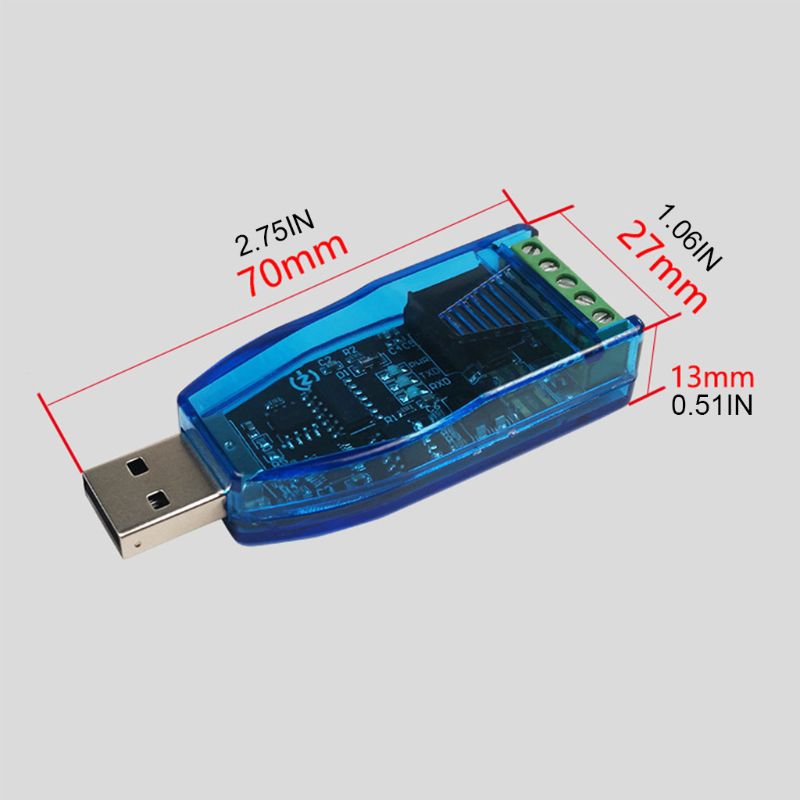

Size: app.70x27x13mm/2.76x1.06x0.51in
Color: Blue
Quantity: 1pc

Note:
Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid.
Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you!

Package includes:
1 x USB to RS485 Communication Module(other accessories demo in the picture is not included.)
