IR Infrared Transmitter Module Digital 38khz IR Transmitter and Receiver Sensor Kit Electronic Building Block

IR Infrared Receiver Sensor Module Digital 38khz IR Transmitter and Receiver Sensor Kit 5V for Arduino Electronic Building Block
Feature:
1. High Sensitivity: This IR infrared transmitter module features high sensitivity, capable of detecting infrared light from long distances and weak signals. It reliably receives and transmits infrared signals in various environmental conditions.
2. Low Power Consumption Design: The IR infrared receiver sensor module is designed with low power consumption to reduce energy consumption. It maintains low power consumption in standby mode and quickly starts and operates when needed.
3. Expandability: The infrared receiver sensor board is compatible with sensor expansion boards and includes an indicator light for transmission status, providing convenient debugging options.
4. User-Friendly: With a simple interface and connection methods, this IRtransmitter and receiver sensor kit can easily integrate with microcontrollers,for Arduino, and other development boards.
5. Versatile Application: IR transceiver module suitable for a wide range of applications such as motion detection, proximity sensing, and remote control systems. This sensor module offers flexibility and reliability in various projects.





Specification:
Origin: Mainland China
Type: Module
Condition: New
Wiring instructions:
1. DAT digital output interface
2. VCC5V DC power supply positive
3. GND5V DC power supply negative

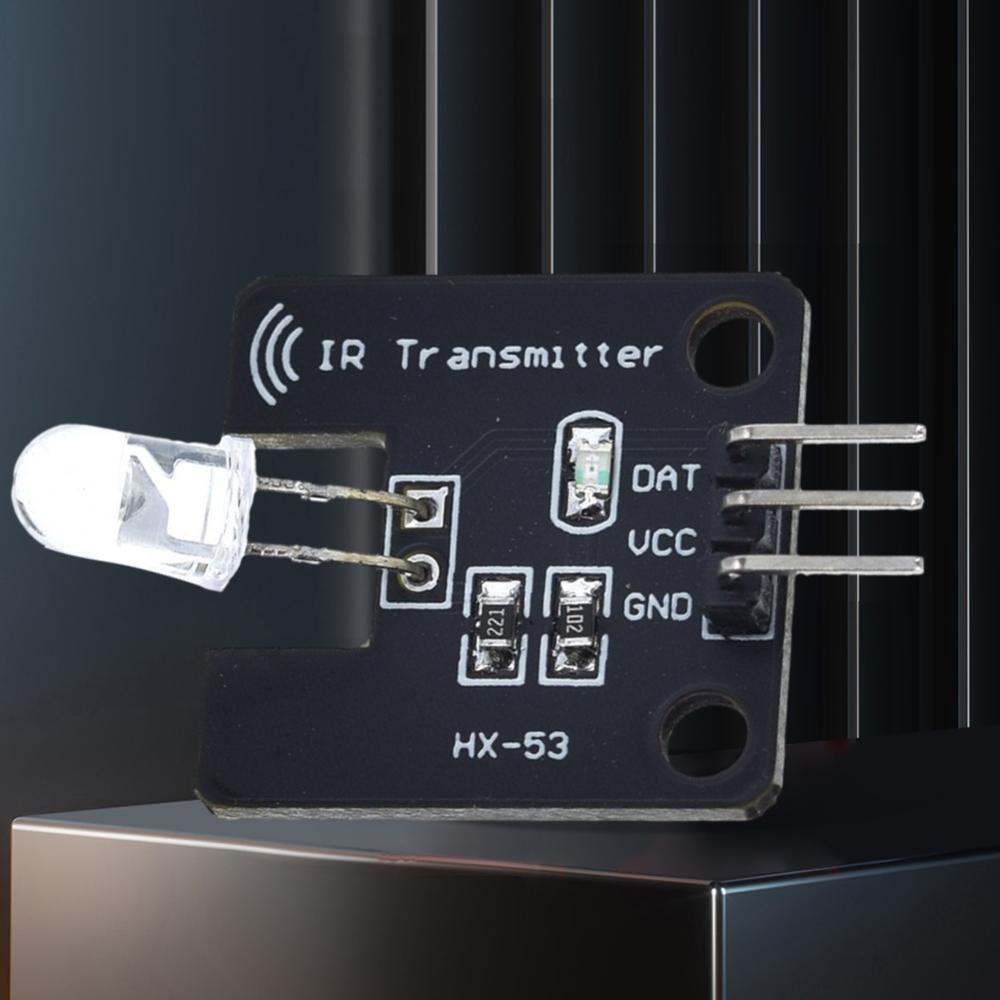

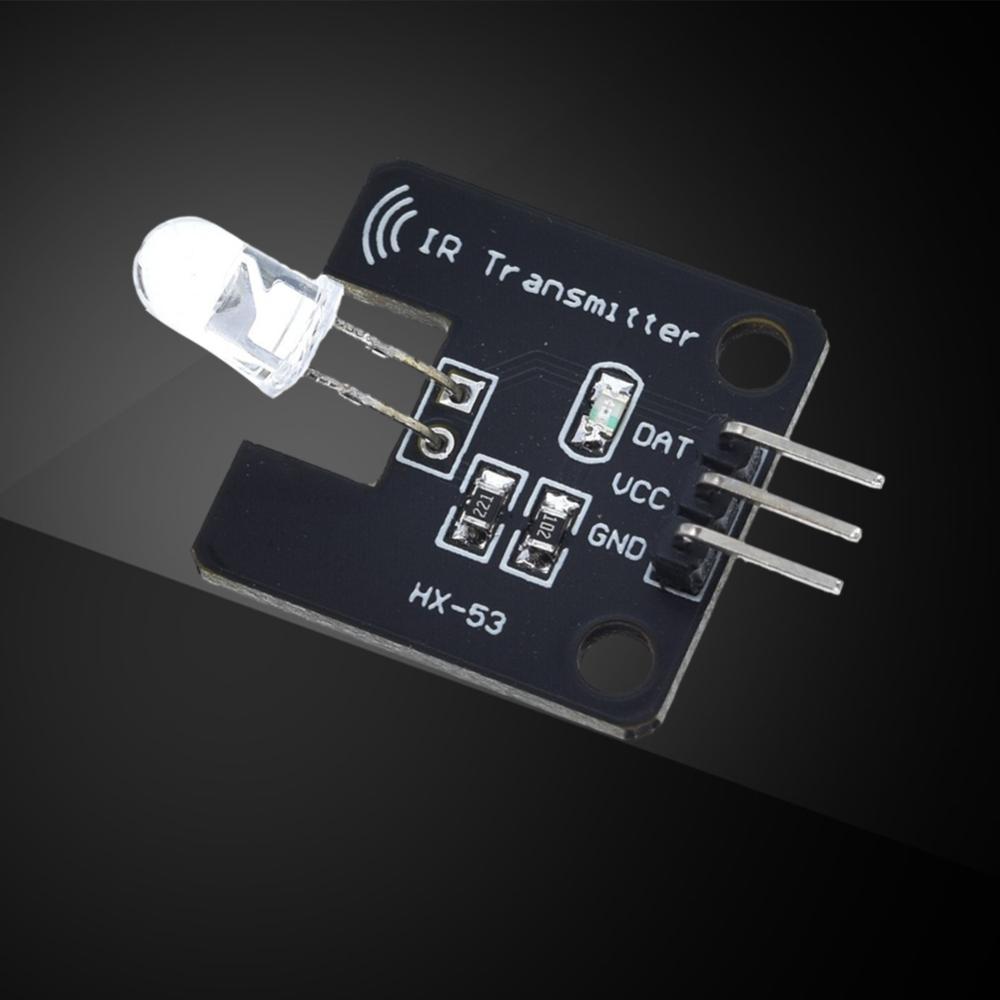

Transmission module parameters
1. Power supply voltage: 5V
2. Working environment: -25+85 ℃
3. Storage temperature: -30+100 ℃
4. Wavelength: 940NM
5. Module size: 28 * 14 * 5MM/1.1x0.55x0.2inch
6. Module weight: 1G
7. Signal type: digital signal
8. Infrared wavelength: approximately 850NM-940NM
9. Infrared emission angle: approximately 20 degrees
10. Infrared emission distance: approximately 1.3 meters (5V38KHZ)

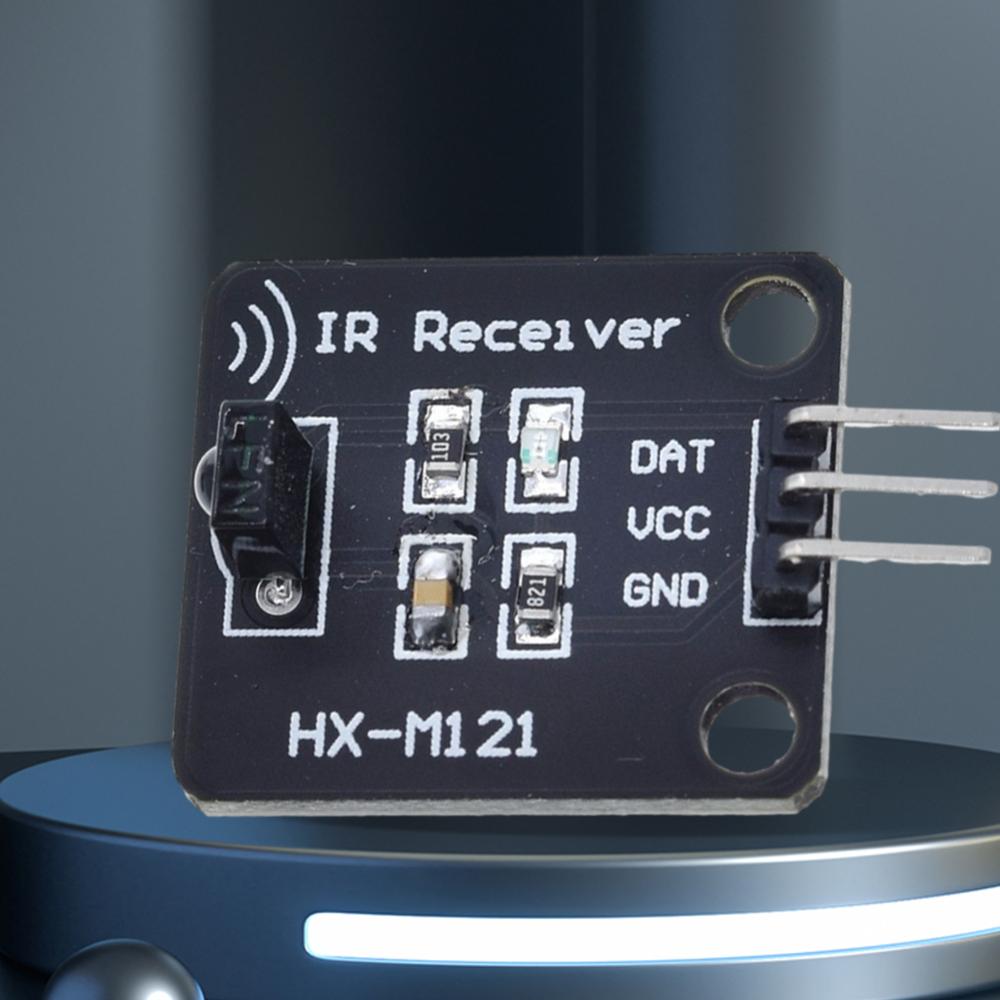

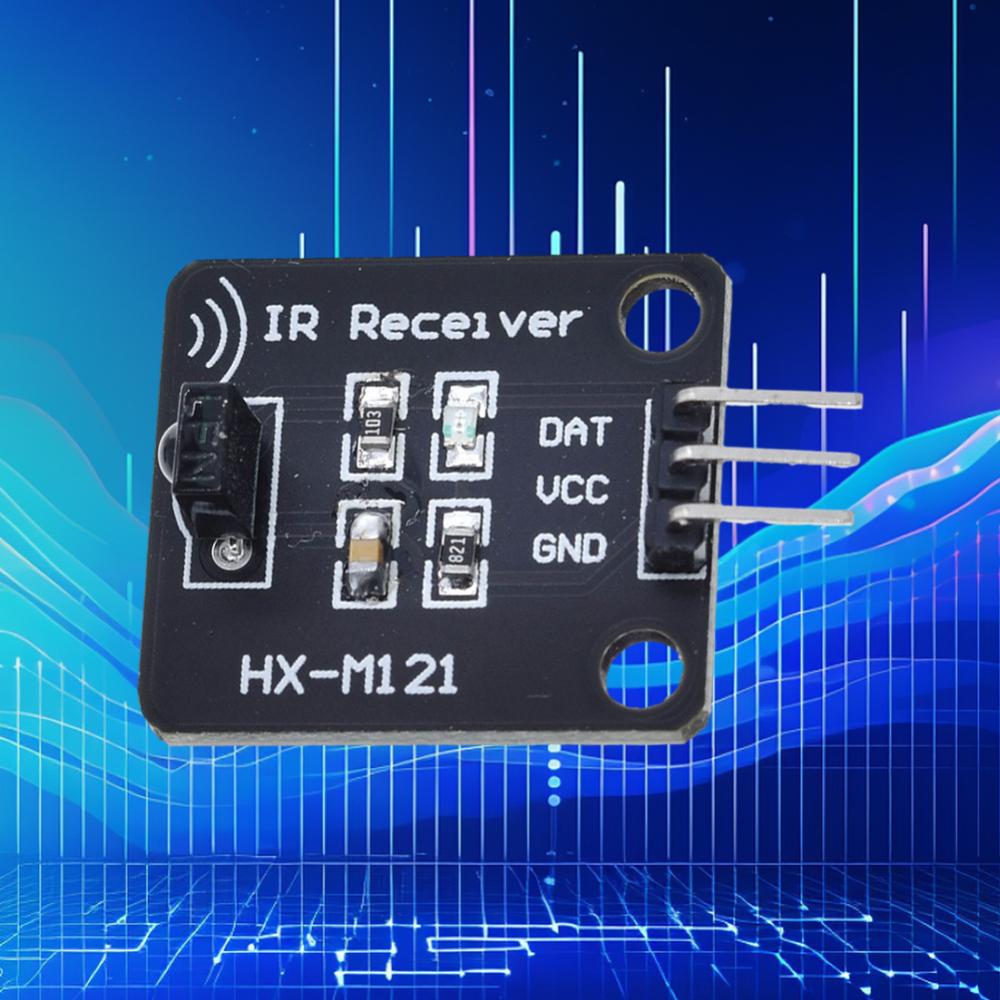

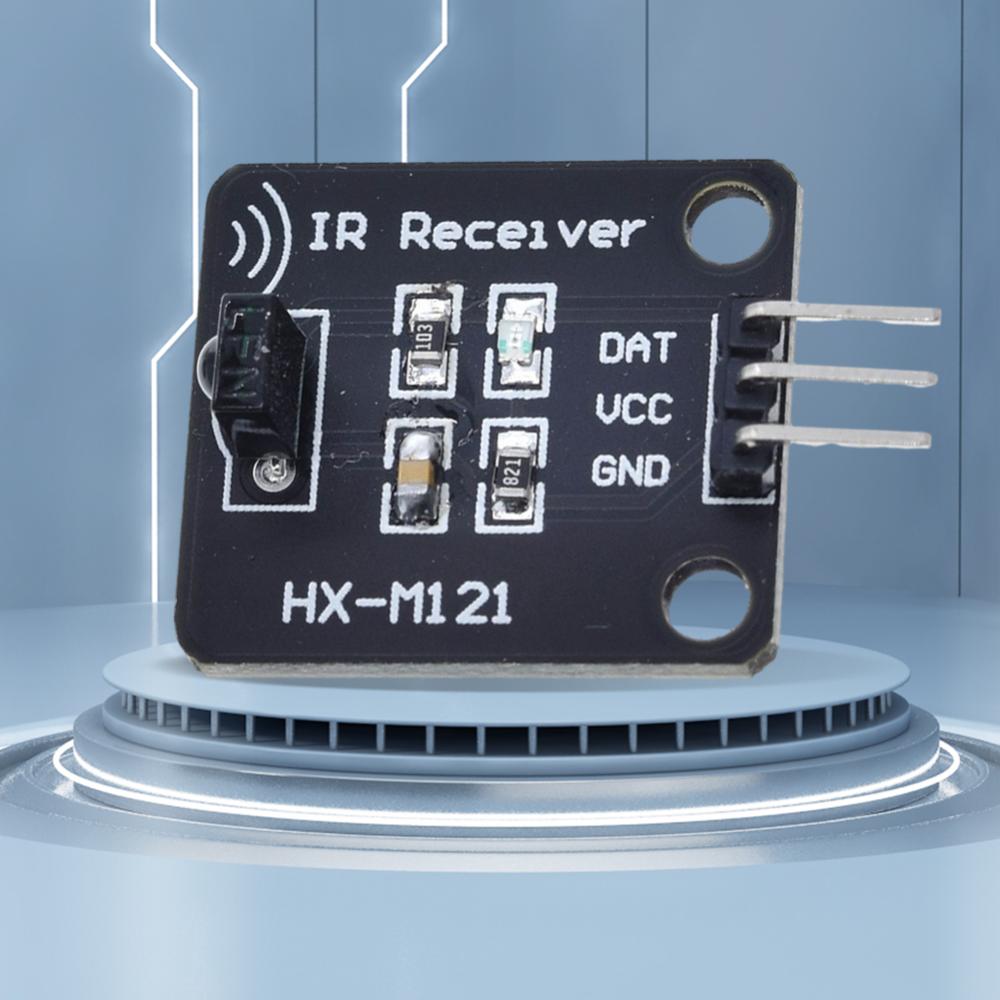

Receiving module parameters
1. Adopting 1838 remote control receiver head, high sensitivity
2. Working voltage: 5V
3. Output form: digital output
4. Equipped with 2 fixing holes for easy installation. Aperture 3.1MM
5. With data indicator light
6. PCB size: 23 * 21 * 5MM/0.91x0.83x0.2inch

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
