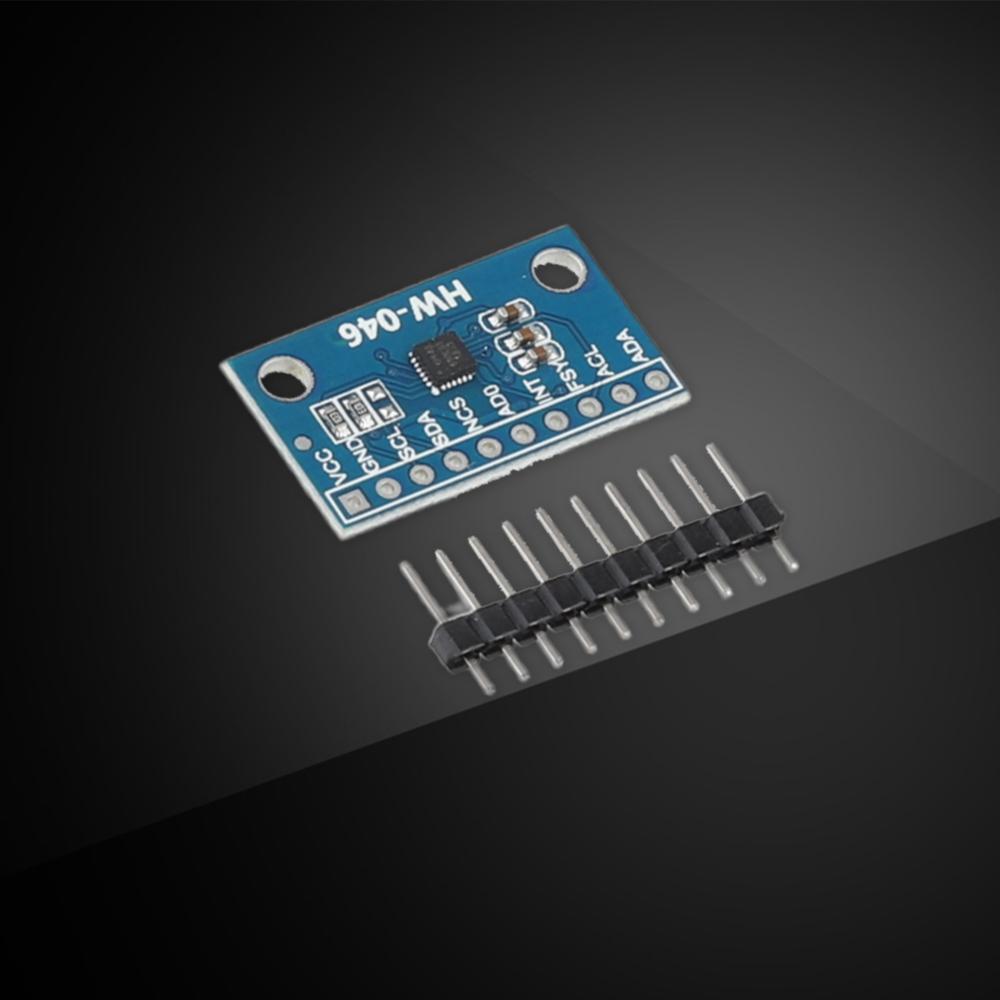

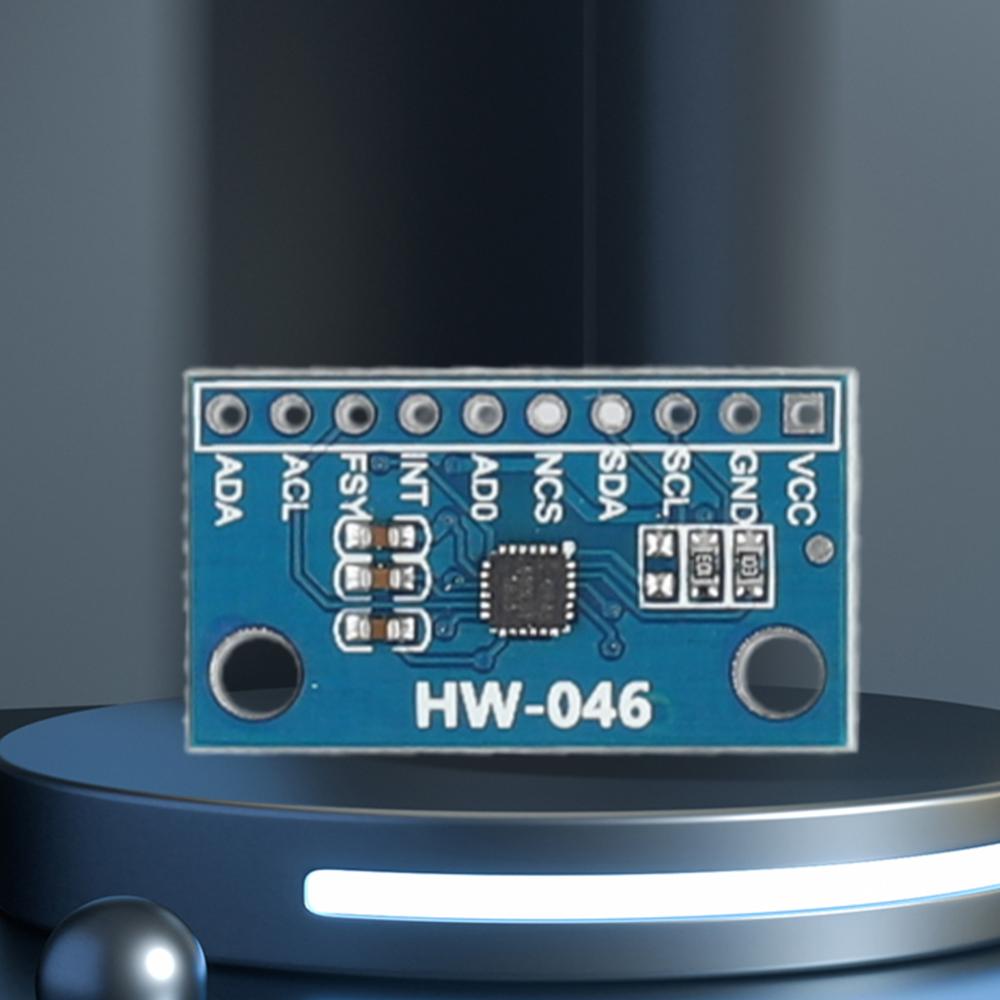

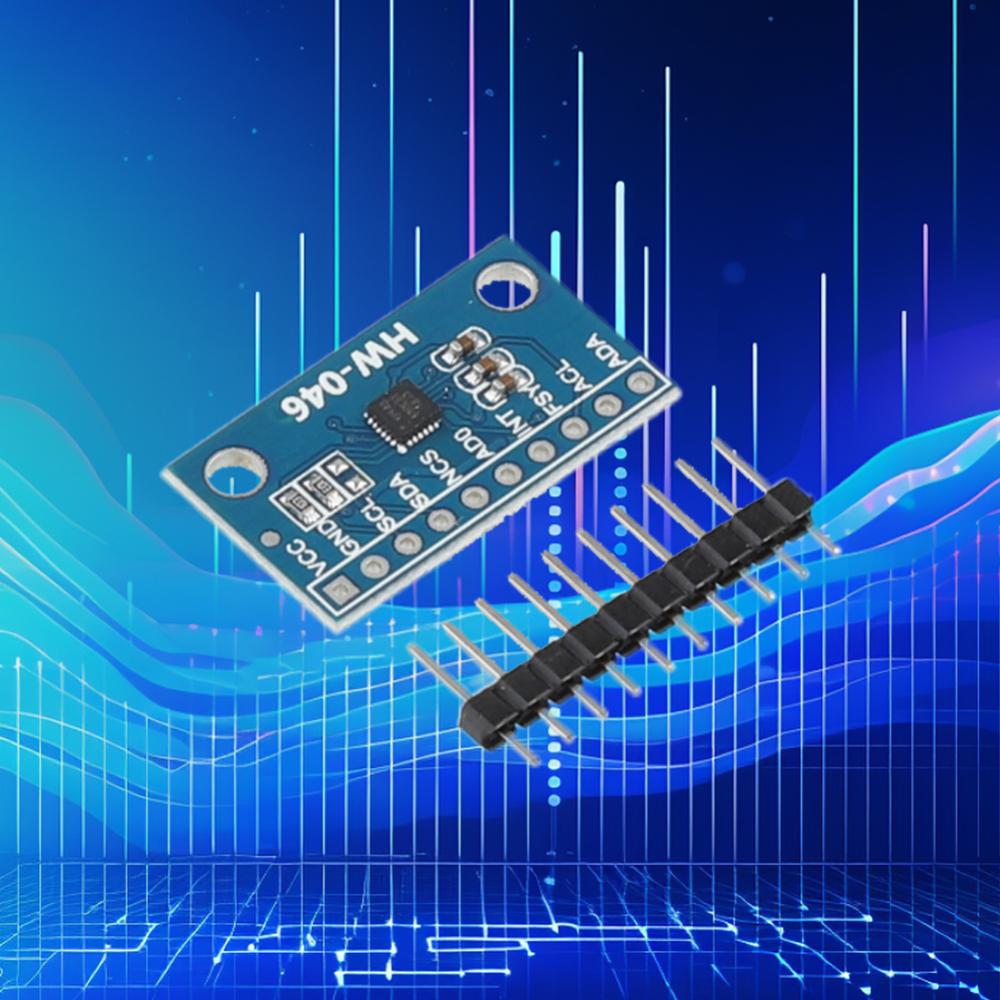

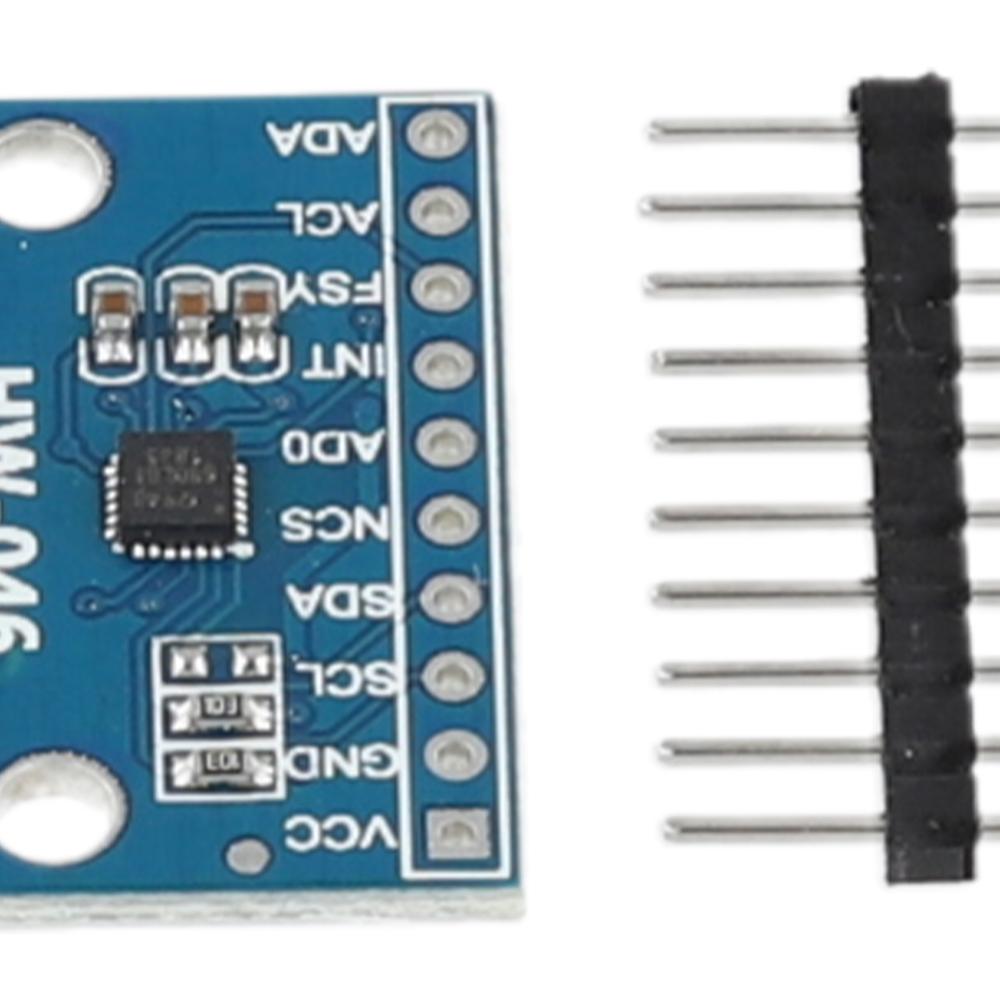

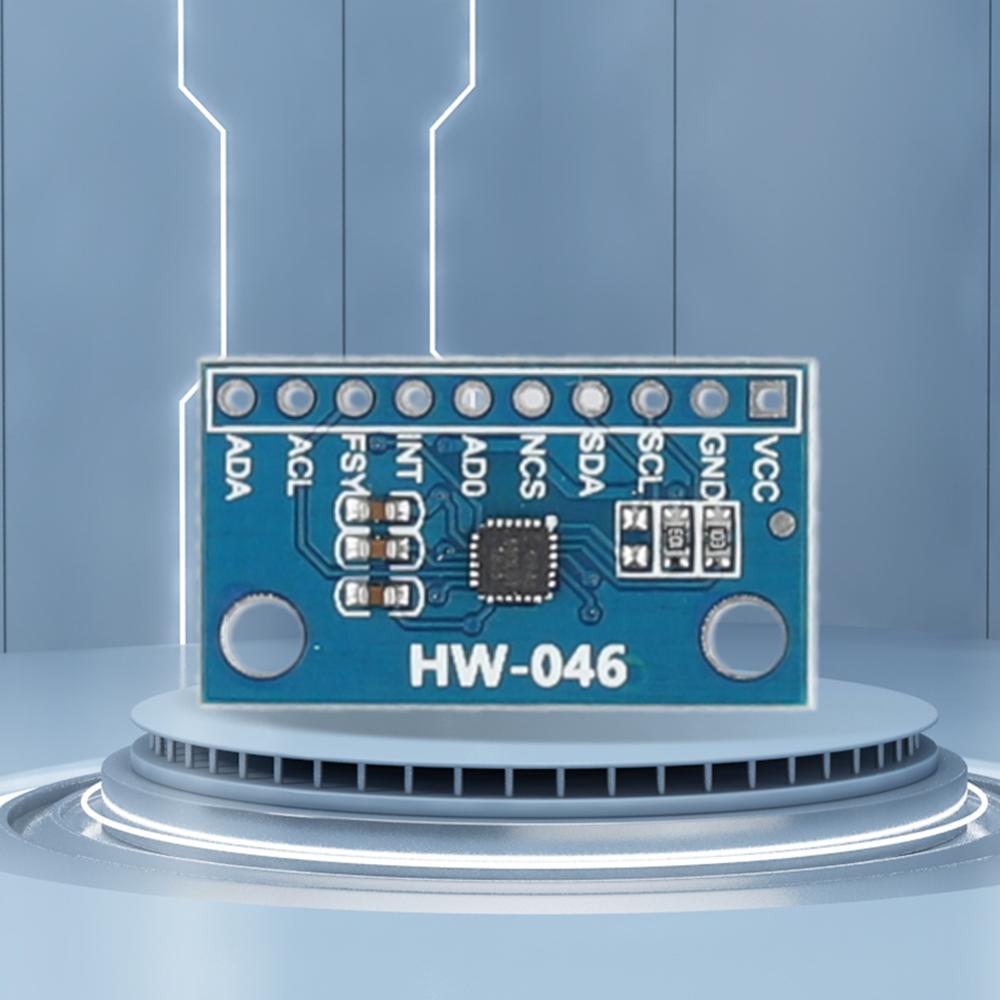

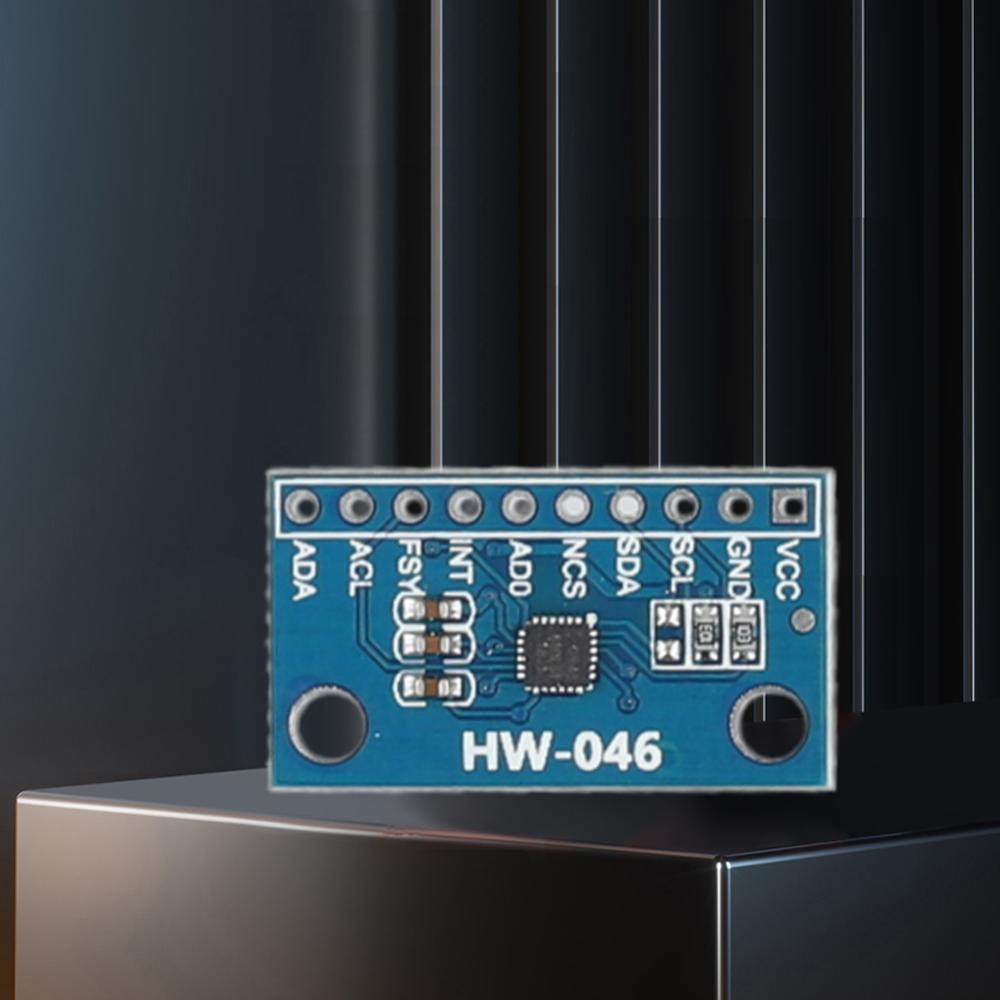

ICM-20948 Sensor Module 9-Axis DC 3.3V MEMS Motion Tracking Device Sensor 3-Axis Gyroscope Motion Tracking Sensor Module

ICM-20948 MEMS Motion Tracking Device Sensor 9-Axis DC 3.3V MCU-20948 Integrated Circuits 3-Axis Gyroscope Lower Power ICM20948

Feature:
1. Integrated Sensor Functionality: The ICM-20948 sensor module utilizes the ICM20948 chip, which integrates a three-axis gyroscope, a three-axis accelerometer, and a three-axis magnetometer. Additionally, it features a built-in digital motion processing engine, reducing the need for complex fusion calculations and easing the system's computational load.
2. Versatile Communication Interfaces: This MEMS motion tracking device sensor supports multiple communication interfaces, including I2C and high-speed 7M SPI. These versatile interfaces allow for seamless integration with various microcontrollers and devices, providing flexibility and compatibility for your projects.
3. Auxiliary I2C Interface: In addition to the primary communication interfaces, the motion tracking sensor module also includes an auxiliary I2C interface. This provides an additional channel for connecting and communicating with other sensors or peripherals, expanding the range of applications and possibilities for your projects.
4. Compact and Convenient Design: With its small form factor, the ICM-20948 sensor module is easy to integrate into your projects. Its compact design ensures that it can fit into tight spaces and be mounted securely. This convenience makes it suitable for a wide range of applications, from robotics and drones to wearable devices and IoT projects.
5. Accurate and Reliable Performance: The MCU-20948 integrated circuit delivers accurate and reliable performance, allowing you to capture precise motion, acceleration, and magnetic field measurements. It is designed to provide consistent and high-quality data, ensuring your applications have the necessary information for accurate analysis and control.

Specification:
Origin: Mainland China
Type: Module
Condition: New
Operating voltage: DC 3.3V
3-axis gyro: Programmable FSR ±250 dps, ±500 dps, ±1000 dps and ±2000 dps 3. 3-axis
Acceleration: Programmable FSR ±2g, ±4g, ±8g and ±16g. 4.
Triaxial magnetic field: wide range to ±4900 μt
On-chip 16-bit ADC and programmable filters
7MHz SPI or 400 kHz fast-mode I2C
Digital Motion Processor (DMP)
Notes:
1. The supply voltage is 3.3V, do not exceed this voltage or the chip may be damaged;
2. The IC device address of the module is determined by the ADO pin (suspended low).
When the ADO pin is low, the module 7-bit IIC device address bit 1101000
When ADO pin is high, module 7.IIC device address bit 1101001

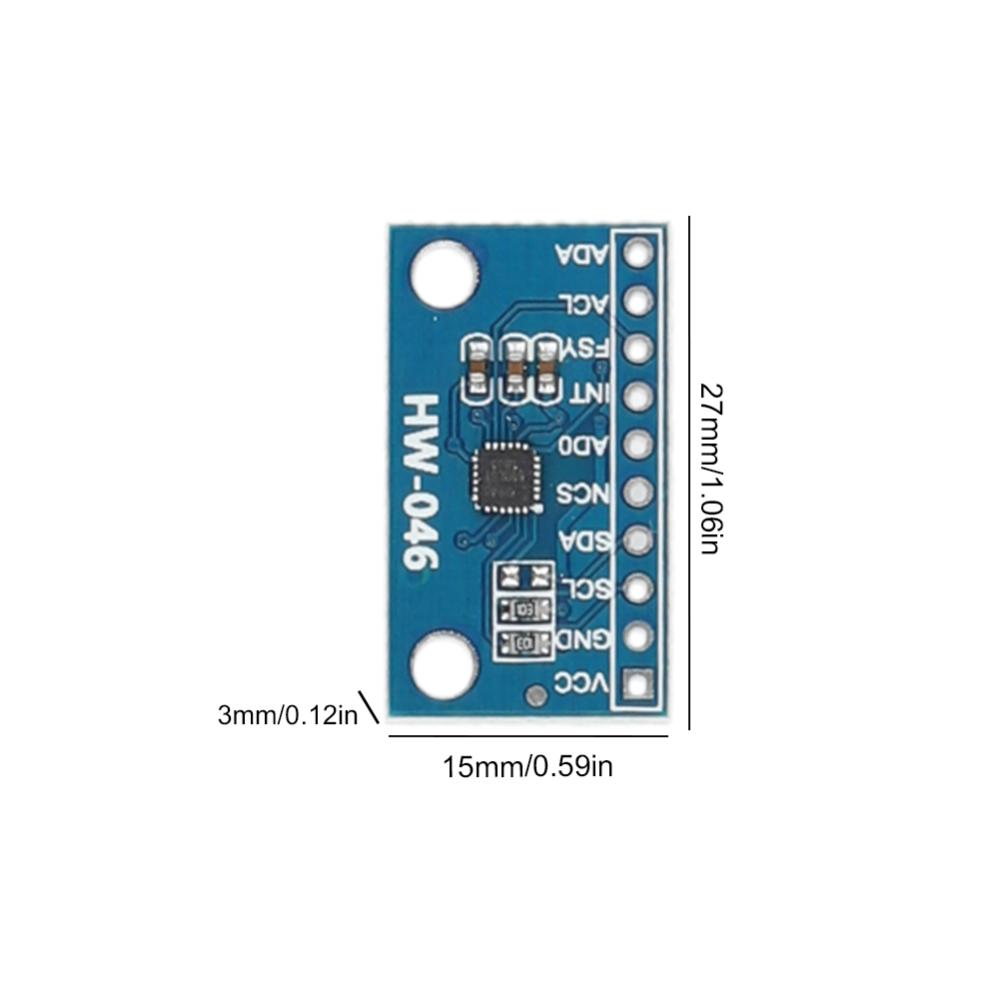

Product Size: 27.00x15.00x3.00mm/1.06x0.59x0.12inch

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
