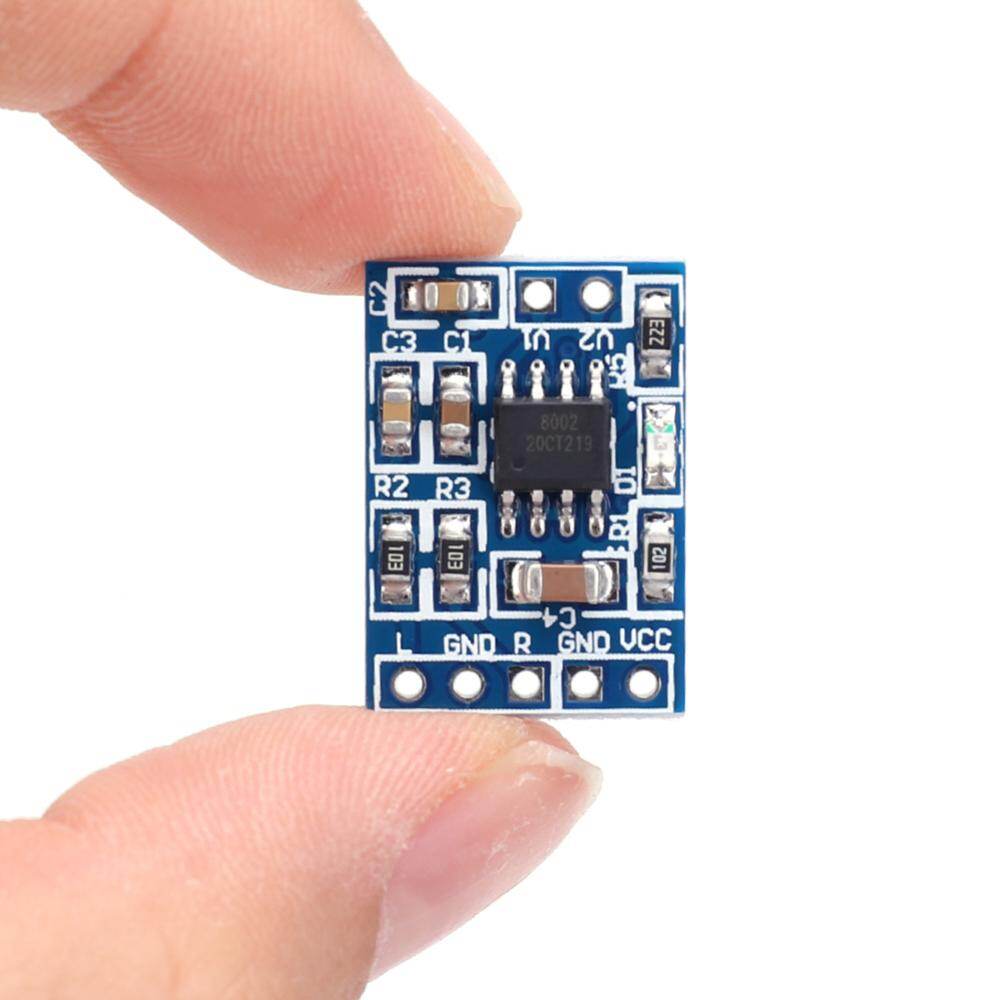

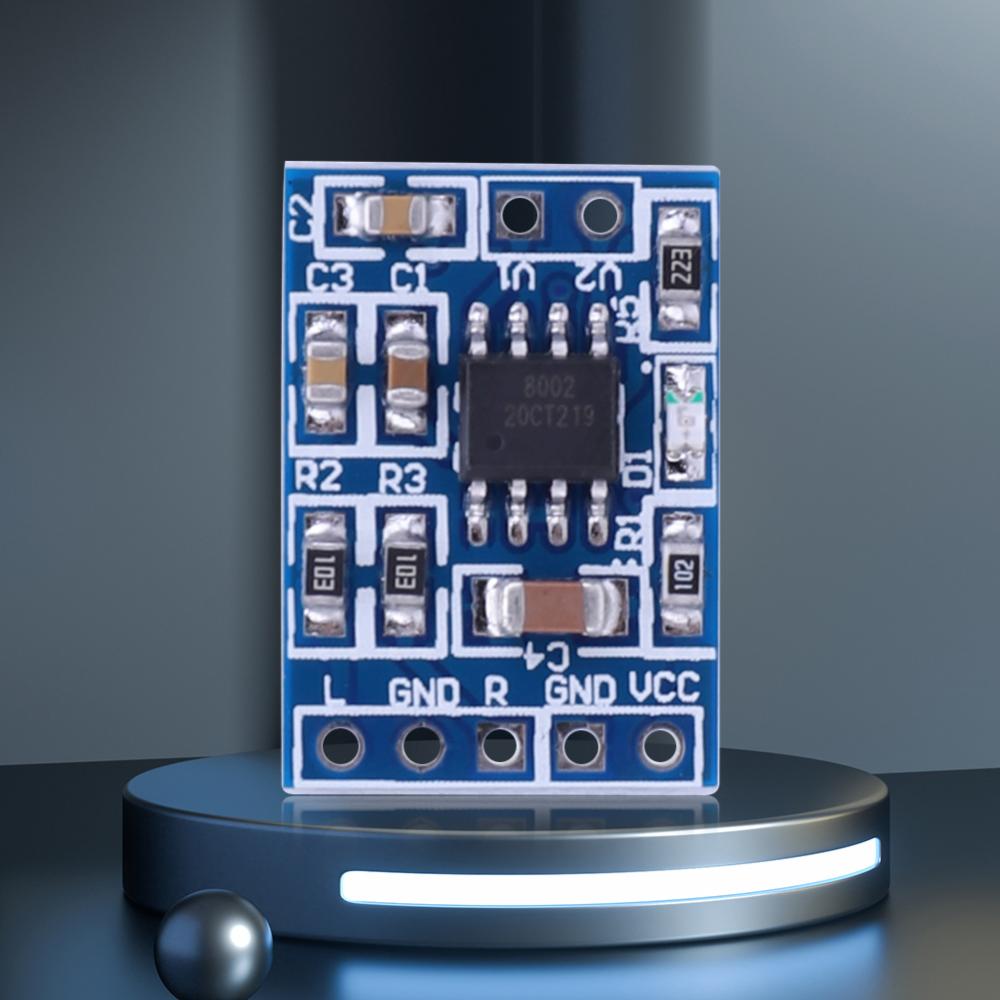

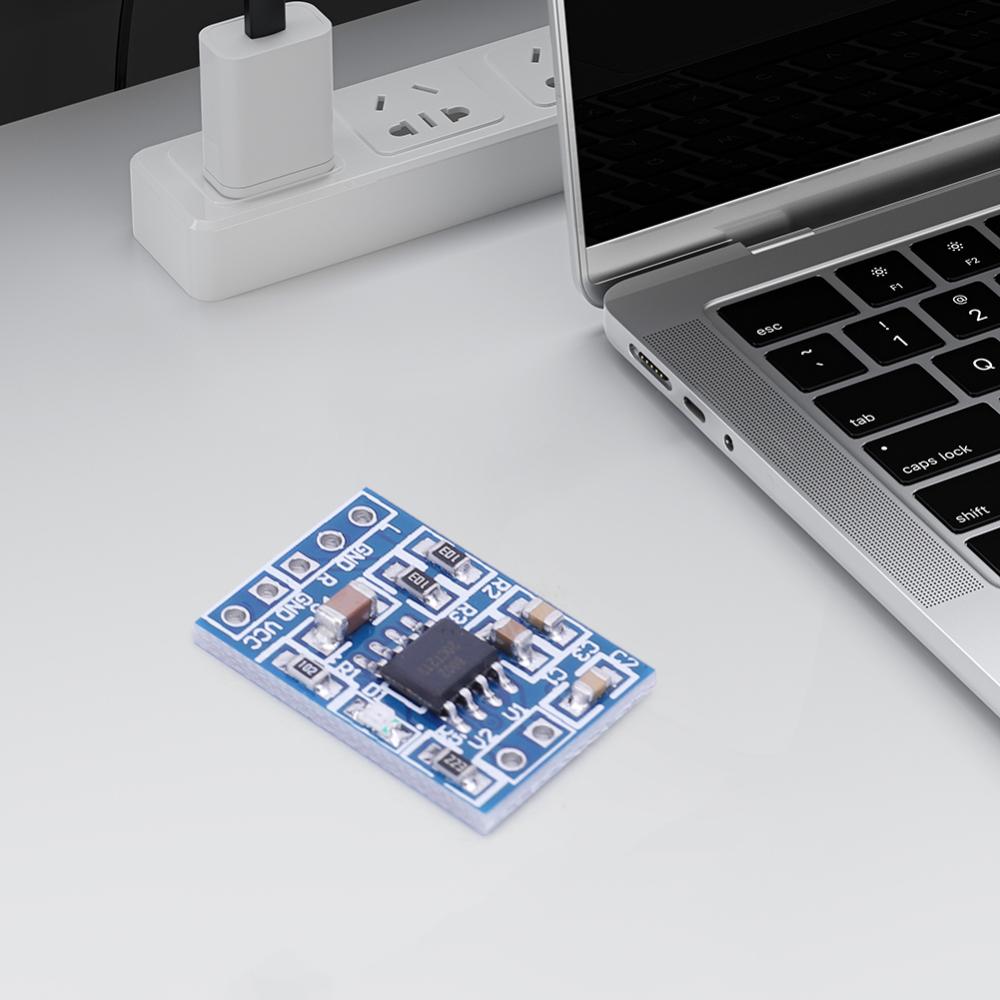

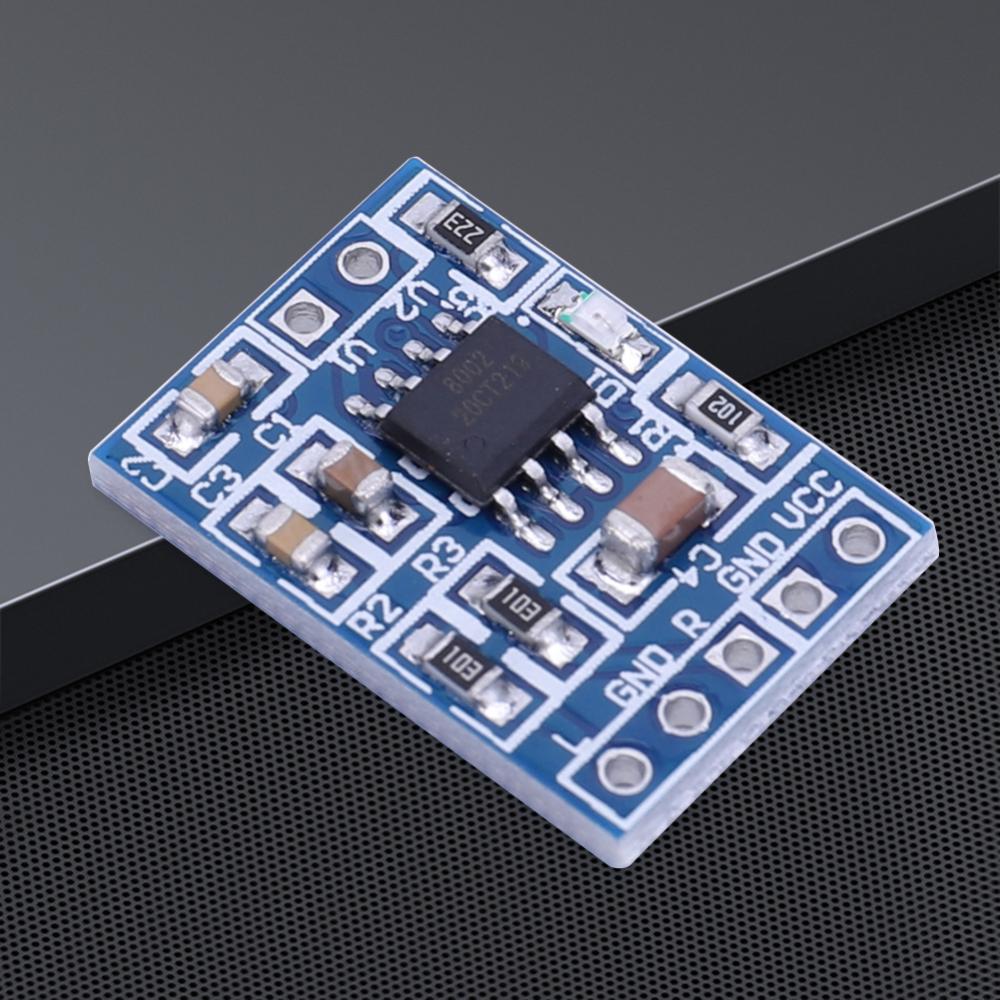

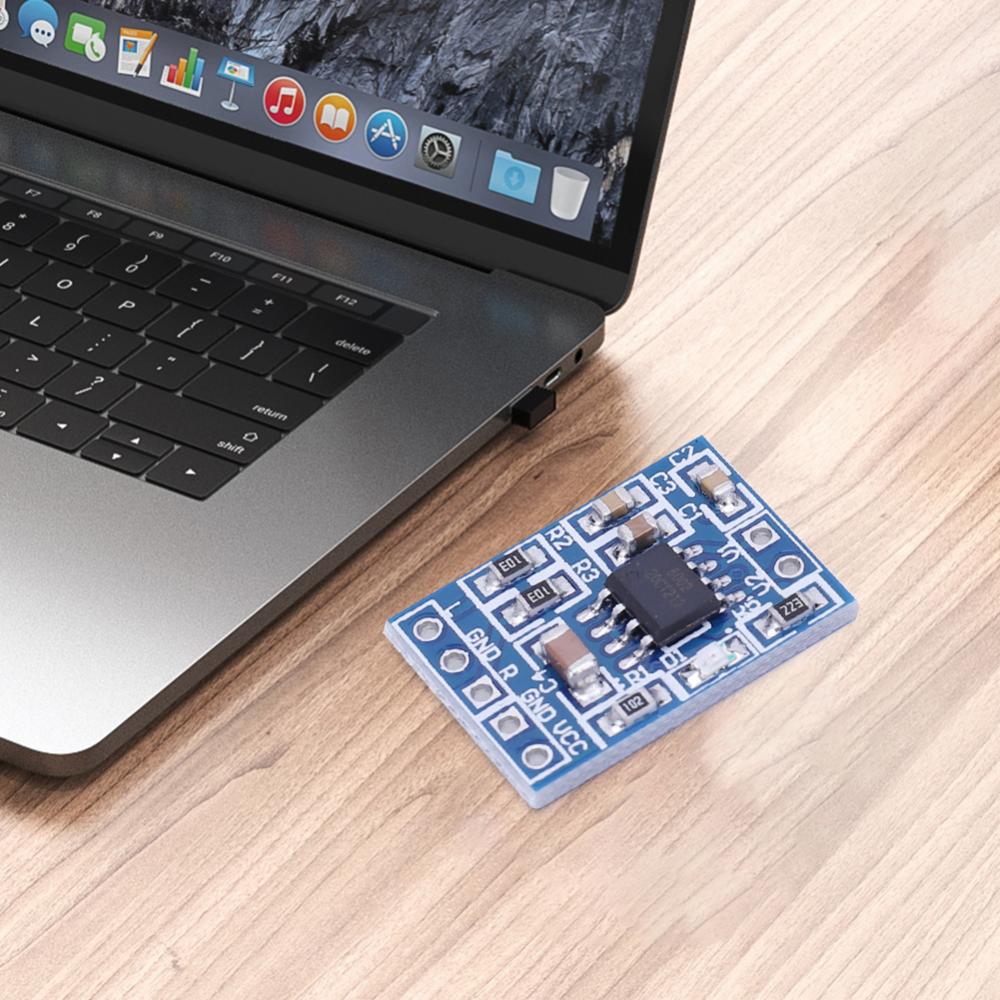

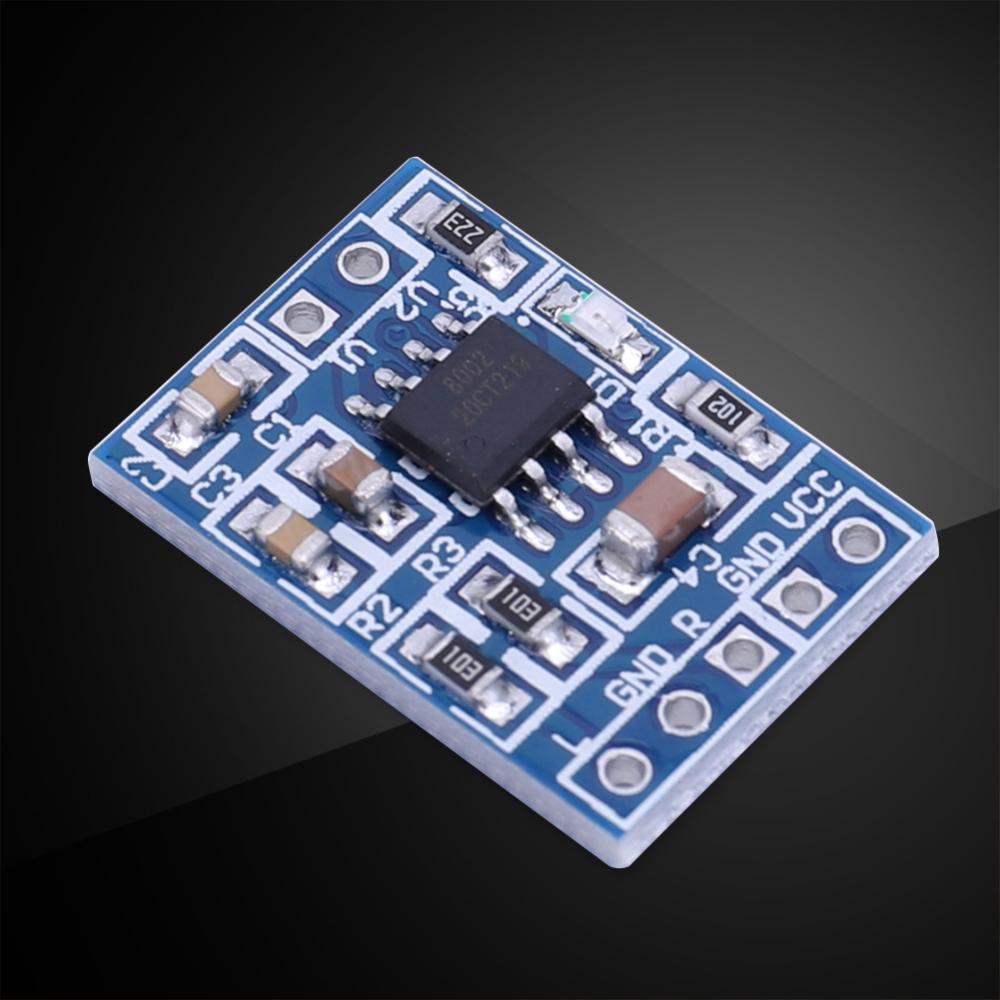

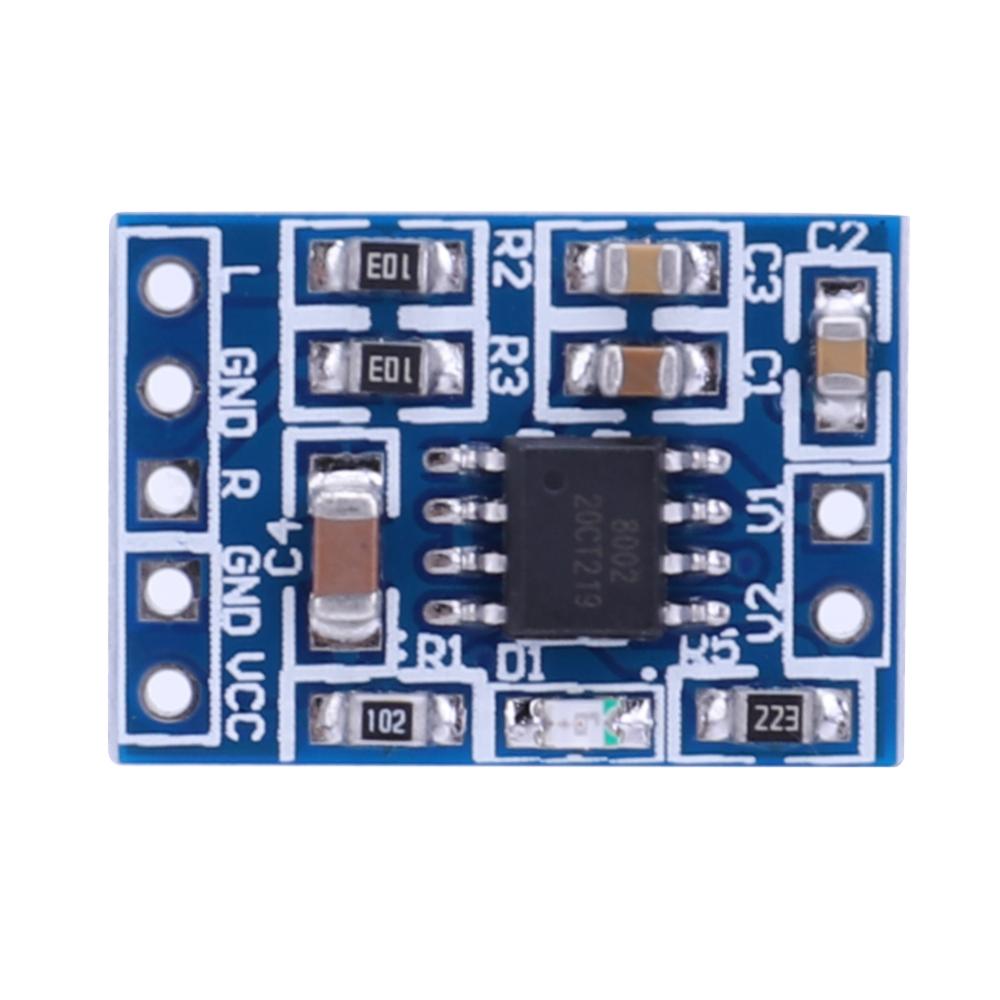

HXJ8002 Audio Power Amplifier Board Module BTL 3W Audio Amplifier Single Channel

HXJ8002 Mono Channel Voice Low Noise Amplifiers Module BTL 3W Audio Power Amplifier Board Module

Features:

1.Miniature Size: The XD-58B HXJ8002 mini amplifier module is compact and easy to install, making it an ideal choice for small audio projects.
2.Low Power Consumption: This module boasts a low standby current of only 0.6uA (typical value), reducing power consumption and increasing efficiency.
3.High Sound Quality: With a maximum distortion rate of only 0.5% at 1W output power, this module delivers clear and high-quality sound even at high volumes.
4.Wide Input Voltage Range: With a working voltage range of 2.0-5.5V, this amplifier module is compatible with a range of power sources, including batteries and USB power supplies.
5.Versatile Use Cases: This mini amplifier module is suitable for a variety of applications, including DIY audio projects, portable speakers, and more.

Specification:
Origin: Mainland China
Type: Voltage Regulator
Condition: New
Application: Speaker
Model Number: Audio Power Amplifier Board
XD-58B HXJ8002 mini power amplifier module audio amplifier module
Product reference:
Onboard HXJ8002 single channel 3W, audio power amplifier chip connected by BTL bridge;
Working voltage: 2.0-5.5V;
Standby current: 0.6uA (typ);
Under the condition that the input signal frequency is 1kHz, the load is 8Ω, and the average output power is 1W, the maximum distortion is 0.5%.
When THD+D<10%, input 1KHZ frequency, output power under different load conditions (typical value): 3W (load 3Ω); 2.5W (load 4Ω); 1.5W (load 8Ω);

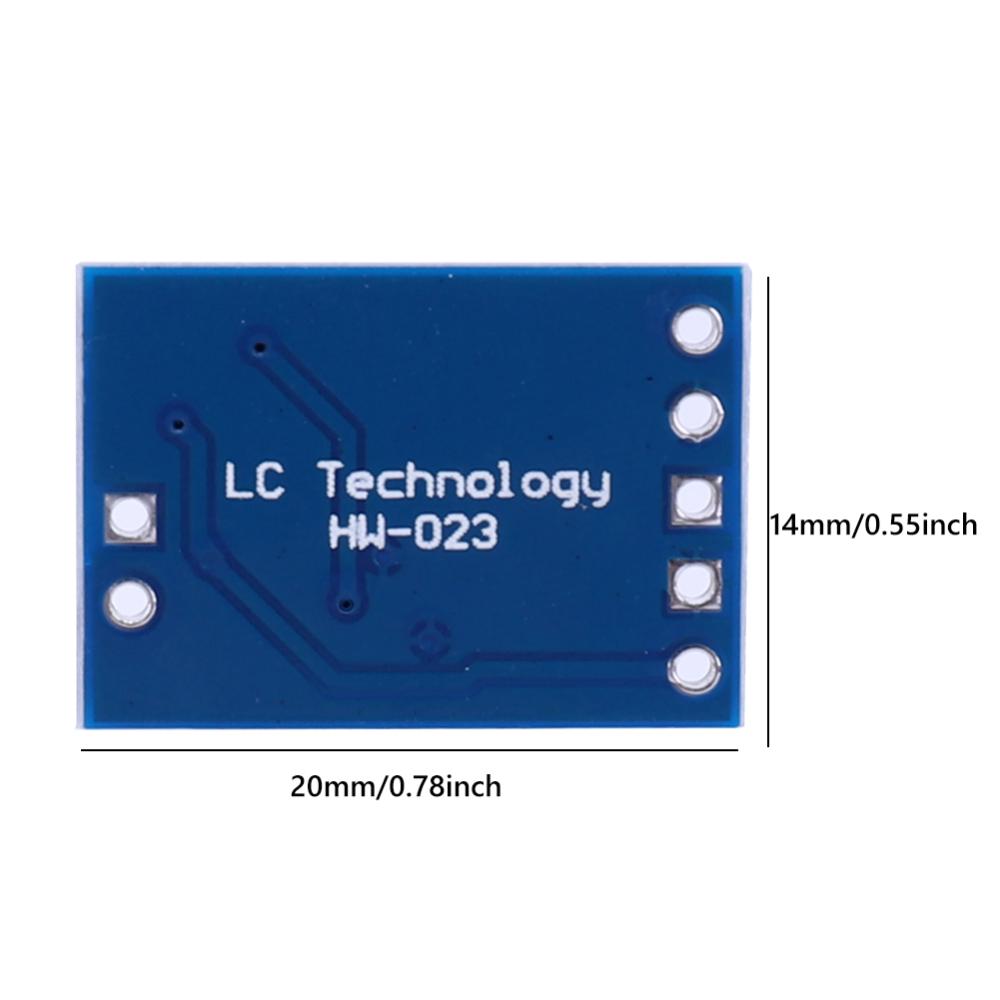

Product size: 20*14*2mm

Note:
Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you!
Please allow 1-2cm measuring deviation due to manual measurement.
