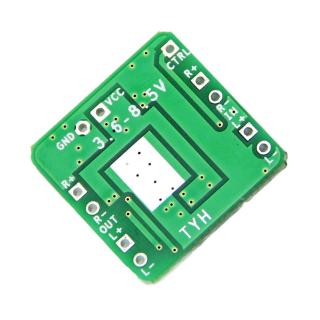

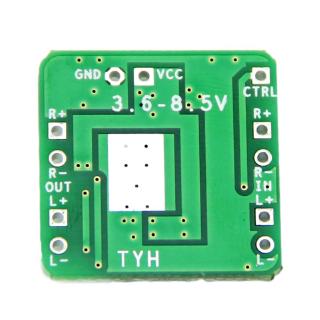

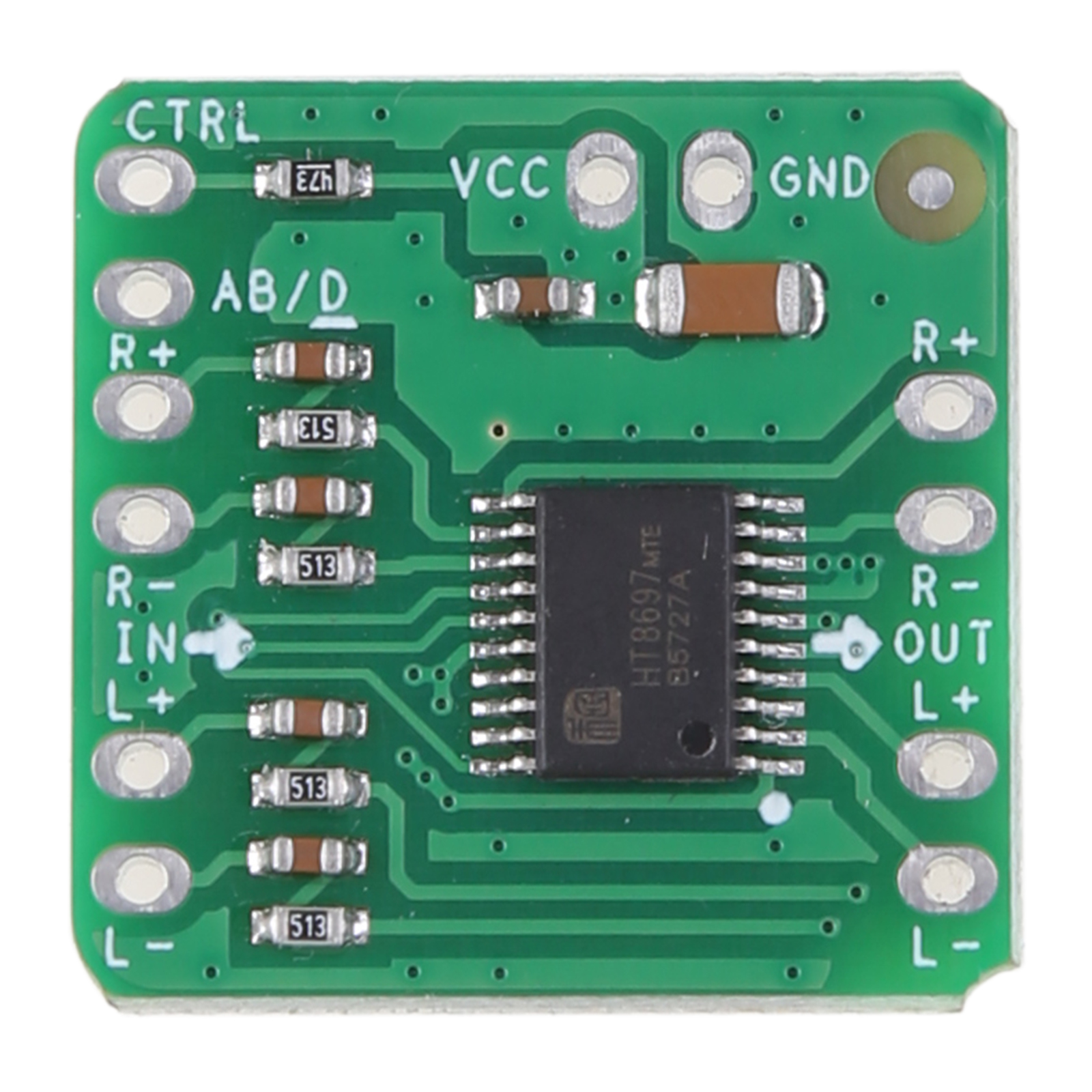

HT8697 Differential Amplifier Board 2x10W Digital Class D Audio Power Amplifier

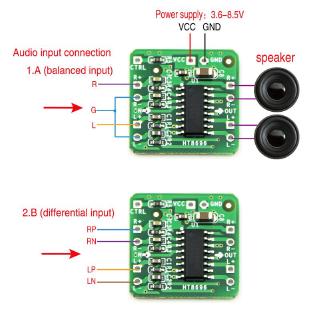

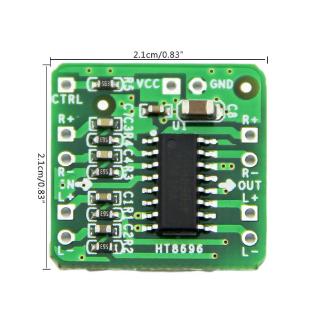

100% brand new and high quality Features: Amplifier board by default in the ACF-1 mode, use the CTRL mode setting, the welding will be welded out. The CTRL pin is usually connected to the Bluetooth MUTE pin. By inputting different voltage values at the CTRL terminal, four operating modes can be realized, namely, anti-topping mode 1 (ACF-1), anti-cancellation mode 2 (ACF-2), and anti-topping function off mode (ACF-OFF) and chip shutdown mode (SD). Specification: Input voltage: 3.6 ~ 8.5V Output: 2x10W Dimensions: 2.1x2.1cm/0.83x0.83inch Color: Green Quantity: 1 Pc Note: 1.Please allow 0-1cm error due to manual measurement. pls make sure you do not mind before you bid. 2.Due to the difference between different monitors, the picture may not reflect the actual color of the item. Thank you! Package includes: 1 x HT8696 Differential Amplifier Board (without retail package) #HT8696 #Differential #Amplifier #Board #2x10W #Digital #Class #D #Audio #Power #Amplifier
