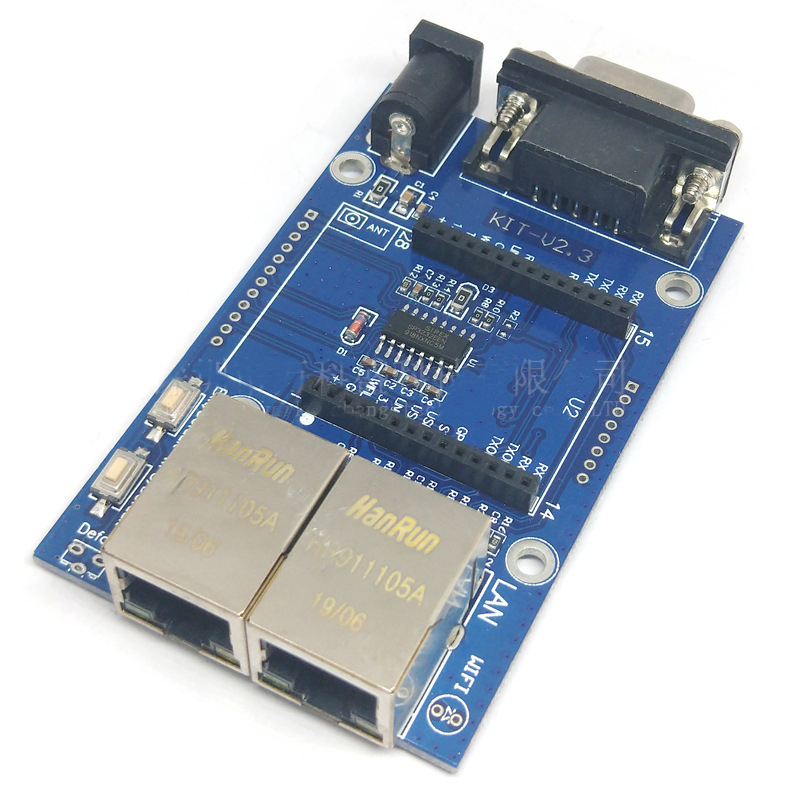

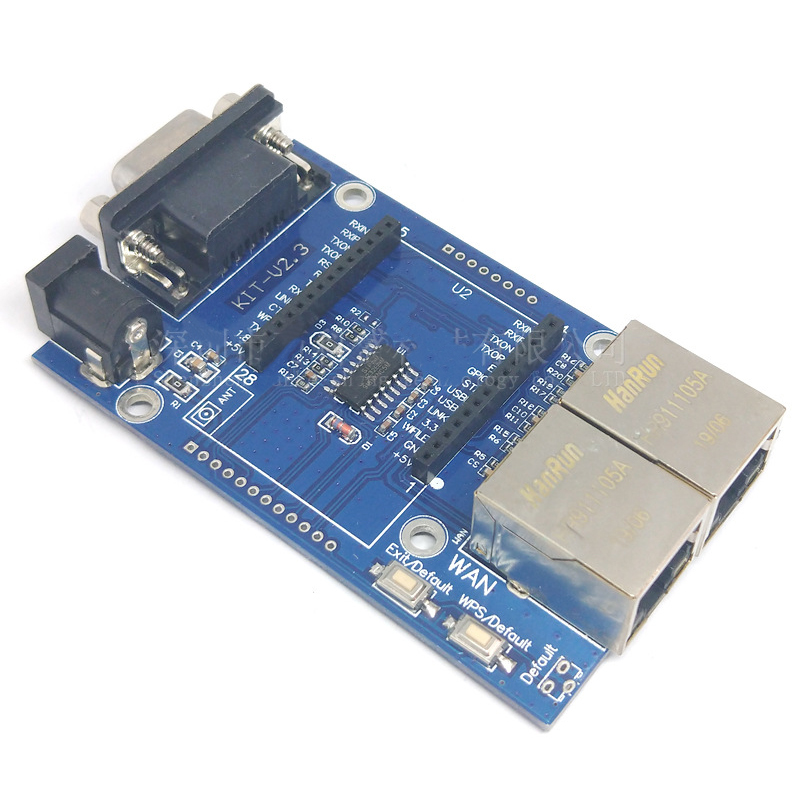

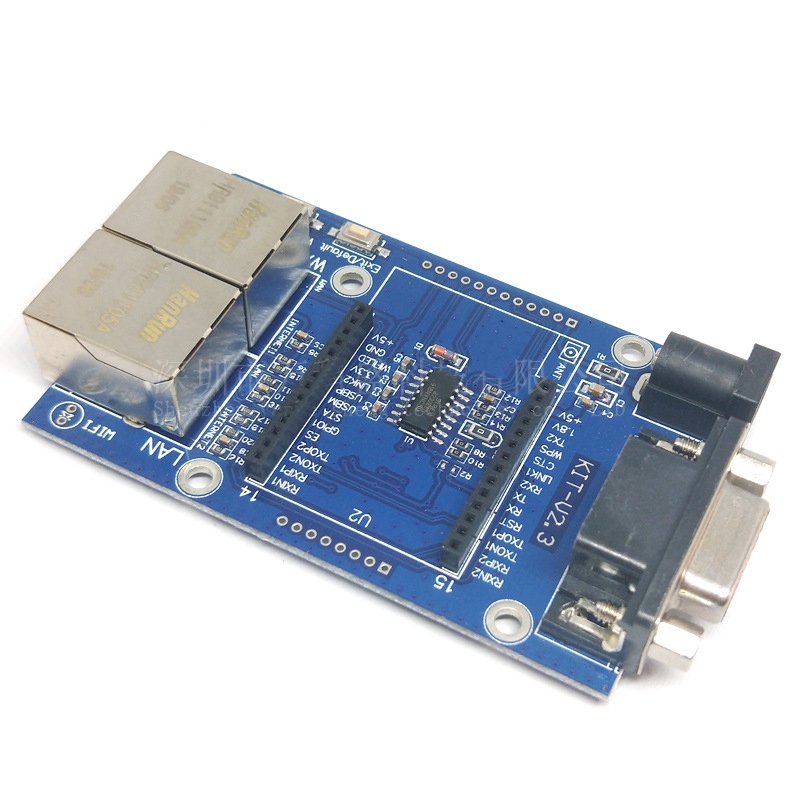

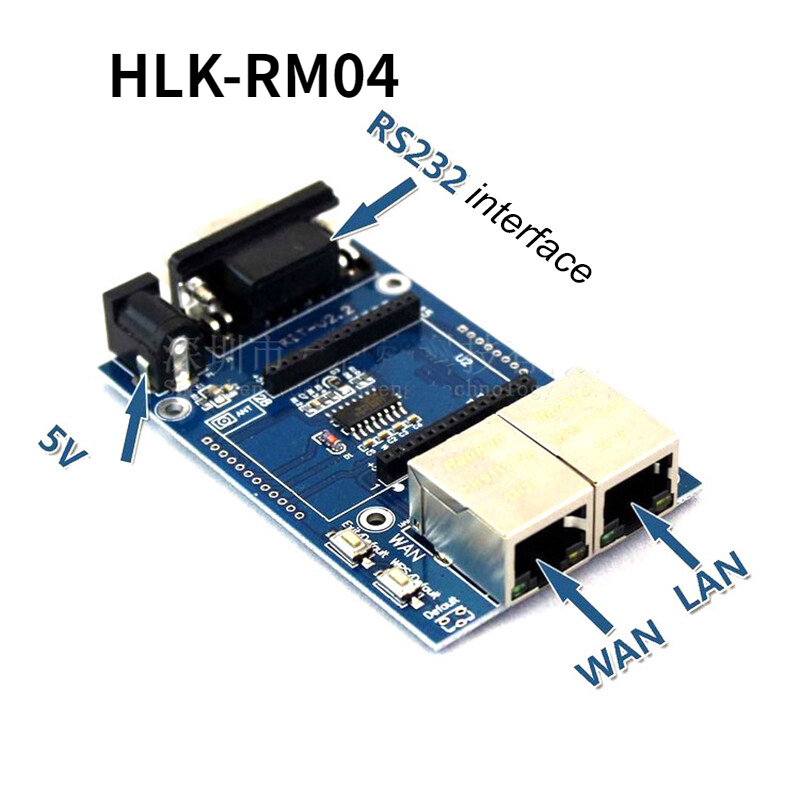

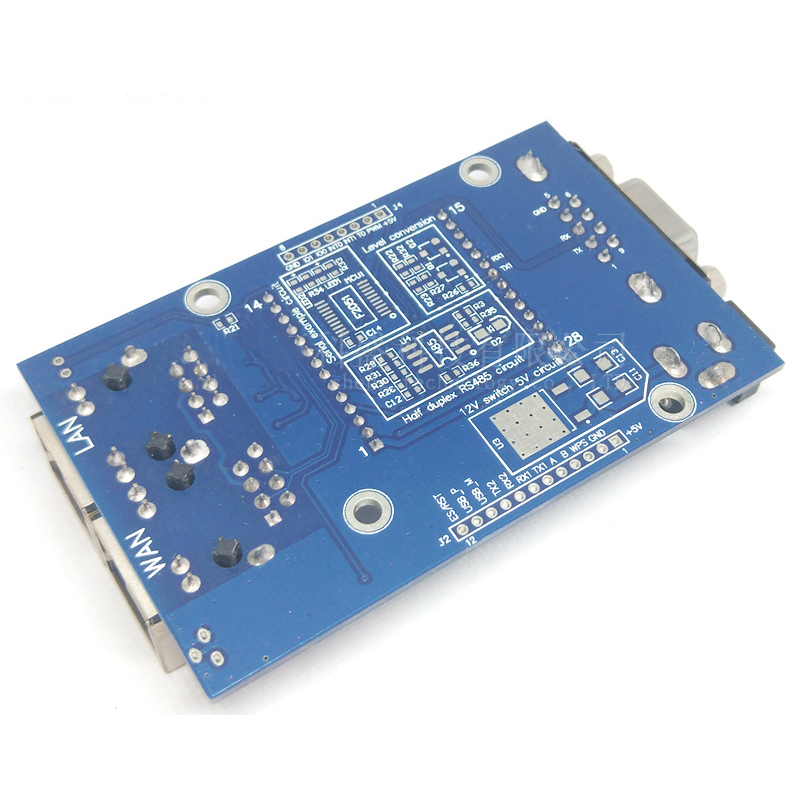

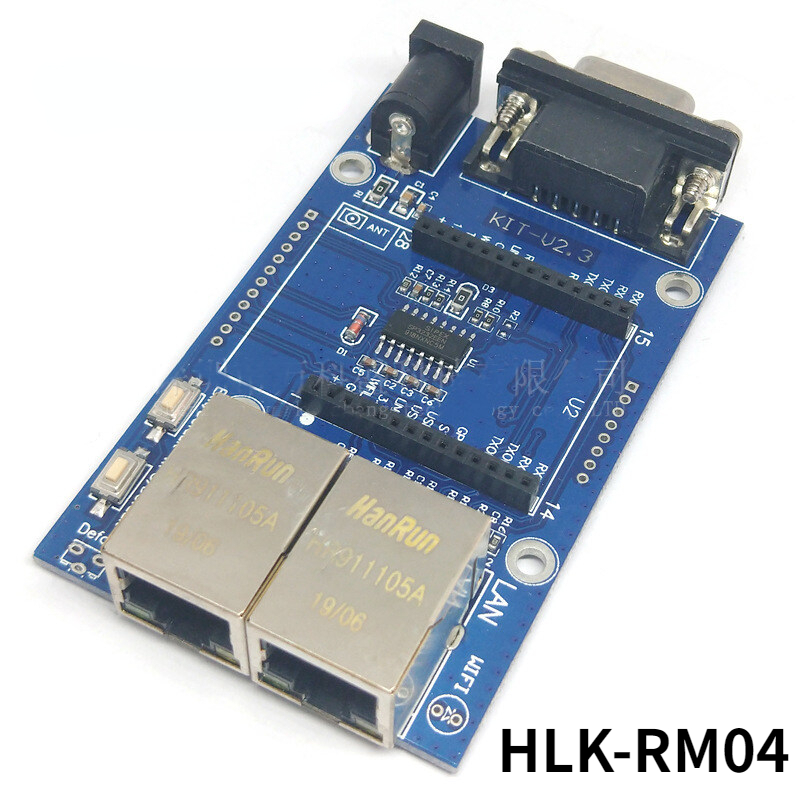

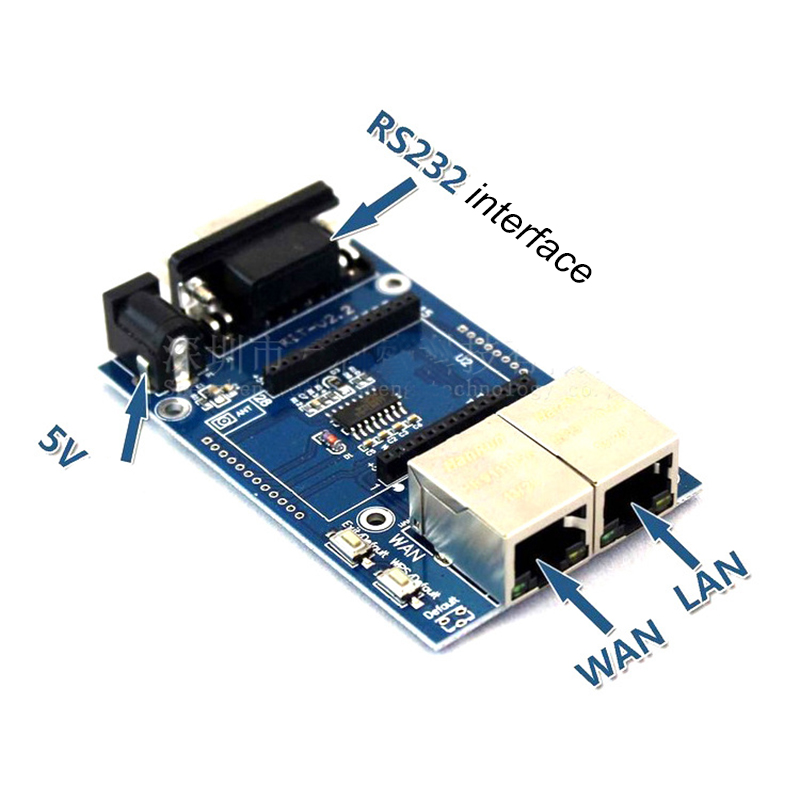

HLK-RM04 TCP IP Ethernet Converter Module Serial UART RS232 to WAN LAN WIFI

HLK-RM04 TCP IP Ethernet Converter Serial module UART RS232 to WAN LAN WIFI

Description
1. serial port turn on WIFI module, serial port turn on Ethernet module, WIFI module multi-function WIFI Ethernet switch, serial port server module, facilitate your serial port device connected to the Internet, transparent two-way data transmission, to ensure the highest limit of ease of use and compatibility
2. 10/100 m flexible Ethernet interface integration module, serial communication baud rate up to 230.4 Kbps 3.
3. Using the world's top network chip supplier, Ralink LeiLing solution, the raw material adopts TDK // MURATA, big brand, stable and reliable base
4. The system core is suitable for reliable and long -term running system application security
5. Size: like credit cards
6. Working temperature: industrial grade: 25 ~ 75 ° C.
7. Built in 360 m MIPS CPU, 16 MB RAM and 4 m FLASH and wireless baseband and rf front end and various peripheral buses
8. Through CE and FCC certification, supports IEEE 802.11 b/g/n, supports transparent protocol data transmission mode
9. Most support WIFI encryption methods and algorithms, WEP/WAP wpa2-psk/WAP2 wpa2-psk/WAPI, WEP64 WEP128/TKIP/AES encryption type
10. AT + configuration command set, provide a friendly Web configuration page, through the Web configuration
11. Choice of built -in onboard or external antenna
12. Supports wireless work in AP model and node (station), real hardware AP, supports iPhone and android system all WIFI connection, AP support function and online station at the same time
13. Optional TCP Server/TCP client/UDP working mode, support network protocols: TCP/UDP/ARP, ICMP/HTTP/DNS/DHCP
14. DHCP support automatically get the IP, support work in AP mode to set the IP of the device
15. Adjustable serial port speed, highest support 230400
16. Strong technical support, can provide customized requests. Can provide a neutral version
