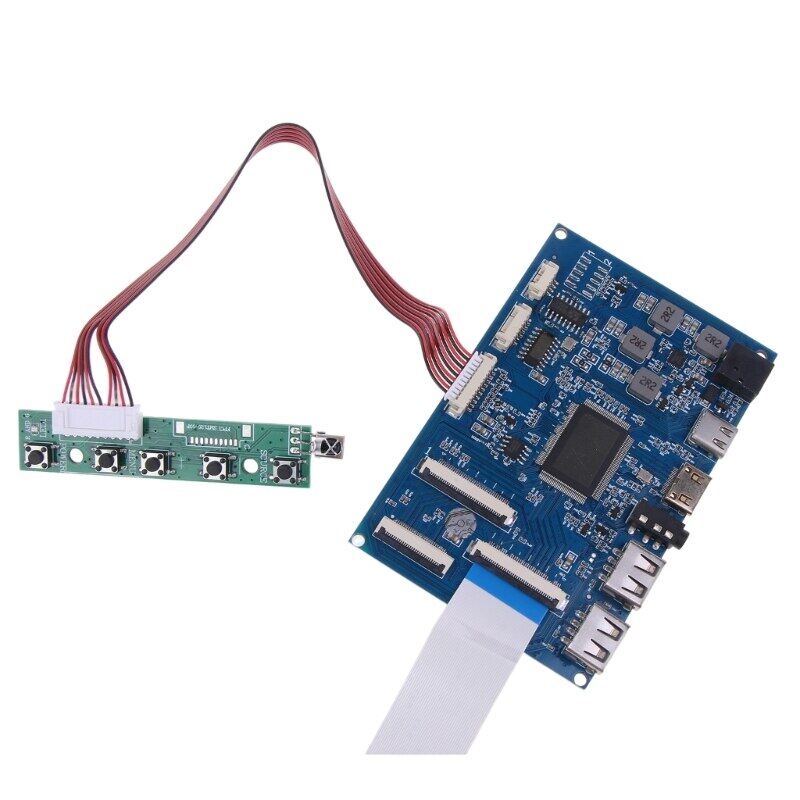

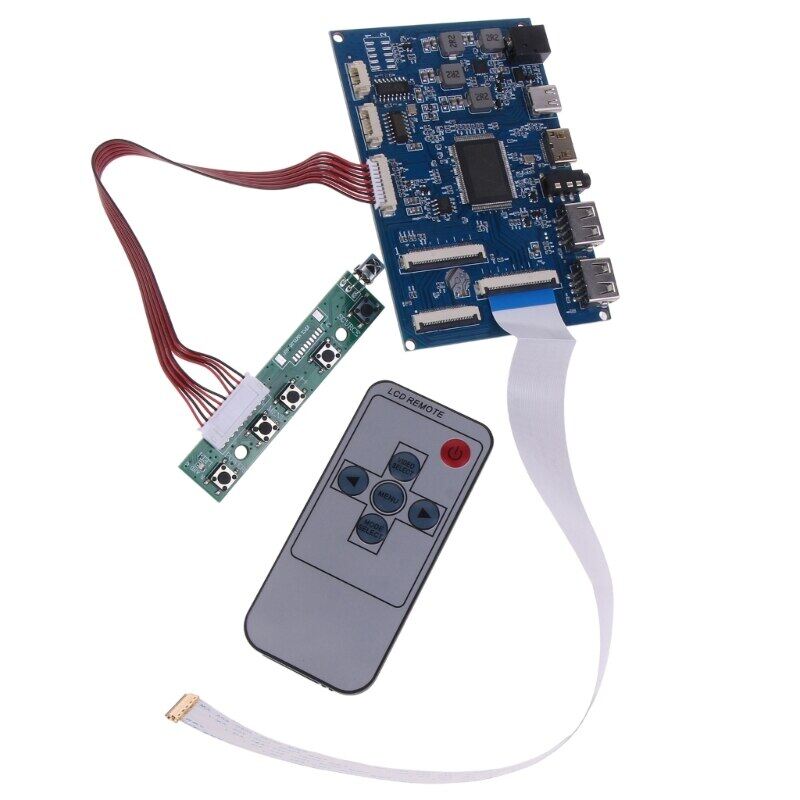

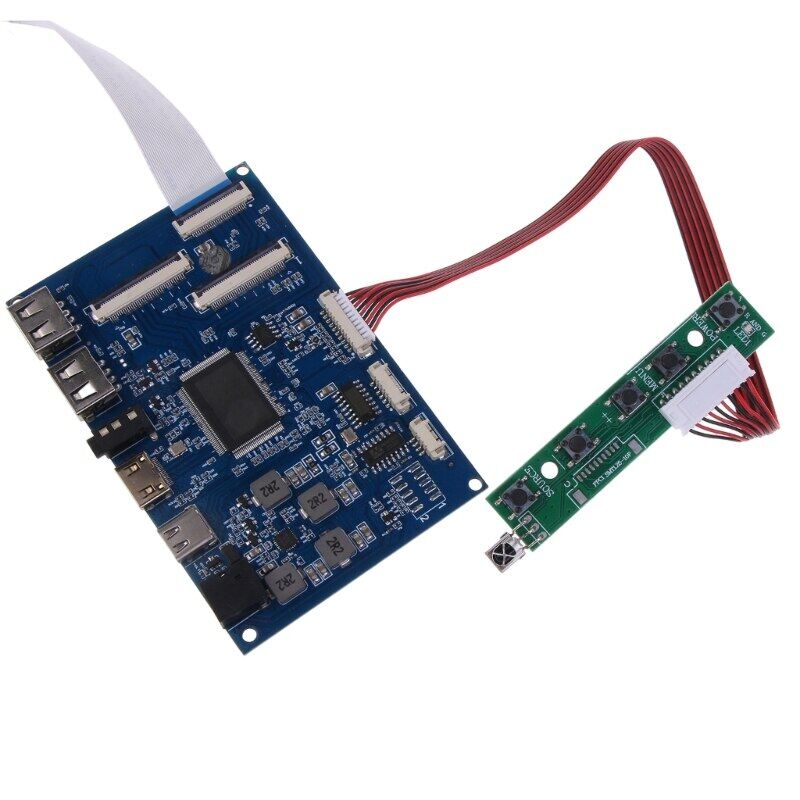

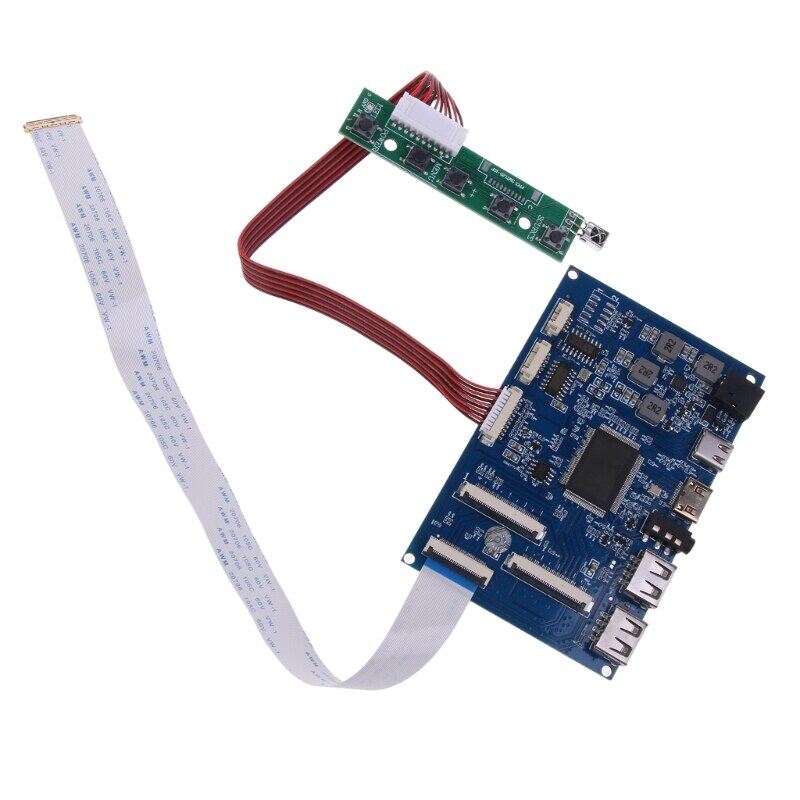

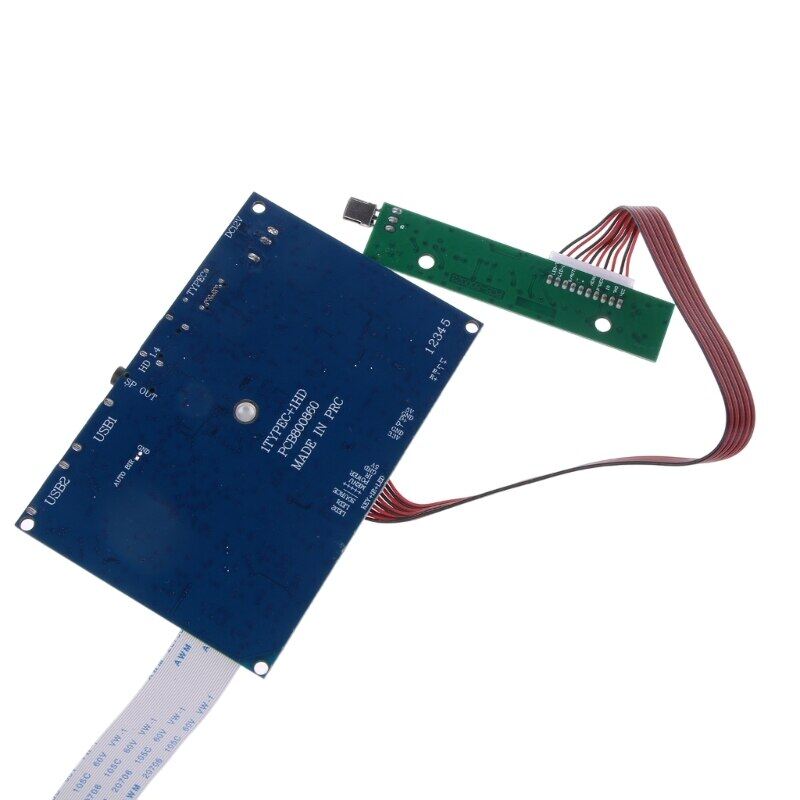

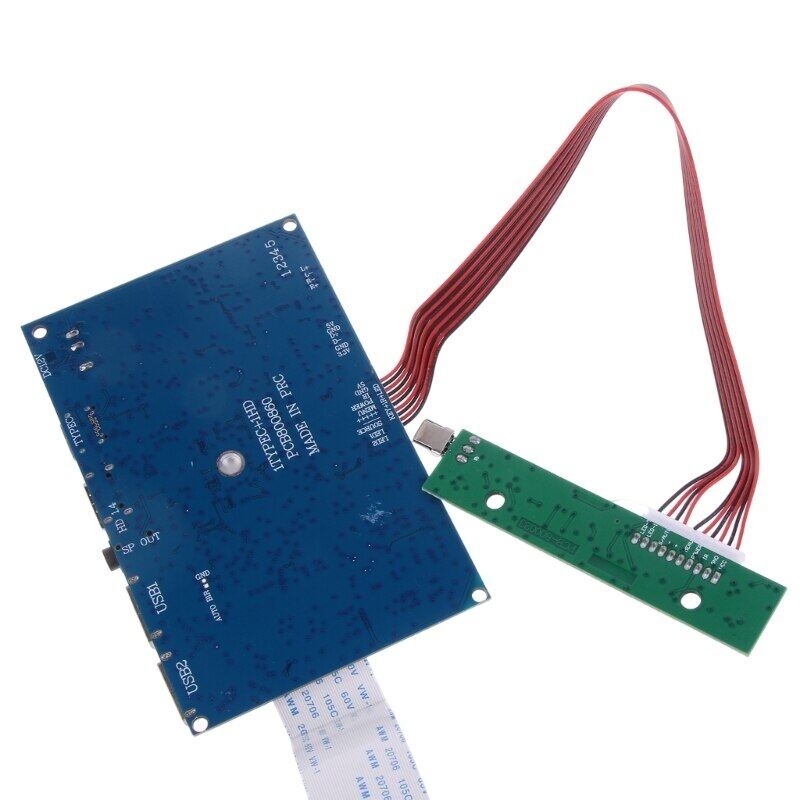

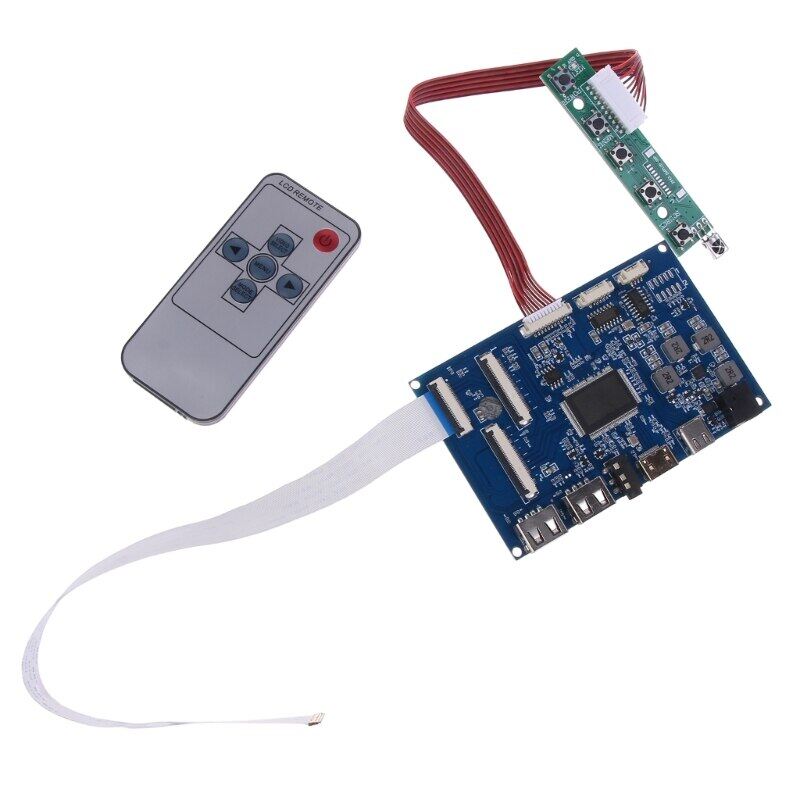

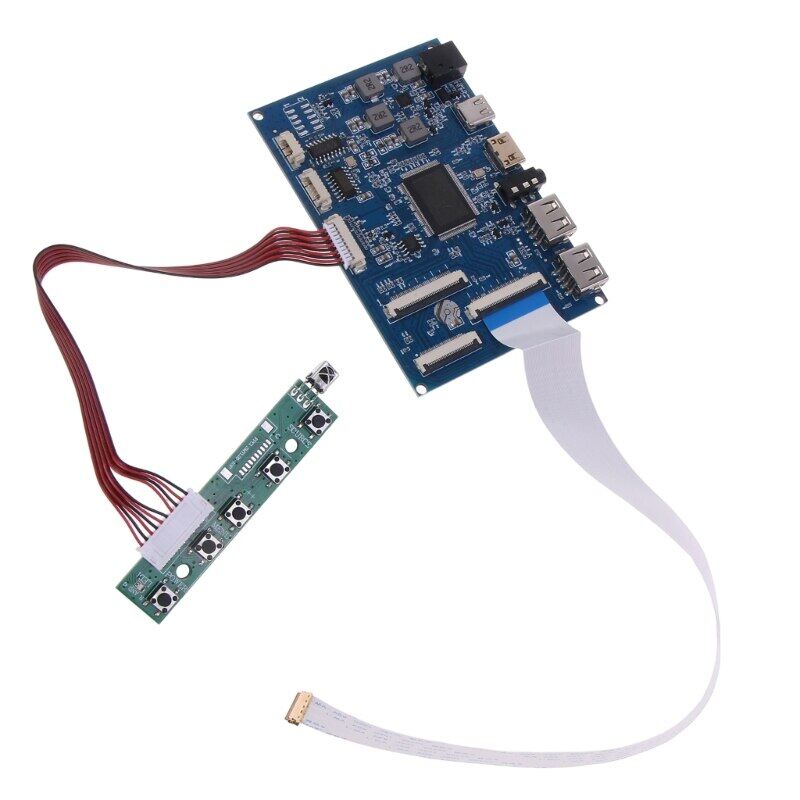

High Definition LCD Screen Controller LVDS Edp LCD Screen Driver Board TYPE-C Game Display Driver Electrical Circuitry Parts 0.1

• Compatible With:30pin/ 40pin LVDS EDP LCD
• Accessory Type:LCD Screen
• Origin:Mainland

Features:
This driver board is suitable for 12V standard s input, with a minimum input of 12V and a maximum of no more than 15V. Exceeding the specified s may damage the circuit board and components, so please carefully confirm power input s.
It supports signal input, which is HDMI-compatible1.4;
It supports one TYPE-C signal input, which can support terminals such as computers and phones, and only supports 5V power output, which can reverse charge the phone, up to1A.
The LCD screen inter is EDP30PIN, EDP40PIN, and LVDS40PIN, and the output inter needs to be confirmed through software upgraded;
This driver board, and TYPE-C, automatically recognizes and converts;

Specifications:
Material:ABS

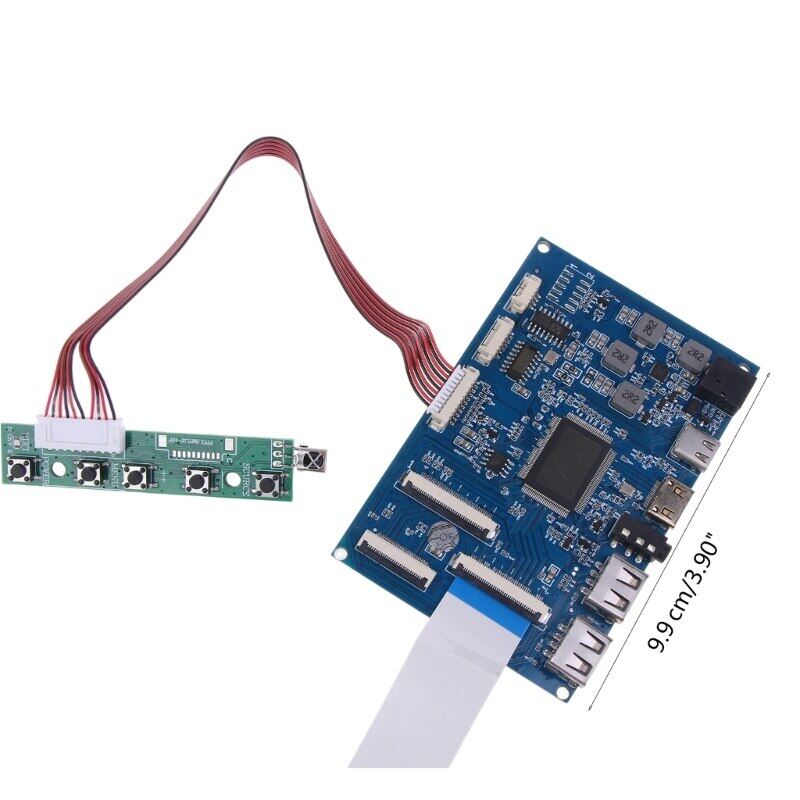

Length:Approx.9.9cm/3.9in
Edp 30pin Supports Edp Resolutions Below1920x1200
Edp 40pin Supports Resolutions up to 2560x1440
Power Output:2x2w

Package Includes:
1xLcd Driver Board

Note:
Please allow 1-2cm errors due to manual measurement,please make sure that you do not mind before you order.
Due to the difference between different monitors, the picture may not reflect the actual color of the item.
