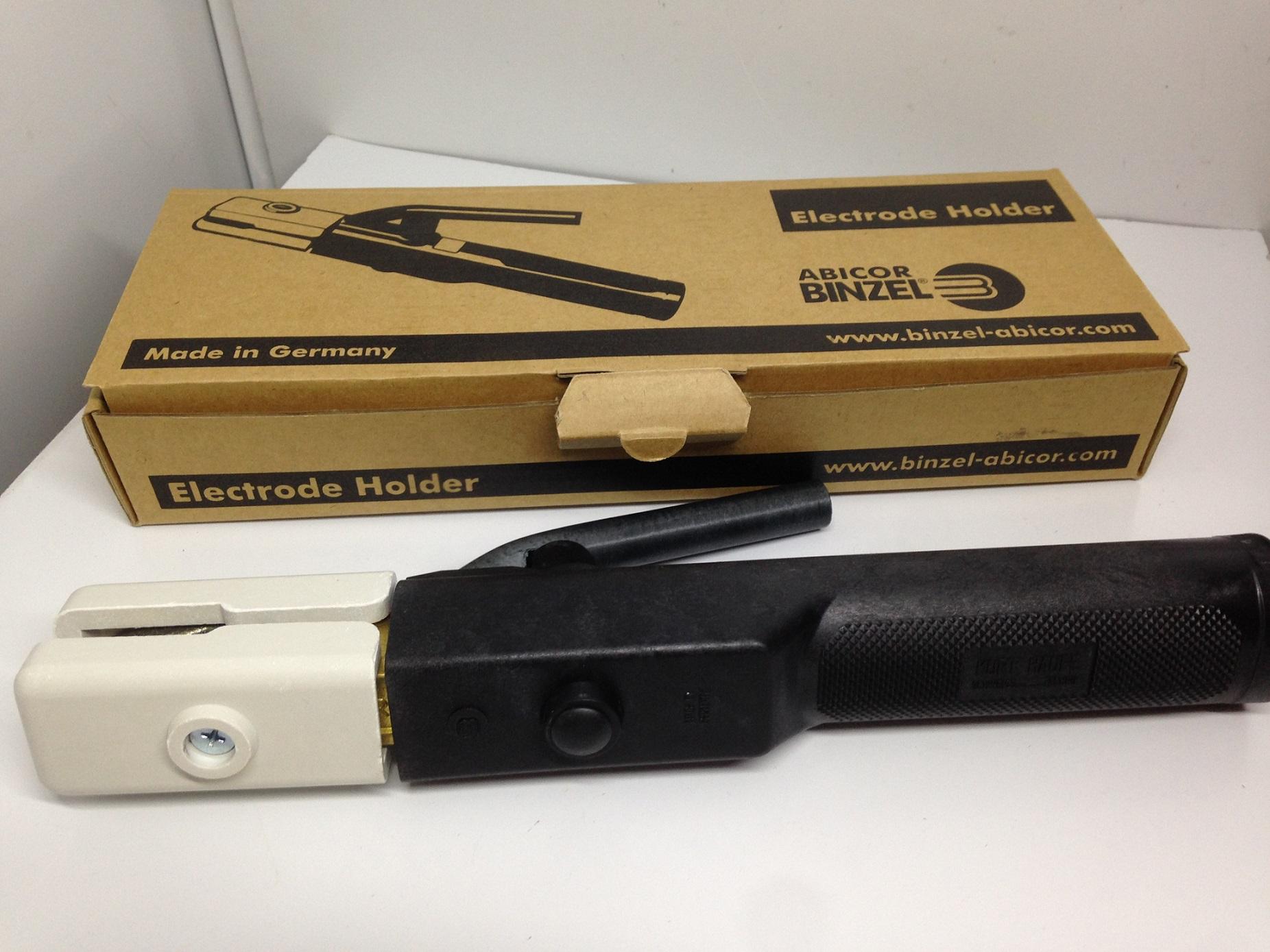

[HCM]Kìm Hàn Que DE2300K nhập khẩu từ Đức

The electrode holders are used for manual electrode welding. Manual electrode welding is one of the oldest and most miscellaneous arc welding operations that are still applied today. It stands out due to relatively low investment needs as well as its universal application possibilities. KURT HAUFE electrode holders “DE” are millionfold proven for decades and due to its extremely tough construction they are the optimum tool for the “outdoor professional” – amongst others in shipyards, pipeline construction and bridge building.

Besides the traditional version for connection via cable shoe the new “K”-series offers the possibility of direct crimp connection with the bare welding cable.

Special features:

High-tensile, heat insulated handle
Mechanical and thermal heavy-duty insulating material
Safe electrode voltage in four chip flutes
Big electrode and welding cable connection area

Technical data

Type	Rating		Electrodes-Ø	Welding cable	Connection bolt 2)
	at 60% DC	at 35% DC
DE 2200 / K 1)	200 A	250 A	2.0 - 4.0 mm	25 / 35 mm2	M8
DE 2300 / K 1)	300 A	400 A	2.0 - 6.3 mm	35 / 70 mm2	M8
DE 2400 / K 1)	400 A	500 A	4.0 - 8.0 mm	50 / 95 mm2	M10
DE 2500 / K 1)	500 A	600 A	4.0 - 10.0 mm	70 / 120 mm2	M10



¹⁾ K = Clamp-connection via ferrule
²⁾ for cable shoe
