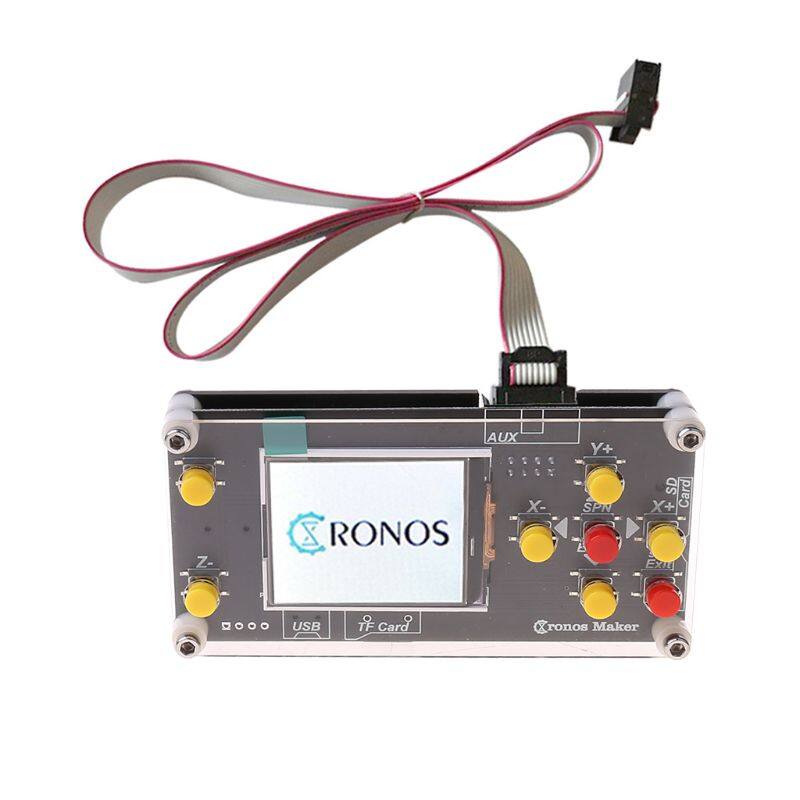

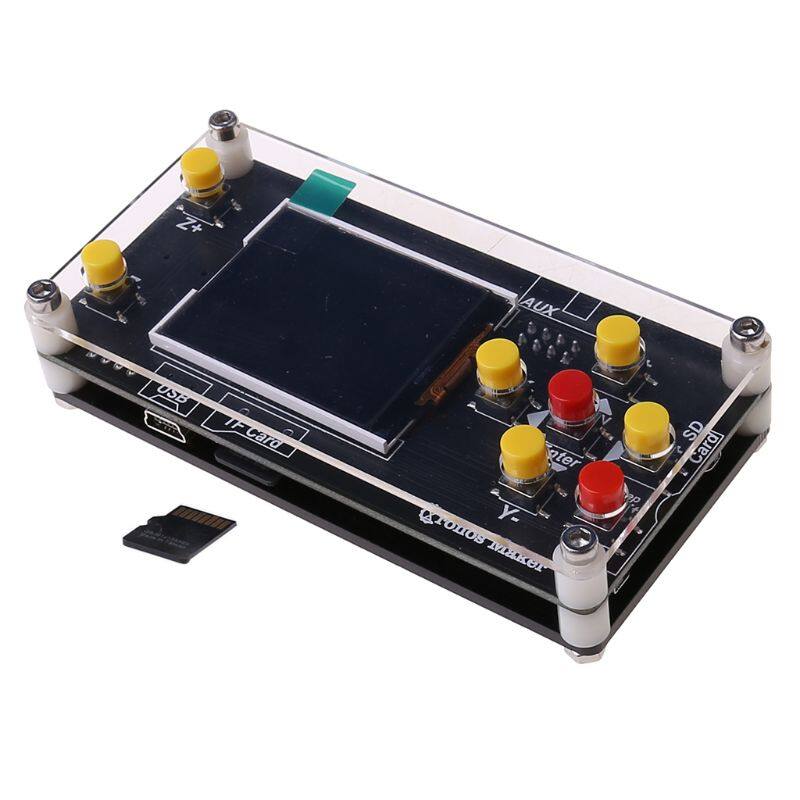

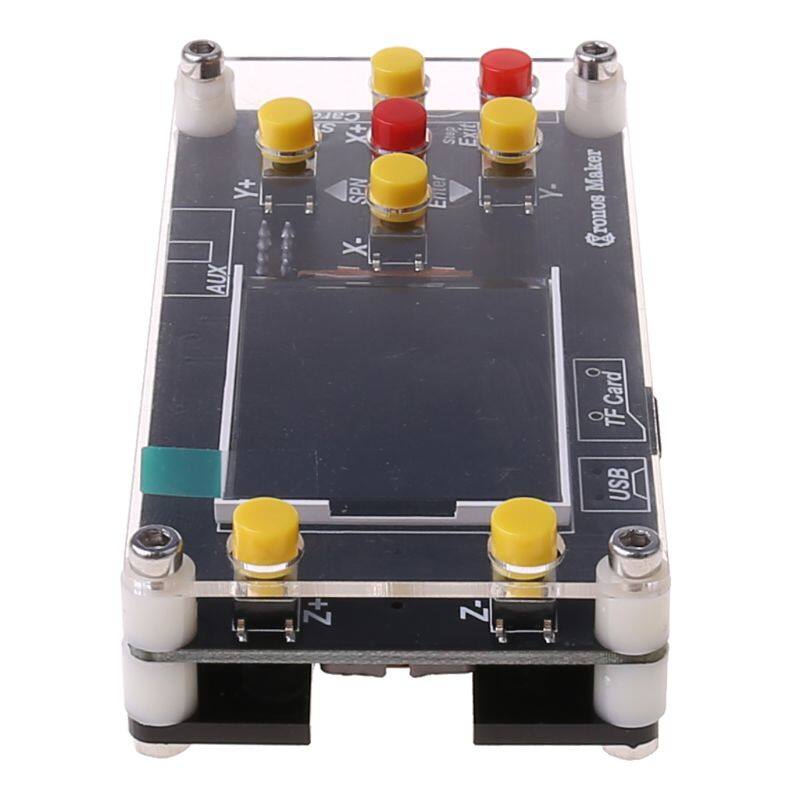

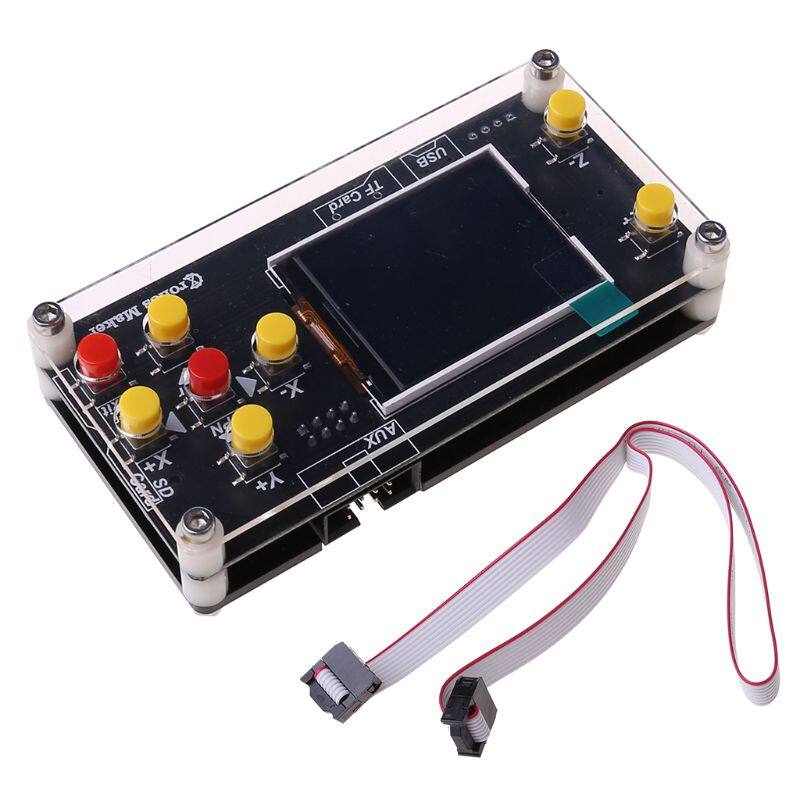

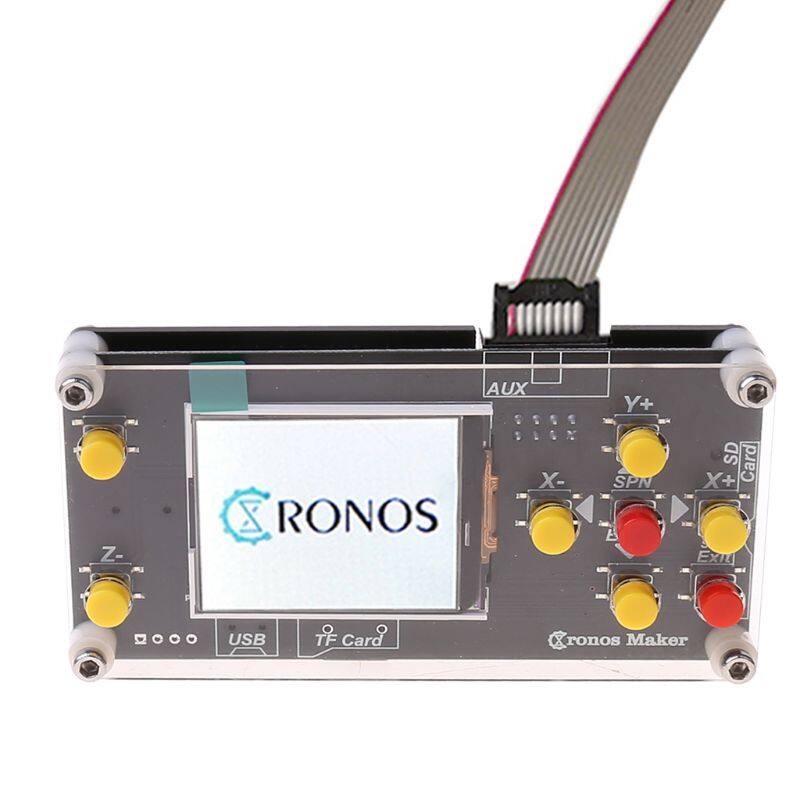

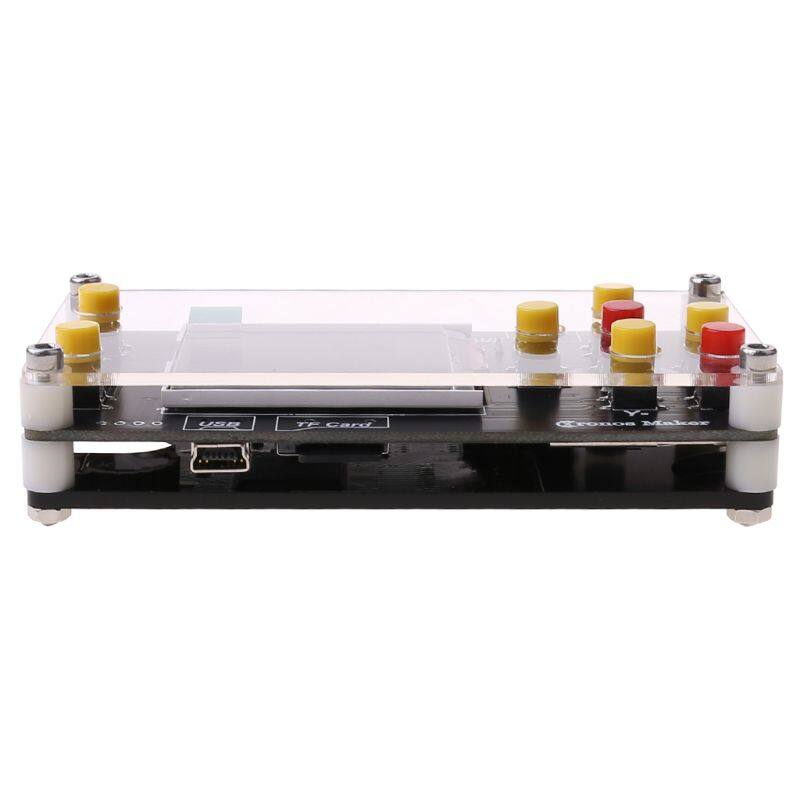

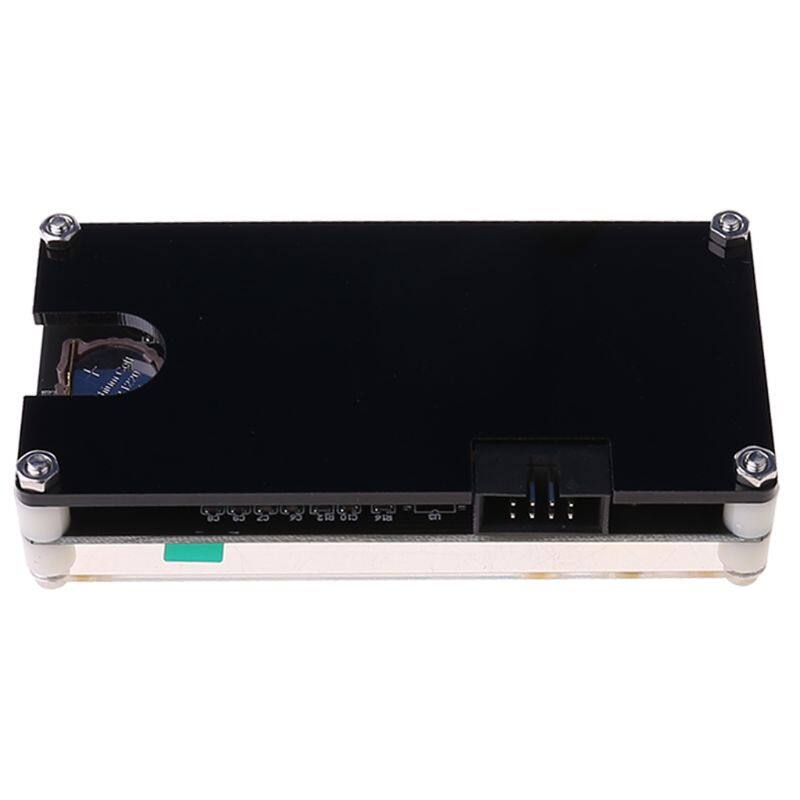

GRBL CNC Offline Controller Board 3 Axis Control for 3018 Pro 1610/2418/3018 Engraving Machine Carving Milling Machine

GRBL CNC Offline Controller Board 3 Axis Control for 3018 Pro 1610/2418/3018 Engraving Machine Carving Milling Machine

Funciton:
1: Manual control: Manually adjust the position of the three axes of XYZ as the starting point of engraving, and manually turn the spindle on or off.
2: Document engraving: After the offline board is saved in the file, it can be connected to the GRBL control board for engraving, no need to connect to the computer.
3: Storage file: The offline version is connected to the computer and recognized as a USB mass storage device, which can directly access the engraving file.
4. Chinese and English dual system, long press Z+ on the main page to switch between Chinese and English.

New high-speed 1.8-inch Grbl offline controller Linking Grbl motherboards allows you to engrave files offline.
Read 600 files at a time.

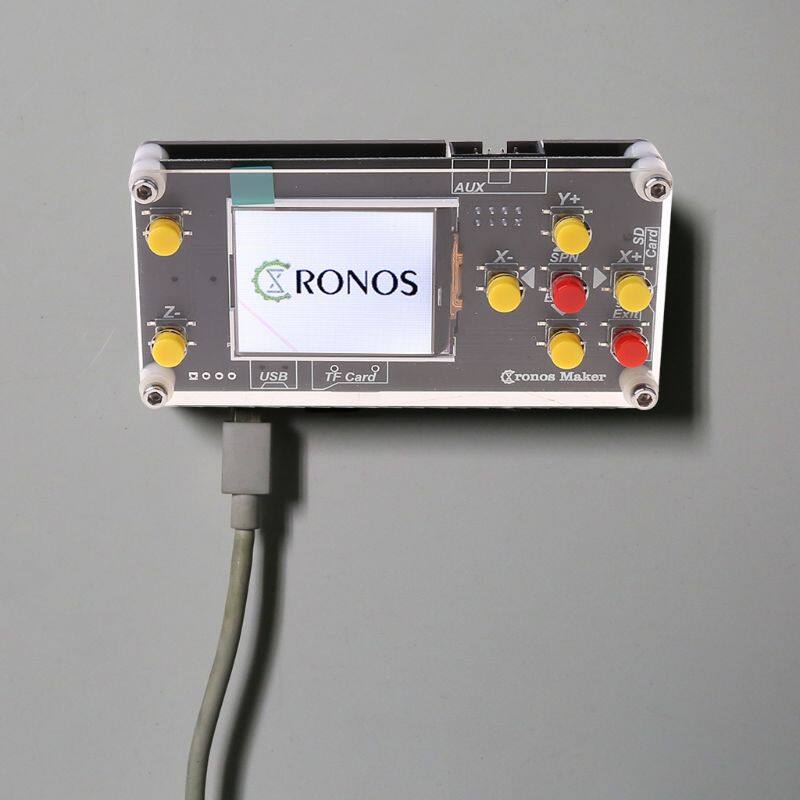

You can connect a computer USB to transfer files to this controller.
Compatible with all versions of Grbl.
The baud rate is adjustable.
Press Z+for 5 seconds: change the Language to English.
Press Z+and Z-:the Z axis will move up and down.
Press X+and X-:the X axis will move left and right.
Press Y+and Y-:the Y axis will move Front and Back.
Press SPIN:Spindle on(on ),Spindle off(off)
Press SMOD:return.

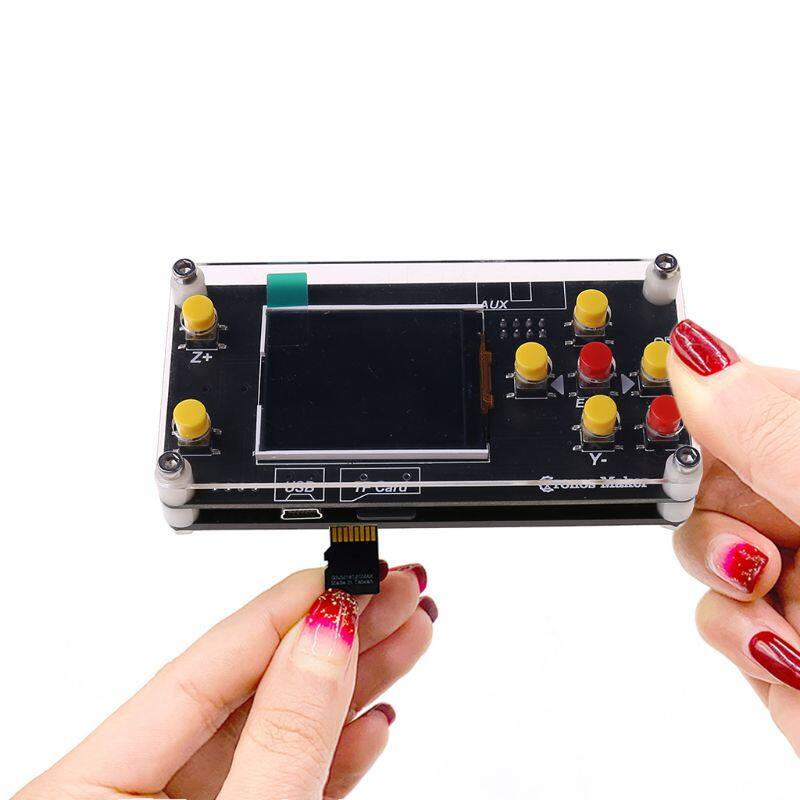

TF card:TF card reader is to write into the root directory G-code files.
color:White
material:plastic

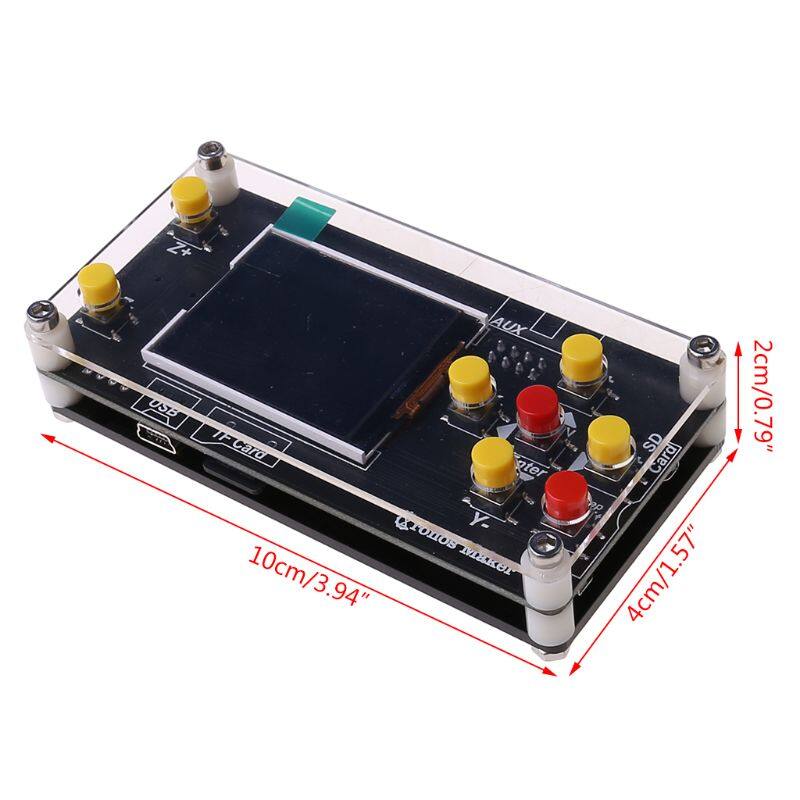

Size: 10*4*2cm (3.9*1.7*0.8in)
