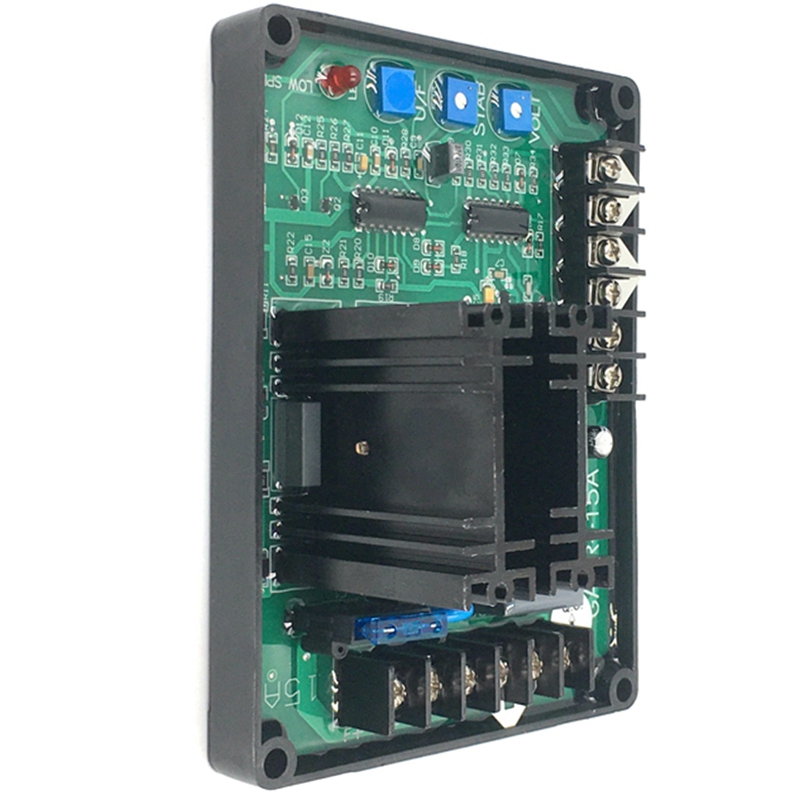

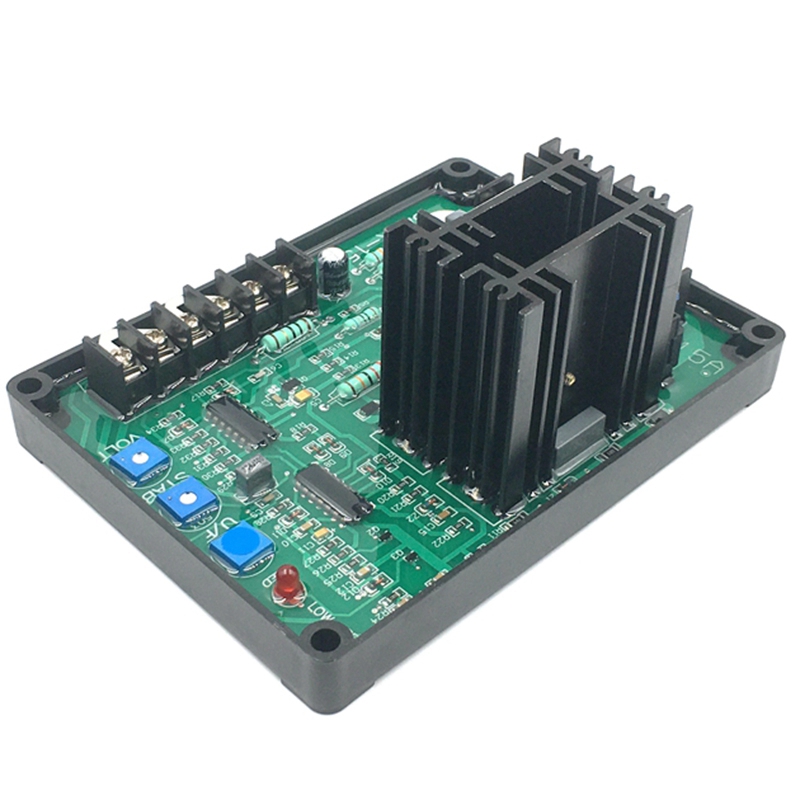

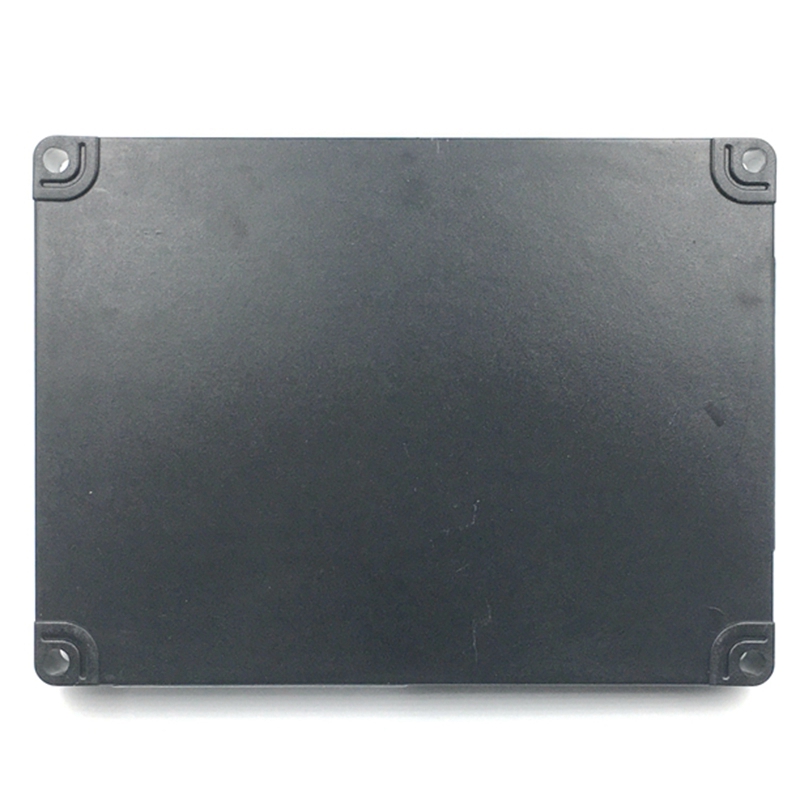

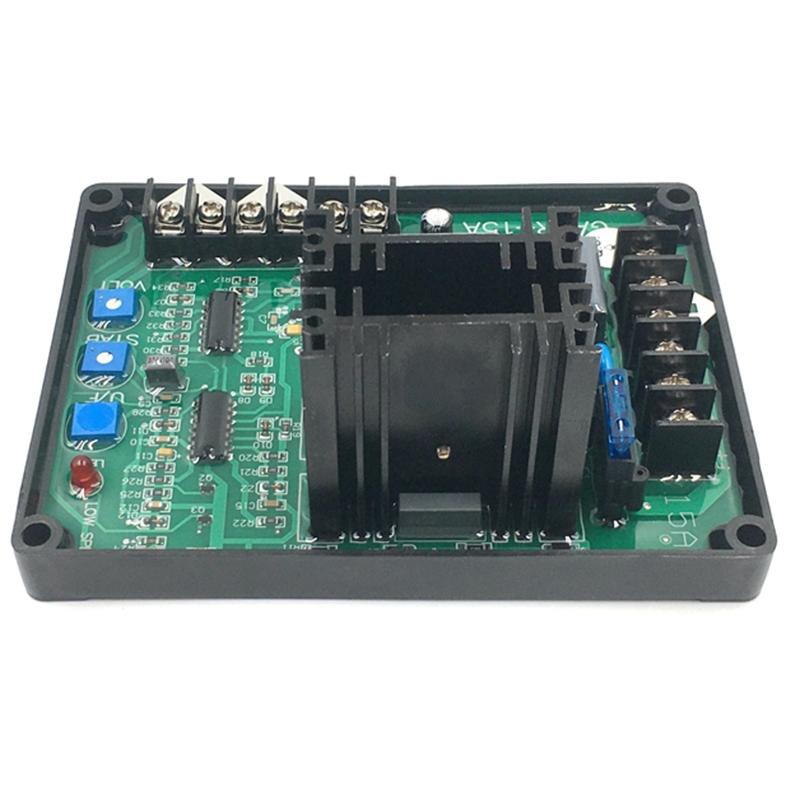

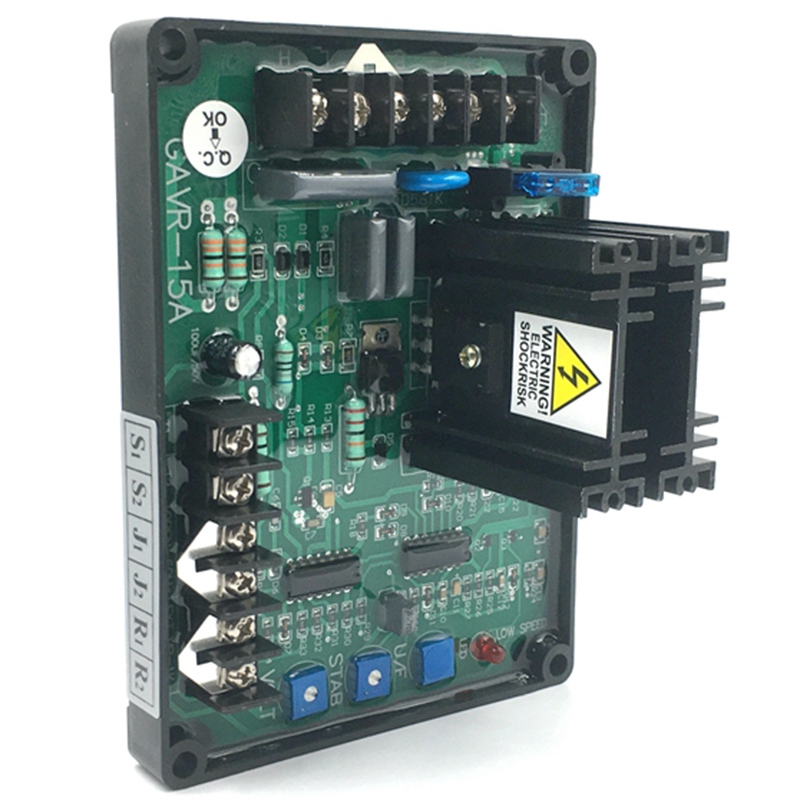

Generator GAVR-15A Universal Brushless Generator Avr 15A Voltage Stabilizer Automatic Voltage Regulator Module

Generator GAVR-15A Universal Brushless Generator Avr 15A Voltage Stabilizer Automatic Voltage Regulator Module

Details

New AVR GAVR-15A Automatic Voltage Regulator For Generator With Manual
Input Voltage: 220/400VAC, 1 phase 2 Wire POWER INPUT
Voltage:180~240V, 1 phase 2 Wire Output Voltage: Max 90V dc @240V ac input Current: Continuous 6A Intermittent 12A for 10 secs Resistance: 10 ohms min 100 ohms Max Regulation +/-0.5% RMS with 4% engine governing Voltage Build-up:Residualvolts at AVR teminal Greater than 5VAC THERMAL DRIFT 0.05% per deg. C change in AVR ambient SOFT START RAMP TIME 3 seconds
Under Frequency: 60Hz system presets knee point at 57Hz 50Hz system presets knee point at 47Hz Operating Temperature:-40°C to + 65°C Storage Temperature:-40°C to + 85°C Relative Humidity:Less than 95%
1. +/-5% Reglation
2.220/400 VAC Programmable Input
3.Rugged Compact Design
4.With Under Frequency Protection
5.Soft Start Voltage Ramping
6.EMI Suppression 7.Buit-in High Capacity 8Amp Fuse
Color: green
Material: plastic, metal
Package Contents:
1 x Voltage Regulator Module
1 x English manual
