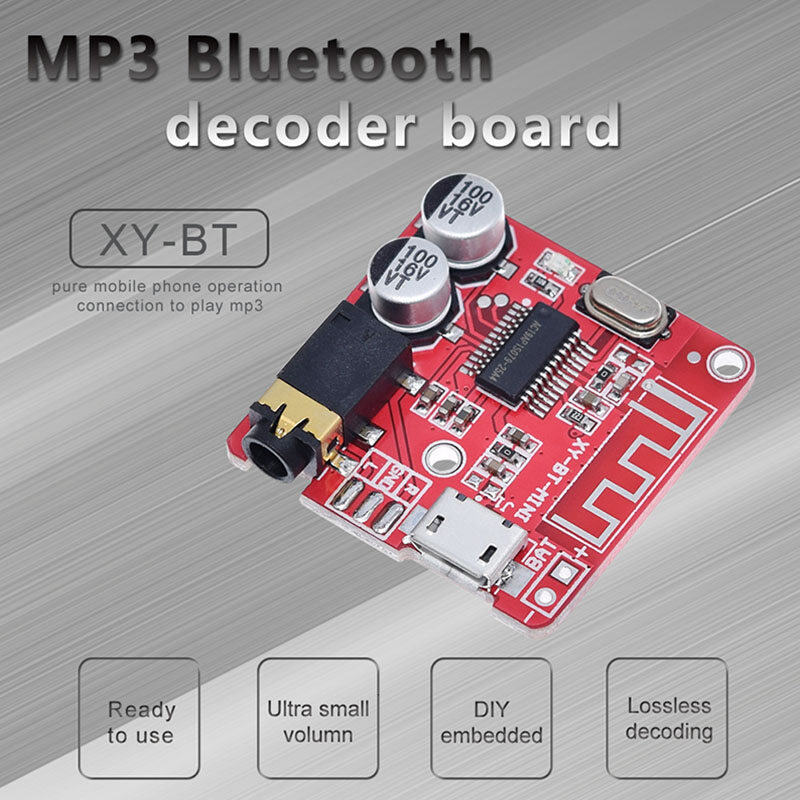

Foriot MP3 Bluetooth Decoder Board Lossless Car Speaker Audio Amplifier Board Modified Bluetooth 5.0 Circuit Stereo Receiver Module 5V

Features:
1. Good material and meticulous workmanship
2. Small size, long service life
3. Supports Bluetooth version 5.0
4.3.7-5V power supply
5. Support for automatic reconnection function

Parameters:
1. Supports Bluetooth 5.0
2. 3.7-5V power supply
3. Support for automatic reconnection function
4. On board stereo D-class power amplifier module
5. Maximum output 5W+5W
6. Can be connected to two 3W (5W) speakers.
7. Supports automatic reconnection function, supports WAV+APE+FLAC+MP3 lossless decoding, stereo output
8. USB power supply: universal Micro USB 5V power supply Welding power supply: DC3.7~5V power supply
9. Signal to noise ratio: 90db
10. THD+N: -70db
11. Crosstalk: -86dbDNR: 91db
12. Service level:>5m

2.Operating instructions:
Using a USB cable for power supply, the blue indicator light flashes and enters Bluetooth mode; When hearing the voice message 'The Bluetooth device is ready to pair', it indicates entering Bluetooth mode and waiting for pairing; After searching for "XY_BT" (decoded device name) through Bluetooth on your phone, click on Connect. When you hear the voice message 'The Bluetooth device is connected successfully', it indicates that the decoding board has successfully connected to the phone. The blue indicator light remains on, and music can be played. At this time, the blue indicator light flashes.

Package include:
1X decoding board
