Foriot ESP32 Super Breakout Board Expansion Board 3 Types Outputs for ESP32 Module ESP-WROOM-32 ESP32 Block PCB

Features:

1.Applicable to ESP32-DevKitC (30P) series expansion board

2.Extensive compatibility: Please confirm that the pin width of your esp32 board matches the pin width of the leakage board

3.The module is safe, reliable, expandable and suitable for various applications.

4.Support DC (6.5-12V) power supply or USB (5V) power supply, stable and reliable, providing good contact and stable signal transmission for your esp32 board

5.Expanding GVS interface facilitates access to various electronic module sensors, while creatively designing JUMP interface, which is very useful for you to reuse all pins, and is very suitable for users to reuse all pins in diy projects.

Parameters:

Expansion board model: ESP32-DevKitC (30P) series expansion board

Support DC (6.5-12V) power supply or USB (5V) power supply

Expand GVS interface to facilitate access to various electronic module sensors, and creatively design JUMP interface,

Default jumper cap can be provided to select 5V or 3.3V GVS output power supply, which is more convenient for matching external 5V electronic module sensors.

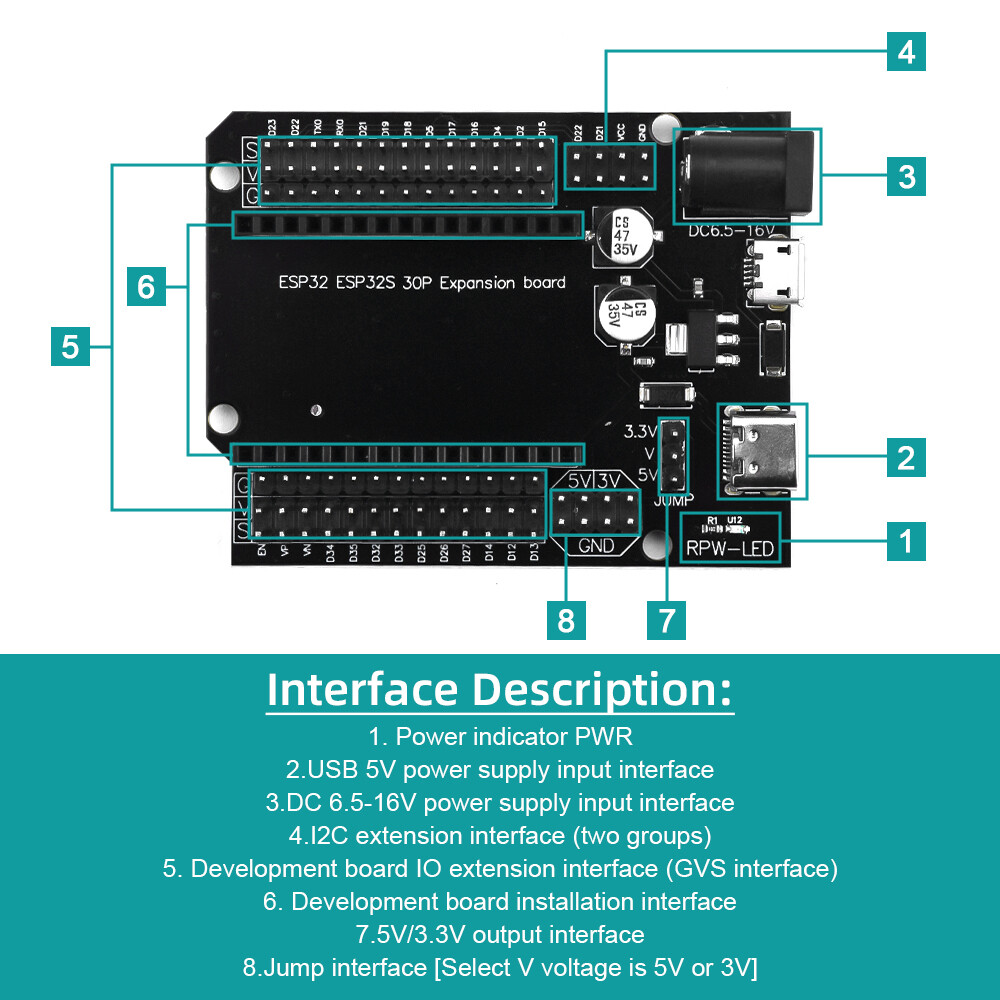

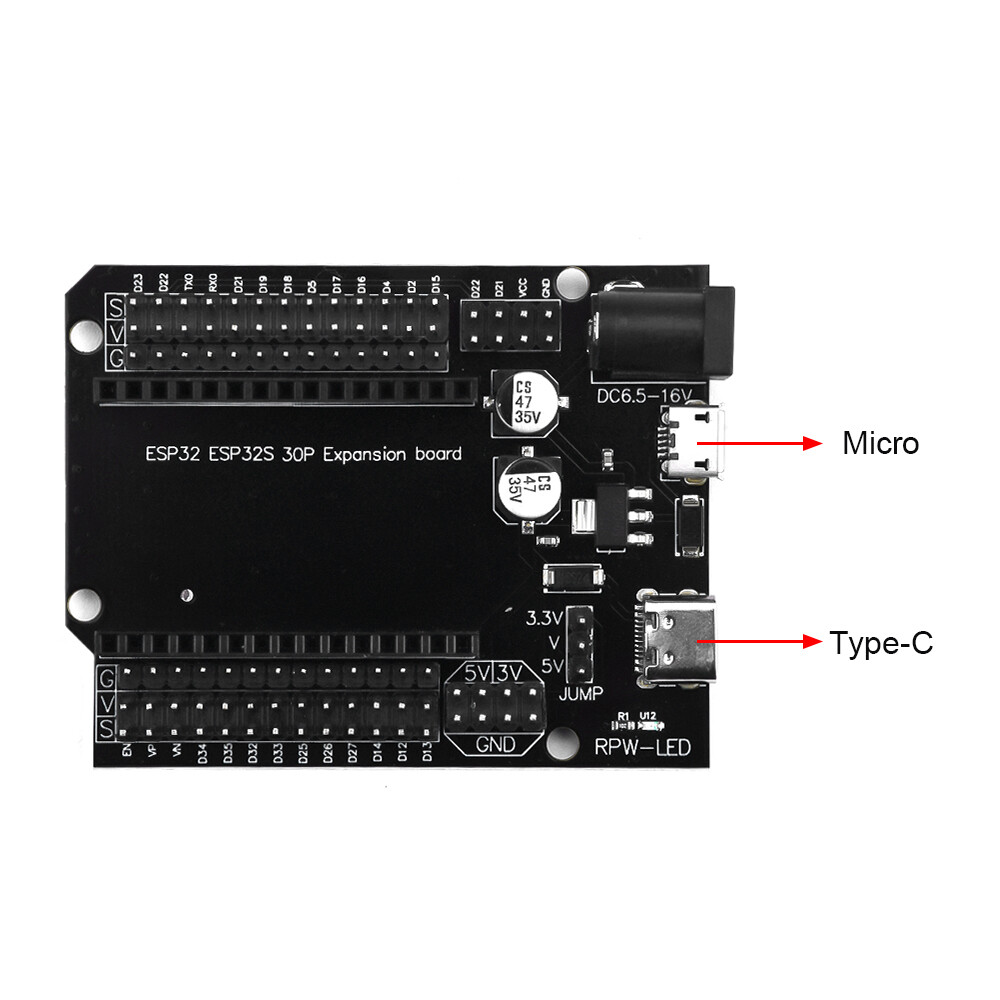

Interface description:

1. Power indicator PWR

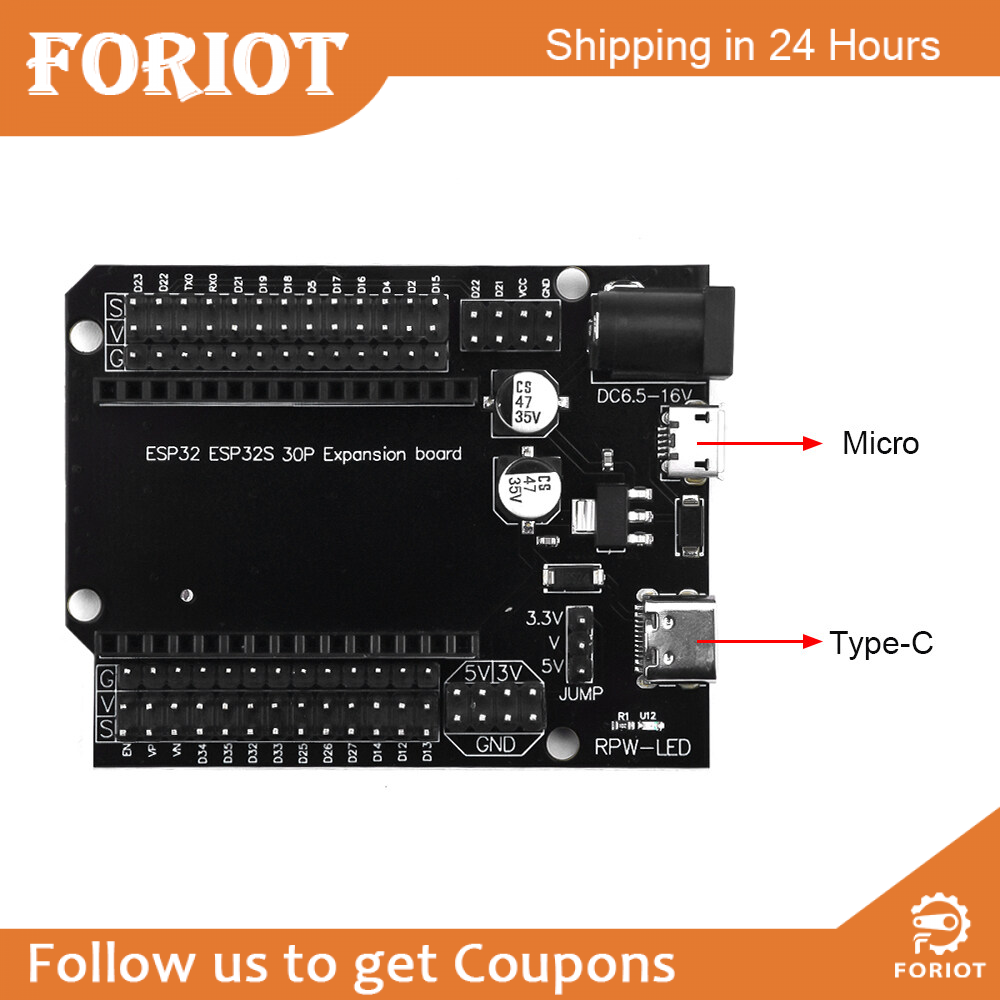

2. USB 5V power supply input interface

3. DC 6.5-16V power supply input interface

4. I2C expansion interface (two groups)

5. Development board IO expansion interface (GVS interface)

6. Development board installation interface

7.5V/3V output interface

8.Jump interface [select 5V or 3.3V V voltage]

Package include：

1X development board expansion board
