Foriot AC Digital Display Voltage Current Power and Electricity Watt-hour Meter

Instructions:

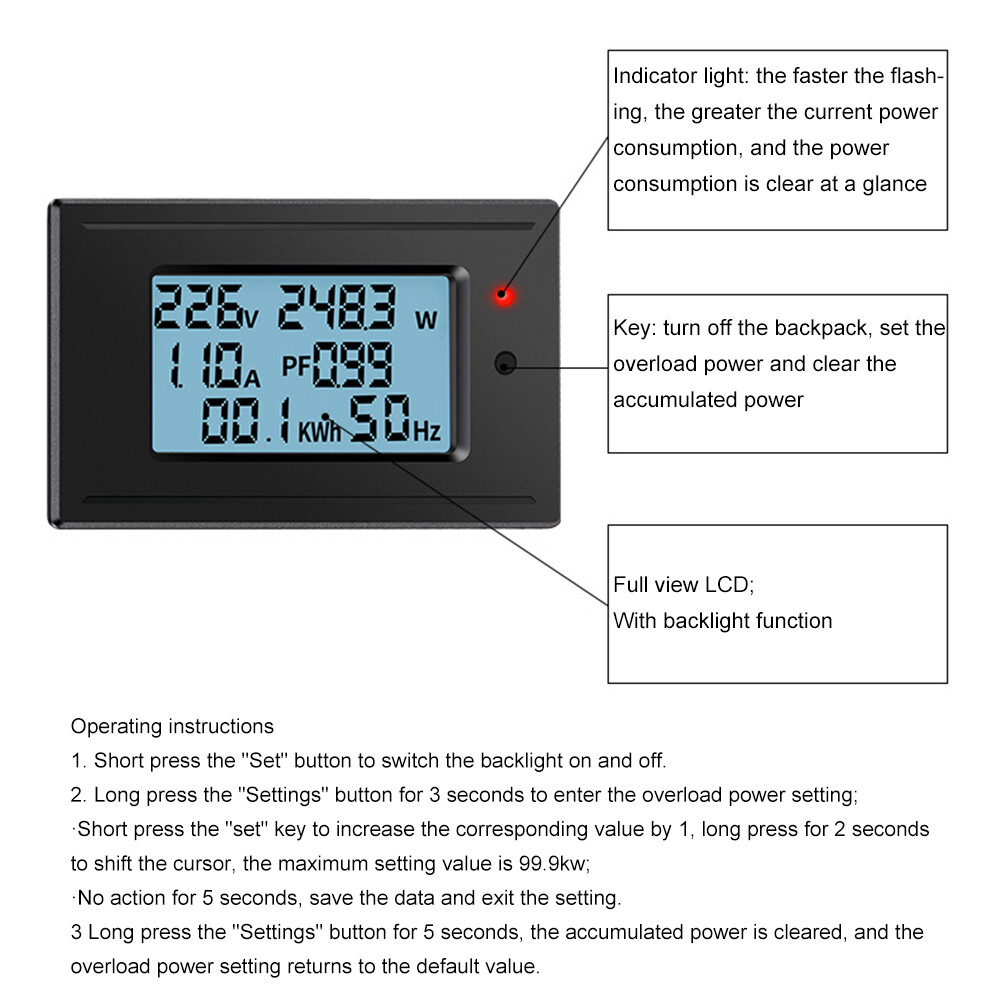

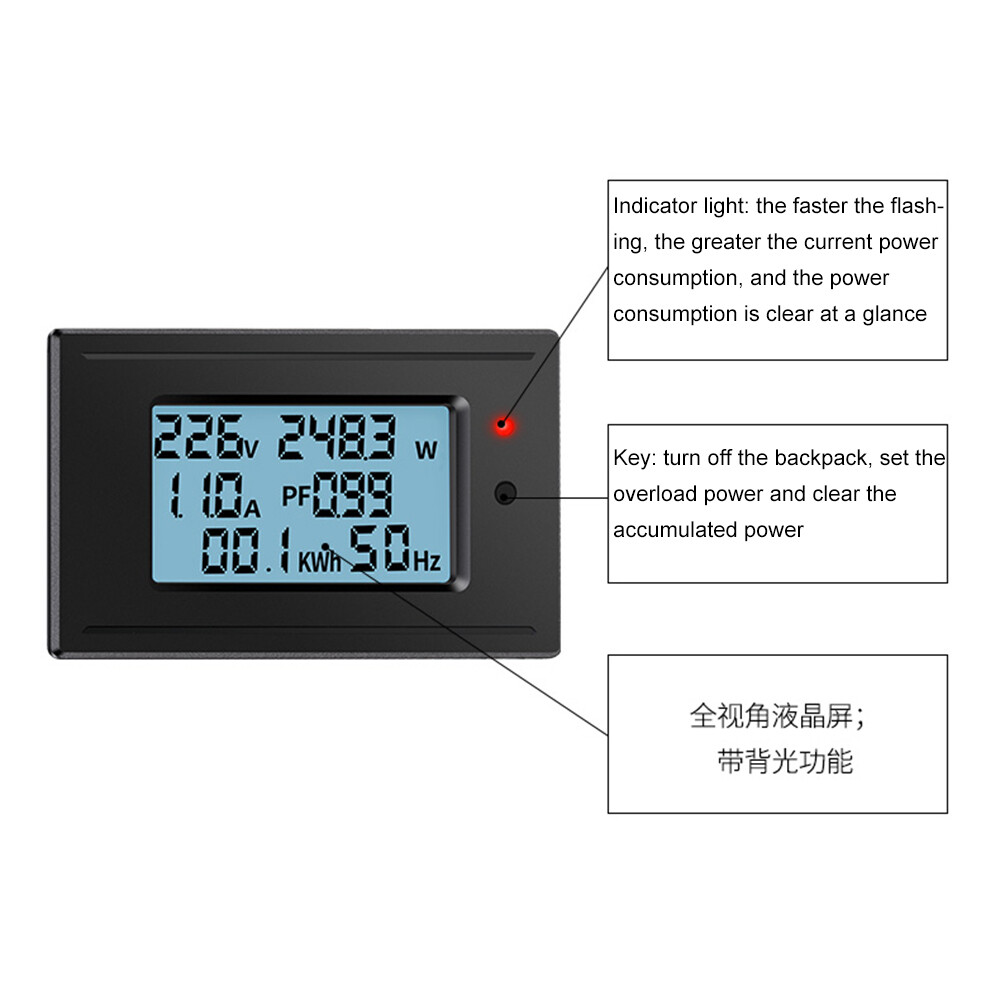

1. Short press the "Settings" button to switch the backlight on and off.

2. Press and hold the "Settings" button for 3 seconds to enter the overload power setting:

• Short press the "SET" button to add 1 to the corresponding value, long press for 2 seconds to move the cursor, the maximum setting value is 99.9kW;

• 5 seconds of inactivity, save data and exit setup.

3. Press and hold the "Settings" button for 5 seconds, the accumulated power will be reset to zero, and the overload power setting will be restored to the default value.



product manual:

1. When the overload alarm occurs, the power value flashes; when the power is less than the set overload power, the overload alarm is automatically released.

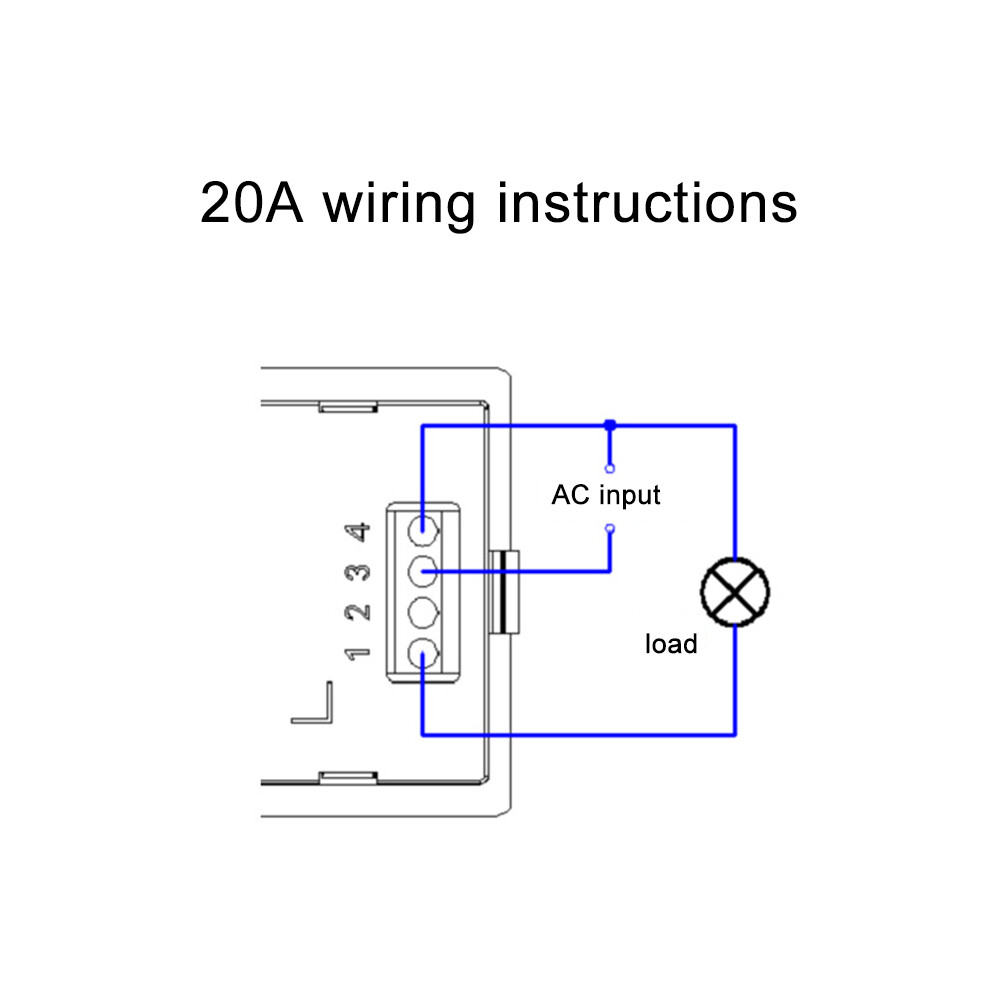

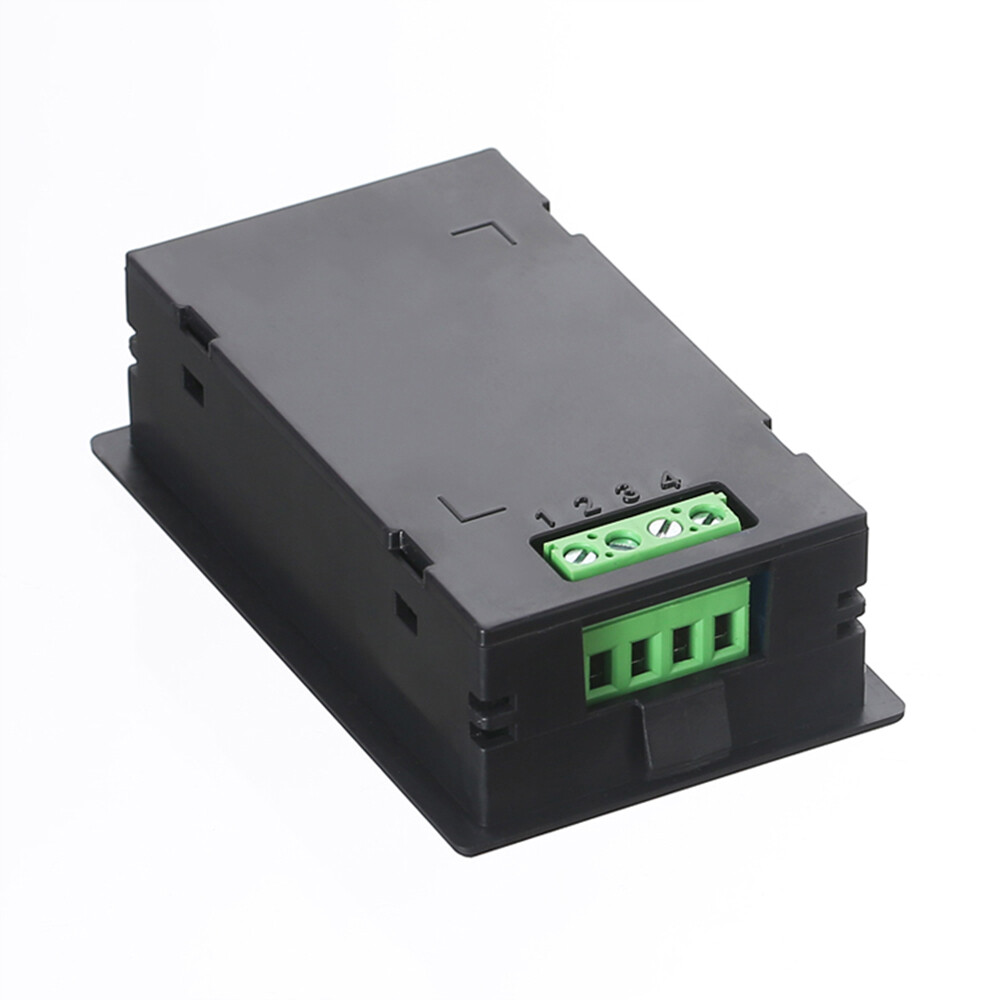

2. The wiring methods of 5A 10A 20A and 100A products are different. Do not connect the wrong wiring. The details have wiring methods. The wiring methods of 5A 10A and 20A are the same.

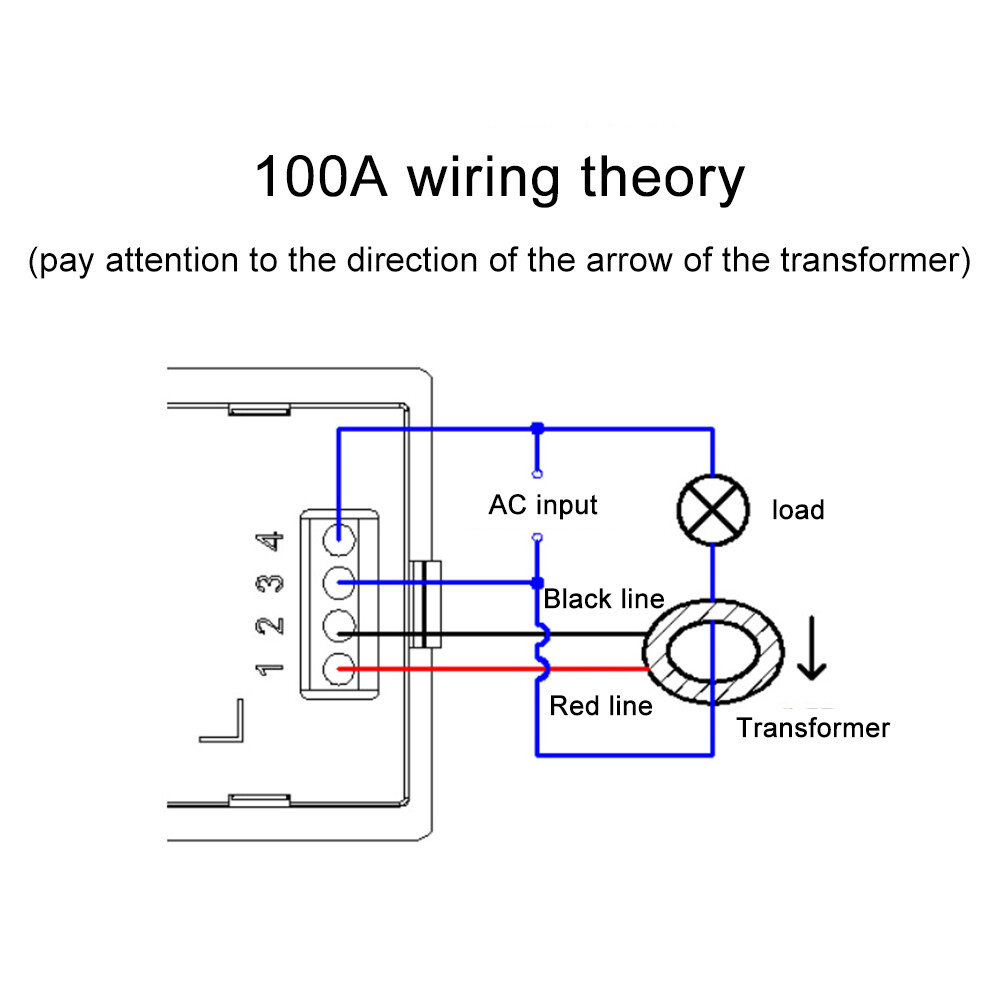

3. The 100A product must be connected to an external transformer, and the threading direction must be consistent with the direction of the transformer arrow.

4. If the power and power factor are not displayed, please check the wiring according to the wiring diagram.



Precautions:

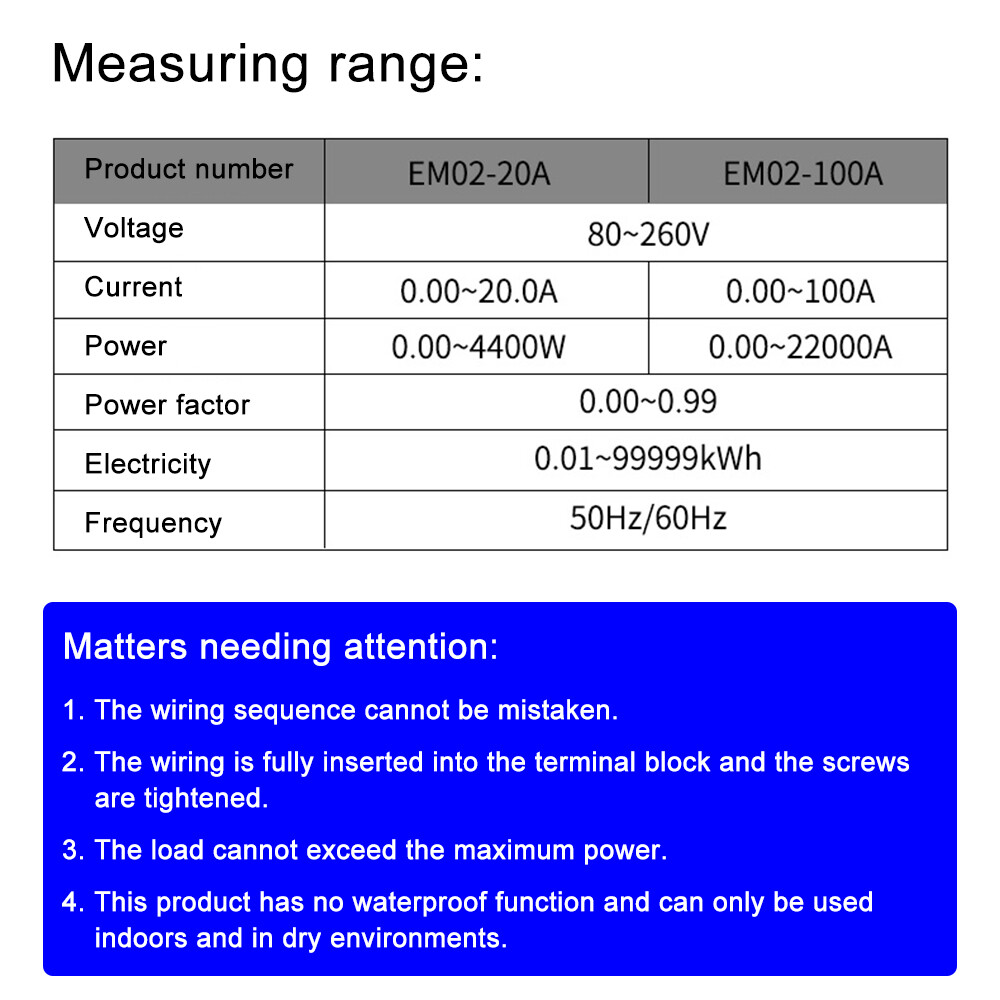

1. The total power of the connected electrical appliances must not exceed the maximum power of the model, otherwise the product may be damaged, and a fire may occur in severe cases.

2. This product has no waterproof function. It can only be used indoors and in dry environments. Splashing water is strictly prohibited.

3. Beware of contact with children to prevent electric shock accidents.

4. Please insert the wiring completely into the terminal block and tighten the screws.

5. Do not disassemble the product without authorization.

6. The added load cannot exceed the maximum power.



Product List:

1*Voltage and ammeter
