FocusAi 3D printer TMC2240 MKS TMC2209 intelligent silent stepper motor drive module with radiator, high current, high torque, DC4.5-36V

TMC2240

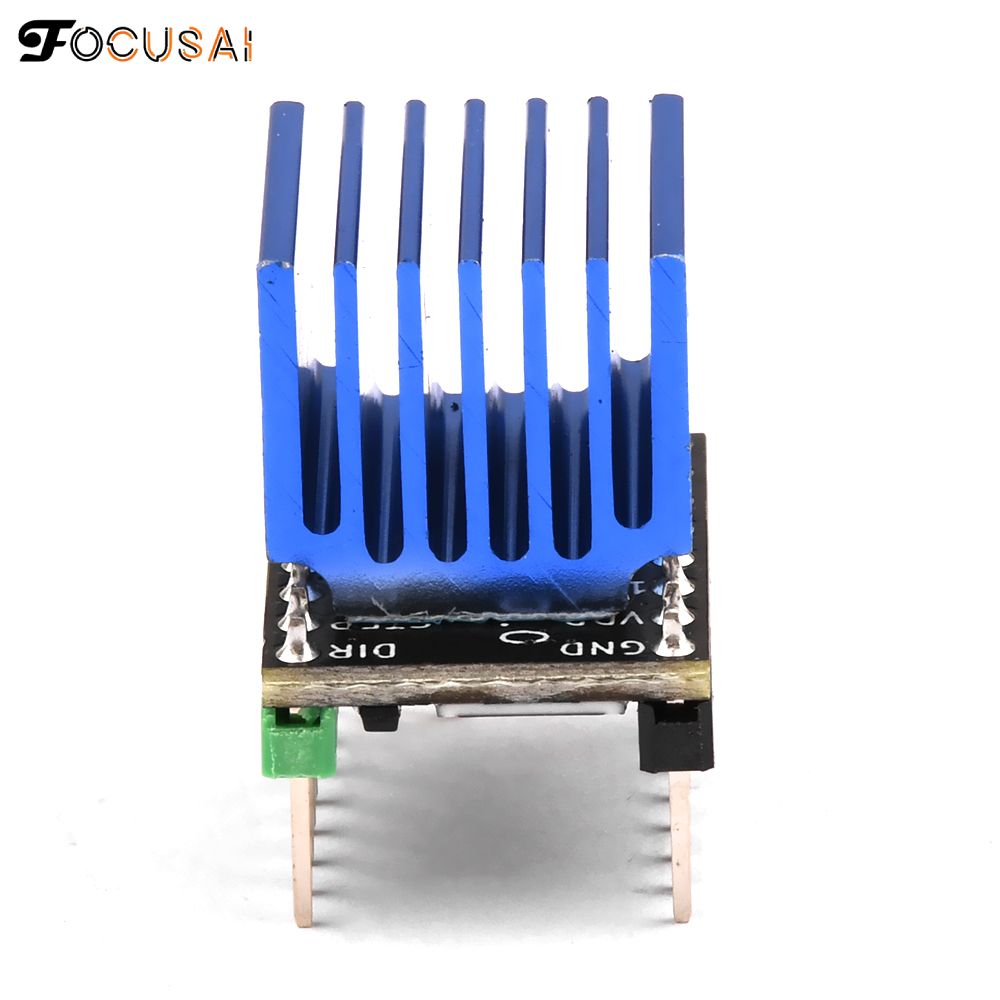

Features: 1.Chip model: TMC2240 2.Compared to the TMC2209 driver, the current is higher and the heat dissipation is better 3.In the case of high-speed printing (with the same current), compared to other TMC drives, the motor torque controlled by TMC2240 is greater and more powerful 4.This is an intelligent silent stepper motor drive module 5.The product is made of high-quality materials, with stable performance and long service life

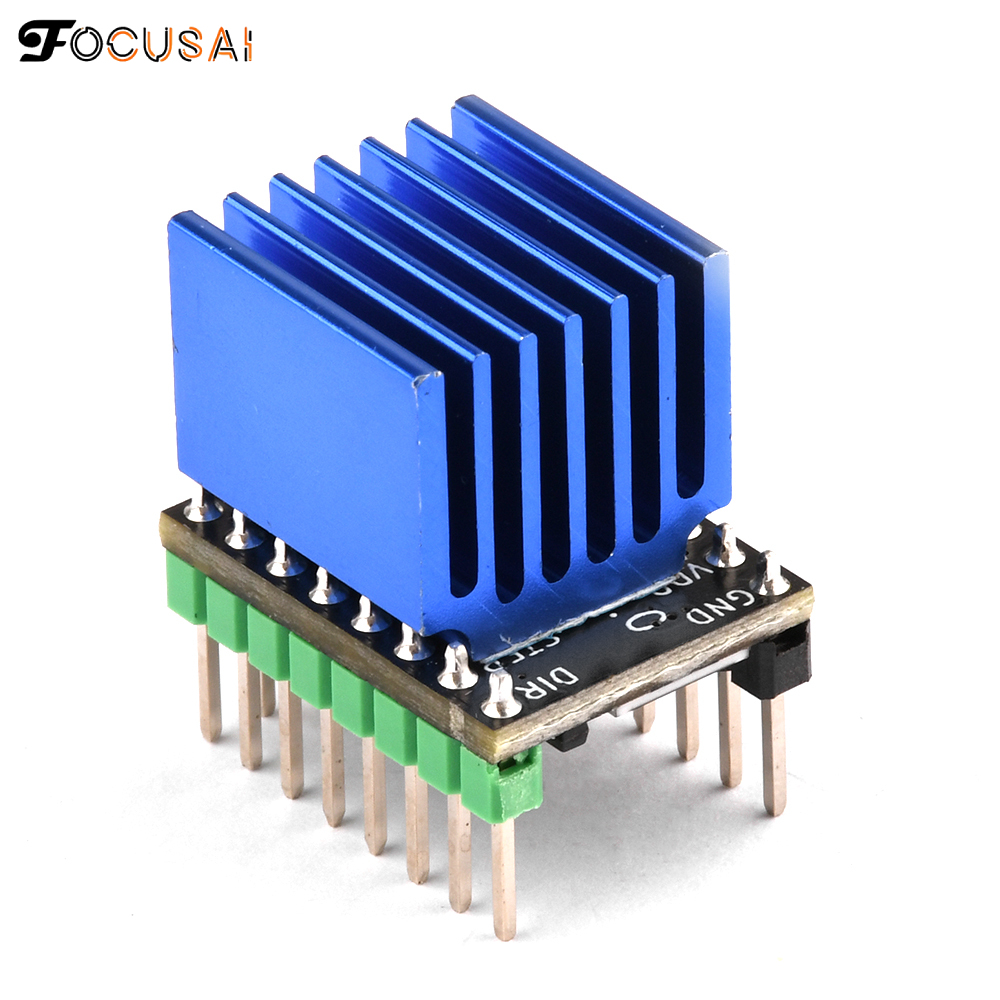

Product Introduction: TMC2240 is an intelligent silent stepper driver that defaults to SPI mode and supports a maximum effective current of 2.1A, peak current of 3A, and 4.5-36V DC power input. It supports the infinite zero return function. In the high-speed mode, the current change amplitude is very small to maintain sufficient torque, and the Counter-electromotive force braking protection circuit is integrated, which can be used in Klipper firmware.

Parameters: Input voltage: DC4.5-36V (recommended: DC12-24V) Output current: Maximum effective current: 2.1A, maximum peak current 3A Drive mode: SPI mode Wiring method: plug-in drive Logic voltage: 3.3V-5V Unlimited bit function: support Counter-electromotive force protection: Counter-electromotive force braking protection of resistance+MOS tube mode Supported firmware: Klipper, Marlin Adaptor board: Equipped with TMC SPI interface motherboard. For example: MKS SKIPR, Monster8, Nano V3, Gen_ LV2. x Other functions such as driving current, subdivision, and infinite bit are configured through software

Package include: Module X1 Accessory X1

TMC2209

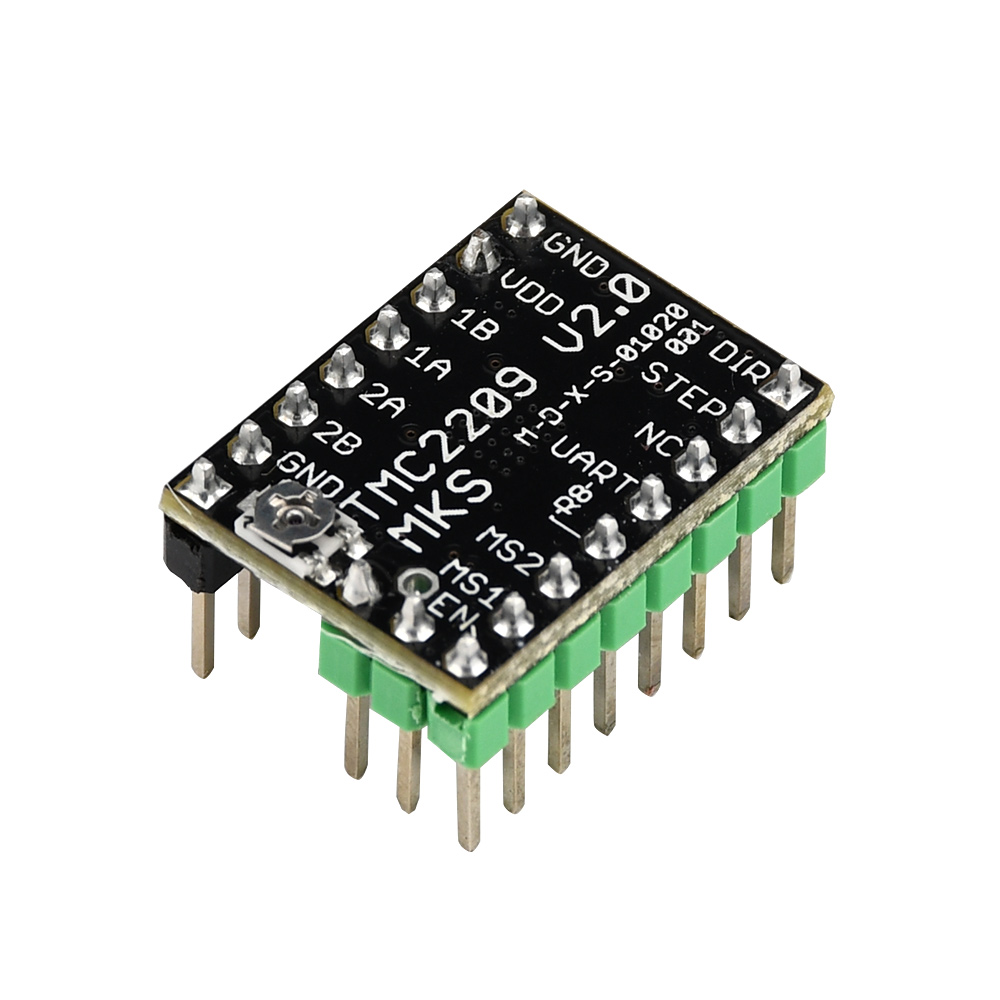

Features

1. The product is compact and easy to carry.

2. Continuing the characteristics of the TMC series driver, the mute effect is good, and the chip has 16 expansions and 256 subdivisions.

3. The driving current is larger, the maximum peak current can reach 2.5A, and the stable printing current can reach up to 1.8A.

4. Compared with other TMC series drivers, the heating efficiency is lower and the cooling effect is better.

5. Support UART mode, perfect for use with MKS SGEN-L, no jumper required.

Reference description

MKS TMC2209 has all the functions of TMC2208 and can completely replace TMC2208. At the same time, it generates less heat, can support higher current, and can return to zero infinitely.

Product parameters

Default current: 1.25a

Maximum current: 2.5a

Logic voltage: 3.3v/5v

Input voltage: 5.5v-28v

Subdivision: up to 1/256

Mode: dir/step,uart

Package Included

TMC2209 3D printer motor driver x1

Radiator x1
