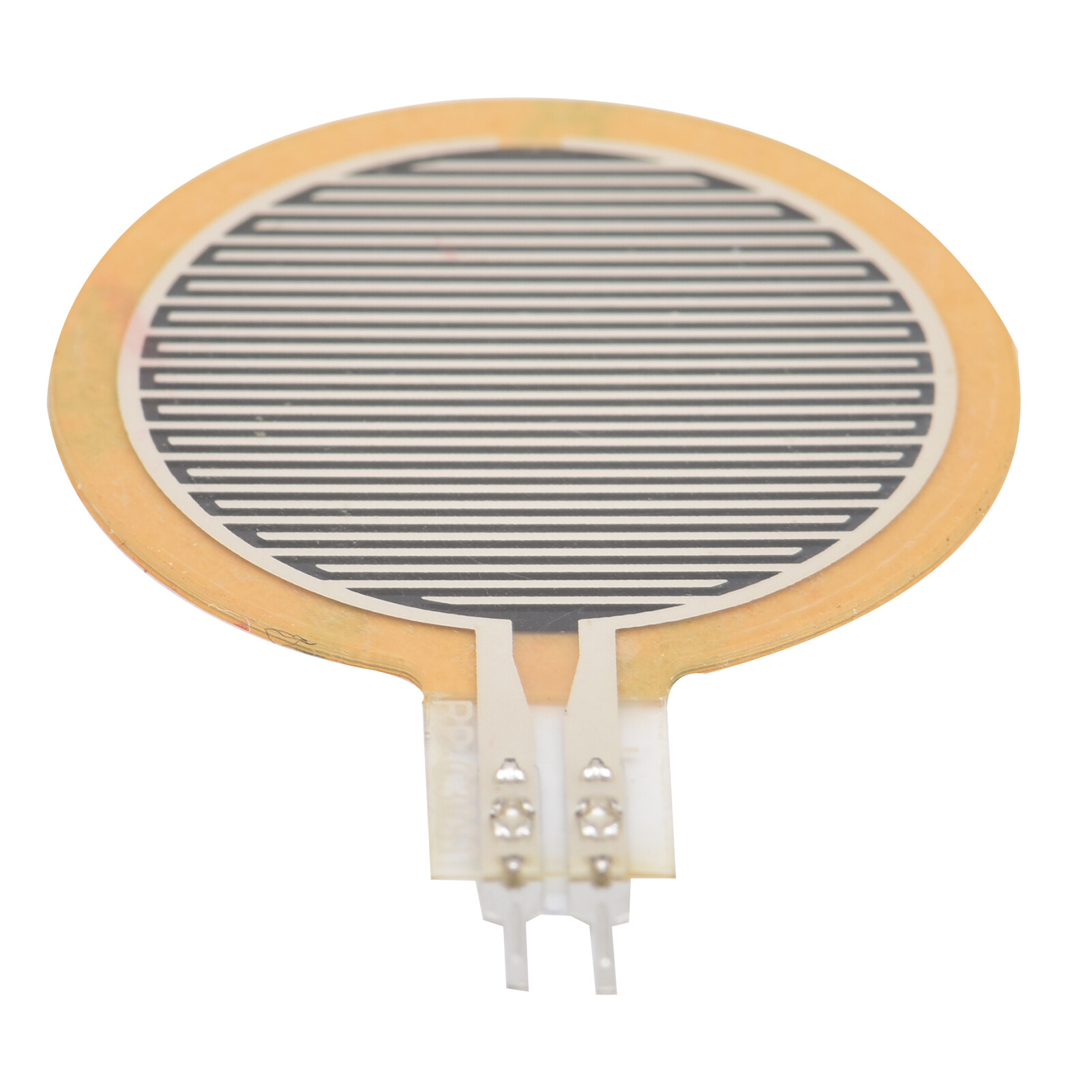

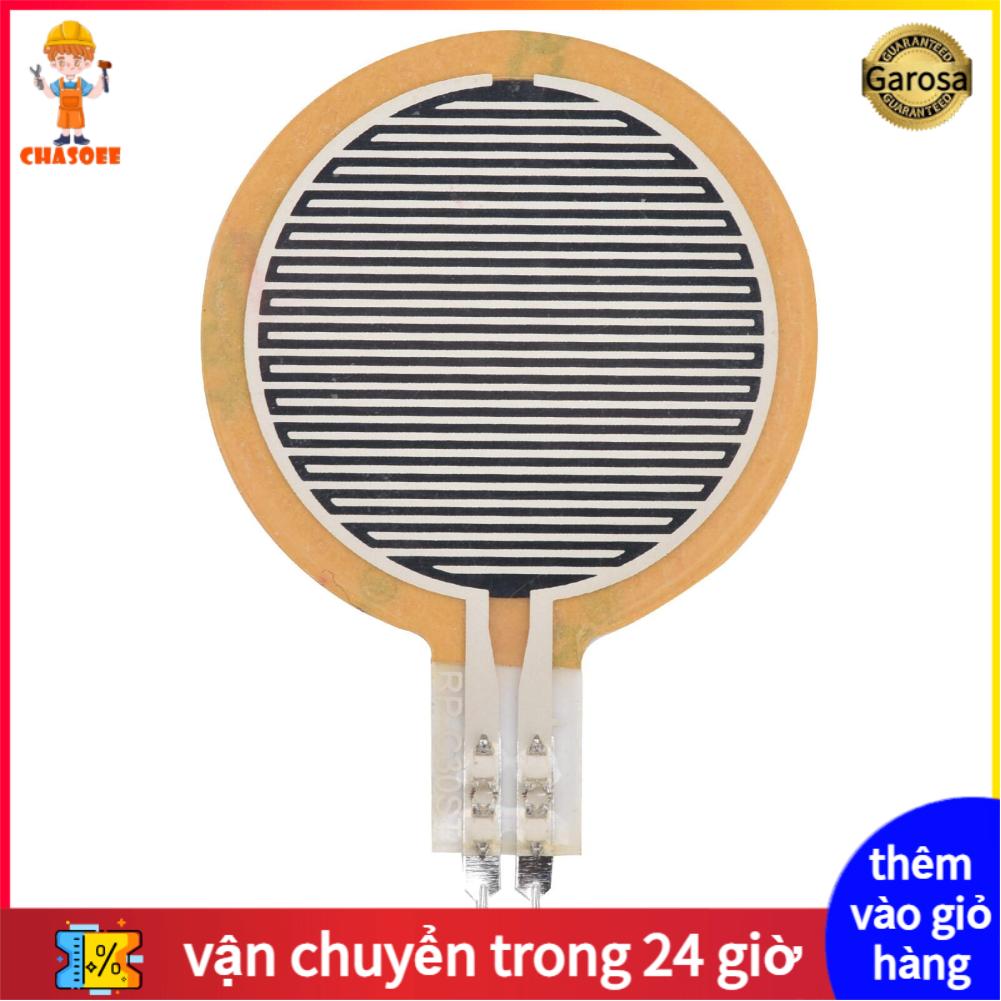

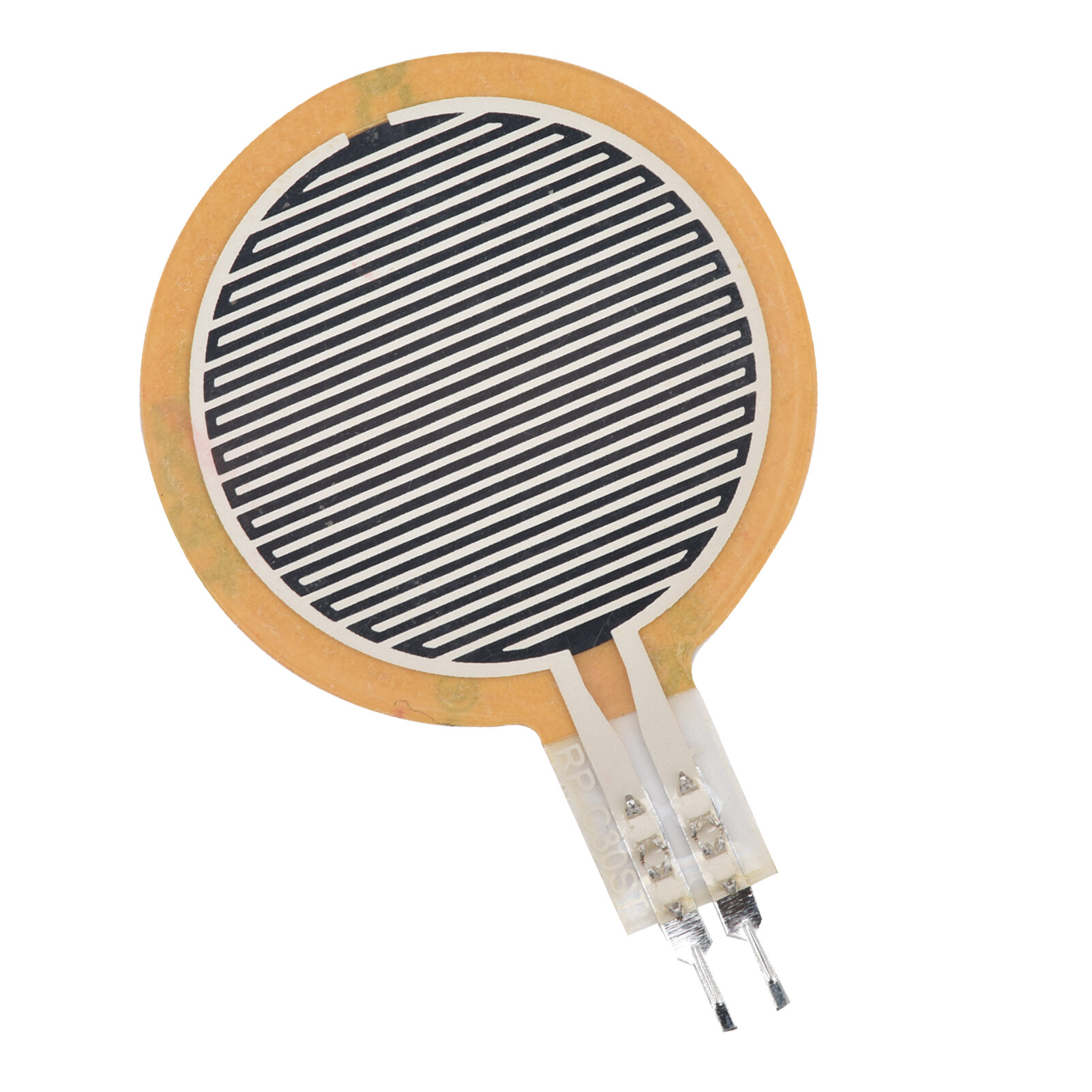

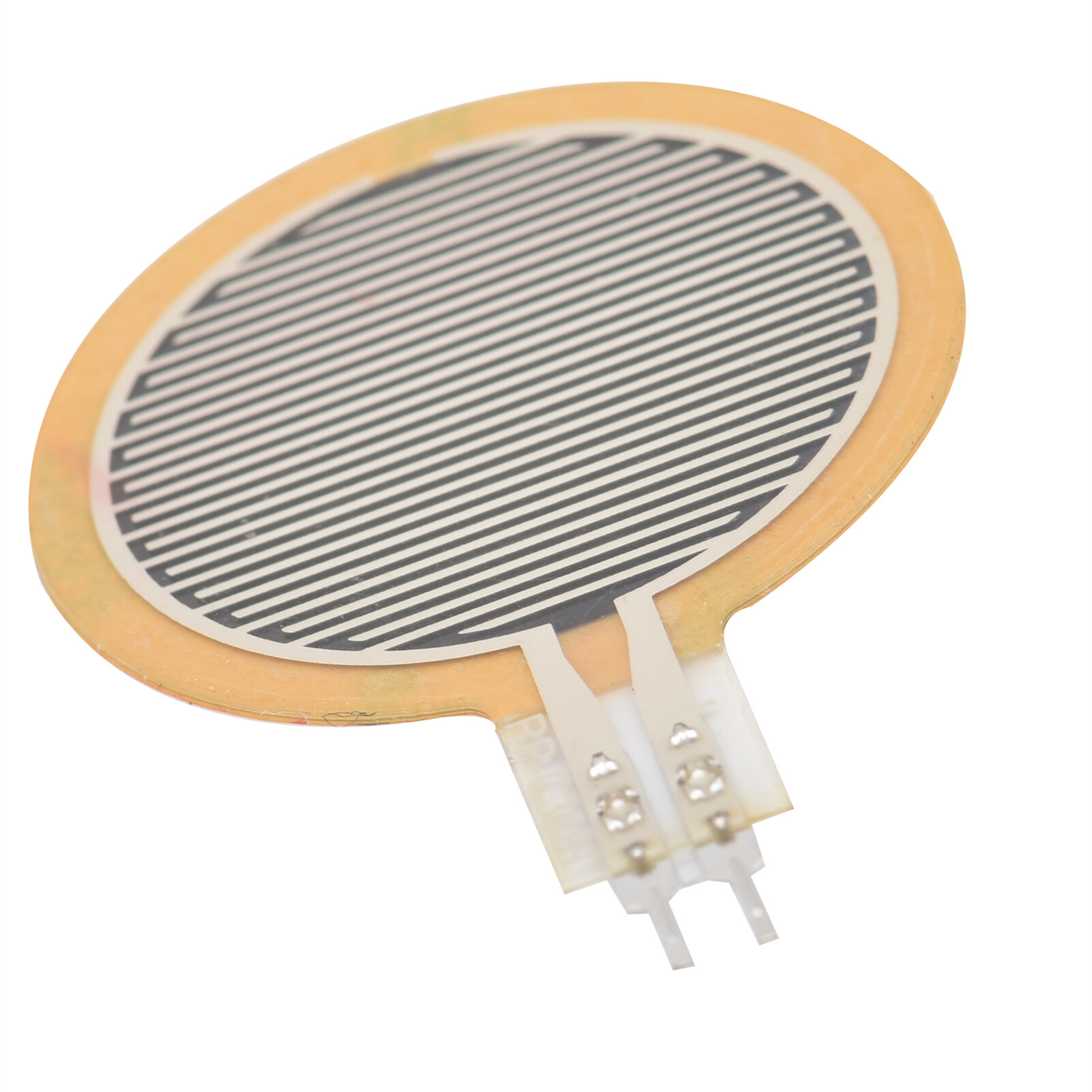

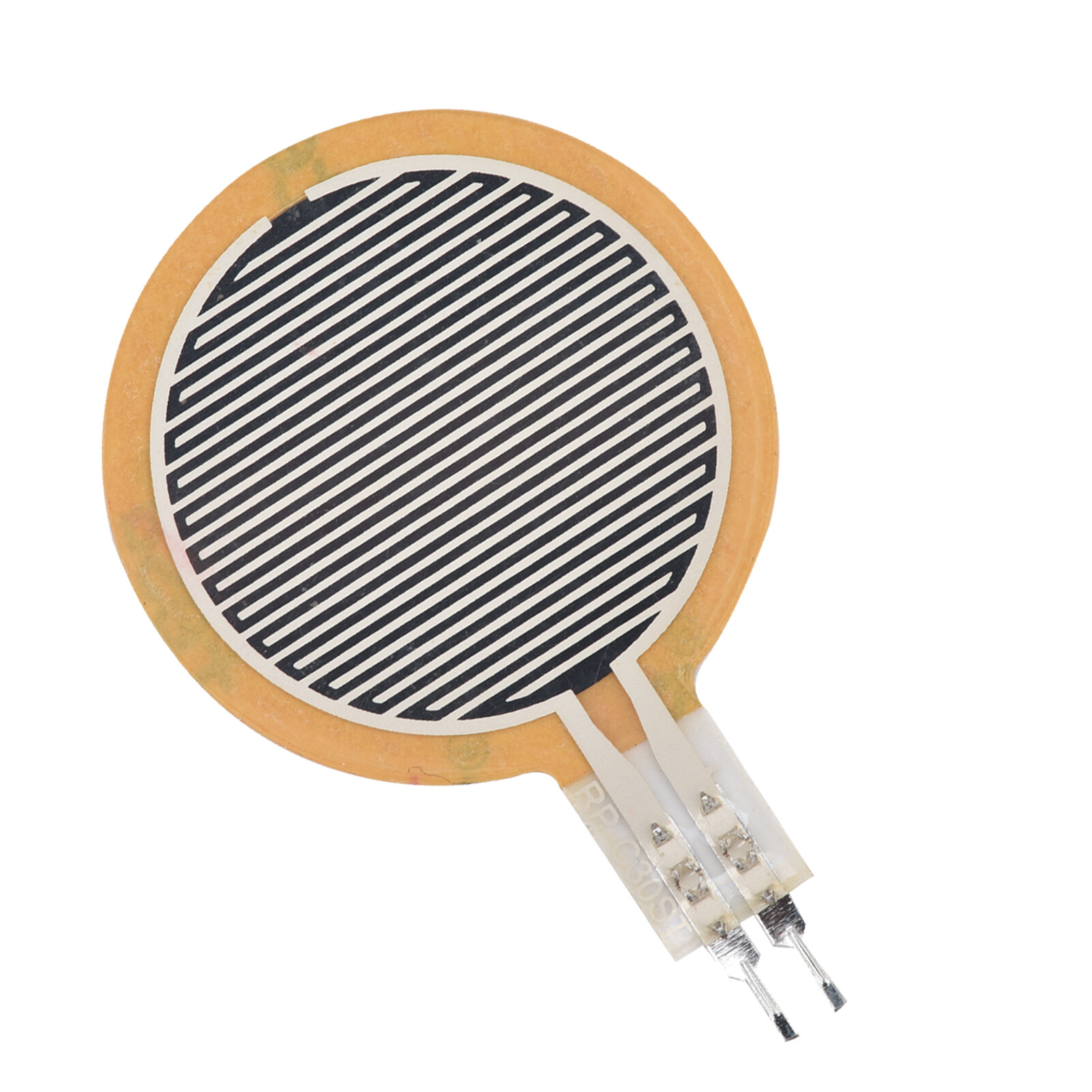

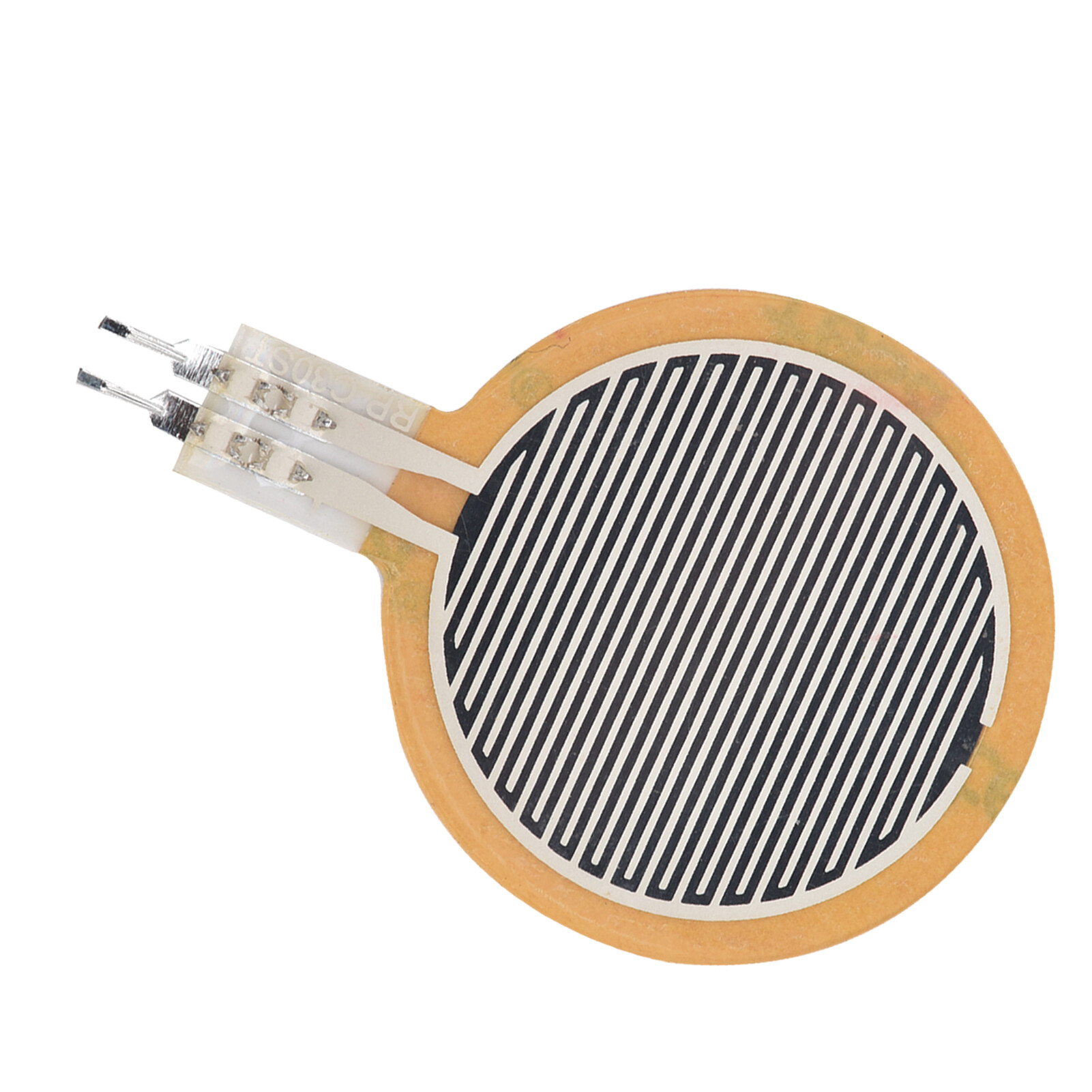

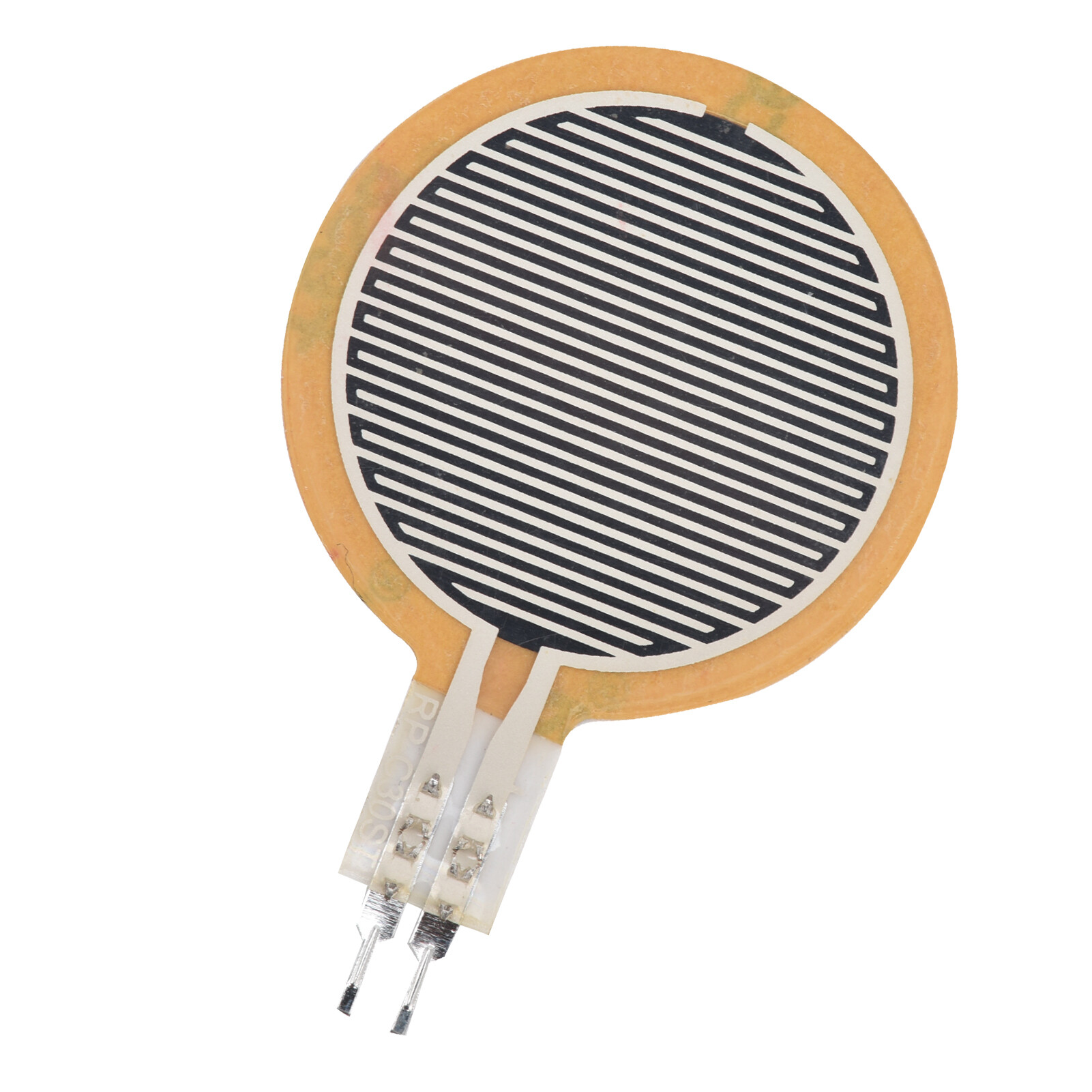

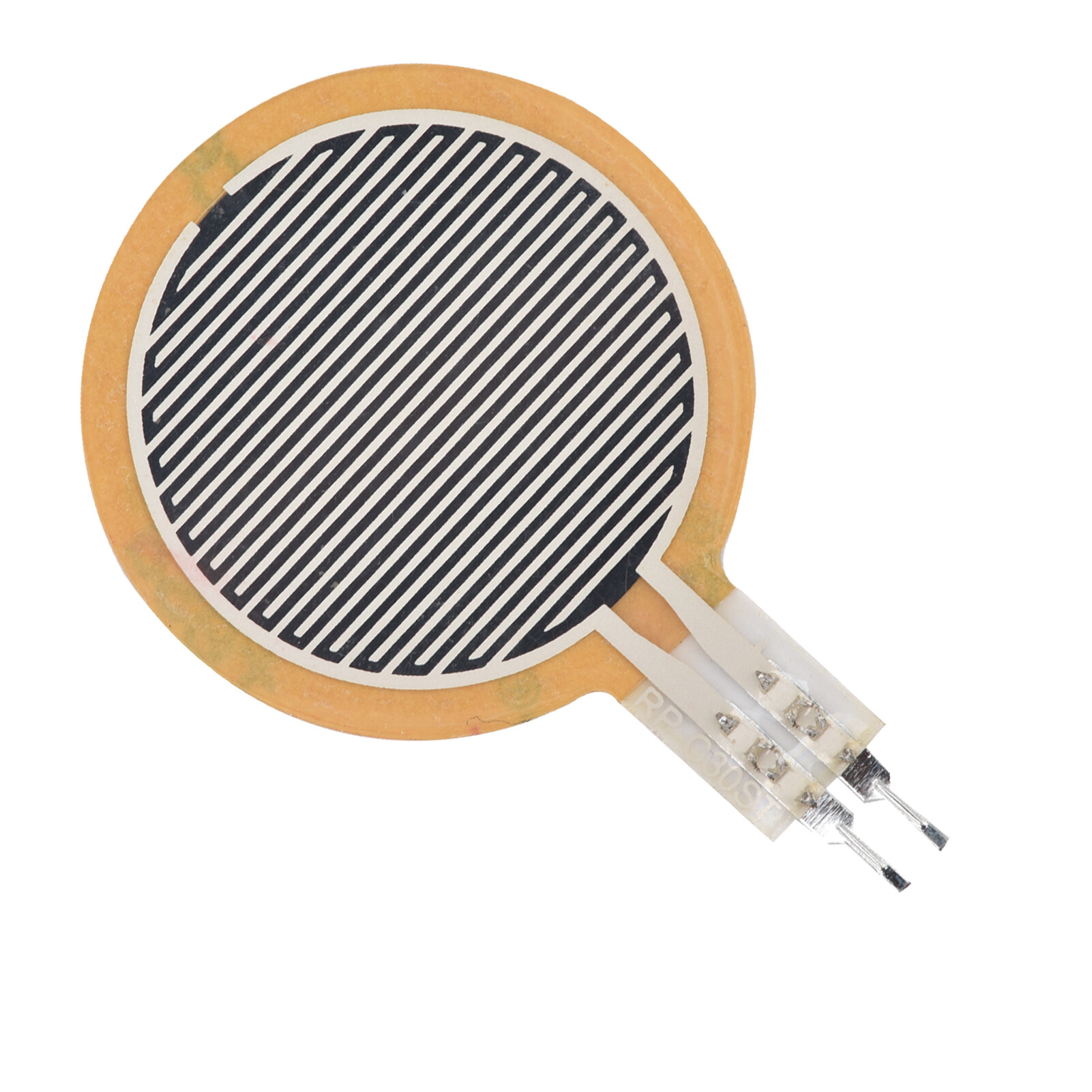

Film Pressure Sensor Environmental Protection Oxidation Resistance Force Sensor

Feature:

1. RP-C30-ST is a resistive thin film pressure sensor with excellent flexibility and stability
2. Composed of polyester film with excellent comprehensive mechanical properties and environmental protection, highly conductive materials, graphene pressure‑sensitive materials, and bonding materials
3. The output interface is made of wear‑resistant and anti‑oxidation materials, which is conducive to the contact and conduction of metal shrapnel or thimble, and it can also be directly soldered
4. Excellent force sensitivity, quick response, long durability and long service life
5. The circuit principle is simple, the application is convenient, the use is simple, easy to use, no need to worry about complicated problems

Specification:

Item Type: Film Pressure Sensor
Thickness: Approx. 0.45mm / 0.018in
Style: Flake
Trigger Force: 20g
Pressure Range: 20g~20kg
Trigger Force Resistance: <200kΩ
20Kg Force: Resistance is approx 1 KΩ
Pressure Mode: Contact Press
Resistance when Not Triggered: Greater than 20M Ω
Activation Time: Less Than 0.01s
Operating Temperature: -40℃~+85℃
Durability: More Than 1 Million Times (1kg Force Flexible Pressing)
Resistance Range: 1K~200KΩ
Response Time: <1ms
Waterproof: No
Dustproof: No
Electromagnetic Interference EMI: No
Electrostatic Discharge EDS: No
RoHs Compliant: No

Package List:

1 x Film Pressure Sensor

Note:

Please allow 0‑2 cm error due to manual measurement. Thanks for your understanding.

How to Use
When there is no external pressure, the sensor is in an open circuit state, and the resistance is infinite; when the pressure is 20g, the sensor enters the trigger state, and the resistance value is less than 200 KΩ; when the pressure further increases, the resistance becomes smaller; when the pressure reaches 20Kg, The resistance value is about 1KΩ; the output resistance of the pressure sensing terminal changes correspondingly with the change of external pressure
