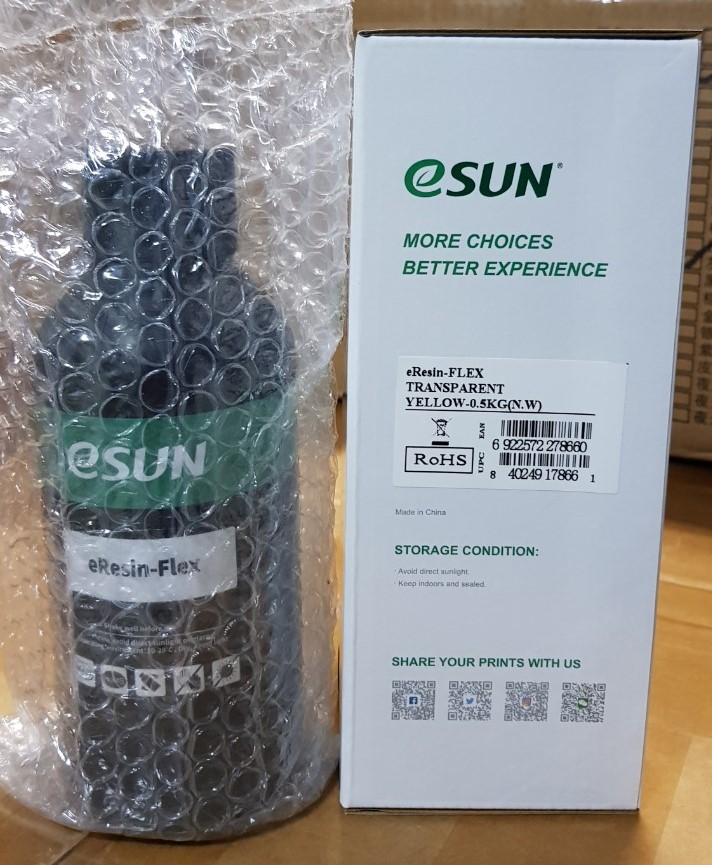

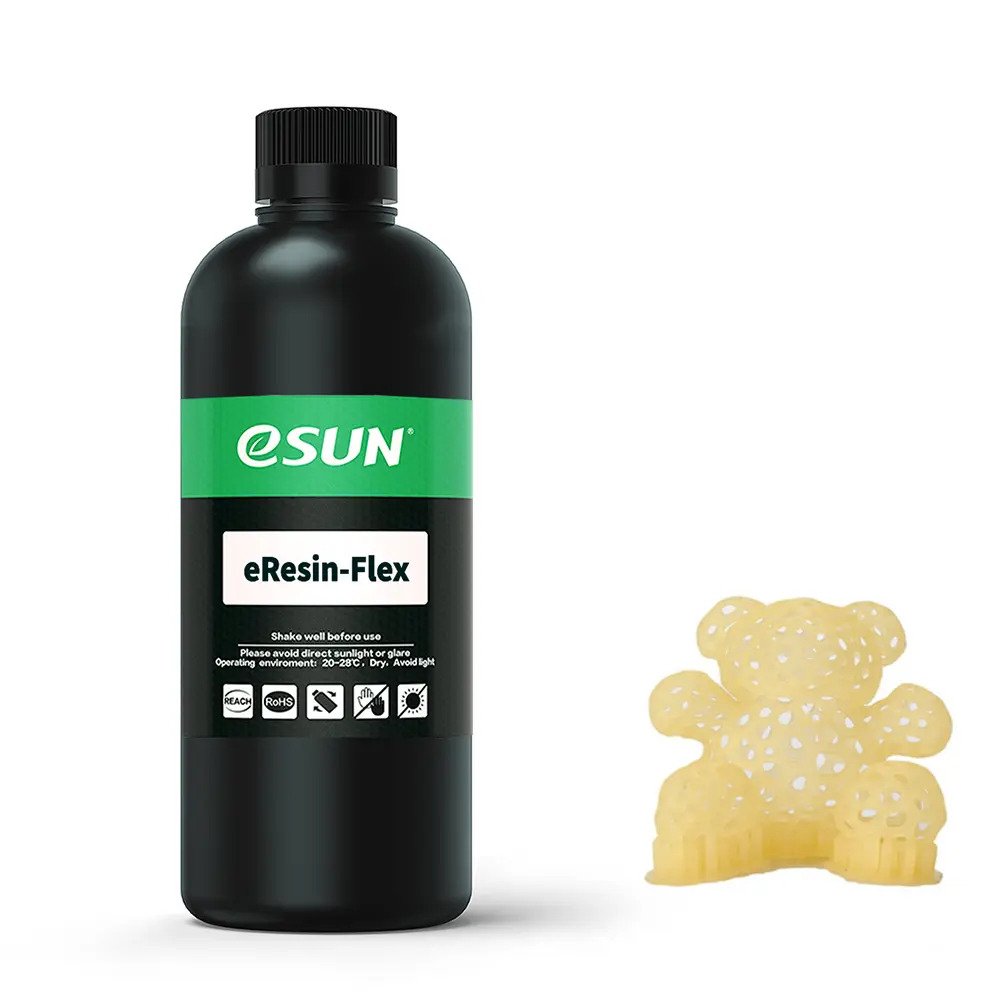

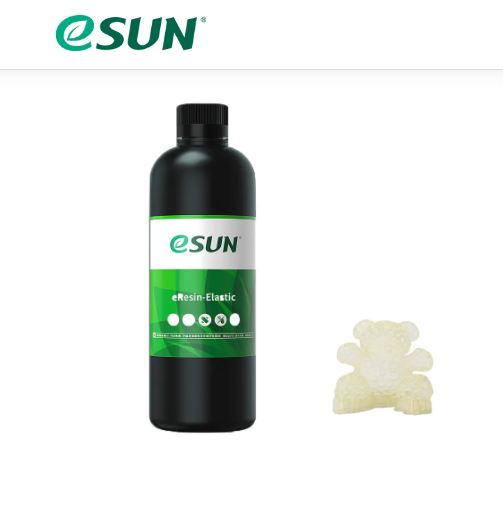

ESUN eResin-Flex resin Trasparent Yellow 0.5kg/bottle

ESUN Resin Flexible eResin-Flex Trasparent Yellow (0.5kg/Bottle)

 _eSUN Flexible Bio-Resin / eResin have a very wide range of reactivity. UV wavelengths of up to 420nm. By incorporating a blend of photo-initiators, monomers & sensitizers, almost any UV light source can be used to initiate the polymerisation process of eSun resins.

_High flex, doesn’t break after multiple fold. Tougher with better tear resistance.

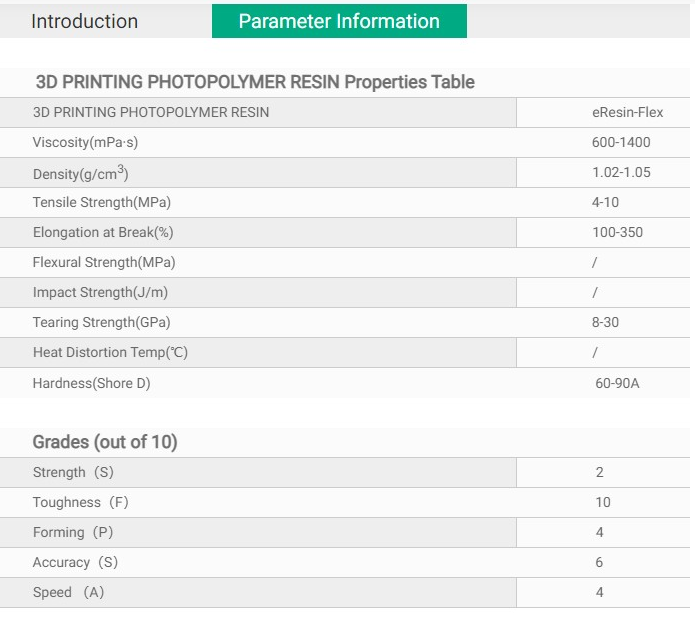

Features:

• High Precision
• High hardness
• Shore A: 85-90
• Density: 1.13 – 1.15 g/m3
• Viscosity: 1200 mPa at 25C
• Wavelength: 405nm
• Shrinkage: 6,9%
• Tensile strength: 6-8 MPa
• Elongation at break: 100-150%
• Tearing Strength: 390-320 kN-m
• Flexural strenght: 77 MPa
• Flexural modulus: 2350 MPa
• IZOD Impact strenght: 44 J/m
• Color: Orange

• Suitable for most mSLA printers/ UV LCD printers.

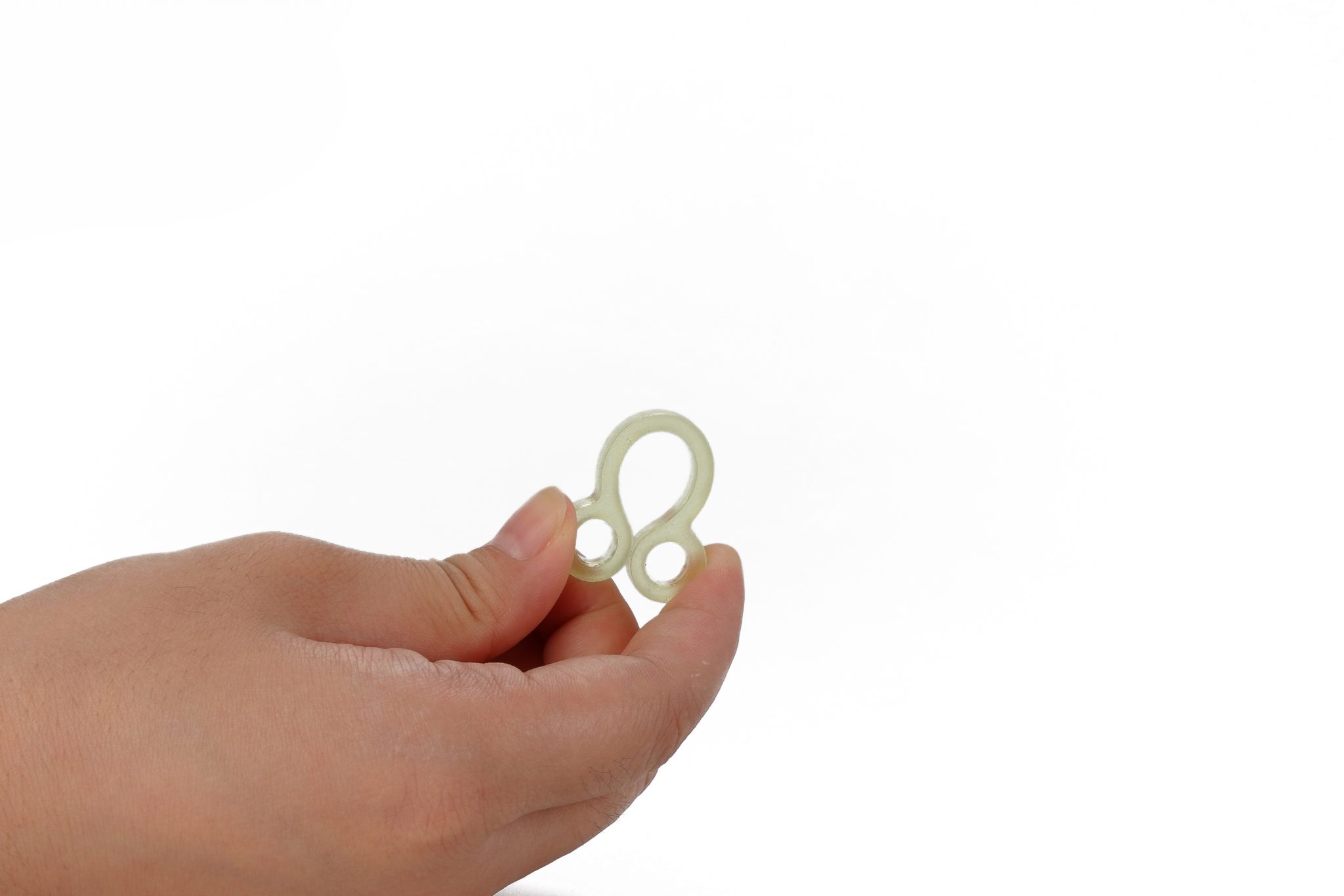

• High Flex , no breakage after multiple folds

• High tough rating

• Better tear resistance

• Faster Printing Speed

• Low odor (Ester-like)

• Easy clean-up with

• Comes in 500ml bottle

• Shrinkage vol: 6.9%

• Can be used in printing fields like e.g. flexible wear/shoe models/sports grip

Contents

• Bottle: 500Gr
• Color: Yellow transparant

How to use

• Suggest printing temperature is25-35℃.
• When printing in low temperature it need heating (40-60℃) before using
• Lift height > 8mm.
• Lift speed ~ 60 mm/min.
• The waiting time between two exposure > 10s
• Put printed model in water for post curing. Use direct sunlight for 30 min, or UV LED light for 15mins .

Notes & Warnings

• Always wear personal protection (gloves, glasses) when handling resin
• Use your resin 3D printer under well ventilated circumstances
• Suggested safety equipment: gloves, mask, glasses, and lab coat
• Do not expose UV resin to sunlight or indoor light containing UV
• In case you consume UV resin, get medical advise
• In case resin get’s in your eye, wash your eyes with water and get medical advise
• Resin can cause skin irritation, always wear gloves when handling
• Please keep UV resin away from kids
• Keep resin at room temperature(15 – 35 OC) and dry condition.

eSUN provides consistent and innovate resins for everyday use in 3D printing technology. eSUN's Flexible Bio-Resin / also known as eFlex or eResin Flex is manufactured using PU (polyurethane acrylate UV curing resin) which is derived from Plant-based renewable resource.

Recommended settings are as follows/ or do follow as per manufacturer's recommendation:

• Optimal printing temperature: 25 to 35 °C
• Lift-speed: within 60mm /min
• Exposure:  >10sec
• Cure: Under direct sunlight for 30min in water /or 15mins under UV LED
• The rising height is more than 8mm after exposure of each layer. The rising speed is within 60 mm/min. The waiting time between two exposure is more than 10s

ESUN Resin Flexible eResin-Flex Trasparent Yellow (0.5kg/Bottle)
