ESP 32 ESP32 Development Board ESP32 WROOM 32 ESP32S ESP 32S Module WiFi Bluetooth compatible Dual Core CPU MCU Board

Brand Name:Jessinie
Origin:CN(Origin)
Condition:New
Type:Voltage Regulator
Model Number:ESP-32
Application:-
Operating Temperature:-
Supply Voltage:-
Dissipation Power:BLE Module
Package:TQFP
is_customized:Yes

Brand: Espressif

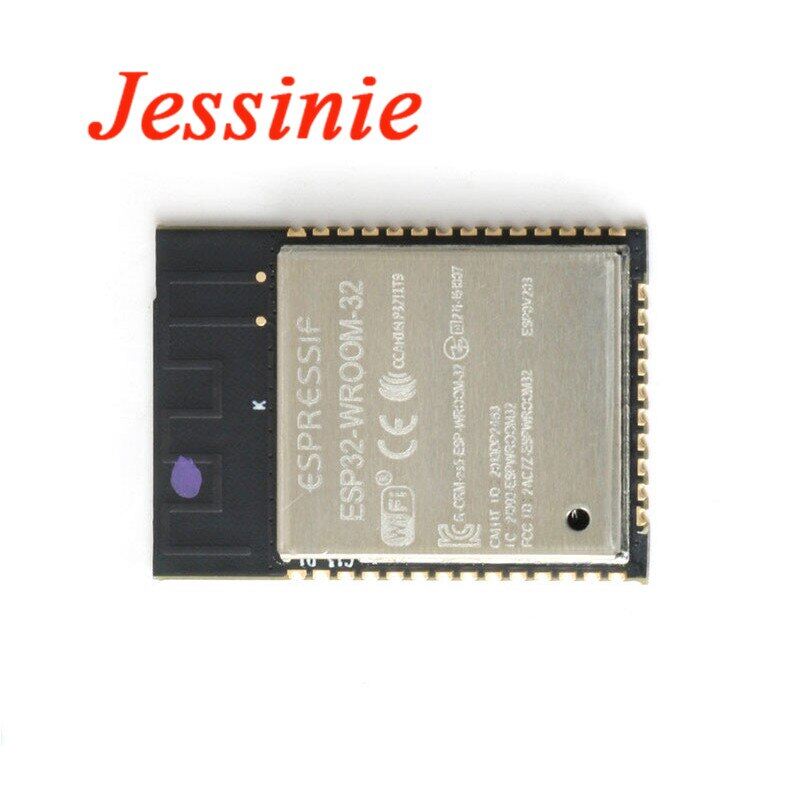

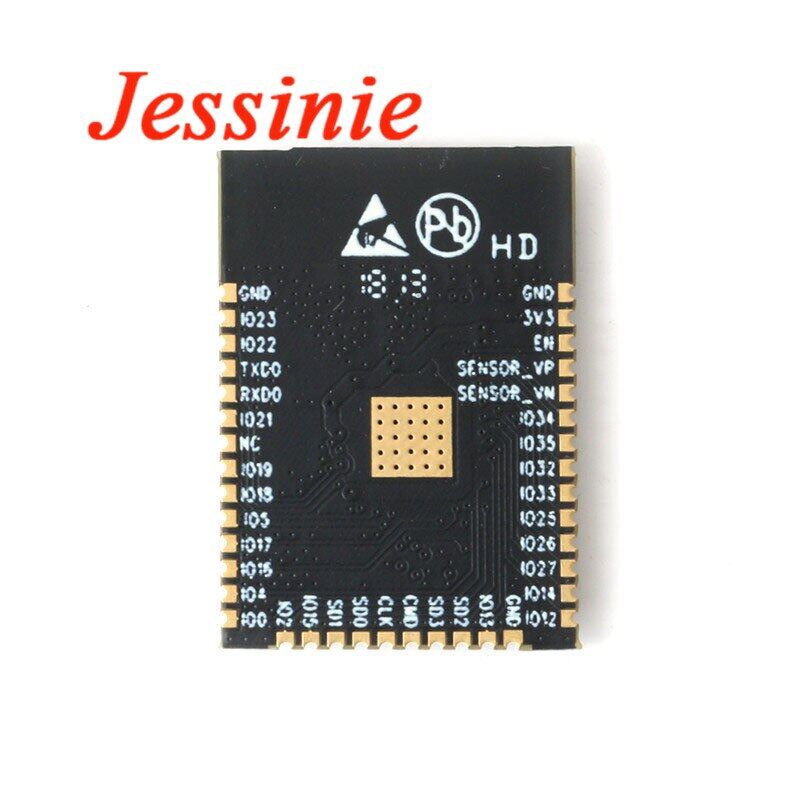

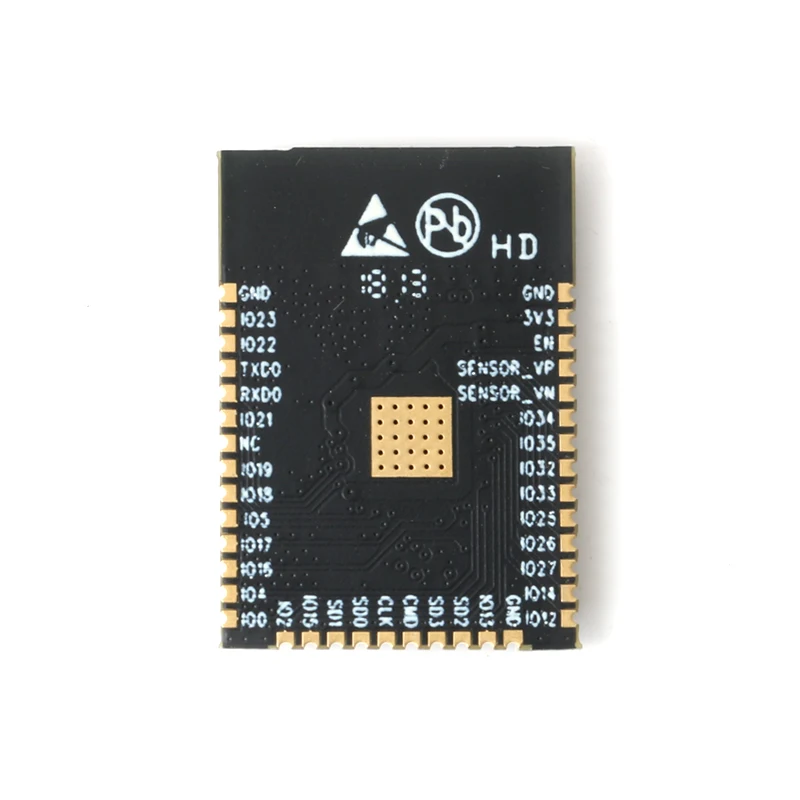

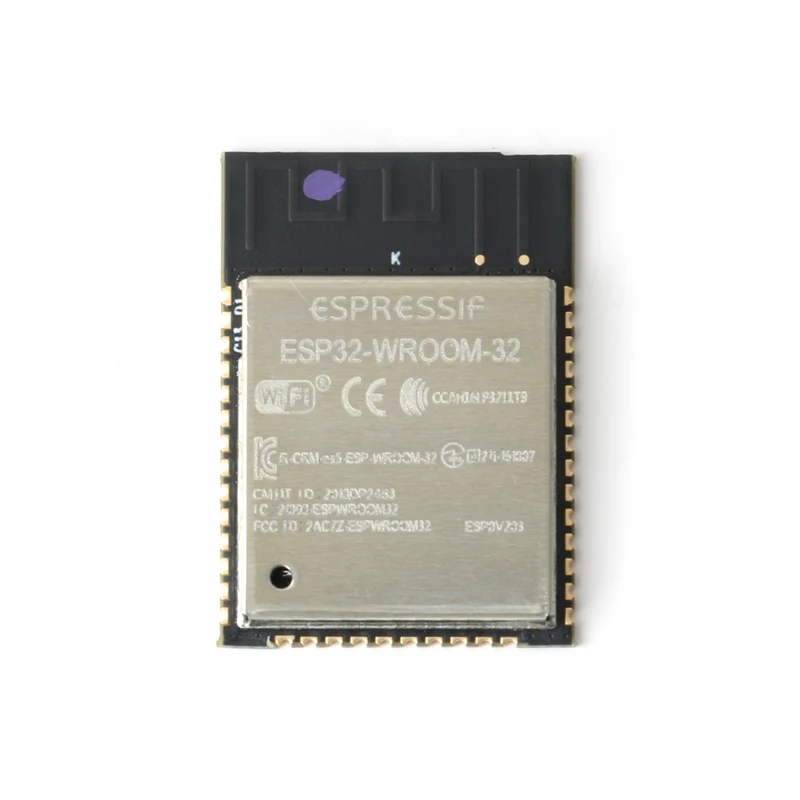

ESP-WROOM-32

Introduction:

1. ESP32 is a single-chip solution that integrates 2.4 GHz Wi-Fi and Bluetooth-compatible dual-mode, using TSMC's ultra-low-power 40-nm process.Optimal power performance, RF performance, stability, versatility and reliability for a wide range of applications and different power requirements.

2. ESP32 is designed for mobile devices, wearable electronics and Internet of Things (IoT) applications. As the industry's leading low power chip, ESP32 has Fine-resolution features such as clock gating, power-saving modes, and dynamic voltage scaling.For example, in a low-power IoT sensor Hub application scenario, ESP32 will only be periodically woken up under certain conditions. Low duty cycle can make

3. The energy consumption of the ESP32 chip reaches a small value. The output power of the RF power amplifier can also be adjusted to achieve the most balanced communication distance, data rate and power consumption.

4. ESP32 is designed for mobile devices, wearable electronics and Internet of Things (IoT) applications. As the industry's leading low power chip, ESP32 has Fine-resolution features such as clock gating, power-saving modes, and dynamic voltage scaling.

5. The energy consumption of the ESP32 chip reaches a small value. The output power of the RF power amplifier can also be adjusted to achieve a balance between communication distance, data rate and power consumption.

WiFi：

• 802.11 b/g/n/e/i

• 802.11 n (2.4 GHz) with speeds up to 150 Mbps

• 802.11 e: QoS mechanism for wireless multimedia technology

• WMM-PS, UAPSD

• A-MPDU and A-MSDU frame aggregation technology

• Block reply

• Fragmentation and reorganization

• Beacon automatic monitoring / scanning

• 802.11 i security features: pre-authentication and TSN

• Support WPA / WPA2 / WPA2-Enterprise / WPS encryption

• Infrastructure BSS Station Mode / SoftAP Mode

• Wi-Fi Direct (P2P), P2P discovery, P2P GO mode and P2P power management

• UMA compatibility and certification

• Antenna diversity and selection

Bluetooth-compatible:

• Bluetooth-compatible v4.2 full standard, including traditional Bluetooth-compatible (BR/EDR) and Bluetooth-compatible Low Energy (BLE)

• Supports standard Class-1, Class-2 and Class-3 without external power amplifier

• Enhanced precision power control

• Output power up to + 10 dBm

• NZIF receiver with BLE reception sensitivity of -98 dBm

• Adaptive Frequency Hopping (AFH)

• Standard HCI based on SDIO / SPI / UART interface

• High speed UART HCI up to 4 Mbps

• Support for BT 4.2 controller and host protocol stack

• Service Discovery Protocol (SDP)

• Universal Access Application (GAP)

• Security Management Protocol (SMP)

• Bluetooth low energy

• ATT / GATT

• HID

• Supports all GATT-based Bluetooth-compatible low energy applications

• SPP-Like Bluetooth-compatible Low Energy Data Transfer Protocol

• BLE Beacon

• A2DP / AVRCP / SPP, HSP / HFP, RFCOMM

• CVSD and SBC audio codec algorithms

• Bluetooth-compatible piconet and Scatternet

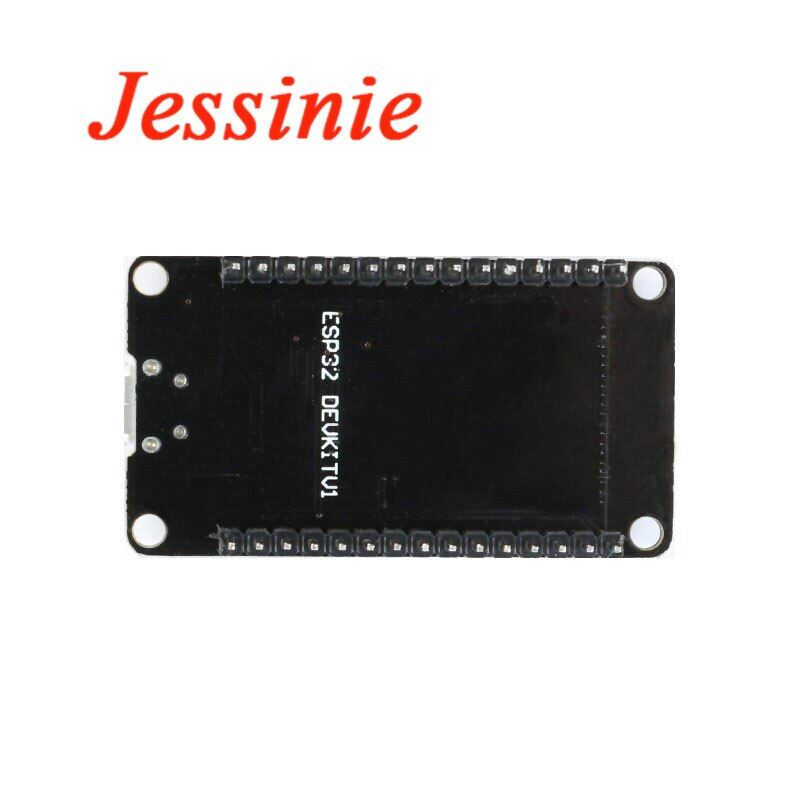

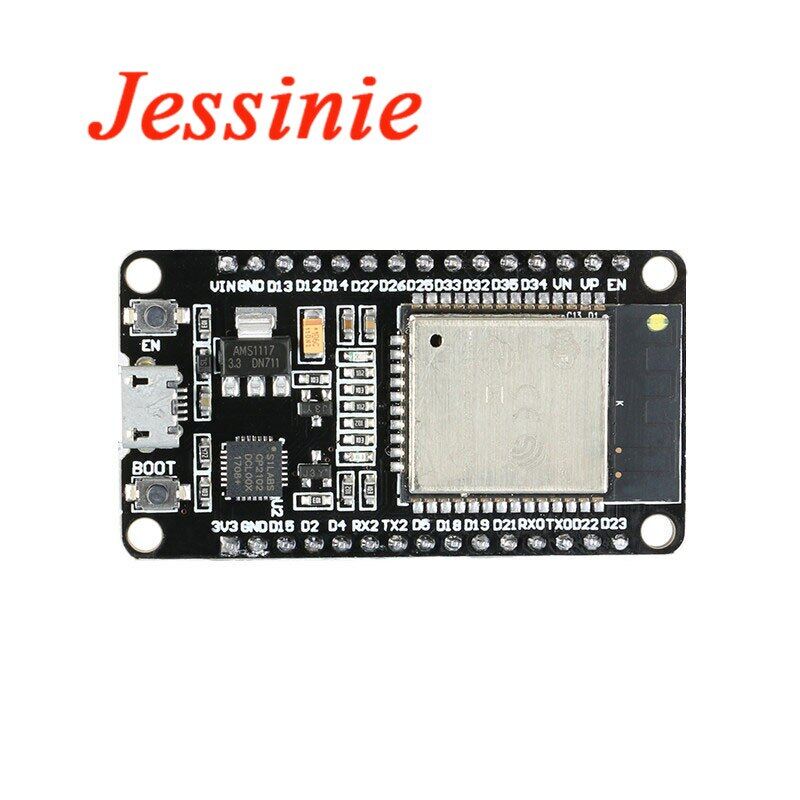

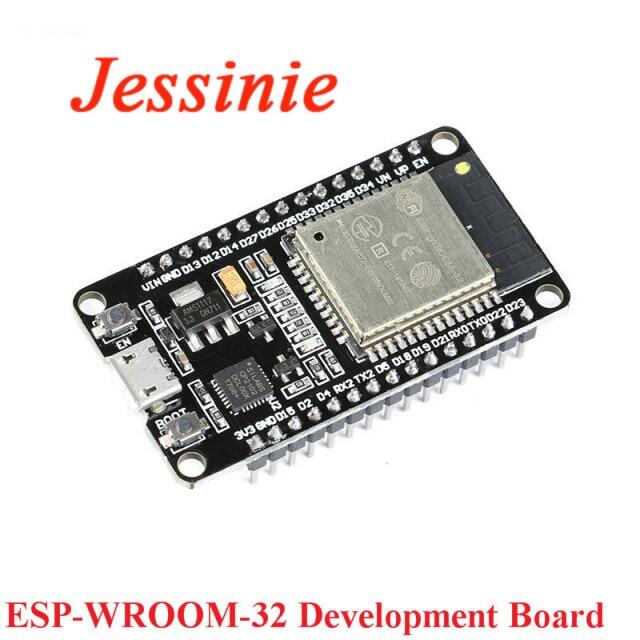

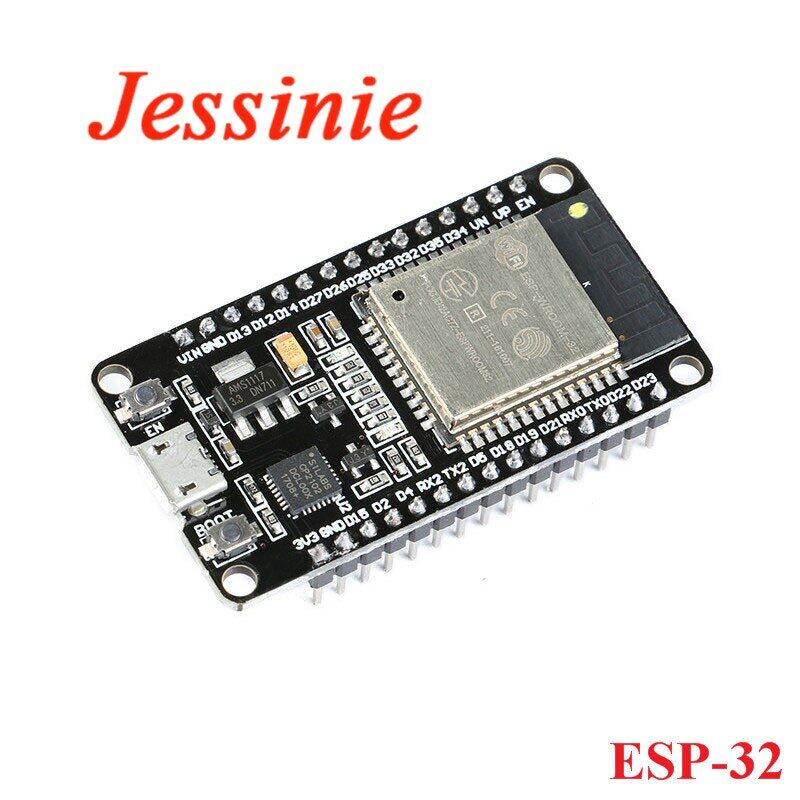

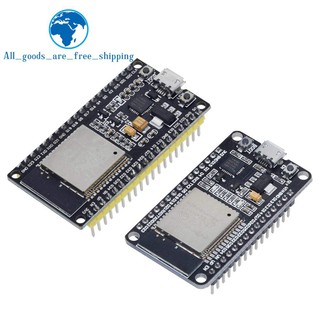

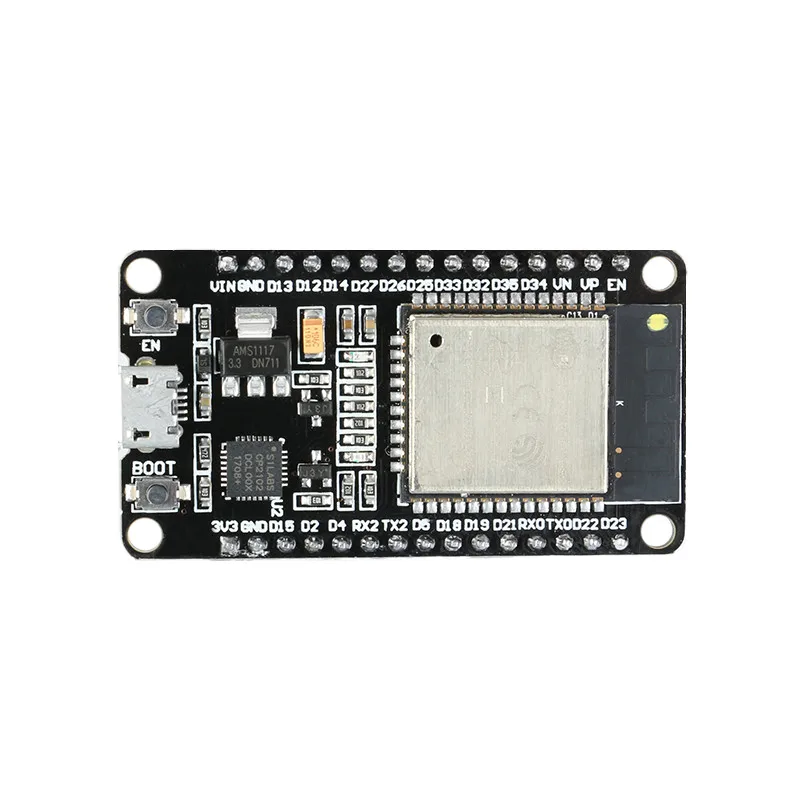

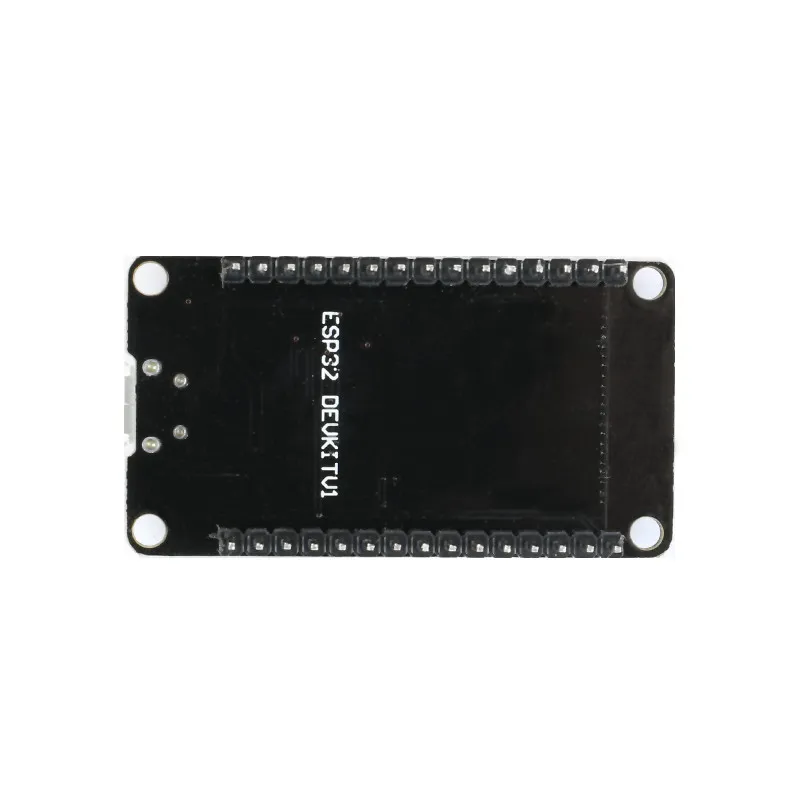

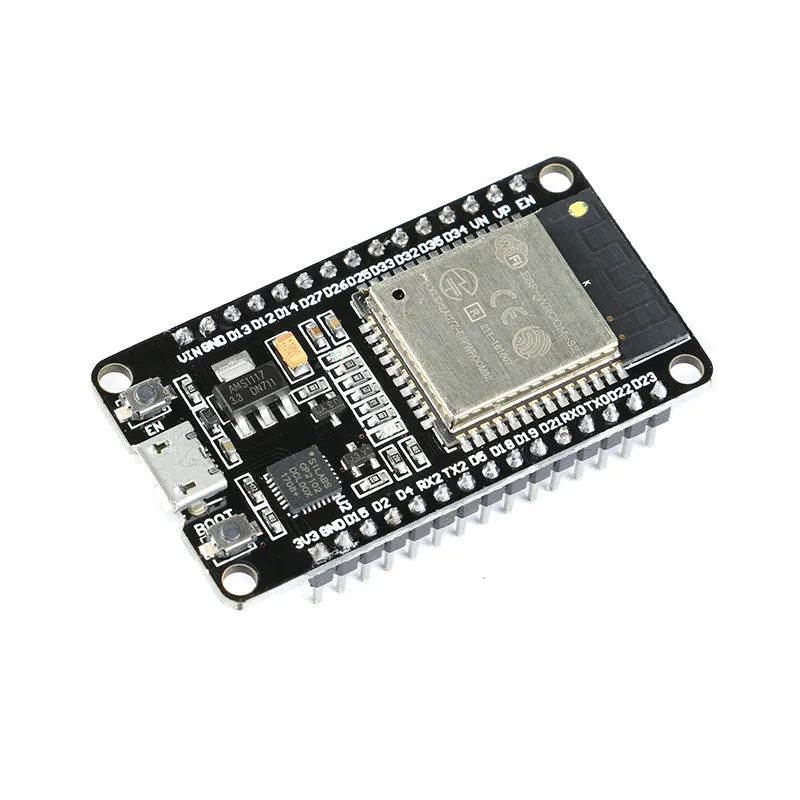

ESP-WROOM-32 Development Board

Introduction:

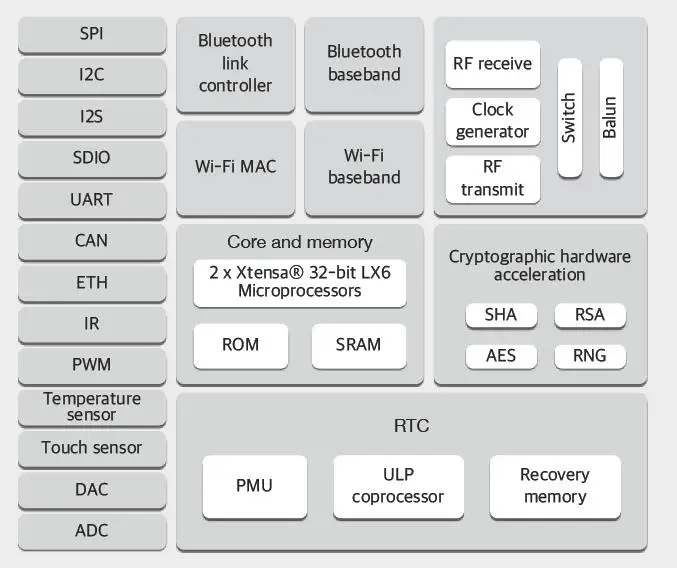

   ESP32 is already integrated antenna and RF balun, power amplifier, low-noise amplifiers, filters, and power management module. The entire solution takes up the least amount of printed circuit board area.

   This board is used with 2.4 GHz dual-mode Wi-Fi and Bluetooth chips by TSMC 40nm low power technology,power and RF properties best, which is safe, reliable, and scalable to a variety of applications.

Features:

• High performance-price ratio

• Small volume, easily embeded to other products

• Strong function with support LWIP protocol, Freertos

• Supporting three modes: AP, STA, and AP+STA

• Supporting Lua program, easily to develop

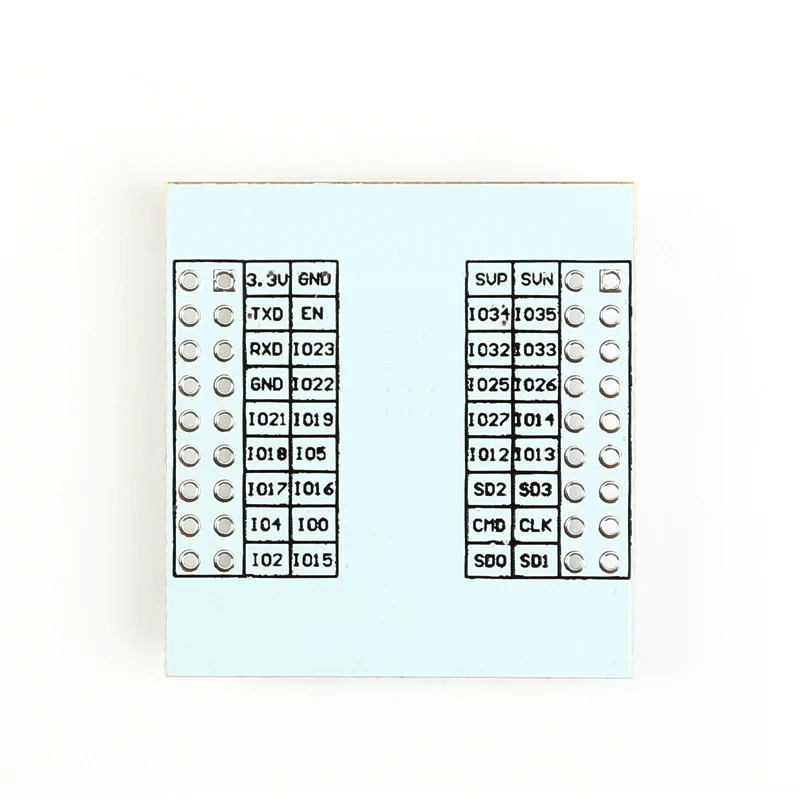

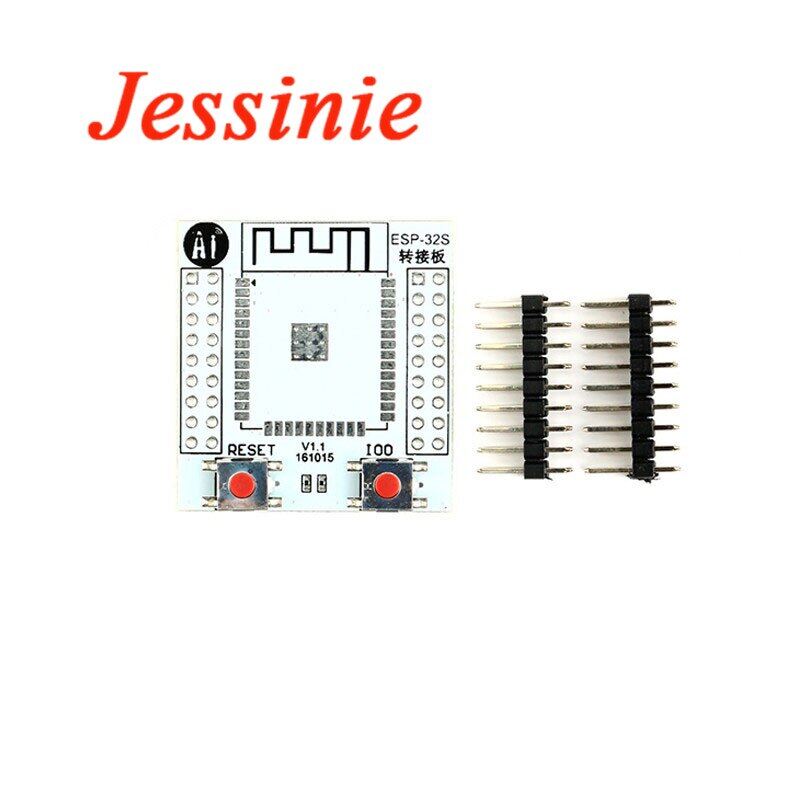

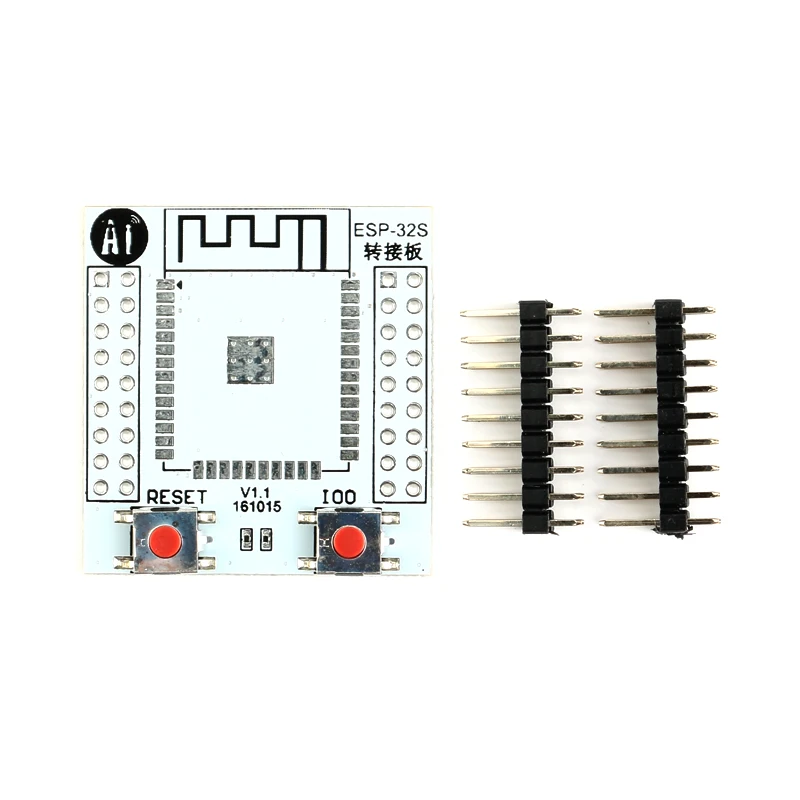

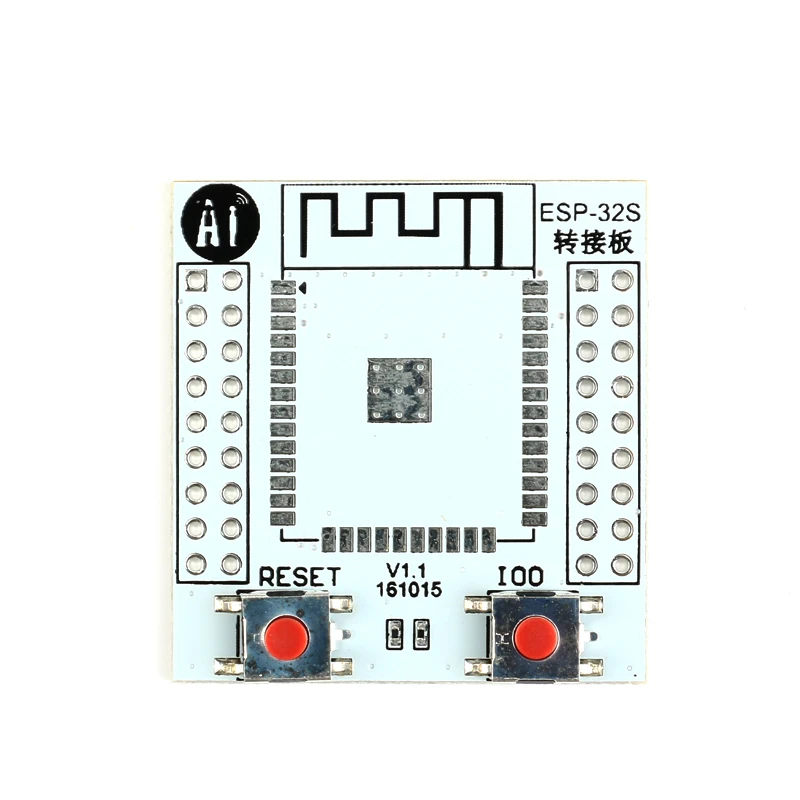

ESP-32S Pinboard

ESP-32S adapter board, 2.54mm pitch, leads to RESET and IO 0 port, can be inserted into the breadboard, the use of DuPont wire lead to facilitate the development of debugging.
