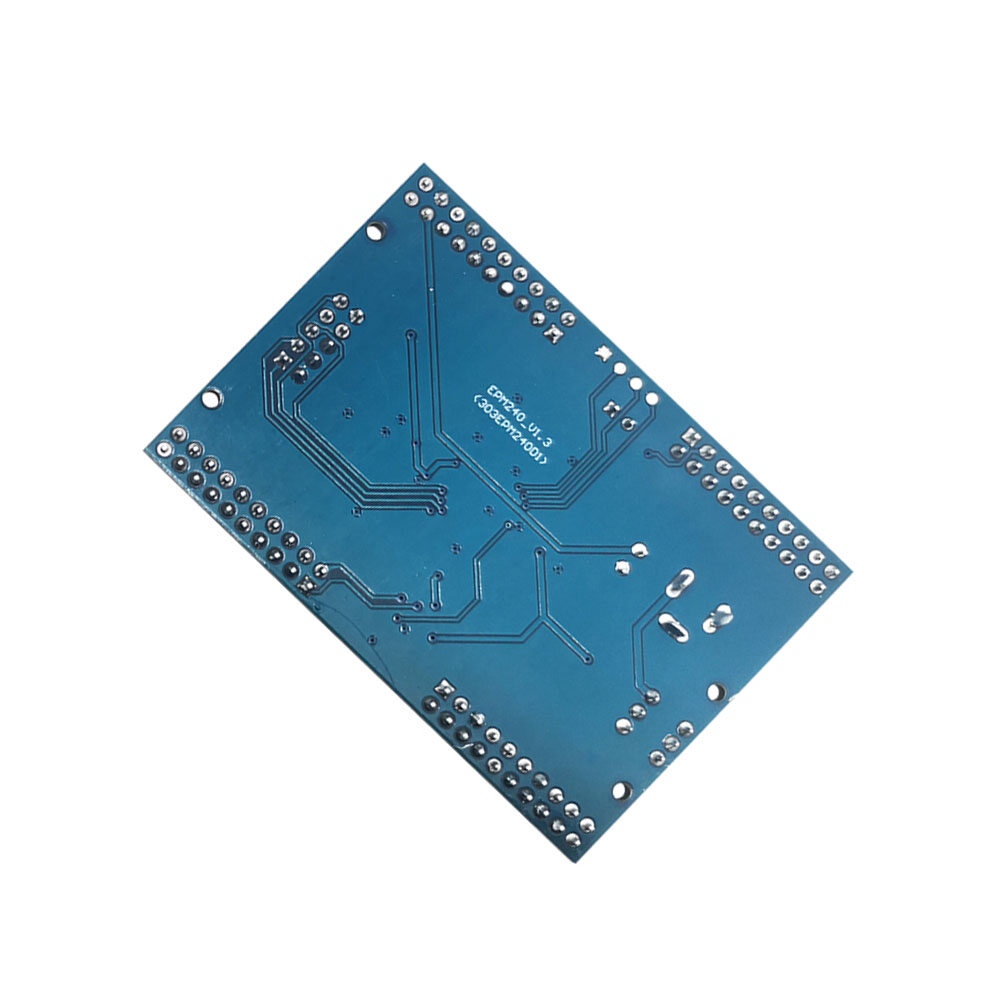

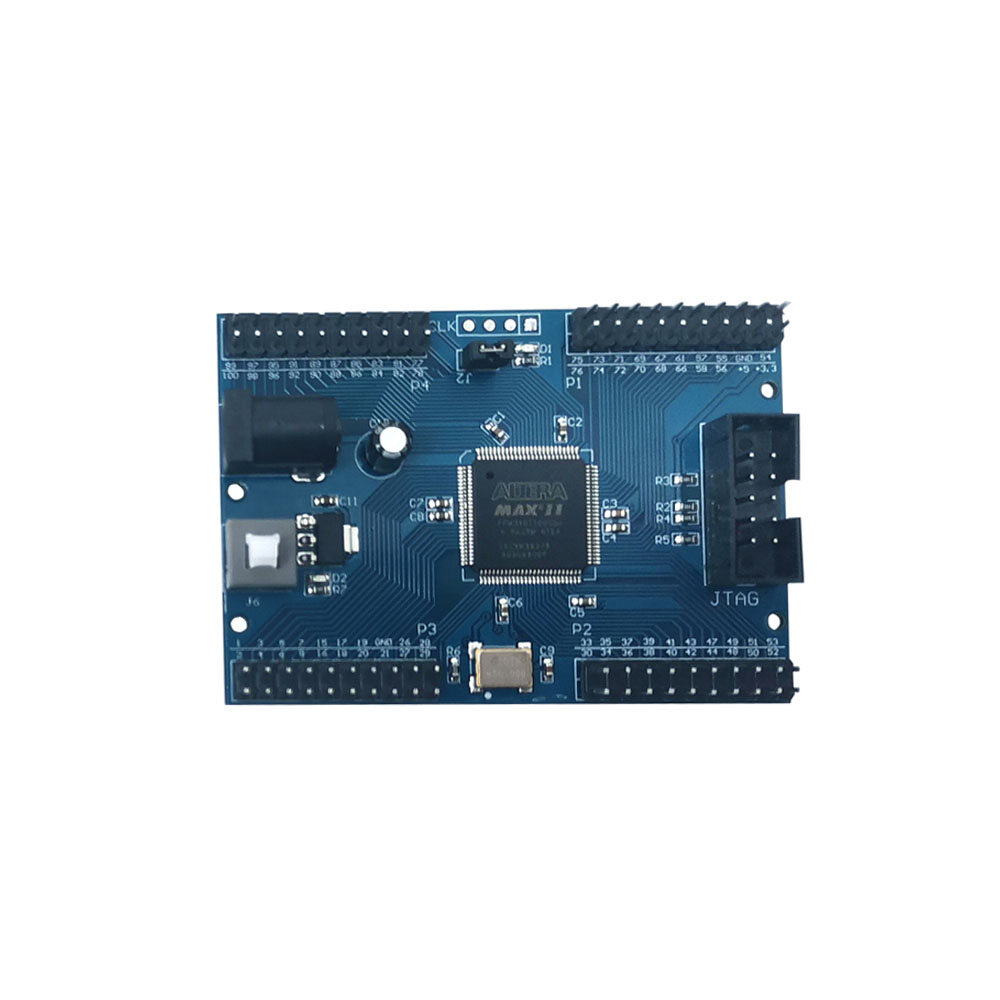

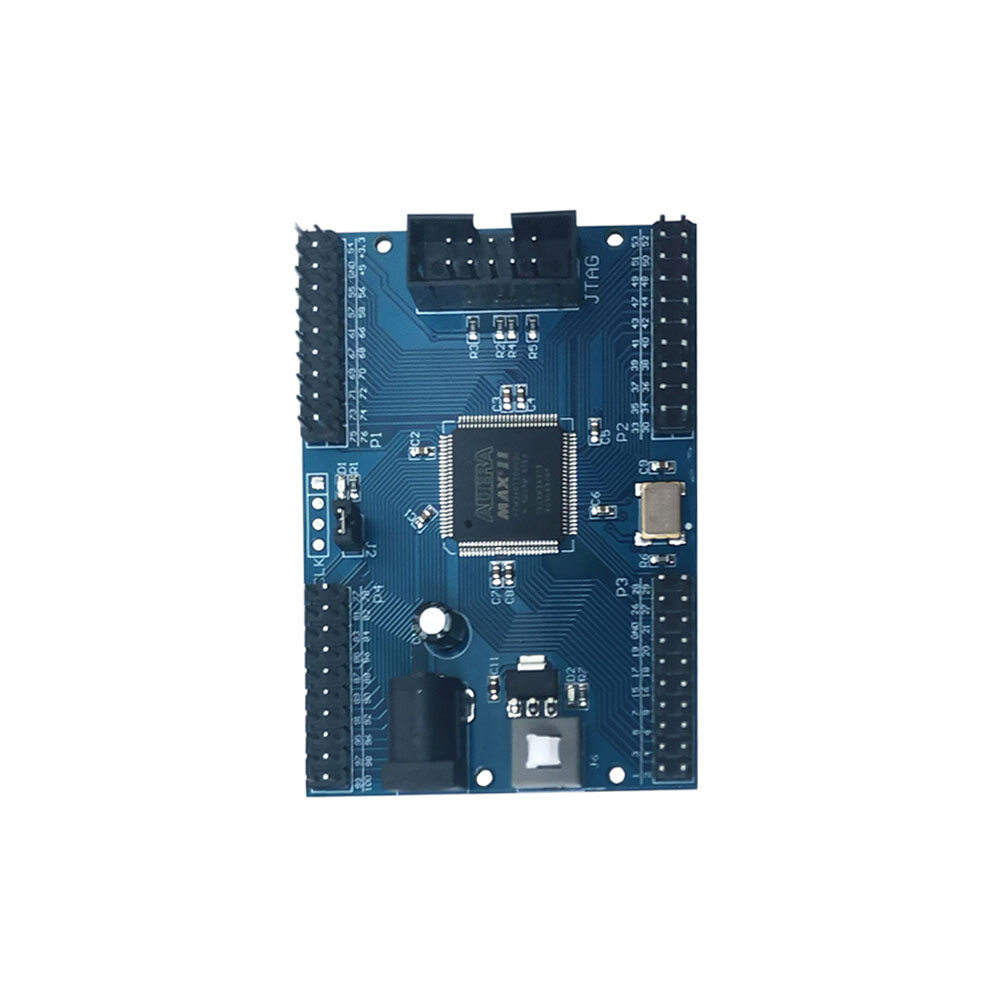

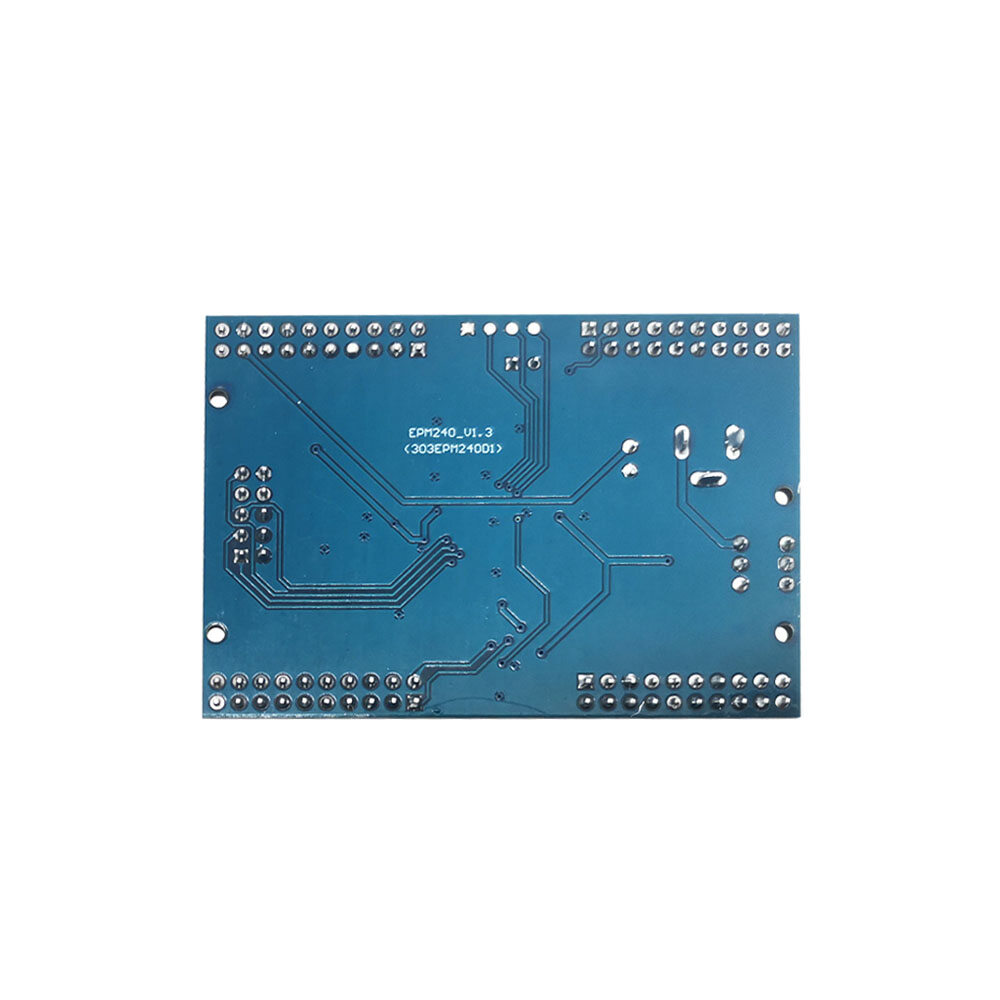

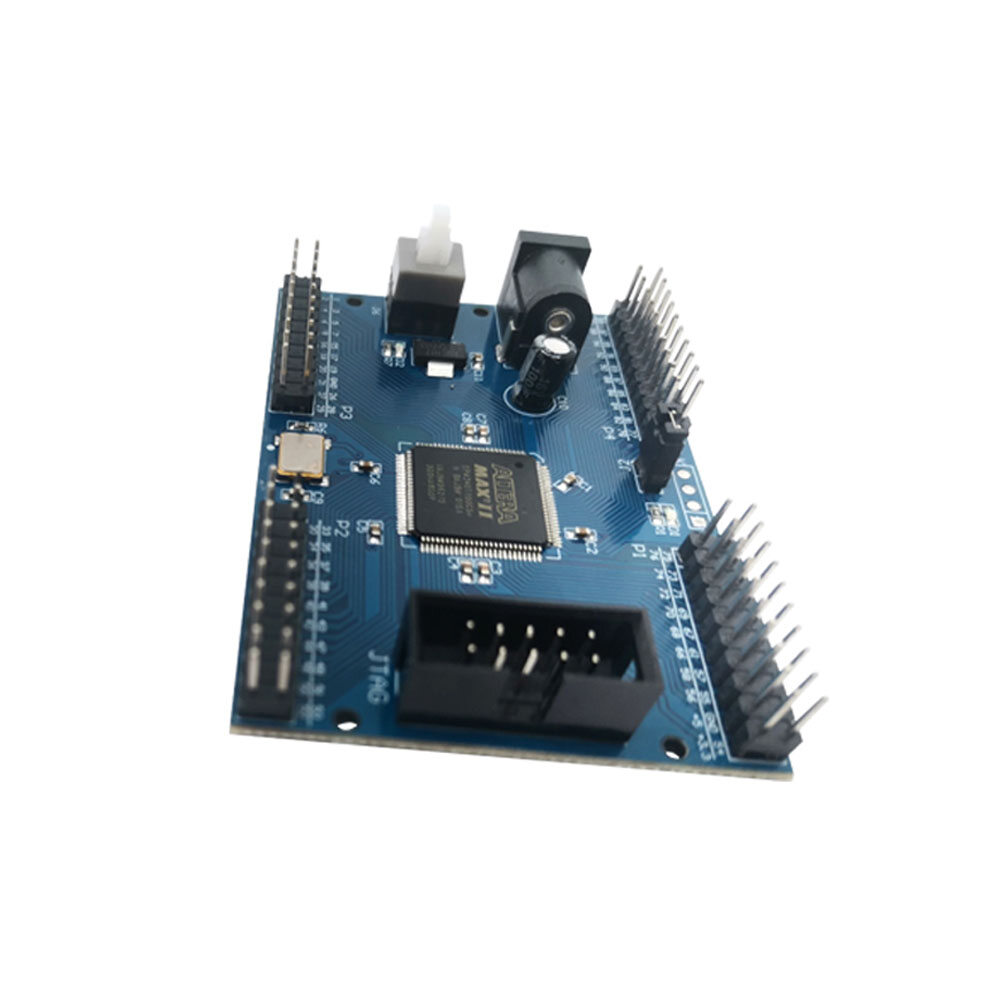

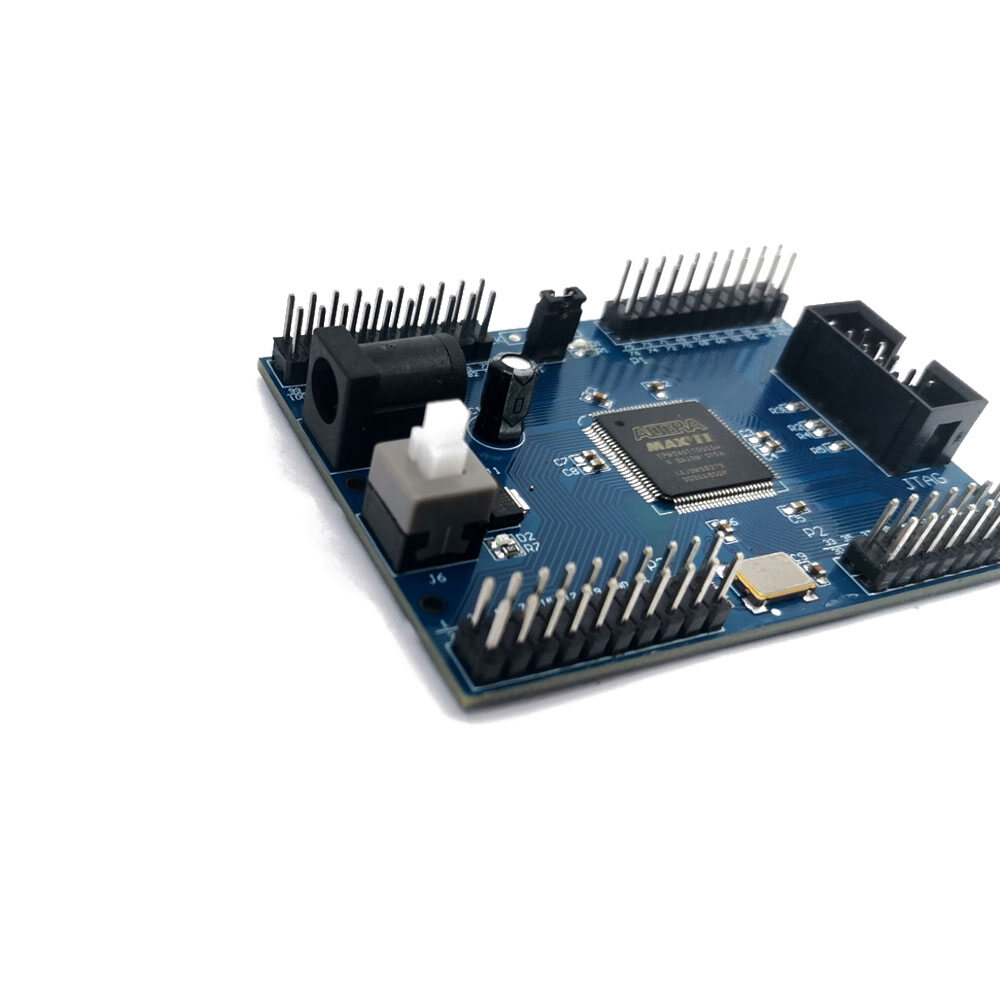

EPM240T100 CPLD Development Board Altera MAX II System Board 5V On-Board 50Mhz Active Crystal Oscillator JTAG Interface

JTAG and power supply interface board has been set aside, and leads to all the pins, simply connect the 5V power supply can work extremely convenient to use.

The CPLD chip for the entry of low-cost CPLD / FPGA is very appropriate, the user according to the IO port of the core plate leads to expansion of the external circuitry such as: LED lights, digital tube, LCD liquid crystal, serial communications, etc.

Facilitate the users to develop their own products to maximize the learning development cost savings for the user.

Specifications:

Color:Blue

Chip board EPM240T100C5

Board JTAG interface, Active board 50MHZ crystal

With a programmable LED

With a 5V chip, 3.3V AMS1117-3.3 switch

5V power supply with switch

All the leads all the IO

The board size: 5cmx7cm

Note:

1. Due to the light and screen difference, the item's color may be slightly different from the pictures.

2. Please allow 1-3cm differences due to manual measurement.

Package Included:

1x EPM240T100 Development Board
