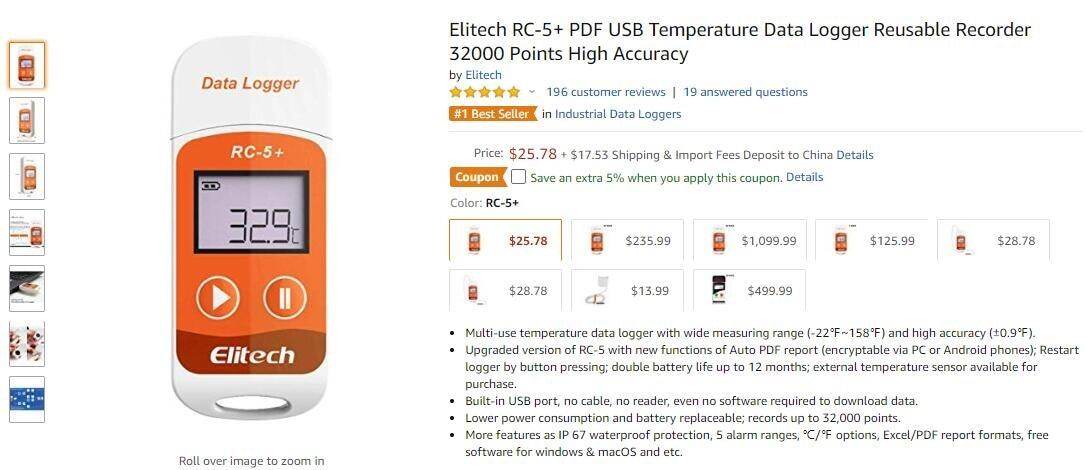

Best Seller on Amazon - Elitech Only

About RC-5+

Multi-use temperature data logger, upgraded version of RC-5

Free software supporting windows & macos systems; Data exchange with computer by USB without cable

Long battery life & 10s ~ 24hour adjustable record intervals; over Temperature Alarm & Upper/Lower Limits

Auto-generated and encrypted PDF report: data could be queried, saved, printed and exported in word/excel/txt /PDF format

Multi-boot function: a reusable temperature logger, reboot by pressing button or operating on software

Elitech RC-5+ USB temperature data logger features a plug-and-play USB port interface and allows for faster access to data collected in any cold chain management process. This could be used in pharmaceuticals, food, life science, cooler boxes, medical cabinets, fresh food cabinets, freezer or laboratories. Different from the normal USB temperature data logger, the RC-5+ temperature data logger has two types of alarms-single and cumulative alarm. Its robust and compact design satisfies the dynamic demands in any sensitive storage and transportation system. It records real time temperature that is stored in non-volatile memory for access via the USB port.

Technical Parameters

1. Sensor: Internal NTC thermal resistor, no external sensor supported

2. Communication interface: USB

3. Power supply: CR2032 replaceable battery

4. CE certificate

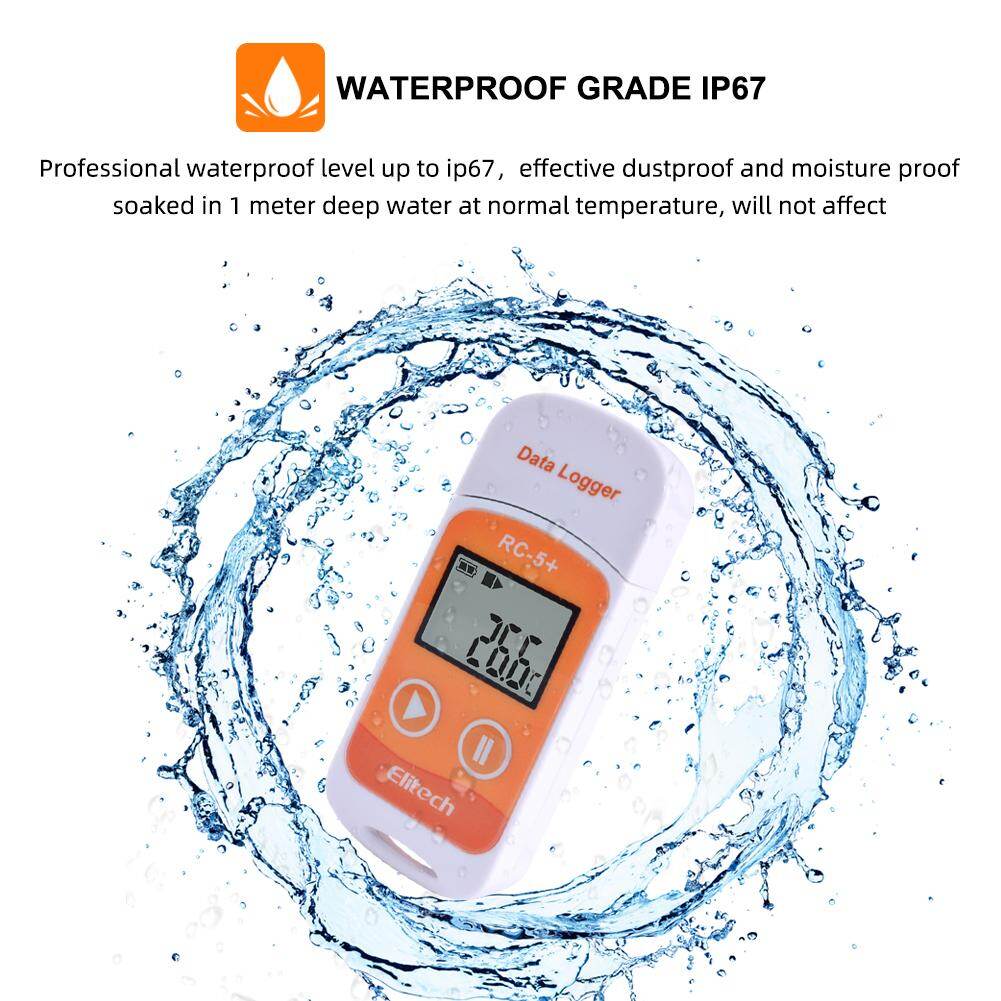

5. IP67 protection grade

6. Multiple use: data can be removed and start a new round by our software

7. Data could be queried, saved, printed and exported in Excel/PDF format.

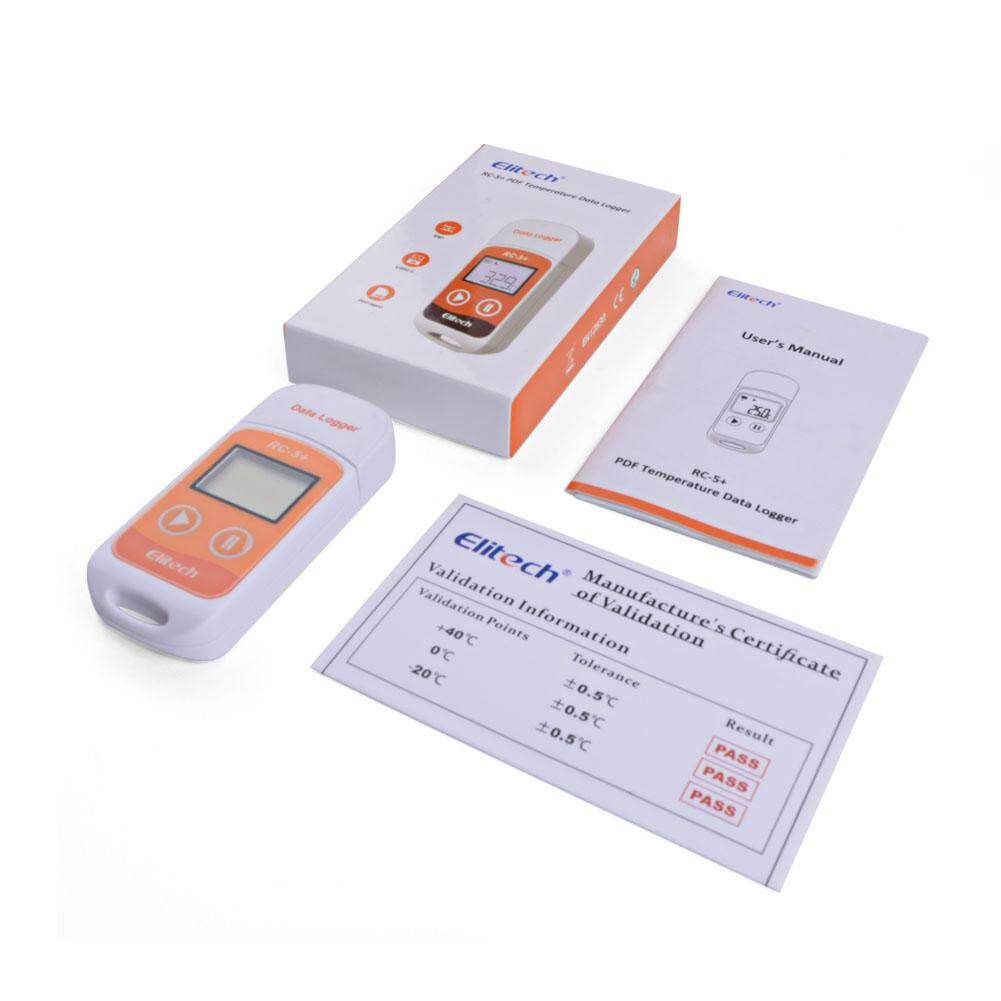

Package Included:

1 x Elitech RC-5+ Data Logger;

1 x CR2032 Battery;

1 x User Manual

Multi-use Data Logger

Multi-use temperature data logger, upgraded on RC-5

USB design, cable-free, driver-free even software free

Once plug into a computer or Android phone (requires OTG converter), it allows you to read the data report easily.

Wide Temperature Range

Fast Response time

Temperature Range:-22℉~158℉

Accuracy:±0.9℉

Large recording capacity: 32,000 points

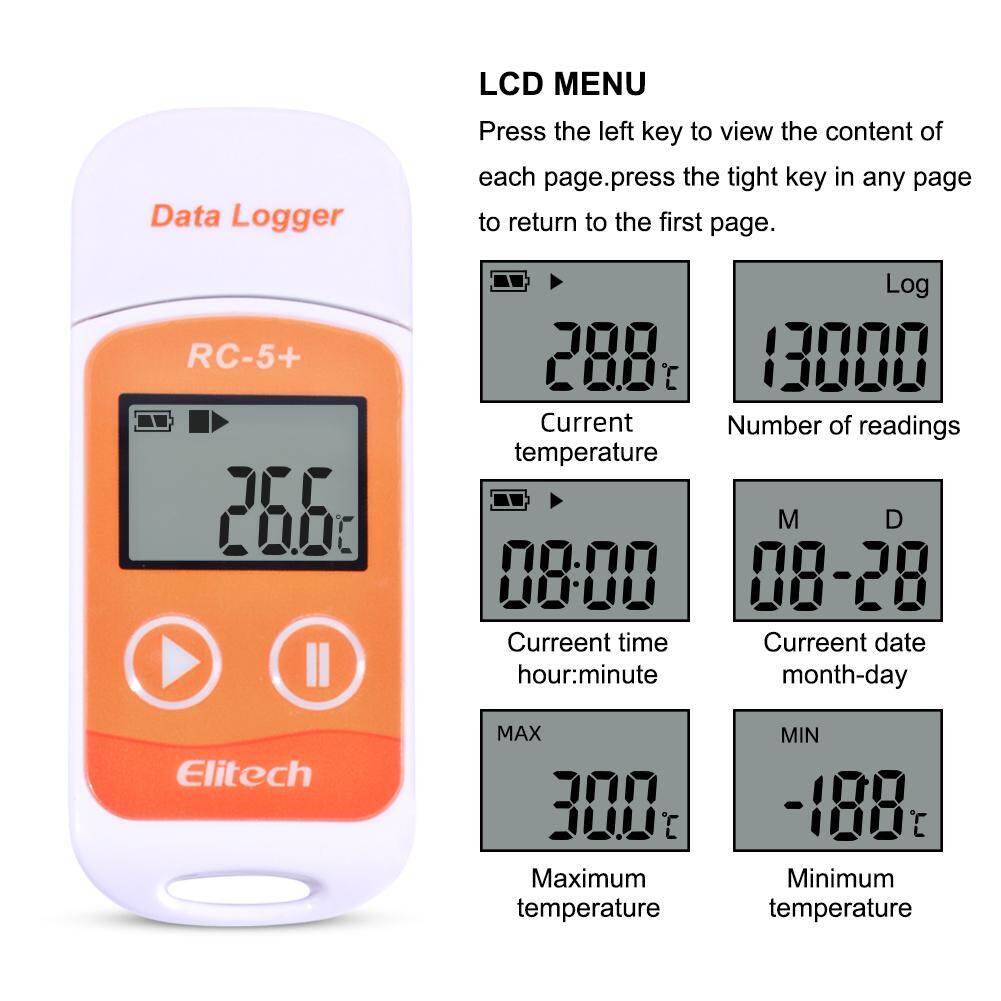

LCD Visual Display

LCD visual display, interface is simple and easy to use, easy to operate, convenient to check your data at any time.

Over temperature alarm & upper/lower limits can be set

MAX/MIN values availableR

ecord interval: 10s~24h adjustable

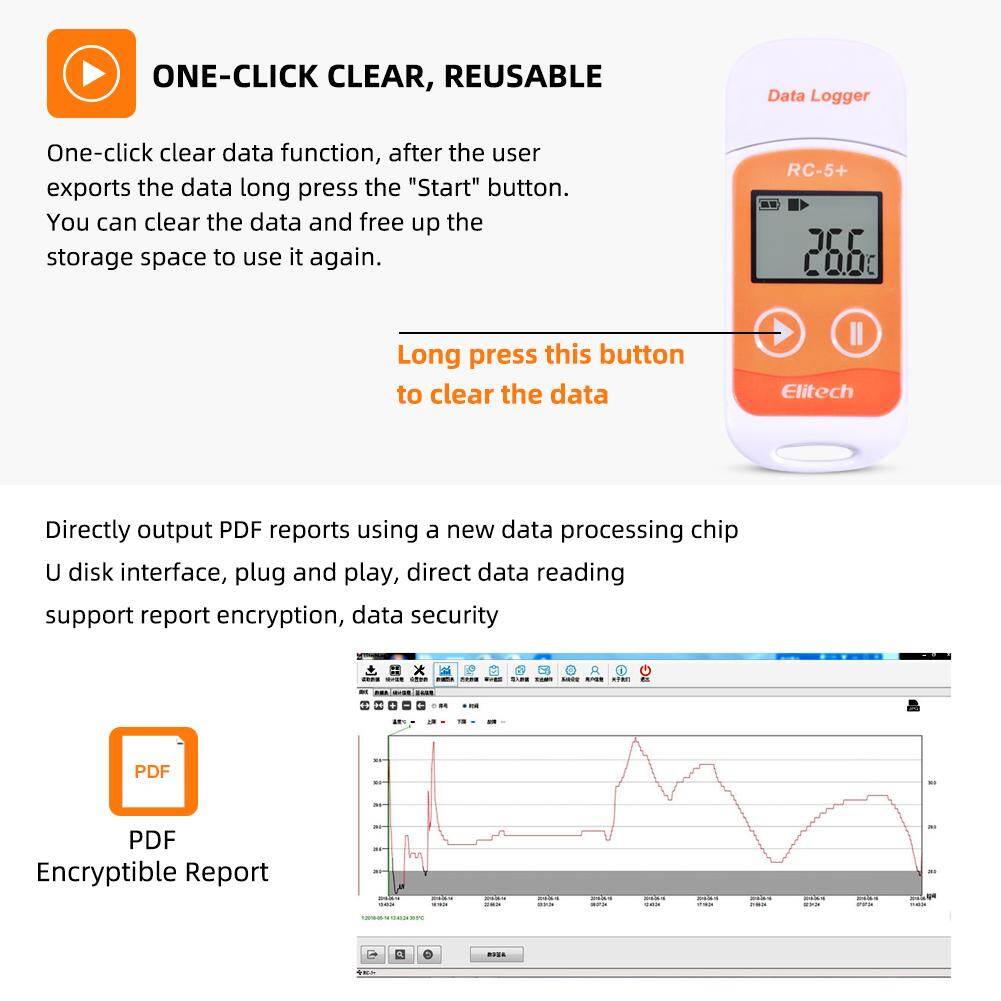

Restart by Long Press

By long pressing the left button to restart the data logger and the stored data will be cleared simultaneously. It is convenient for multi-sue purpose.

Plus Compared to RC-5

As the upgraded product of RC-5, RC-5+ has many improvements, where the major upgrades are:

1. Auto PDF Report:

The new-added function allows data logger to generate PDF report automatically.

2. Password Protection

Optional password protection will keep your data’s security.

3. Double the Battery Life

RC-5+ is with a battery life up to 12 months (15℃~23℃/45%RH~75%RH), which doubles RC-5' battery life.

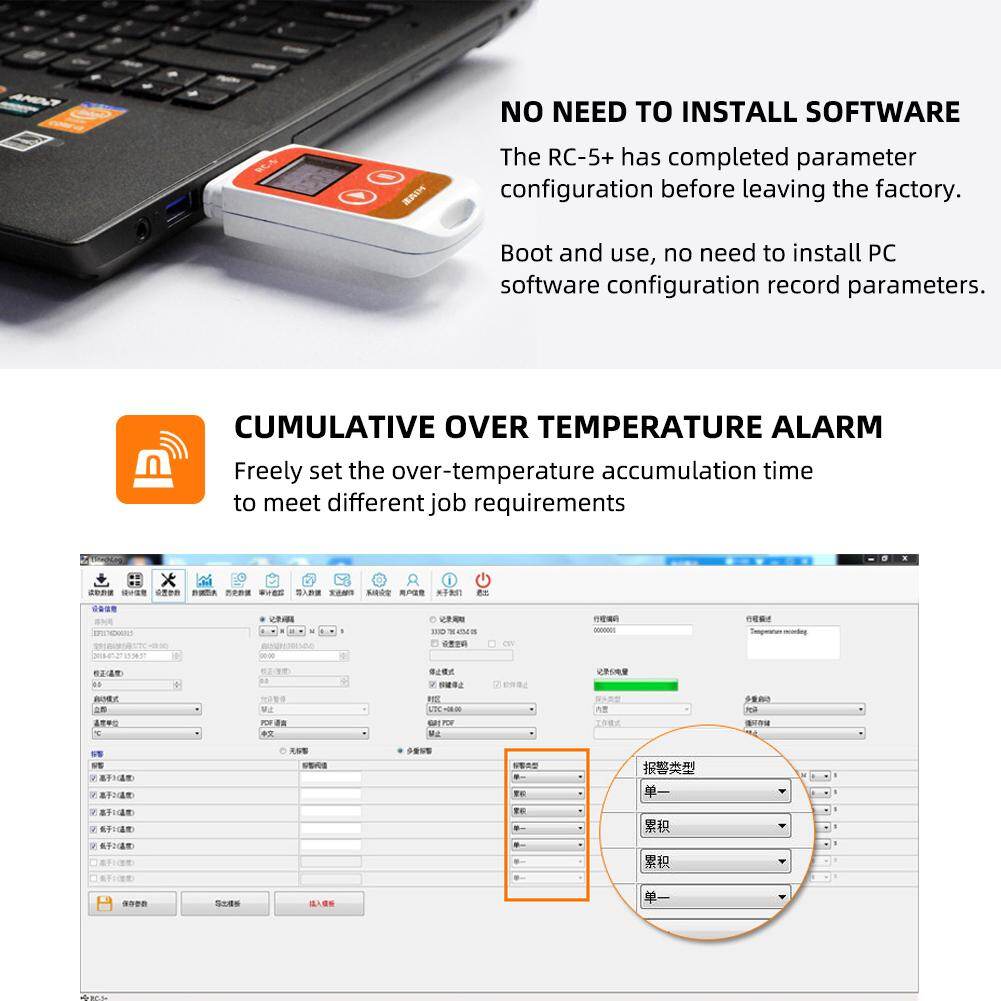

Free Elitechlog Software for Windows&macOS

Firstly, please download and install the software instructed on the user manual.

Meanings of the Setting Parameters:

Log Clock: Not configurable. But the time will sync with that on the computer after our user click the Save Parameter button under the Parameter tab.

S/N: Not configurable.

Trip Description: Configurable. The info entered here will be shown on the report, it can be used to differentiate one logger from another.

Log interval: Configurable. Means how often our user want the logger to perform a reading, it can be 10S, 1minute or 1day.

Start Delay(H): Configurable. Means after you press the button on the logger, how long it would wait to officially start logging.

Press button: Configurable. Means after we press the triangle button for 4 seconds on the logger to start logging, we can still press this very button to stop the logger.

Temperature Unit: Configurable.Celsius or Fahrenheit.

High/Low limit: Configurable.The upper and lower alarming point you want to set.
