Electronic Meters 3 Phase 6 Parameters 100A Modbus RS485 (Support HomeAssistant)

Electronic Meter 3 Phase 6 Parameter 100A Modbus RS485 DTS6619 (Support HomeAssistant)

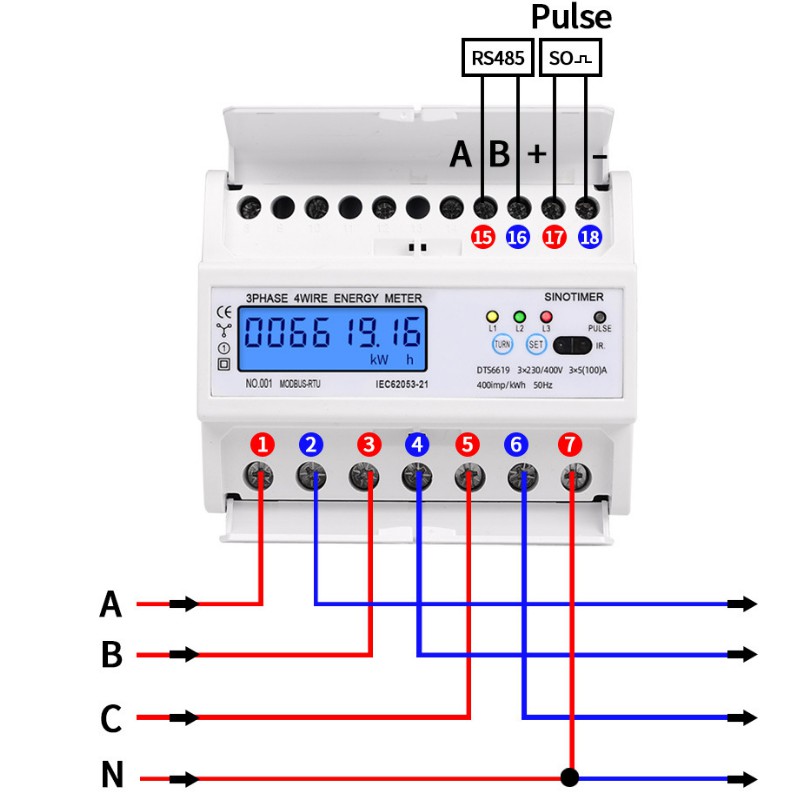

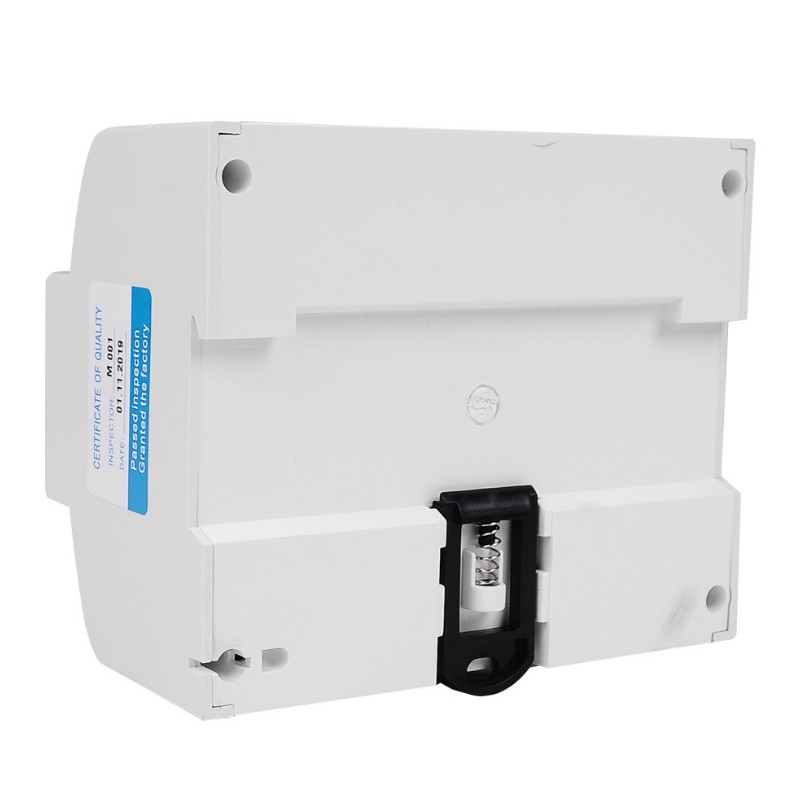

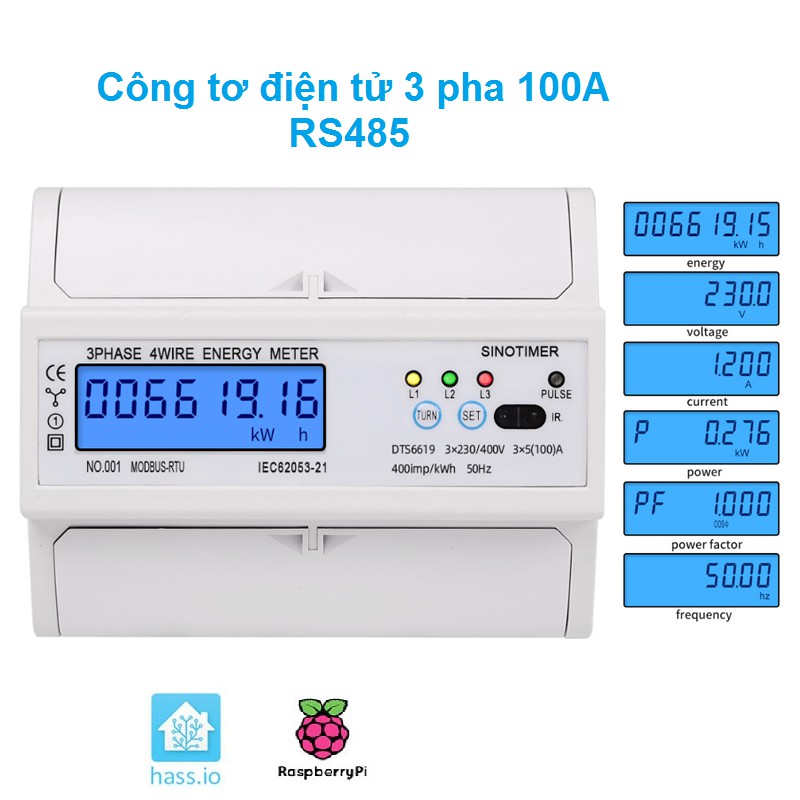

It is a high-precision 6-parameter electronic meter that measures the amount of power consumed, capacity, voltage, current, frequency, cos phi of a 3-phase power grid. The meter using the RS485 communication standard can notify as a sensor of the Home Assistant smart home system (HASS) via the Modbus-RTU protocol using USB to RS485 and connect to the Raspberry Pi with a twisted pair of wires. The distance can be up to 1.2km or combine with RS485 to Wifi, 3G converter for remote wireless control. - The device has a high load capacity of up to 100A. - Equipment with high reliability, small volume, light weight, beautiful appearance, advanced technology. - Easy to install on electrical cabinet din-rail. The equipment has anti-electromagnetic interference, low power consumption, high precision, overload protection, high stability, anti-phase loss and long service life. - The meter is fully in accordance with the relevant technical requirements of GB/T17215.321-2008 national standard and IEC62053 international standard of level 1, level 2 phase energy measurement, can be direct and Accurately measure active energy and energy consumption.

Specifications: - Product name: Energy meter 3 Phase 100A. - Rated voltage: 380V ~ 50Hz. - Maximum load: 100A. - Sampling frequency: 400imp/kWh. - Display: LCD 6 parameters. - Communication: RS485 Modbus-RTU. - Material: metal + ABS plastic. - Dimensions: 125x110x70mm.

- Weight: 600g.
