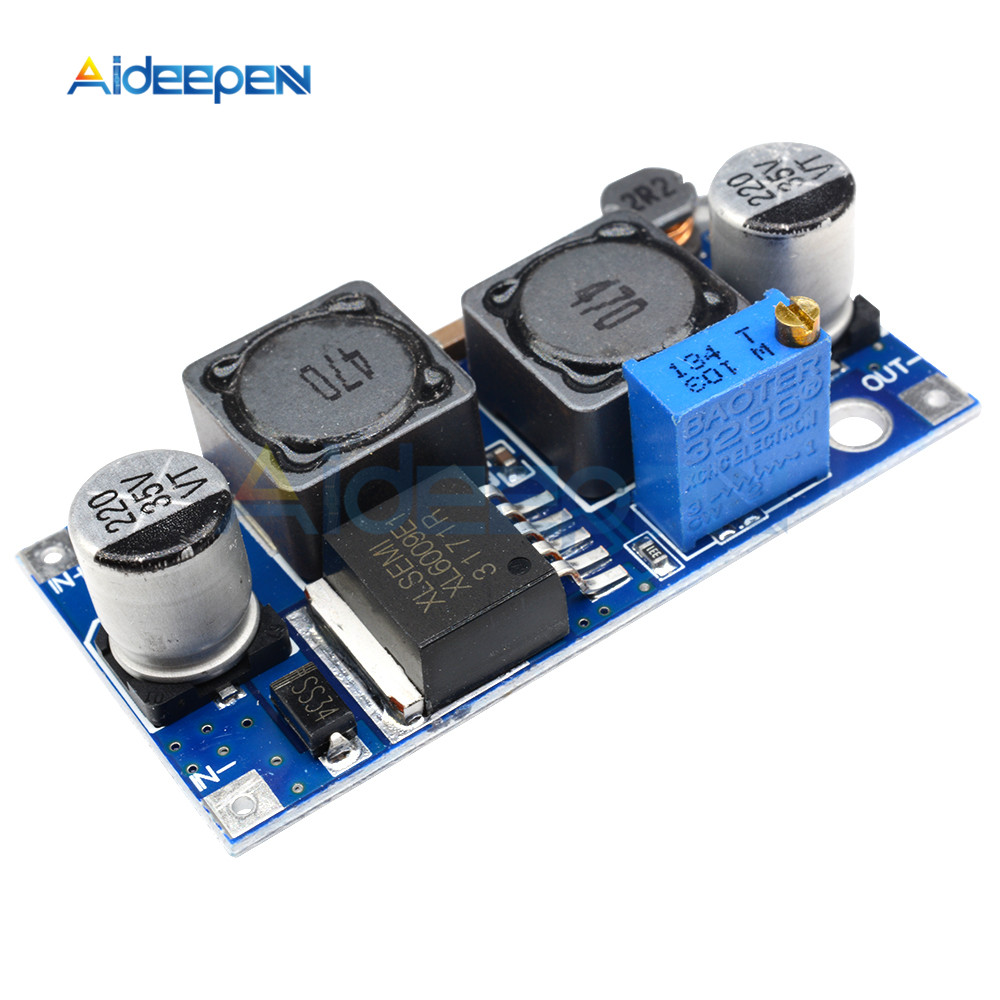

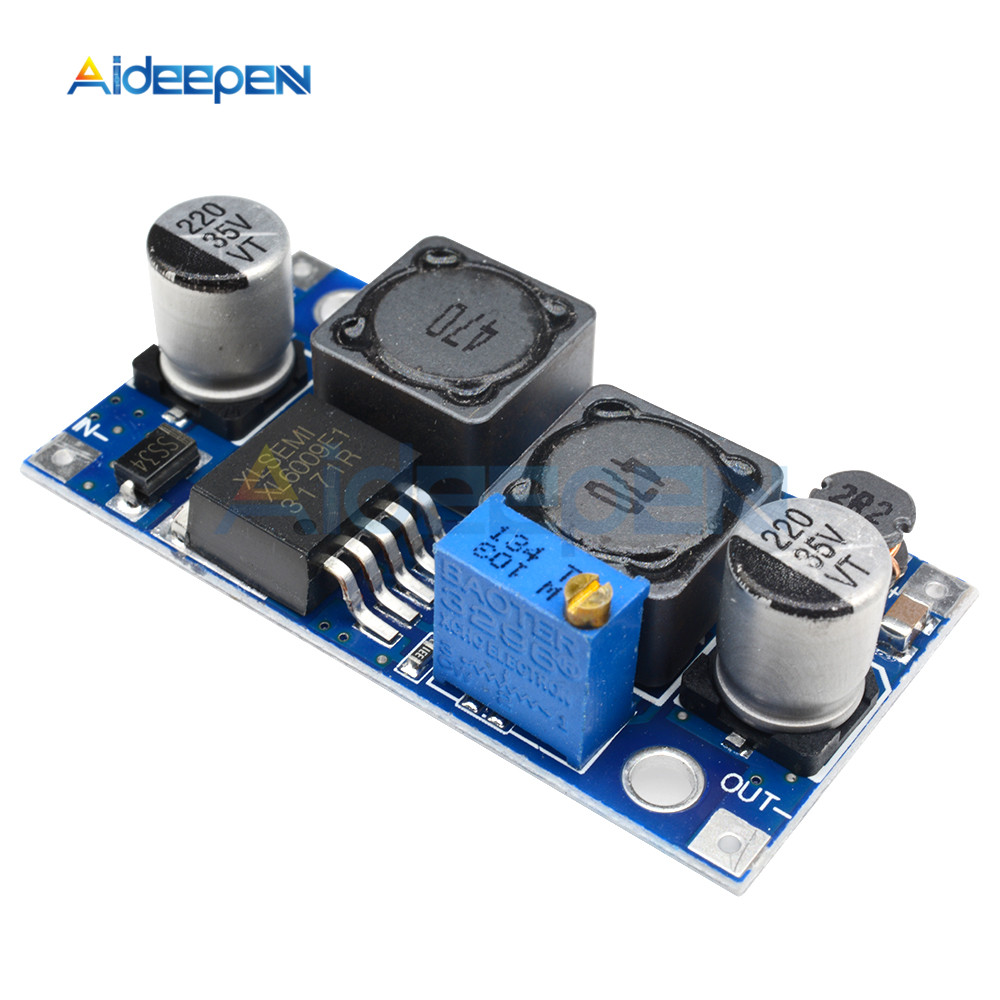

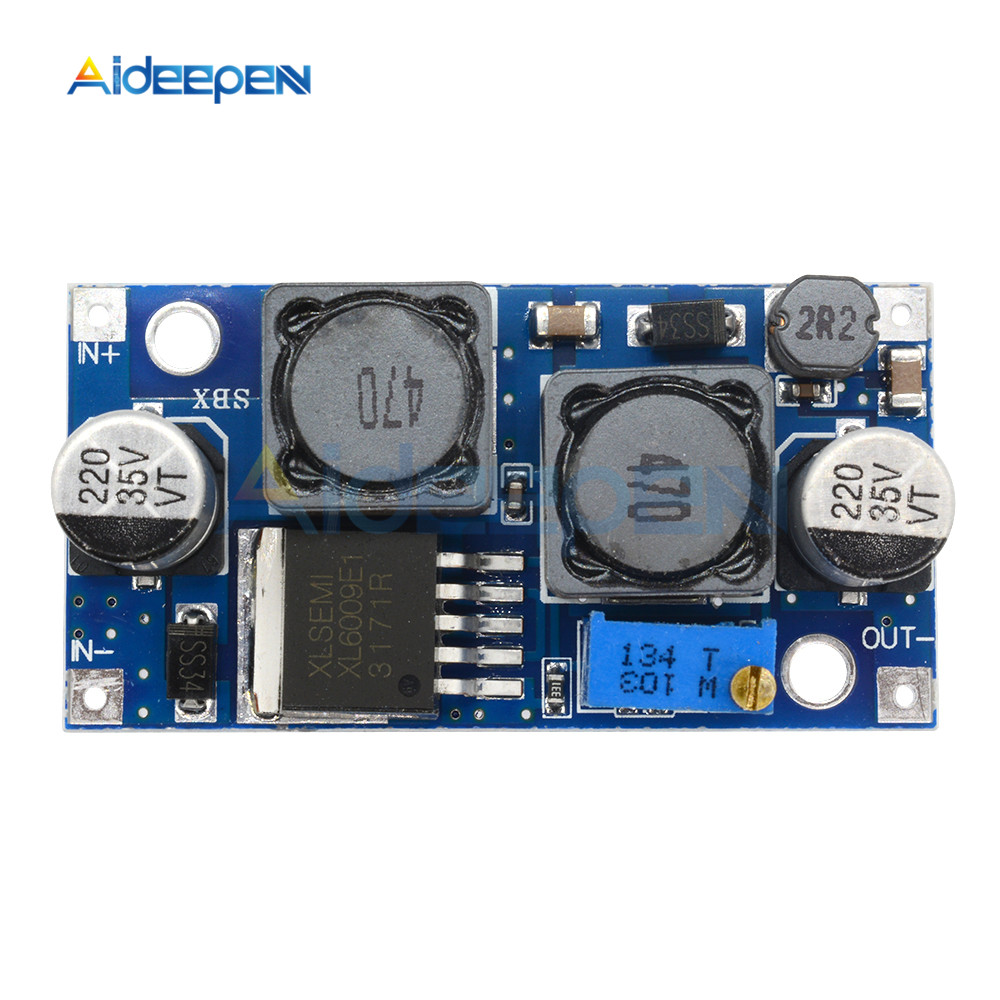

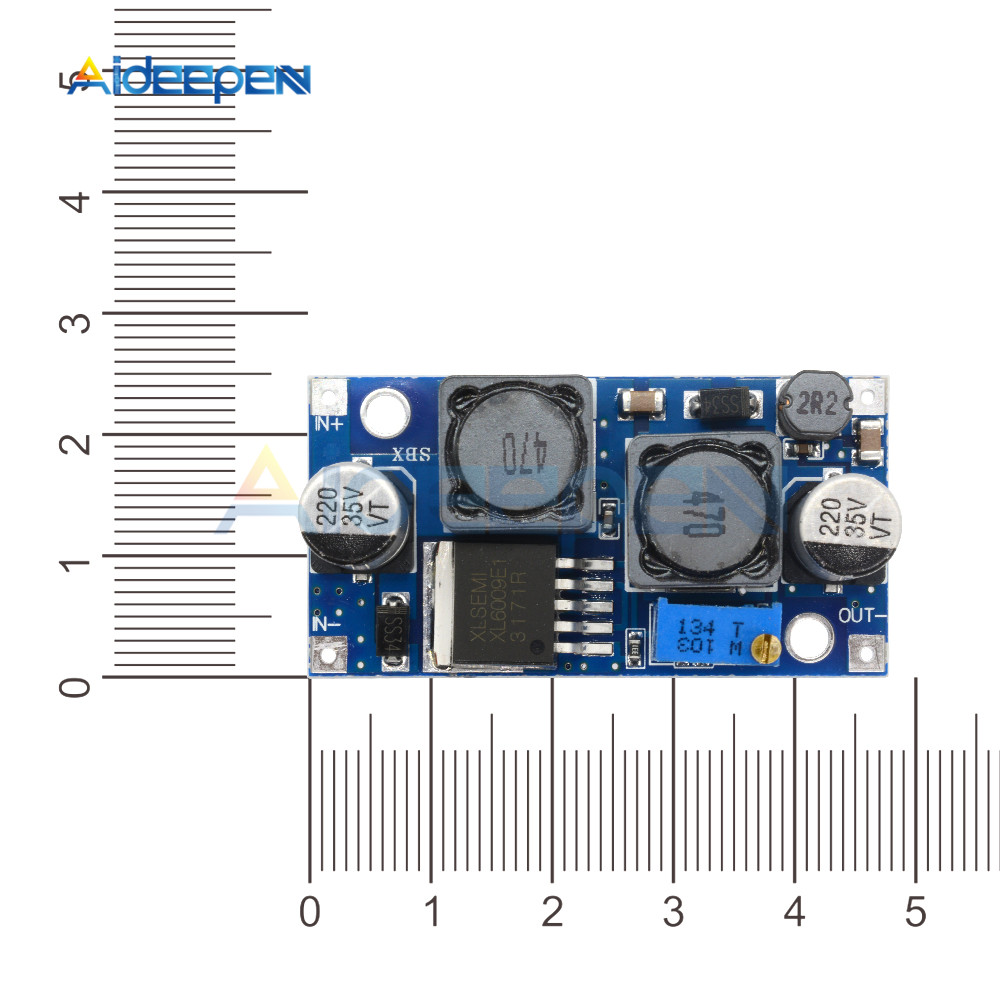

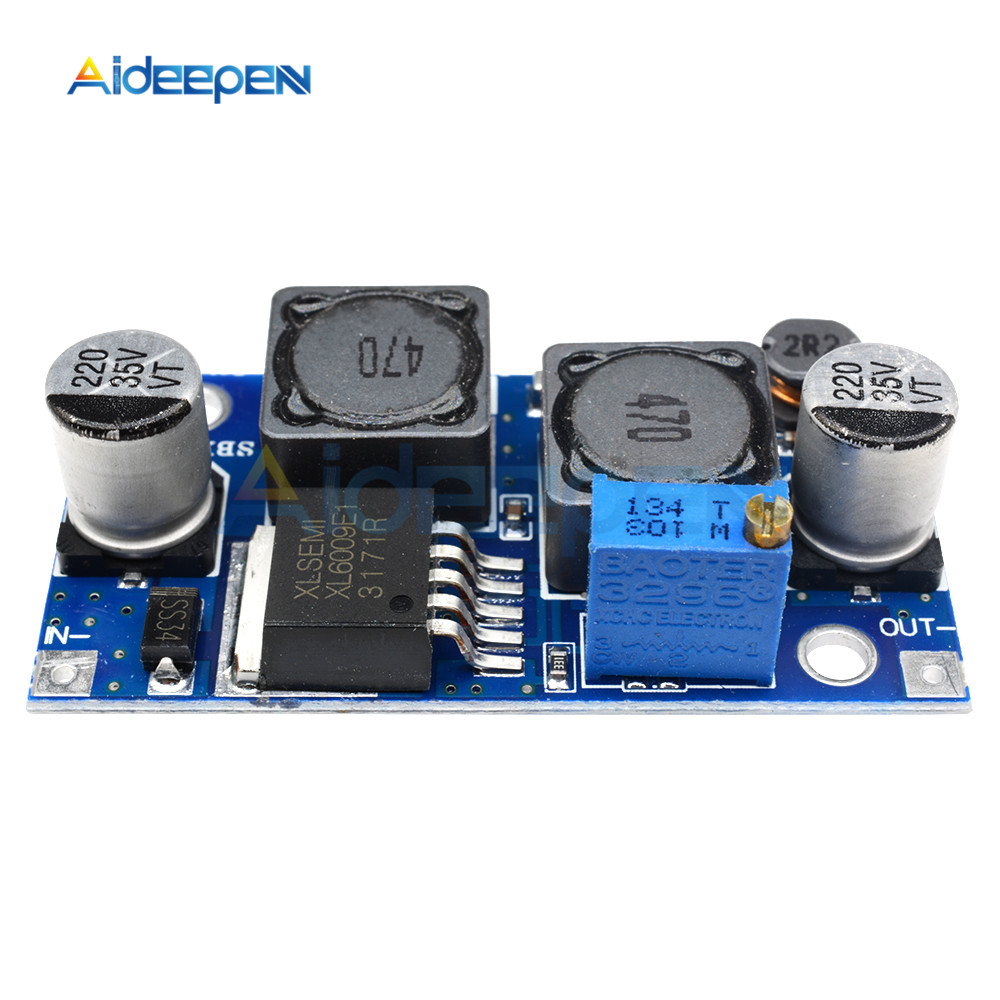

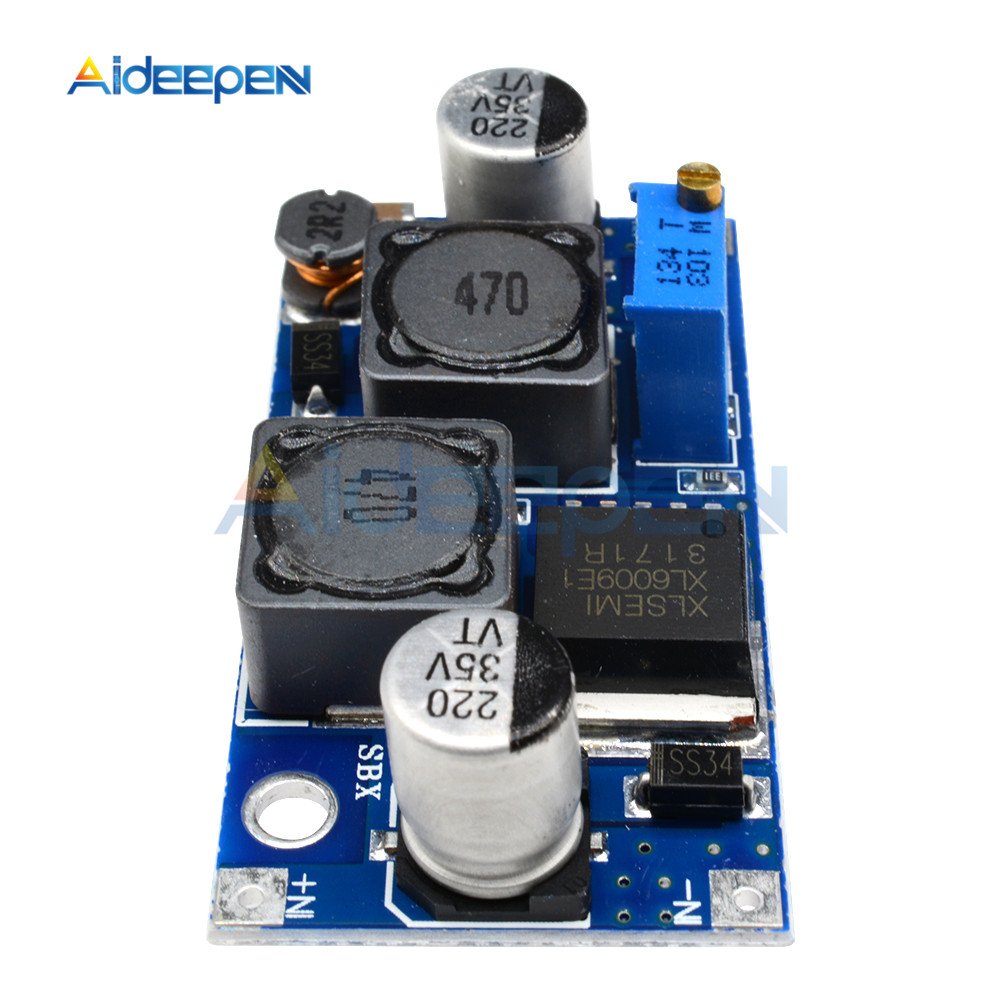

Electric Intensifier Converter Module, Xl6009 Adjustable Solar Voltage Module, 1.25-36V

Resource:

Auto start voltage will be pulled down to 7v less or less motor at high speed when voltage up to 15v or more.
For 12v electrical work hard at work, this auto buck module solves this problem, regardless of the input voltage is 5v or 12v or 32v, the output can be stabilized at 12v.
Wide input voltage 5v-32v;
Wide output voltage 1.25v-35v (with automatic buck, scope of work, all voltage inputs can be arbitrarily regulated the voltage output);
Built-in efficient MOSFET switches enable efficiency up to 94%; (Action77 current is 3A) 400khz high switching frequency, ripple is smaller and smaller. (Frequency only 50khz)
Application: car regulator, solar photovoltaic, wind power and other voltage instability applications.

Technical parameters:

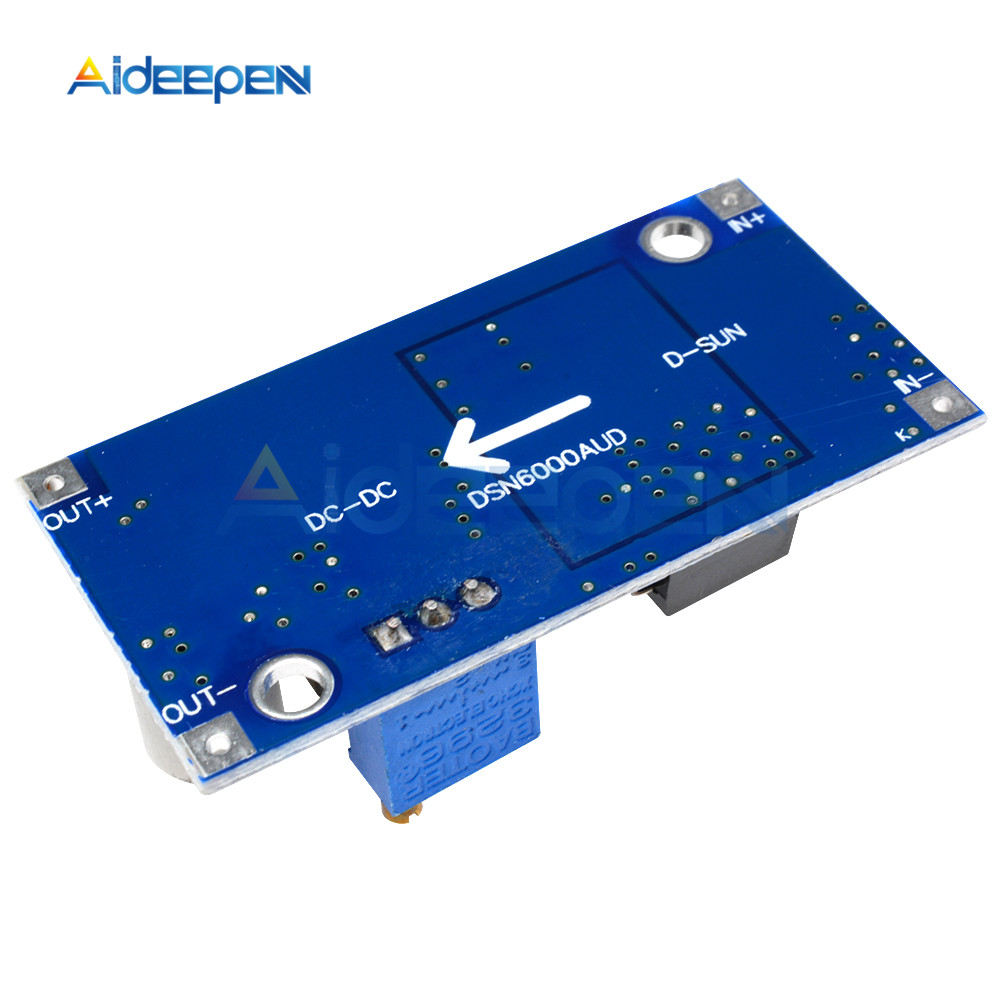

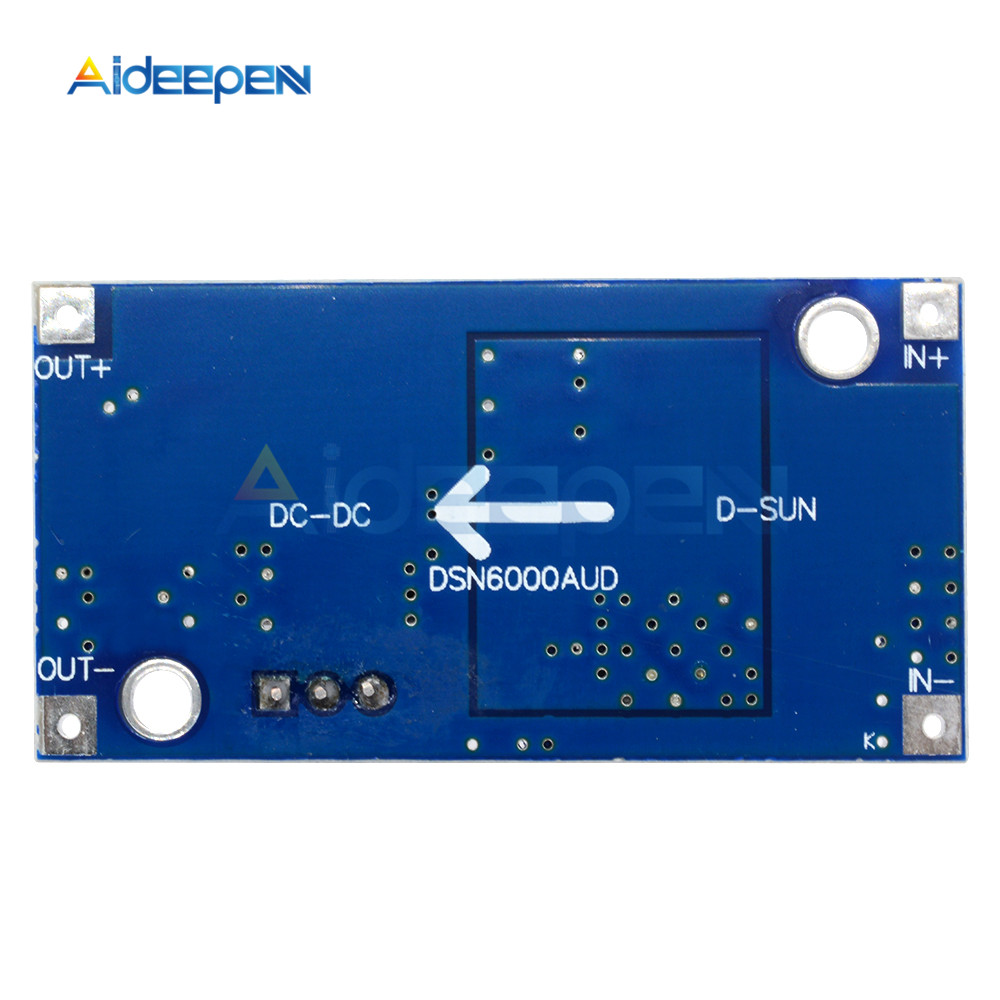

Model specification: dsn6000aud automatic buck module Module
properties: non-isolated pulse (pulse)
Rectification: non-synchronous rectification
Input range: 3.8v-32v
Output range: 1.25v-35v
Input current: 3a (max. ), 18ma no load (5v input, 8v output, no load is less than 18ma. Higher the voltage, the higher the load current.)
Conversion efficiency:<94% (the higher the pressure, the lower the efficiency)
Switching frequency: 400khz
Output ripple: 50mv (the higher the voltage, the greater the current, the larger the ripple)
Load regulation: ±0.5%
Voltage regulation: ±0.5%
Operating temperature: -40-85
