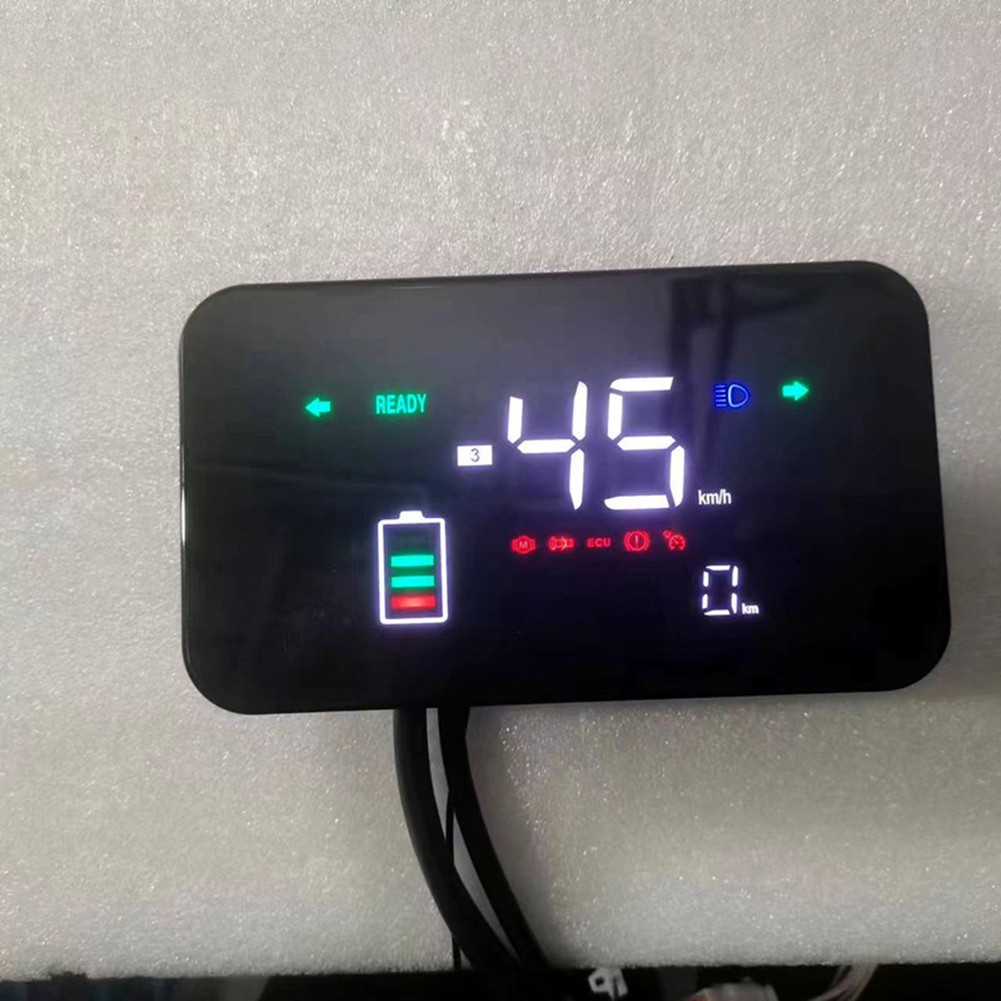

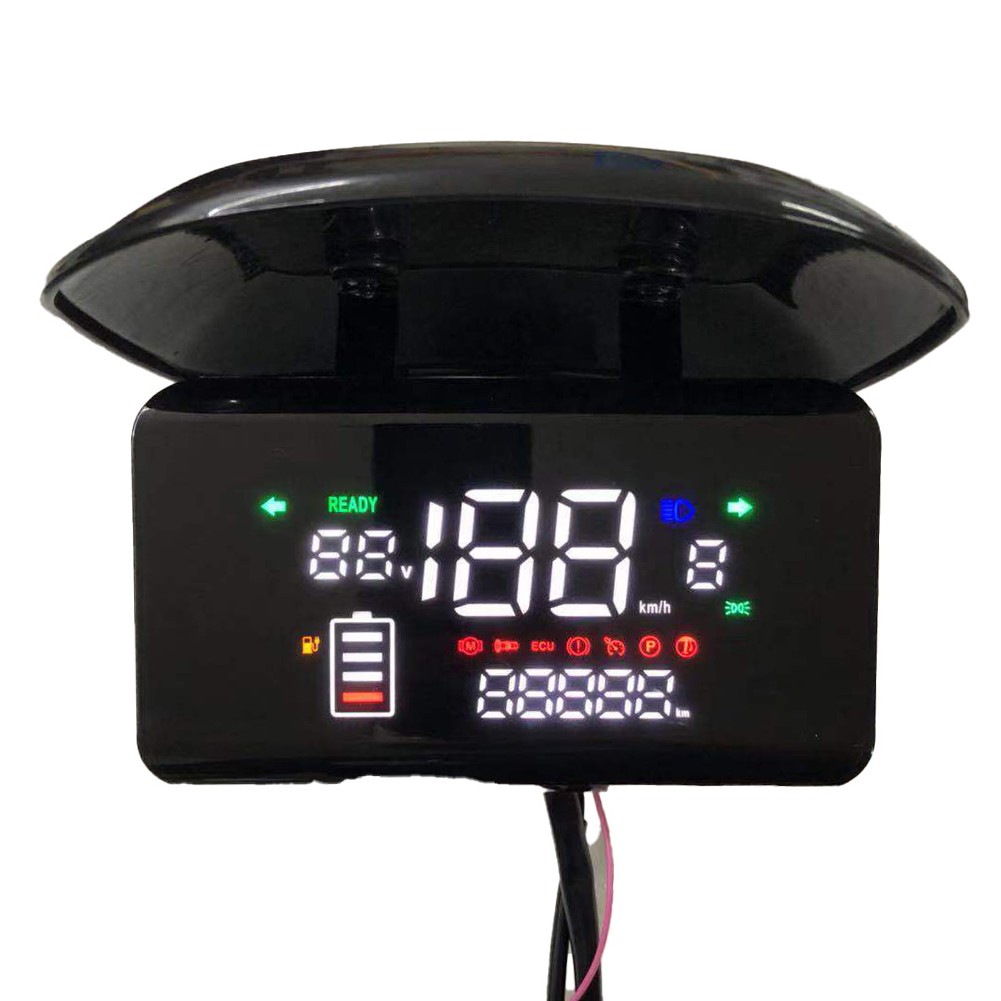

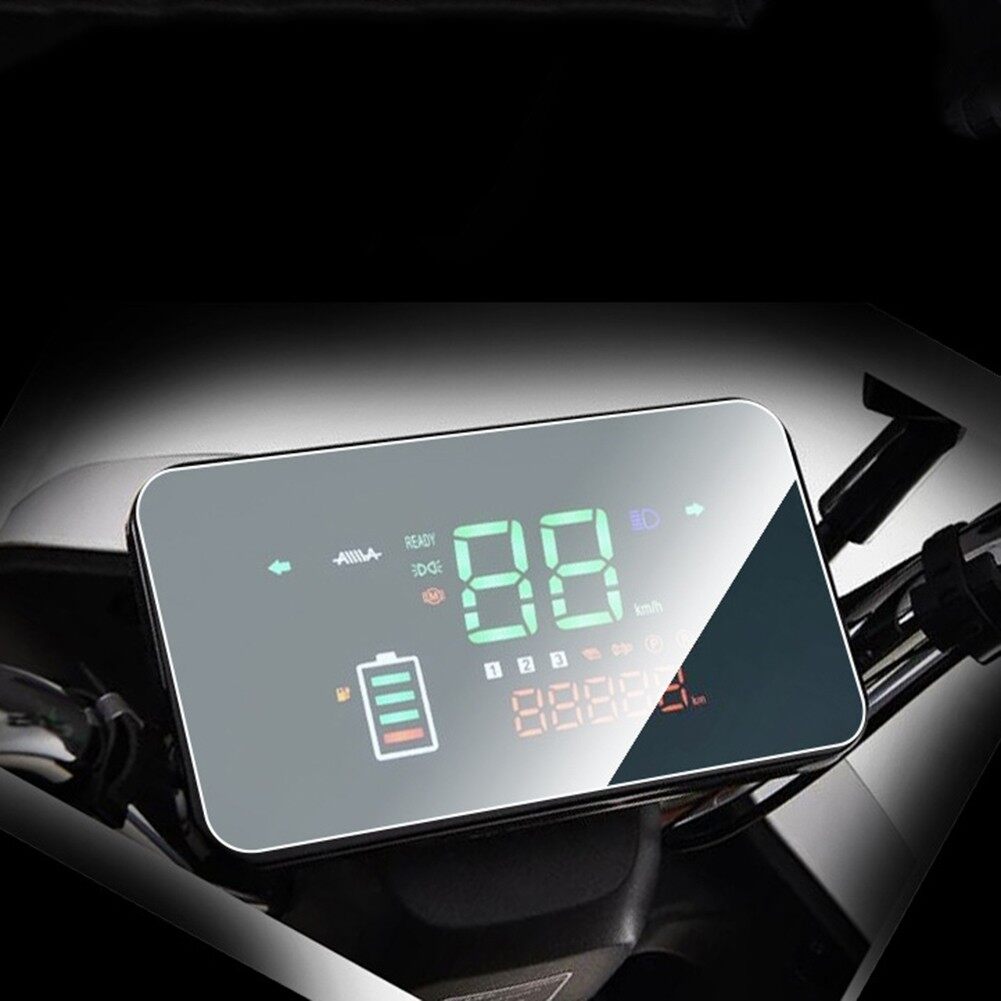

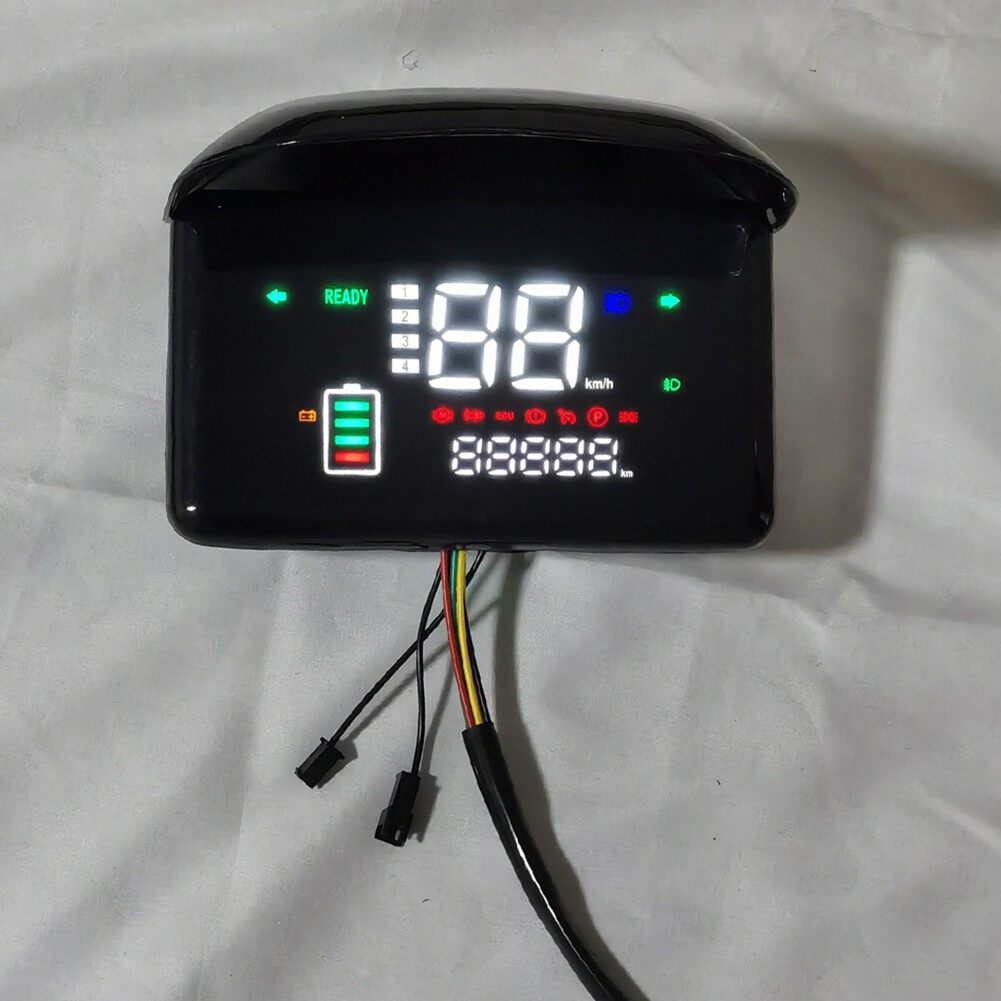

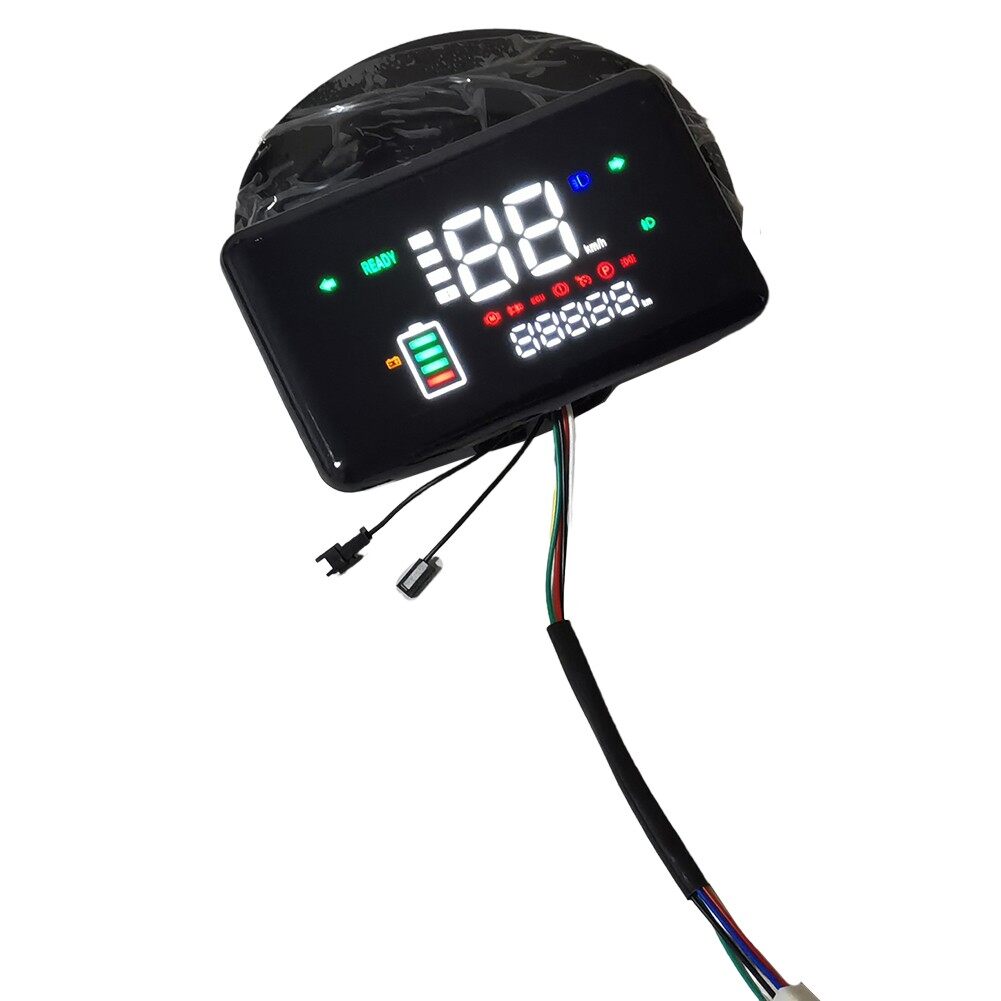

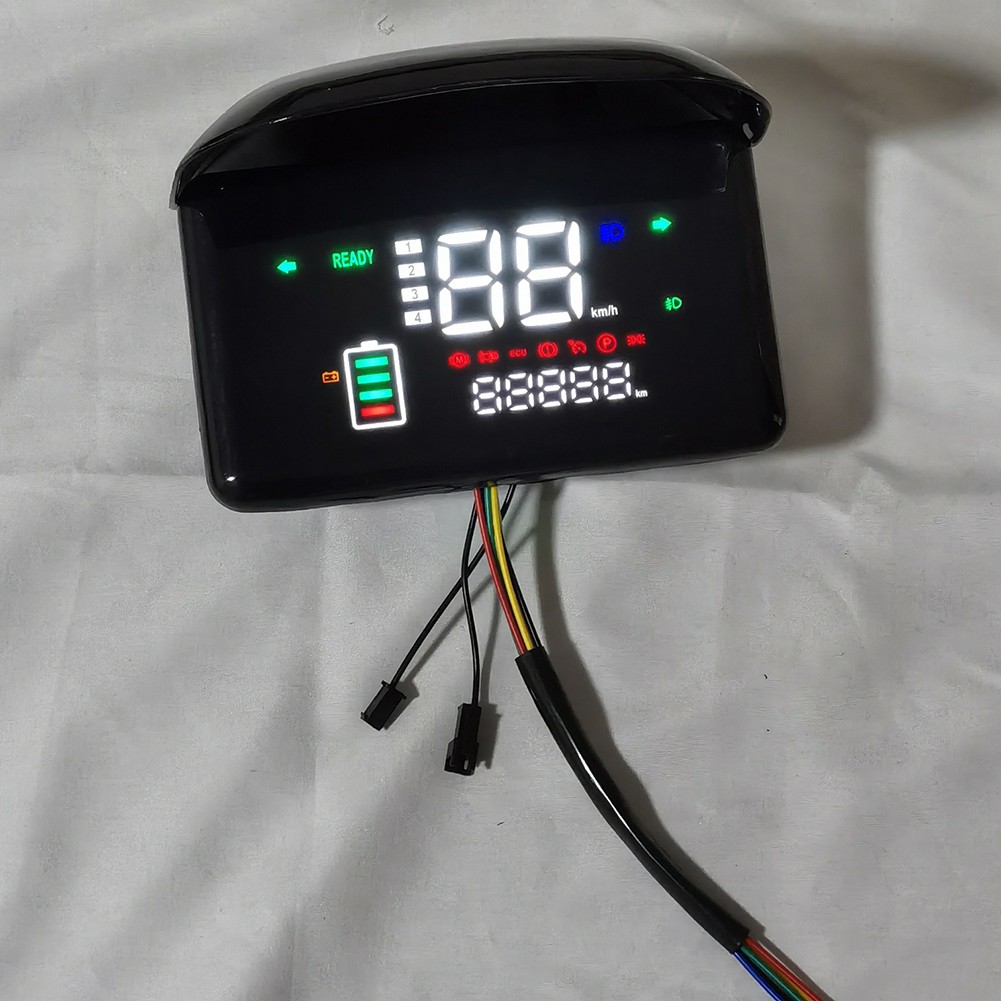

Electric Bicycle LCD Display Motor Speedmeter Screen For 48V -72V E-bike Scooters

note :Please do not place the order if your controller that supports one-line communication and RS485 protocol. This display only supports phase-line speed display is not compatible with any protocol, including RS485, CAN, UART protocols, etc.

Description:

*Brand new and high quality

*Made of high-quality materials,

*Used to replace electric bike partfor 48V-72V

*design for ebikes ,scooters etc Electric tricycle electric vehicle digital meter tram LCD assembly repair

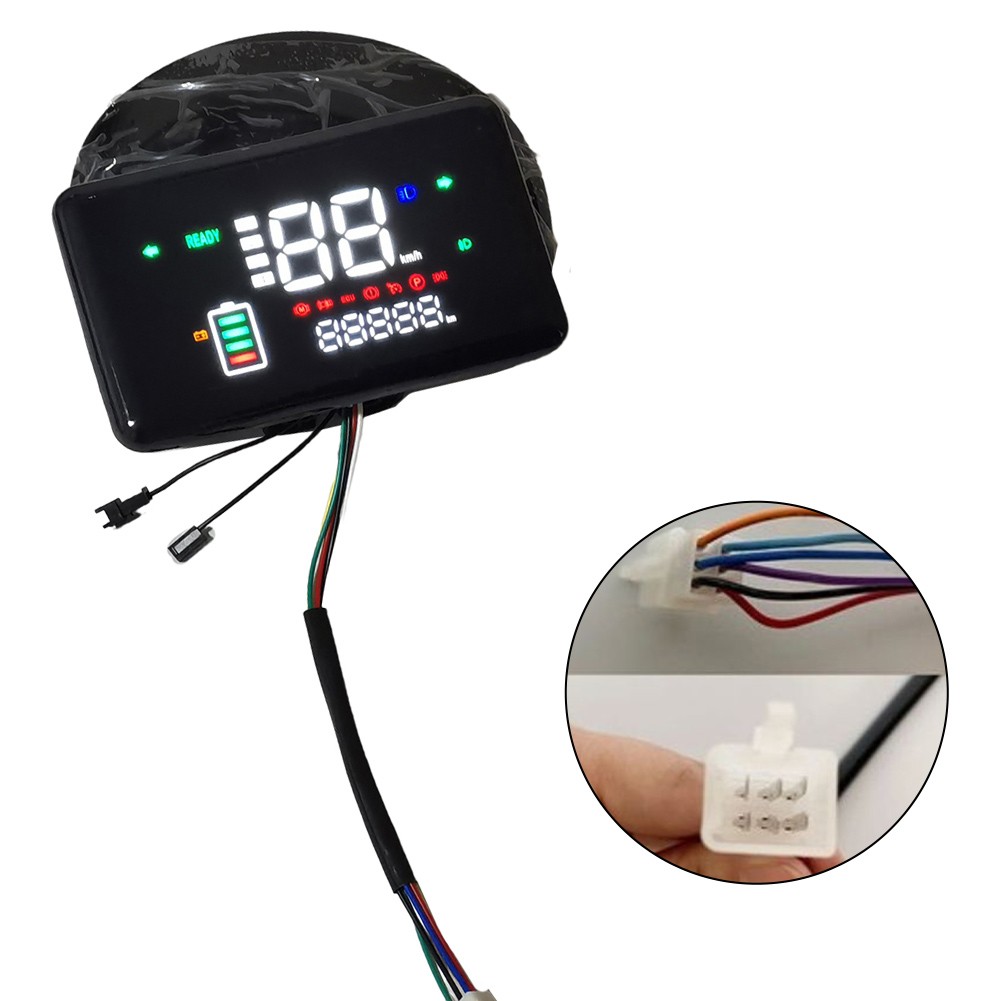

*easy to use and install,6PIN interfaceinclude Blue line left turnGreen line turn rightRed positive electrodeBlack negativeYellow velocityWhite headlightgood compatibility

Specifications:

type: ebike display

Color: black

MAX speed display:99KM /H

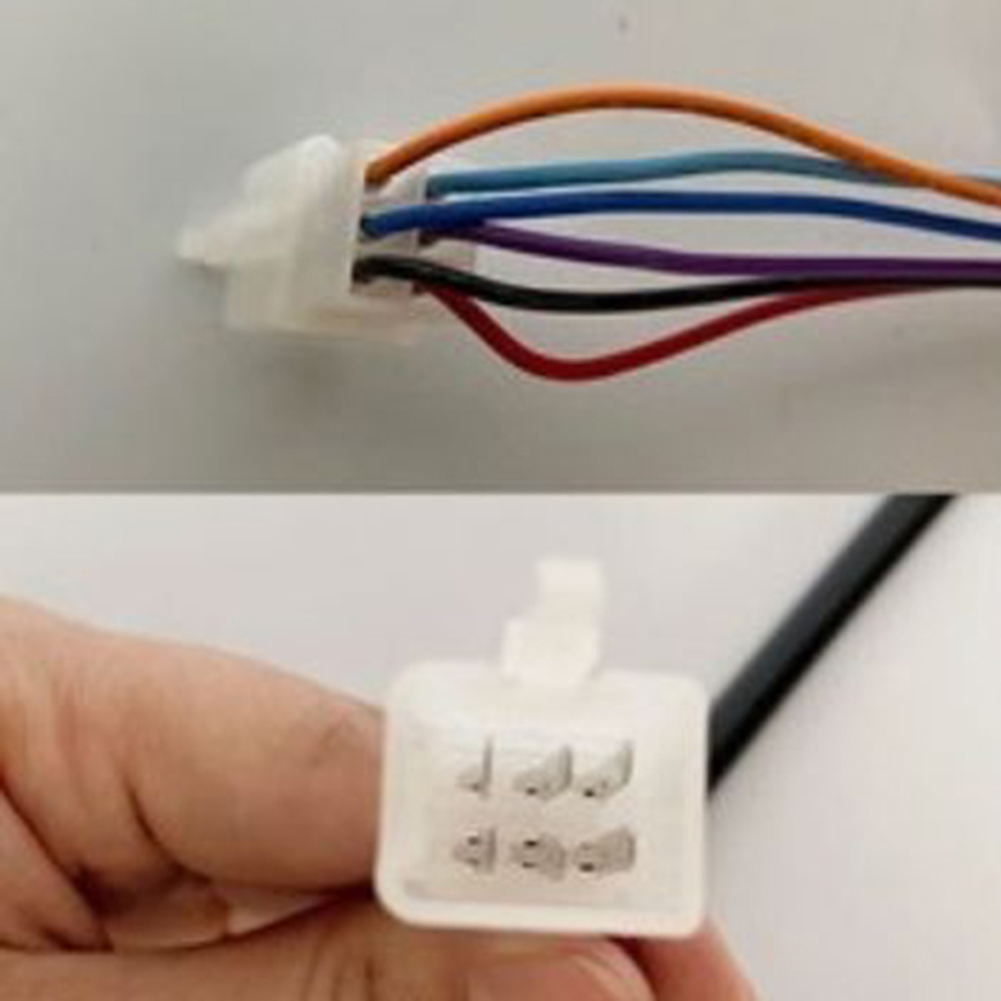

interface:6pin

Interface definition

Blue line left turn
Green line turn right
Red positive electrode
Black negative
Yellow velocity
White headlight

line length approx 26Cm

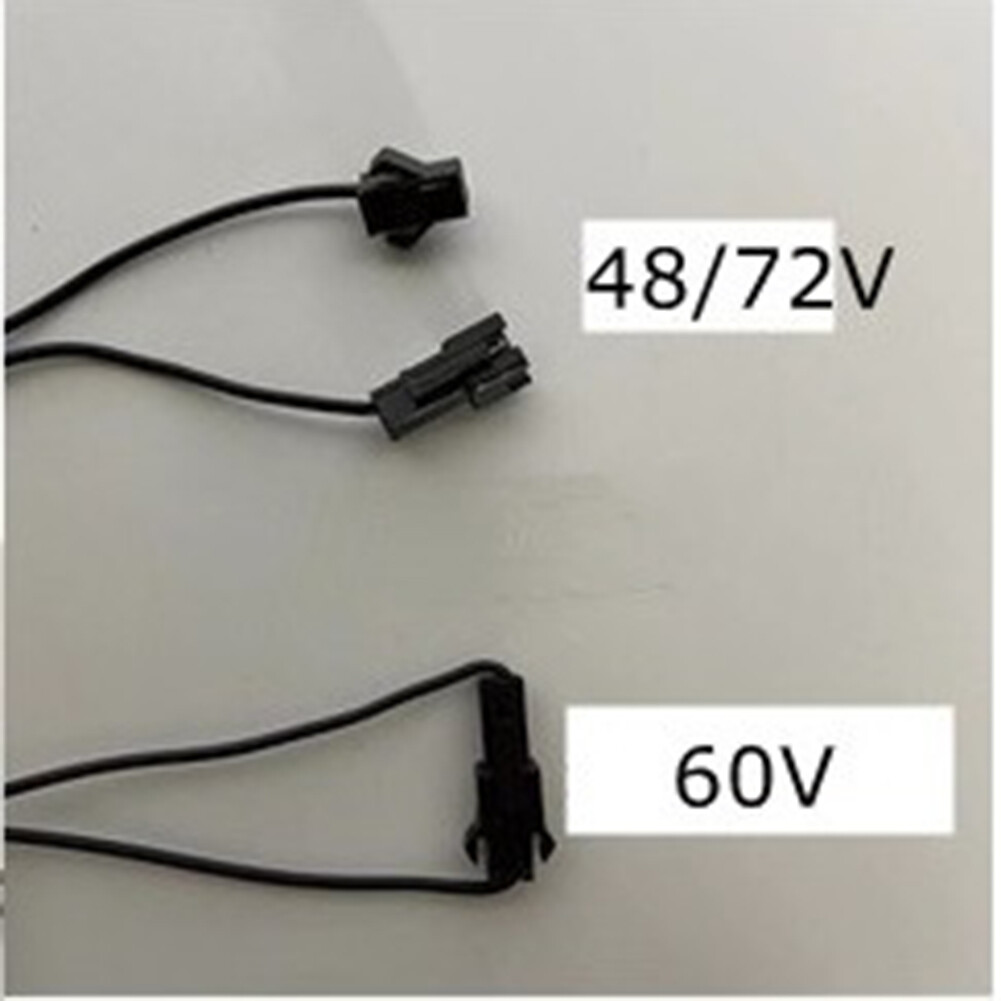

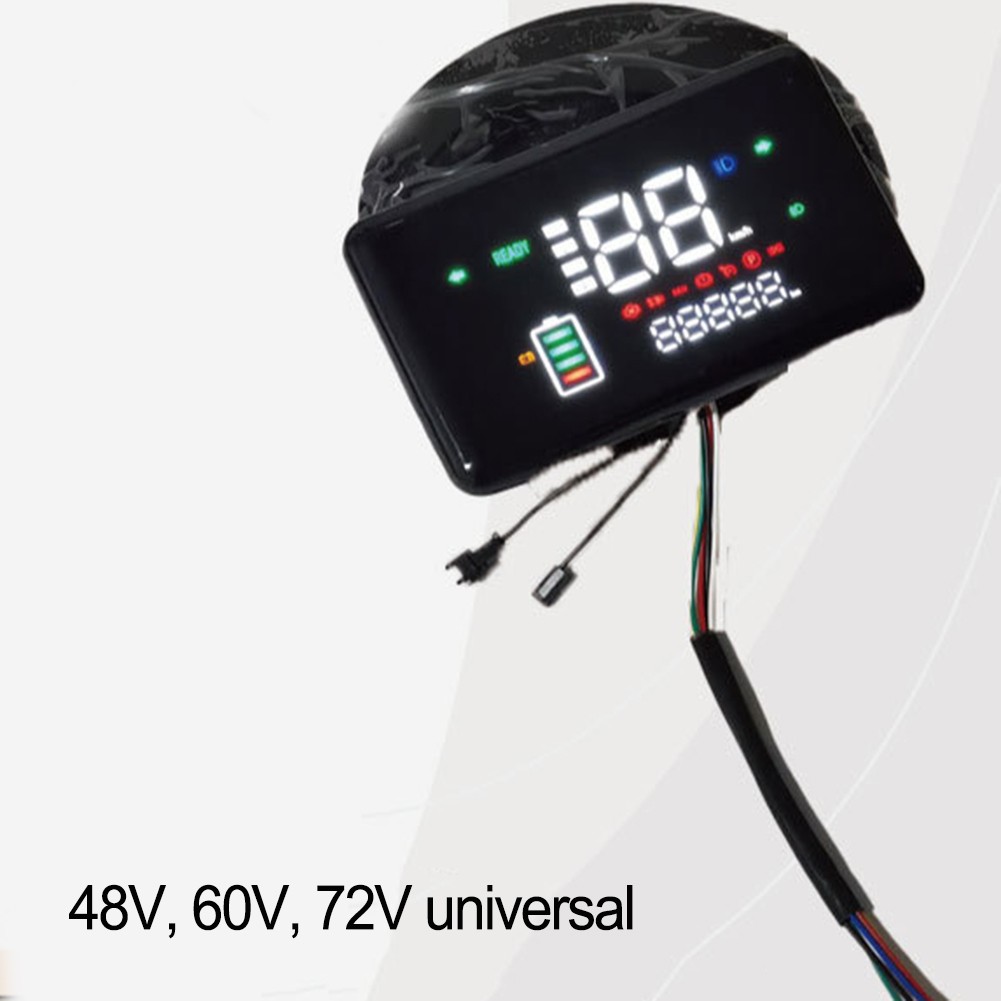

Working voltage:48-72v

Temperature range:-20-150C

Specification of wind deflector screws:M5x15MM

Package List:

pakckage list1:1x display

pakckage list2:1x display+1xWindshield

Note:
1. The real color of the item may be slightly different from the pictures shown on website caused by many factors such as brightness of your monitor and light brightness.
2. Please allow slight manual measurement deviation for the data.
