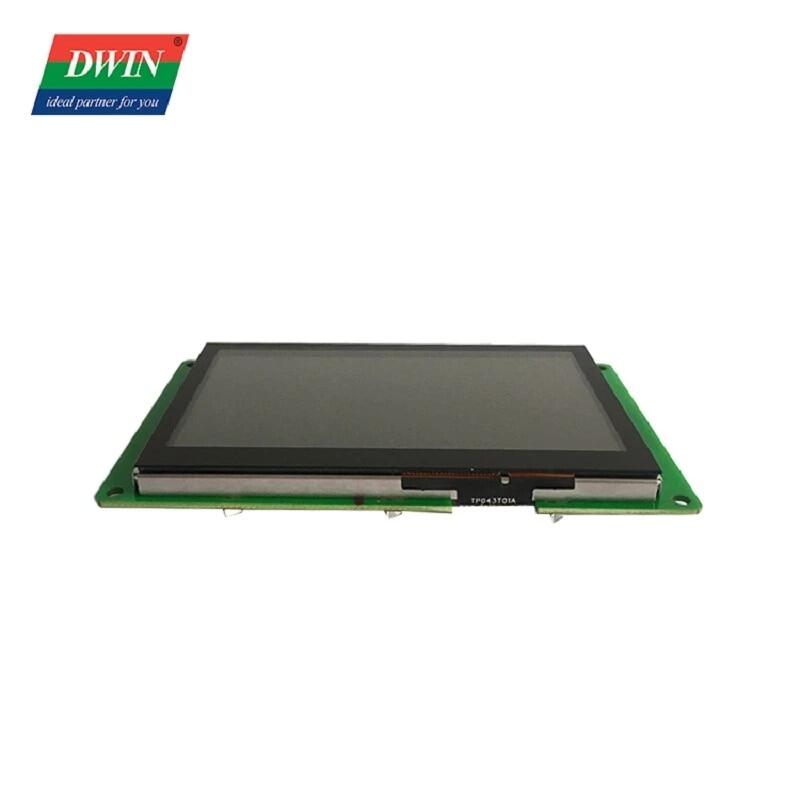

DWIN 7 Inch 800*480 TFT LCD Display Module Capacitive/Resistive TTL/RS232 Commercial Smart Screen For Arduino DMG80480C070_04W

• Origin:Mainland
• Model Number:DMG80480C070-04W
• Type:TFT
• is_customized:Yes
• Resolution:800*480
• Brightness:250nit
• Panel Type:TN-TV
• Working Temperature:-20_+70℃
• Storage Temperature:-30_+80℃
• Inter:10Pin_1.0mm FCC Socket
• Grade:Commecial
• Power :5V,4.5V-5.5V
• Backlight:LED
• Color:262K colors

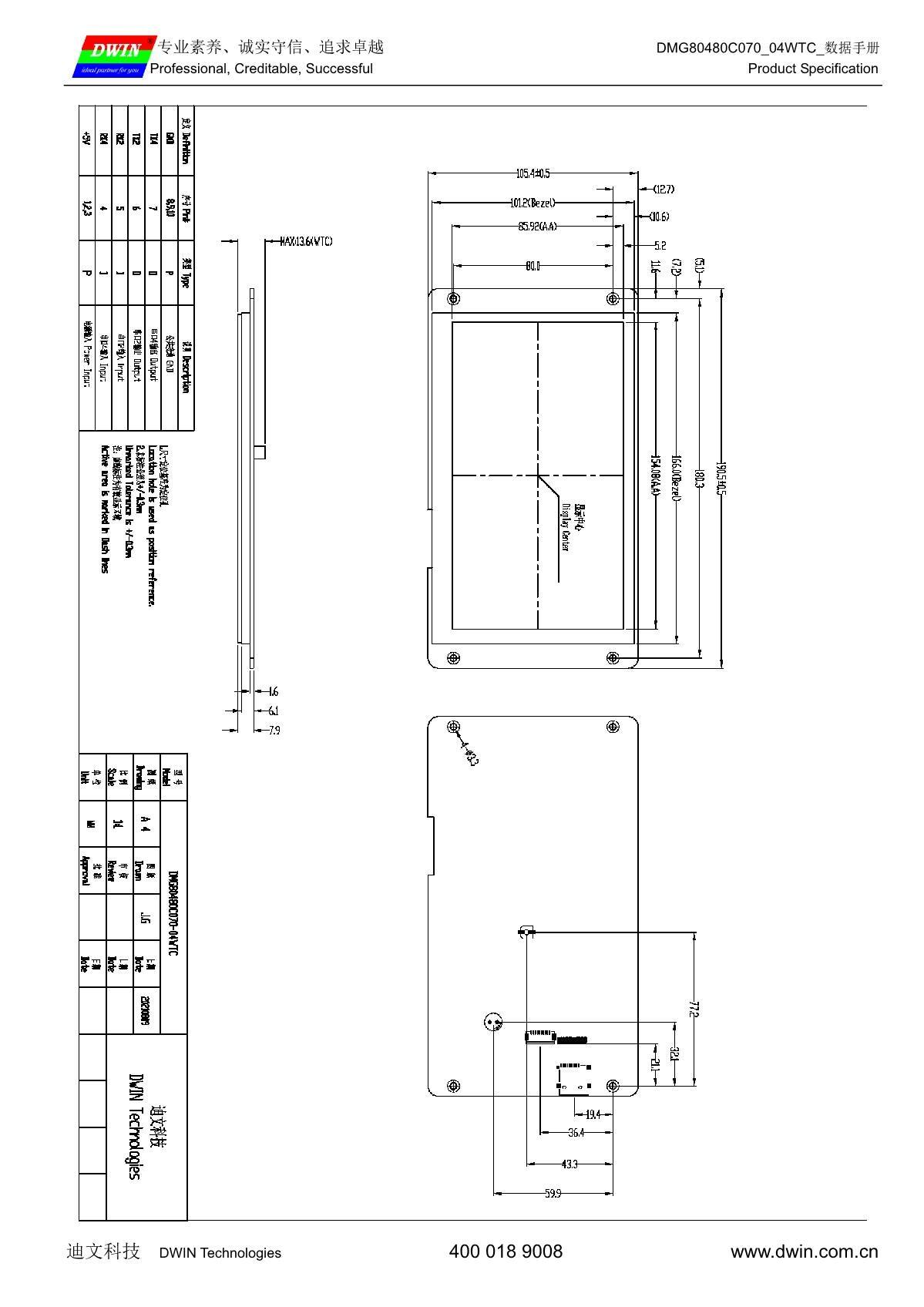

• Active Area (A.A.):154.1mm (W) *85.9mm (H)
• Viewing Angle:70/70/40/30(L/R/U/D)

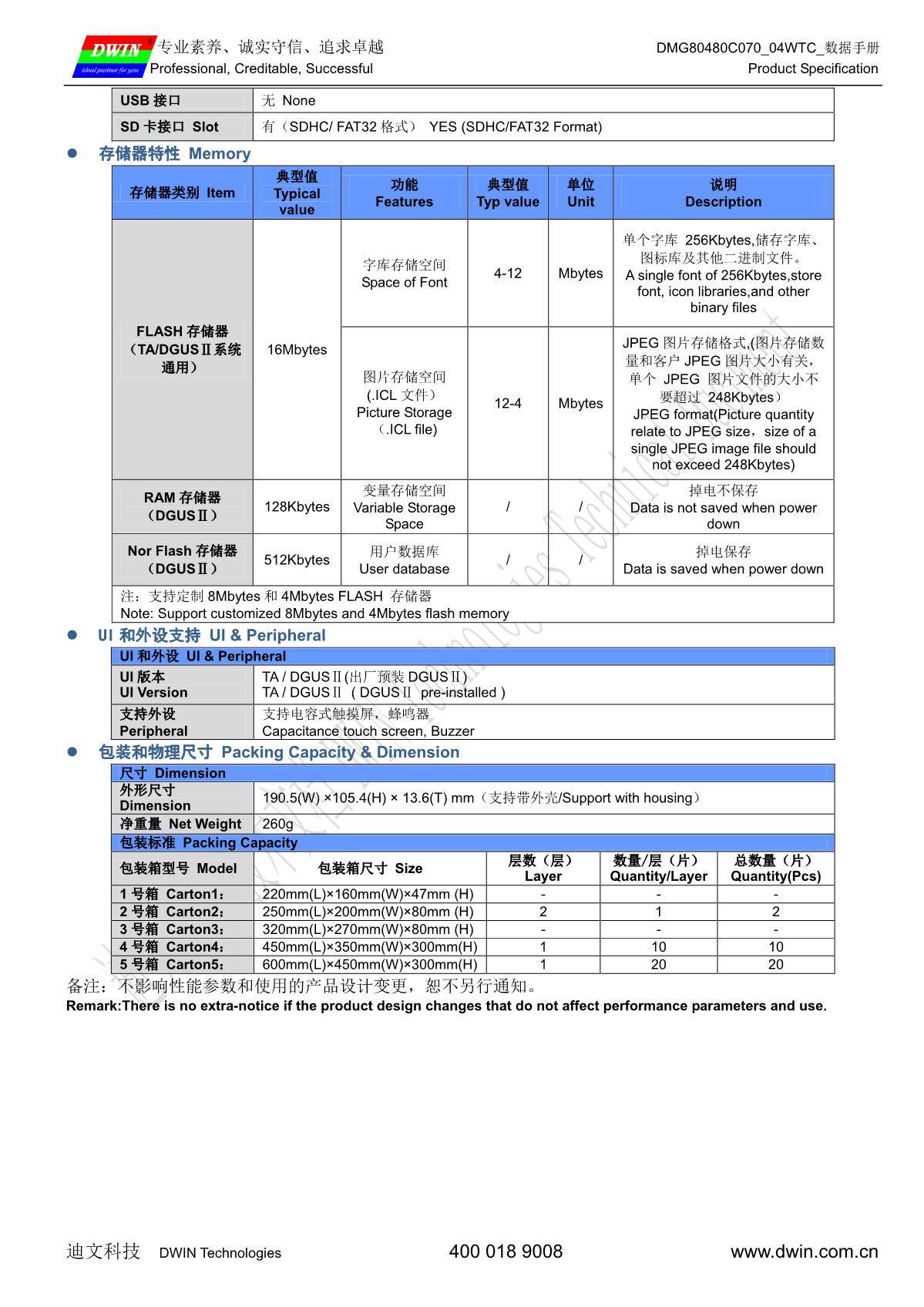

• FLASH:16Mbytes
• RAM:128Kbytes
• Nor Flash:512Kbytes
• Serial communication:TTL/RS232

DWIN 7 Inch 800*480 TFT LCD Display Module Capacitive/Resistive TTL/RS232 Commerical Smart Screen For Arduino DMG80480C070_04W

Product Information

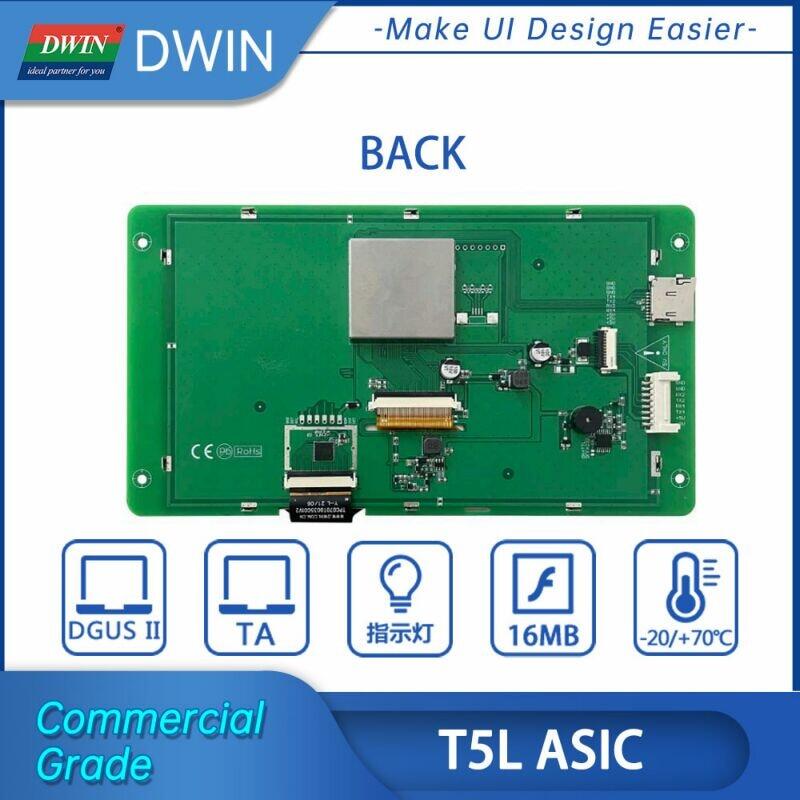

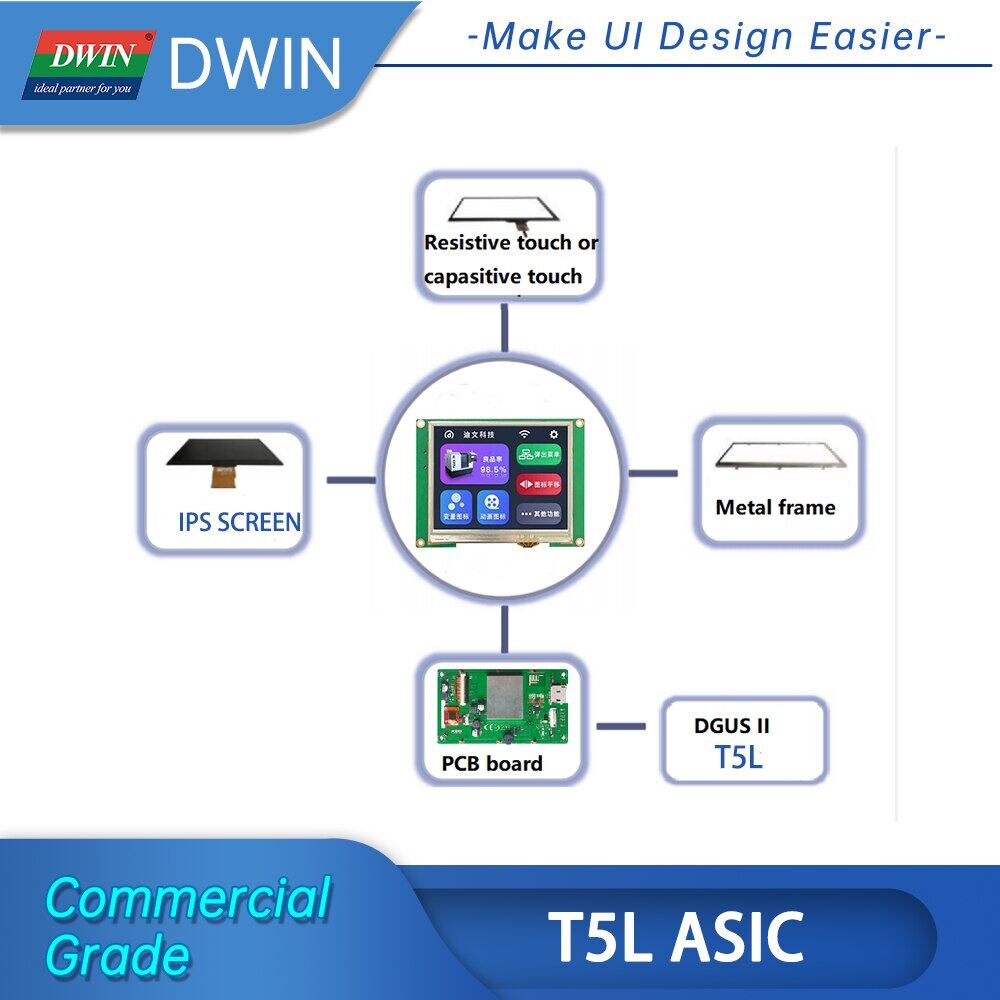

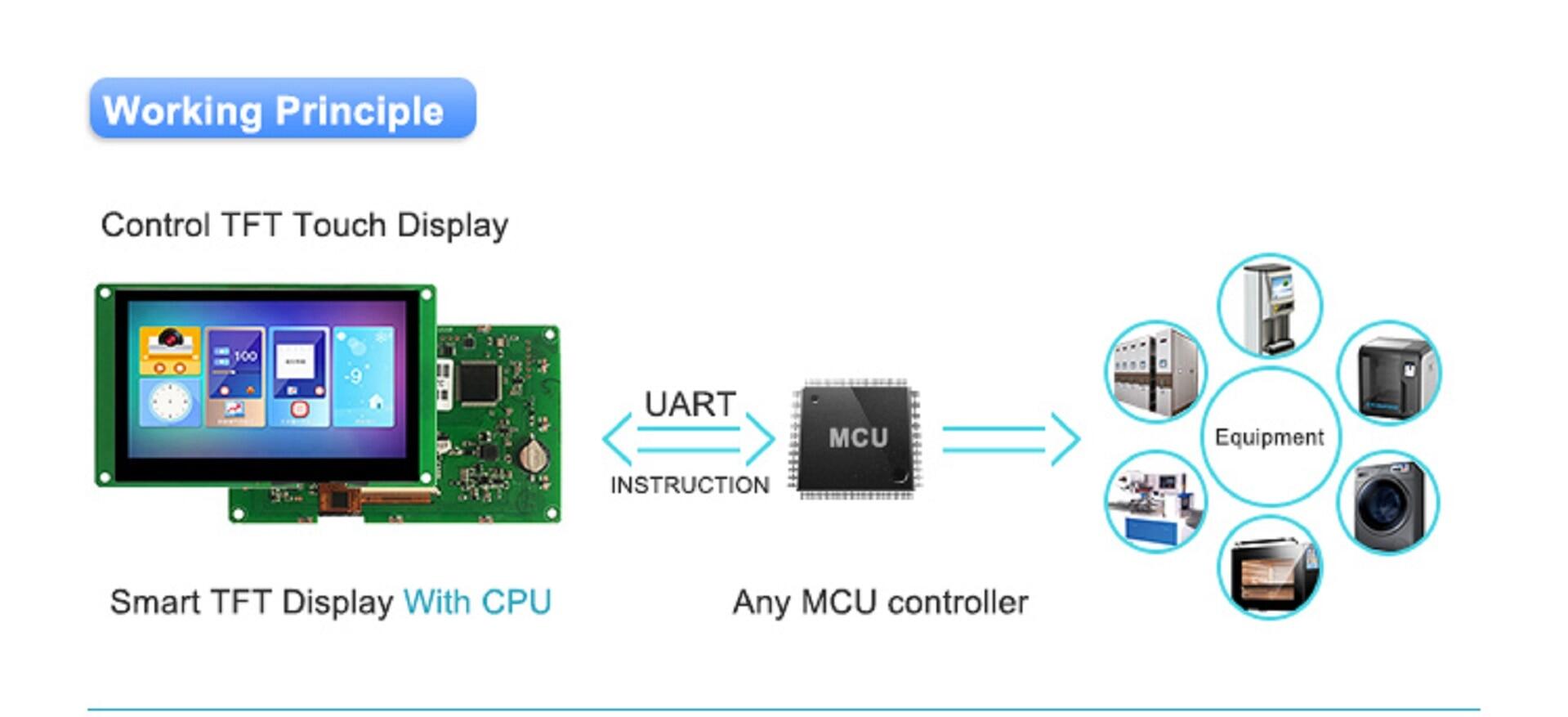

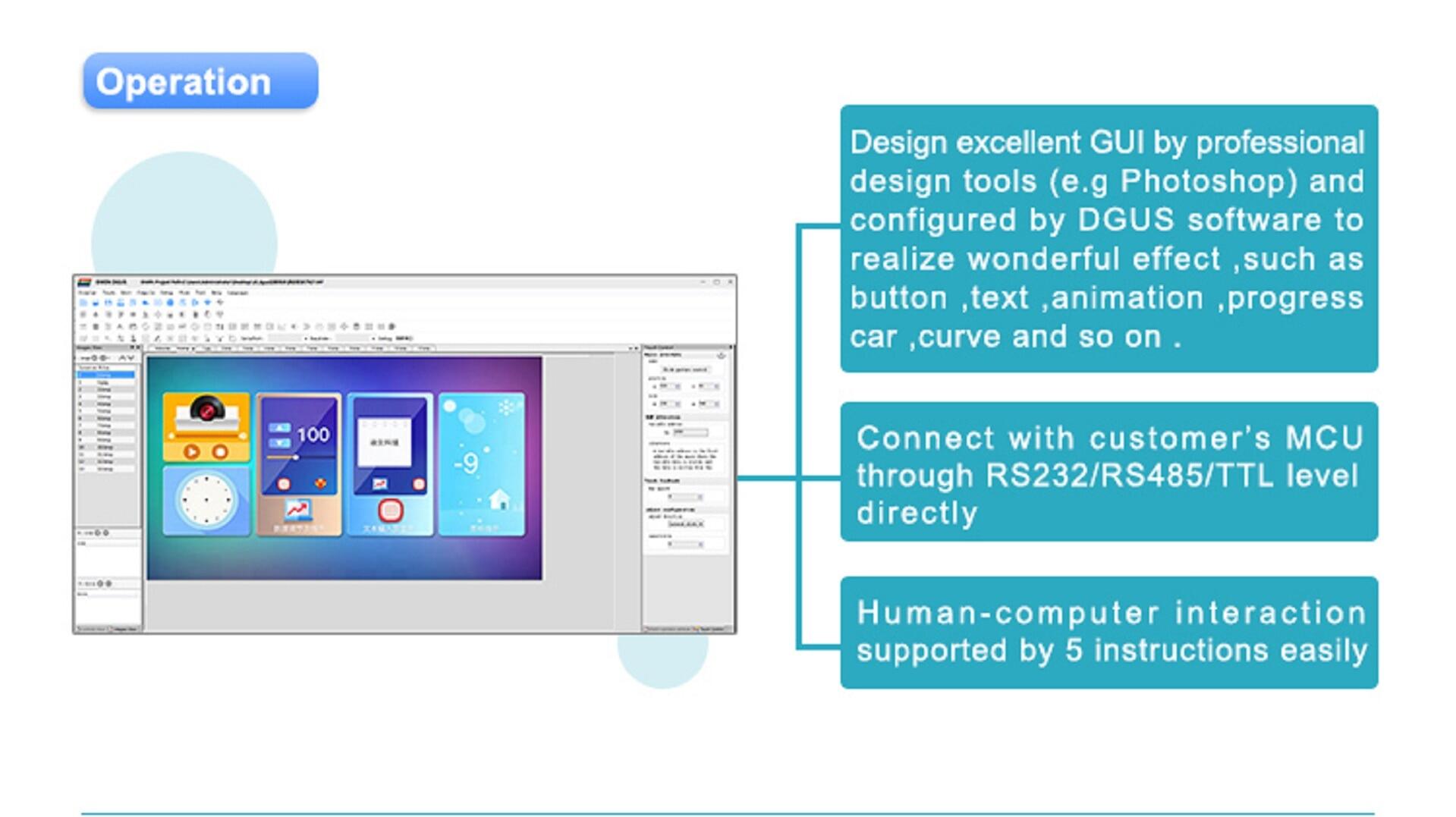

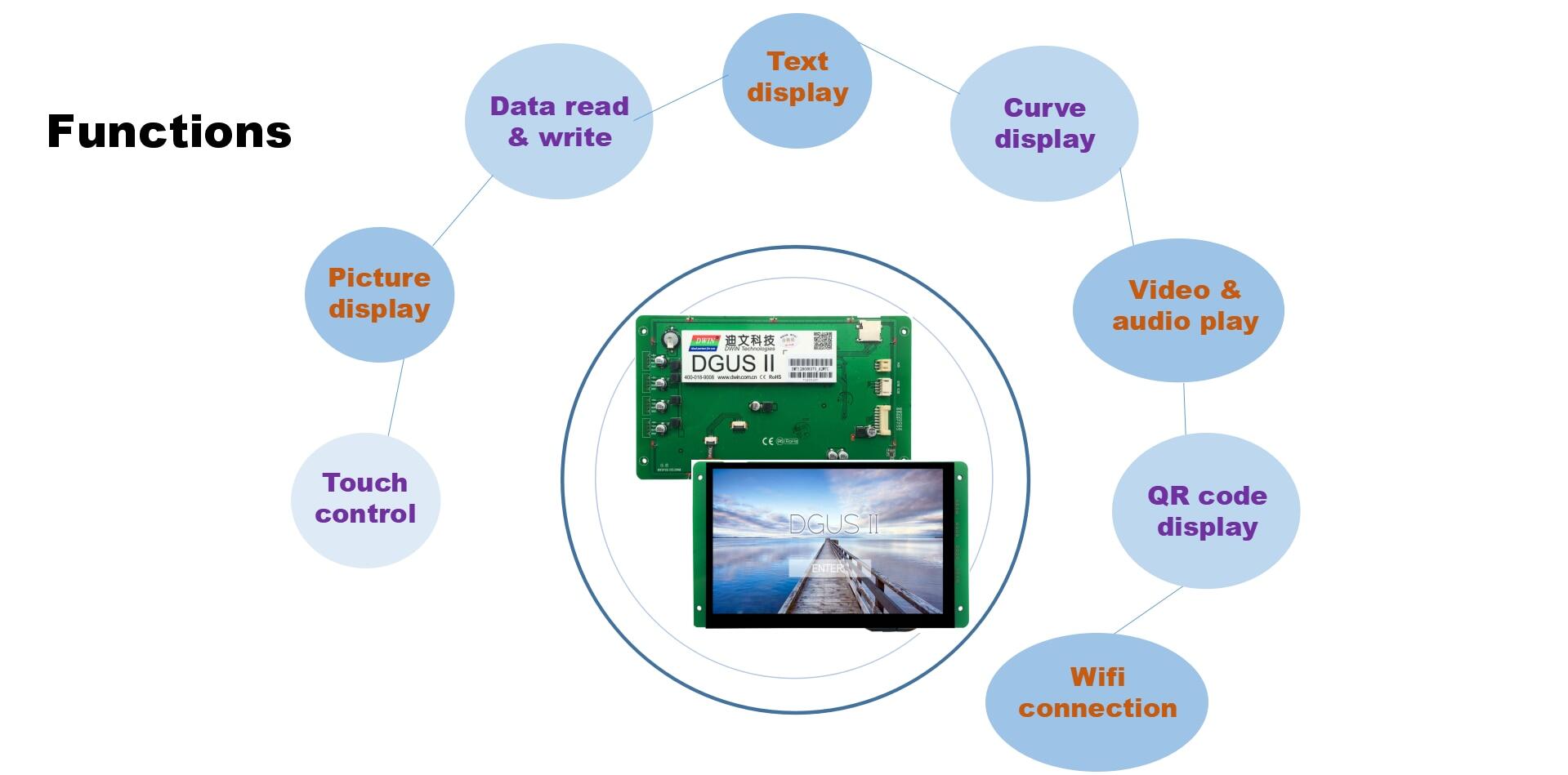

DWIN 7.0 Inch 800x480 Resolution , 262K color, TN Screen, commercial high standard TFT LCD module HMI display resistive touch panel.DMG80480C070_04W is an intelligent touch screen with UART port that can be controlled by any MCU via command, so it can be used as a TFT display & touch controller in various electronic equipment.Lcd display screen panel, touch lcd screen, DWIN display is your best choice for HMI project. DWIN LCD display based on DWIN T5L cpu with GUI and OS dual core.The GUI kernel can support UI inter design based on powerful DWIN design software tools, including data, text, curves, basic graphics, key value upload, etc.The OS kernel can be opened to the customer for a second development in the OS compilation and it enhances the ftionality of the gui.All MCUs can connect with DWIN smart display.

FAQ of DWIN HMI Intelligent Displays

Q1: How can I start development with a DWIN LCD Module? Can I assemble it directly on my machine?

A: No, you should update the program to LCD at first, and then assemble it.

Step 1, check the software platform of the screen, it mentioned in datasheet.

Step 2, use the correct development SDK (different platform use different SDK) to finish developing.

Step 3, update software program and test

Step 4, when test OK, assemble it on machine.



Q2: Does your product include program software?

A: Yes. The free graphic user inter software is included.



Q3: Does DWIN product need a MOQ when purchase? I only need some samples in the first.

A: No MOQ for standard product.



Q4: What kinds of Express services are supported? Trade terms is ?

A: standard shipping or DHL, TNT, UPS,FedExrequired. Trade terms is EXW.



Q5: Does DWIN screen support playing videos or audios?

A: All display with speaker inter support playing audios. Andmulti-accessproduct support analog video and digital video.



Q6: What kind of size screen can DWIN provide?

A: 2.0" 2.4" 2.8" 3.0" 3.5" 4.0" 4.1" 4.3" 5.0" 5.6" 6.86" 7.0" 8.0" 8.88" 9.7" 10.1" 10.2" 10.4" 12.1" 15.0" 15.6" 18.5" 21.5"



Q7: I don’t want spend my time on development your screen, can you development it for me?

A: Yes, DWIN provide customize solutions, please contact me and advise demands details.



Q8: What is the quality warranty of DWIN screens?

A: 12 months starting from the CI date.



Q9: What terms of payment?

A: 100% T/T in advance.

If return or refund is needed, please contact us before goods returning!

Any further questions, or customizing service needed, please contact me by clicking contact seller!

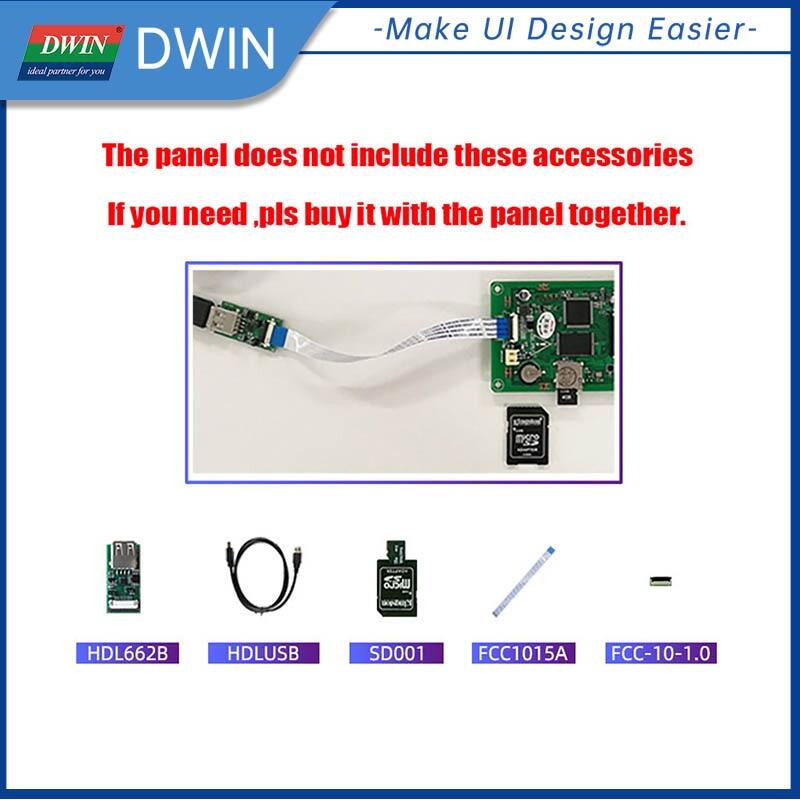

Please note that all of the accessories need to purchase separately.
