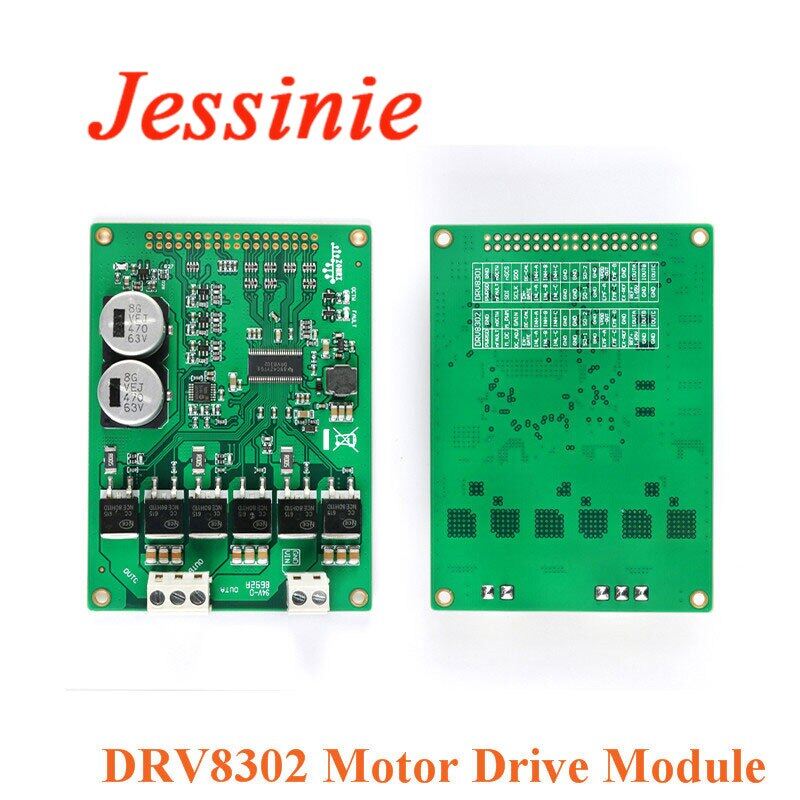

DRV8302 High Power Motor Drive Module Amplifier Module ST FOC Vector Control BLDC Brushless/PMSM DC5.5-45V Integrated Circuit Electrical Circuitry - Parts

• Package:TQFP
• is_customized:Yes
• Model Number:DRV8302 Module
• Operating Temperature:-
• Dissipation Power:-
• Supply :DC5.5-45V
• Application:-
• Condition:New
• Type: Regulator
• Origin:Mainland

Product Description:

• Rated power input range: 5.5V-45Vdc, output rated drive 15A (no radiator installed at room temperature).

• On-board three-phase external amplifier circuit with a gain of 12.22 and a full-amplitude of ±27A.

• Onboard three site electromotive force sampling circuit and power sampling circuit, the signal attenuation ratio is 5.1/73.1.

• Optional three-phase differential amplifier reference level for connection to 5V or other level systems.

• Reserved and equipped with the DRV8302 internal dual amplifier output.

• Three external differential amplifiers support ST FOC library applications.

• Support BLDC non-inductive brushless motor drive application development.

Common Problem:

Q: How can I develop a non-inductive BLDC driver using this module?

A: The DRV8302 motor drive module has three site electromotive force BEMF outputs, which can be used for sampling and changing.

Phase signal.

Q: Do you support the ST FOC library?

A: The DRV8302 driver board is designed with three external s in addition to the two chip internal amplifiers.

The amplifier circuit supports the ST FOC library three-resistor sampling mode.
