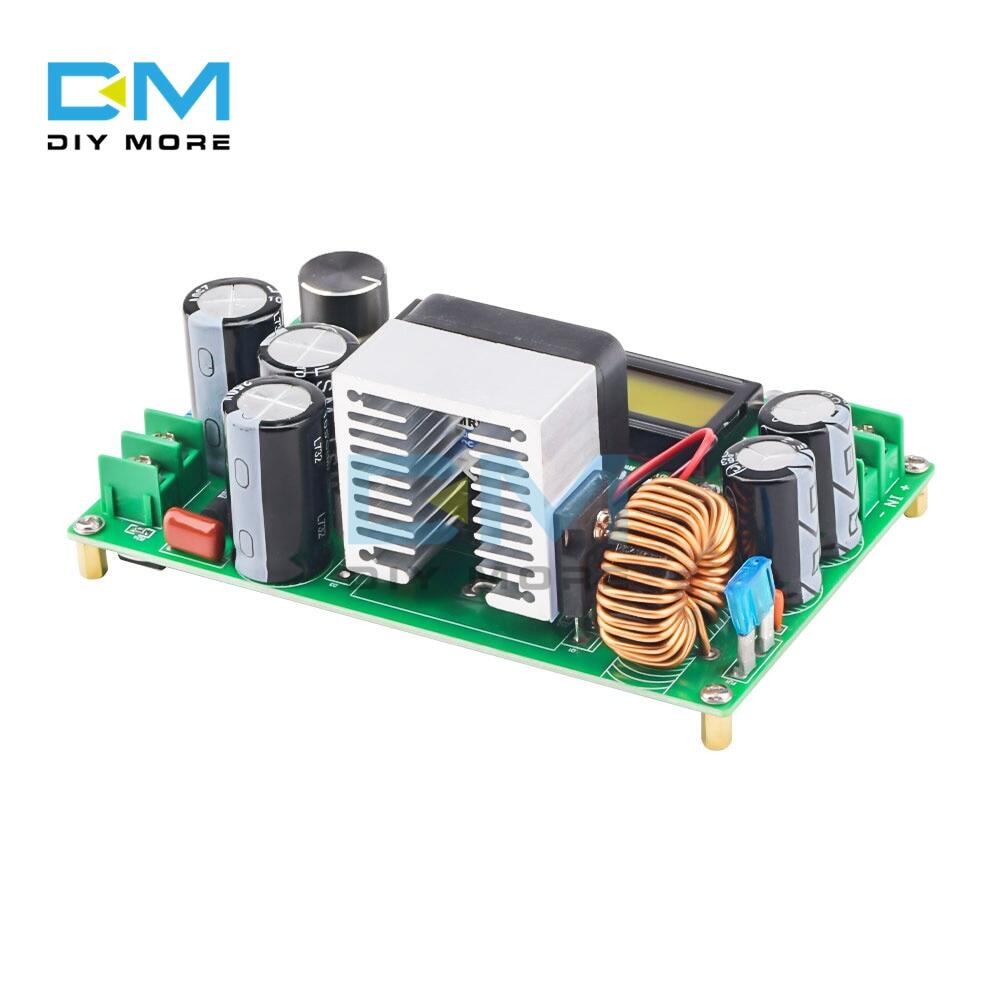

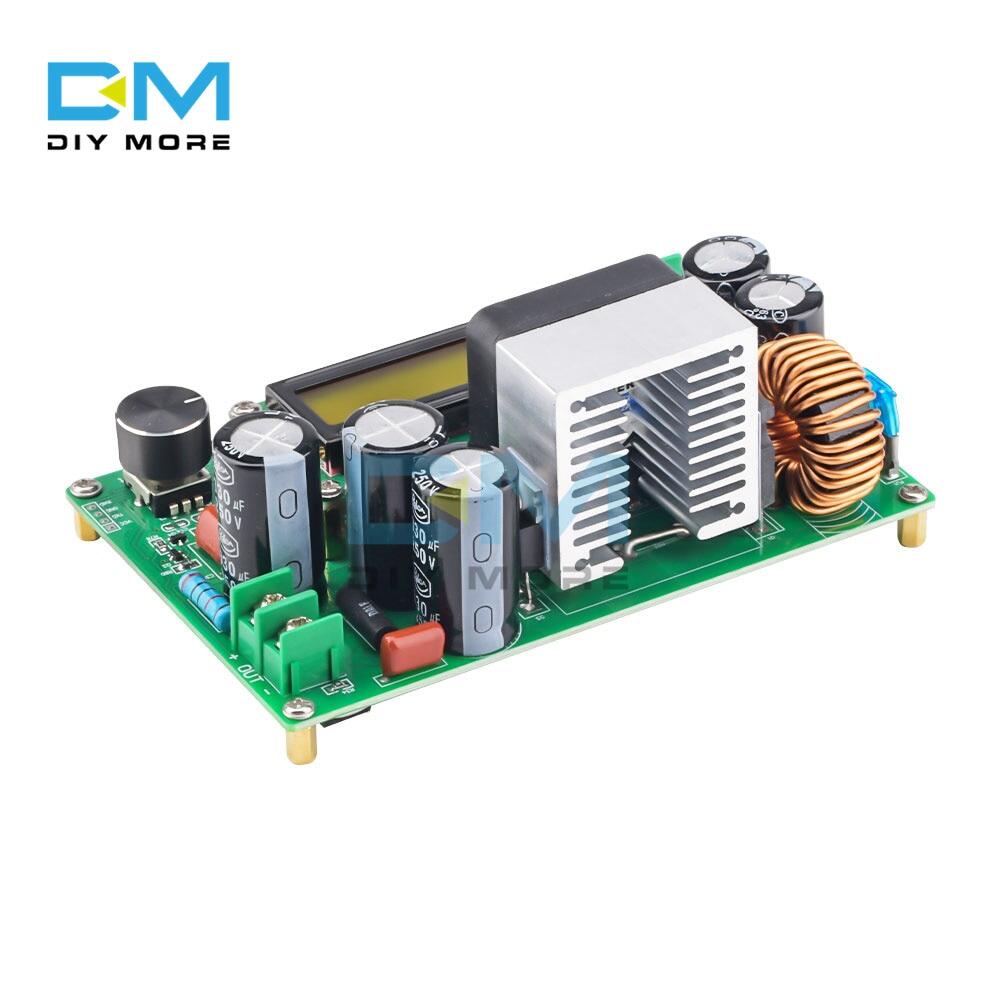

DPX800S DC-DC NC CV CC Booster Module CNC Boost 12V~120V 800W 0-15A Adjustable MPPT Constant Module

• Package:SMD
• is_customized:Yes
• Model Number:DPX800S
• Operating Temperature:Booster Module
• Dissipation Power:800W
• Supply :12V~120V
• Application:Computer
• Condition:New
• Type: Regulator
• Origin:Mainland

Features:

1: Small size, high power, high efficiency, stable work, can be constant and constant transmission

2: Comes with a fan to dissipate heat, and the temperature rise is small

3: With boost MPPT ftion, suitable for solar panel boost charging to capture the maximum output power of the solar panel

4: The use of high-quality power devices, with the CV and CC loops formed by the peripheral precision operational amplifiers, greatly improves the performance of the module

5: With communication ftion, it is convenient for secondary development

Product introduction:

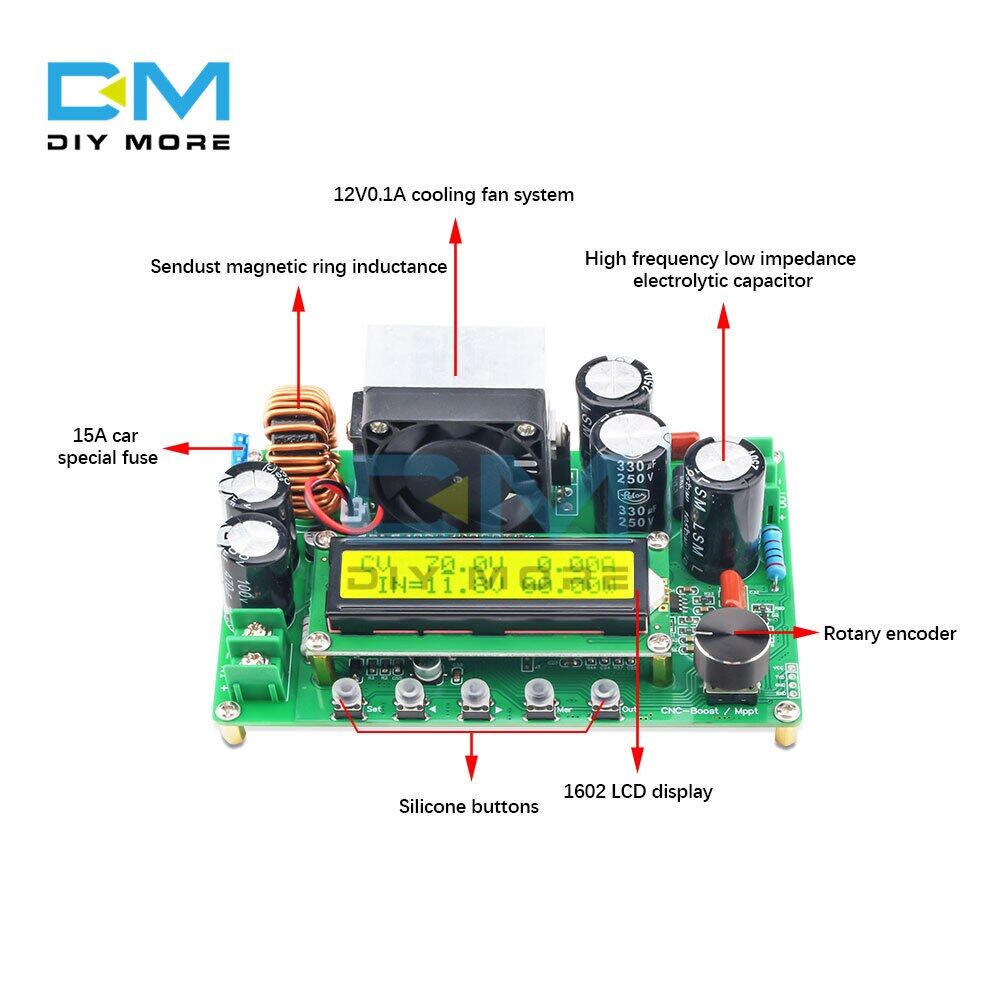

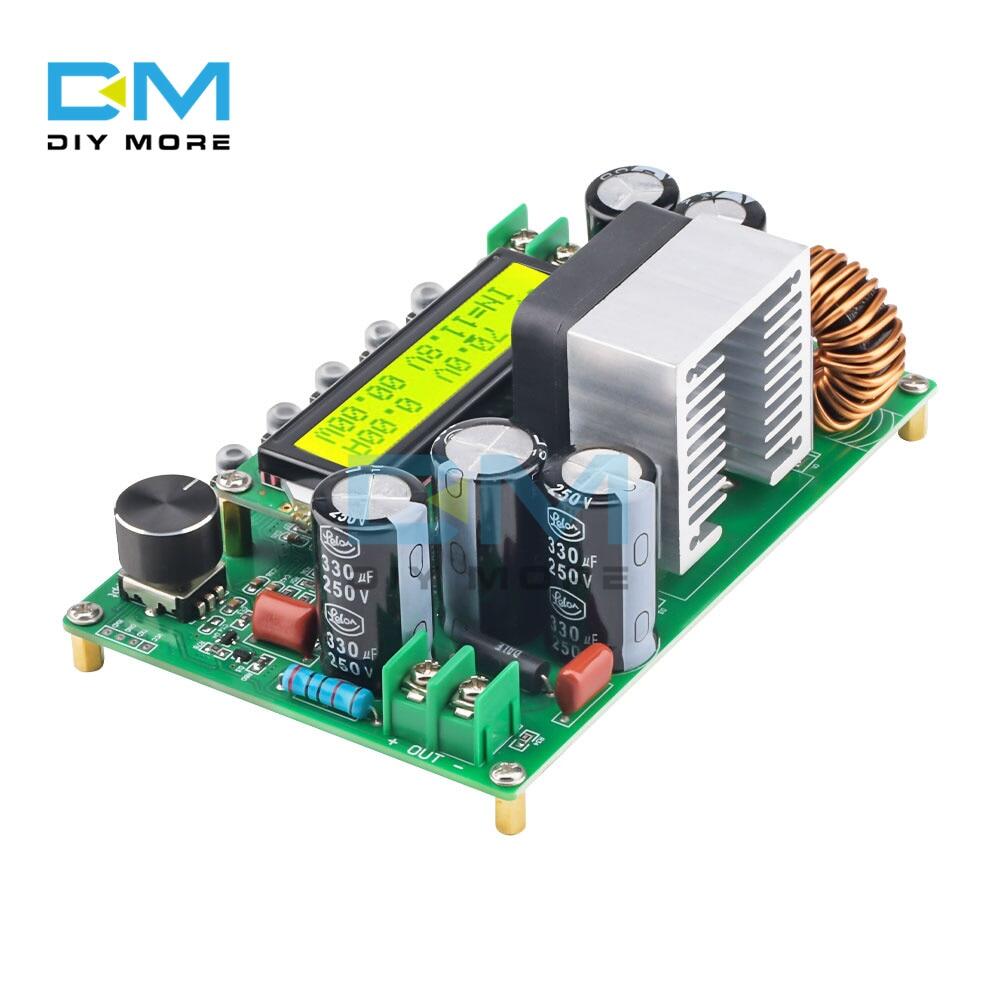

DPX800S adopts LCD1602 LCD numerical control constant power supply, small size, high power, high efficiency, stable work, can output constant and constant , and the module comes with a constant algorithm boost MPPT ftion, which can grab solar panels Maximum output power. Adopting microprocessor control, the parameters can be adjusted quickly and conveniently through buttons and encoders. And using LCD1602 liquid crystal display, it can display output , , power, output capacity and input , working status and other information in real time. With communication ftion, it can communicate with a computer or a single-chip computer to read or set the parameters of the instrument.

Instrument features:

--Adopt LCD1602 to display information, keys and encoders to adjust parameters, which makes human-computer interaction more convenient;

--Using high-quality power devices, together with the CV and CC loops formed by peripheral precision op amps, greatly improve the performance of the module;

--It comes with a fan to dissipate heat, and the temperature rise is small;

--Full digital display, convenient and easy to use;

--It can output with constant and constant ;

--Using microprocessor, the button can accurately adjust the output and ;

--Can be set to automatically output after power on;

--With input under- protection (LVP), output over- protection (OVP), output over- protection (OCP);

--With communication ftion, it is convenient for secondary development;

--With boost MPPT ftion, it is suitable for solar panel boost charging to capture the maximum output power of the solar panel;

--The output can be turned off to 0, which is safer and more convenient than traditional Boost boosters;

Parameter:

Parameter display mode: LCD1602 display

Input : 10v~65v (800w)

Input : 15A (Max)

Output : 12v~120v (800W)

Output : 0~12.0A

Output power: 800W (Max)

Input protection mode: under protection (LVP)

Output protection mode: over protection (OVP), over protection (0CP)

adjustment resolution: 0.1V

adjustment resolution: 0.1A

display resolution: 0.1V

display resolution: 0.01A

Fan start condition: output is greater than 1.5A or power is greater than 40W

Short circuit protection: 15A car fuse

Wiring mode: 8500 terminal block

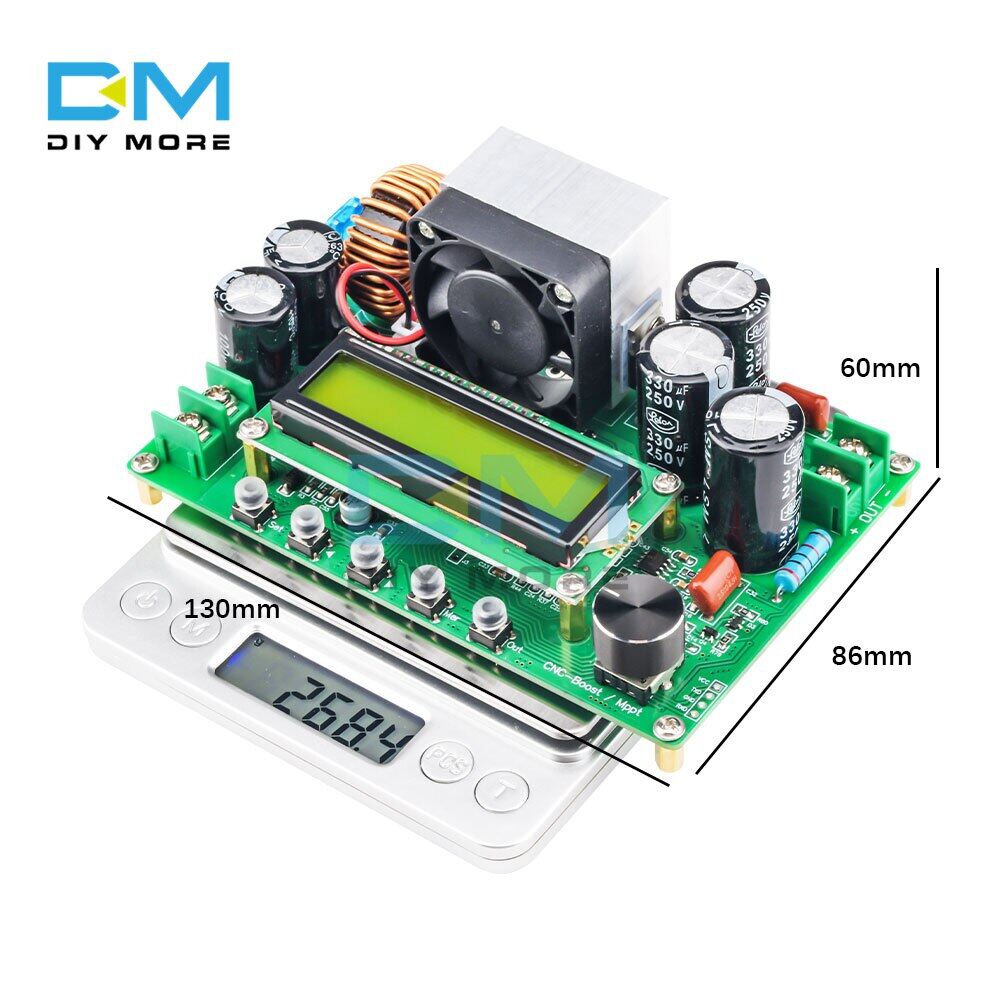

Product size (length × width × height): 130 × 86 × 60 (mm) (without packaging)

Net weight: 268.4g

Precautions for use:

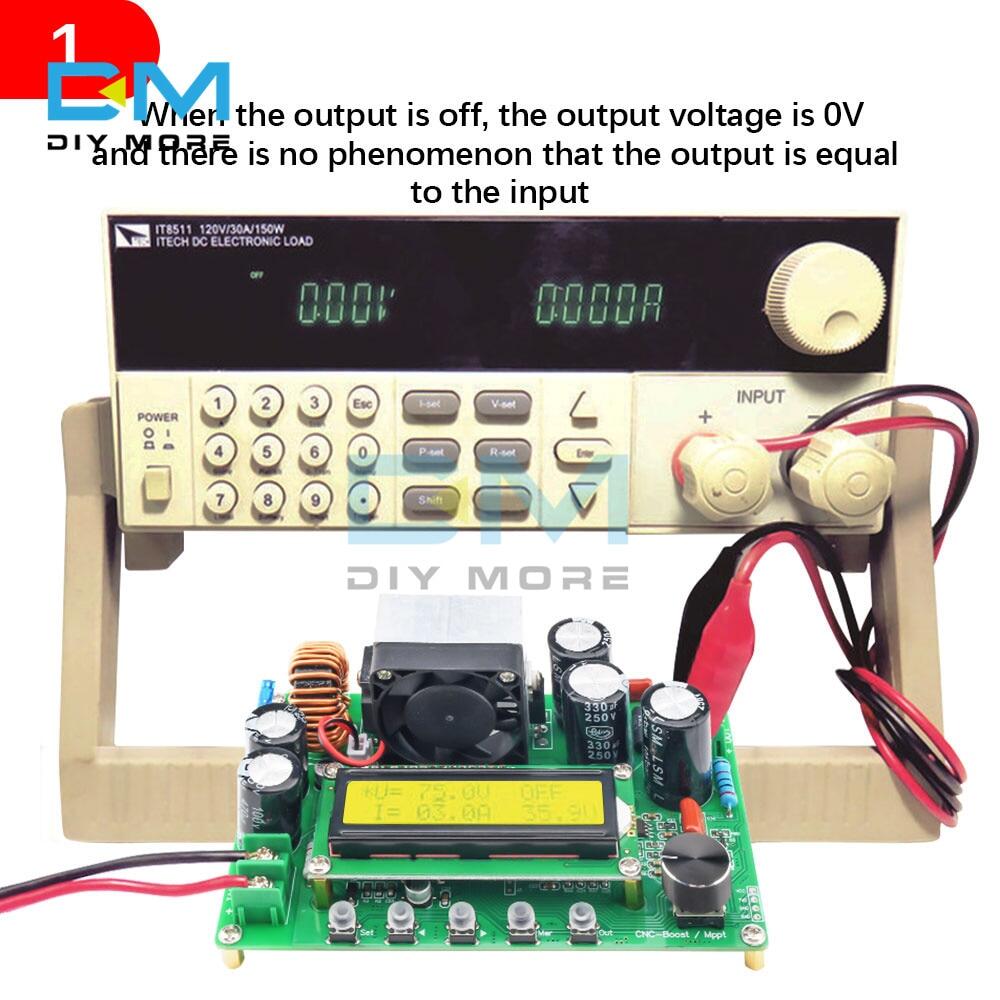

1. This module is a boost module, VOUT≥VIN. After powering on the module, when the output is not turned on, the output terminal is 0V. There is no disadvantage that the input is equal to the output. If the set output is lower than the input , the output after the output is also equal to the input , which is normal. , When in use, the input must be lower than the output or the rated of the electronic and electrical equipment.

2. Description of the constant ftion. Due to the limitation of the BOOST boost circuit structure, the minimum value output by the BOOST boost circuit is equal to the input , so the instrument cannot short-circuit constant , but as long as it reaches the condition of constant state, it can achieve constant . Ftion, this ftion is particularly suitable for boosting battery charging. Assuming that the output set value is I, the impedance of the output load is R, and the input is Uin, when I*R>Uin, the constant ftion can be realized, otherwise it cannot be realized. Stream ftion.

3. The module has input under- protection ftion (LVP) and recovery output value (STR). If the input under- protection value (LVP) is set, and the LVP ftion is turned on; and the recovery output value (STR) is also set , And then turn on the STR ftion, so that when the input is lower than LVP, the boost ftion will be turned off to stop the output, and when the input is higher than the (STR) value, the module will restart the output. When setting STR>LVP; this ftion is especially suitable for the battery boost power supply ftion, which can protect the input battery from damage due to under, and automatically turn on the boost ftion when the charging reaches a suitable , which is very intelligent.

4. DPX800S is based on the MPPT ftion of the constant algorithm, which is to change the charging by adjusting the output to ensure that the output of the solar panel is always near the point corresponding to the maximum power. Generally, the maximum power point of the solar panel corresponds to the It is 0.78 times the open circuit . When using the MPPT ftion of the product, in order to ensure that the product can better capture the maximum power of solar energy and ensure the safety of battery charging, some parameter settings must be set first: MOD, LVP, OVP, OCP, STR, For specific setting instructions, refer to the instructions for use.

Package Included:

1* Boost power module
