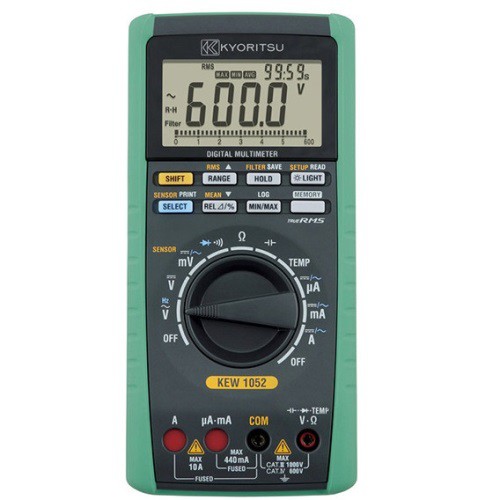

Đồng hồ vạn năng- Kyoritsu 1052

Hãng sản xuất: Kyoritsu – Nhật Model: 1052 Xuất xứ: Thailand Bảo hành : 12 tháng MÔ TẢ DETECTION MODE MEAN/RMS (switch) DC V 600.0mV/6.000/60.00/600.0/1000V (Input impedance: 10MΩ [600mV/60/600/1000V], 11MΩ [6V]) ±0.09%rdg±2dgt (Basic accuracy) AC V [RMS] 600.0mV/6.000/60.00/600.0/1000V (Input impedance: 10MΩ<200pF [600mV], 11MΩ<50pF [6V], 10MΩ<50pF [60/600/1000V]) ±0.5%rdg±5dgt (Basic accuracy) AC V [MEAN] 600.0mV/6.000/60.00/600.0/1000V (Input impedance: 10MΩ<200pF [600mV], 11MΩ<50pF [6V], 10MΩ<50pF [60/600/1000V]) ±0.5%rdg±5dgt (Basic accuracy) DC A 600.0/6000µA/60.00/440.0mA/6.000/10.00A ±0.2%rdg±2dgt (Basic accuracy) AC A [RMS] 600.0/6000µA/60.00/440.0mA/6.000/10.00A ±0.75%rdg±5dgt (Basic accuracy) Ω 600.0Ω/6.000/60.00/600.0kΩ/6.000/60.00MΩ ±0.4%rdg±1dgt (Basic accuracy) CONTINUITY BUZZER 600.0Ω (The buzzer turns on for resistances lower than 50±30Ω) DIODE TEST 2.000V ±1%rdg±2dgt Open curcuit voltage: <3.5V (Approx. 0.5mA Measuring Current) CAPACITANCE 10.00/100.0nF/1.000/10.00/100.0/1000µF ±2%rdg±5dgt (Basic accuracy) FREQUENCY 10.00 – 99.99/90.0 – 999.9Hz/0.900 – 9.999/9.00 – 99.99kHz ±0.02%rdg±1dgt (Basic accuracy) TEMPERATURE -50 – 600ºC ±2%rdg±2ºC (with the use of K-type Temperature probe) OTHER FUNCTIONS Data Hold (D/H), Auto Hold (A/H), Range Hold (R/H), Maximum value (MAX) *, Minimum value (MIN) *, Average value (AVG) *, Zero Adjustment (Capacitor, Resistance), Save to Memory *, LCD backlight APPLICABLE STANDARDS IEC 61010-1 CAT IV 600V, CAT III 1000V Pollution degree 2, IEC 61010-031, IEC 61326-1 (EMC) POWER SOURCE R6 (1.5V)×4 (Auto power off: approx. 20 minutes) DIMENSIONS 192(L)×90(W)×49(D) mm WEIGHT Approx. 560g (including batteries) INCLUDED ACCESSORIES 7220A (Test leads), R6×4, Instruction manual, 8926 (Fuse [440mA/1000V])×1 (included) 8927 (Fuse [10A/1000V])×1 (included)
