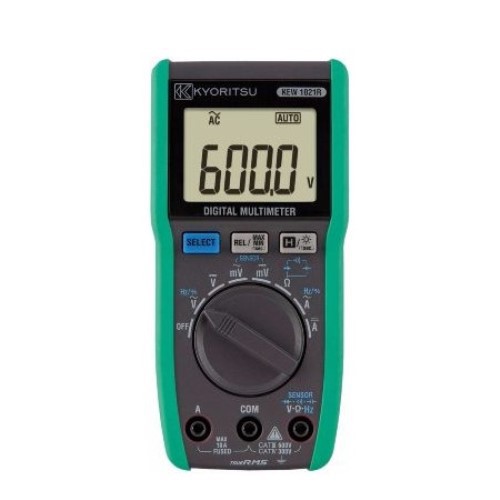

Đồng hồ vạn năng - Kyoritsu 1021R

Hãng sản xuất: Kyoritsu – Nhật Model: 1021R Xuất xứ: Thailand Bảo hành : 12 tháng MÔ TẢ DC V 6.000/60.00/600.0V (auto range) ±0.5%rdg ±3dgt DC MV 600.0mV ±1.5%rdg ±3dgt DC CLAMP SENSOR 60.00/200.0A (auto range) ±1.5%rdg ±3dgt + Sensor accuracy AC V 6.000/60.00/600.0V (auto range) ±1.0%rdg ±3dgt [40 – 500Hz] AC MV 600.0mV ±2.0%rdg ±3dgt [40 – 500Hz] AC CLAMP SENSOR 60.00/200.0A (auto range) ±2.0%rdg ±3dgt + Sensor accuracy [40 – 500Hz] DC A 6.000/10.00A (auto range) ±1.5%rdg ±3dgt AC A 6.000/10.00A (auto range) ±1.5%rdg ±3dgt[45 – 500Hz] Ω 600.0Ω/6.000/60.00/600.0kΩ/6.000/40.00MΩ (auto range) ±0.5%rdg ±4dgt (600Ω), ±0.5%rdg ±2dgt (6/60/600kΩ/6MΩ) ±1.5%rdg ±3dgt (40MΩ) CONTINUITY BUZZER 600Ω (Buzzer sounds below 90Ω) DIODE TEST Open-loop voltage: < 3.0V CAPACITANCE 60.00/600.0nF/6.000/60.00/600.0/1000µF ±2.0%rdg ±5dgt (60/600nF) ±5.0%rdg ±5dgt (6/60/600/1000µF) FREQUENCY ACV 99.99/999.9Hz/9.999/99.99kHz ±0.1%rdg ±3dgt ACA 99.99/999.9Hz/9.999kHz ±0.1%rdg ±3dgt DUTY 10.0 – 90.0% ±1.0%rdg ±3dgt [50/60Hz] APPLICABLE STANDARDS IEC 61010-1 CAT IV 300V / CAT III 600V / CAT II 1000V IEC 61010-2-033, IEC 61010-031, IEC 61326-2-2 (EMC), EN 50581 (RoHS) POWER SOURCE R03 (1.5V) × 2 DIMENSIONS 155(L) × 75(W) × 40(D)mm WEIGHT 250g Approx. (including batteries) INCLUDED ACCESSORIES Wing-type holder, Flat-type holder, 7066A (Test leads), 8919 (Ceramic fuse [10A/600V]) × 1 (included), 9097 (Carrying case), R03 × 2, Instruction manual OPTIONAL ACCESSORIES 7234 (Alligator clip), 8161 (AC clamp adaptor) 8115 (AC/DC clamp sensor), 9189 (Magnet hanger strap)
