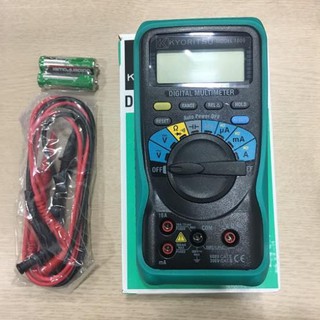

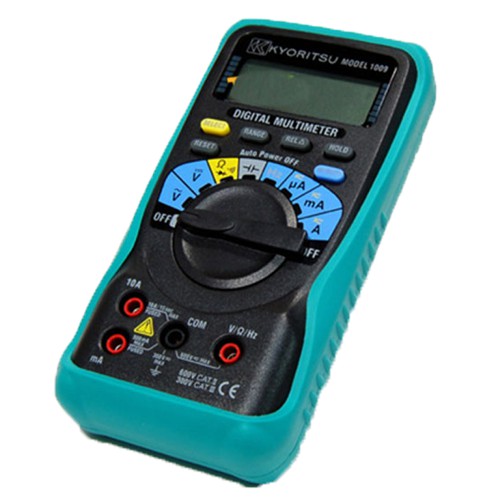

Đồng hồ đo điện vạn năng- Kyoritsu 1009

Hãng sản xuất: Kyoritsu – Nhật Model: 1009 Bảo hành : 12 tháng MÔ TẢ DC V 400mV/4/40/400/600V (Input Impedance 10MΩ) ±0.6%rdg±4dgt (400mV/4/40/400V) ±1.0%rdg±4dgt (600V) AC V 400mV/4/40/400/600V (Input Impedance 10MΩ) ±1.6%rdg±4dgt (20 – 400mV) ±1.3%rdg±4dgt (4/40V) ±1.6%rdg±4dgt (400/600V) DC A 400/4000µA/40/400mA/4/10A ±2.0%rdg±4dgt (400/4000µA)±1.0%rdg±4dgt (40/400mA) ±1.6%rdg±4dgt (4/10A) AC A 400/4000µA/40/400mA/4/10A ±2.6%rdg±4dgt (400/4000µA) ±2.0%rdg±4dgt (40/400mA/4/10A) Ω 400Ω/4/40/400kΩ/4/40MΩ ±1.0%rdg±4dgt (400Ω/4/40/400kΩ/4MΩ) ±2.0%rdg±4dgt (40MΩ) CONTINUITY BUZZER 400Ω (Buzzer sounds below 100Ω) DIODE TEST 1.5V Release Voltage:Approx. 0.4mA Test Current CAPACITANCE 40/400nF/4/40/100µF FREQUENCY 5.12/51.2/512Hz/5.12/51.2/512kHz/5.12/10MHz DUTY 0.1 – 99.9% (Pulse width/Pulse period) ±2.5%±5dgt APPLICABLE STANDARDS IEC 61010-1 CAT III 300V IEC 61010-2-031 IEC 61326 POWER SOURCE R6 (1.5V) × 2 DIMENSIONS 161(L) × 82(W) × 50(D)mm WEIGHT Approx. 280g INCLUDED ACCESSORIES 7066A (Test leads) 8919 (Ceramic fuse [10A/600V])× 1 8923 (Fuse [0.5A/600V])× 1 R6× 2 Instruction Manual OPTIONAL ACCESSORIES 7234 (Crocodile clip test lead) 9095 (Carrying case)
