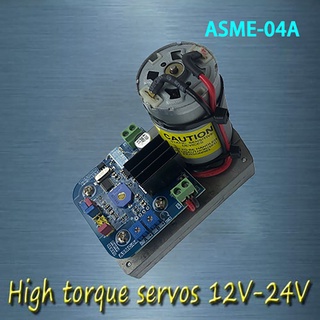

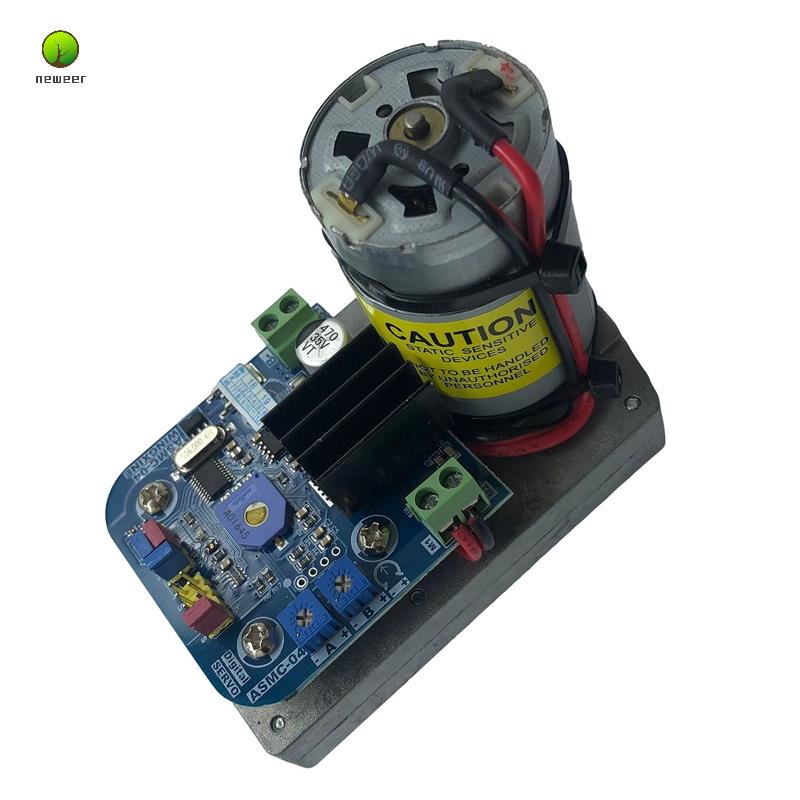

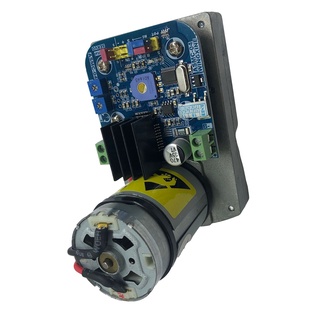

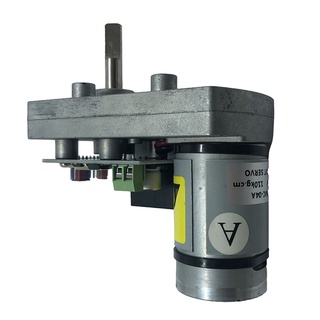

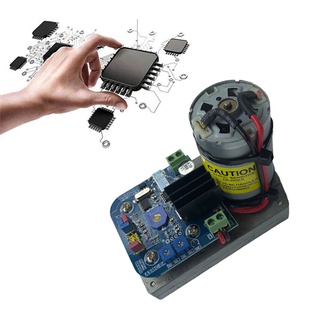

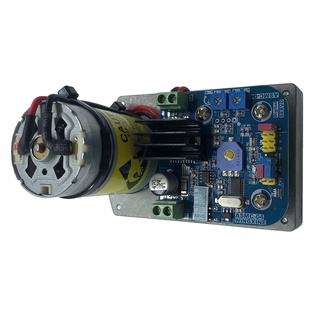

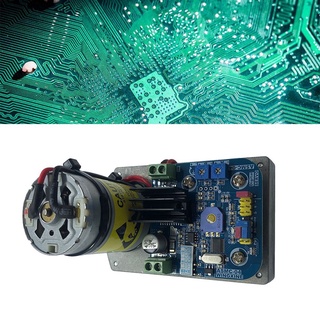

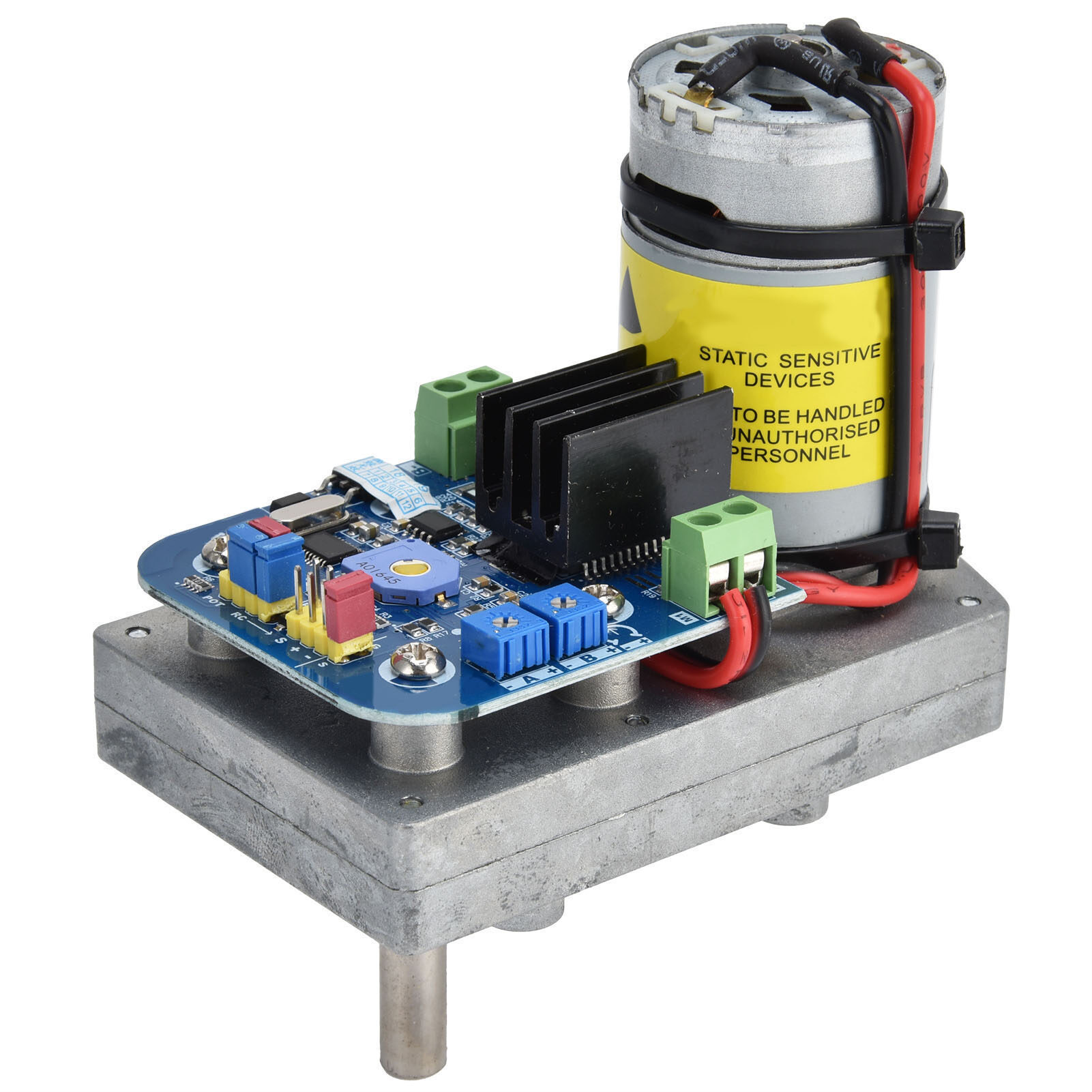

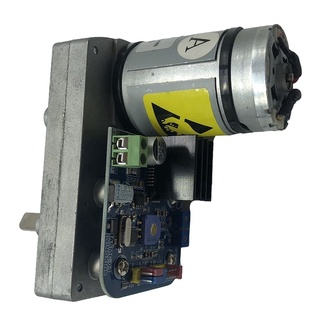

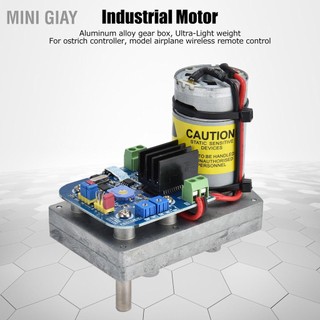

Động Cơ Servo Kỹ Thuật Số Asmc-04A

1. Digital steering gear, sensitive response, large stroke, zero blind zone 2. The unique power stabilization technology ensures that the steering gear continues to work. It is completely different from other steering gears that use fuse protection. This product will stably control the steering gear to work within a safe torque. Never drop the connection. 3. Meet the requirements of various mechanical designs 4. Application fields: medium and large robots, roboticand other high-power and high-torque control fields 5. Perfectly compatible with remote control systems such as for Futaba, JR, SANWA, Hitec, etc. Product name: ASMC-04A Super Torque Digital Servo Working voltage: 12V to 24V (DC) (this means that any voltage between 12V or 24V can be used) No-load rotating current: less than 500mA Maximum torque: 110kg.cm (24V) (actual measurement, not theoretically calculated value) 1078N.cm(24V) (actual measurement, not theoretically calculated value) 55kg.cm(12V) (actual measurement, not theoretical calculation value) 539N.cm(12V) (actual measurement, not theoretical calculation value) Angular speed: 0.12s/60°(0.12s is required to turn 60 degrees), at 24V; 0.24s/60°(0.24s is required for 60°rotation), at 12V; Rotation angle: 300°MAX, which means the maximum stroke is 300° (0 to 300° electronic limit is adjustable) Input e: pulse signal (remote control, multi-channel steering gear controller, single-chip microcomputer) or analog voltage signal (potentiometer) Pulse signal input range: 0.5ms-2.5ms suitable for all "multi-channel steering gear controllers", "1ms-2ms el airplane remote control", "MCU programming", "Arduino", etc.; Voltage signal input range: 0V to +5V Control accuracy: 0.32° colour: blue Material: PCB+metal Size: 95.5x60.5x102.6mm
Package Contents: 1 x ASME-04A Servo Only the above package content, other products are not included. Note: Light shooting and different displays may cause the color of the item in the picture a little different from the real thing. The measurement allowed error is +/- 1-3cm.
