Động Cơ Bánh Răng Tốc Độ Thấp 25ga370

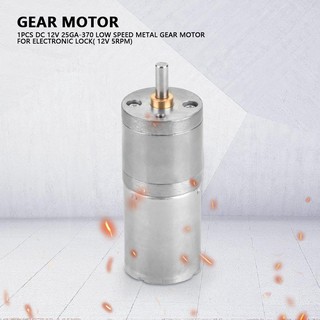

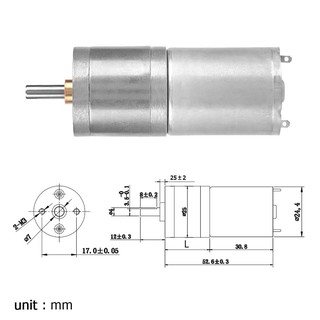

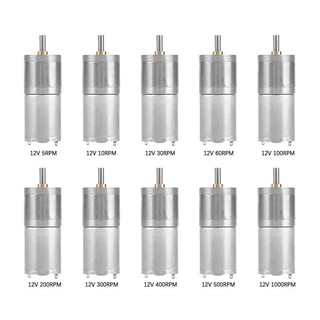

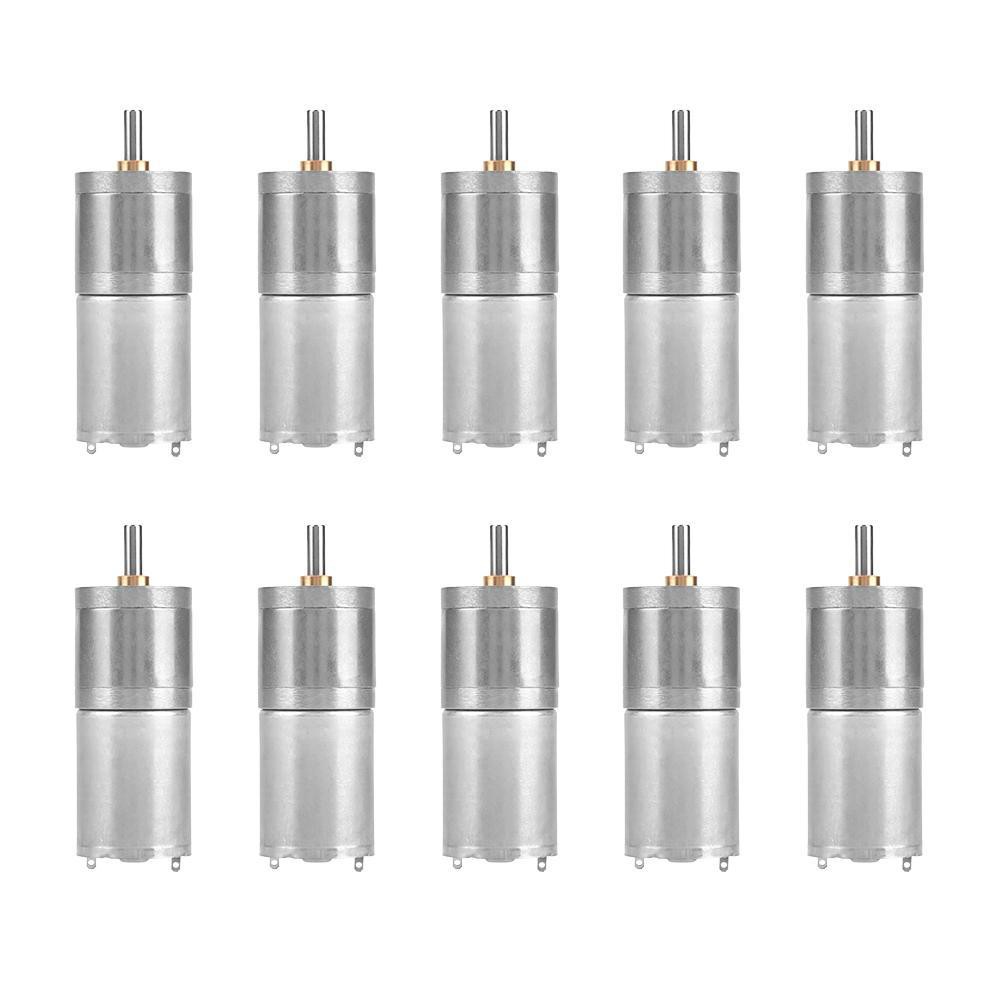

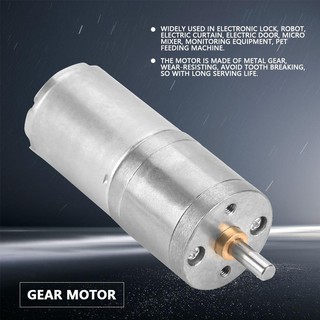

25GA370 Metal Gear Low Speed High Torque Micro Speed Gear Motor DC Gear Reduction Motor Electric Gearbox Reducer for Mechanical Robot Model Features: This product is a straight gear reducer motor, using high precision metal gears, stable operation of the DC motor has greater torque, low speed and low noise. The motor is made of metal gears. It is wear-resistant, avoids broken teeth and has long service life. The motor adopts pure copper coil, which has low calorific value and low loss. Widely used in electronic locks, robots, electric curtains, electric doors, micro mixers, monitoring equipment, pet feeders, etc. Specifications: Model: GA25YN370 Rated power: 3.5 W Product type: Brush DC motor Rated voltage: 5-12 V Rated current: 0.06 A Appearance size: 25 mm/0.98" Material: Metal Main applications: mechanical equipment, rotating tools, medical equipment, measuring tools Types (optional): 12V 5 RPM, 12V 10 RPM, 12V 30 RPM, 12V 60 RPM, 12V 100 RPM, 12V 200 RPM, 12V 300 RPM, 12V 400 RPM, 12V 500 RPM, 12V 1000RPM Specification: Voltage Gear Ratio No Load Speed No Load Current Load SpeedLoad CurrentLoad Torque Stall Current Stall Torque 12V1:6505RPM≤150MA3RPM≤70MA1150gf.cm≤2.1A15.4kgf.cm 12V1:15010RPM≤170MA7RPM≤100MA980gf.cm≤2.1A14.8kgf.cm 12V1:15030RPM≤170MA25RPM≤100MA770gf.cm≤2.1A12.0kgf.cm 12V1:20060RPM≤170MA51RPM≤100MA750gf.cm≤2.1A11.8kgf.cm 12V1:100100RPM≤150MA73RPM≤185MA660gf.cm≤2.1A10.5kgf.cm 12V1:50200RPM≤180MA165RPM≤105MA580gf.cm≤2.1A8.8kgf.cm 12V1:30300RPM≤190MA254RPM≤145MA180gf.cm≤2.1A7.8kgf.cm 12V1:25400RPM≤190MA344RPM≤145MA170gf.cm≤2.1A7.7kgf.cm 12V1:20500RPM≤190MA460RPM≤145MA150gf.cm≤2.1A7.5kgf.cm 12V1:101000RPM≤190MA820RPM≤145MA88gf.cm≤2.1A7.2kgf.cm Notes: 1. Due to the different monitor and light effect, the actual color of the item might be slightly different from the color showed on the pictures. Thank you! 2. Please allow slight measuring deviation due to manual measurement. Welcome to Justforyou ! There are varieties of products and desirable discount here!! Just for you!! You will never want to miss it !! Besides ,if you have any questions or suggestions,don't hesitate to contact me!!
