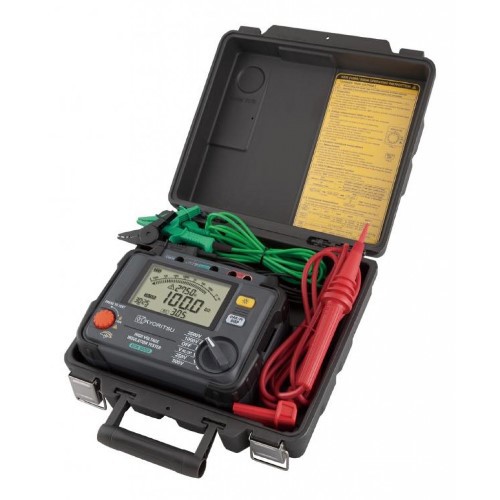

Đo điện trở cách điện Kyoritsu 3025A

Đồng hồ đo điện trở cách điện Model: 3025A Hãng sản xuất: Kyoritsu – Nhật Xuất xứ: Thailand Bảo hành : 12 tháng MÔ TẢ Insulation resistance RATED VOLTAGE 250V 500V 1000V 2500V ACCURACY 0.0 – 100.0MΩ 0.0 – 99.9MΩ 80 – 1000M Ω 0.0 – 99.9MΩ 80 – 999MΩ 0.80 – 2.00GΩ 0.0 – 99.9MΩ 80 – 999MΩ 0.80 – 9.99GΩ 8.0 – 100.0GΩ ±5%rdg±3dgt ±5%rdg±3dgt ±5%rdg±3dgt ±5%rdg±3dgt SHORT CIRCUIT CURRENT 1.5mA OUTPUT VOLTAGE ACCURACY ±10% -10 – +20% 0 – +20% MONITOR ±10%rdg±20V Voltage measurement MEASURING RANGE AC: 30 – 600V (50/60Hz), DC: ±30 – ±600V ACCURACY ±2%rdg±3dgt General APPLICABLE STANDARDS IEC 61010-1, 61010-2-030 CAT Ⅳ 300V / CAT Ⅲ 600V Pollution degree 2, IEC 61010-031, IEC 61326-1, 2-2 POWER SOURCE DC12V : LR14/R14 × 8pcs DIMENSIONS 177 (L) × 226 (W) × 100 (D) mm 300 (L) × 315 (W) × 125 (D) mm (Hard case) WEIGHT 3025A: 1.7kg approx. (including batteries) 4kg approx. (including accessories) INCLUDED ACCESSORIES 7165A (Line probe: 3m), 7264 (Earth cord: 3m), 7265 (Guard cord: 3m), 8019 (Hook type prod), 9180 (3025A Hard case), 9181 (3125A Hard case), LR14 (Alkaline battery size C) × 8, Instruction manual OPTIONAL ACCESSORIES 7168A (Line probe with alligator clip: 3m), 7253 (Longer line probe with alligator clip: 15m), 8302 (Adaptor for recorder)
