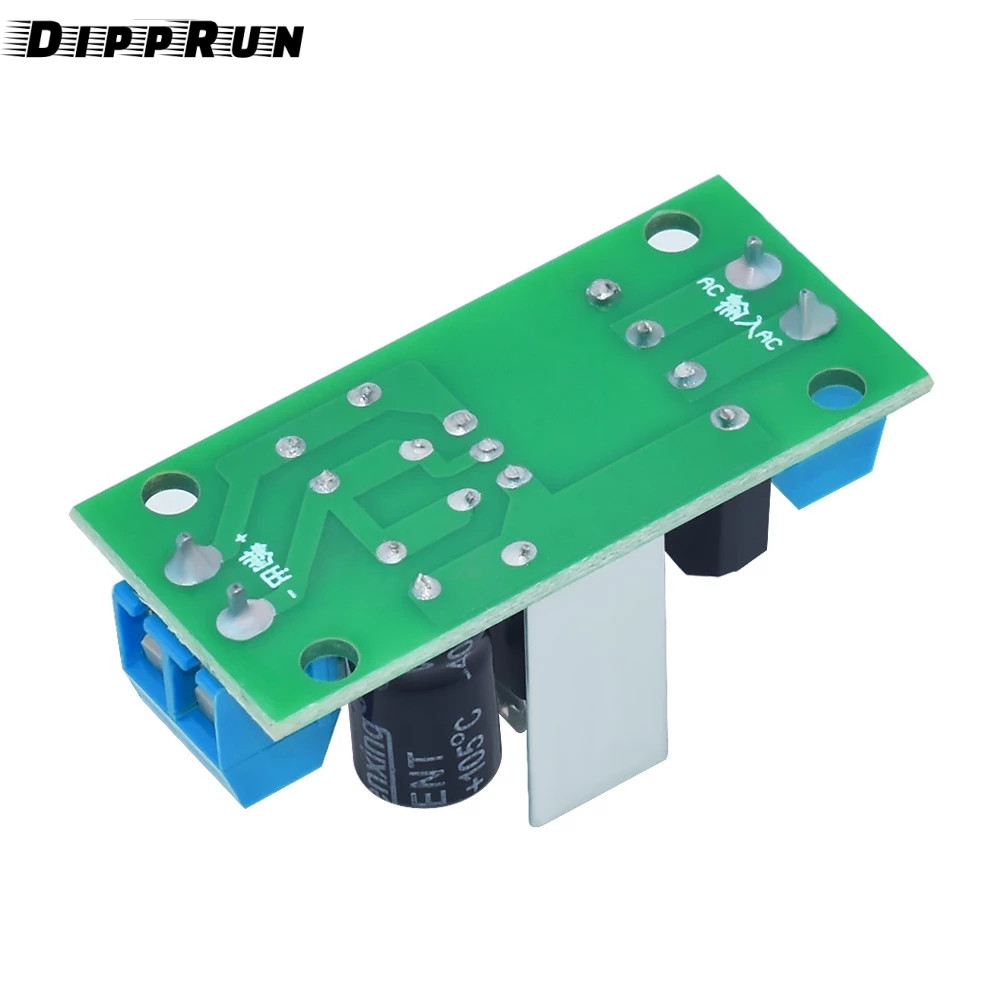

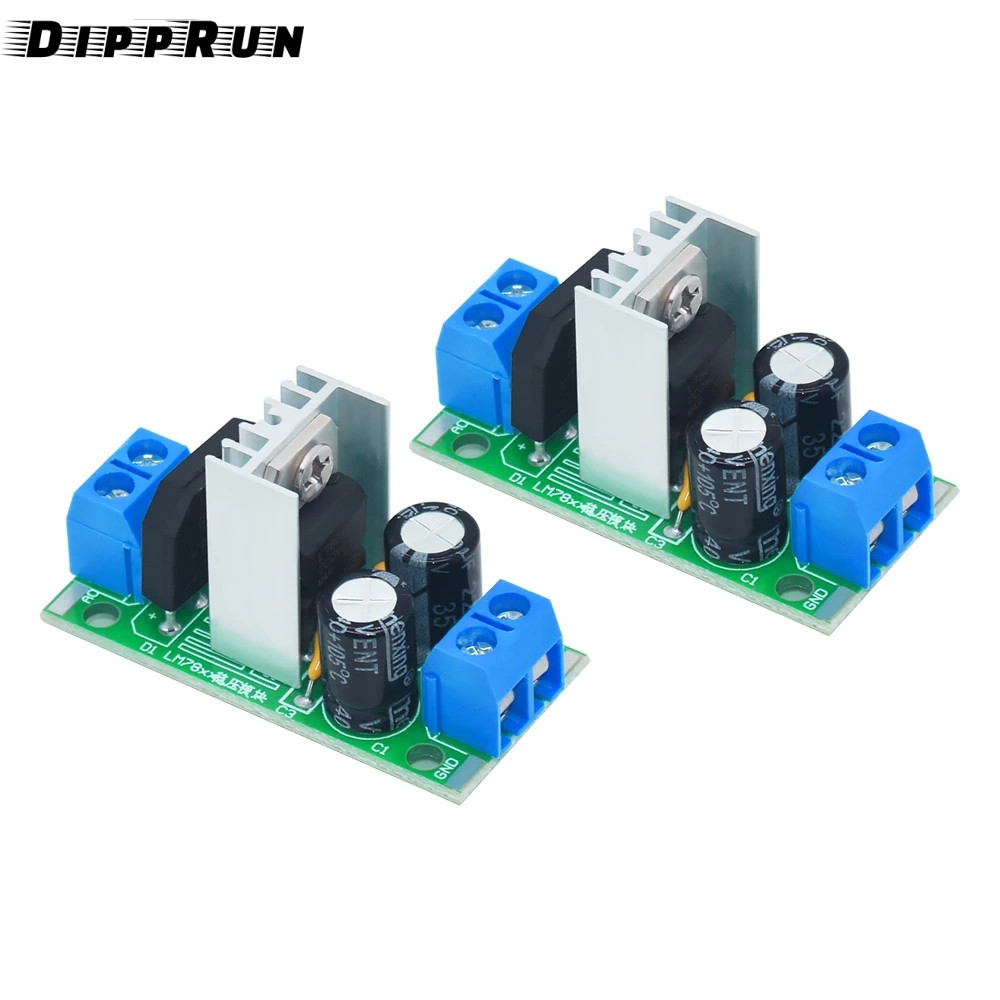

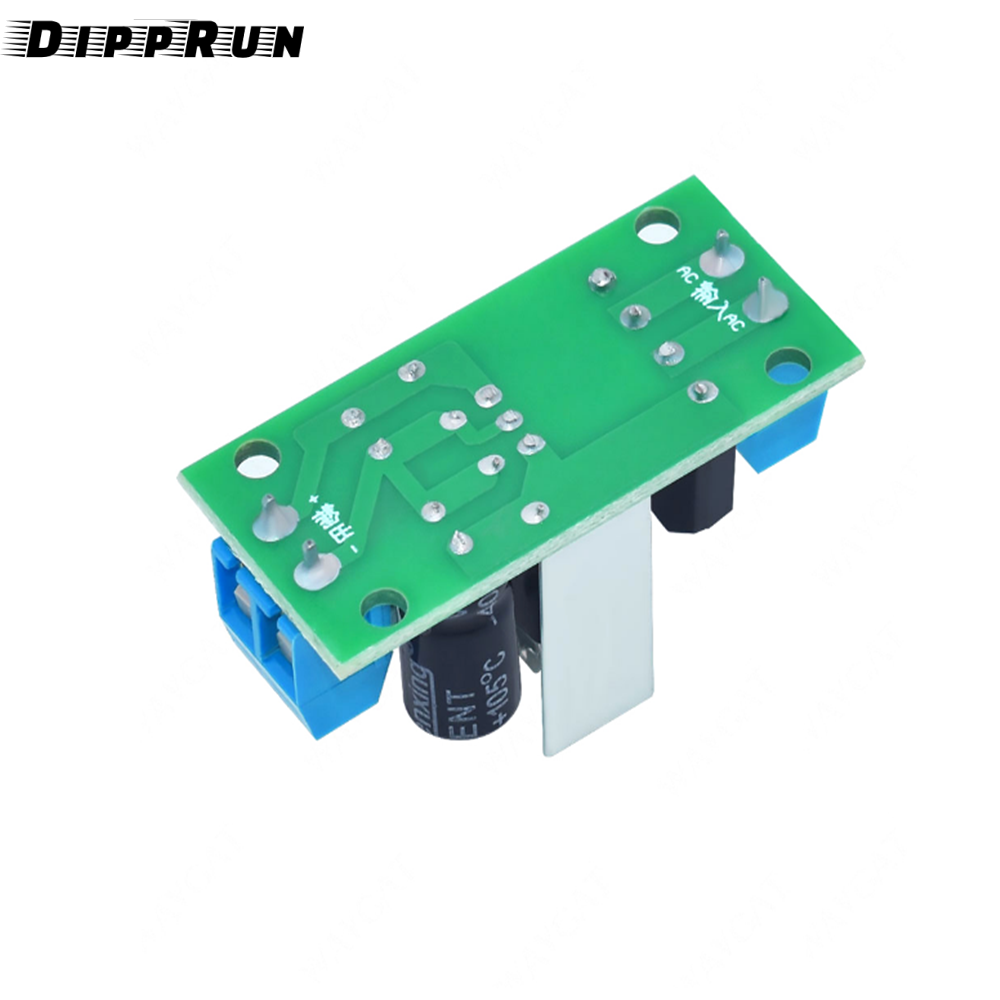

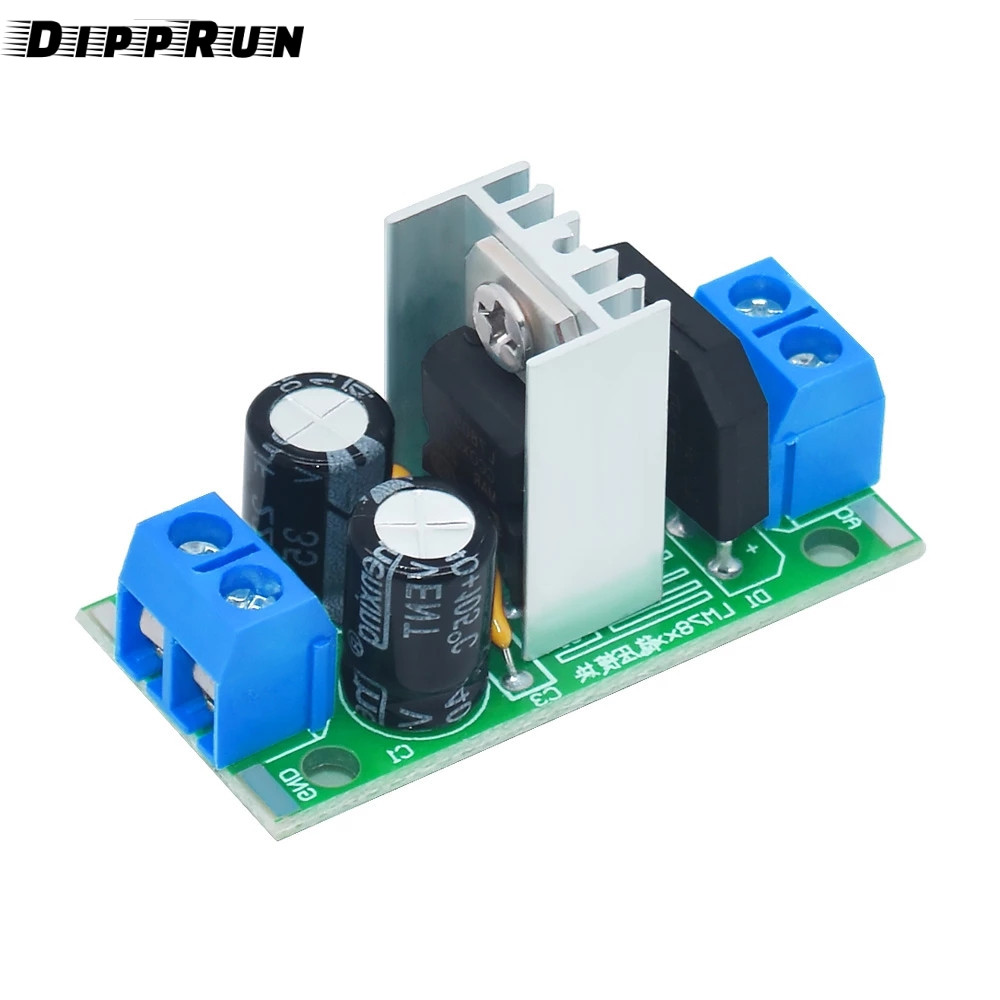

DIPPRUN LM7805 LM7809 LM7812 DC/AC Three Terminal Voltage Regulator Power Module 5V 9V 12V Output Max 1.2A

Product selling points:
1. The product adopts a 3A rectifier bridge, which can meet the continuous output of large current. Both AC and DC can be input, and the input does not distinguish between positive and negative poles.
2. High-quality materials: 2 35V 220UF high-voltage capacitors can make the output current stable and smooth, and the 1.5A high-current chip can meet the continuous output of large currents.
3. The product is equipped with a heat sink to enhance the heat dissipation function
4. Application fields: DIY power supply, monitoring power supply, experimental power supply, camera power supply, vehicle power supply, communication equipment power supply, etc.
5. The product design is lightweight and can be used anytime and anywhere

product description:

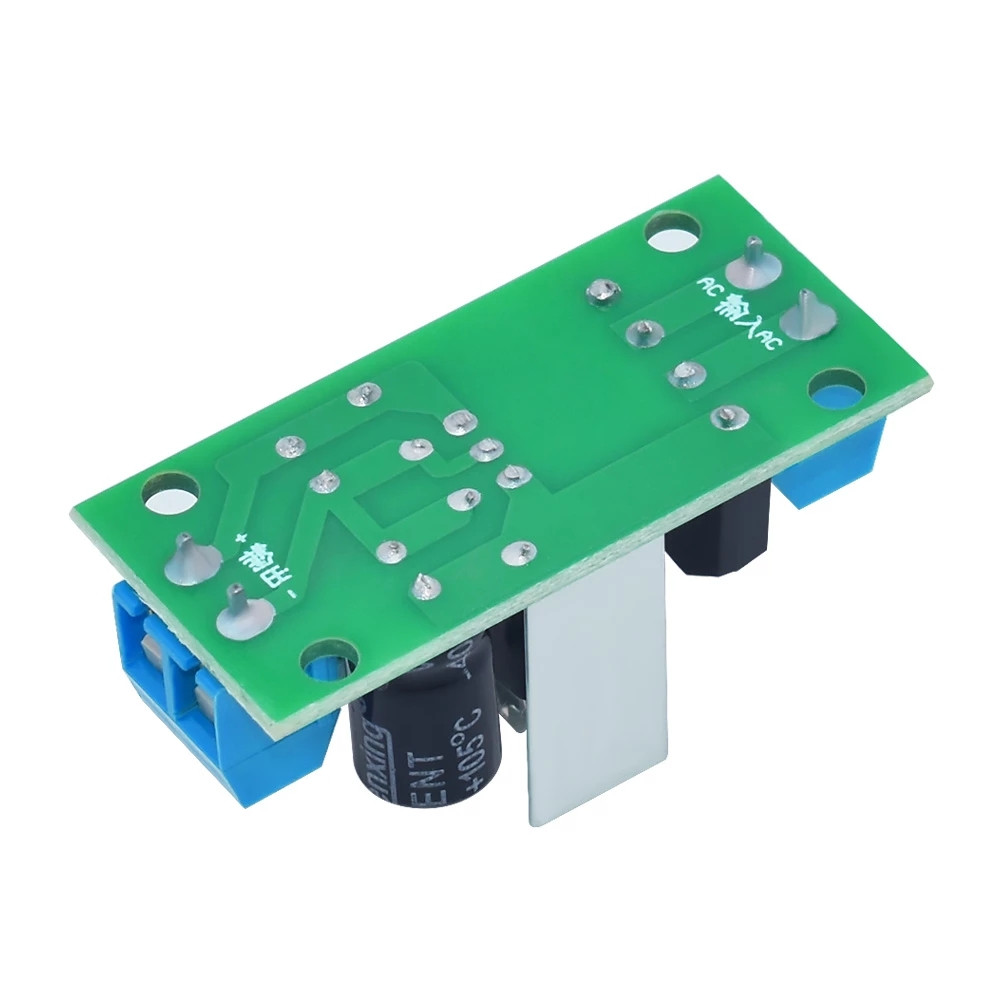

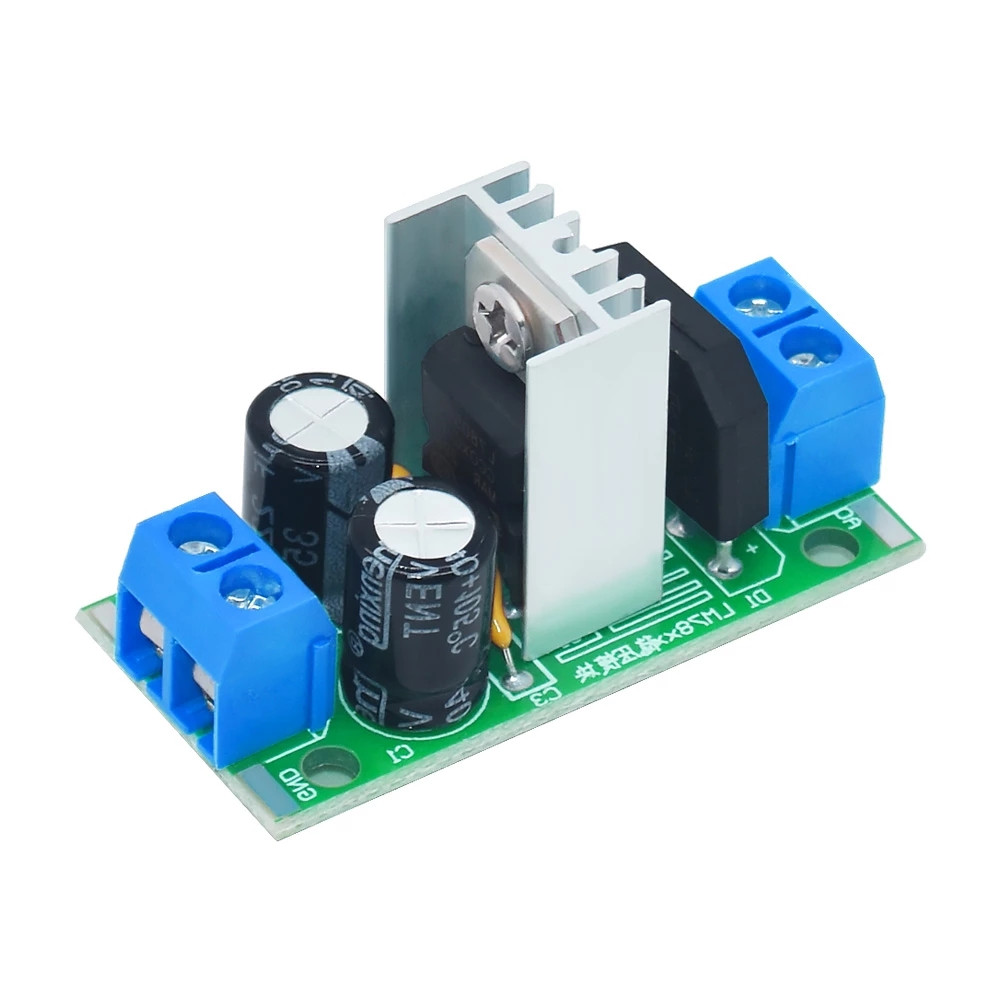

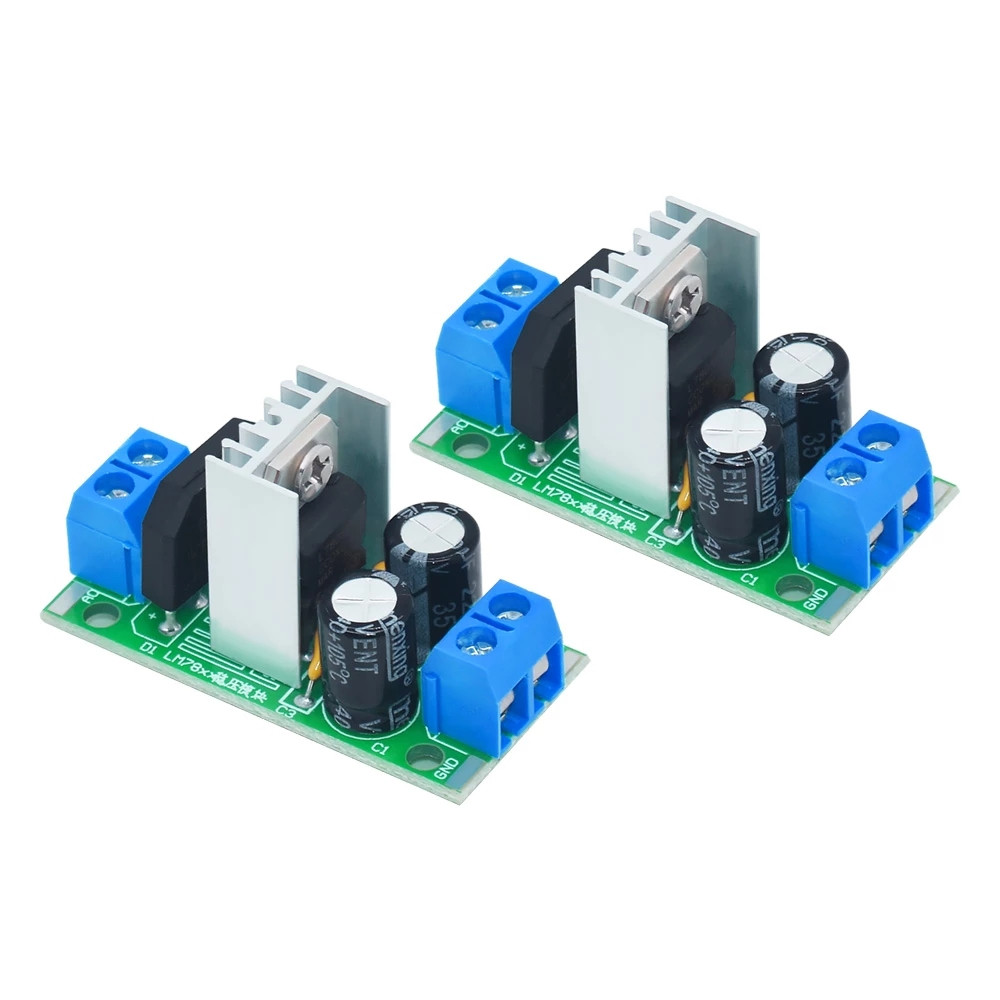

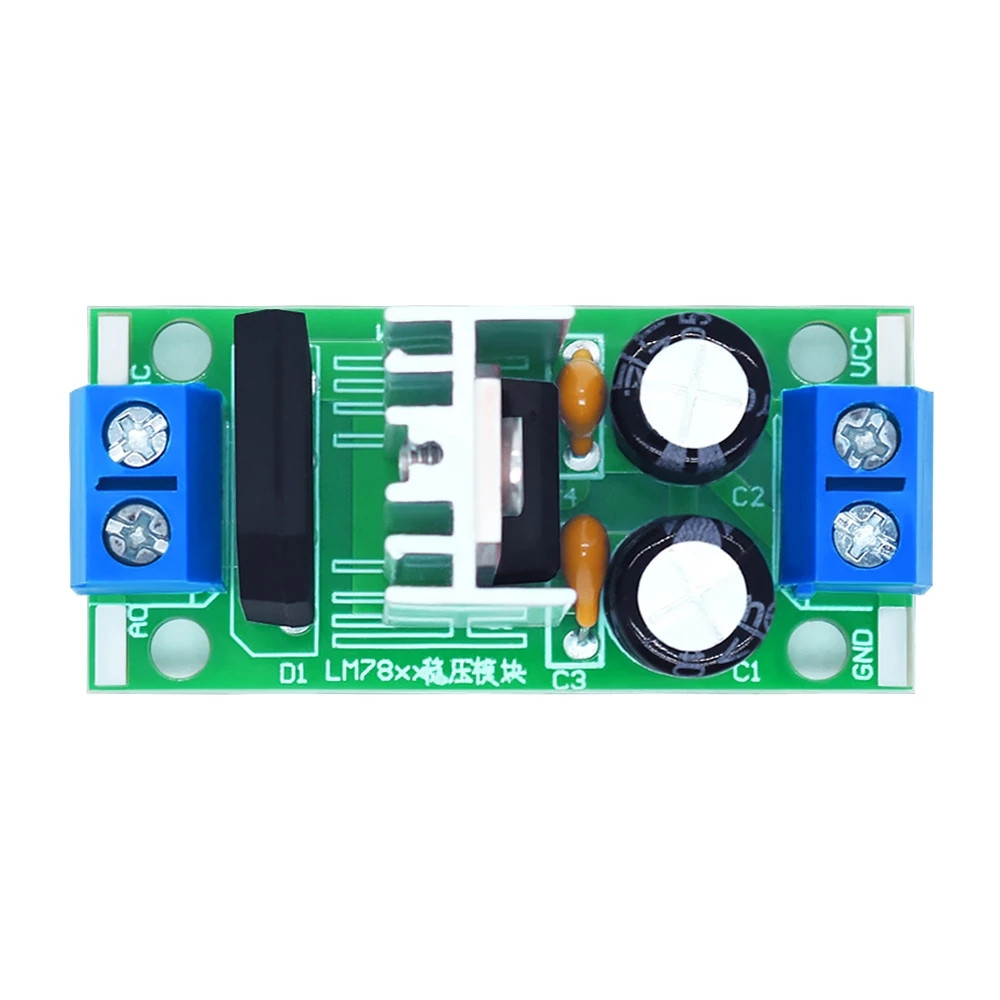

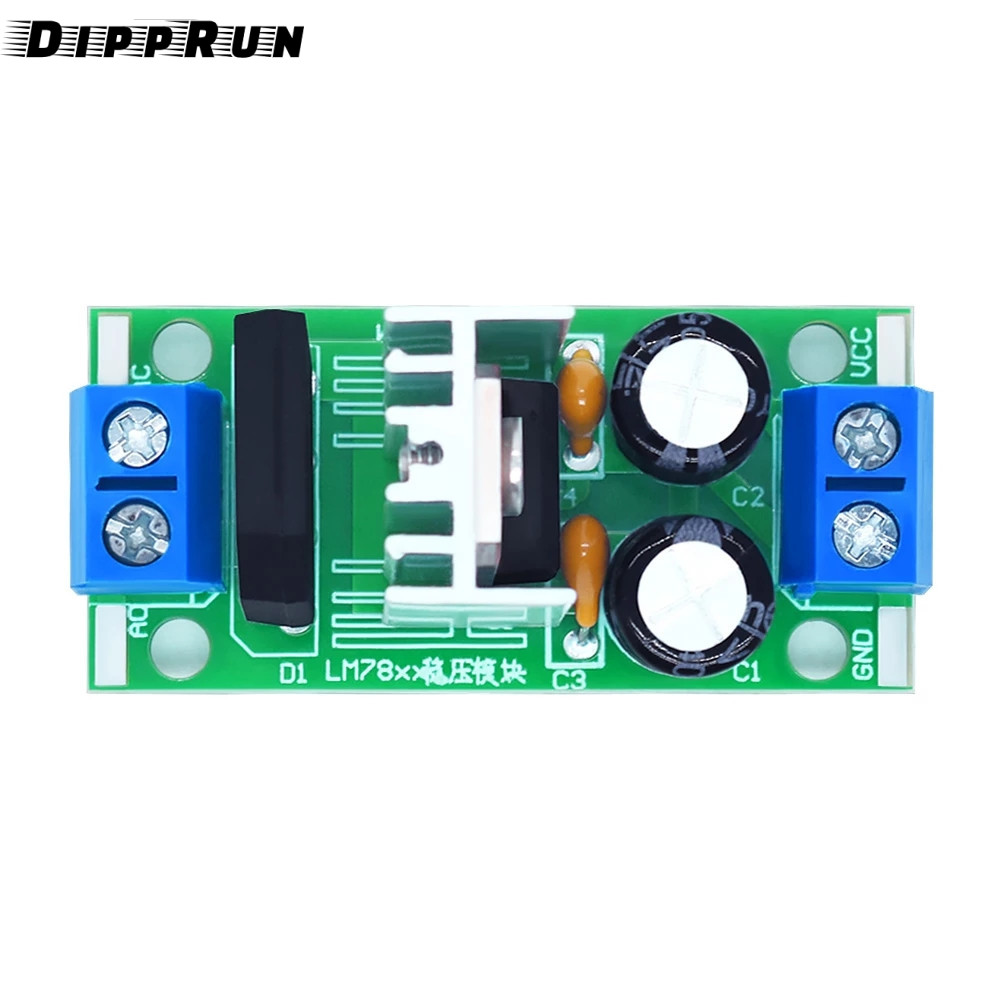

This board uses a full-wave bridge rectifier, which can input both AC and DC, and the input is not divided into positive and negative poles. The filter uses two 35V 220UF large-capacity electrolytic capacitors for buffer filtering, which can make the output current stable and smooth. Equipped with heat sink and 3A rectifier bridge, which can meet the requirement of continuous output of large current.

L7805CV product parameters:
Input voltage: no polarity, both AC and DC, range 7.5-20V
Output voltage: 5V
Peak output current: 1.2A
Load regulation: 100mV
Quiescent current: 8mA
Output noise voltage: 42uV
Input and output voltage difference: 2V
Output impedance: 15mΩ
Board size:57*23mm
Product weight: 15g
Equipped with fixing bolt holes for easy installation

L7812CV product parameters:
Input voltage: DC 15-24V, AC 12-18V
Output voltage: 12V
Peak output current: 1.5A
Load regulation: 100mv
Quiescent current: 8mA
Output noise voltage: 42uV
Input and output voltage difference: 2V
Output impedance: 15mΩ
Board size:44*20mm
Product weight: 15g
Equipped with fixing bolt holes for easy installation

Shipping list:
ModuleX1
