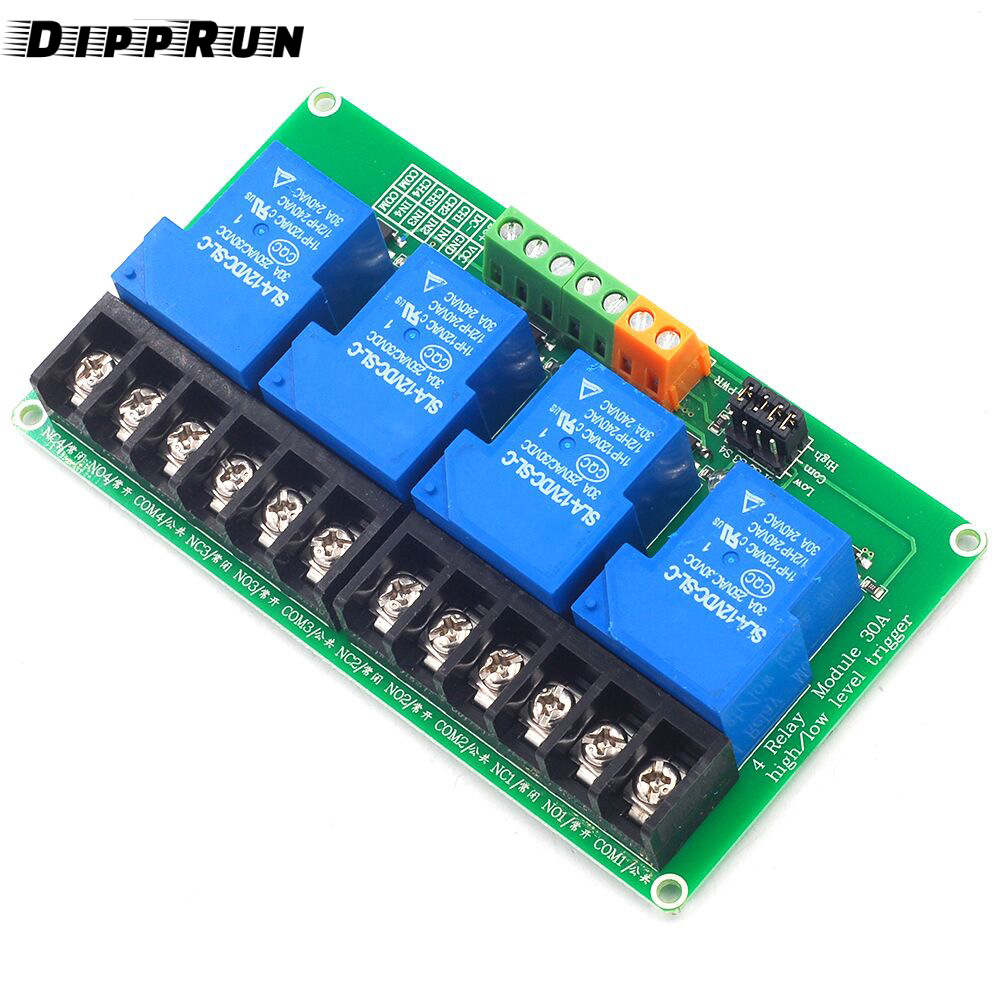

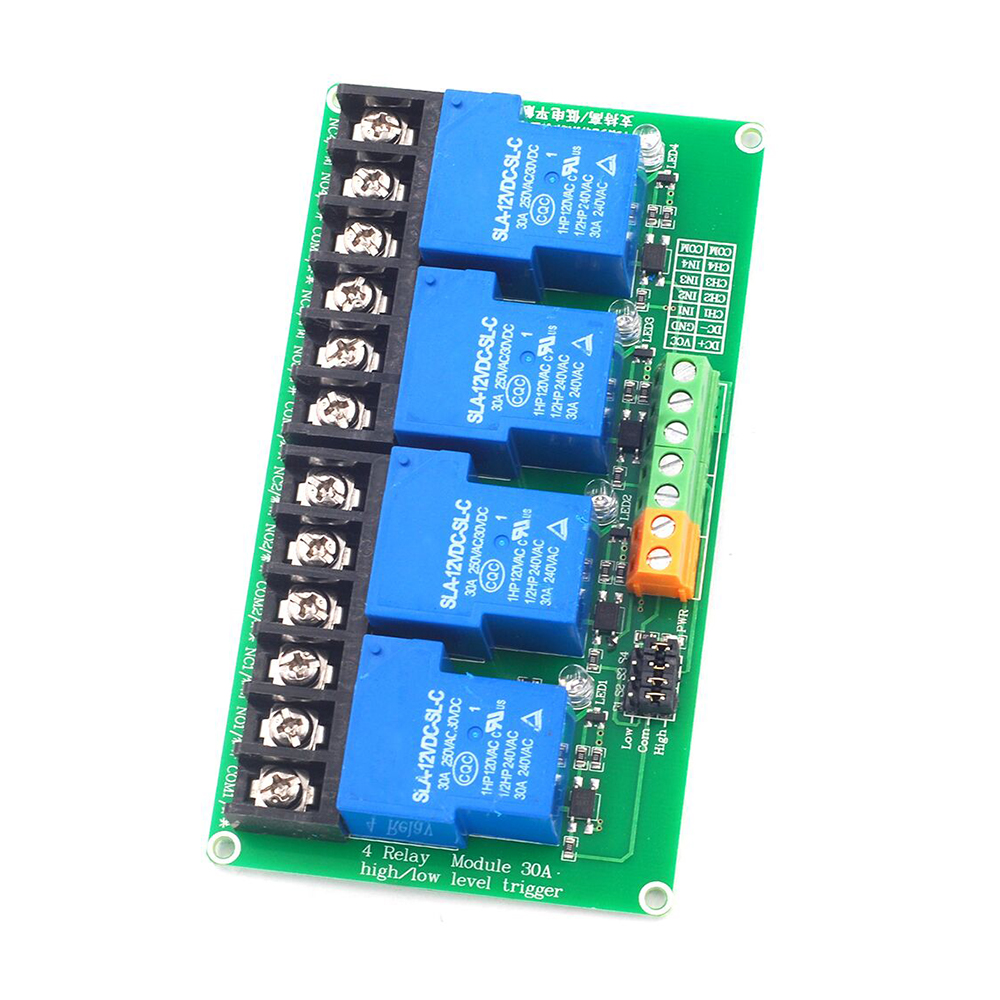

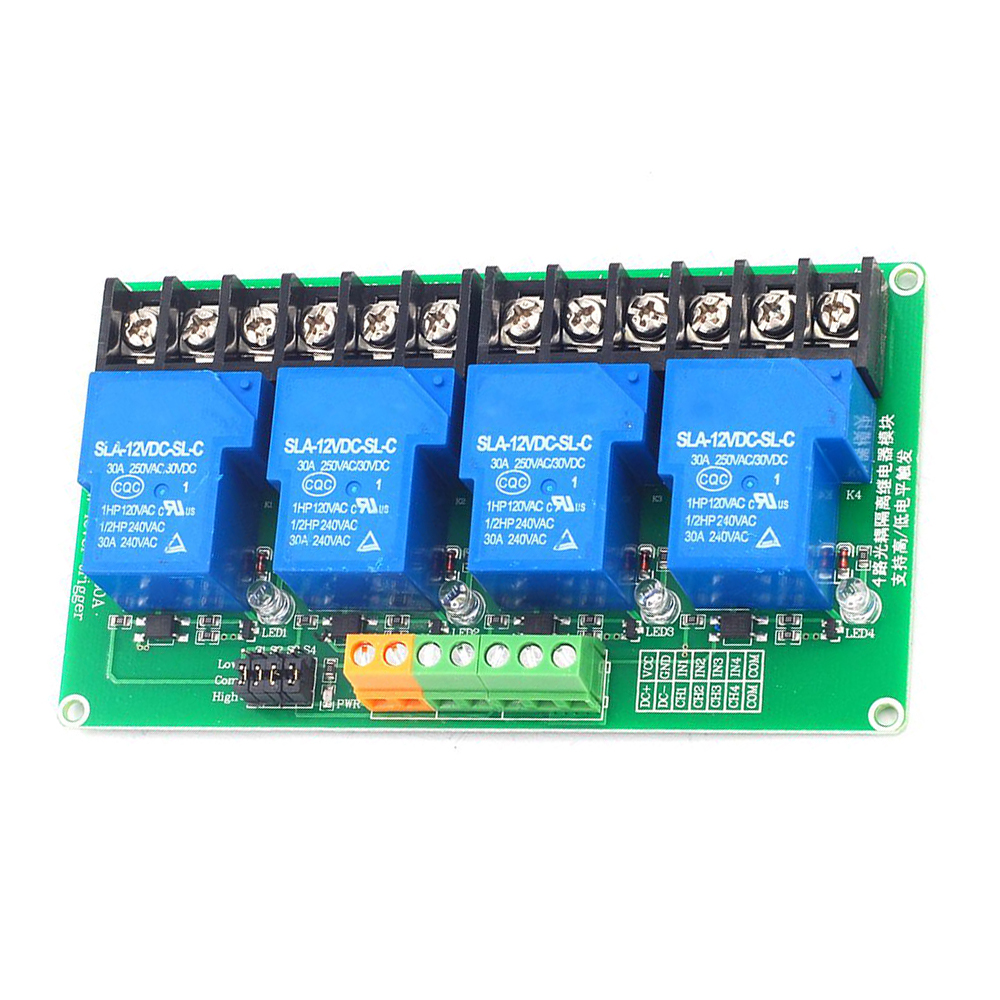

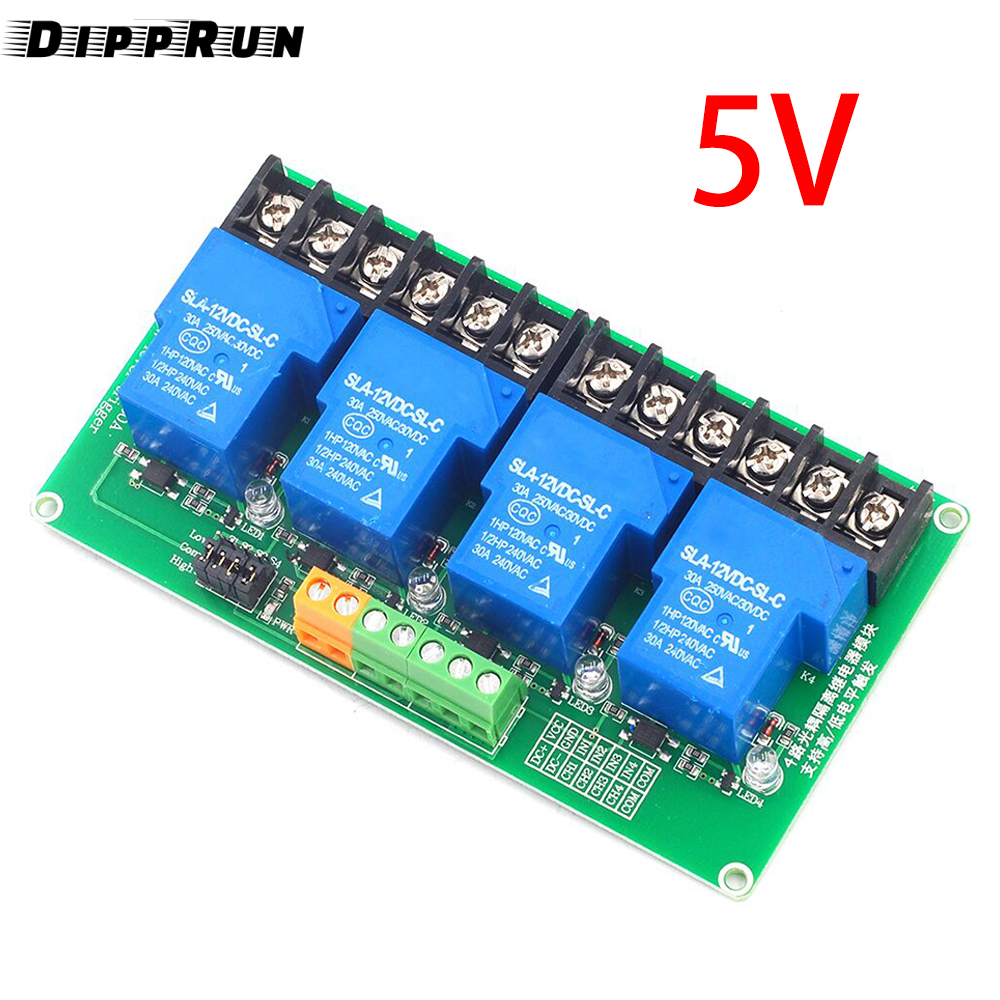

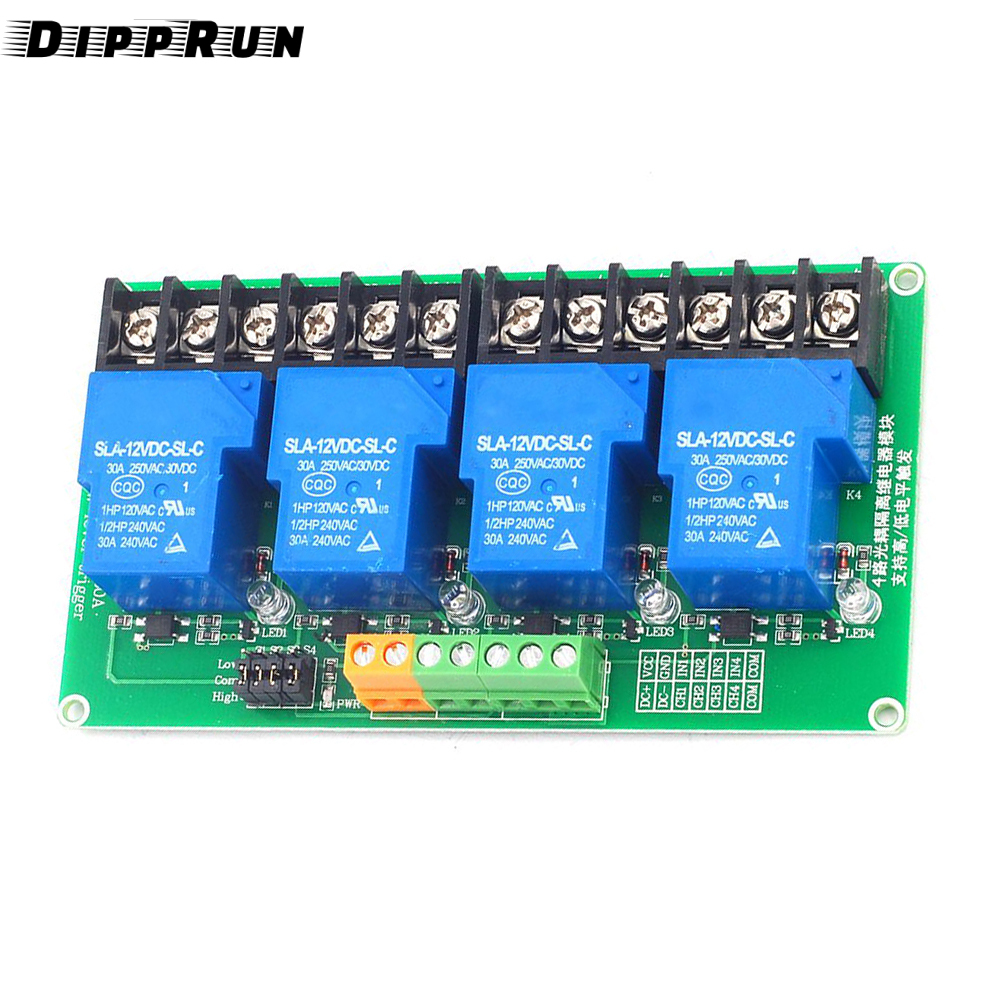

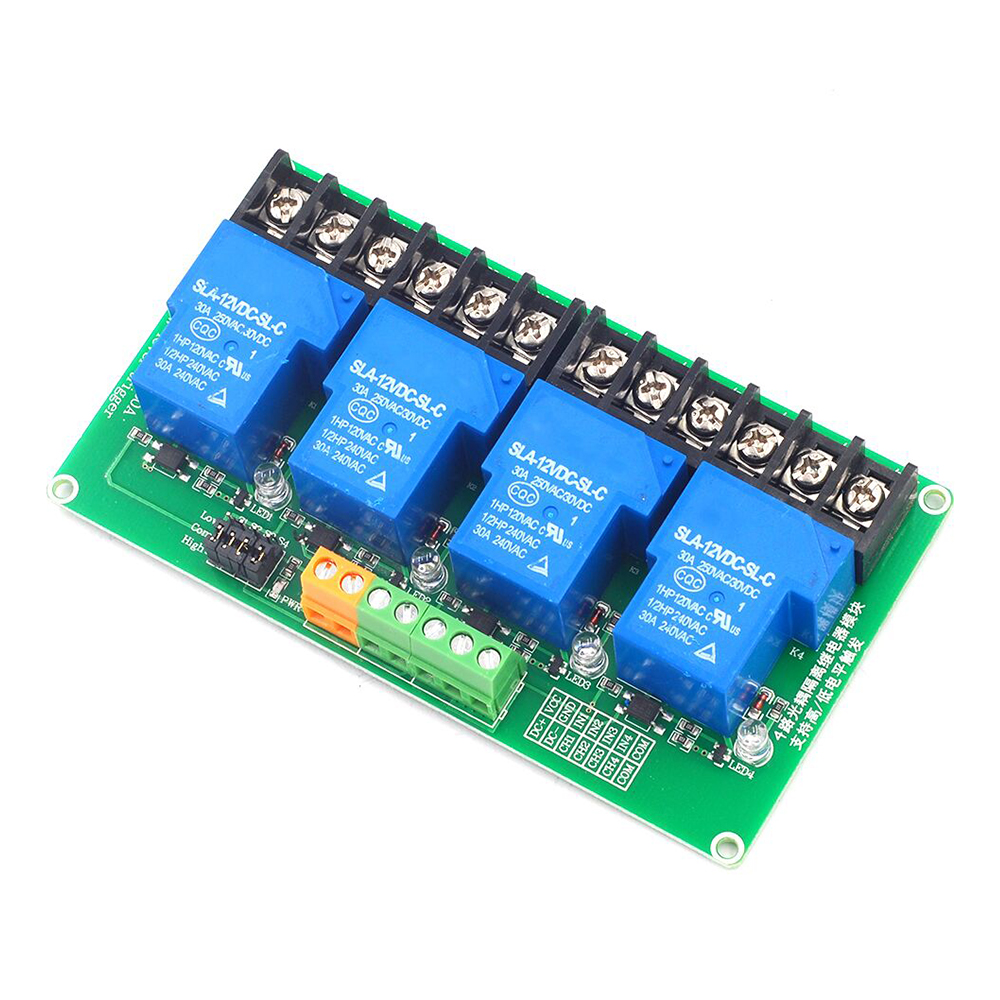

DIPPRUN AC250V 30A 4 Channel Relay Module High Power DC5V 12V 24V High Low Level Trigger Switch Module

Features:
1.The module adopts genuine high-quality 30A relays, and the maximum load of the normally open interface: AC 250V/30A, DC 30V/30A.
2.Isolation with patch optocoupler, strong driving ability, stable performance: triggering current of 5mA.
3.The working voltage of the module can be selected from 5V, 12V, or 24V.
4.The module can be triggered at high or low levels through jumper settings.
5.The interface design is user-friendly, and all interfaces can be directly connected and led out through wiring terminals, which is very convenient.

Parameters:
Static current: 5MA
Maximum current: 50MA/80MA/190MA
Trigger current: 2-4mA

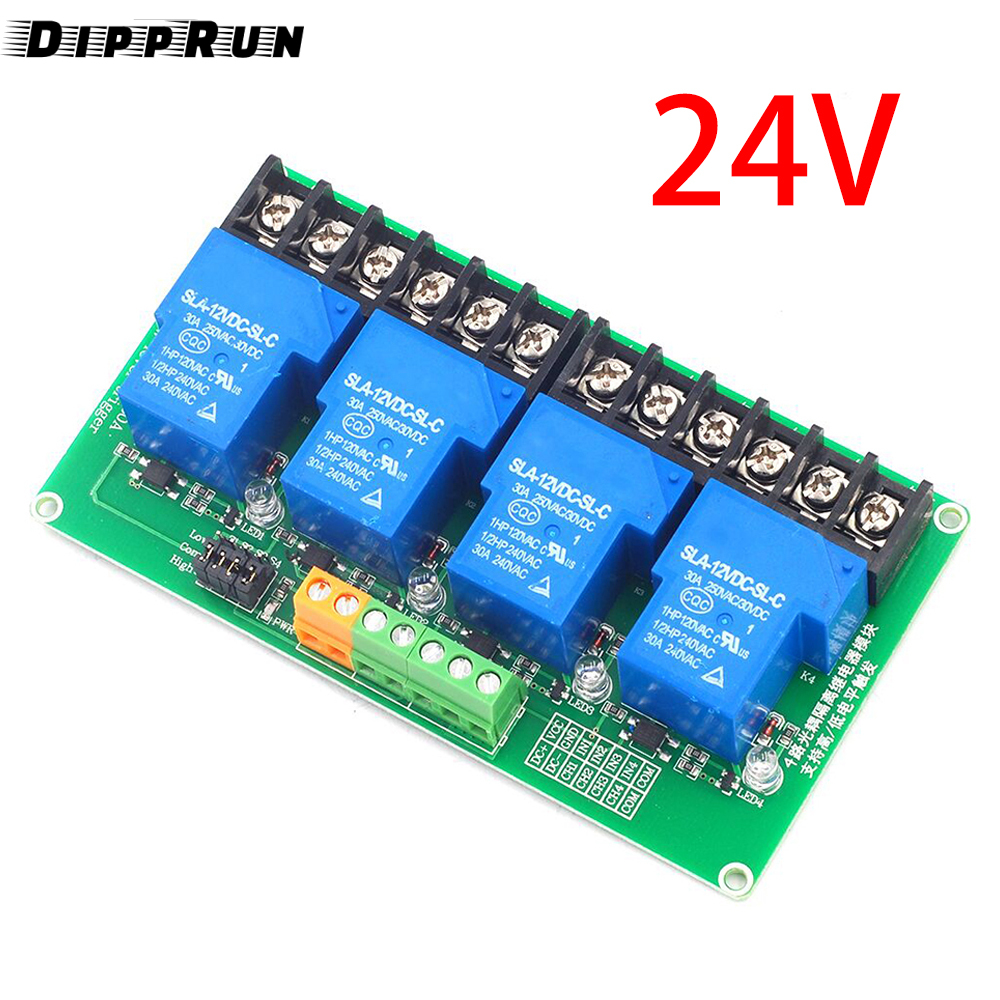

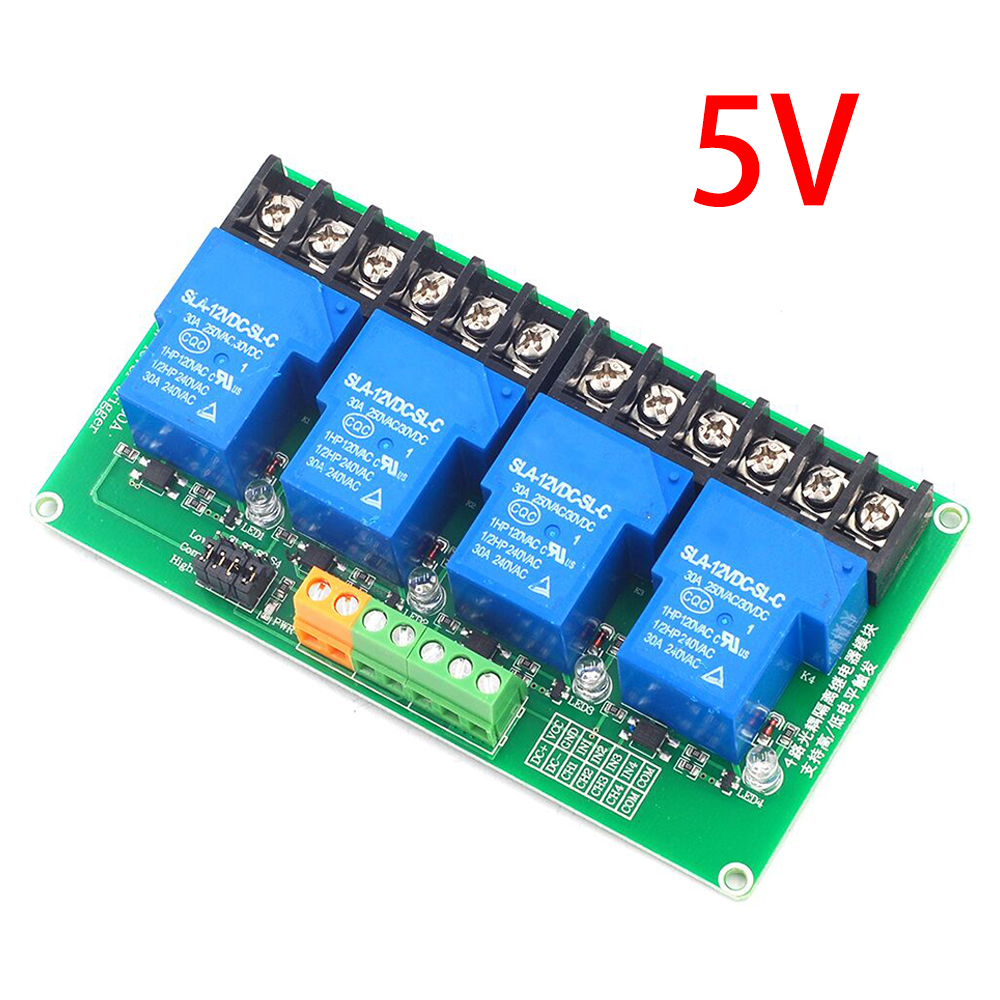

Relay version: 5V/12V/24V
Load current: 30A
Load voltage: DC30V or AC250V
Can control up to AC 250V, 10A AC load, and up to DC30V 30A DC load

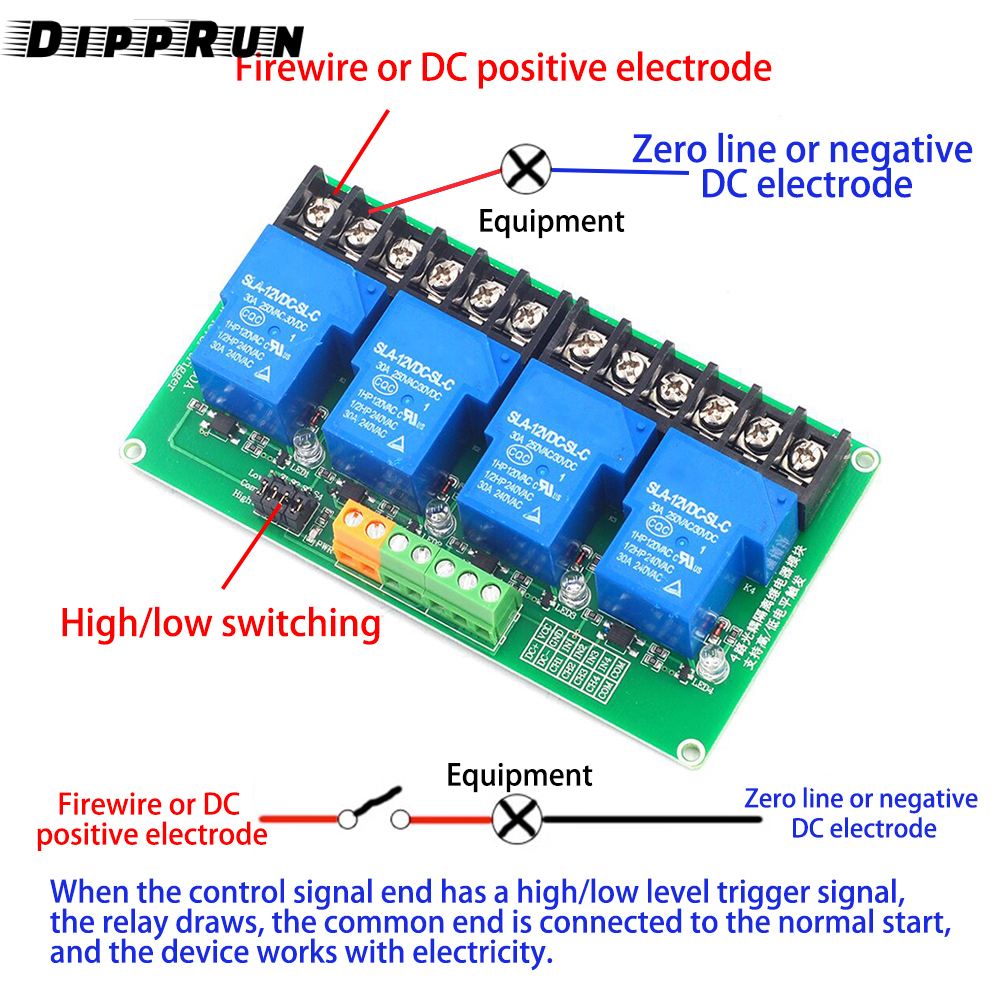

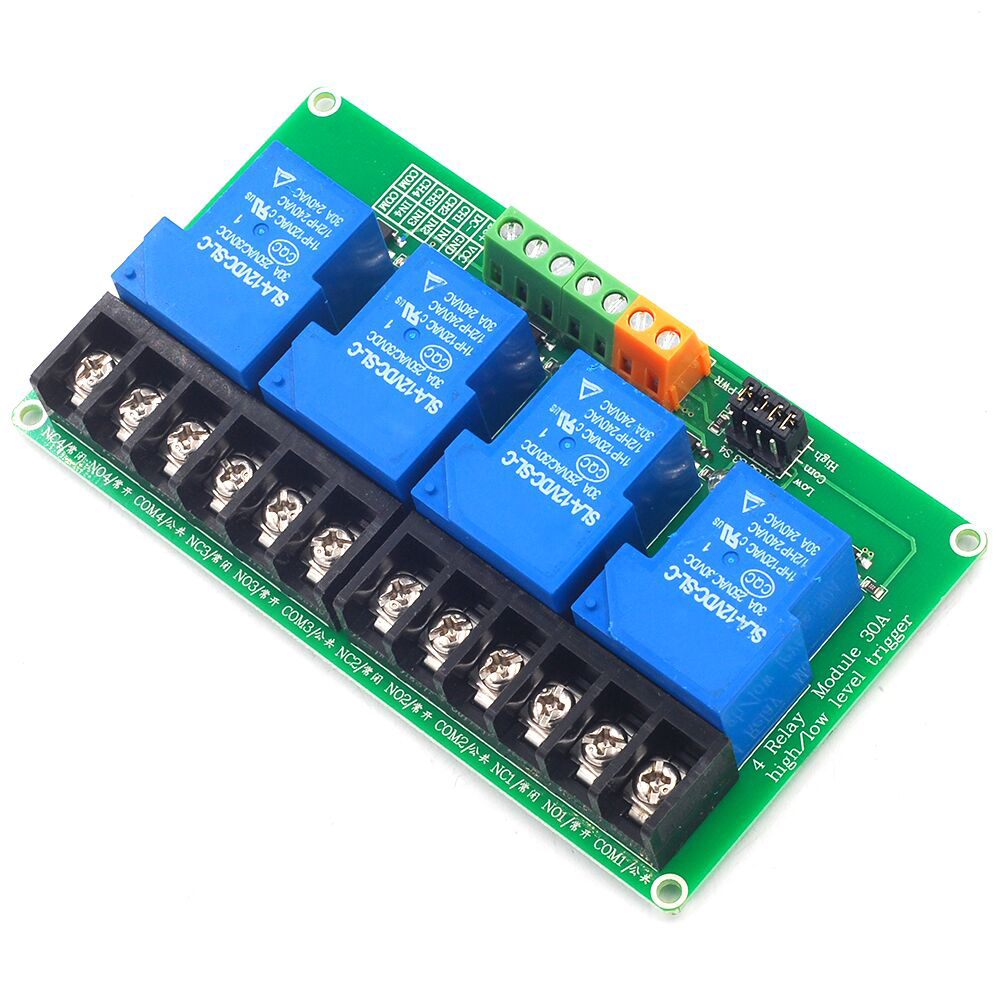

Interface Description
1. DC+: module DC power supply positive pole (trigger terminal voltage positive pole)
2. DC -: Negative pole of module DC power supply (trigger terminal voltage negative pole)
3. IN: Signal trigger terminal (default trigger voltage is the same as the power supply)
4. Selection of high/low level triggering method. When the jumper is connected to the terminal, the IN terminal is low level triggered, and when connected to the H terminal, it is high level triggered

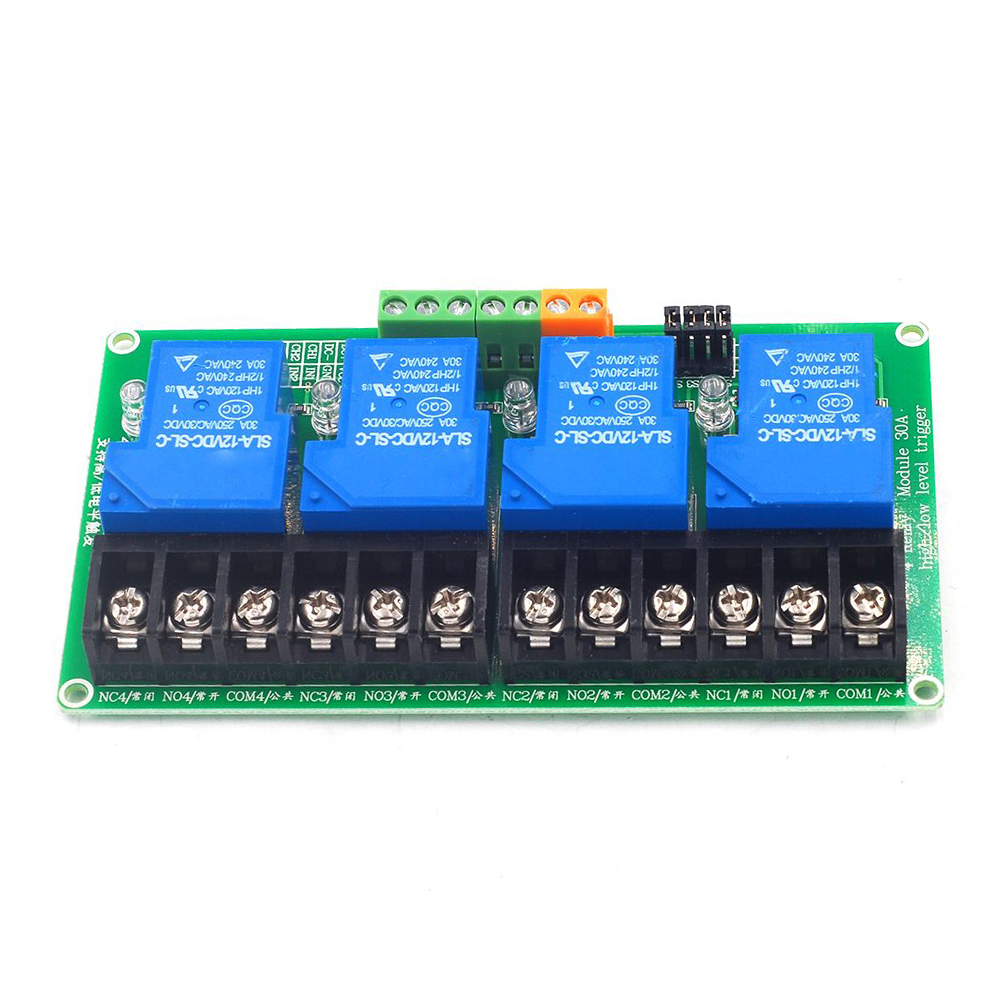

5. Normally closed end (NC): Normally closed end of relay
6. Common terminal (COM): Relay common terminal
7. Normally Open (NO): Relay Normally Open

Package include:
Relay module * 1
