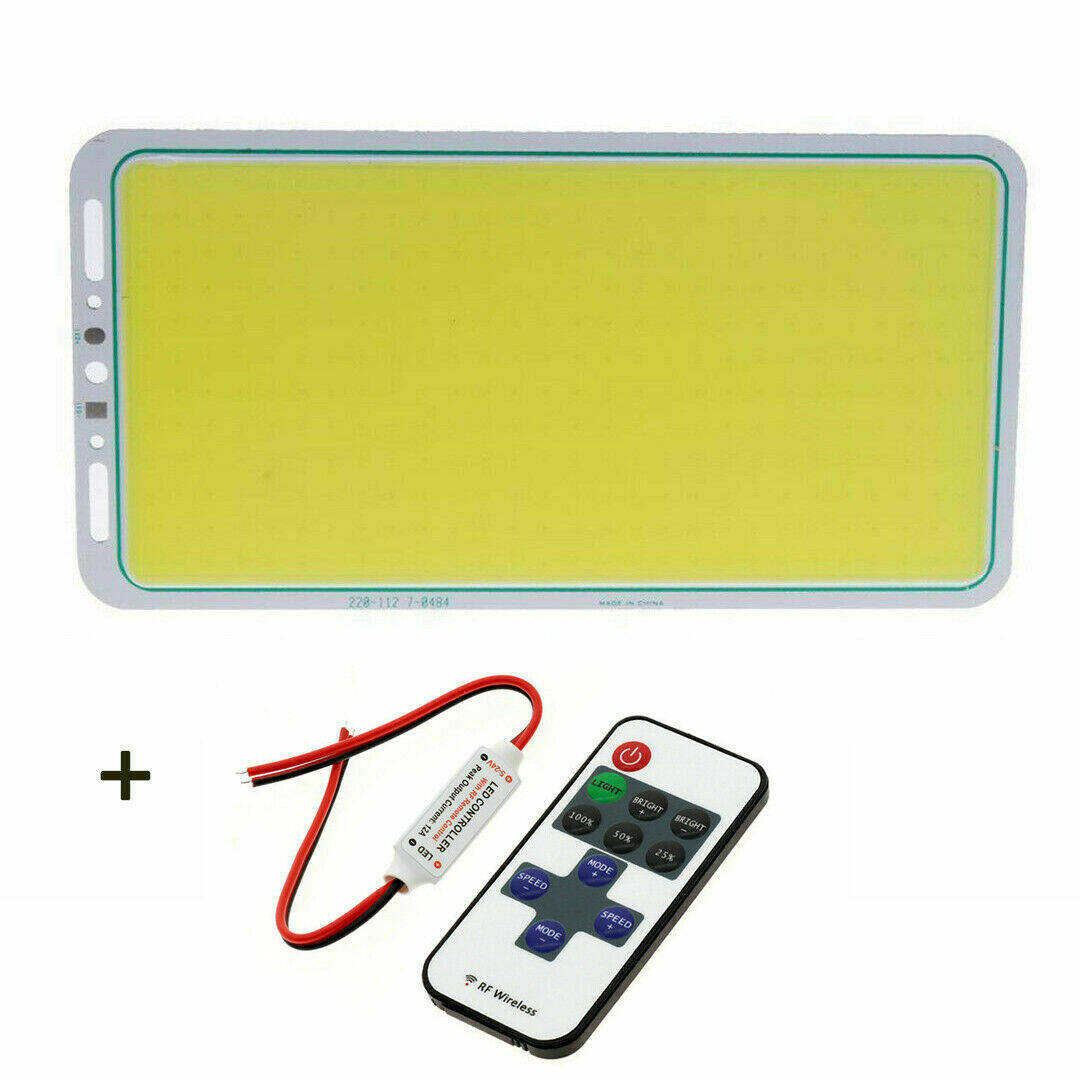

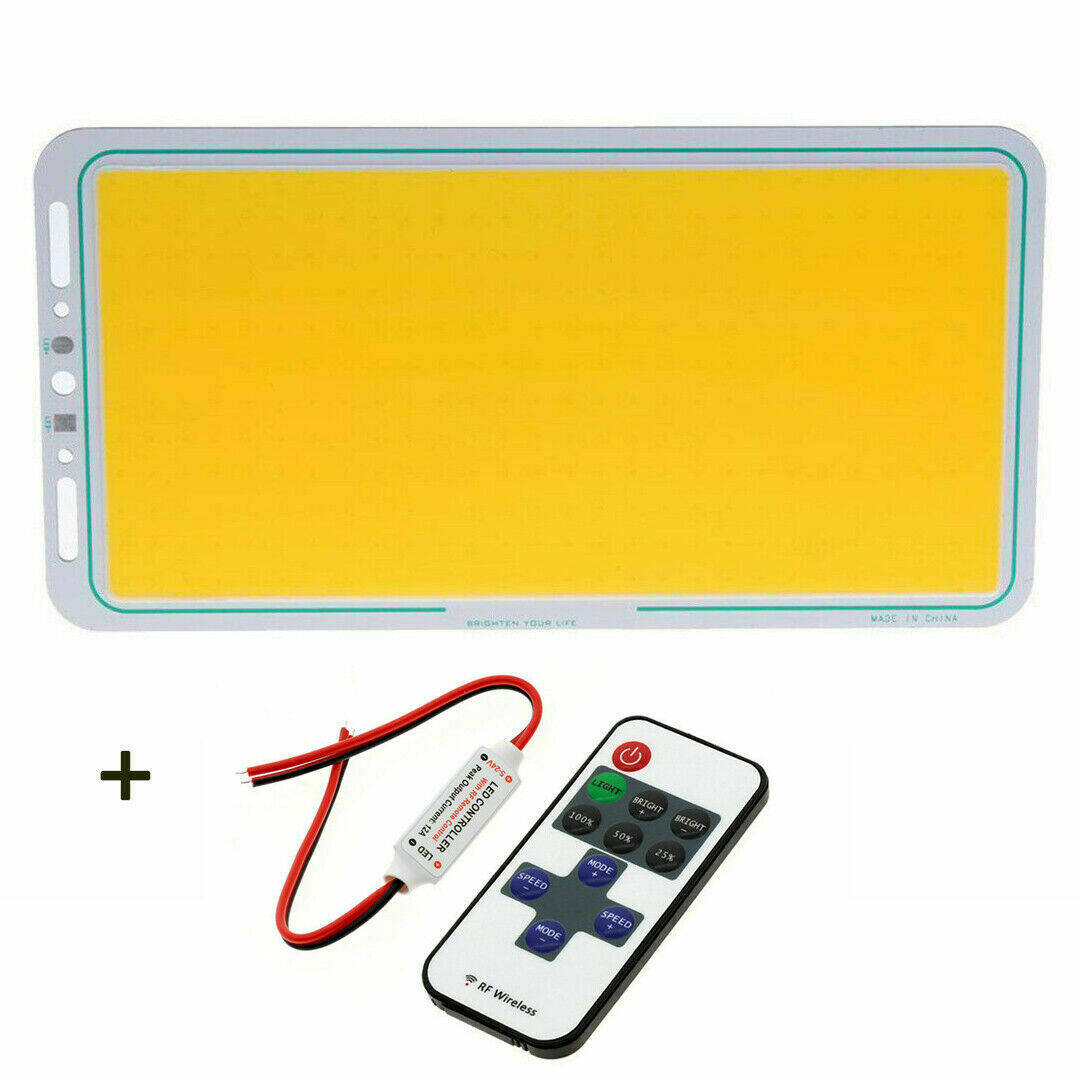

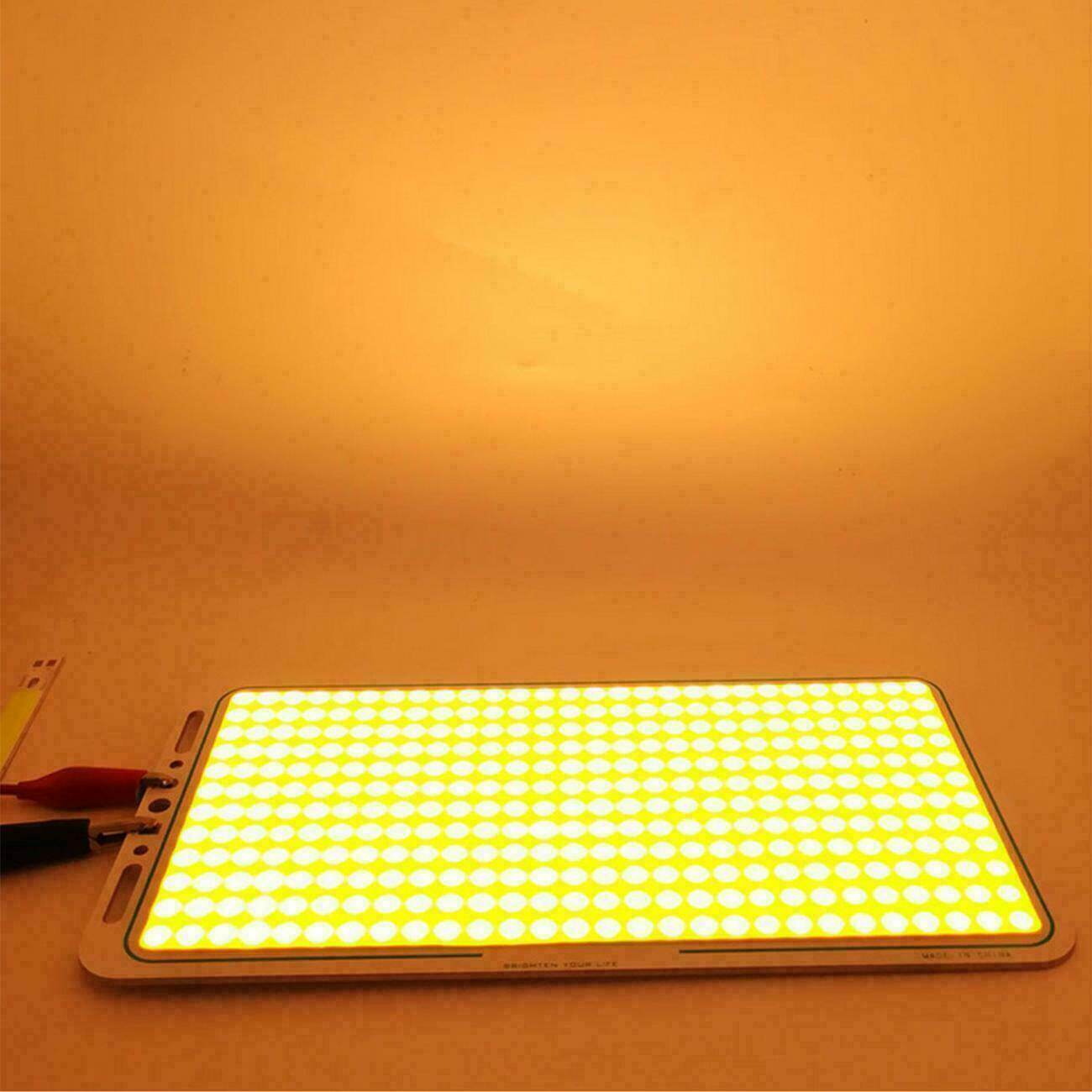

Dimmable DC 12V COB LED Panel Light Bulb 70W With Dimmer Flip Chip Controller RM

Product Description

MPN	Does Not Apply
Brand	Unbranded
Color	White/Warm whtie
Features	COB
Type	LED
Bulb Wattage	70 W
Bulb Life Hours	50,000 hrs +
Lumens	2000 lm or More
LED Chip Code	COB
Beam Angle	91 - 120 Degrees
Model No	RC1194
Bulb Shape	Panel
Voltage	12V - 14V

Ranpo technology develops new light source application technology with the highest level of responsibility for future lighting and environment, and serves the world with the latest high-quality products, lighting up the future!

---

Features:

Desk lamp light source, and DIY lamps, COB surface light, soft and balanced effect, Safe low voltage, suitable for car lighting or special purpose, etc.

Wider range, more secure, high thermal conductivity, low light failure and long service life, Balanced light with no stains or shadows.

Stable performance, easy to assemble and use. Light without flicker, no UV band, green and in line with energy-saving and environmental protection needs.

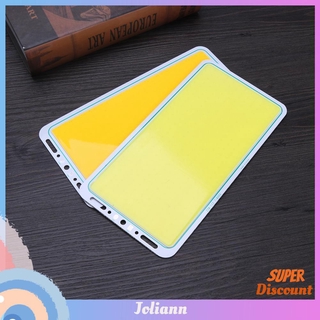

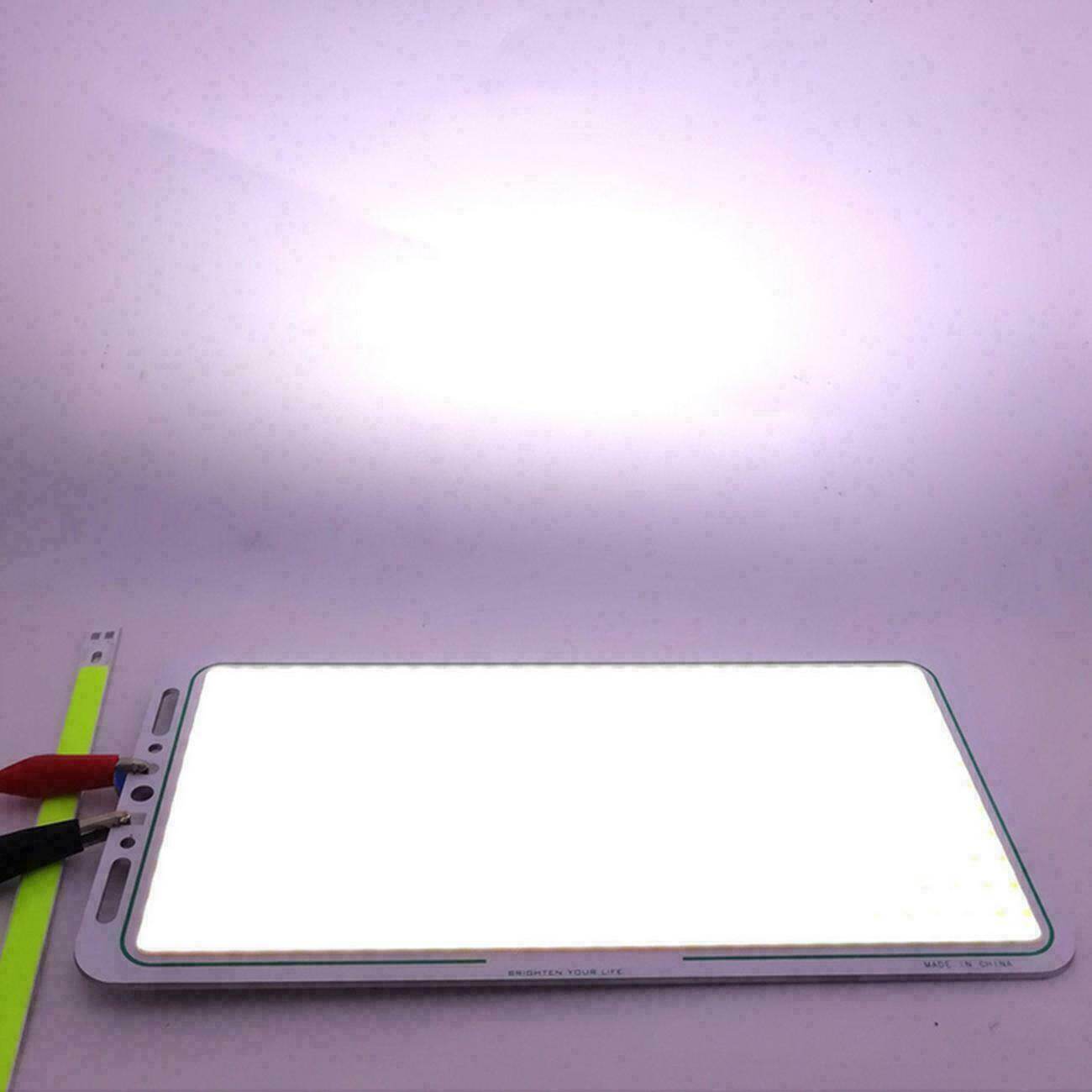

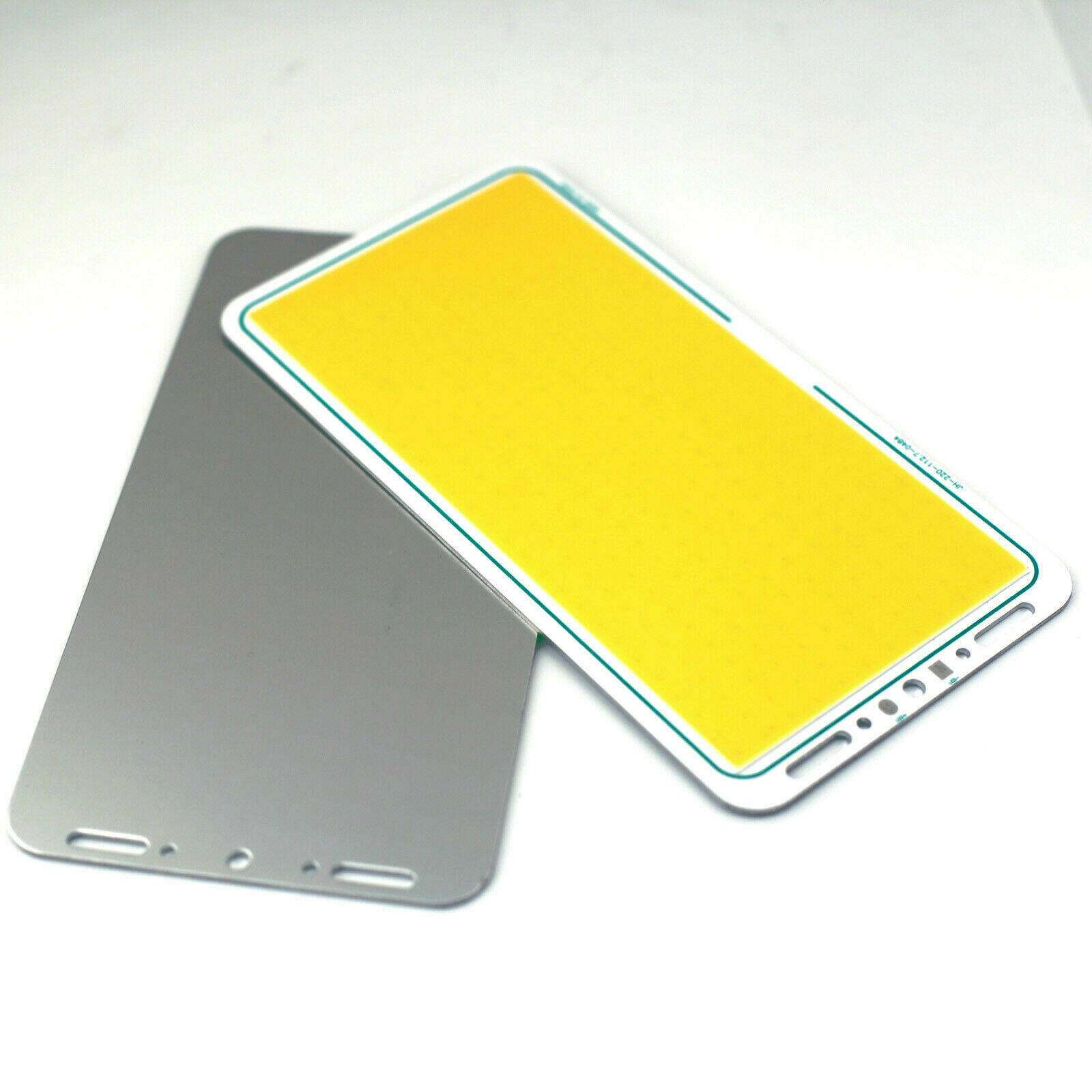

COB LED Panel Light Parameters:

The COB LED size: 220*113mm

Emitting diameter: 203*100mm

Power: max up to 70W

Voltage: DC 12V - 14V

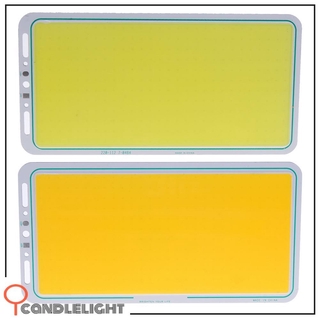

Emitting color: Cold White (6000-6500K), Warm white (2800-3200K)

RA: 80%

Luminous efficacy: >100LM/W

Usage: for fishing rod light, outdoor camping light, car lights, and other LED lights

Use manual:

Need to weld a wire by yourself, then connect to the 12V power supply.

If you use 110V or 220V AC power supply, you need a 12V 70W constant current driver/ transformer.

The LED lights will produce very much heat, so you need to add a heatsink/ radiator to protect the COB Lights.

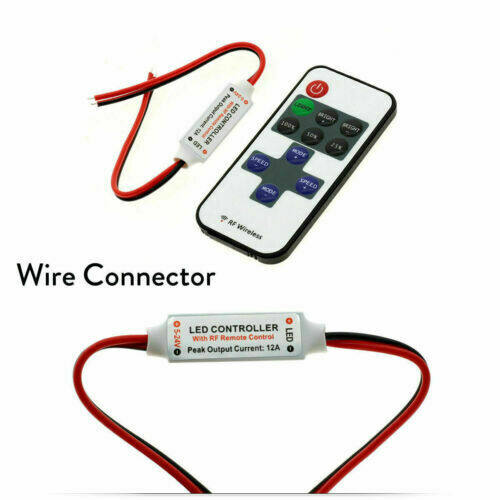

RF Remote Specifications:

Working voltage: DC 5~24V

Peak Output Power: 144W(12V) 288W(24V)

Peak Output Current: 12A

Control mode: RF wireless

Remote Control Frequency: 433.92MHz

Dynamic Mode: 8 modes

Dynamic speed level: 10 levels

Lighting brightness level: 10 levels

PWM Grade: 256 levels

Smooth dimmer effect: YES

Connecting mode: Common Anode(+)

Control distance: >15m at open area

Remote powered by: 1 * CR2025 (Not Included)

Working temperature: -30~70 degrees Celsius

Remote size: Approx. 8.5 * 4cm / 3.3 * 1.6in

Package Included:

1 X LED Panel COB Strip Light or 1 x RF Remote (battery not include)
