Parameter

Functions:

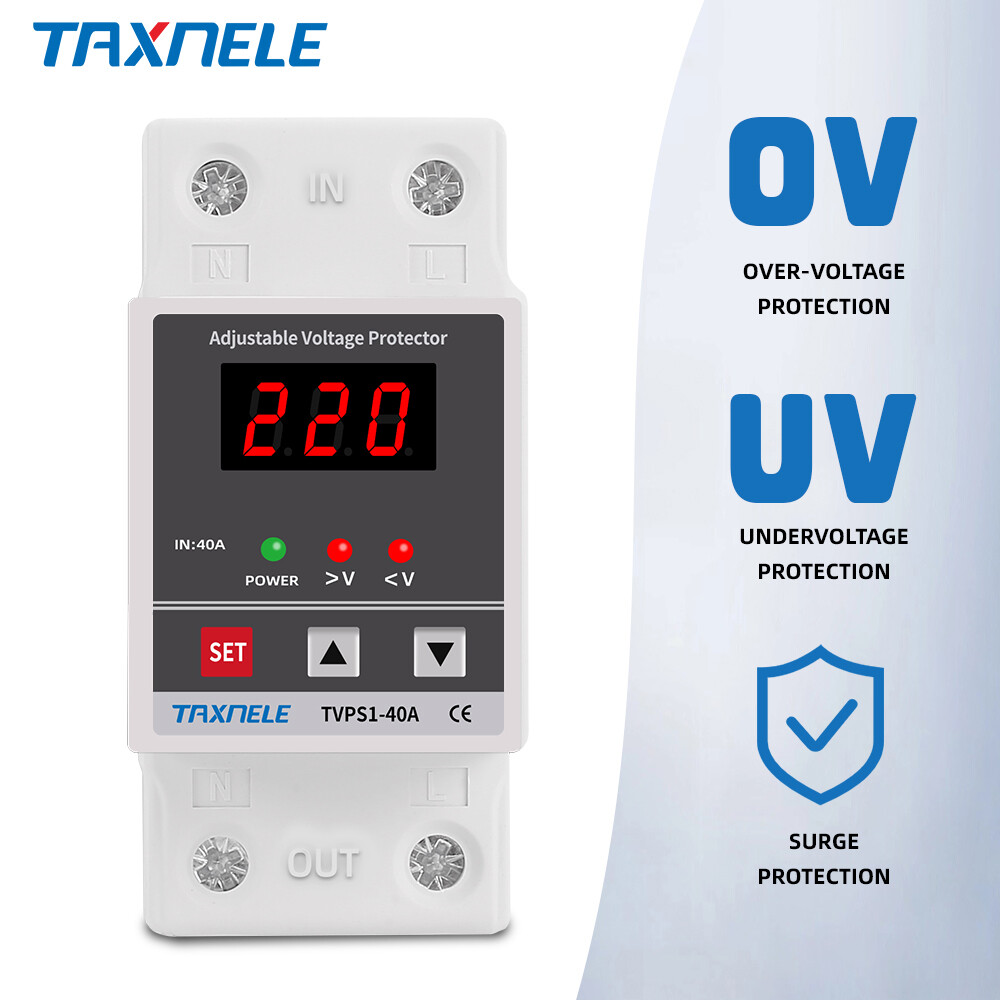

1.Over-voltage protection

2.Under-voltage protection

3.Automatic recovery

4.Voltage display(voltage measurement)

5.Voltage Correction

Product Parameters:

1.Model number:TVPS1-40ATVPS1-63A

2.Power supply:230VAC 50/60Hz

3.Max.Loading power:40A/63A

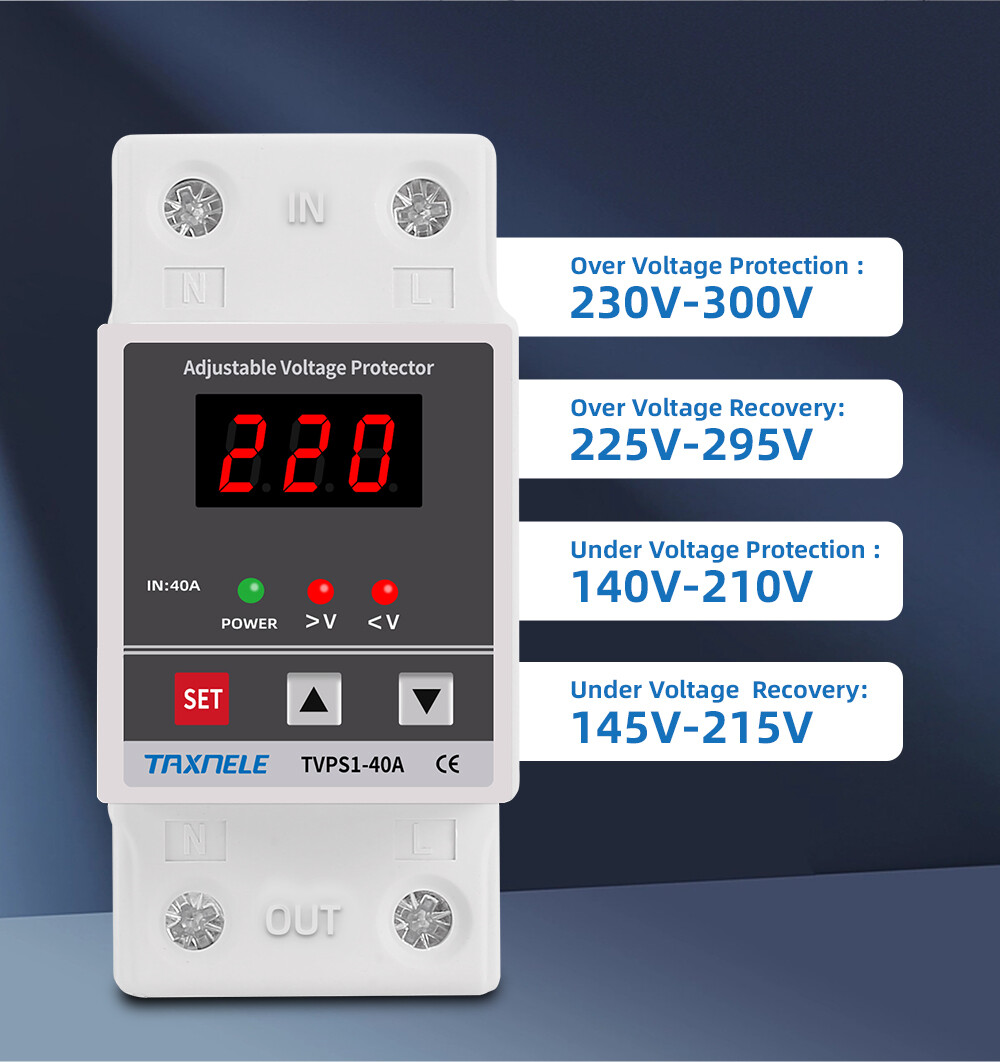

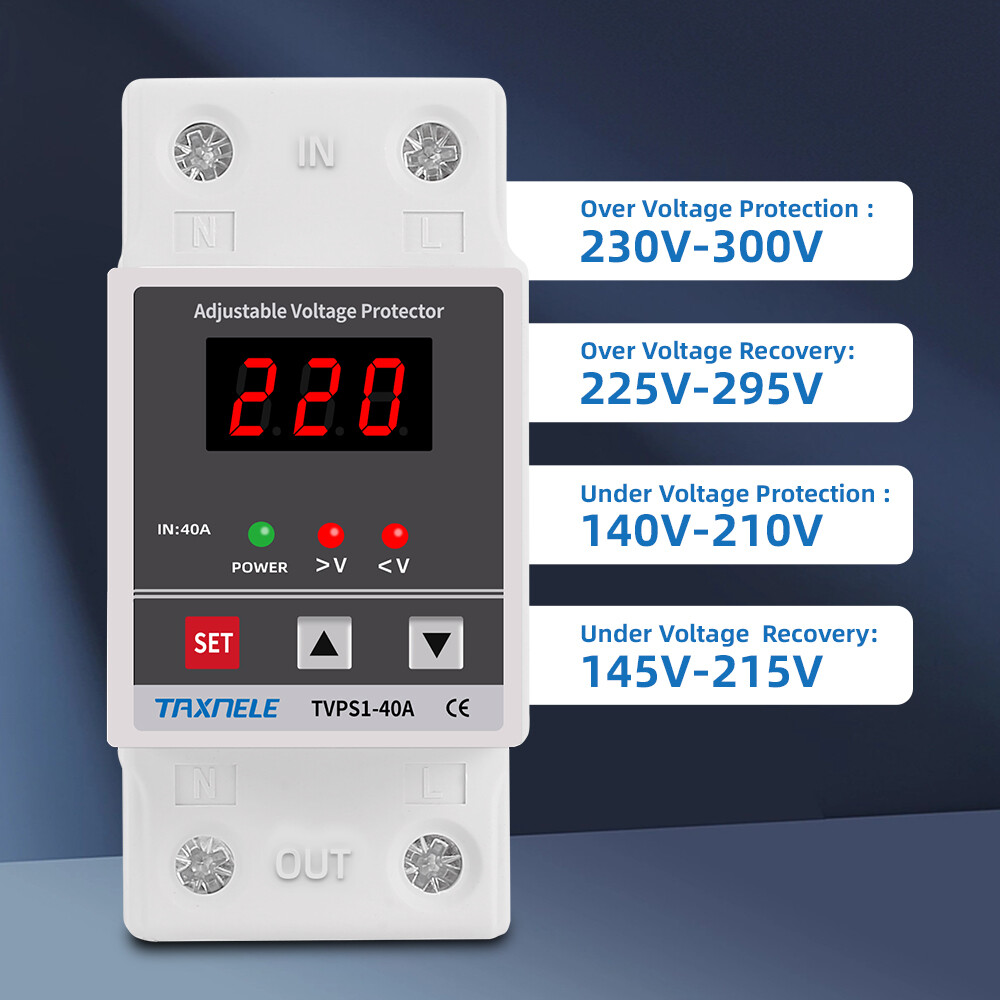

4.Over-voltage protection value range:230V~300V-OFF

Over-voltage recovery voltage range:225V--295V

Over-voltage protection action time:0.1s~30s(default value:0.5s)

Over-voltage recovery delay time:1s~500s(default:30s)​​

5.Under-voltage protection value range:140V--210V --OFF(default:170V)

Under-voltage recovery voltage range:145V--215V (default:190V)

Under-voltage protection action time:0.1s~30s(default:0.5s)

Under-voltagerecovery delay time:1s~500s(default:30s)​​

6.Power-on delay time:1s~500s

7.Power consumption : <2W

8.Electric machinery life : 100,000 times

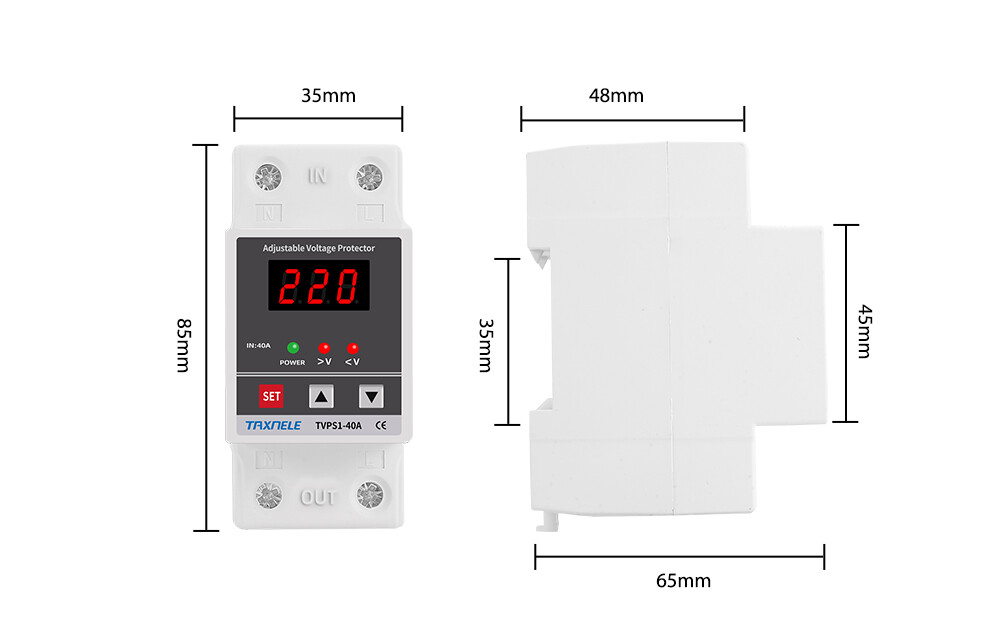

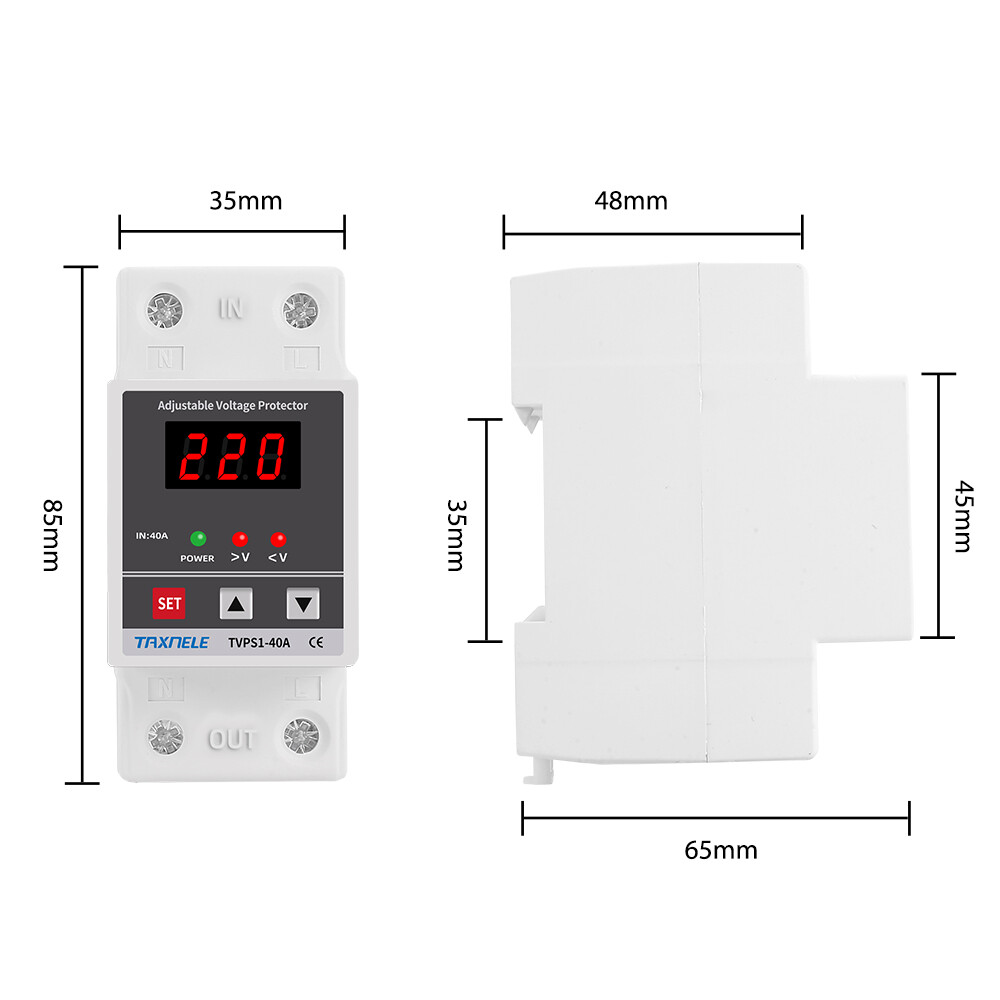

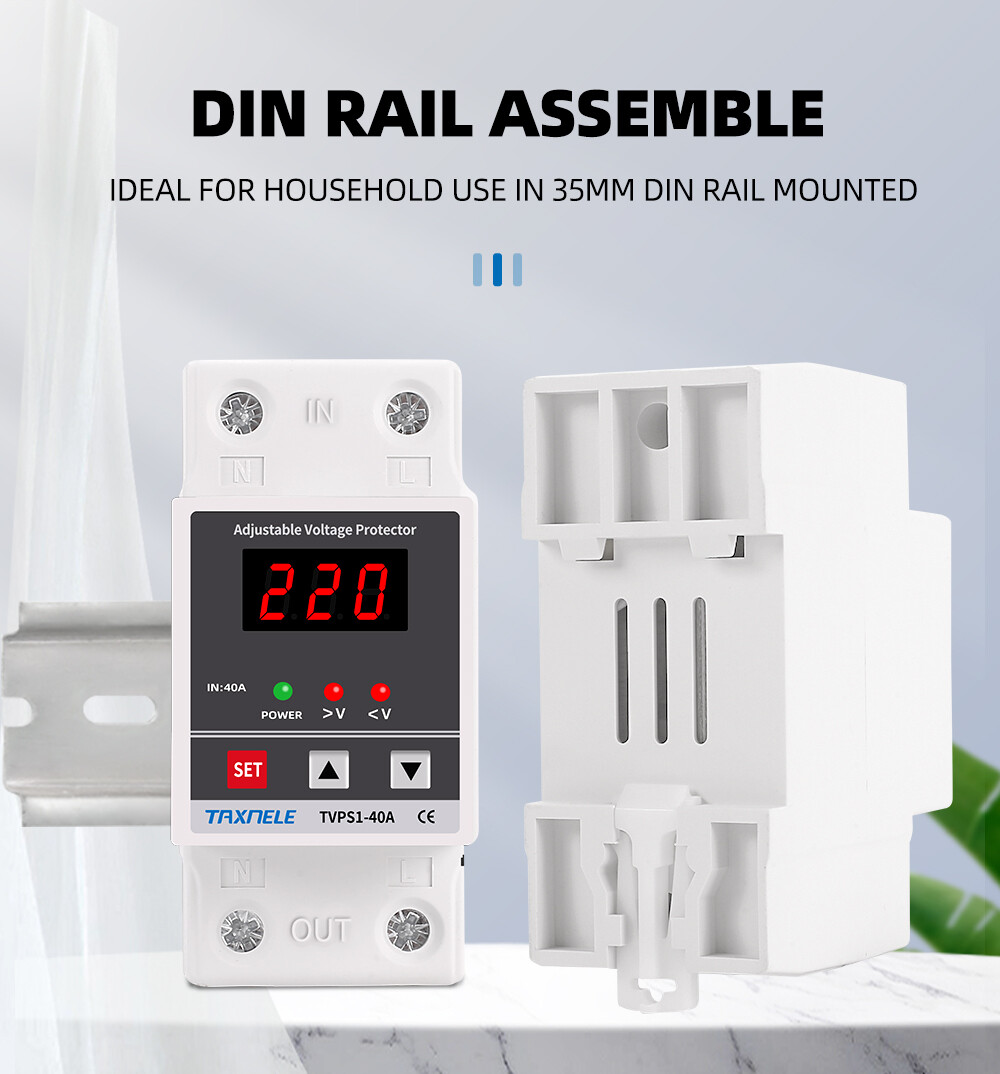

9.Installation:35mm DIN rail

Noted: When you first connect the product, you have to wait about 10 second(Power-on delay time:1s~500s(default:10s)),after the red light turn off, then the product will work.

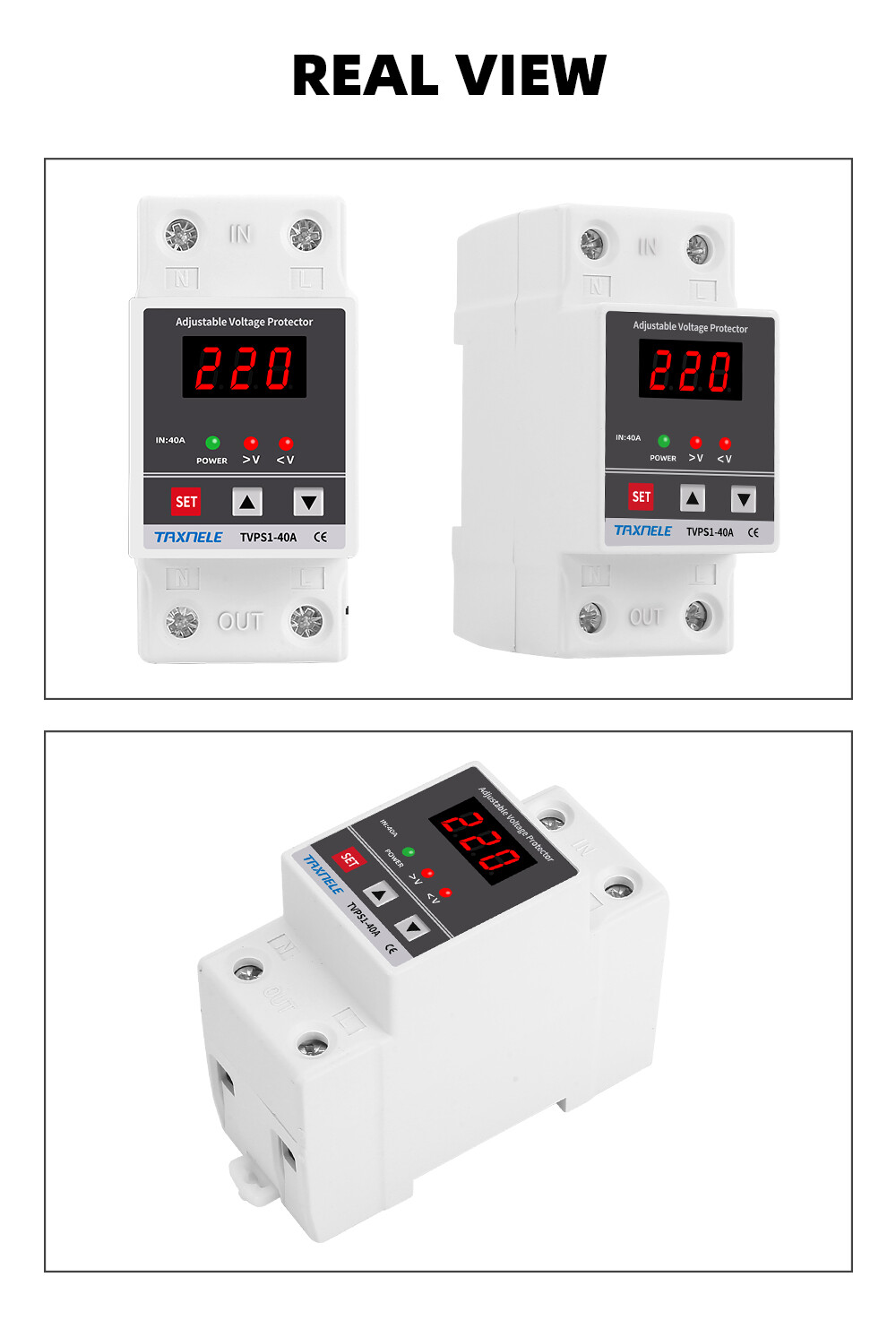

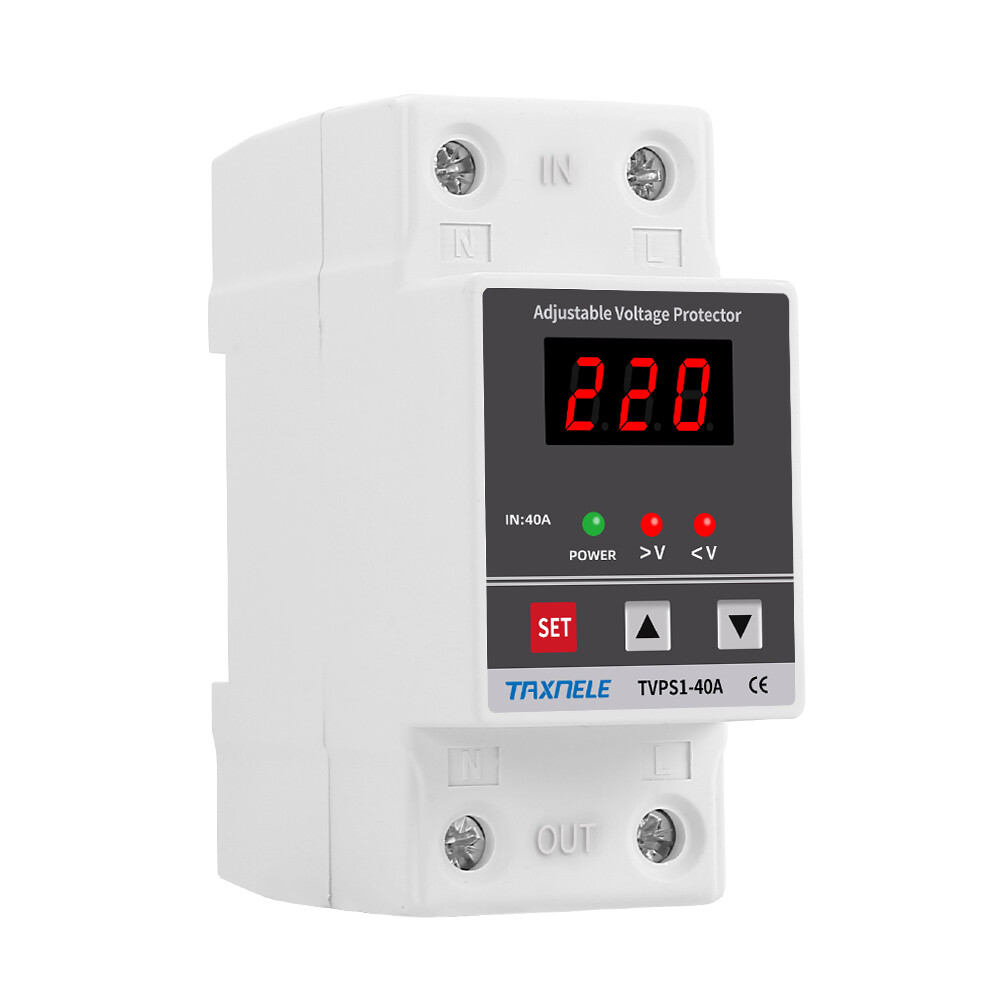

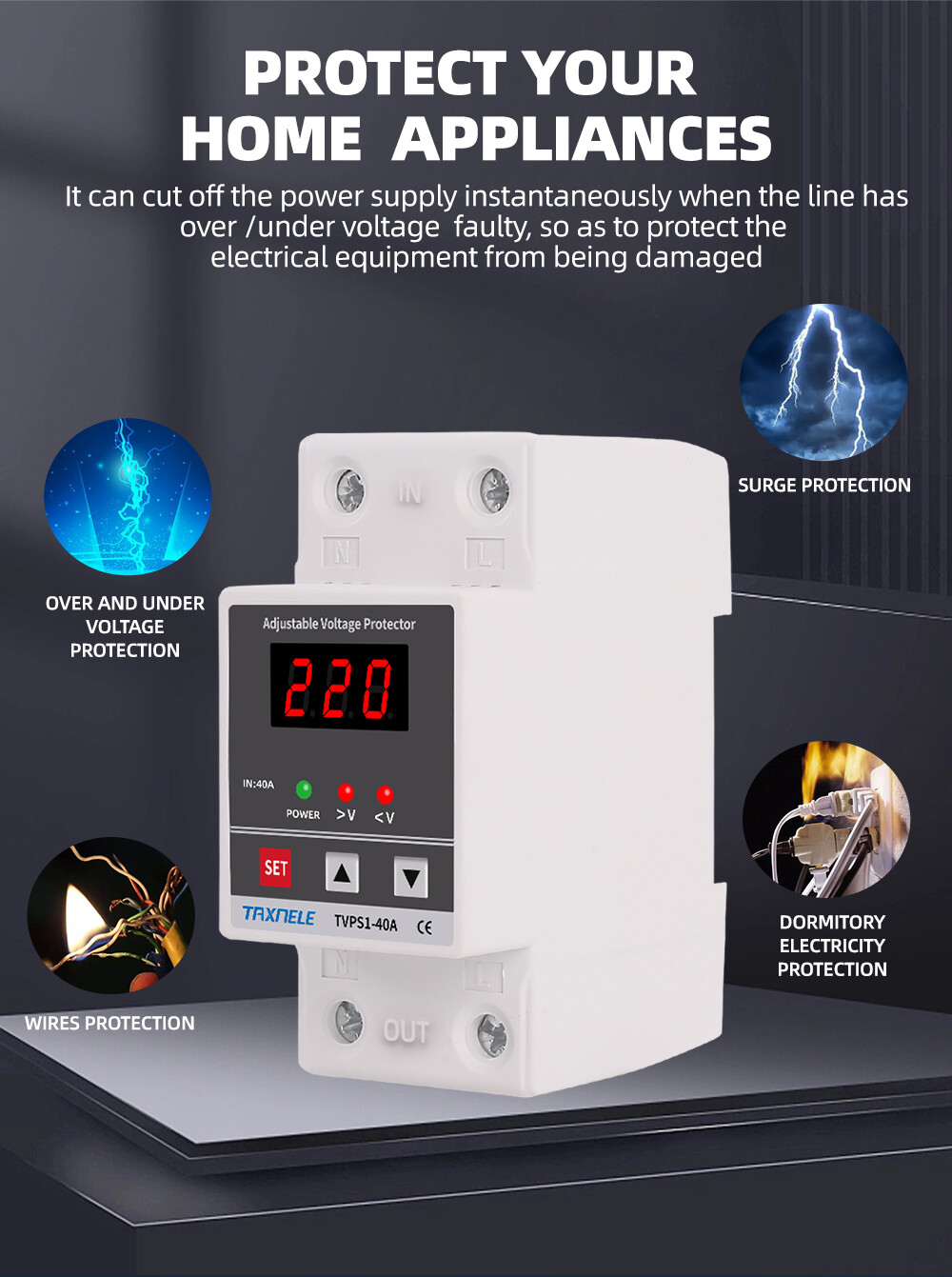

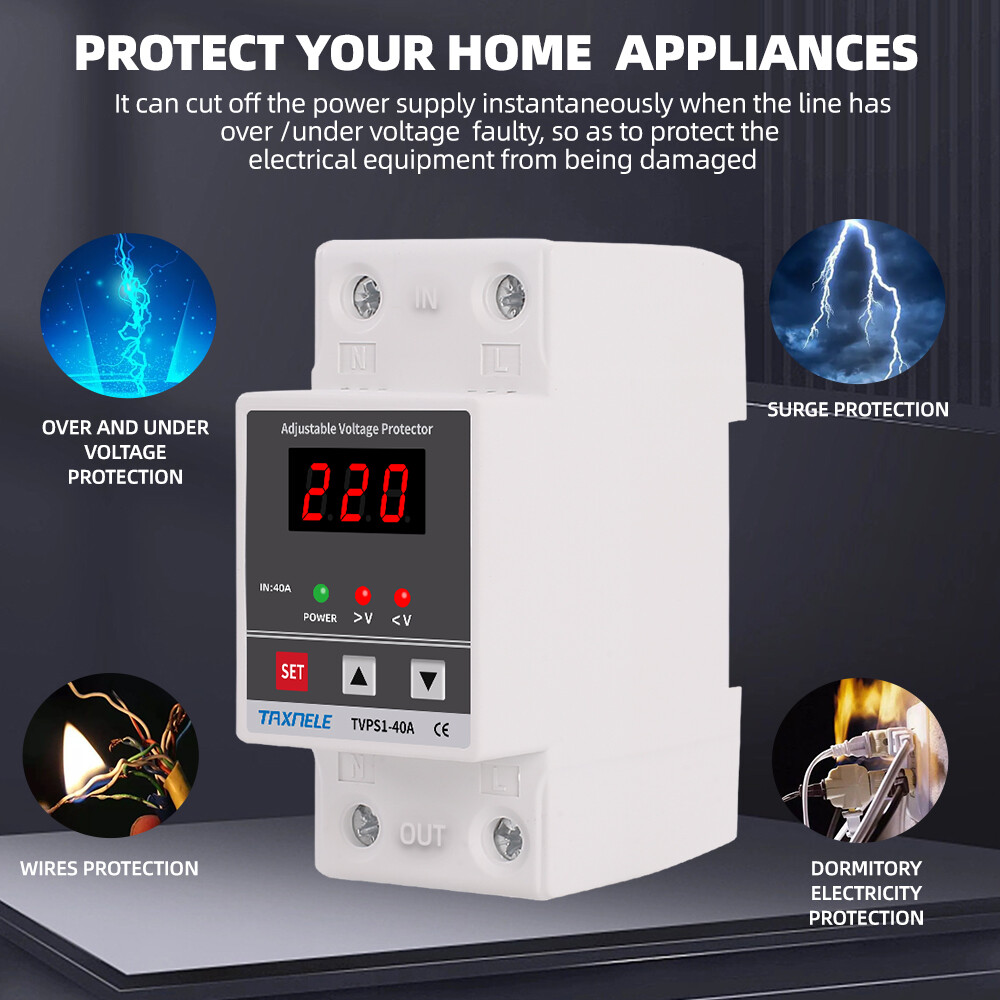

Product Display
