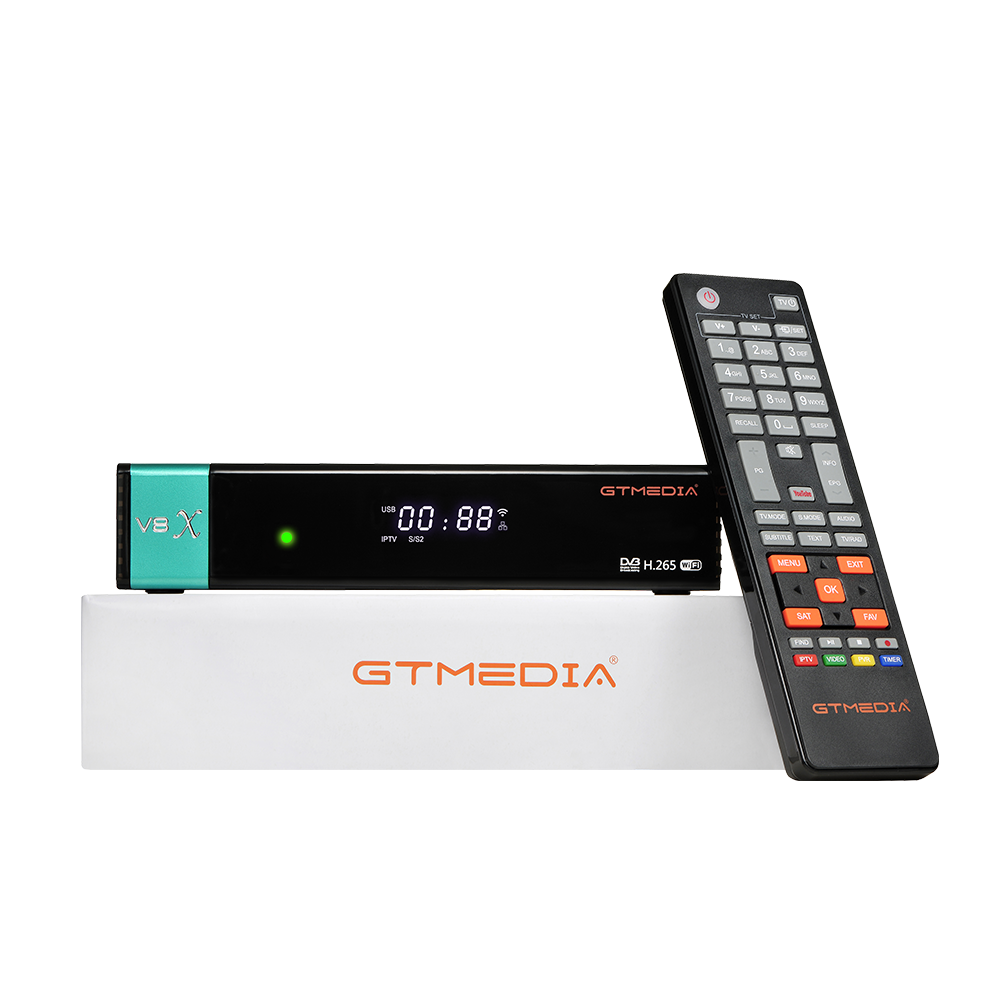

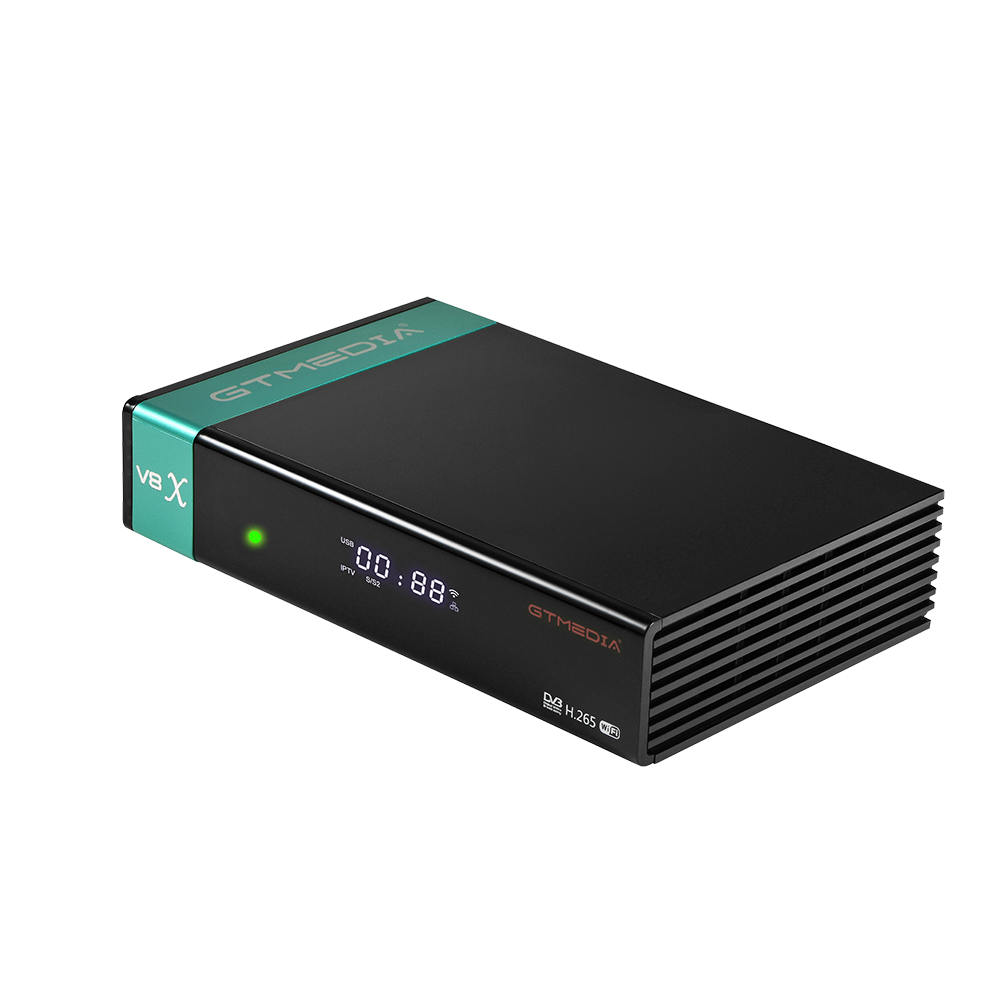

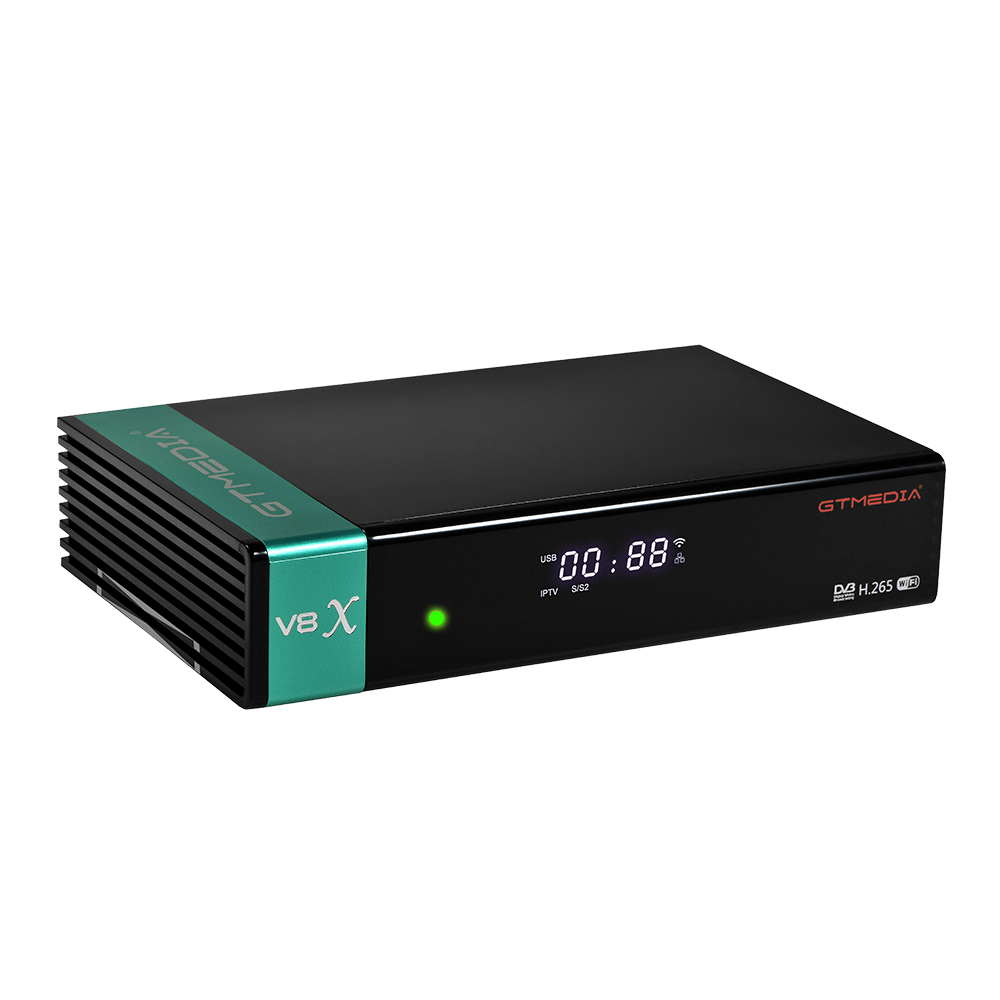

Digital Salite Receiver V8X H265 DVB-S2/S2X Built-in 2.4G WIFI GTmedia Decoder

2020 Newest GTmedia V8X Built-in WiFi TV H265 Receiver DVB-S2/S2X SaliteDecoder

Product Description

Highlight	1.Support DVB-S/S2/S2X, VCM/ACM/multi-stream, HEVC main 10 profile, AVS
	2.Support BISS auto roll, Full PowerVu, DRE & Biss key;
	3.Support Unicable, DiSEqC1.0/1.1/1.2/USALS Motor fully support;
	4.Support SAT streamed to Gtplayer, DLNA;
	5.Support Built-in 2.4G WIFI module, Ethernet, and support 3G usb dongle;
	6.Support Online Movie (Youtube,You,Hotstar);
	7.Support IPTV (Customize, xtream, stalker);
	8.Support Network Sharing Cccam,Newcam,Mgcam;
	9.Support CA card slot;
	10.Technical support website : freesat.cn;
	Note: We reserve the right to change the design and OEM/ODM supported
Main Chip Sets	CPU		770MHz Dual Core
	Flash Memory		64MB SPI Flash
	DDR2 Memory		1G RAM
TS Demux	Demultiplexer		ISO/IEC 13818-1
	Input Bit Rate		Max 100Mbit/s
Video Decode	Video Decode		HEVC main profile level 4.1 and main10 profile L4.1,High tier MPEG-2 MP ML H.264 BP,MP&HP L3/L4.1/L4.2 AVS Jizhun profile and broadcast profile MPEG-4 SP profile, advanced simple profile L5 VC1 SP@ML, MP@HL, AP@L0-3 H263 baseline profile JPEG decoder
	TV System		Automatic PAL/NTSC conversion
	Aspect Mode		Car, 16:9 Pillar , 4:3 Pan & Scan, 4:3 Letter
	Video effects		Standard, Default, Vivid.
	Video Resolution		1080P, 1080I, 720P, 576P, 480P, 576I, 480I
	HDMI Color Space		RGB, YUV422, YUV444, car
Audio Decode	Audio Decode		MPEG-1/2 Layer 1/2/3, MPEG-2/4 LC-AAC, MPEG-4 HE-AAC, Dolby AC3/AC3 , DRA CH/5.1CH
	Sound Mode		LEFT/RIGHT/STEREO/MONO
	Sampling Frequency		32KHz,44.1KHz,48KHz
	Audio Out		LPCM Out, BS Out
Hardware specifications	Panel display		4-digit white LED display (Support function display)
	LED Indicator		Power ON :Green; Standby :Red
	Button		NOT
	Wifi		Built in 2.4G WiFiSupport IEEE 802.1.1b/g/n
	IR		Exit IR for 38KHz,Infra Remote control

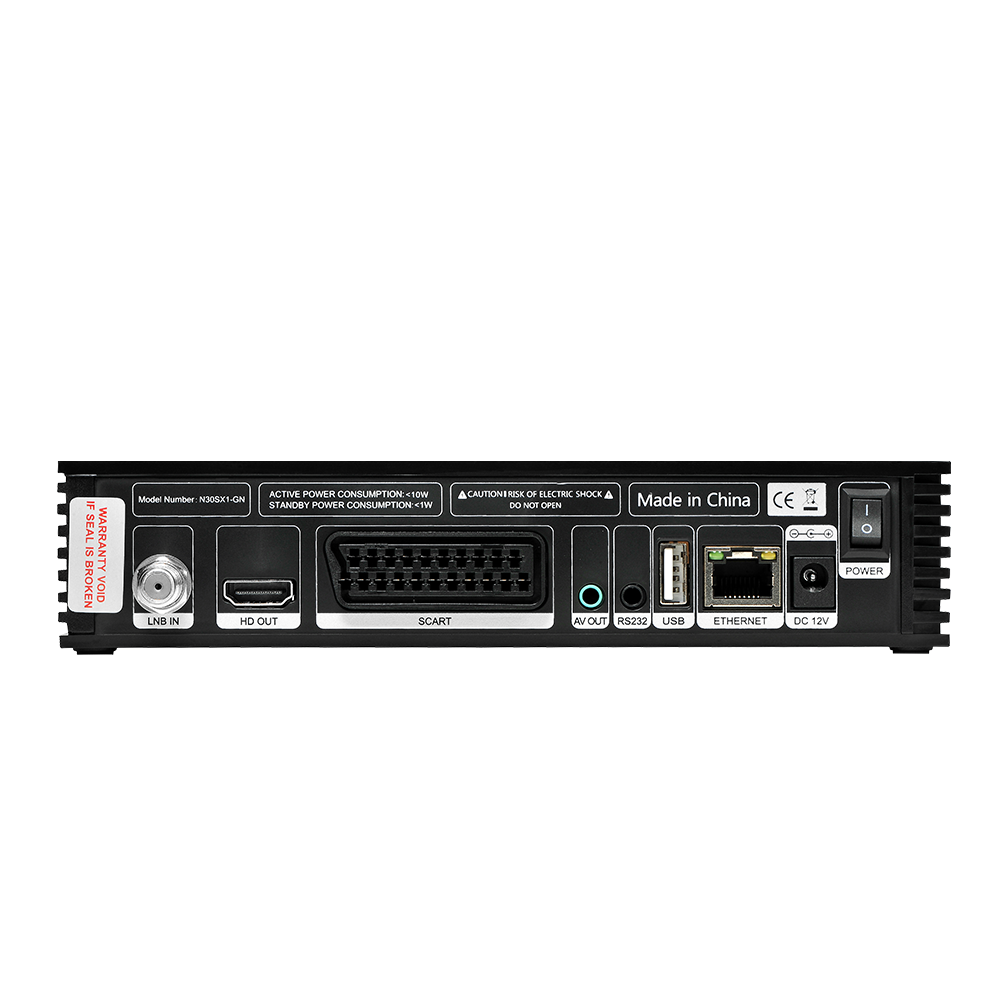

	Rear Panel		LNB IN(Frequency Range950MHz to 2150MHz)
			HD OUT (up to 1080P)
			SCART OUT
			AV out (3.5mm * 18mm jack/4-pin: red-white-yellow-gnd)
			1 * CA card solt
			1*USB HOST
			1*RJ45
			1 * PSC (3-pin 3.5mm jack)
			DC IN (DC12V/1.5A)
DVB-S/S2 specified-ons	System standard		ETS 302 307
	Frequency Range		950~2150MHz for DVB-S/S2/S2X baseband demodulator
	LNB Power and Polarization		DiSEqC1.0/1.1/1.2/USALS Motor fully support, Support Unicable, 13/18V DC400mA MAX, 22KHz±0.4KHz(0.6V±0.2V)tone,Overload Protection
	Input Level Range		-80dBm ~ -20dBm (average power)
	Symbol Rates		DVB-S QPSK,DVB-S2 QPSK/8PSK/16APSK/32APSK, DVB-S2X QPSK/8PSK/16APSK/32APSK/64APSK
	Forward error correction rate		1/4,1/3,2/5,3/5,2/3,3/4,4/5,5/6,8/9,9/10
	Carrier frequency acquisition range		±5MHz for symbol rates above 3 Msps and ±3MHz for the remaining symbol rates
	Symbol Rates		2 ~ 90MSPS(Code Rate 1/2)
	Roll-off factors		Roll-off factors for pulse shaping: 0.2, 0.25 and 0.35
	Code Rates		1/2,2/3,3/4,5/6,7/8 for DVB-S, 1/4,1/3,2/5,1/2,3/5,2/3,3/4,5/6 ,8/9,9/10 for DVB-S2, DVB-S2X Normal Frame and Short Frame FEC code rates
	ANT. Connector		Connector:IEC TYPE FInput Impedance:75 Ω
Sortware Features	Standard		Fully comply with DVB-S/S2/S2X (SCPC and MCPCreceivable from C/Ku band salite), MPEG-2/4 and H.265 Standard
	Channel Search		Support automatic network search for new added transponders
	Channels Number		6000channels TV and Radio programmable
	Channel		Recording one channel, can view another channel under the same TP,Various channel editing function(favorite,move,lock,skip,delete,rename,find,sort)
	Favorites		31 different favorite groups selection
	OSD Language		English,French,German,Italian,Spanish,Portuguese,Russian,Turkish,Polish,Arabic,Persian,Thai,Vietnam,Czech,Armenian,Georgian,Ukrainian,Albanian,Hungary,Malay,Indonesisch,Dansk,Greek,Serbian.
	OSD Color		32-bits OSD with anti-flickering
	OSD Setting		Support OSD Timeout and Transparency, Subtitle Display, Channel list displays pages 1-3.
	Other Setting		Sets up multiple habitual operation Settings
	Parental Ctrl		Parental control for channels
	Easy Menu		Plug and Play installation, with an easy to use Menu System
	EPG		Fully support to 7 days Electronic Program Guide(EPG)
	Subtitle		support DVB EN300743 and EBU
	etext		support DVB ETS300472 by VBI
	SoftUpgrade		Software upgrades through USB port, or FTP upgrade.
	Time Set		Time set by GMT offset automatic and manual,Summer Time support
	Timer		5 event timers,off/Once/Daily/Weekly Mode
USB Decode	USB 2.0		Support FAT/FAT32/NTFS big capacity hard disk
	PVR Option		USB 2.0 for PVR,TIMESHIFT,media files playback
	Media Codec		TS,mkv, mp4, avi, flv, f4v, ts, m2ts, mov, 3gp files
	Audio Codec		WMA,MP3
	Photo Codec		JPG, BMP, PNG, GIF
Packing	Product Dimension		193*125*40MM(L*W*H)
	Packaged Size		264*170*55MM
	Carton Size		572*360*280MM (20pcs/ctn)
	Unit Weight		0.68 kg with gift
	Carton Qty&Weight		20 pcs/Carton, 14 kgs

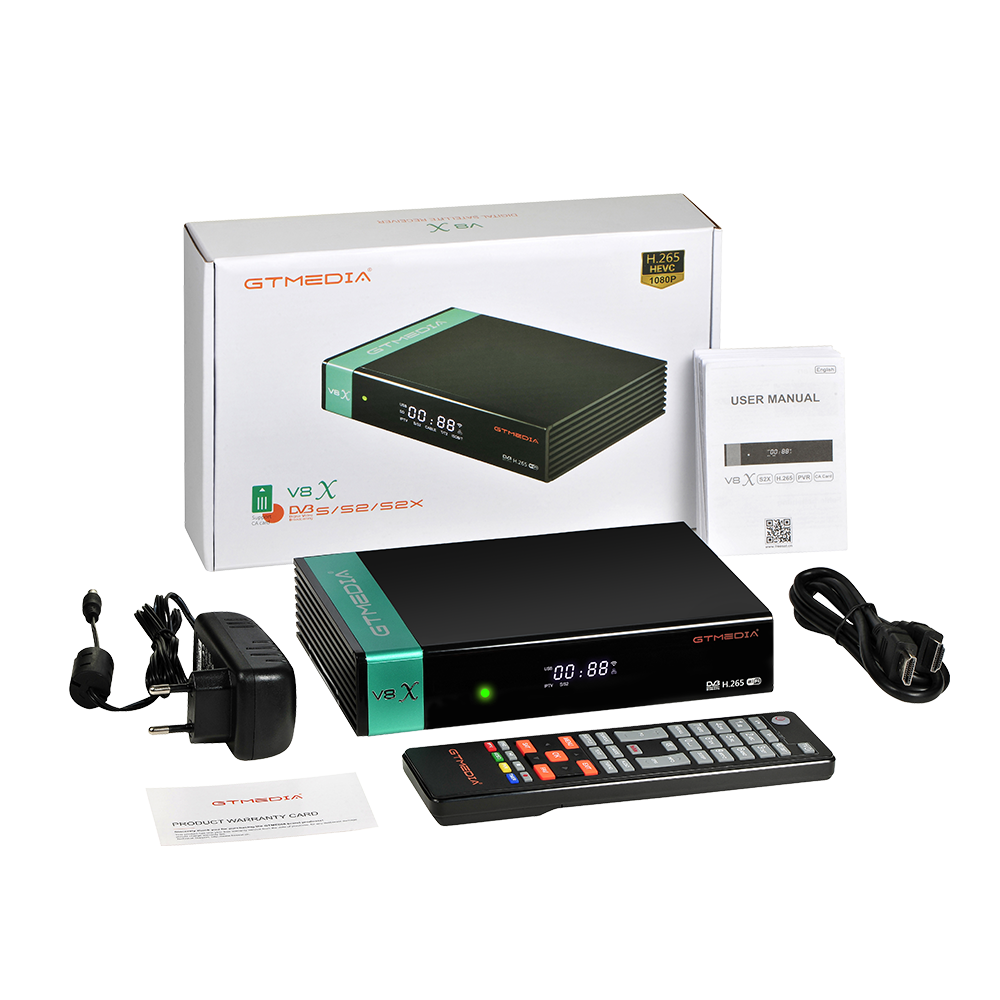

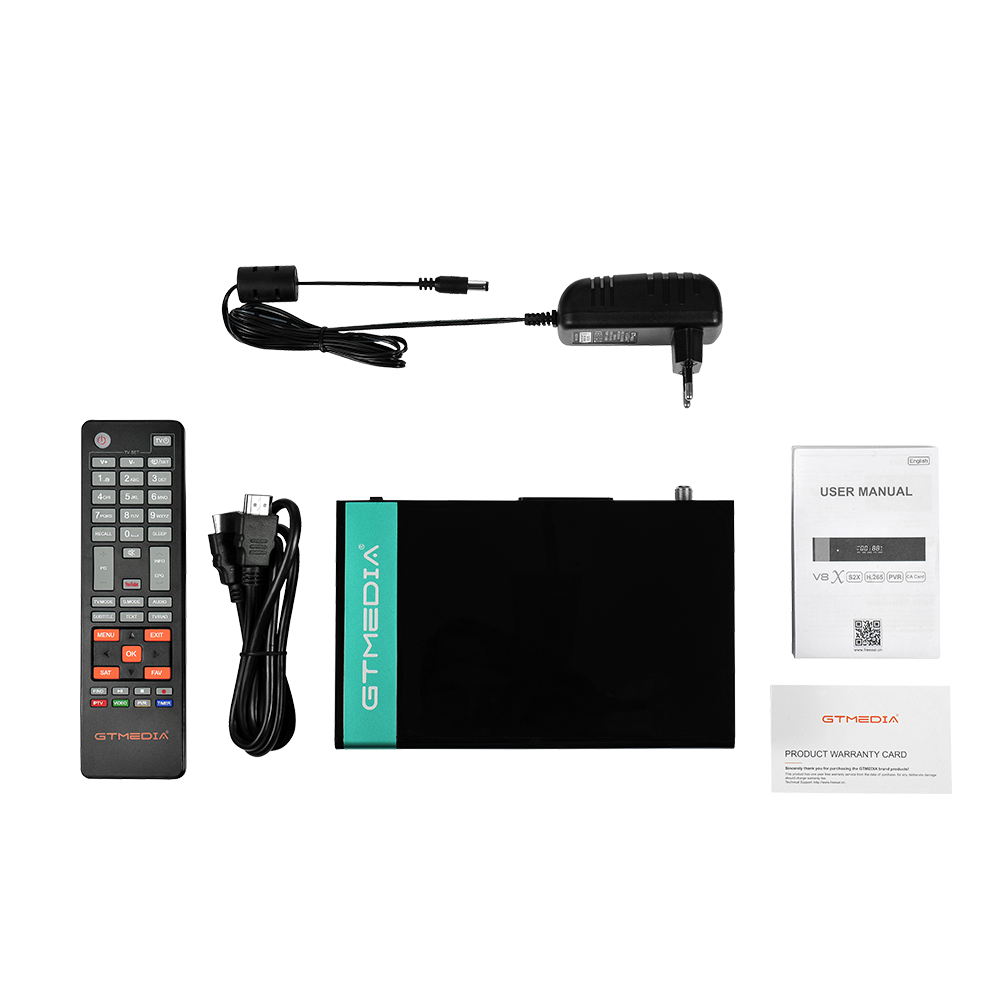

	Accessories		Gift , adapter, IR remote control, HDMI cable, user manual, warranty card
Physicals	Power Supply		AC 100V ~250V, 50/60Hz
	Power Consumption		10W in operation 1 in Standby Power Mode
	Temperature		Operation 0~ 45℃; Storage -10~ 60℃
	Humidity		20~90%, non-condensed
